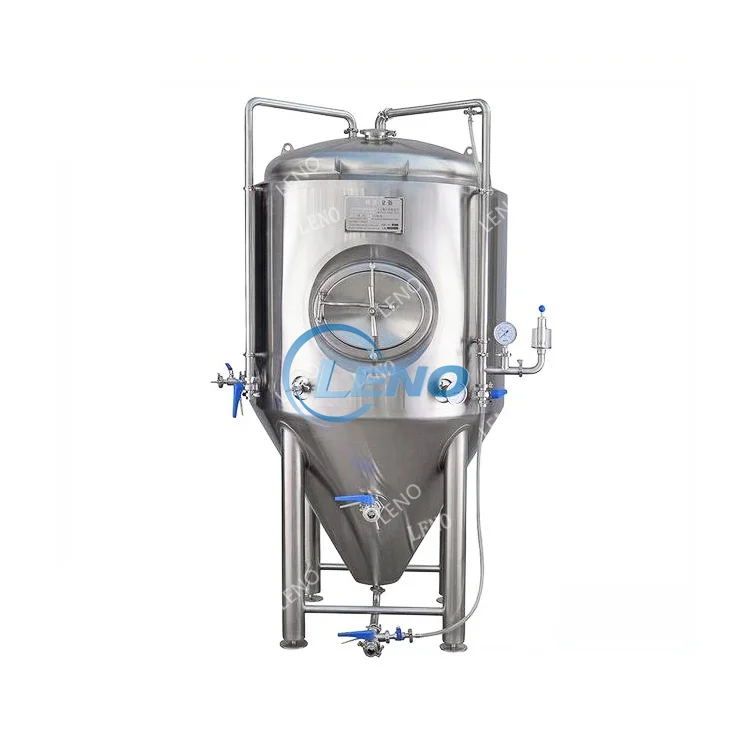

Best Price Stainless Steel 304 316 All In One Fermentation Glycol Chiller
- Category: >>>
- Supplier: Wenzhou Leno Machinery Co. Ltd.
Share on (1600526927301):
Product Overview
Description
Products Description
Best Price Stainless Steel 304 316 All In One Fermentation Glycol Chiller
We Can Make The Brewing Equipment For Beer, Wine, Sparkling Wine ,Whiskey,Gin, Brandy, Rum Etc The Equipment Capacity From 300l To 30000l. Beer Equipment: Including The Brewhouse,Fermenter , Brite Tank , Cip Trolley Etc; Wine Equipment: Including The Red Wine/White Wine/Sparkling Wine Tank , Floating Lid Wine Tank And Whole Wine
Profile type | Single layer tank | Double layer tank | Three layer tank | ||
material | SS304 or SS316L | ||||
Volume | 10L-20T (Customized) | ||||
Pressure | Vacuum-1Mpa | ||||
Tank Type | Vertical type or Horizontal type | ||||
Structure | one layer | Inner layer+jacket | inner layer+jacket+insulation | ||
Cooling way | No | ice water /cooling water | ice water /cooling water | ||
heating way | No | electric/steam heating | electric/steam heating | ||
Agitator type | No | low speed | High speed | ||
No | 0-200RPM | 960-3400RPM | |||

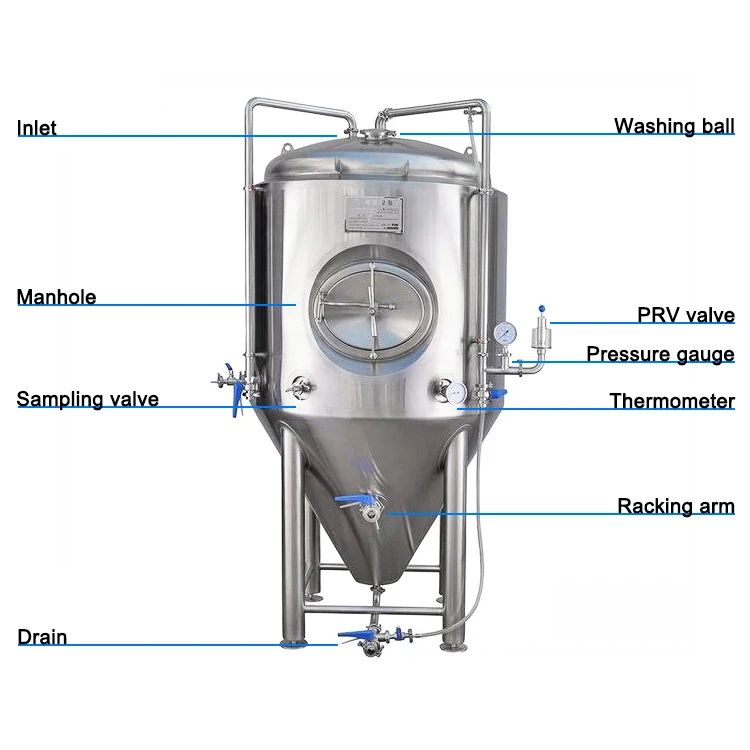

PARTS DETAILS | 1.Quick open manhole / Pressure manhole | ||||
2.Various types of CIP cleaners | |||||
3.Sterile respirator | |||||
4.Adjustable Legs | |||||
5.Inlet and Outlet sanitary valve | |||||
6.Thermometer (According to customer requirements ) | |||||
7.Paddle blender .(According to customer requirements) | |||||
8.Liquid level meter and lever controller (According to customer requirements) | |||||
9.Ladder | |||||
Used as storage and fermentation tank in wine, dairy industries
Applicable in the field of food, dairy, juice, pharmaceutical chemical and biological fields
All pipes are all ISO or DIN sanitary pipe, internal and external adopt food grade mirror polish
PLC control system, which could achieve automatic, semi-automatic control, to ensure the accurately and effectively of parameters and experimental results.
Applicable in the field of food, dairy, juice, pharmaceutical chemical and biological fields
All pipes are all ISO or DIN sanitary pipe, internal and external adopt food grade mirror polish
PLC control system, which could achieve automatic, semi-automatic control, to ensure the accurately and effectively of parameters and experimental results.
The bright beer tank is a tank of store beer, so people also called it a storage tank. They are most applying in the beer
industry, Why they call it a “bright beer tank”?someone also calls it brite beer tank. In fact, after beer fermented and mature, then need to filter and wipe off the mixed and yeast from the fermentation liquid, make beer clarify and shine. At last, the fermentation liquid finished filtering is bright beer. This is also the last step of the brewing process, then beer bottling.
industry, Why they call it a “bright beer tank”?someone also calls it brite beer tank. In fact, after beer fermented and mature, then need to filter and wipe off the mixed and yeast from the fermentation liquid, make beer clarify and shine. At last, the fermentation liquid finished filtering is bright beer. This is also the last step of the brewing process, then beer bottling.
Technical Parameters | ||||||||
Model | Capacity(L) | Diameter(mm) | Height(mm) | conical degree | ||||
7BBL | 1113L | 1000 | 1250 | 60°/90° | ||||
10BBL | 1590L | 1150 | 1250 | |||||
15BBL | 2385L | 1250 | 1680 | |||||
20BBL | 3180L | 1400 | 1700 | |||||
30BBL | 4770L | 1650 | 1850 | |||||
40BBL | 6360L | 1750 | 2050 | |||||
50BBL | 7950L | 1750 | 2750 | |||||
60BBL | 9540l | 1850 | 2800 | |||||
80BBL | 12720L | 2100 | 2900 | |||||
100BBL | 15900L | 2200 | 3350 | |||||
We Can Customize The Equipment According To Your Requirements. | ||||||||

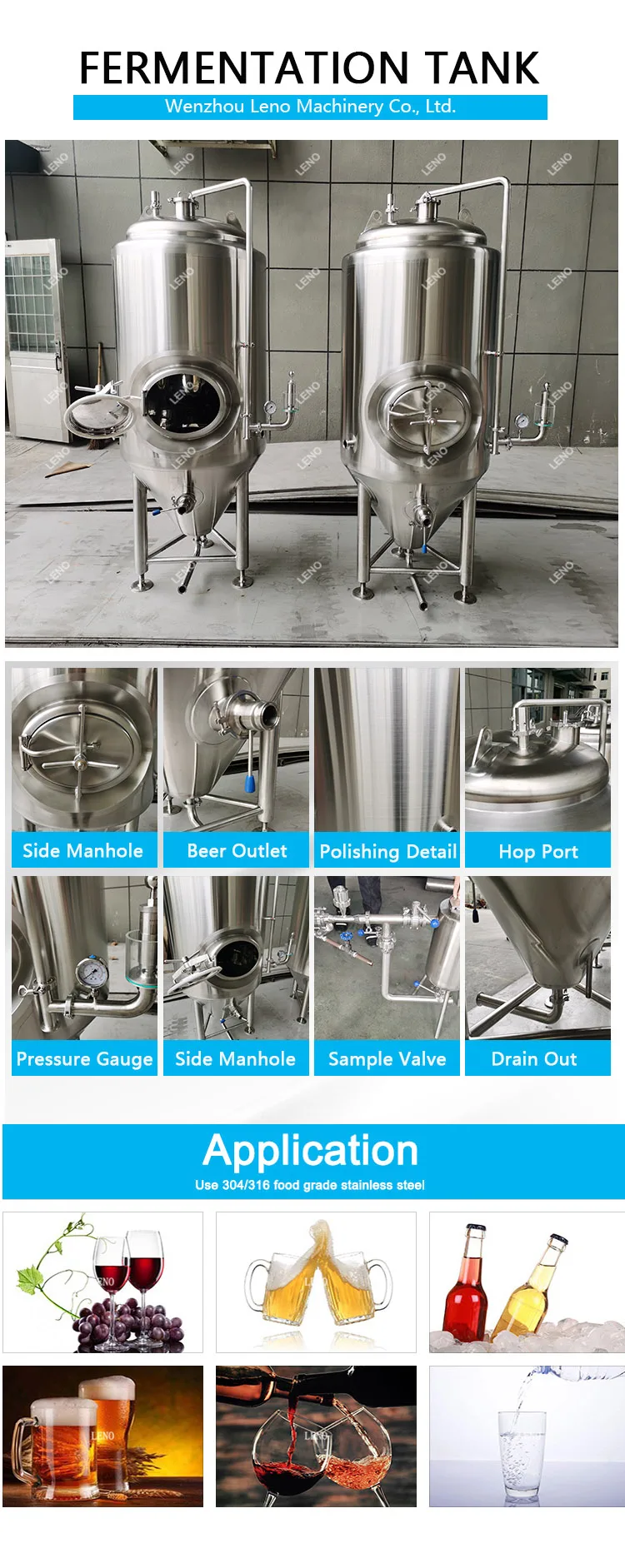

Details Images
Company Profile
FAQ
Q1 | Are you trade or manufacturer? |
A | We are a factory with an international sales company specialized in support for global distributors. |
Q2 | Can you provide instant technical consulting services? |
A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. |
Q3 | What's the difference between Ready-To-Ship and Customized products? |
A | Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production. |
Q4 | What is the payment terms? |
A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. |
Q5 | How to choose the shipment way? |
A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) |
Q6 | How about the after-sales service? |
A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. |
