1.Introduction of flotation beneficiation plant
Flotation beneficiation is a sorting method based on different physical and chemical properties of the mineral particles.
Flotation is widely used in fine-grained disseminated metallic minerals, nonmetallic minerals, chemicals and other mineral soring. Another important area which widely use flotation is to reduce ash and fine-grained pyritein the coal .

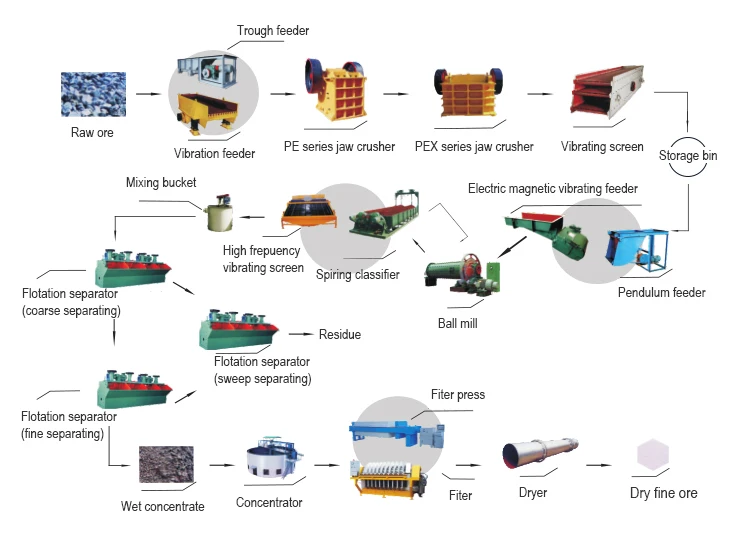

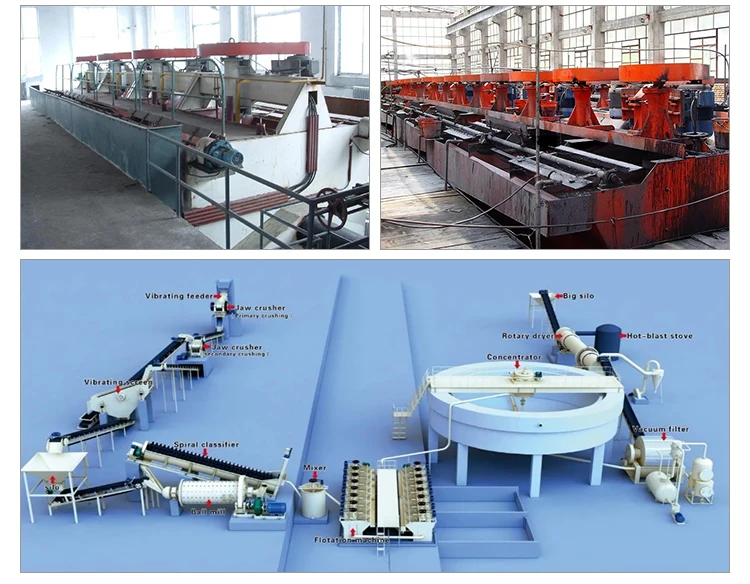

Process of flotation beneficiation
1. Ore crushing
1. Ore crushing
2. The crushed material was sent to ball mill for grinding.
3. Classified granule with unsuitable size will be sent back to the ball mill , while suitable ones will be sent to the flotation system.
4.Some medicament agent will be added to separate target material from others.
5.After going through the flotation system , they will be concentrated and filter pressed, and then get the final products
6.The whole process is finished.
6.The whole process is finished.
2.Advantages of flotation benefication
1. Shanghai Minggong had a strict and effective quality control system in manufacturing process.
2.Shanghai Minggong flotation beneficiation equipment have been approved by ISO9001-2008&CE certification.
3.we not only supply the complete flotation beneficiation with favorable prices, but also the installation and maintenance
service for the customers .
3.we not only supply the complete flotation beneficiation with favorable prices, but also the installation and maintenance
service for the customers .
4.we offer the service during the whole using-life of the equipment.
Flotation benefication
Flotation benefication main technical parameters
Model | Effective volume (m³) | Processing ability (m³/min) | Motor power (kw) | Spindle speed (r/min) | Scraper. speed (r/min) | Scraper power (kw) | Trough size (mm) | Single slot weight(kg) |
SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 352 | 25 | 1.1 | 700x700×750 | 468 |
SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 900×820×950 | 600 |
SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100×1100×1100 | 1873 |
SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1750×1600×1150 | 2538 |
SF-4 | 4 | 2.0-4.0 | 15 | 220 | 25 | 1.5 | 1850×2050×1200 | 2838 |
SF-8 | 8 | 4.0-8.0 | 30 | 191 | 25 | 1.5 | 2200 x2900×1400 | 4129 |
SF-10 | 10 | 5.0-10 | 30 | 191 | 25 | 1.5 | 2200×2900 x1700 | 4486 |
SF-20 | 20 | 5.0-20 | 30×2 | 191 | 25 | 1.5×2 | 2850 x 3800×2000 | 9828 |
Model | Effective volume (m³) | Capacity (m³/min) | Rotate speed (r/min) | Impeller dia. (mm) | Motor | Single slot weight (kg) | ||||||
Model | Power(kw) | |||||||||||
Rotator | Scraper | Motor forimpeller sotor | Motor for scraper | |||||||||
XJK-0.35(3A) | 0.35 | 0.18-0.4 | 470 | 300 | Y90L-4 | Y90S-4 | 1.5 | 1.1 | 430 | |||
XJK-0.62(4A) | 0.62 | 0.3-0.9 | 400 | 350 | Y100L2-4 | Y90S-4 | 3 | 1.1 | 860 | |||
XJK-1.1(5A) | 1.1 | 0.6-1.6 | 330 | 500 | Y132M2-6 | Y90S-4 | 5.5 | 1.1 | 1380 | |||
XJK-2.8(6A) | 2.8 | 1.5-3.5 | 280 | 600 | Y160L-6 | Y90S-4 | 11 | 1.1 | 2330 | |||
XJK-5.8(7A) | 5.8 | 3-7 | 240 | 750 | Y200L2-6 (Y225M-6) | Y90L-4 | 22(30) | 1.5 | 3533 | |||

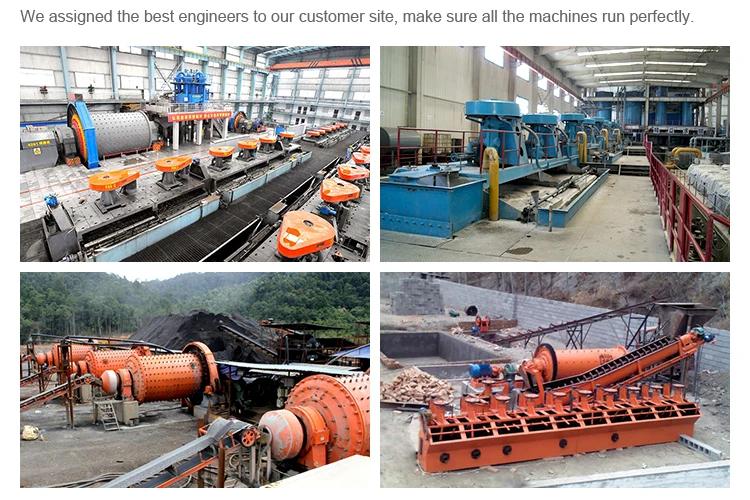

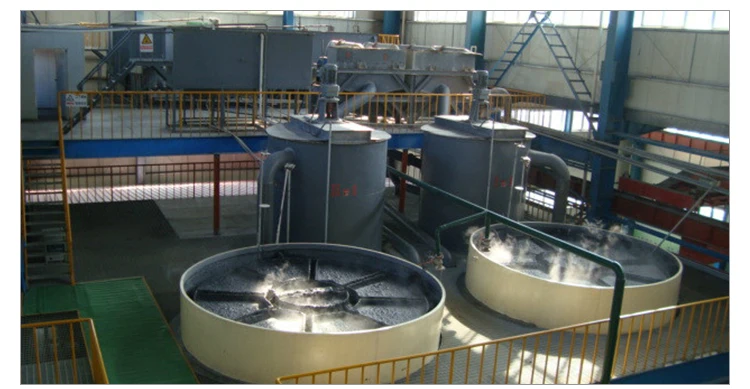

Our Project

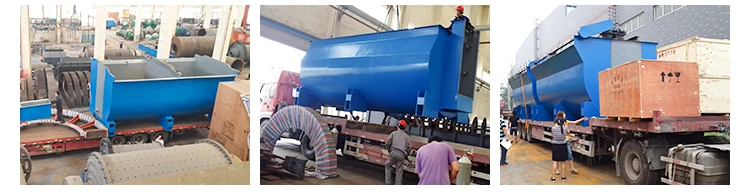

Packaging & Shipping
Packaging Details：We will make different packaging according to different machine sizes .standard international export packing, container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons
More Products
Company Information
Shanghai Minggong Heavy Equipment Co., Ltd. is a manufacturer specialized in large and medium-sized mining machinery, metallurgical machinery and building material equipment R & D, production and marketing. In 2005, our company bought 40000 square meters of land in Shanghai Jiading Malu High-Tech Park and built a factory of 18000 square meters, with assets of RMB 15 million and more than 400 employees. Our firm has a scientific research group with 70 technologists and 20 senior engineers. 15 years of experience ensures a well-trained riveter and welder team. Our company has long-term cooperation with many research institutions in China and abroad, bringing in advanced technology of the world.The products include large-sized ball mills, large-sized rotary kilns, rotary dryers, complete cement plants, jaw crushers, impact crushers, sand makers (vertical shaft impact crushers), feeders, vibrating screens, sand washing machines, belt conveyors and others, totally over one hundred models. These machines are widely used in mining, chemistry, metallurgy, construction material, coal and refractory material industries. The products have passed ISO9001:2000 international quality certification and CE quality certification. Our quality policy is 'Quality first, reputation first, customer first'. The products have been sold to Russia, Japan, Australia, Uzbekistan, Korea, Myanmar, Indonesia, Iran, Chile, Mali, Guinea, Tanzania, Nigeria, the Philippines, Bangladesh and Cuba.Our company emphasizes fundamental management, has an enterprise management system and carries out position management & ABC management. The production technology is managed by computers. For product development, our firm adopts CAD / CAPP technology. Our company keeps developing new products, investing in technical innovation and improving product quality, to meet different needs of customers.
Our service
Service---customers is the first!
We not only have experienced engineers and after-sales groups but deal with the trade through internet and form our own sales network.
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1>. Select equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
1>. Assist clients to prepare for the first construction scheme;
2>. Install and debug the equipment;
3>. Train the first-line operators;
4>. Examine the equipment;
5>. Take initiative to eliminate the troubles rapidly;
6>. Provide perfect service;
6>. Provide perfect service;
7>. Provide technical exchanges.
FAQ
Q1: How long is the warranty of the flotation beneficiation plant?
A1: Our warranty period is one year generally.
Q2: Can I visit your factory?
A2: Yes. We warmly welcome you to visit our factory.
We will take you to our customer site to have a real look.
We will arrange a car to pick you up at the Xinzheng International Airport.
We will take you to our customer site to have a real look.
We will arrange a car to pick you up at the Xinzheng International Airport.
Q3: Do you provide equipment operation training?
A3: Yes. We can send professional engineers to the working site for installation, adjustment, and operation training. All of our engineers have passports.
Q4: Do you provide flow chart?
A4: Yes. Our experienced engineers are specialized in designing process flow for various project for different final product sizes.
Q5: Can you test our samples?
A5: Yes. You can send your samples to us for test and analysis.
