Factory direct sales intelligent vibrating knife cutting machine thermal insulation cotton cutting machine glass fiber cutting

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




Machine description
The aoyoo cnc auto loading oscillating vibrating automatic garment cutting machine digital leather/cloth/fabric/textile knife cutter used for cutting sunscreen fabrics and other fabrics for blinds.
Using the Swiss cutting system, the cut section is straight and tidy, no fray, no scorch, no flufy and no color
fading off.
The cutting tool can be cut in different ways by adjusting the type of the cutter according to the thickness of
the fabric.
Simple selection of tooling via push button, or by remote control
With electricity and roller feeding system


Technical Parameters


Technical parameters /model
TO-1625
Effective working area
1600x2500mm
Multi-function tool
Vibrating knife full cut,semi-cutting cut,indentation,drawing mark,cursor positioning,camera positioning edge cutting,high power
active round knife
safety devices
Safety devices use infrared sensing, safe and reliable
Cutting speed
200-2000mm/s
Cutting thickness
≤50mm Other thicknesses can be customized according to the material
Applicable materials
Glass fiber ,glass fiber cotton,perpreg, carbon fiber,carbon felt, boron fiber, aramid fiber ,ceramic fiber ,soft glass, PVC, leather leather,silicone,rubber material etc composite soft material
Material fixing method
Vacuum partition adsorption
Transmission port
Network port
Transmission system

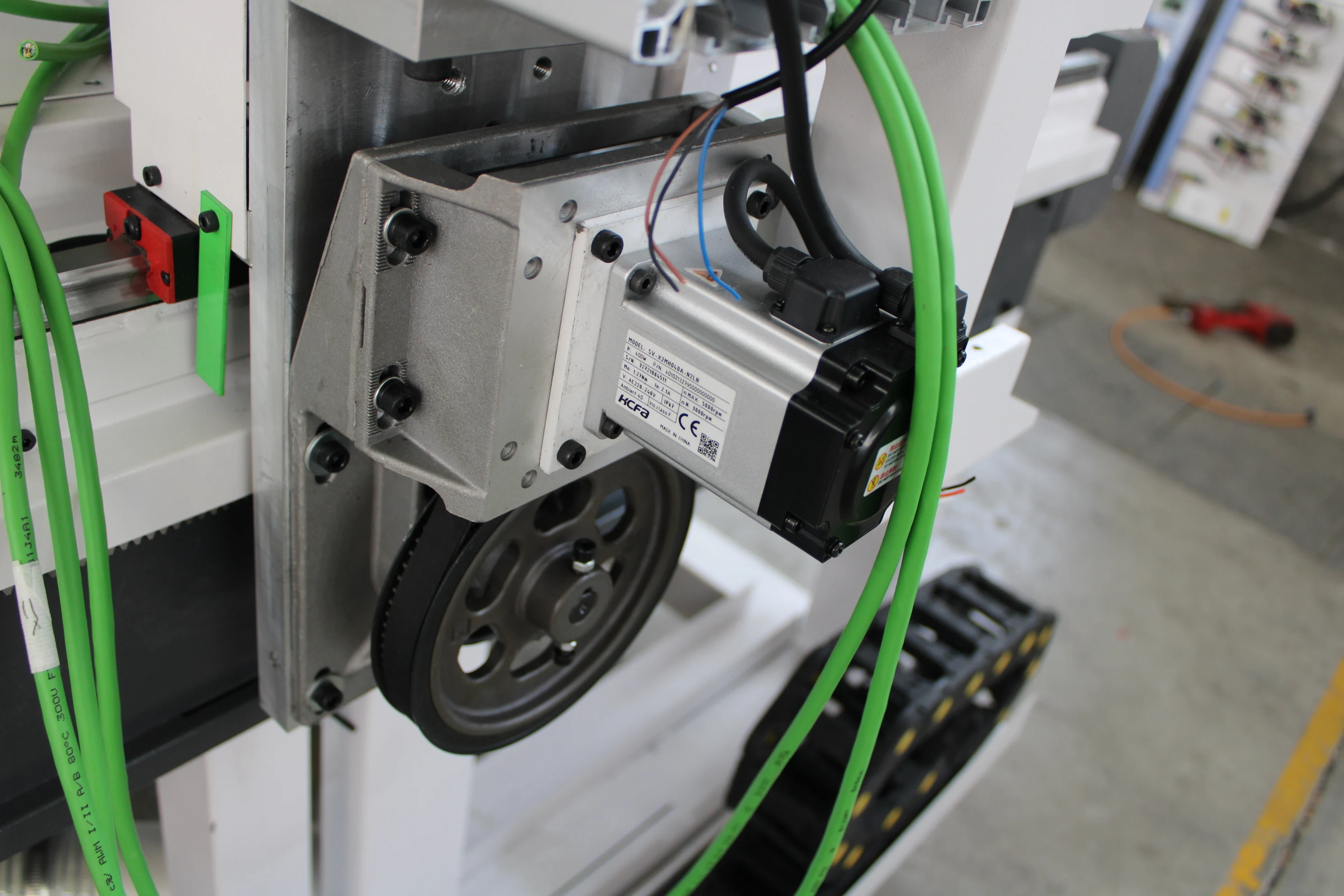

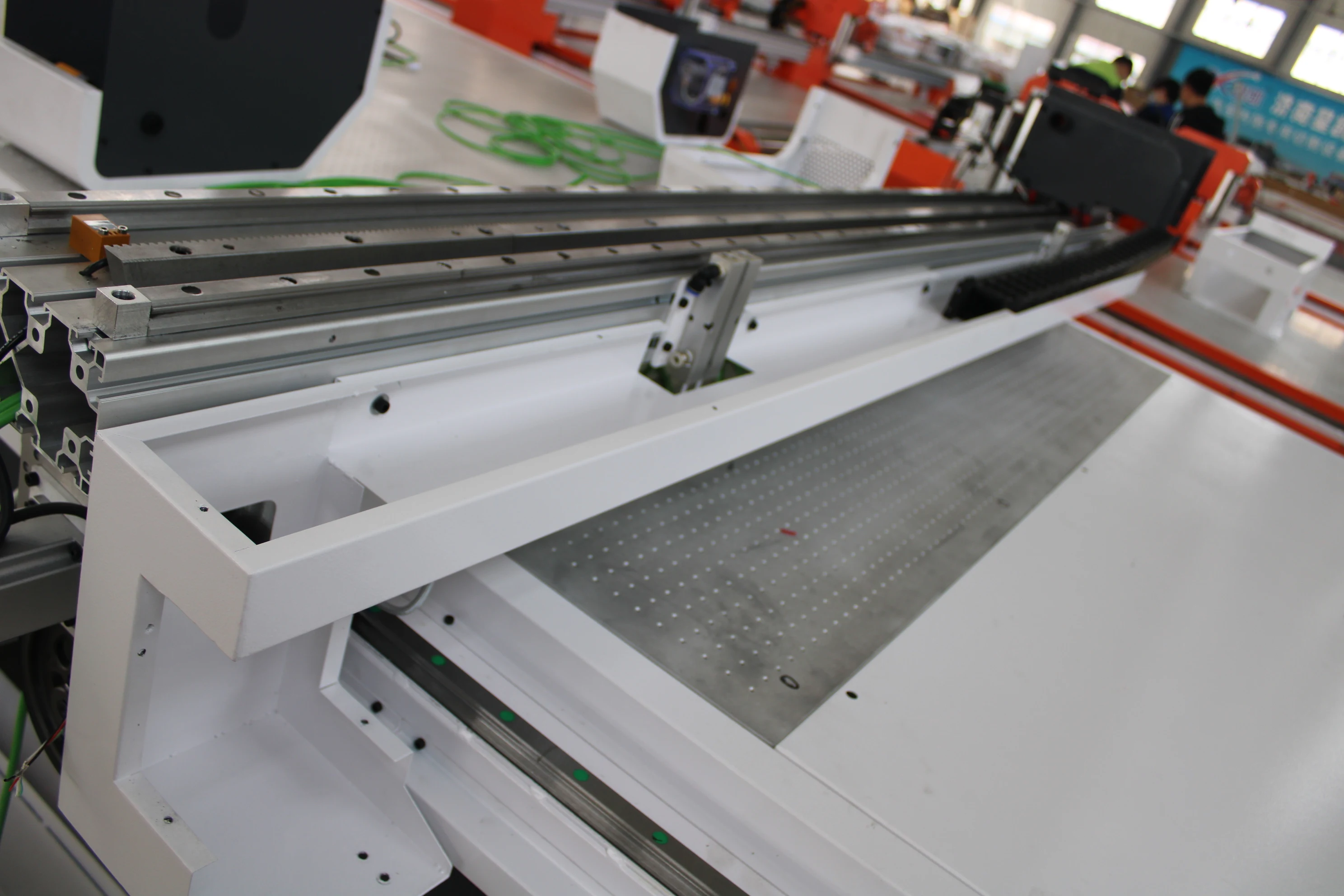

Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power
11kw
Rated voltage
380V±10%/220V±10% Optional

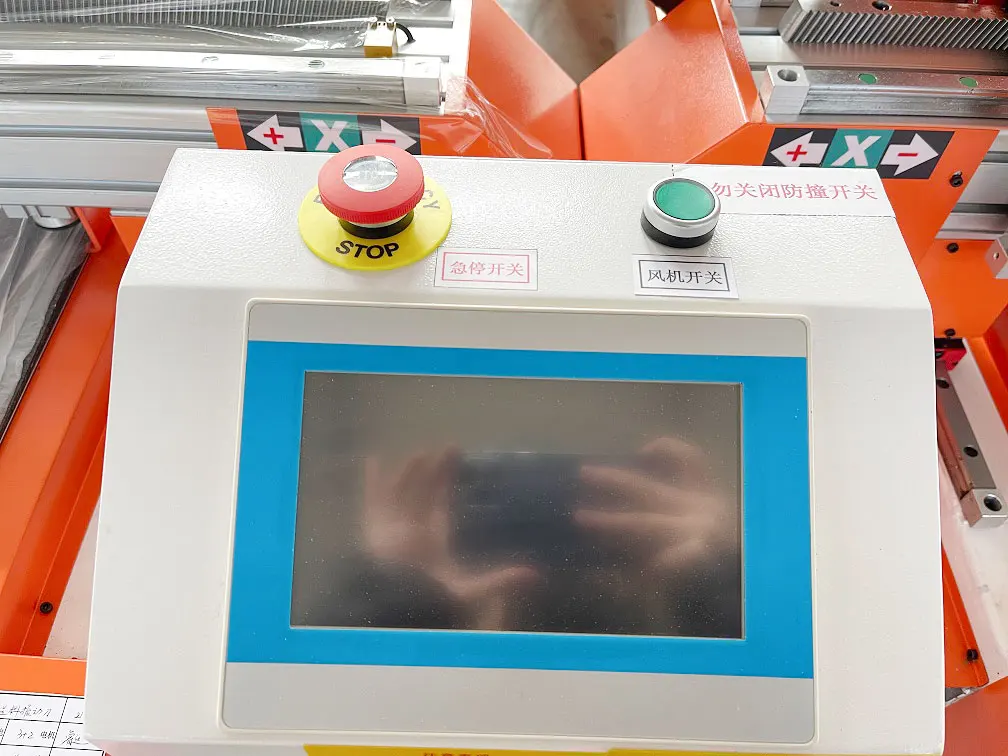

Control System
Chinese and English LCD touch screen
Operating environment
Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format
AI,PLT,DXF,CDRetc
Overall size
2300*3560* 1221mm

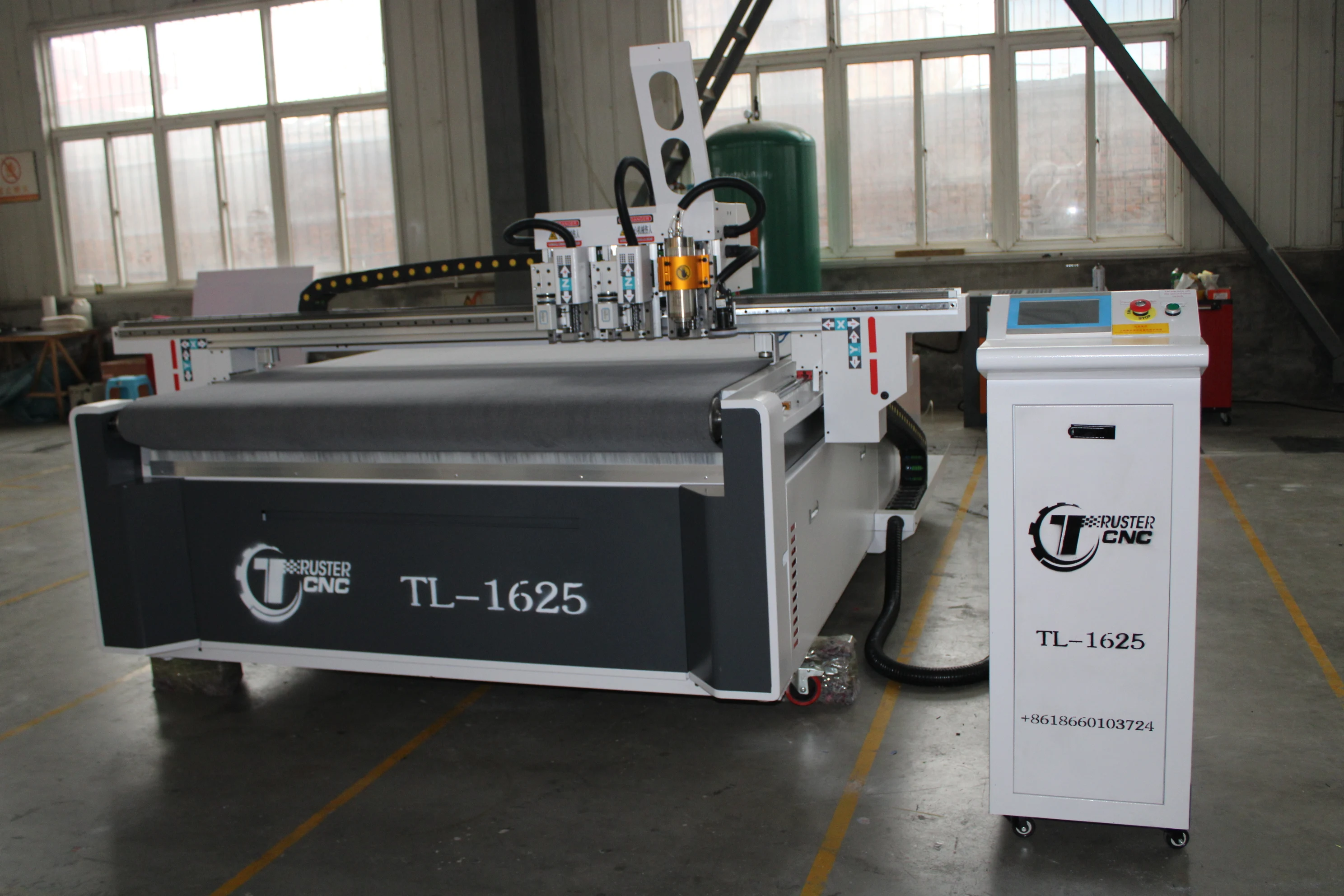

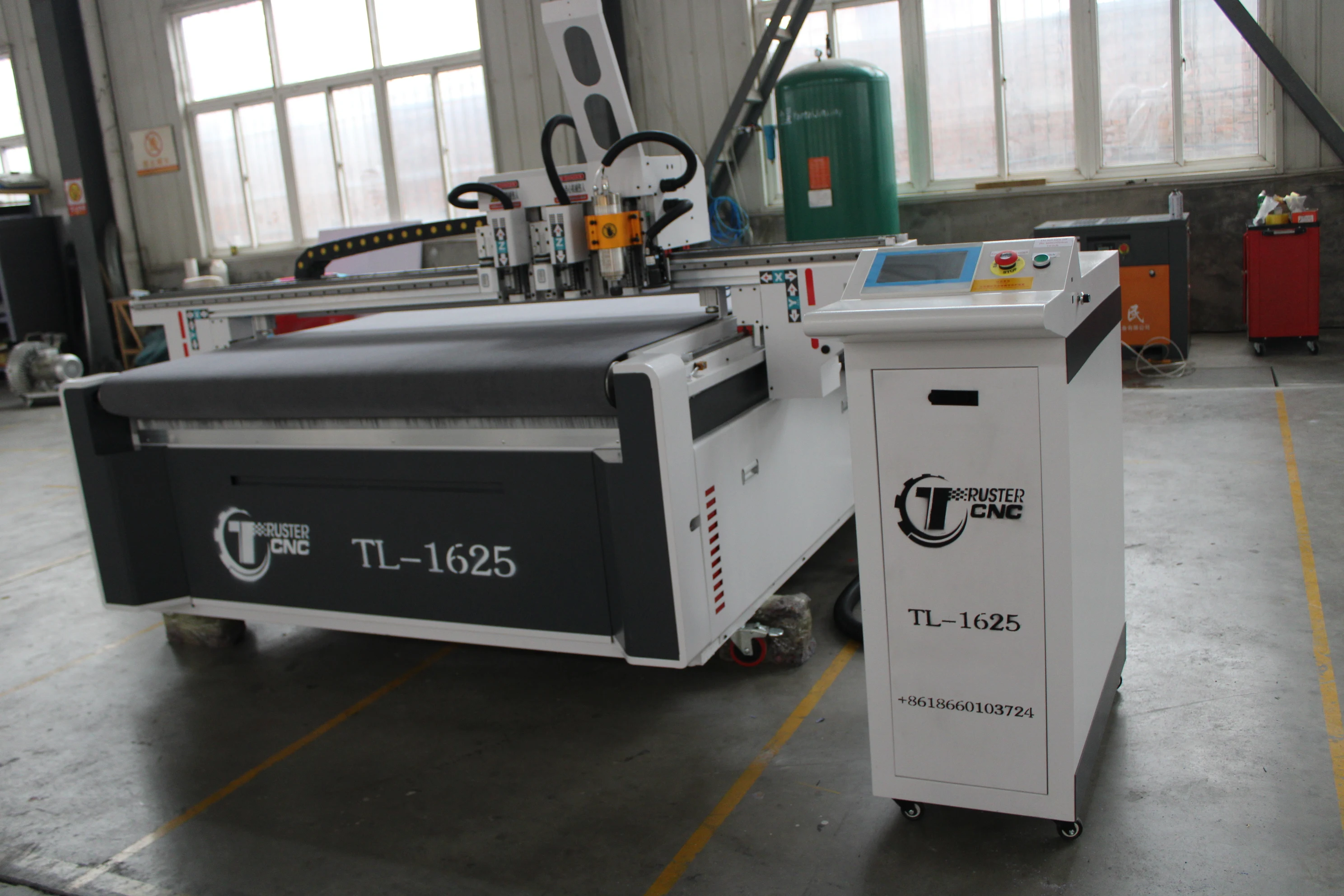

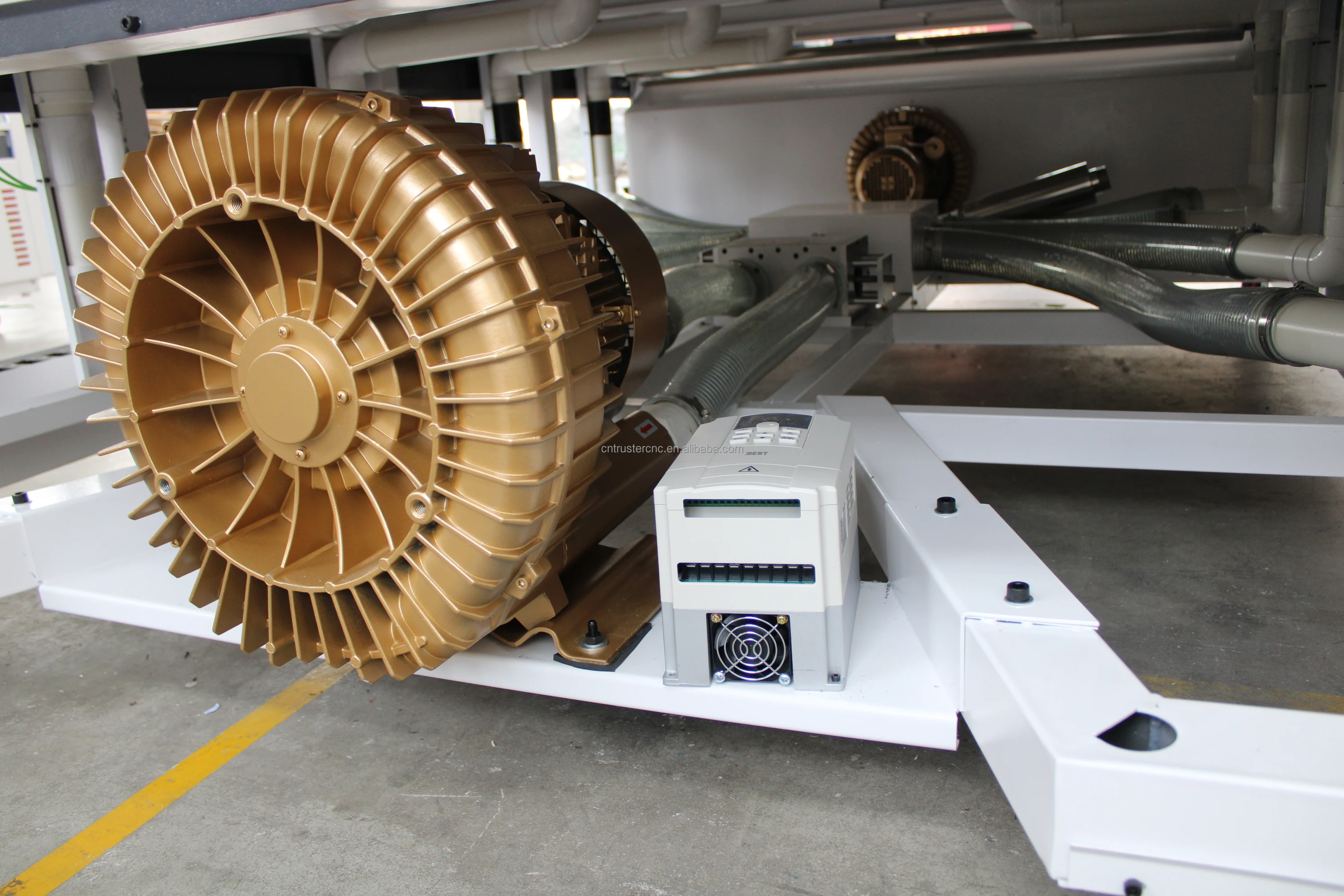

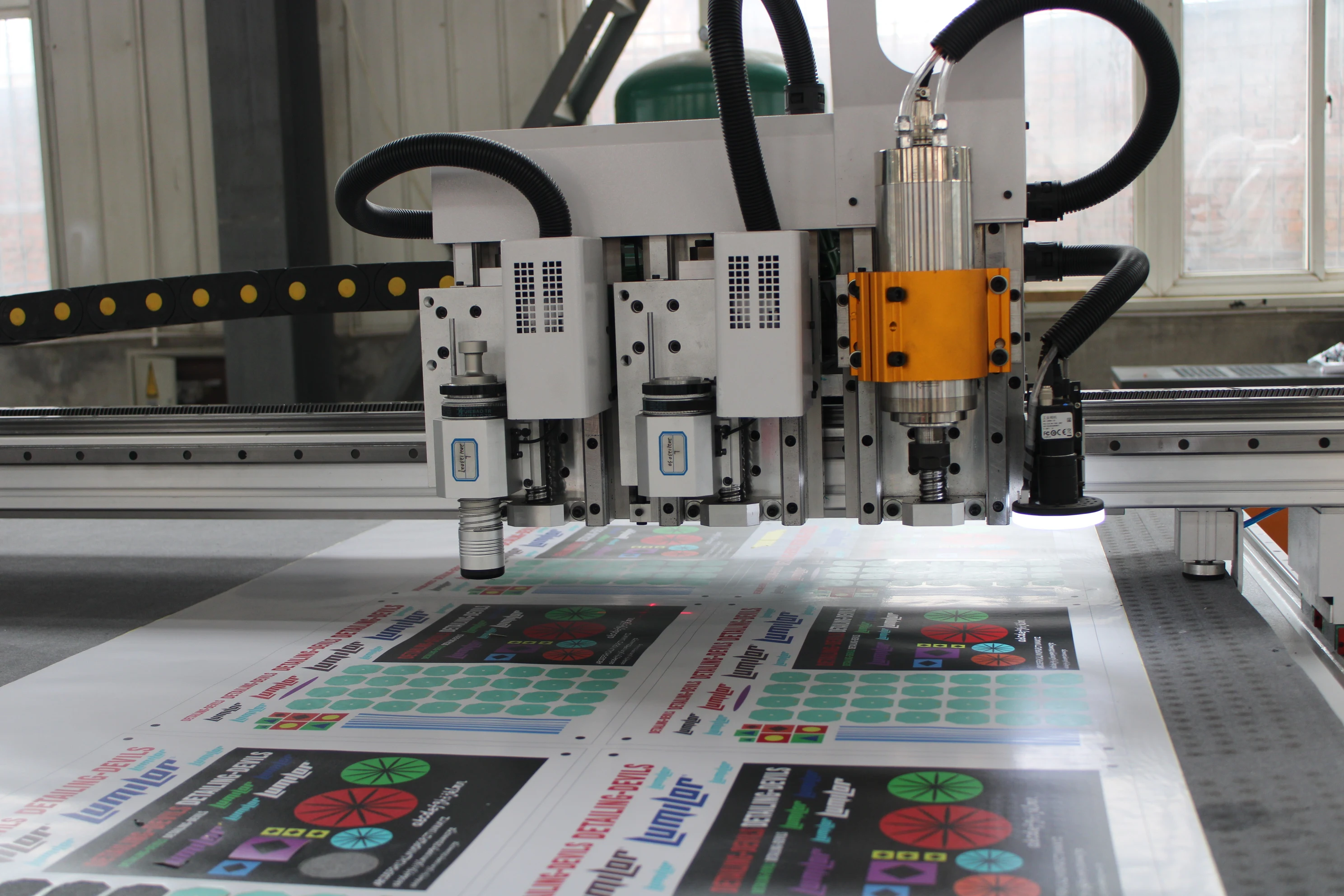

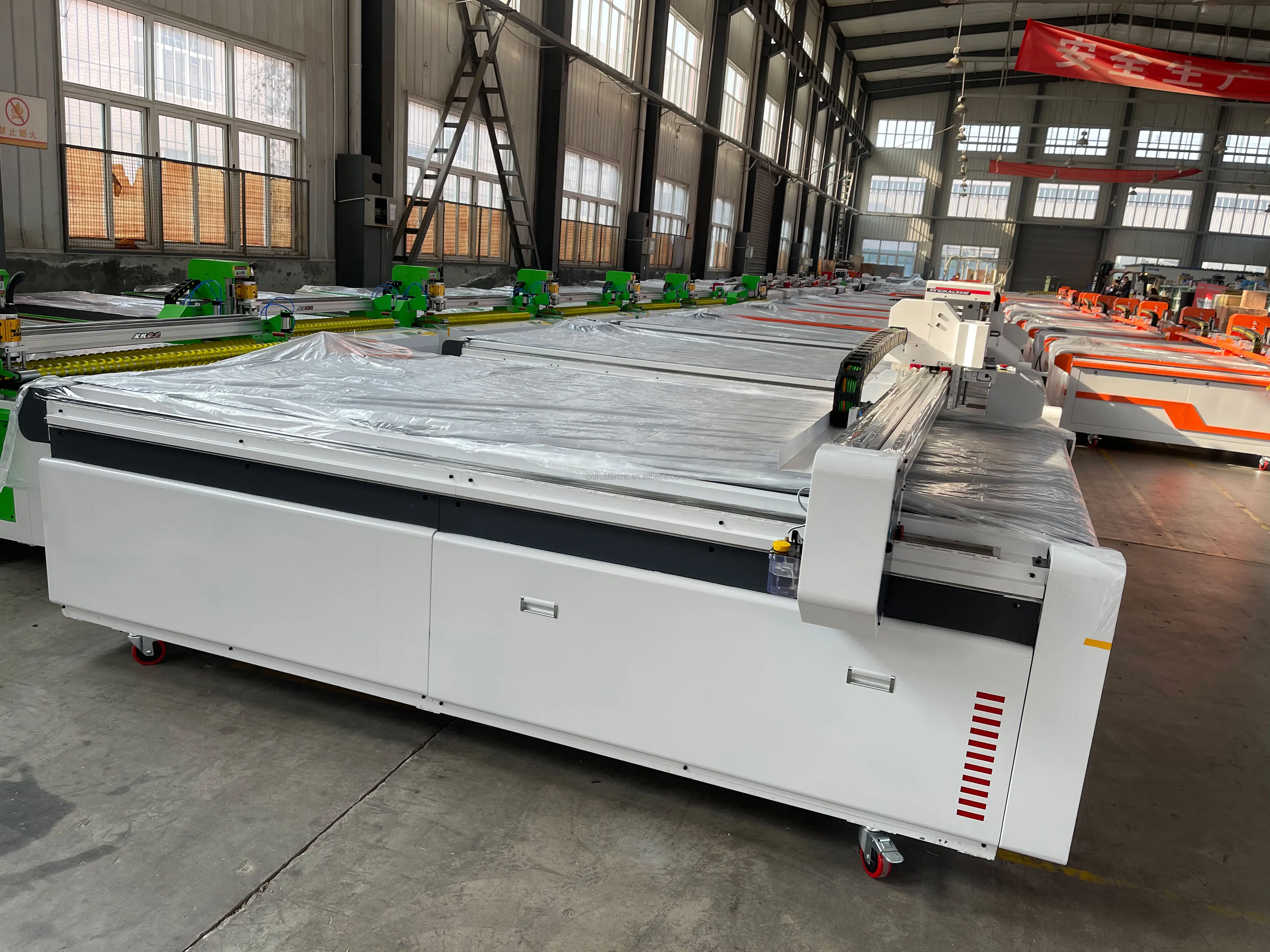

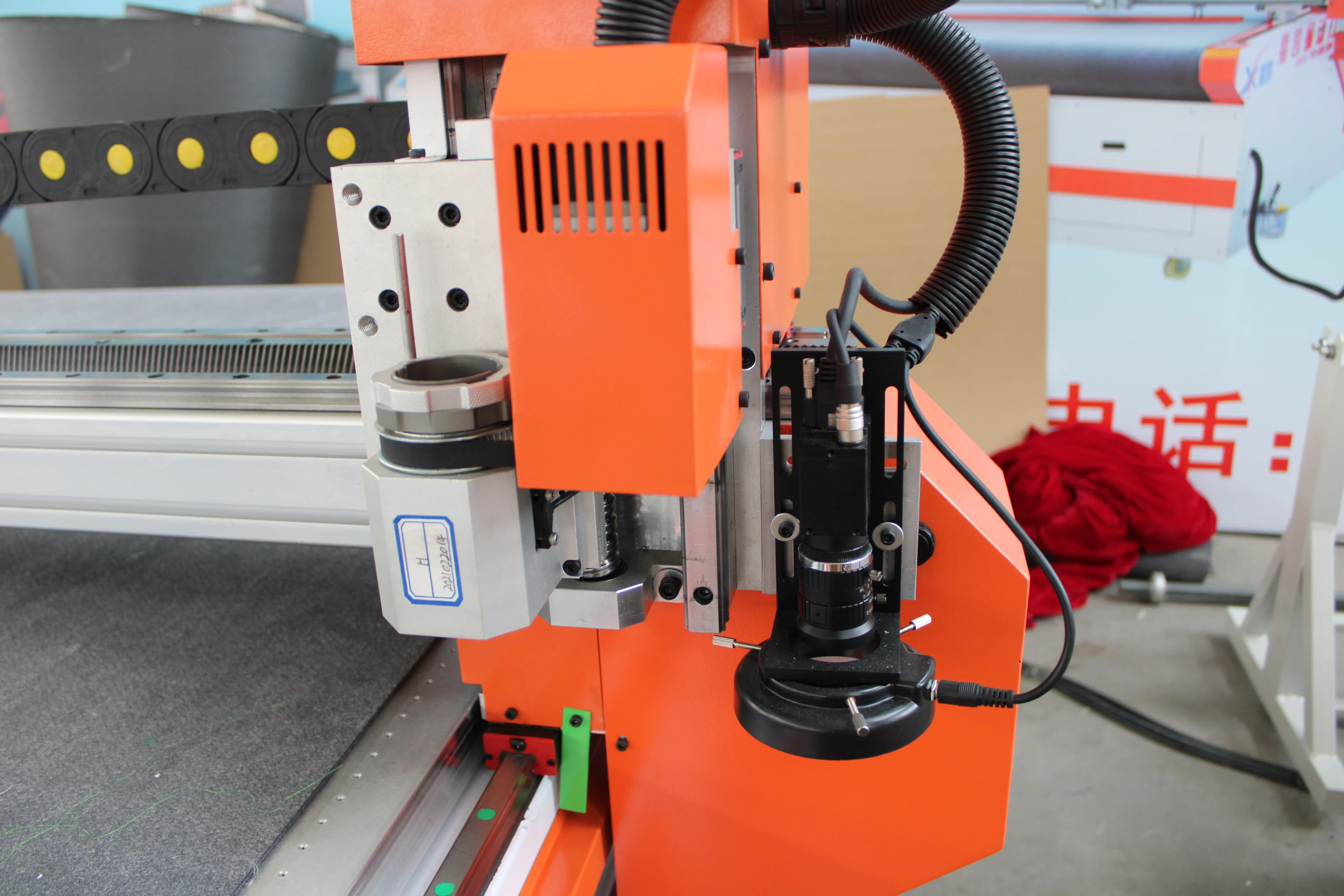

Details image

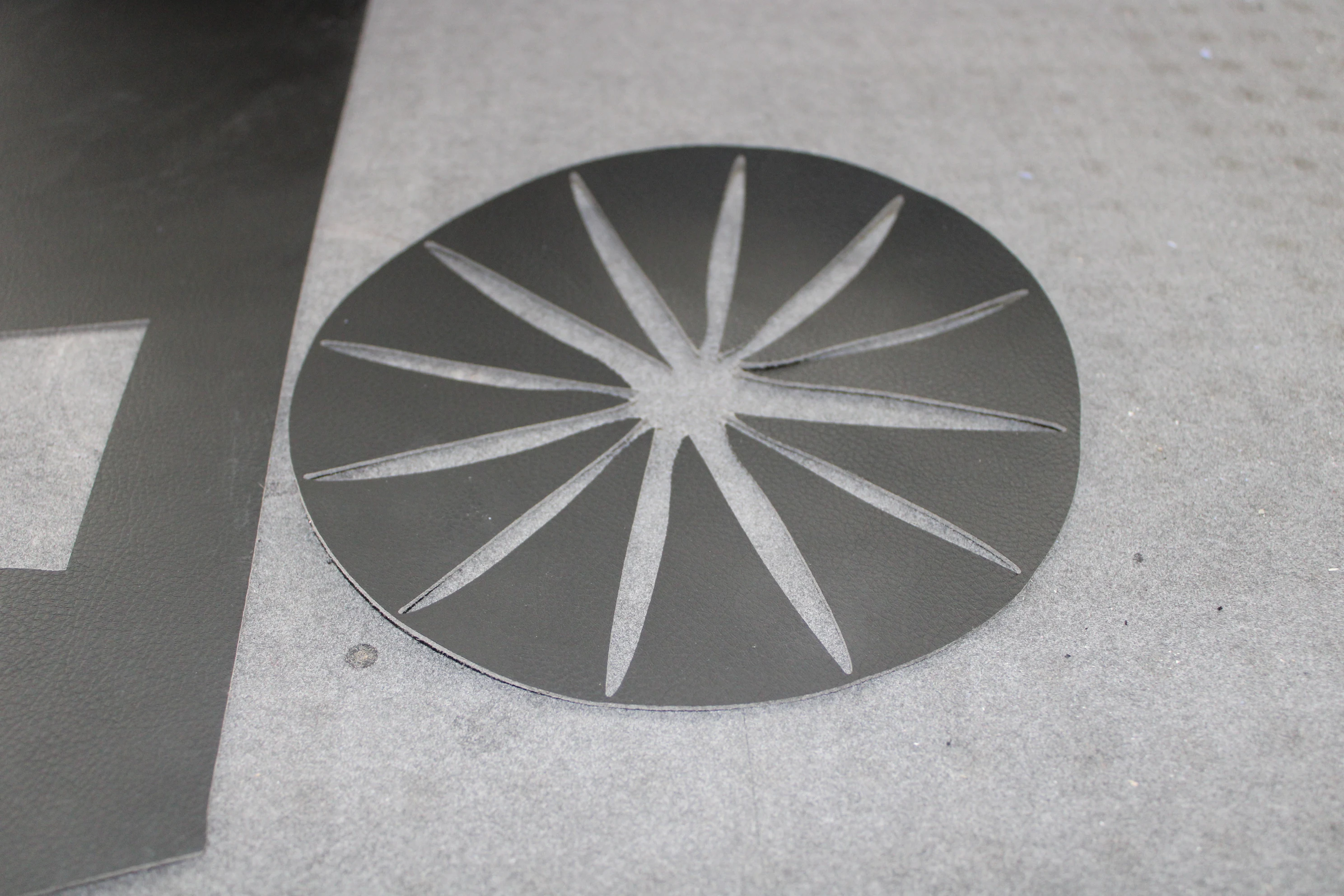

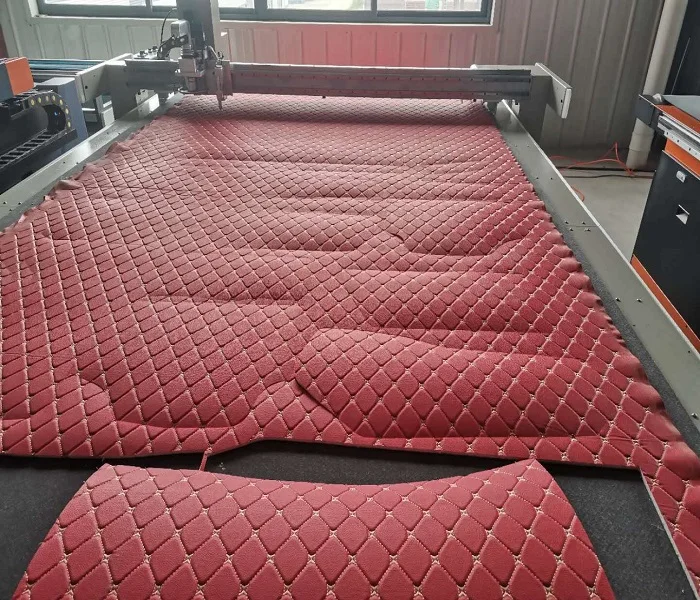

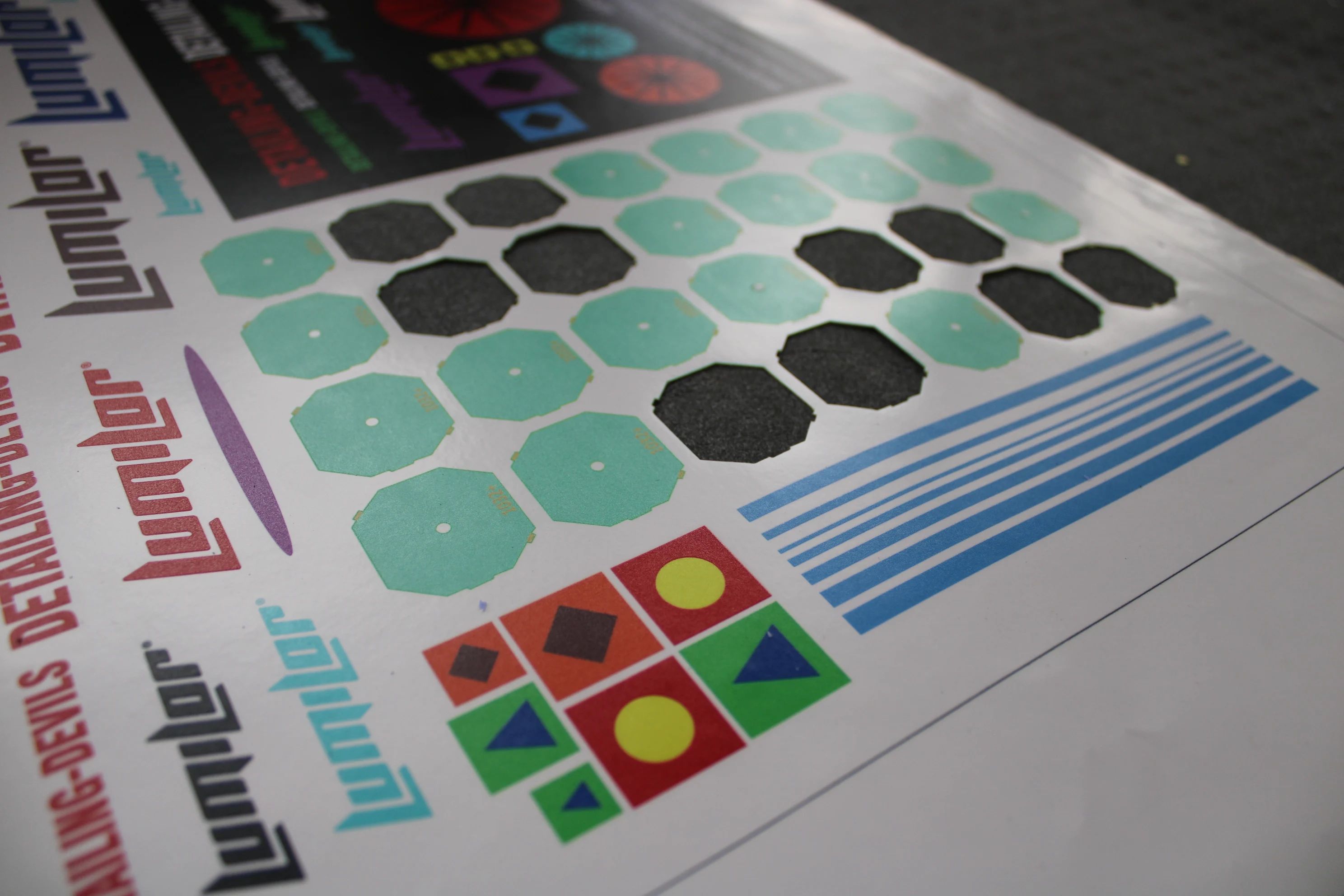

Sample show






Customer feedback

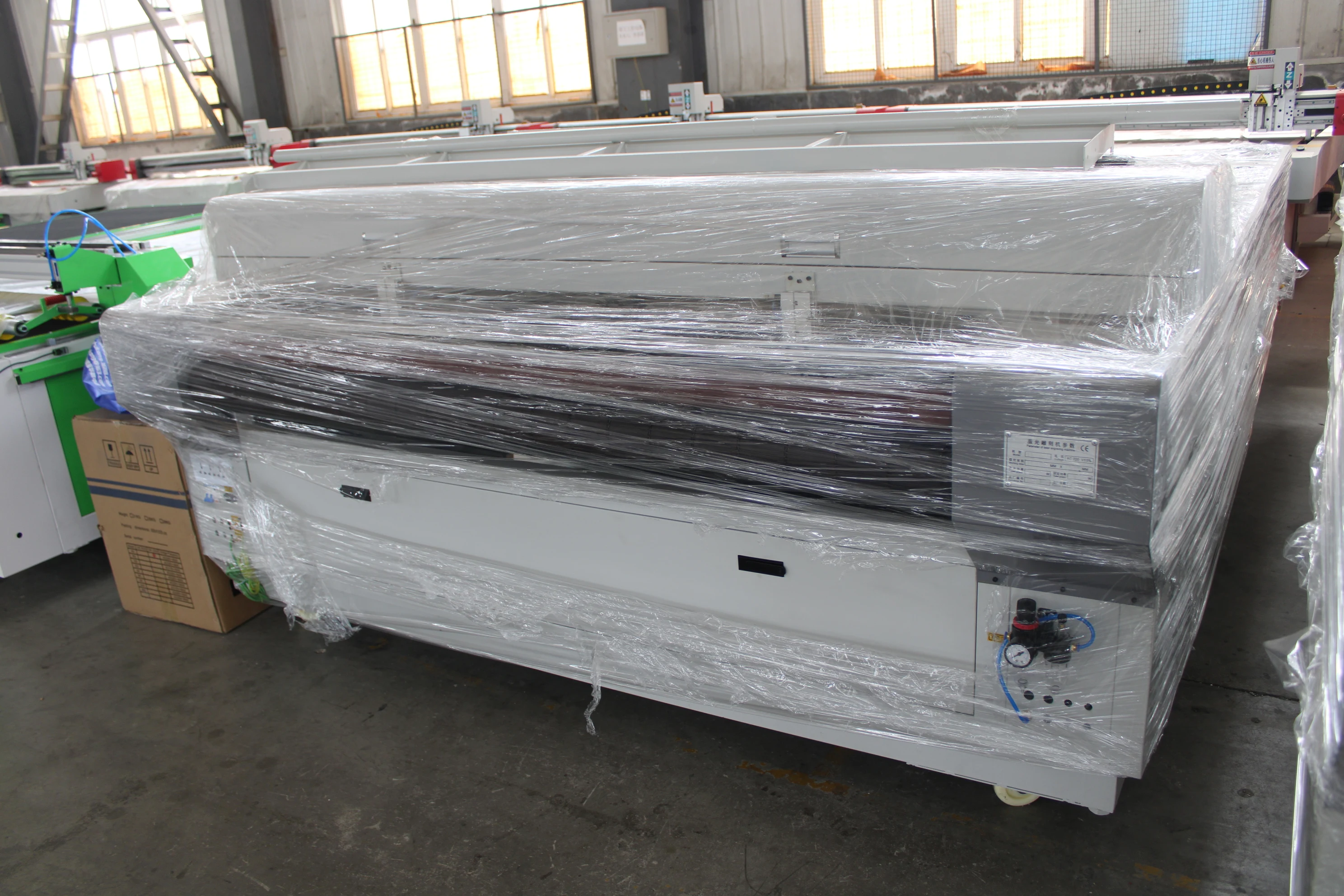

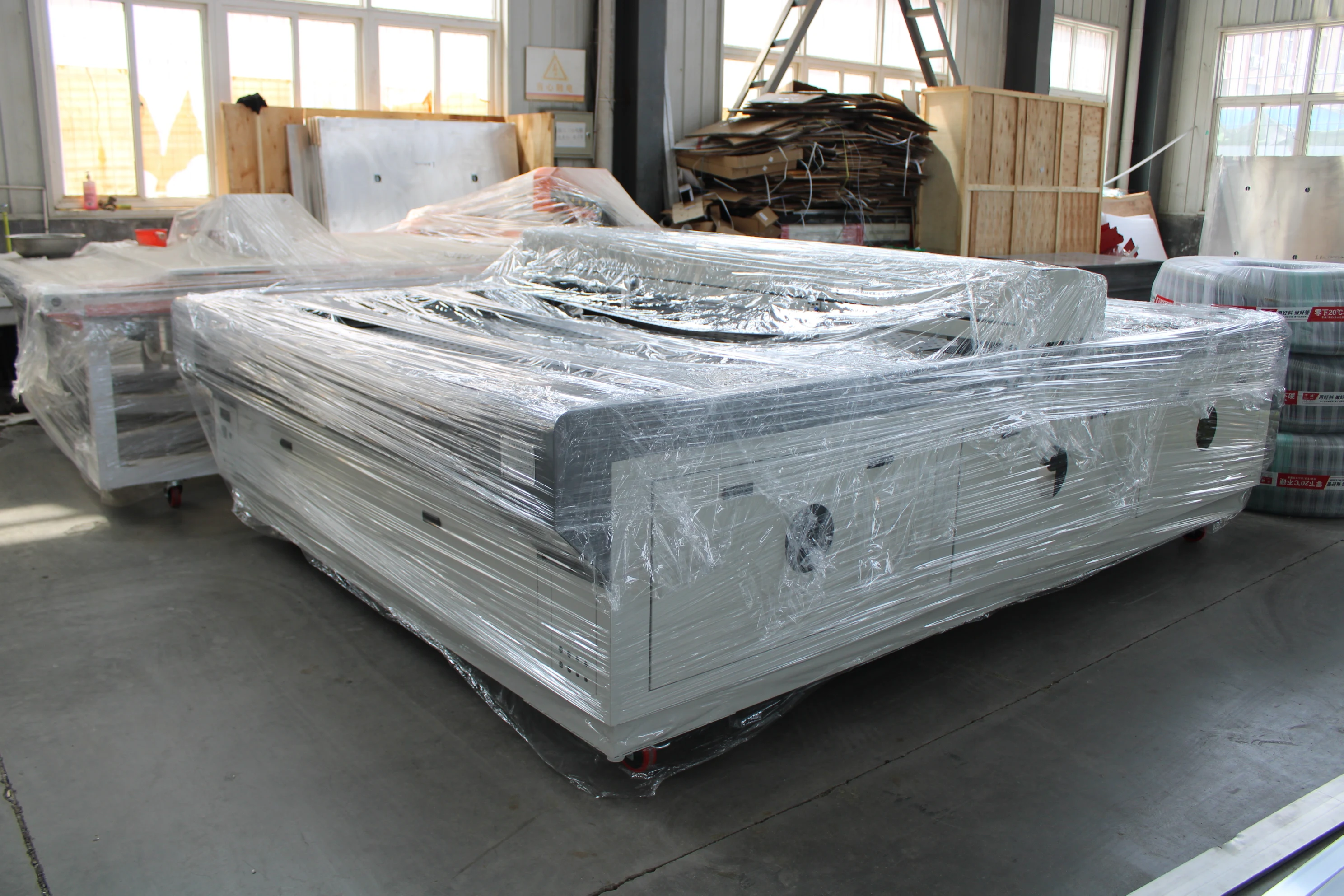

Packaging & Shipping

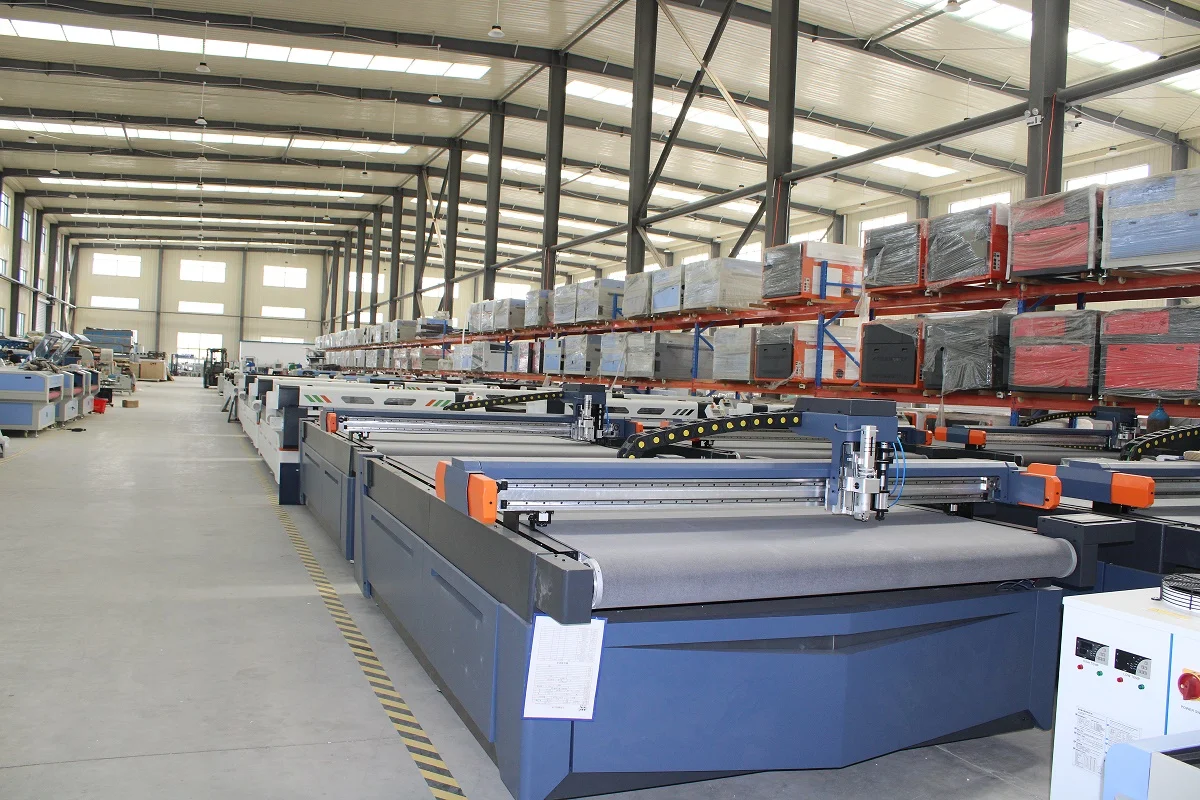

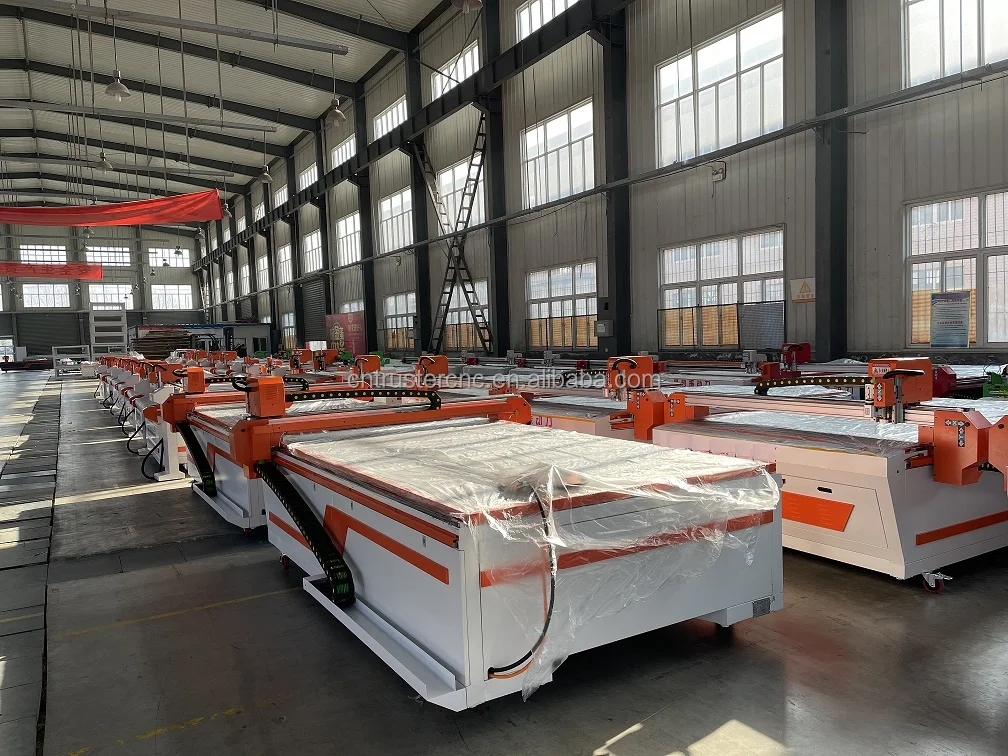

Factory Details
