Handheld Terminal PDA Mobile Android 11 Data Collector Inventory Machine Warehouse Inbound Industry Mobile Phone Scanner
- Category: >>>
- Supplier: Shenzhen Rugline Technology Co. Ltd.
Share on (1600526945567):
Product Overview
Description
Products Description

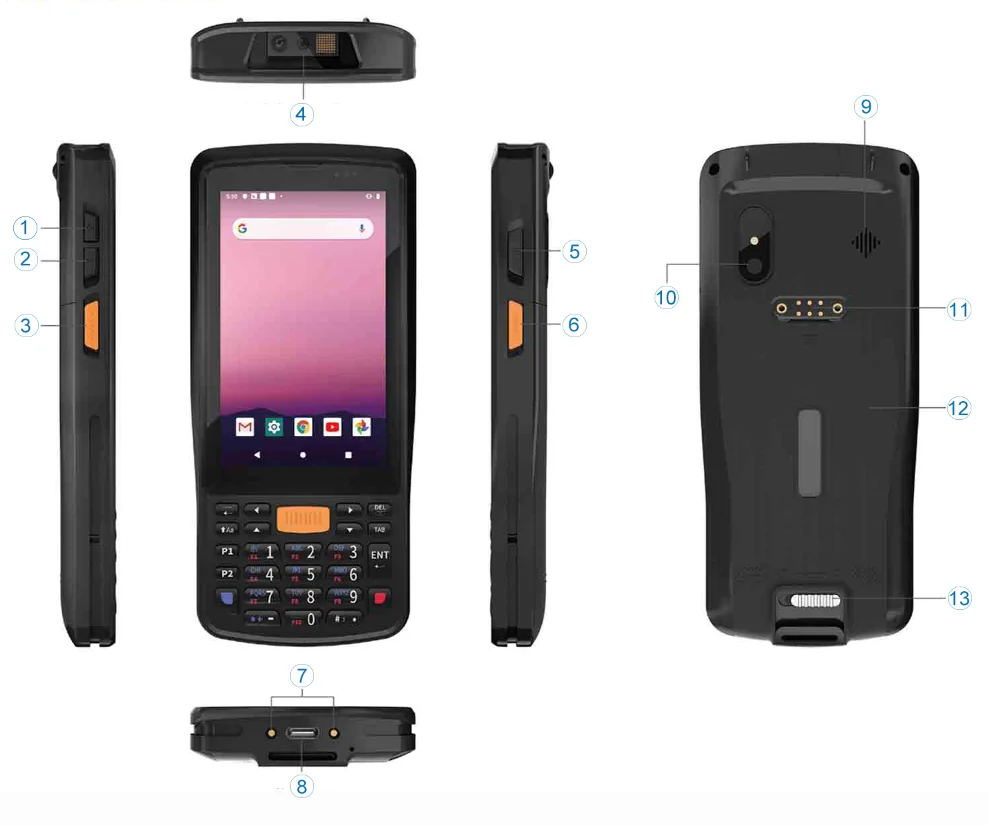

1:Volume Button+ | 2:Volume Button | 3:Scanning Button | 4:1D/2D Barcode Scanner |
5:Power on/off Button | 6:Scanning Button | 7:Pogo Pin interface | 8:Tyep C Port |
9:Loudspeaker | 10:Camera | 11:Pogo pin interface | 12:Battery |
13:Battery Lock |
Functions
• Support for Android 11 system
• Optional 4G all network communication, WiFi, Blue-tooth and other communication modes
• Equipped with 4500mAh large capacity battery, the machine has a endurance of 7 hours
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, Glonass, beidou(G+G+B), more accurate positioning
• With rear 13MP auto focus camera, you can easily collect your images and video information
• Support 1D / 2D, NFC and other functional modules to meet the application needs of multiple industries
Product Paramenters
X4 Basic parameters | ||
Dimension | 162.4 x 72.8 x 19.4mm | |
Weight | TBD | |
Device Color | black | |
LCD | 4inch IPS 16:9,480*800, 300Nit | |
Touch Panel | 5 points Capacitive,G+FF | |
Camera | Rear 13.0MP | |
I/O | Type C x 1, TF Card x 1 max: 128G, SIM Card x 1 (Two out of three card holder), 6Pin back shell x 1, 2Pin machine buttom x 1 | |
Power | AC100V ~ 240V, 50Hz/60Hz output DC 5V/2A | |
GPS | support GPS, Glonass, beidou(G+G+B) | |
Performance parameter | ||
CPU | MTK OCTA Core | |
OS | Android 11 | |
RAM | 64GB | |
ROM | 4GB LPDDR4 | |
Battery | ||
Capacity | 3.8V/4500mAh | |
Type | External removable lithium ion battery | |
Endurance | 7hrs (default 50% volumn,default 200 lumens brightness,play1080P video) | |
Network connections | ||
WIFI | 2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac) | |
Blue-tooth | BT5.0 LE | |
3G/4G (optional) | GSM(B2/3/5/8) WCDMA(B1/B2/5/8) TDS(B34/B39) FDD(B1/2/3/4/5/7/8/13/17/20/28AB) TDD(B38/39/40/41) | |
Reliability | ||
Operate Temperature | -10 °C ~ 55 °C | |
Store Temperature | -20 °C ~ 60 °C | |
Humidity | IP65 | |
IP Grade | 95% Non-Condensing | |
Data Collection | ||
NFC | Support 14443A/14443B/15693/18092/mifare protocol under ISO/IEC | |
2D | Serial port & MIPI, The scan head supports 3680 4710 6703 | |
Certifications
Packing and Shipping
Standard Packaging
International Express
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
