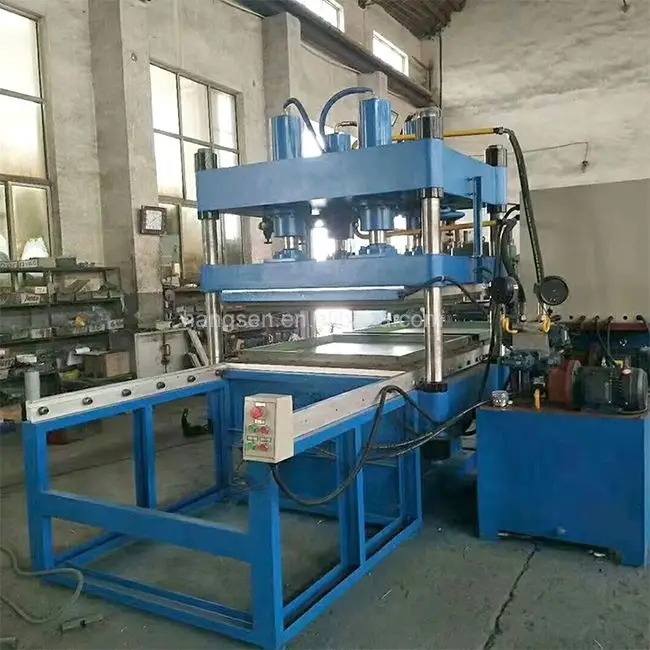

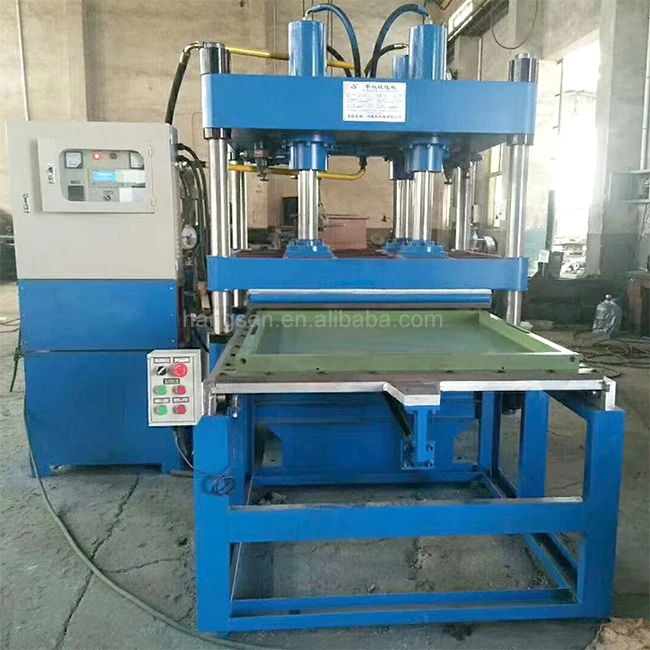

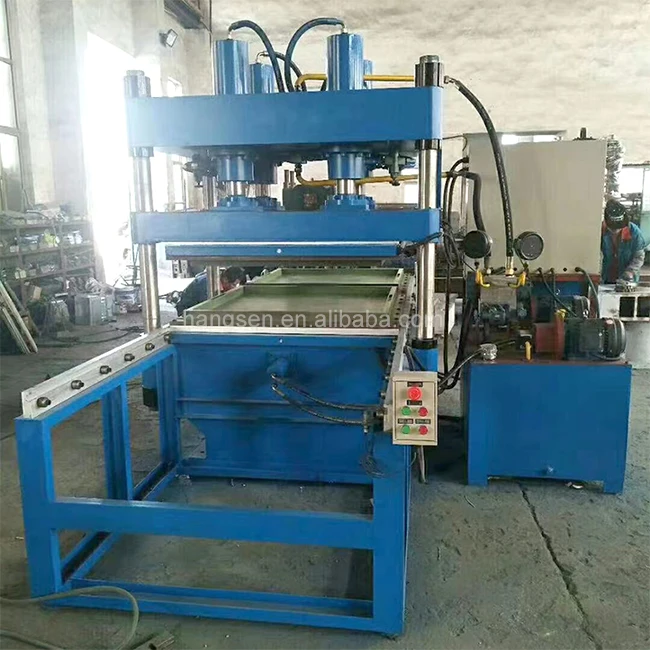

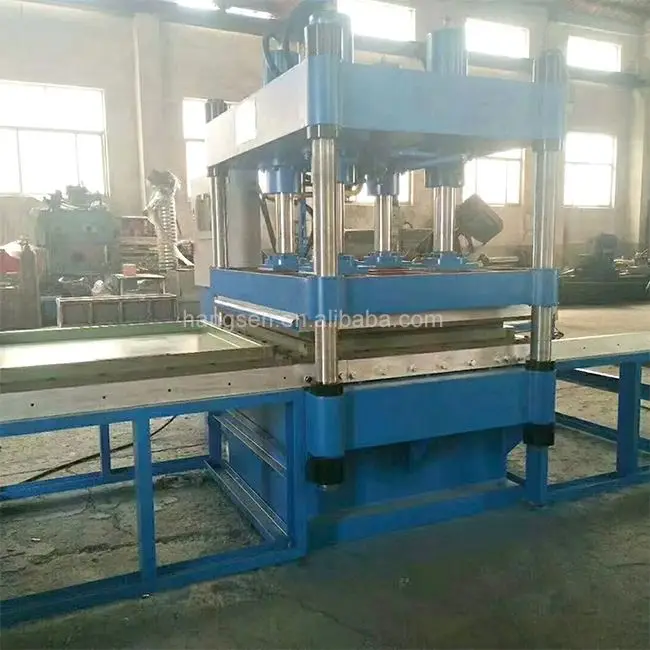

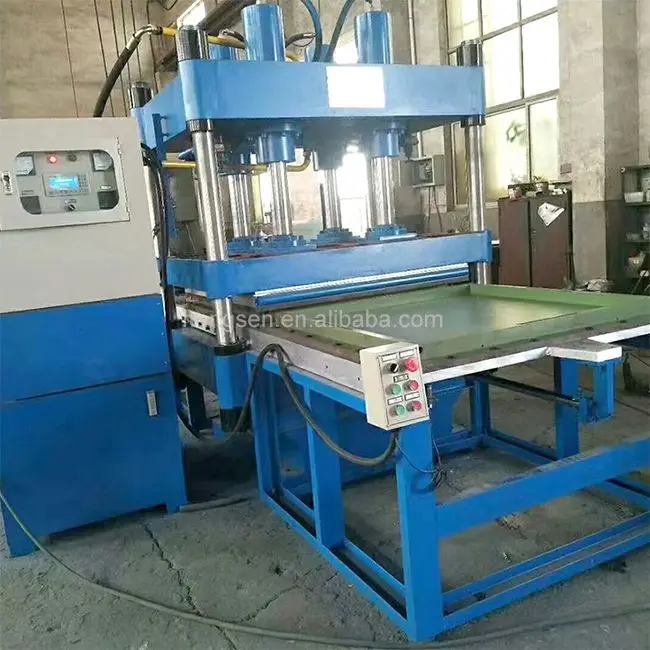

Rubber press 120T Rubber Molding Machine Plate Vulcanizing Hydraulic Press Machine
- Category: >>>
- Supplier: Qingdao Hangsen Industry And Trade Co. Ltd.
Share on (1600526960360):
Product Overview
Description
The material is made of Q235A steel plate with overall numerical control cutting, and the surface is sandblasted.
The material of the oil cylinder is high quality QT500-7, ductile iron QT-500 is passivated after aging, or forging material is used, tensile strength ≥50kgf/mm
The plunger is made of LG-P chilled alloy material, which has high surface hardness and is not easy to wear. The depth of the chilled layer is 8-15mm and the hardness is HRC 70 degrees, which improves the overall service life of the plunger.
Die entry and exit rail (if equipped):
The sliding surface is made of S50# steel, and has been heat-treated to a hardness of HRC 55-58. It has a long wear-resistant life and is equipped with a bearing design to make the entry and exit molds slide stably.
The sliding surface is made of S50# steel, and has been heat-treated to a hardness of HRC 55-58. It has a long wear-resistant life and is equipped with a bearing design to make the entry and exit molds slide stably.
Hydraulic system:
The main hydraulic components adopt well-known brands such as Taiwan Qiyang, Beijing Huade, Yuyan, etc., easy to buy and replace, reasonable layout, and easy to maintain and repair.
The main hydraulic components adopt well-known brands such as Taiwan Qiyang, Beijing Huade, Yuyan, etc., easy to buy and replace, reasonable layout, and easy to maintain and repair.
Electrical system:
The main PLC electrical components of this machine adopt Mitsubishi's internationally well-known brands. The electrical device has the advantages of small size, compact structure, fatigue resistance, and is suitable for continuous high-strength work.
The main PLC electrical components of this machine adopt Mitsubishi's internationally well-known brands. The electrical device has the advantages of small size, compact structure, fatigue resistance, and is suitable for continuous high-strength work.
Heat insulation board:
The heat insulation board adopts high-quality calcium silicate board, with a pressure resistance of 3.5Mpa or more, and a heat insulation coefficient of 0.031.
The heat insulation board adopts high-quality calcium silicate board, with a pressure resistance of 3.5Mpa or more, and a heat insulation coefficient of 0.031.
Item | XLB-1200*1200*2 Rubber Tile Making Machine | ||
Total Pressure | MN | 1.00 | |
Hot Plate Size | MM | 1200*1200 | |
Plate thickness | MM | 60 | |
Plate clearance | MM | 200 | |
Working Layer | Layer | 2 | |
Hot plate quantity | Piece | 4 | |
Piston stroke | MM | 200 | |
Piston quantity | Set | 4*2 stes | |
Heating mode | Electrical heating | ||
Structure mode | Column type | ||
Operation system | Automatic control | ||
Working pressure | Mpa | 0.66 | |
Working power | KW | 5.5 | |
QINGDAO HANGSEN Group was established in 1967，have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,Hangsen Group has exported to more than 40 countries,enjoy a good reputation in the world market.
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,Hangsen Group has exported to more than 40 countries,enjoy a good reputation in the world market.
