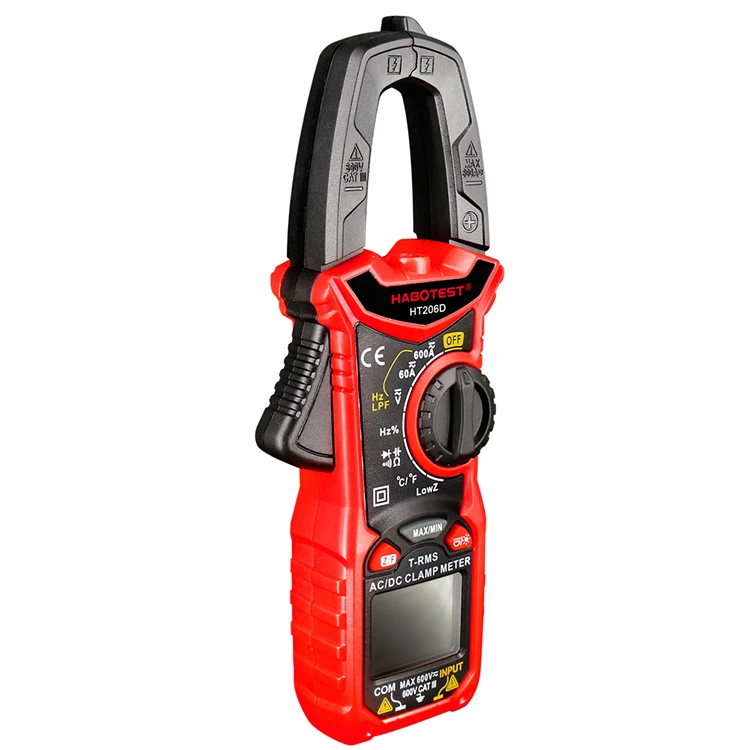

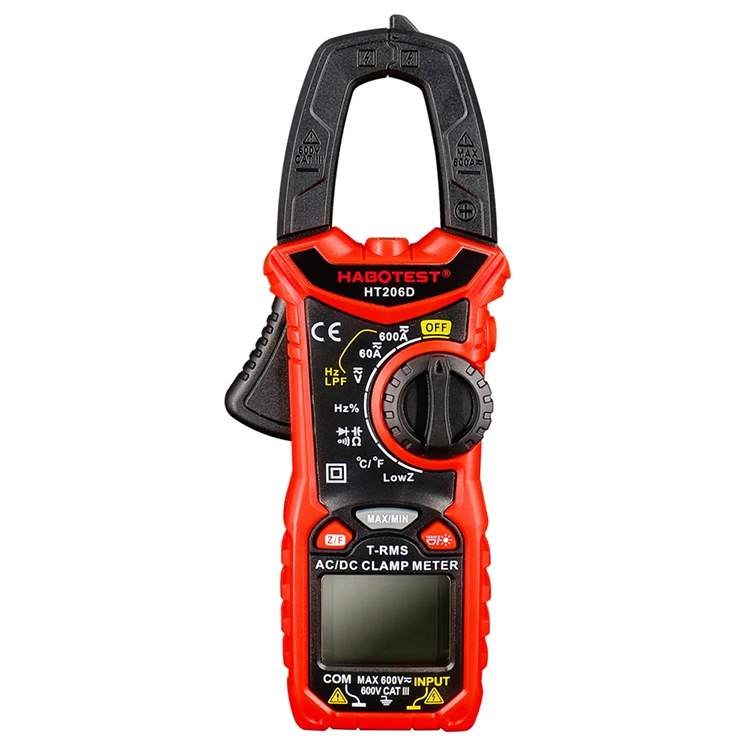

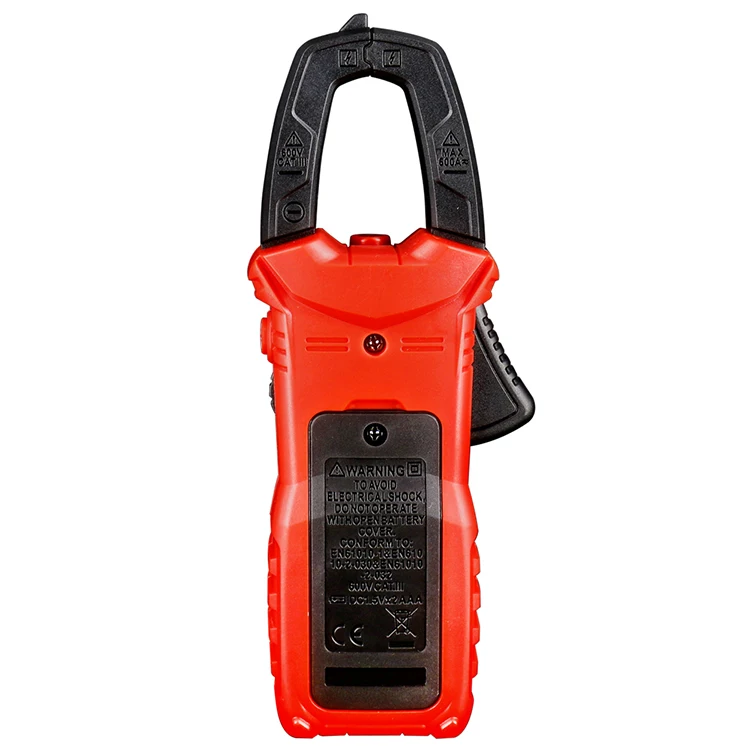

HT=206D High Quality AC Clamp Meter/clamp ammeter/leakage clamp meter

Product Overview

Description



HT206D

High quality low price DC current clamp meter



Introduction of functions

1. Intelligent anti-burning and overload protection
Full - range intelligent overload protection to prevent damage to license issuing instruments during measurement.
2. Automatic measuring range
The matching of engineering switch keys and dial plate effectively reduces the wear of dial plate and prolongs the service life of instrument.
The dial is not required to switch the measuring range and the resolving range, thus improving the measuring accuracy.
3. High - definition display screen with clear handwriting, clear display and convenient use in dark places
4. NCV non-contact measurement
NCV gear automatically detects the voltage intensity when the non-contact voltage sensing area is close to the circuit.



specifications

specifications	range	accuracy
		HT206A
DC Voltage	600V	±(0.5%+3)
	600mV/6V/60V/600V/600V
AC Voltage	600V	±(1.0%+5)
	6V/60V/600V/600V
AC Current	6A/60A/600A	±(2.5%+5)
Resistance	6KΩ/60KΩ	±(1.0%+3)
	600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
Capacitance	10nF/100nF/1uF/10uF/100uF/1mF/10mF
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Duty	1%~99%
Temperature(℃/°F)	-40℃~1000℃
	-40°F~1832°F
Counters		6000 counters
Auto/manual range		Manual
Continuity                      (sound and light alarm)		√
Diode test
Data hold		√
NCV                           (sound and light alarm)
Backlight		√
Flashlight		√
Low battery indication		√
Auto power off		√
True RMS
LPF
Max/MIN		√
LowZ
Power	2*AAA(1.5V)batteries
Weight	Appro*.260g
Size	193mm*73mm*34mm
Safety rating	EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V
