Product Overview
Description

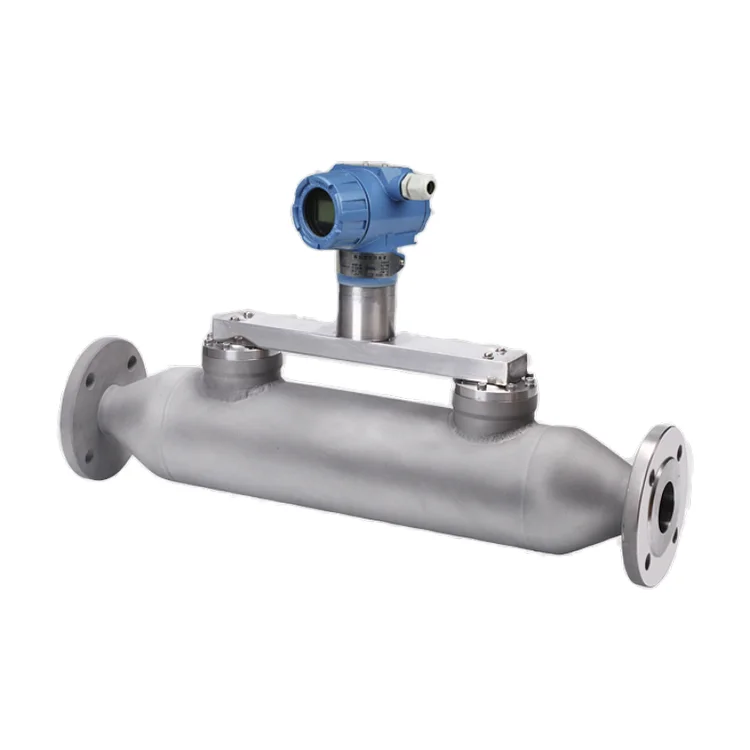

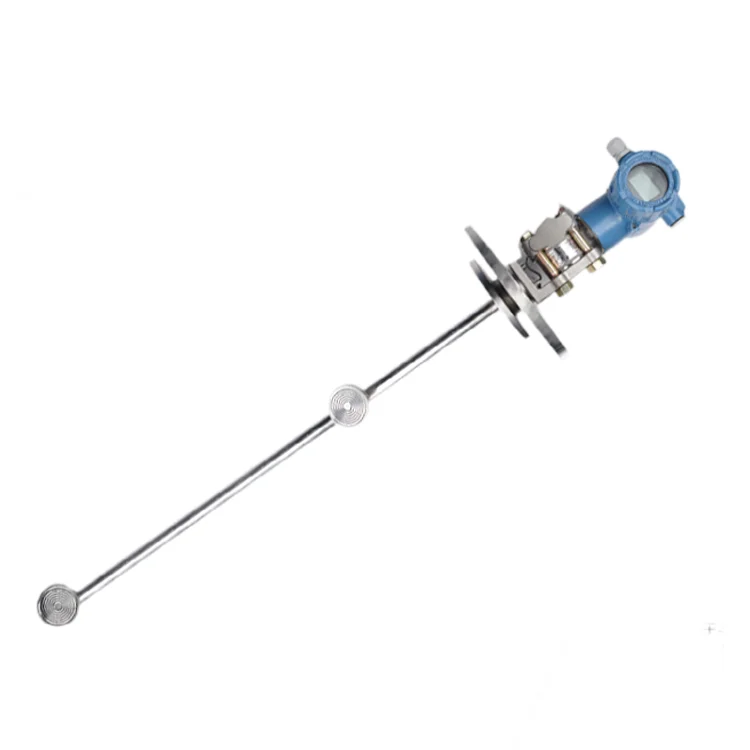

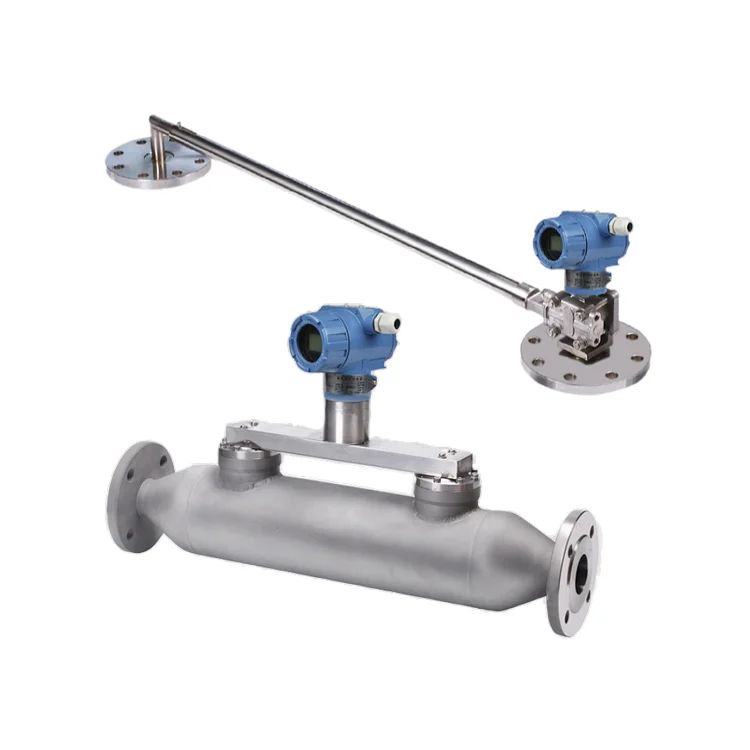

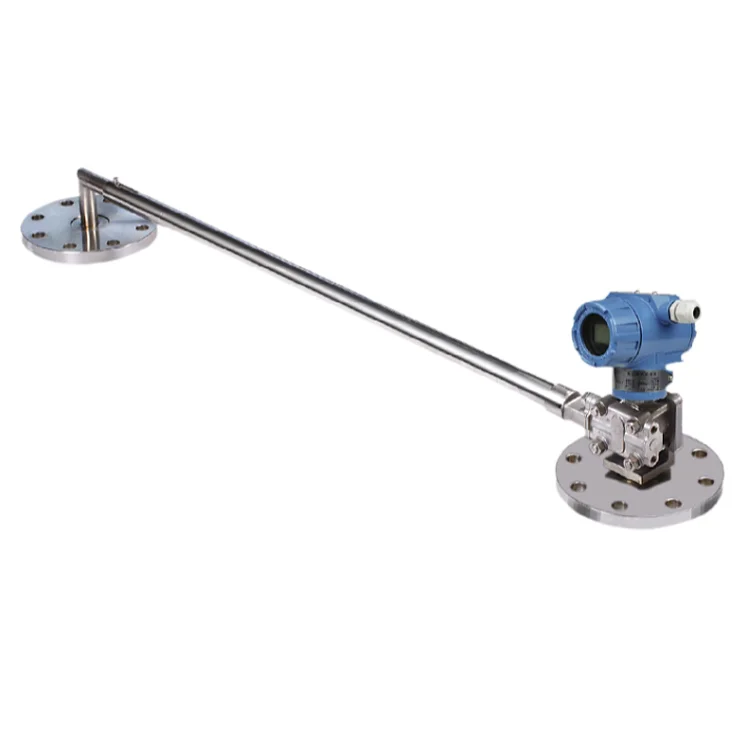

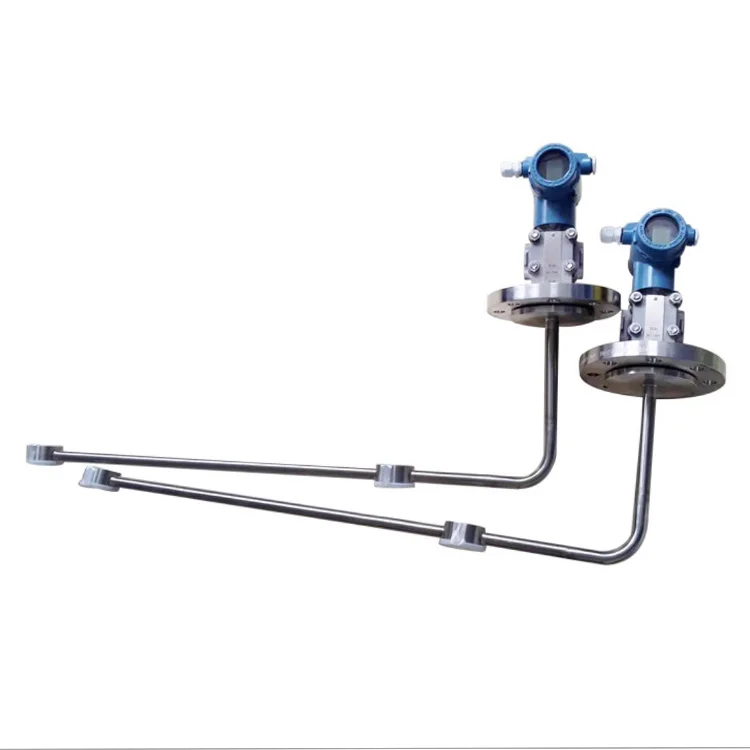

SPX510 series intelligent on-line densitometer (also called on-line density transmitter) is a kind of equipment for continuous on line measurement of liquid concentration and density, which can be directly used in industrial production process. The densimeter adopts advanced technology, including a capacitive differential pressure sensor and a pair of pressure repeaters connected with it and inserted into the production process. There is a temperature sensor between the two pressure repeaters to compensate for the temperature change of the process liquid. The intelligent online densitometer is a two-wire density transmitter, which is mainly used for industrial process control. The online densitometer generates a corresponding 4-20mA signal according to the concentration and density. It can be calibrated and monitored remotely through digital communication.
Specification
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter | ||
Singnal output | 4-20mA current output, superimposed digital signal (HART protocol) | |
Density range: | 0-2g/cm3; 0-3g/cm3 | |
Accuracy | 0.001g/cm3 | |
Power supply | 16-30VDC power supply, 24VDC is recommended | |
Resolution | 0.001g/cm3 | |
Temperature range | 0-100℃ | |
Temperature accuracy | 0.5℃ | |
Ambient temperature | -10～60℃ | |
Humidity range | 0-90% | |
Damping adjustment | 0-16 seconds; 0-32 seconds | |
Wetted material | 316L stainless steel Hastelloy | |
Process connection | ANSI 150 ~ 1500 RF DIN 50 PN16 DIN 50 PN40 IDF and RJT Hygienic | |
shell | Aluminum alloy | |
Details Images

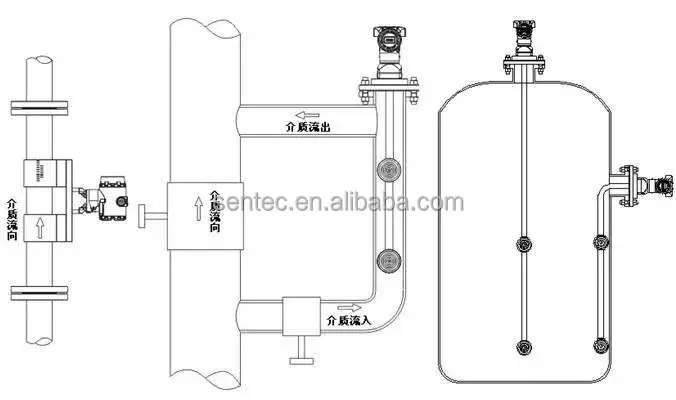

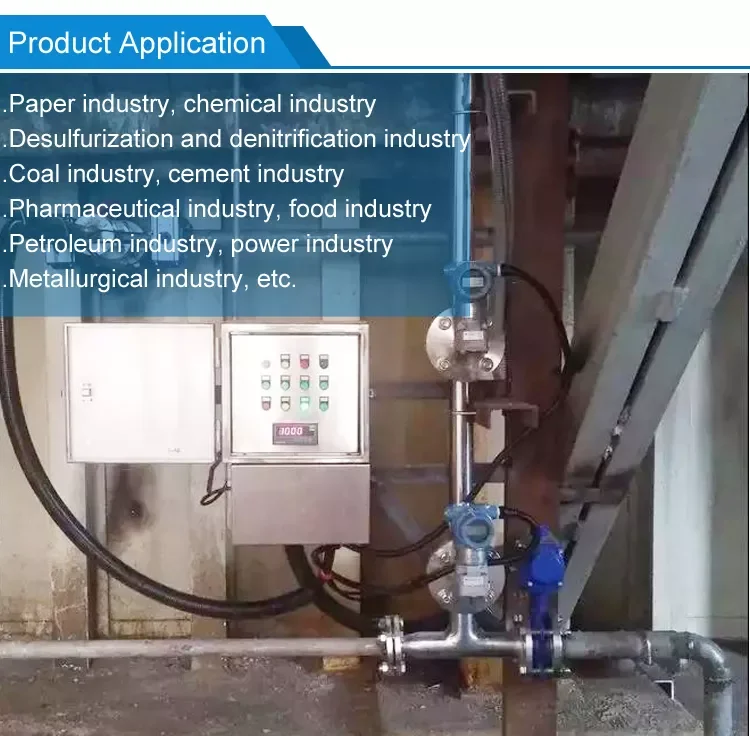

SPX510 series of in-line density meters provides on-line density measurements of a variety of liquid or liquid mixtures. In the petrochemical industry can be widely used in petroleum, oil refifining, oil regulation, oil and water interface testing, in the food industry for grape juice, tomato juice, fruit syrup, vegetable oil and soft drink processing and other production sites, dairy industry, paper industry, black pulp, green pulp, white pulp, alkali solution testing; wine alcohol; chemical urea, detergent, ethylene glycol, Testing of acid and alkali and polymer density. It can also be used in mining salt water, potassium, natural gas, lubricants, biopharmaceuticals and other industries.
Recommend Products
Certifications
Packaging&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
High Accuracy 4-20mA Hart Output Intelligent Online Density Concentration Interface Transmitter
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
The specific price is subject to the parameters, please contact us for the quotation
