Product Overview

Description

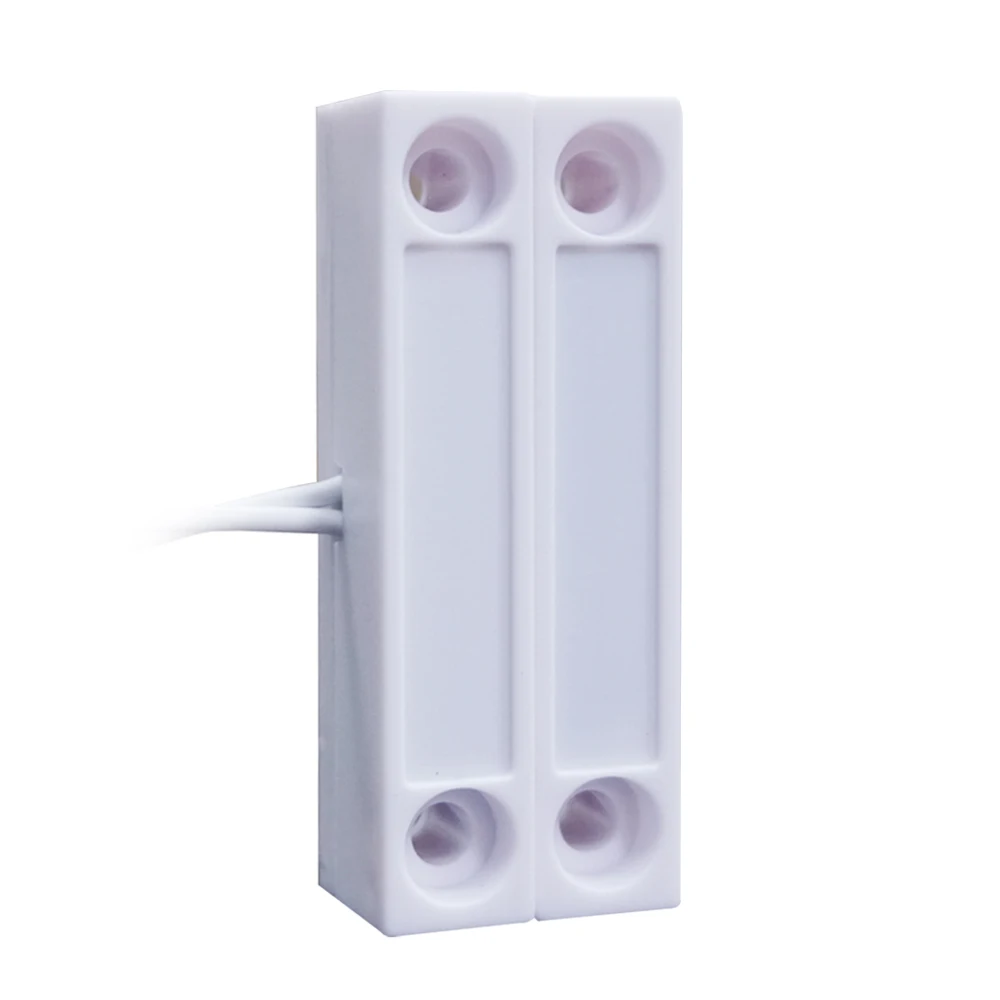

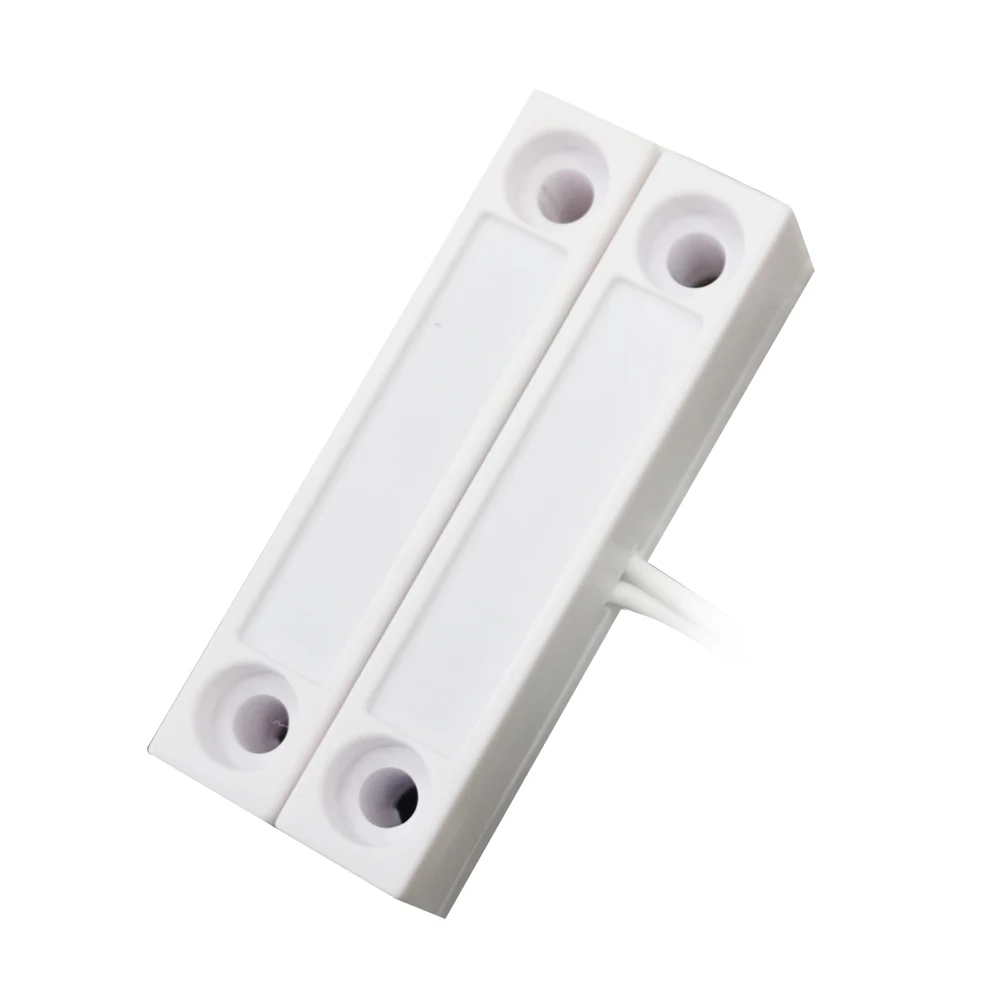

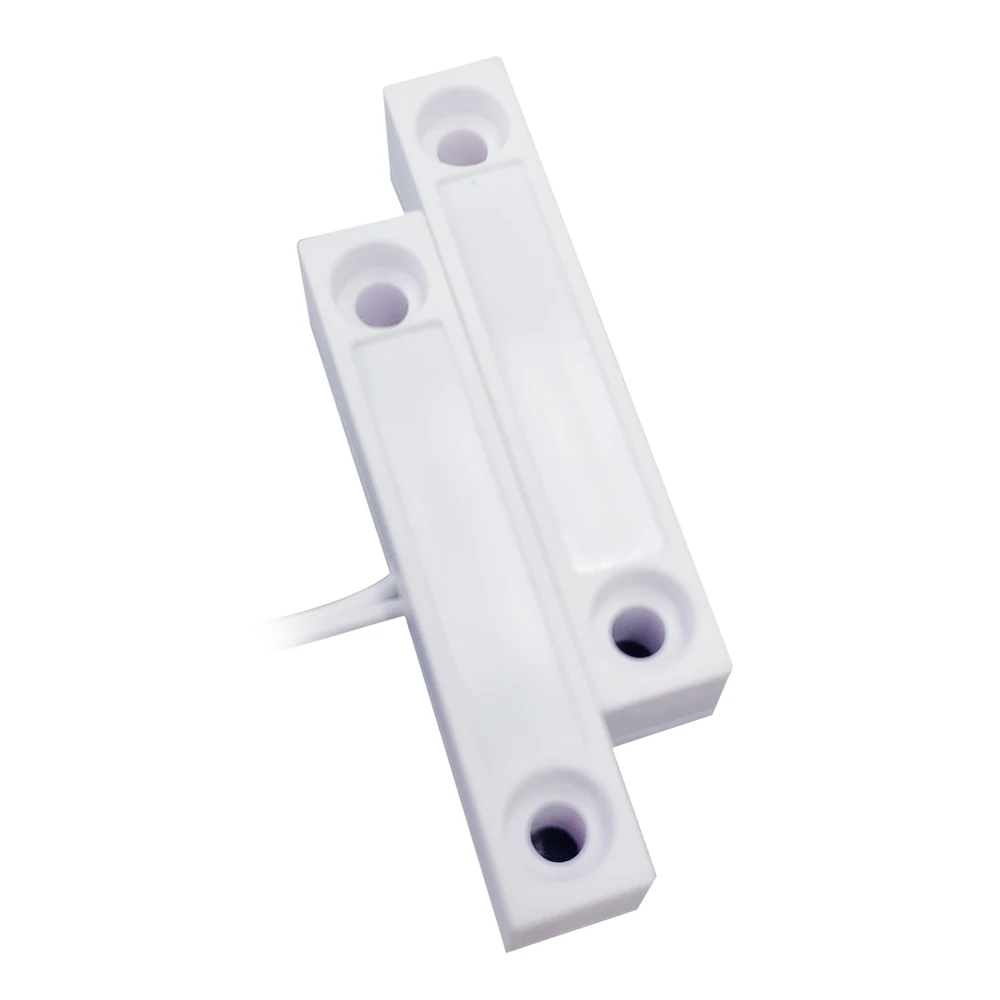

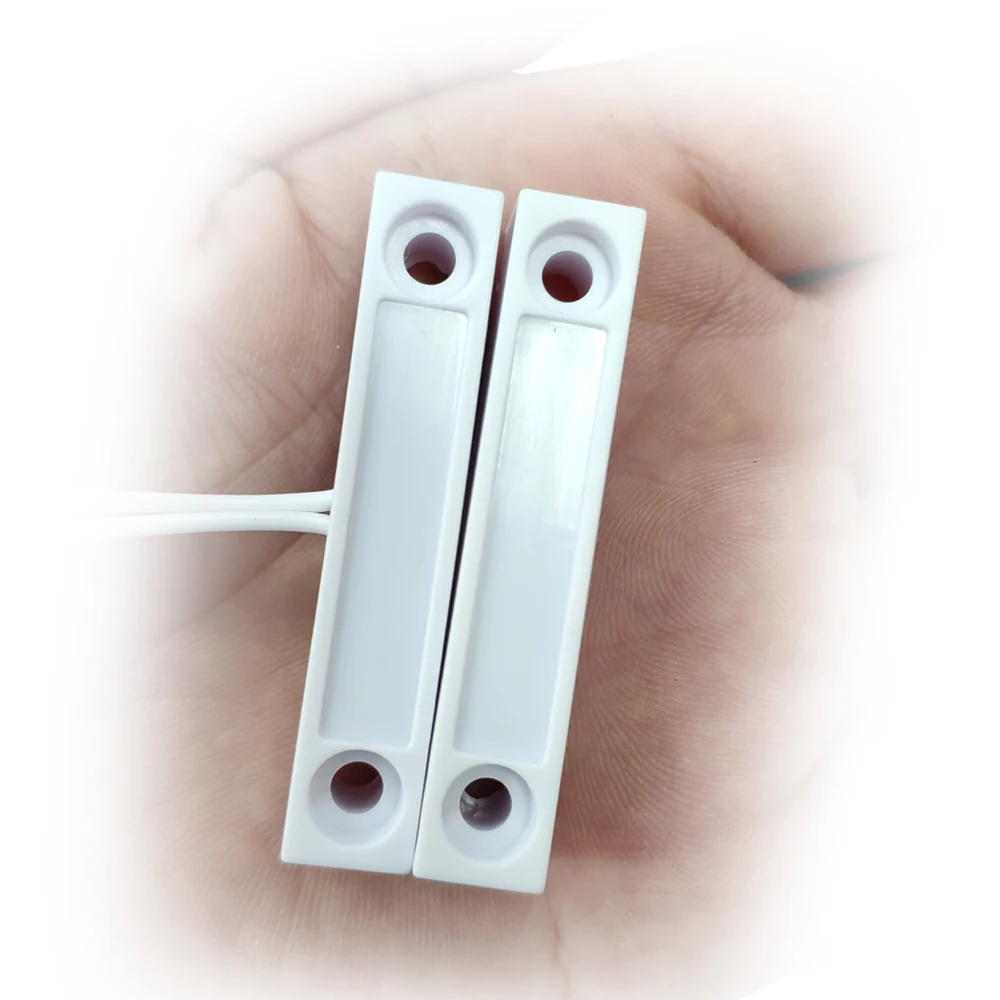

Manufacturer Security Alarm Surface Mounted Magnetic Contacts sensor  EB-147


SMQT, 13 YEARS gold supplier in Alibaba platform














EB-147'S MAIN PARAMETER





























































Product Name:Manufacturer Security Alarm Surface Mounted Magnetic Contacts sensor
Model number:EB-147
Working voltage:Max DC 100
Working current:Max 0.5A
Power consumption:10W

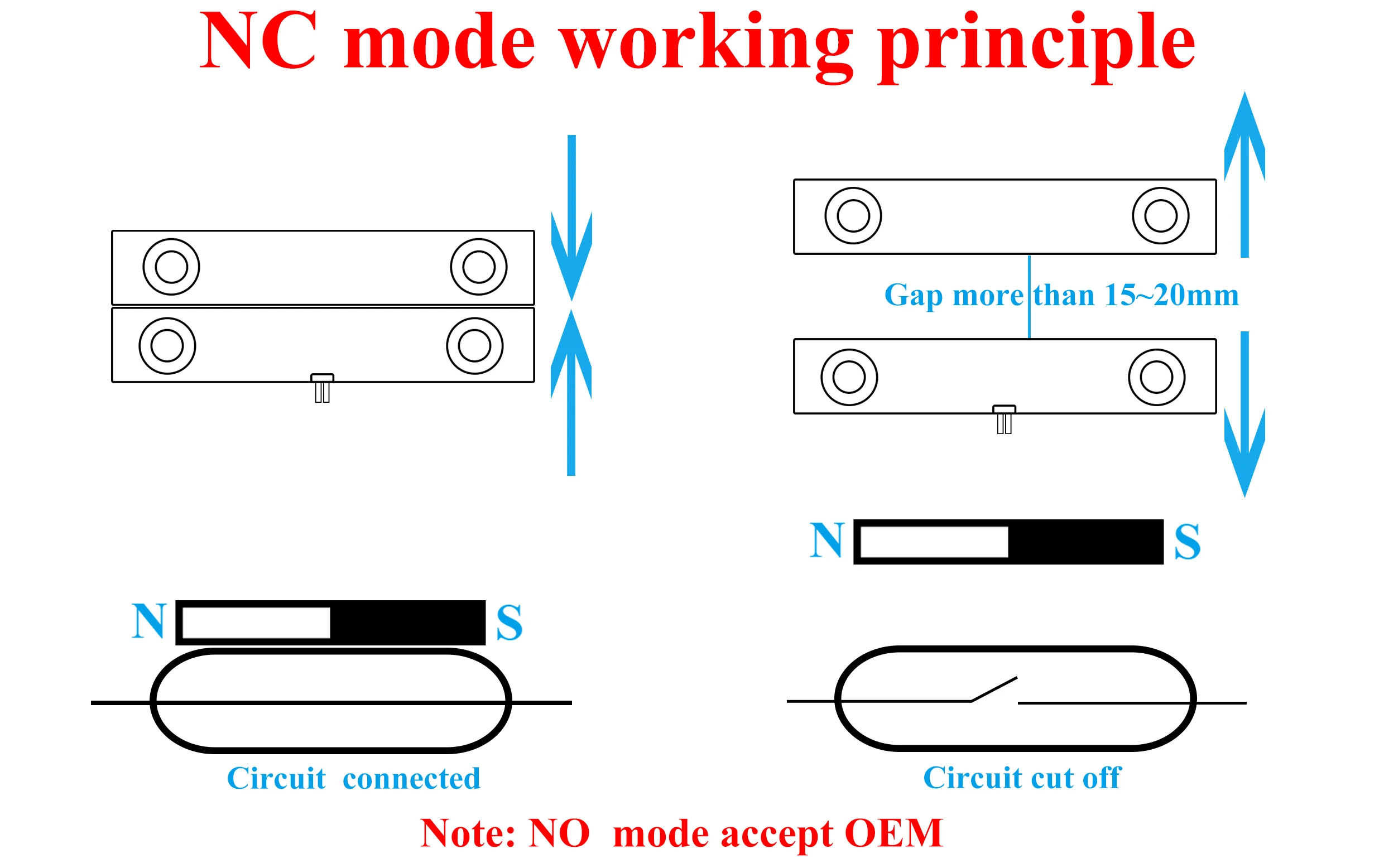

Interface port:NC/COM
Induction gap:20~30mm

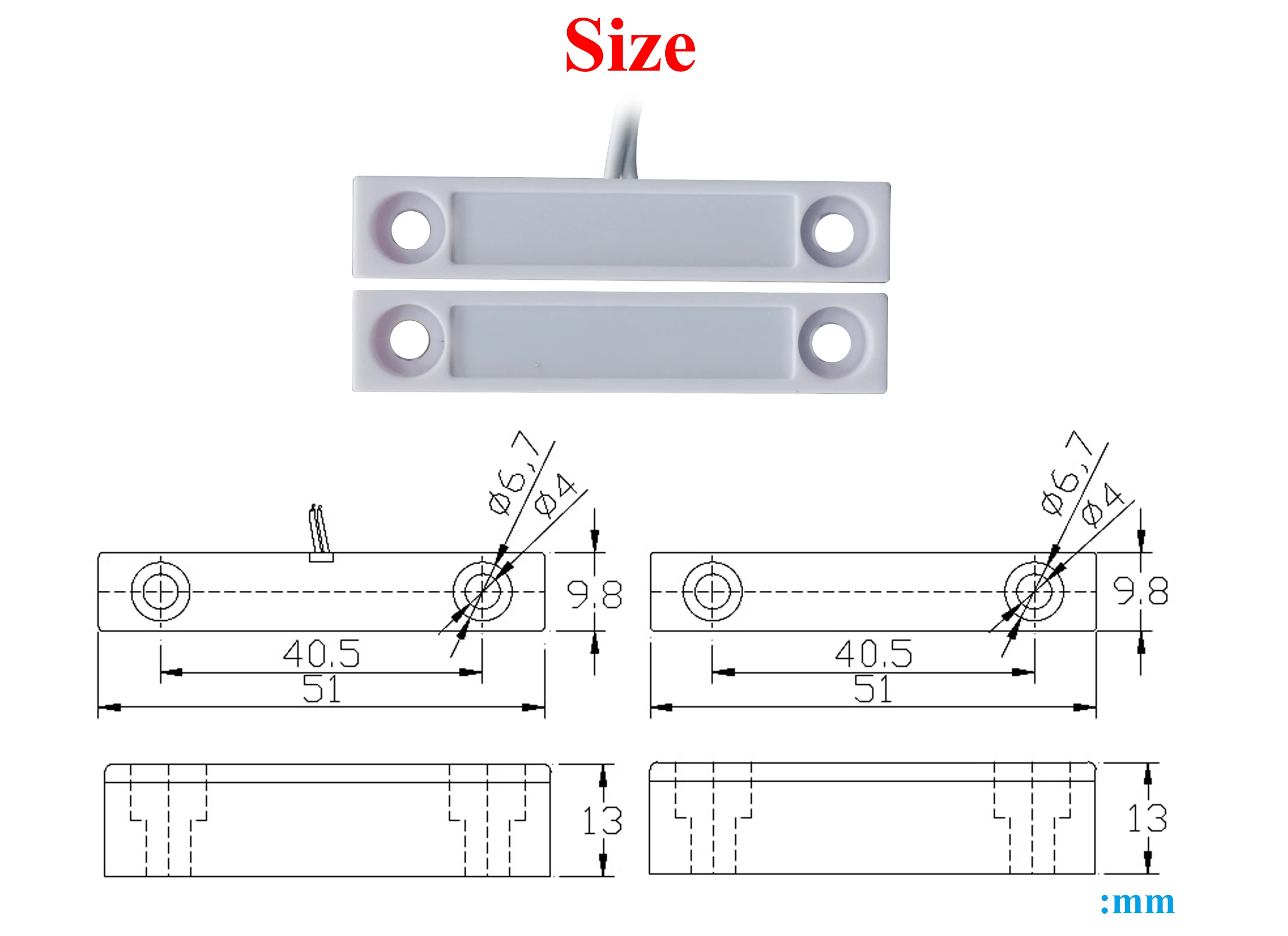

Size:

Reed part:51*13*10(mm)


Magnet part:51*13*10(mm)

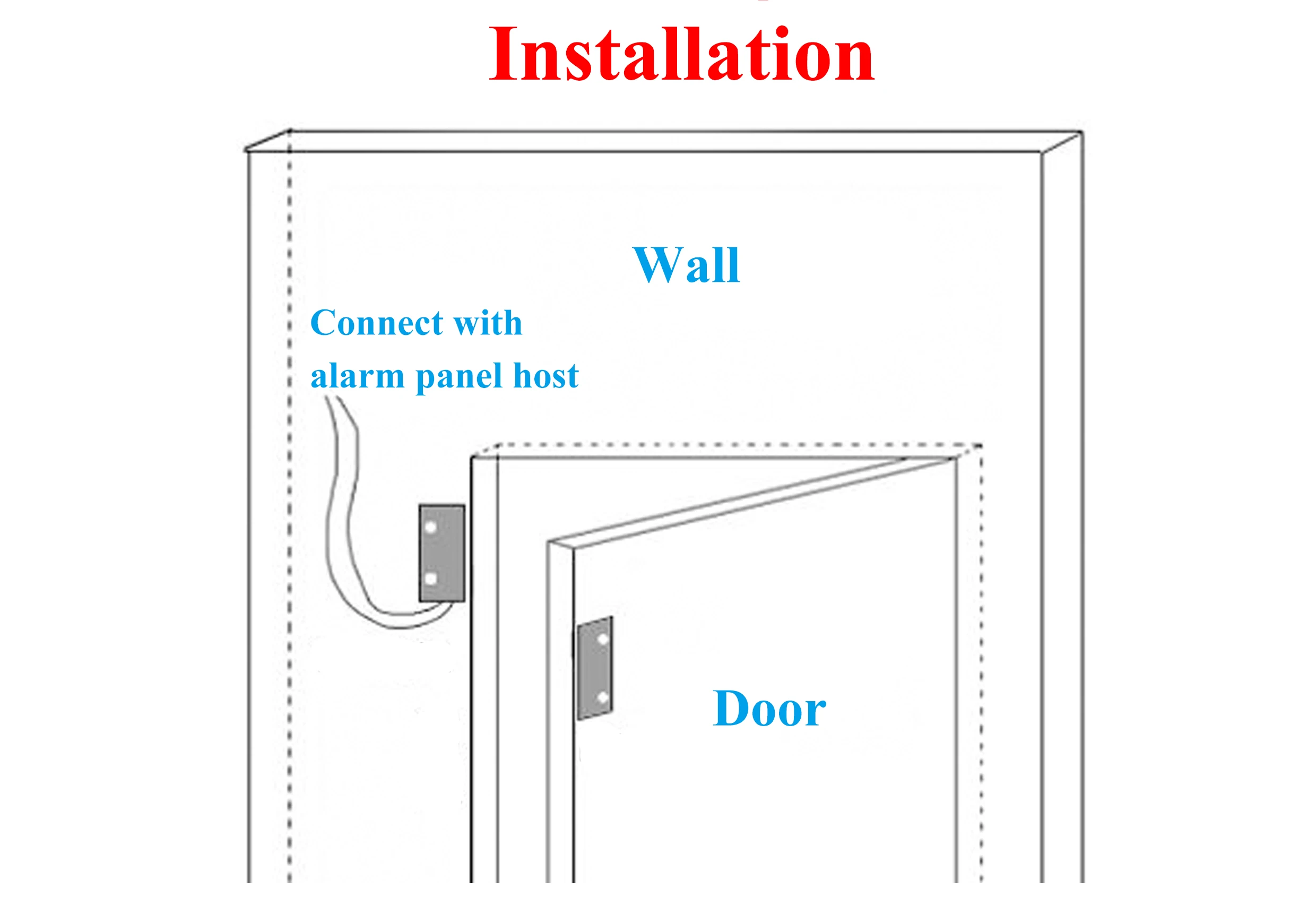

Suitable for:All kinds of door access control system and burglar alarm system
Material:ABS housing+ PCB board+Reed switch

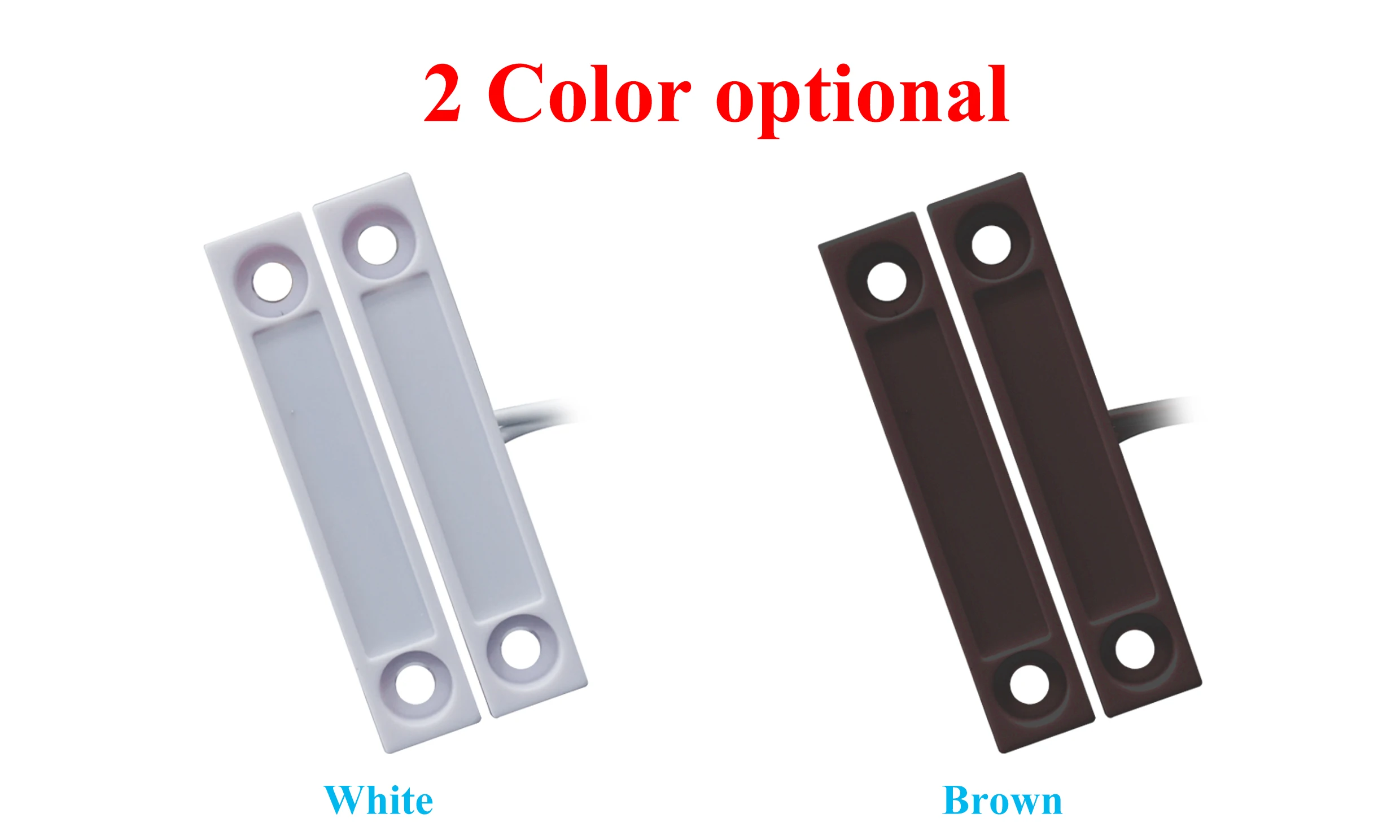

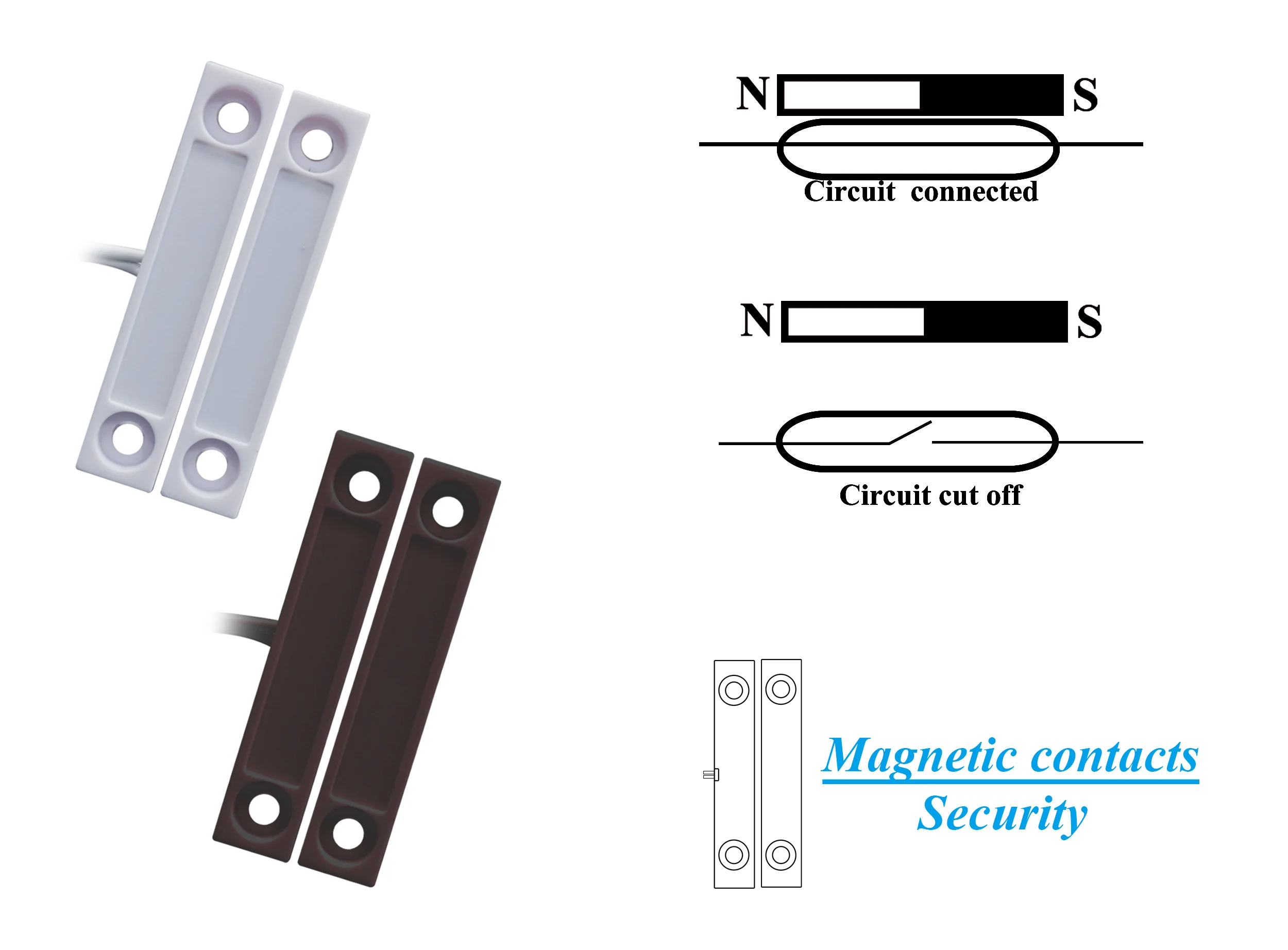

Housing color:White/Brown(optional)
Weight:

Unit:45g

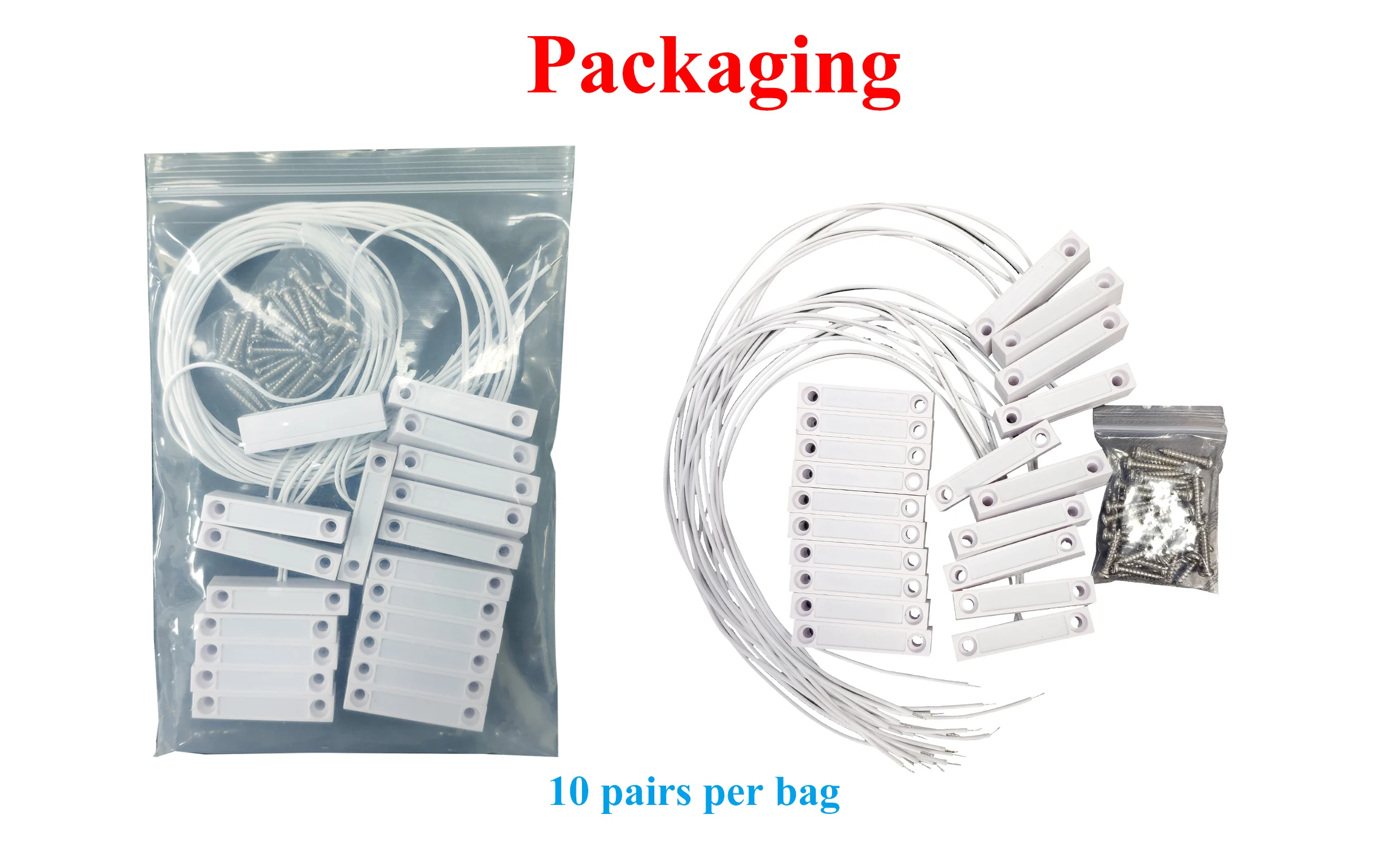

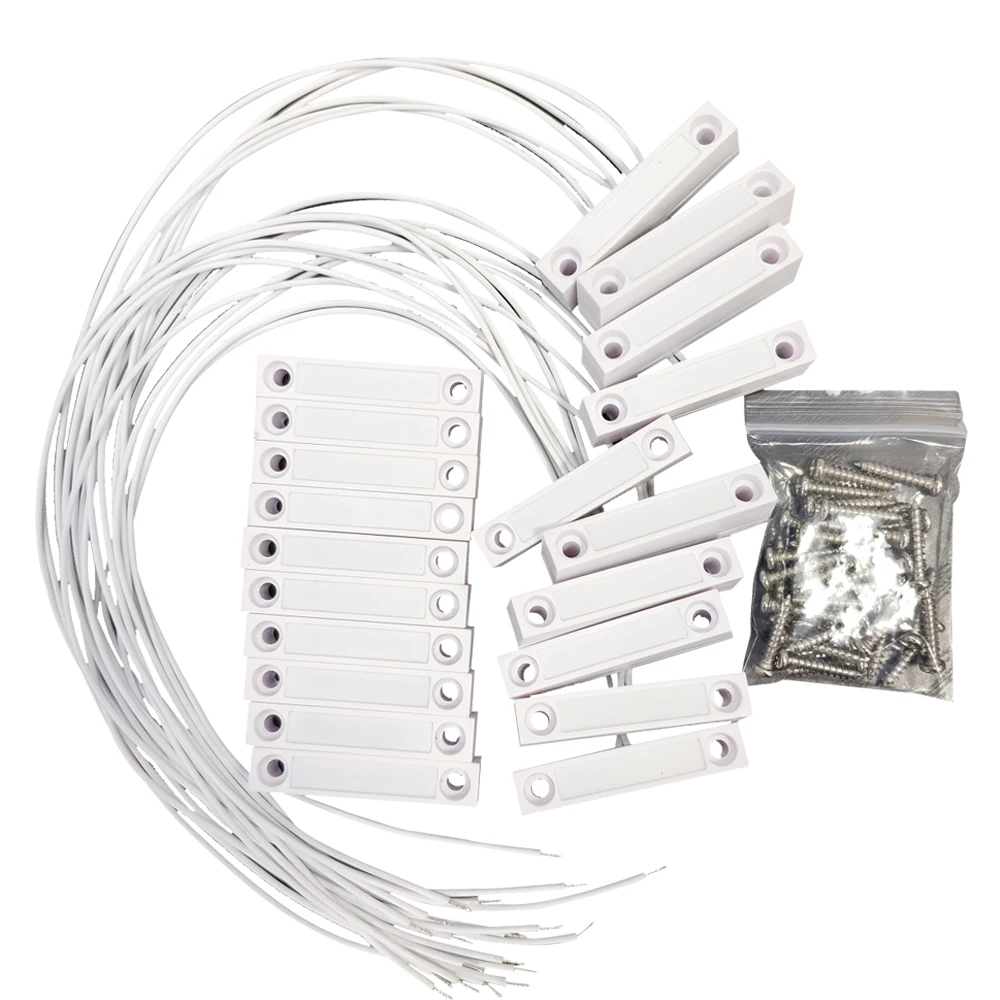

10 pairs per bag, per bag weight 450g


Warranty:1 years warranty
OEM:Welcome OEM

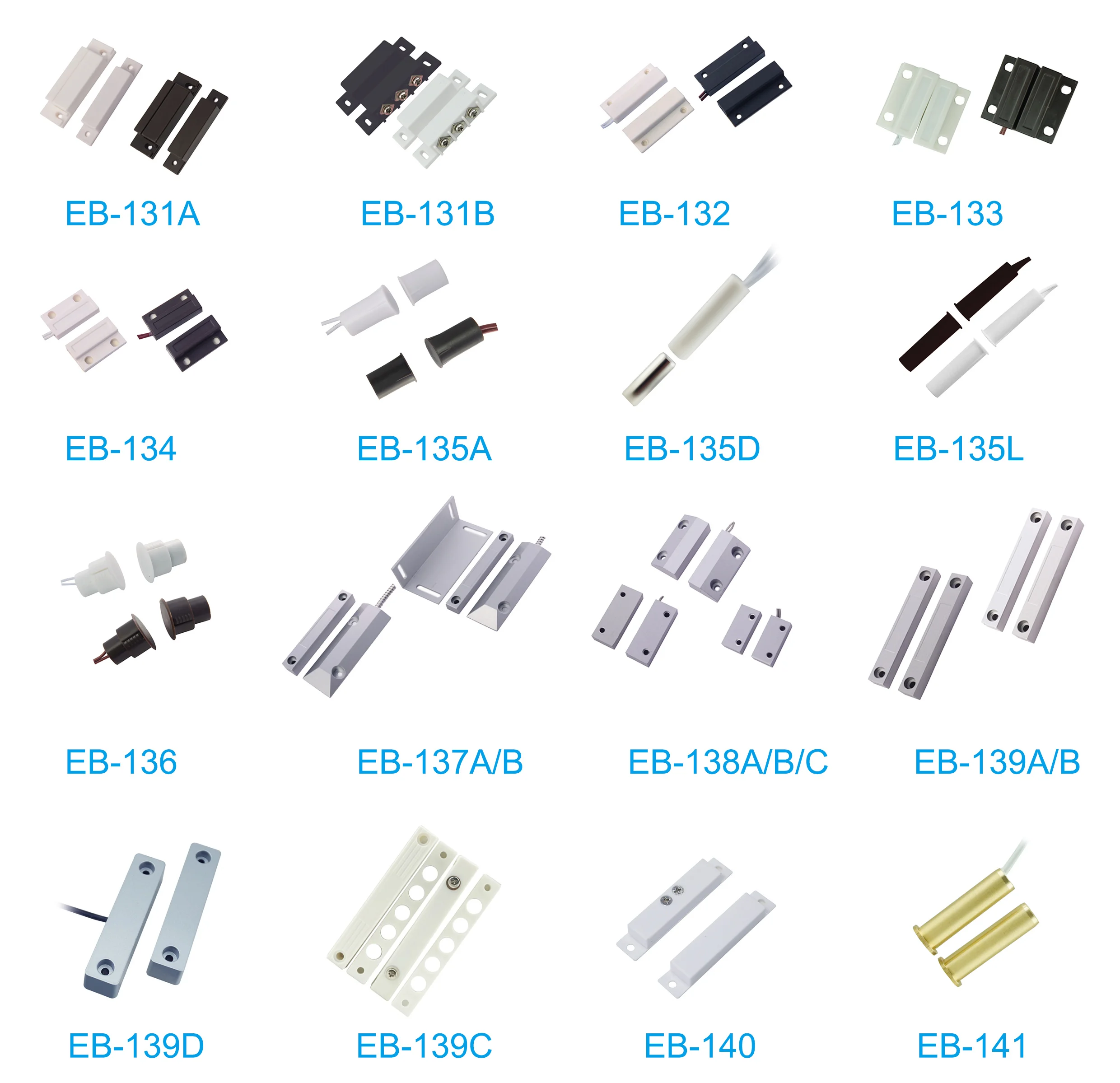

HOW ABOUT OTHER CHOICE?



EB-8294







Manufacturer Security Alarm Surface Mounted Magnetic Contacts sensor  EB-147


Manufacturer Security Alarm Surface Mounted Magnetic Contacts sensor  EB-147


Manufacturer Security Alarm Surface Mounted Magnetic Contacts sensor  EB-147
