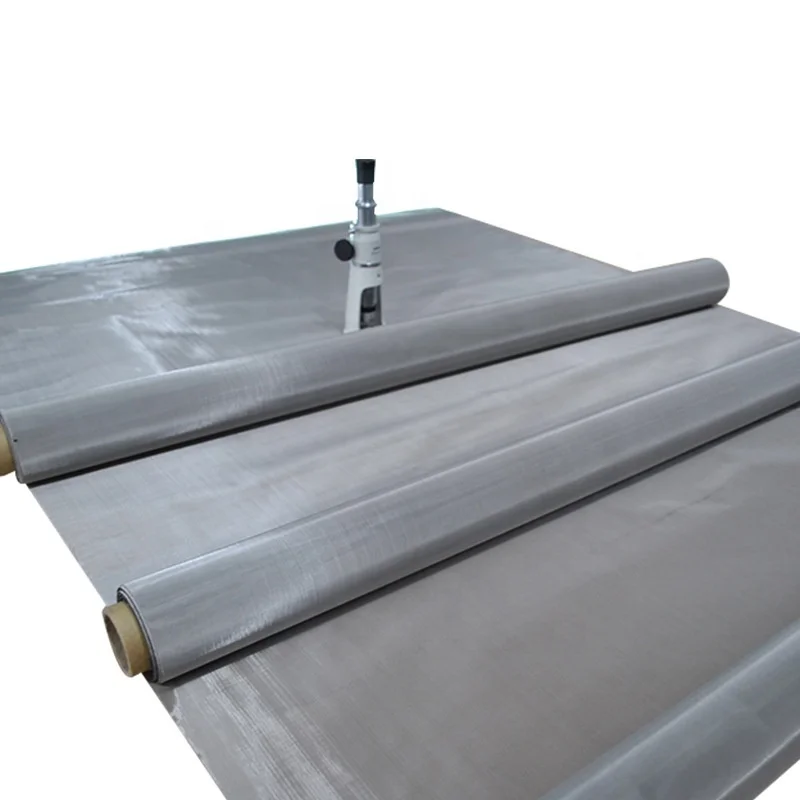

Stainless Steel Woven Screen Mesh 304 316 Ultra Fine 1 2 4 5 10 Micron 304 316 Stainless Steel Metal Wire Rope Net Mesh
Stainless Steel Woven Screen Mesh 304 316 Ultra Fine 1 2 4 5 10 Micron 304 316 Stainless Steel Metal Wire Rope Net Mesh
Stainless Steel Woven Screen Mesh 304 316 Ultra Fine 1 2 4 5 10 Micron 304 316 Stainless Steel Metal Wire Rope Net Mesh
Stainless Steel Woven Screen Mesh 304 316 Ultra Fine 1 2 4 5 10 Micron 304 316 Stainless Steel Metal Wire Rope Net Mesh
Stainless Steel Woven Screen Mesh 304 316 Ultra Fine 1 2 4 5 10 Micron 304 316 Stainless Steel Metal Wire Rope Net Mesh
Stainless Steel Woven Screen Mesh 304 316 Ultra Fine 1 2 4 5 10 Micron 304 316 Stainless Steel Metal Wire Rope Net Mesh
Stainless Steel Woven Screen Mesh 304 316 Ultra Fine 1 2 4 5 10 Micron 304 316 Stainless Steel Metal Wire Rope Net Mesh

Stainless Steel Woven Screen Mesh 304 316 Ultra Fine 1 2 4 5 10 Micron 304 316 Stainless Steel Metal Wire Rope Net Mesh

Share on (1600527021363):


Price:US$1.50 - US$6.80

Quantity:


Product Overview

Description



Product Description


Food Grade AISI SUS 304 316 316L 20 25 50 60 70 80 90 100 150 200 300 400 500 Micron Stainless Steel Filter Wire Mesh Screen
Stainless Steel Filter Wire Mesh Screen Overview
Stainless steel wire and mesh is a type of wire mesh deep-processed product made of high-grade stainless steel wire SUS302 304 304L 316 316L. Stainless steel wire mesh has different weaving methods: plain weave, twill weave, Dutch weave, Reverse Dutch Weave. Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no-curl, easy to use, uniform screen thickness, antistatic, anti-acid and alkali resistance Corrosion, the product has the characteristics of acid and alkali resistance, temperature resistance, wear-resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.

Stainless steel wire mesh, specifically Type 304 stainless steel, is the most popular material for producing woven wire mesh products. Often referred to as 18-8 (18% chromium, 8% nickel), 304 is a basic stainless alloy that offers a combination of corrosion resistance, heat resistance, strength and affordability.
Type 316 is the second-most common form of stainless steel, which is a great option for industrial users seeking a higher level of corrosion resistance, particularly in salt-water environments. It incorporates about 2 to 3 percent molybdenum, which increases corrosion resistance, particularly against chlorides and other industrial solvents






Product Specification


Stainless Steel Wire Mesh
Mesh/inch
Wire Diameter
(mm)
Aperture
(mm)
Mesh/inch
Wire diameter
(mm)
Aperture
(mm)
2mesh
1.80
10.90
60mesh
0.15
0.273
3mesh
1.60
6.866
70mesh
0.14
0.223
4mesh
1.20
5.15
80mesh
0.12
0.198
5mesh
0.91
4.17
90mesh
0.11
0.172
6mesh
0.80
3.433
100mesh
0.10
0.154
8mesh
0.60
2.575
120mesh
0.08
0.132
10mesh
0.55
1.990
140mesh
0.07
0.111
12mesh
0.50
1.616
150mesh
0.065
0.104
14mesh
0.45
1.362
160mesh
0.065
0.094
16mesh
0.40
1.188
180mesh
0.053
0.088
18mesh
0.35
1.060
200mesh
0.053
0.074
20mesh
0.30
0.970
250mesh
0.04
0.061
26mesh
0.28
0.696
300mesh
0.035
0.049
30mesh
0.25
0.596
325mesh
0.03
0.048
40mesh
0.21
0.425
350mesh
0.03
0.042
50mesh
0.19
0.318
400mesh
0.025
0.0385
Width of Stainless Steel Wire Mesh: 0.6m-8m

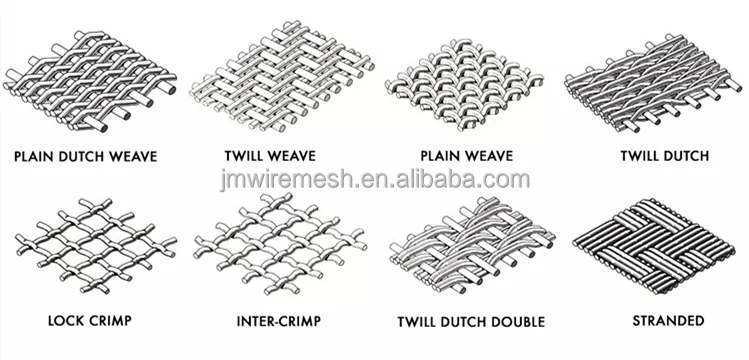

WEAVE METHODE

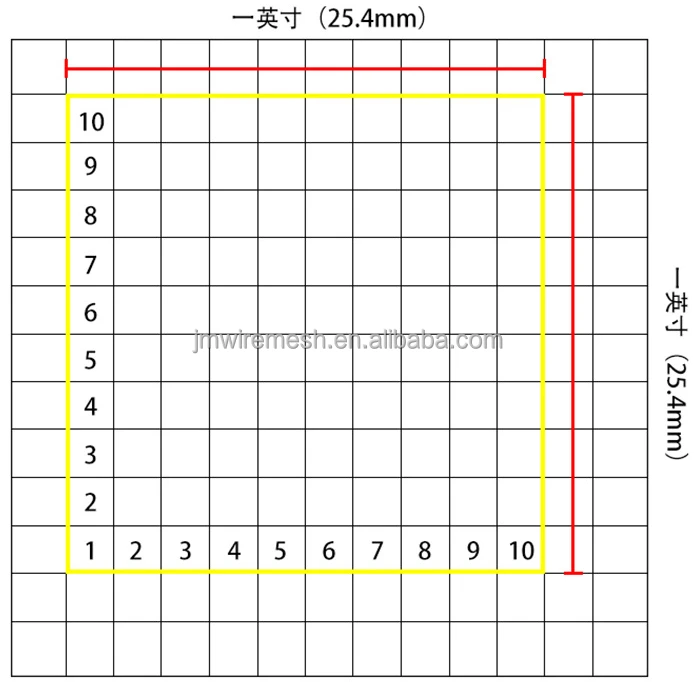

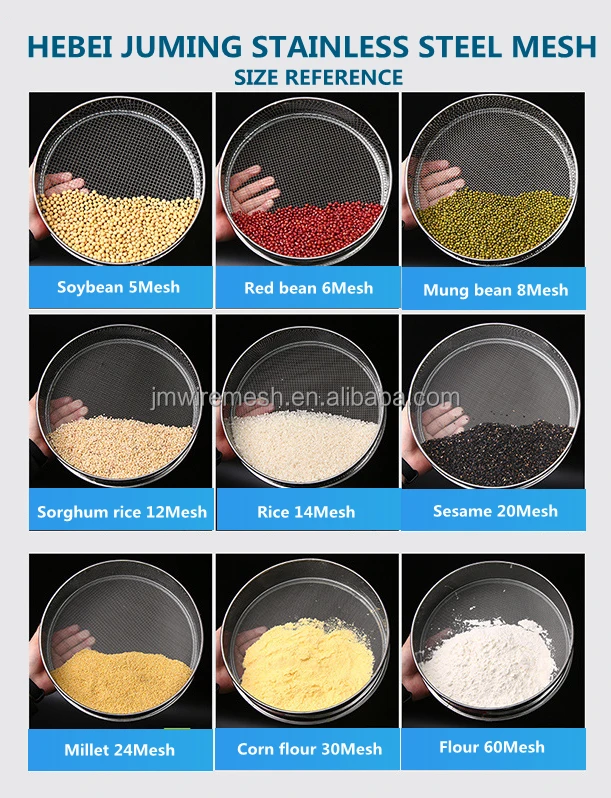

The number of mesh within 1 inch length, according to different use, choose the appropriate mesh

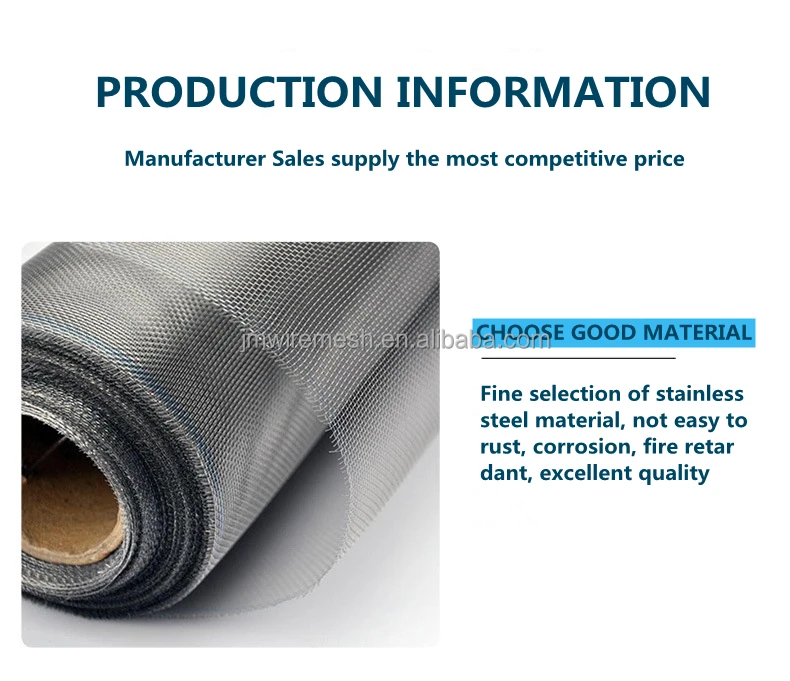

Product Details










Product Features




Stainless Steel Filter Wire Mesh Screen Features
♦ Corrosion and abrasion resistance.
♦ High-temperature resistance.
♦ Highly aesthetic appeal for architectural applications.
♦ Hygienic characteristics and cleanability are specifically suitable for the food and pharmaceutical industries.
♦ Cost-effective.
♦ Highly durable and withstand severe conditions.
♦ Long life cycle.

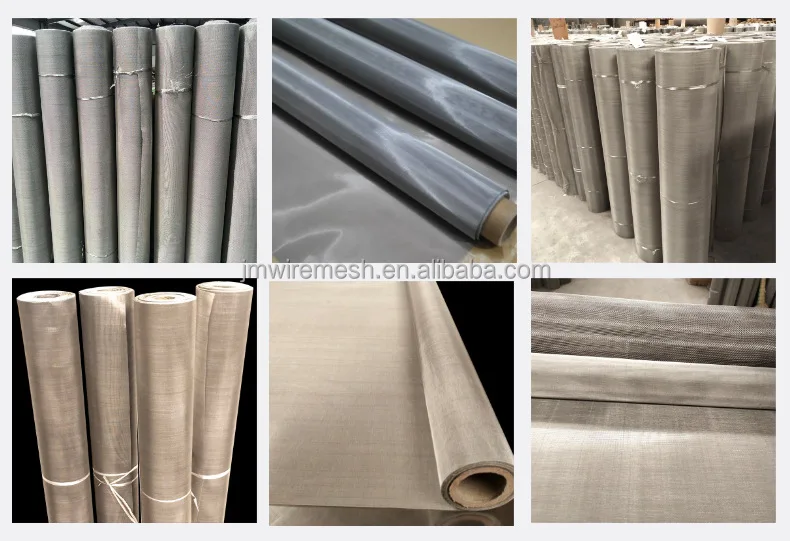

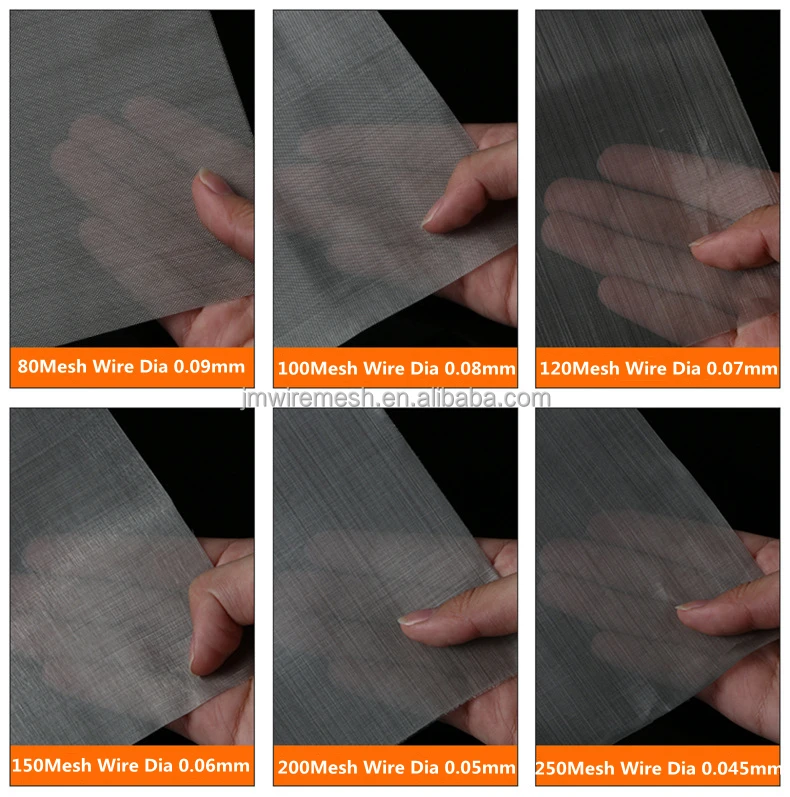

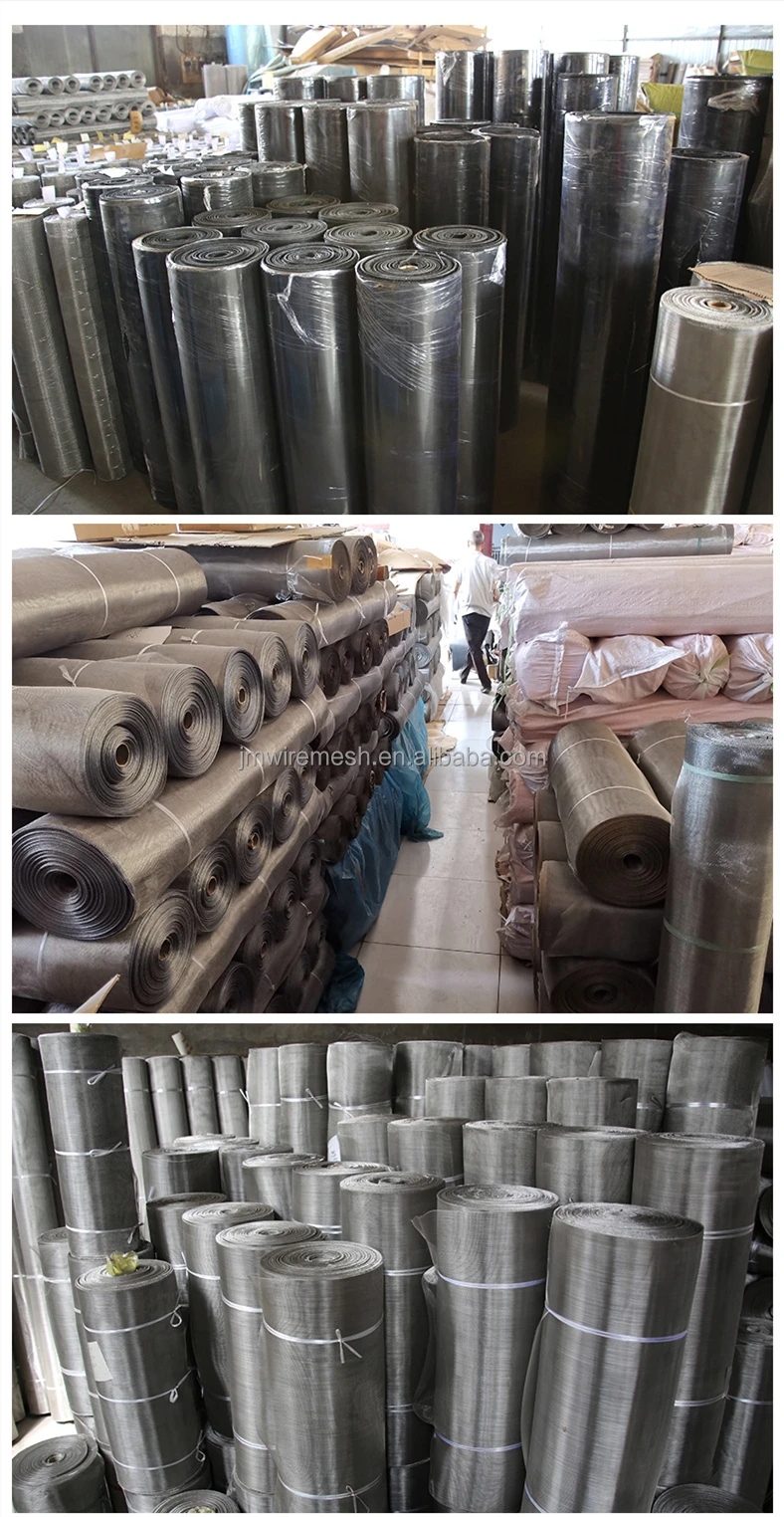

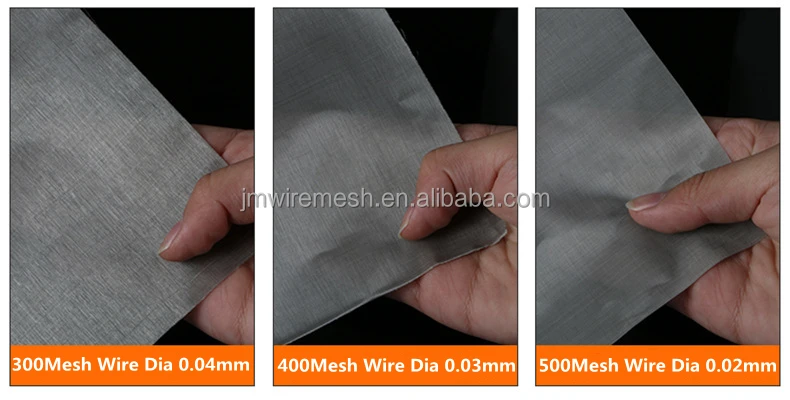

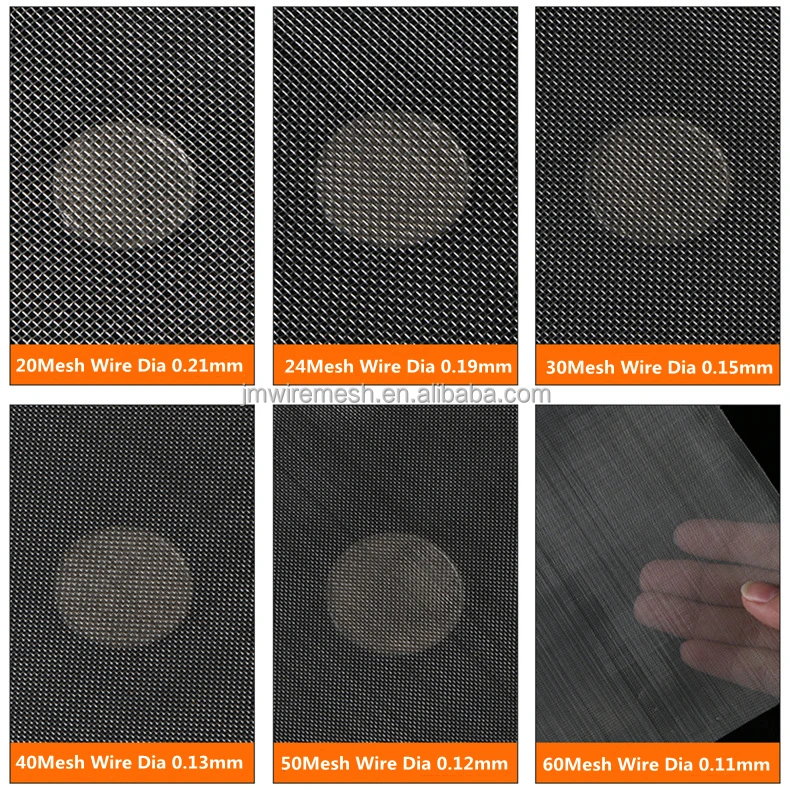

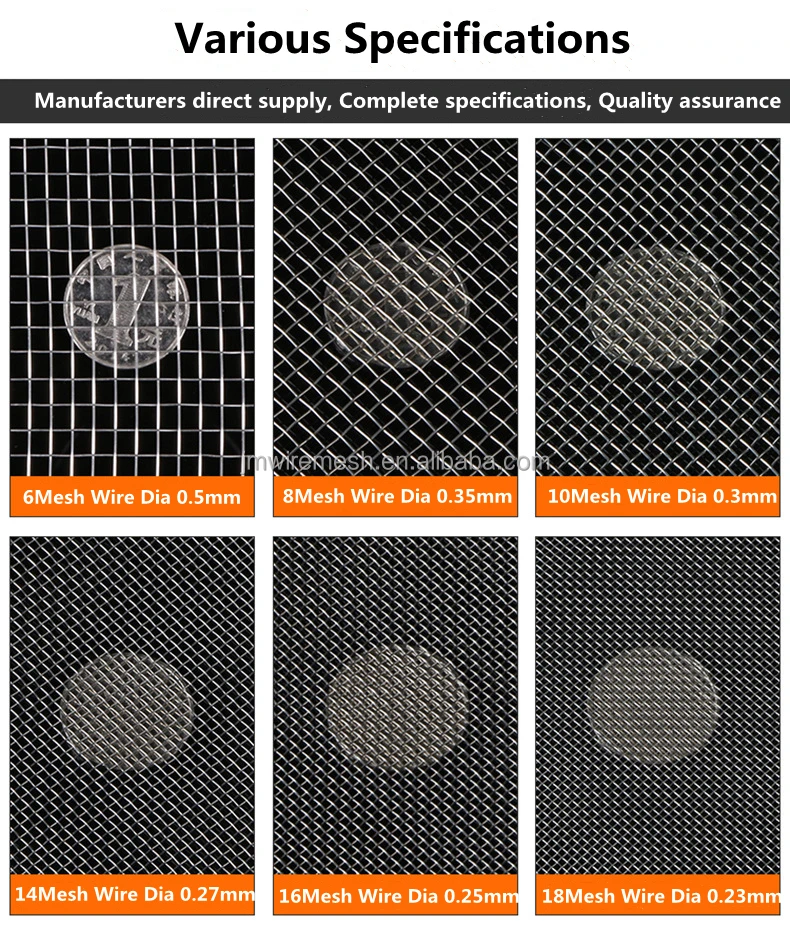

Product Photograph






Product Application


Stainless Steel Filter Wire Mesh Screen Applications
♦ Stainless steel woven wire mesh is widely used for filtering, protection, printing, and decorating.
♦ Stainless steel woven wire mesh can be used as woven wire filter cloth to filter liquid, solid and gas in the filtering
industries, such as the filter discs, filter tubes, dipping baskets, test sieves, filter elements or strainers.
♦ The stainless steel woven wire mesh can be used in architectural buildings as the decorative woven wire mesh.
♦ Stainless steel woven wire mesh screen can be used for window screen and door screen to prevent insects from entering the
houses.
♦ The stainless steel is woven wire cloth is widely used in printing electronics, textiles, ceramics, glass and other industries.

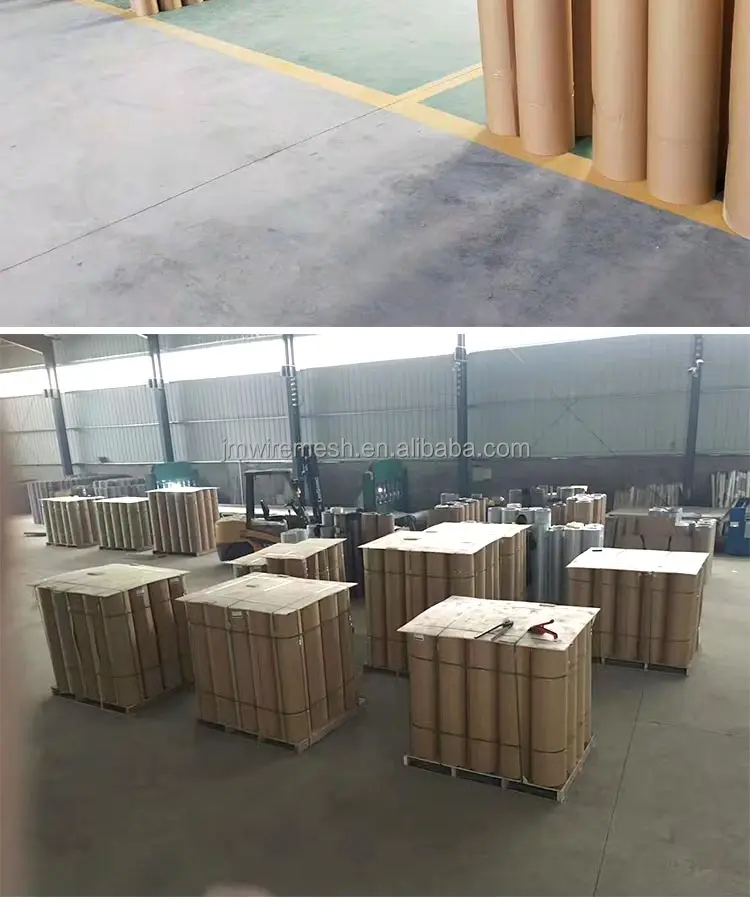

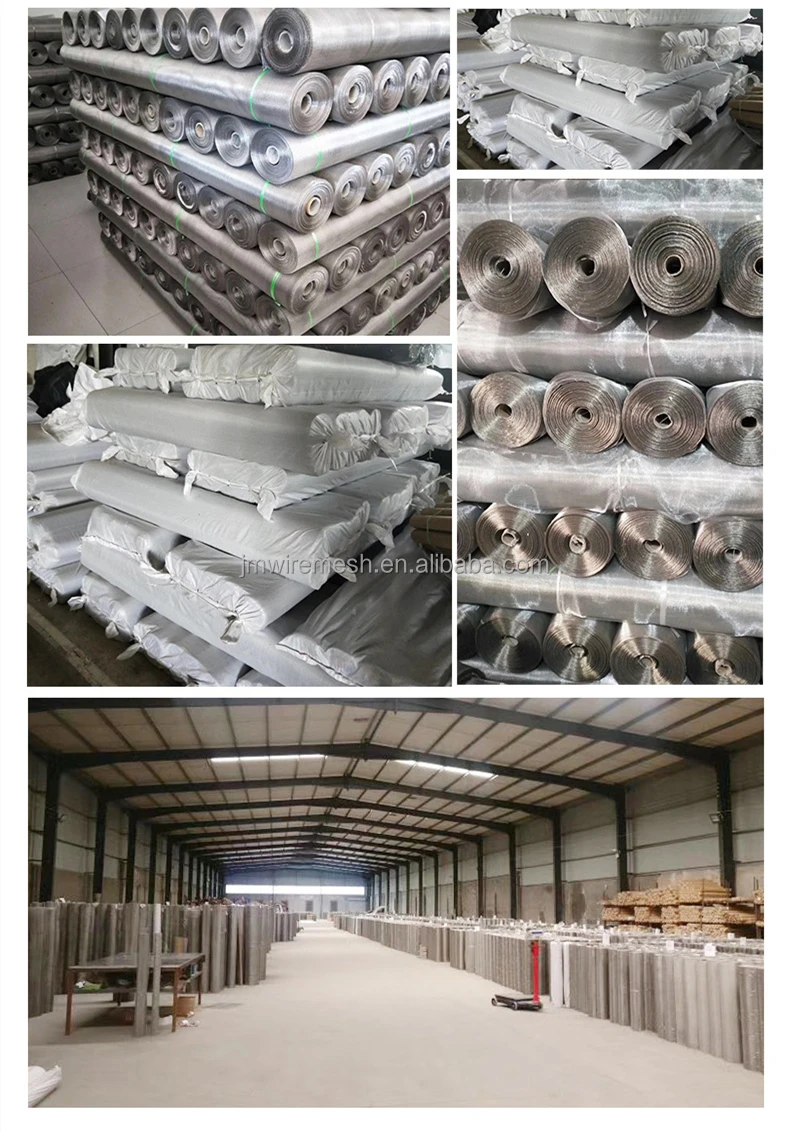

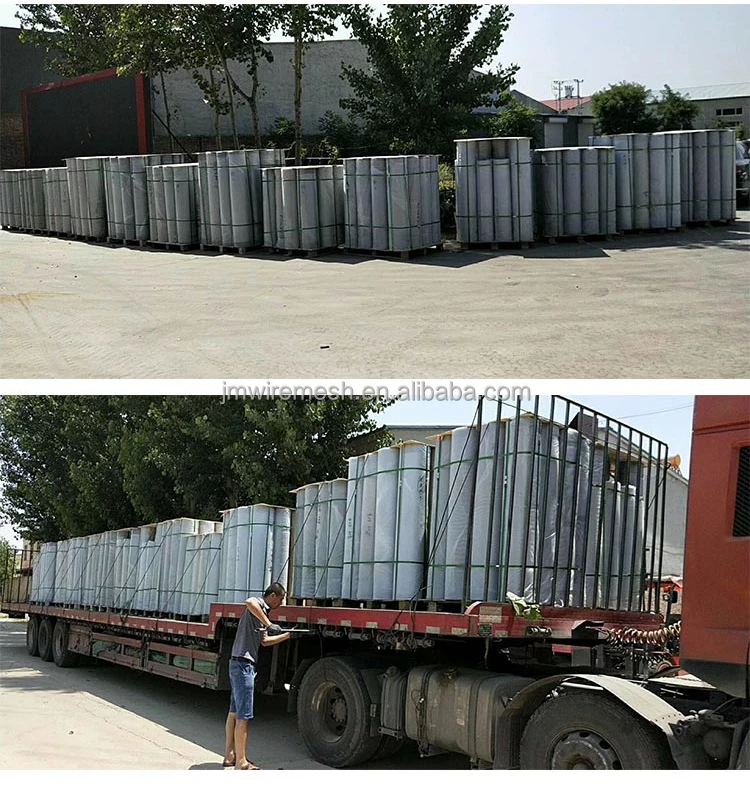

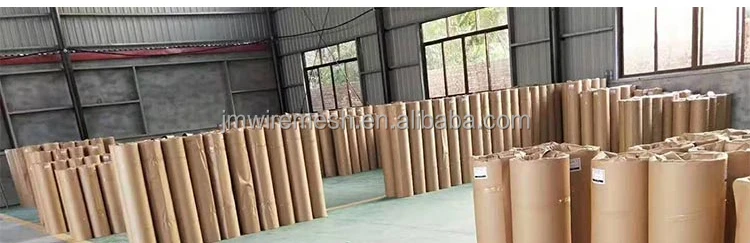

Packing & Shipping
