Gdstime GDA8010 80x80x10mm 80mm 3 PINS FG Sleeve Bearing DC 12V Brushless Axial Cooler Fan
- Category: >>>
- Supplier: Shenzhen Gdstime Technology Co. Ltd.
Share on (1600527027189):
Product Overview
Description

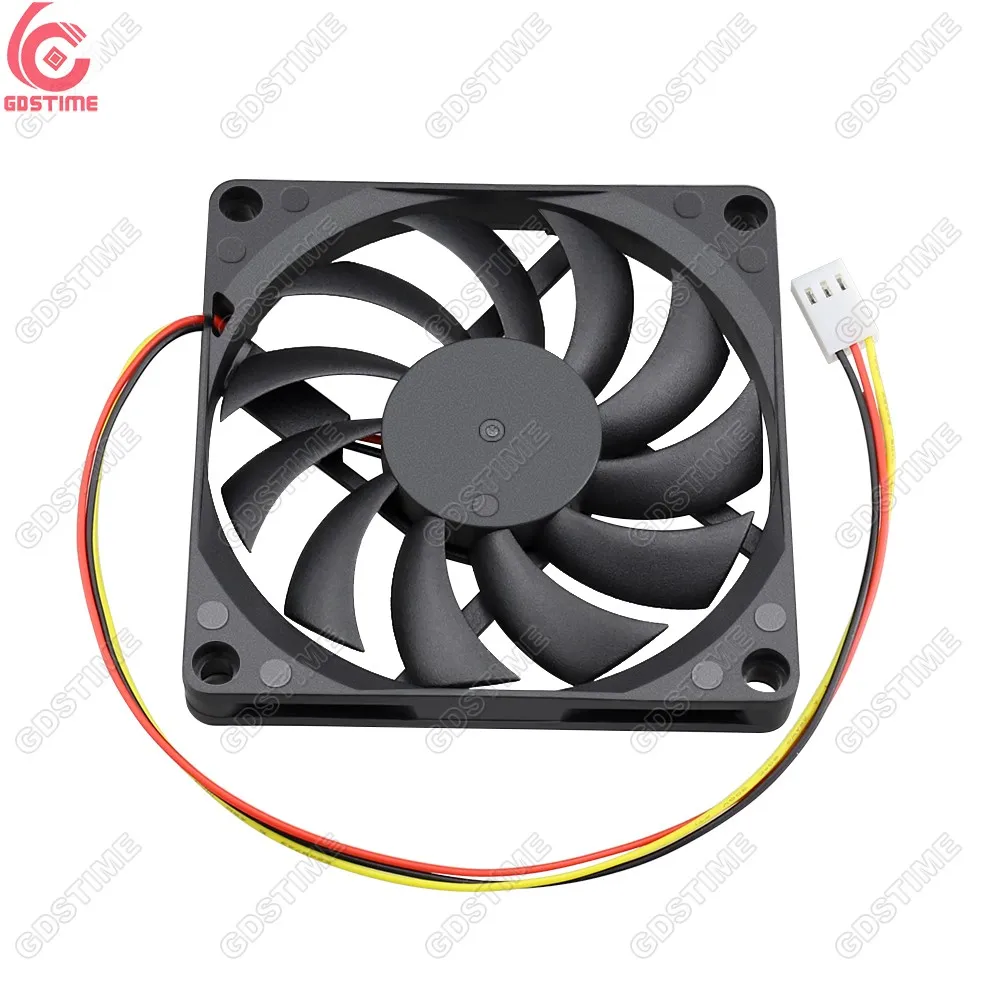

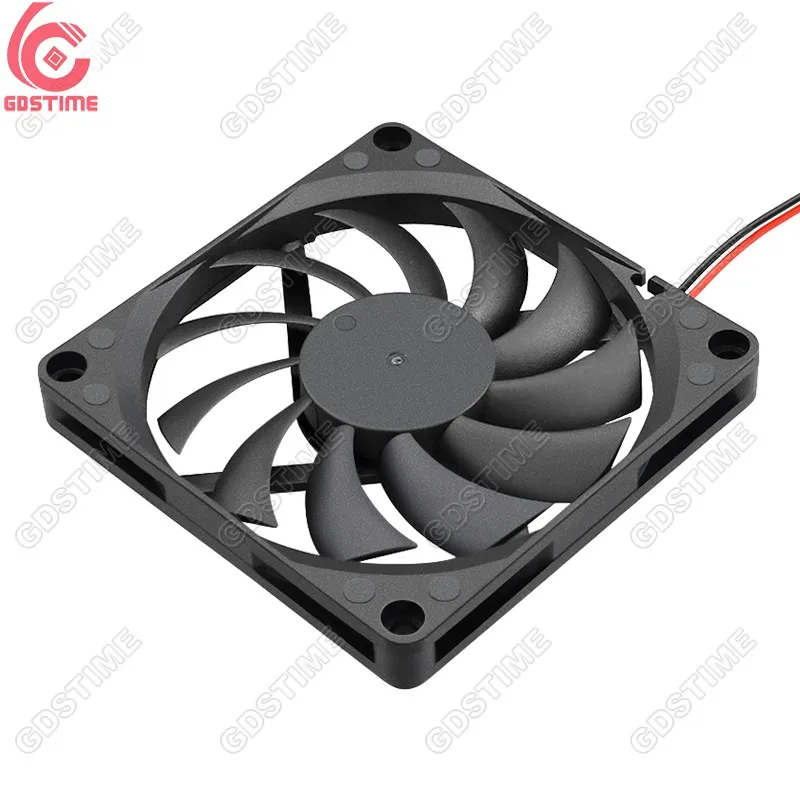

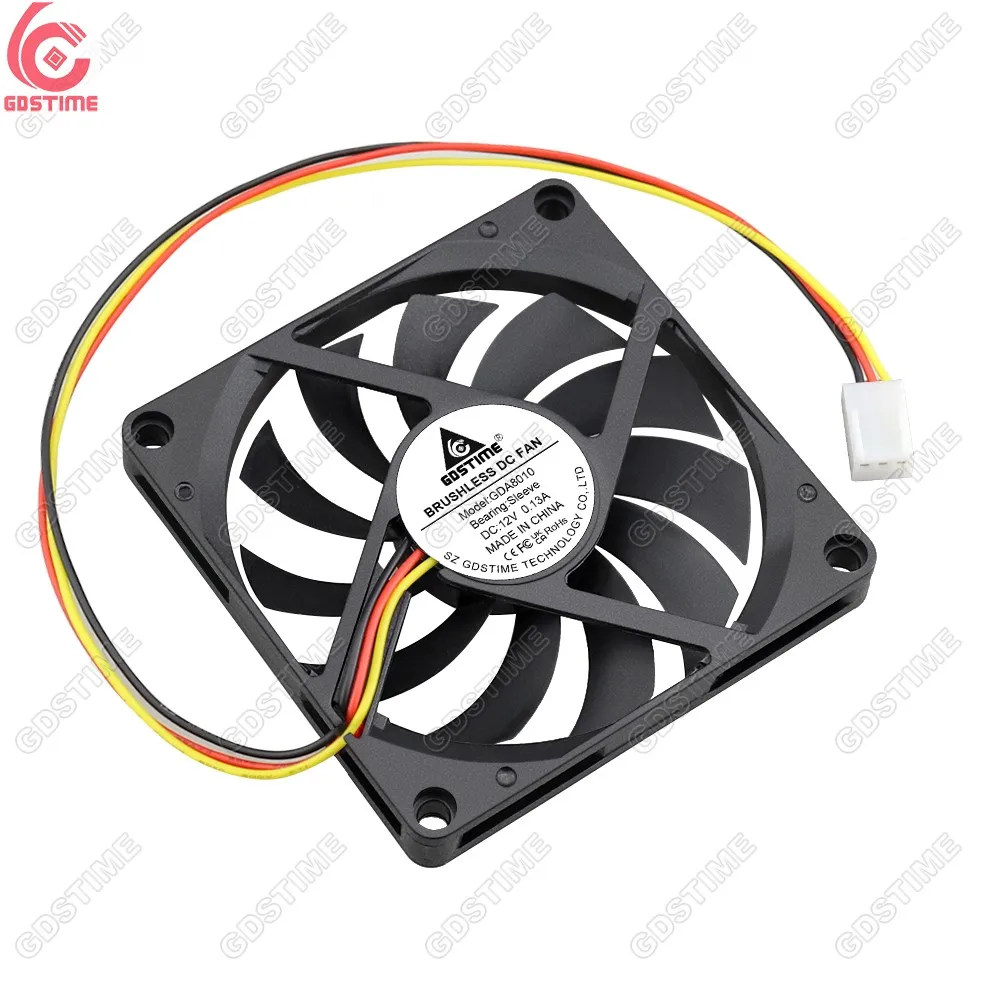

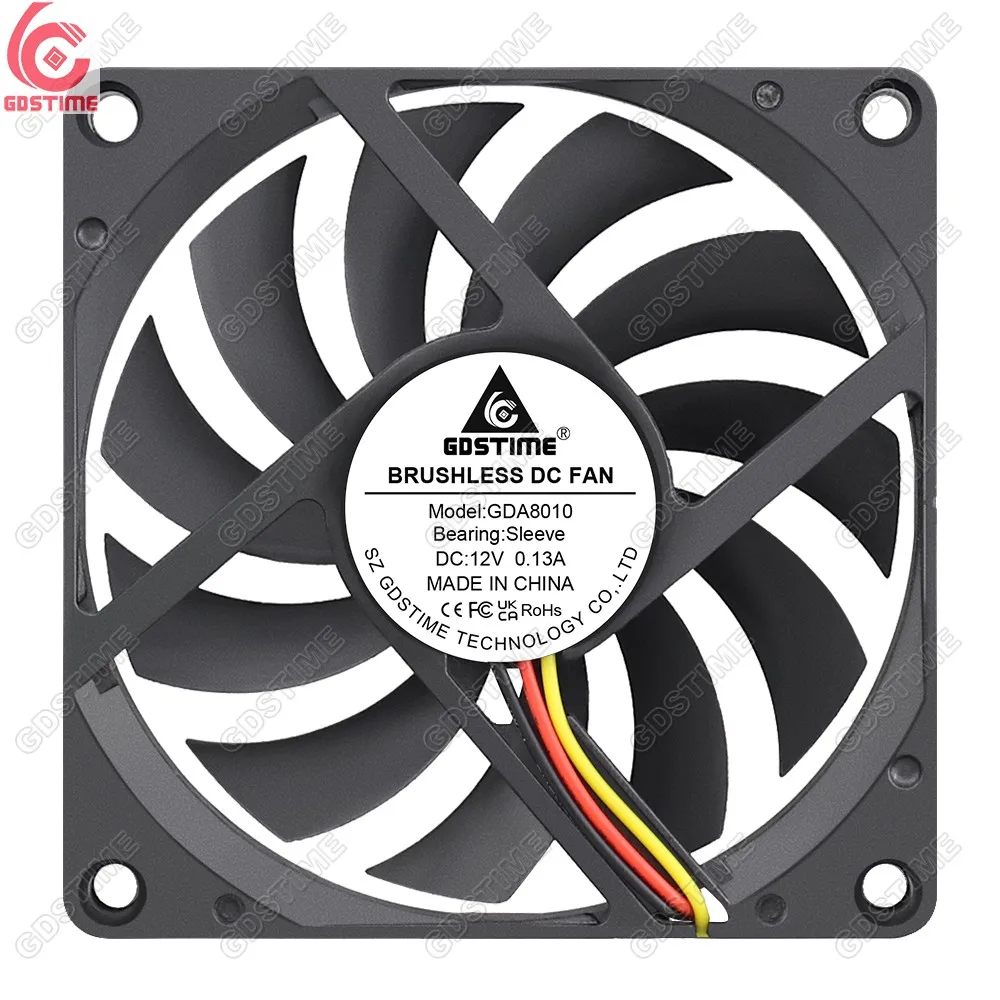

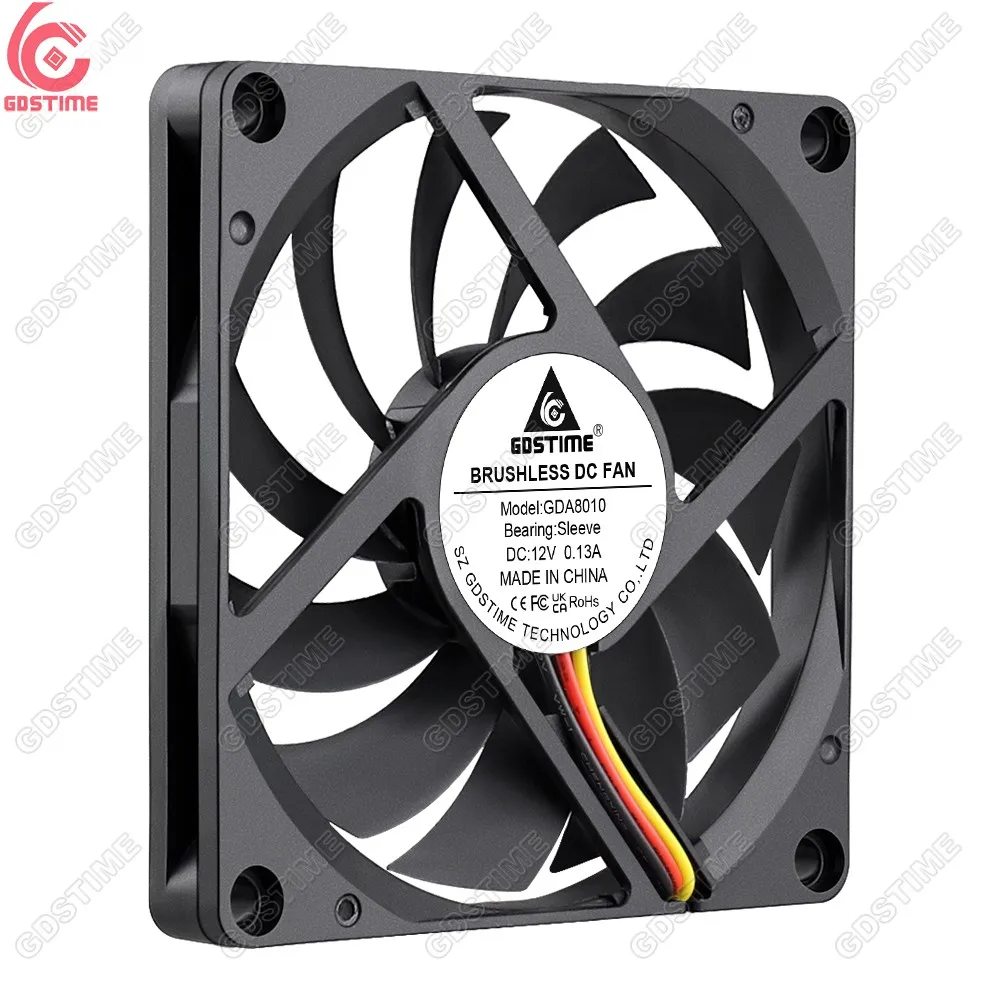

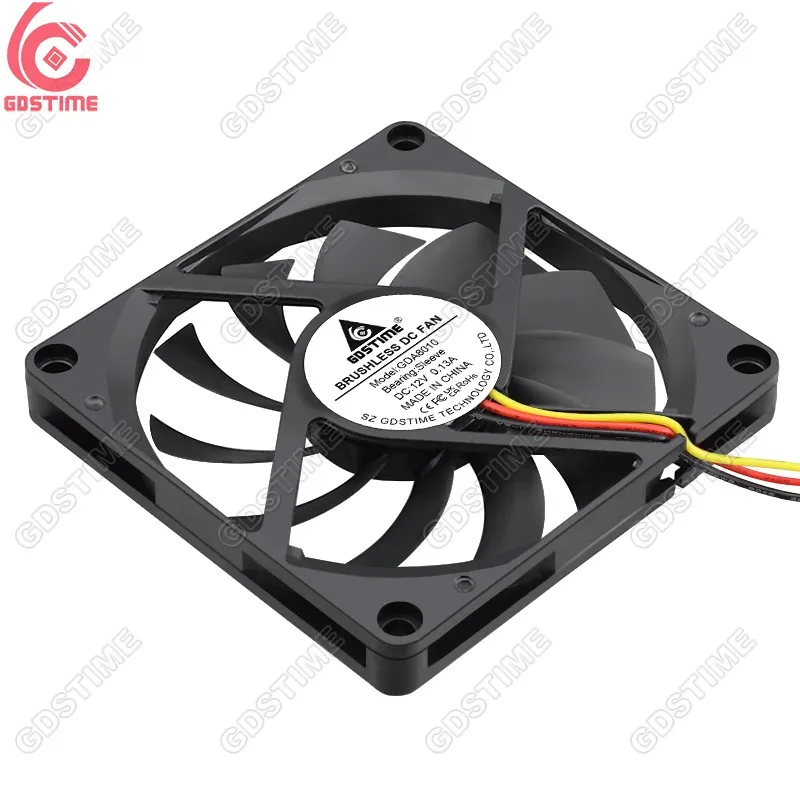

Gdstime 80x80x10mm 80mm DC 12V Sleeve Bearing Cooling Fan
Product Description
Rated Voltage: DC 12V
Rated Current: 0.13A
Bearing: Sleeve
Fan Speed: 2500 RPM±10%
Noise Level: <25.6dBA±10%
Air Flow: 18.9CFM
Net Weight:38g

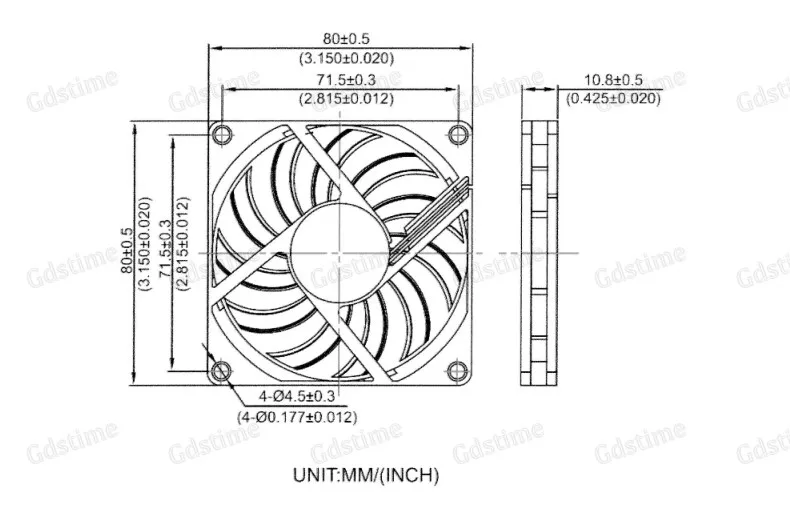

Fan size:80x80x10mm
Rated Current: 0.13A
Bearing: Sleeve
Fan Speed: 2500 RPM±10%
Noise Level: <25.6dBA±10%
Air Flow: 18.9CFM
Net Weight:38g
Fan size:80x80x10mm
GDSTIME
Pictures
| Model | Bearing | Rated Voltage | Operating Voltage Range | Rated Current | Speed RPM | Air Flow CFM | Air Pressure (In H2O) | Noise LeVel dBA |
| GDA8010 | Sleeve / Ball | 5V | 4-5.5V | 0.12 | 1600 | 11.2 | 0.07 | 19.6 |
| 0.15 | 2200 | 15.8 | 0.09 | 22.4 | ||||
| 0.18 | 2500 | 18.9 | 0.13 | 25.6 | ||||
| 0.25 | 2800 | 20.06 | 0.152 | 27.1 | ||||
| 0.28 | 3000 | 21.4 | 0.16 | 27.8 | ||||
| 12V | 7-13.5V | 0.065 | 1600 | 11.2 | 0.07 | 19.6 | ||
| 0.08 | 2200 | 16.7 | 0.1 | 24.8 | ||||
| 0.12 | 2500 | 18.9 | 0.13 | 25.6 | ||||
| 0.13 | 2800 | 20.06 | 0.152 | 27.1 | ||||
| 0.15 | 3000 | 21.4 | 0.16 | 27.8 | ||||
| 24V | 14-26V | 0.08 | 2200 | 16.7 | 0.1 | 24.8 | ||
| 0.1 | 2500 | 18.9 | 0.13 | 25.6 | ||||
| 0.12 | 3000 | 21.4 | 0.16 | 27.8 | ||||
| NOTE: If you want other Airflow/Voltage/Functions fan which is not in the list ,please contact us , thanks. | ||||||||
Recommend products
Customize
| 1.Special voltage:Any voltage in the range of 3-24v |
| 2.Material: Eco-friendly material,Flame-proof material |
| Moisture-proof,waterproof(IP55,IP56,IP68) or Complete waterproof(Ati-acid,Ati-alkali and waterproof) |
| 4.OEM,ODM service supported. Customize fan stickers. |
| 5. Customize Cable length,connector. |
| 6.Function customize. |
Function
A,Motor Protection
1,RP: Reverse Protection
2,SS: Soft Start
3,AS: Auto Restart
4,CL: Current Limit
B,Singal output
1,FG: Frequency Generator
2,RHD(RD): Rotation Detection(High)
3,RDL: Rotation Detection(Low)
4,LD: Low Detection
C,Speed control mode
1,PWM: Pulse Wide Modulation
2,TC: Temperature Control
3,VC: Voltage Control
4,RC: Resistor Control
5,SC: Const Speed
