Quarry Crushing Plants Movable Granite Limestone Gravel Primary Rock Stone Jaw Crusher Crushing Line For Sale
MBP series jaw crushing plant uses the optimized frame structure and movable jaw design, mainly used for the coarse crushing of minerals and rocks. According to the different production capacity, it can be designed and matched with different specifications of the feeder, jaw crusher, belt conveyor and other modular structural parts.
PRODUCT PARAMETERS
Project | Device Name | Models and Specifications | Power (KW) | Amount | ||||||
C106 Jaw Crusher + ZSW4211 Feeder | feeding machine | equipment | ZSW4211 | / | 1 | |||||
motor | Standard | 15 | 1 | |||||||
jaw crusher | equipment | C106 | / | 1 | ||||||
triangle belt | Standard | / | 10 | |||||||
motor | Standard | 110 | 1 | |||||||
Modular steel structure | Standard | / | 1 | |||||||
main conveyor | Specification | B1000*12m | 11 | 1 | ||||||
drive mode | electric drum drive | / | 1 | |||||||
magnetic separator | Specification | RCYQ-10 | 2.2 | 1 | ||||||
drive mode | reducer | / | 1 | |||||||
Electrical System | Electric control cabinet | Feeder motor variable frequency speed regulation, host soft start, electrical components Chint | / | 1 set | ||||||
/ | 1 set | |||||||||
Hydraulic Pumps, Valves, Stations and Tubing Accessories | / | 1 set | ||||||||
Total power 138.2KW | ||||||||||
Project | Device Name | Models and Specifications | Power (KW) | Amount | ||||||
PE57 Jaw Crusher + ZSW3090 Feeder | feeding machine | equipment | ZSW3090 | / | 1 | |||||
motor | Standard | 11 | 1 | |||||||
jaw crusher | equipment | PE57 | / | 1 | ||||||
triangle belt | Standard | / | 5 | |||||||
motor | Standard | 55 | 1 | |||||||
Modular steel structure | Standard | / | 1 | |||||||
main conveyor | Specification | B650*12m | 5.5 | 1 | ||||||
drive mode | electric drum drive | / | 1 | |||||||
magnetic separator | Specification | RCYQ-6.5 | 1.5 | 1 | ||||||
drive mode | reducer | / | 1 | |||||||
Electrical System | Electric control cabinet | Feeder motor variable frequency speed regulation, host soft start, electrical components Chint | / | 1 set | ||||||
/ | 1 set | |||||||||
Hydraulic Pumps, Valves, Stations and Tubing Accessories | / | 1 set | ||||||||
Total power 73KW | ||||||||||
Project | Device Name | Models and Specifications | Power (KW) | Amount) | ||||||
PE69 Jaw Crusher + ZSW3896 Feeder | feeding machine | equipment | ZSW3896 | / | 1 | |||||
motor | Standard | 11 | 1 | |||||||
jaw crusher | equipment | PE69 | / | 1 | ||||||
triangle belt | Standard | / | 5 | |||||||
motor | Standard | 75 | 1 | |||||||
Modular steel structure | Standard | / | 1 | |||||||
main conveyor | Specification | B800 * 12m | 7.5 | 1 | ||||||
drive mode | electric drum drive | / | 1 | |||||||
magnetic separator | Specification | RCYQ-8 | 1.5 | 1 | ||||||
drive mode | reducer | / | 1 | |||||||
Electrical System | Electric control cabinet | Feeder motor variable frequency speed regulation, host soft start, electrical components Chint | / | 1 set | ||||||
/ | 1 set | |||||||||
Hydraulic Pumps, Valves, Stations and Tubing Accessories | / | 1 set | ||||||||
Total power 95KW | ||||||||||
Special Design of different models of the mobile crushing plant will be available upon request.

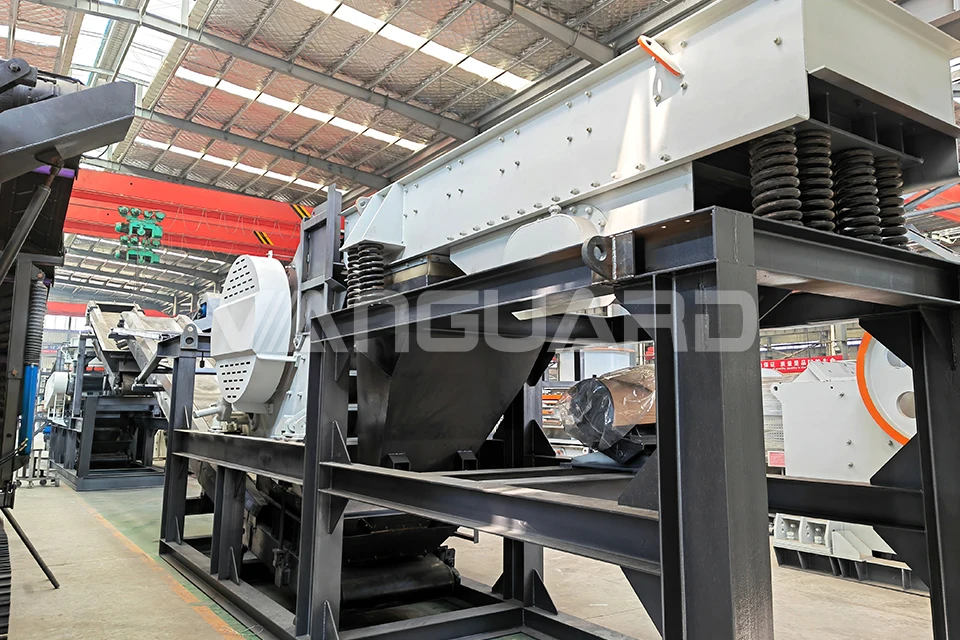

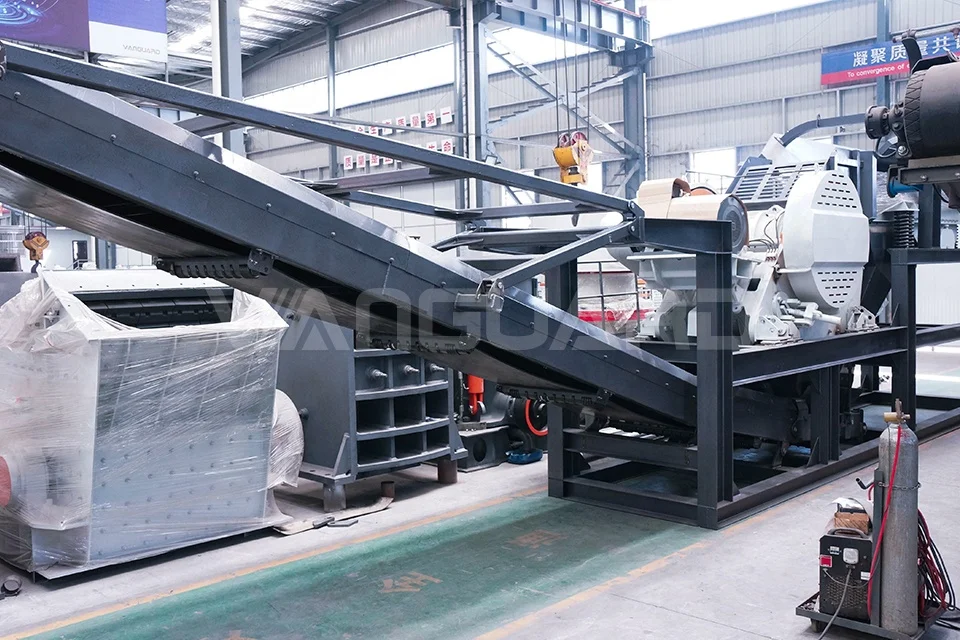

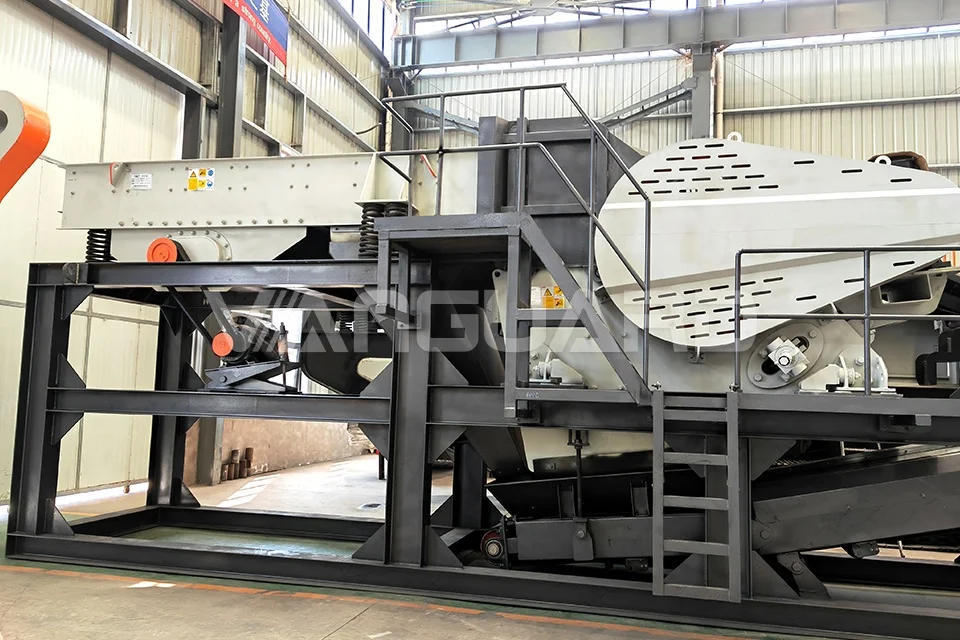

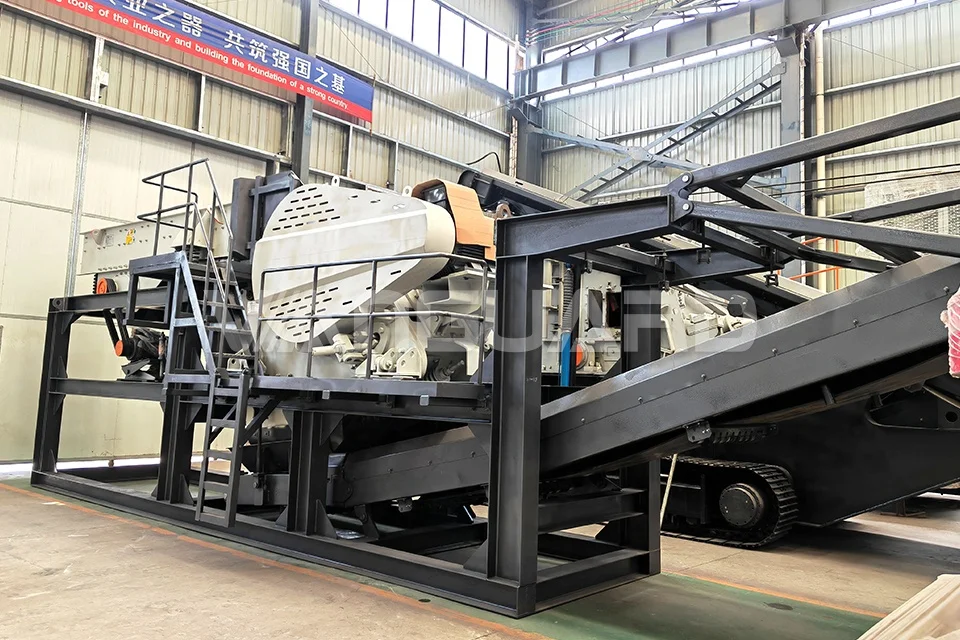

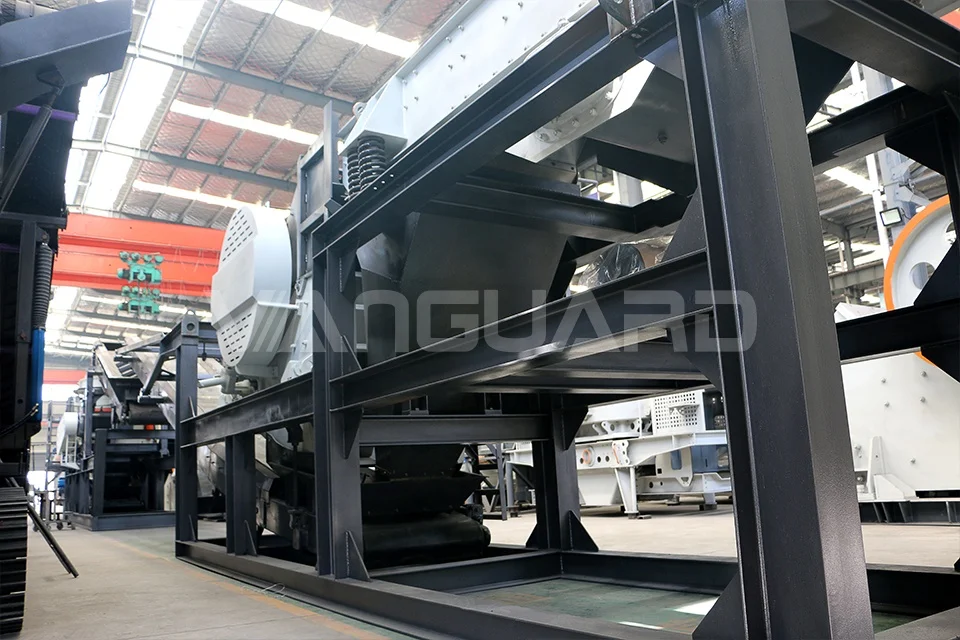

PRODUCT EXHIBITION
PRODUCT ADVANTAGES
Rugged construction
The frame is divided into welding type and assembled type. The small and medium-sized specifications generally adopt the welding type, and the large-scale specifications generally adopt the assembled type.
The welding type adopts large arc transition fillet and low stress area welding method, which has the characteristics of impact resistance, uniform force and low failure rate.
Superior cavity design, large feeding granularity
The V-shaped crushing cavity design is adopted, the toggle plate has a large inclination angle and a large stroke. Compared with the traditional PE series jaw crusher, it has the larger feeding particle size, the higher output, more uniform the particle size, and reduced the jaw plate wear.
Integral bearing seat
The integral cast steel bearing seat structure ensures complete coordination with the frame, which makes the bearing run more smoothly and avoids unnecessary radial load on the bearing during the tightening process of the combined bearing seat.
Anti-vibration installation design
The crusher is fixed by a special rubber shock absorption device, which effectively absorbs the peak vibration of the equipment and allows the vertical and longitudinal displacement of the crusher, thereby reducing the impact on the foundation.
PRODUCT APPLICATION
Processed Material:
Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc

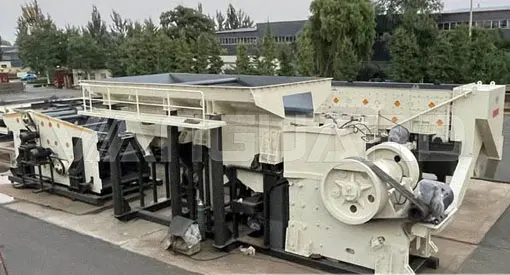

CUSTOMERS' SITES

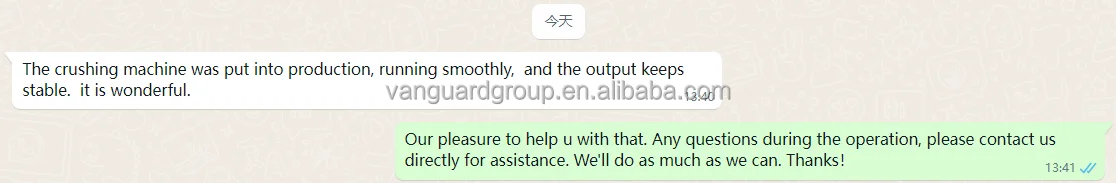

Customer Feedback
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, mineral processing machine, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manufacturer in global mining industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
All of our products have passed ISO9001-2008 international quality management system certification, European CE certification and Russia GOST certification, and our company has established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will design the most suitable proposal based on raw materials.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
