100Pcs LED Strip Smart Tuya Zigbee Controller DC5 24V Warm white CCT RGB RGBW RGBCCT LED Tape Light APP Control Zigbee Gateway
- Category: >>>
- Supplier: Shenzhen Haipo Lighting Co. Ltd.
Share on (1600527029768):
Product Overview
Description
Specification
Notes:This LED strip Zigbee controller needs to be used with Zigbee gateway.
Zigbee Controller Specifications:
Product name: LED Strip Zigbee Controller
Working voltage: DC5~24V
Material: ABS
Working Power: 6A/channel, max 15A
Control range: 30m
Size: 90*38*25mm
Working temperature: -20~60℃
Control method: Zigbee
Connectivity Protocol: ZigBee 3.0
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.405-2.480GHz
Zigbee Hub/Gateway: Required

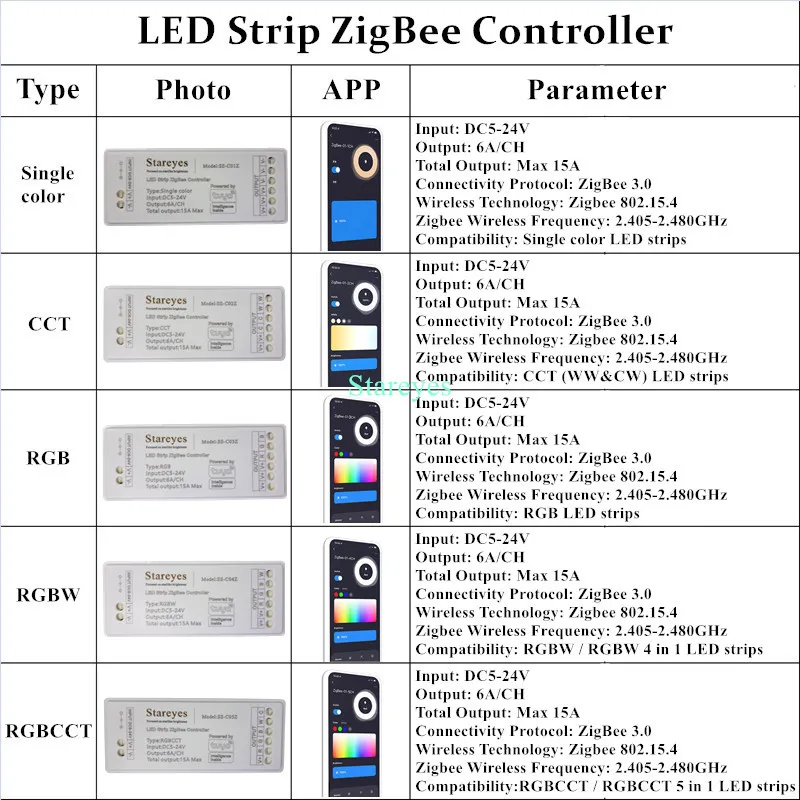

Controller type: Single Color, CCT, RGB, RGBW, RGBCCT
Single color controller: Compatible with single color LED strips
CCT controller: Compatible with CCT (WW&CW) LED strips

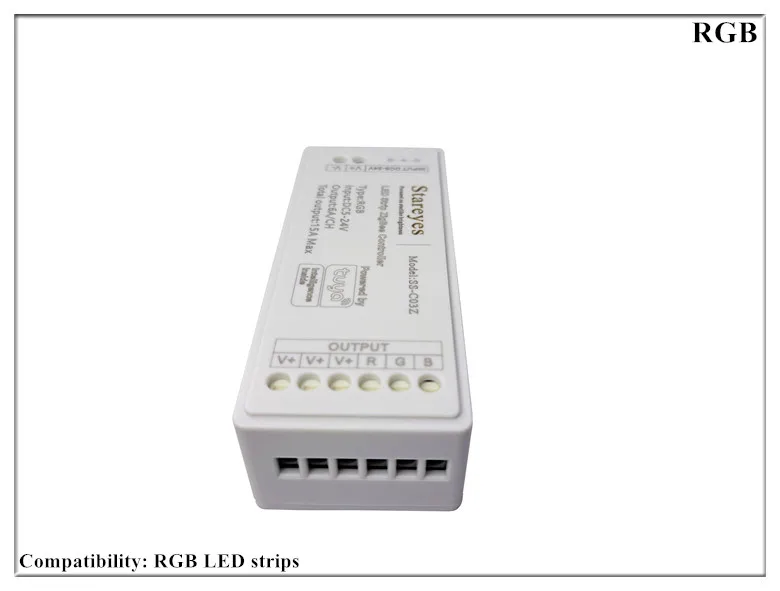

RGB controller: Compatible with RGB LED strips

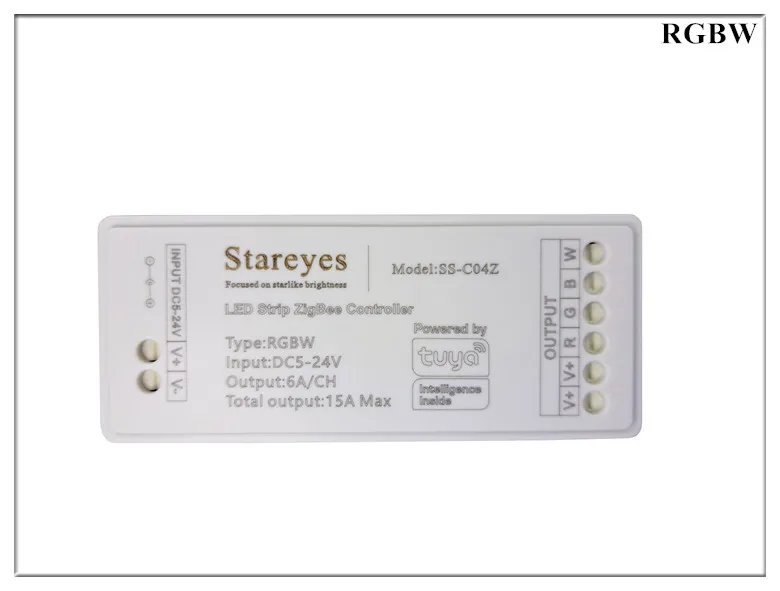

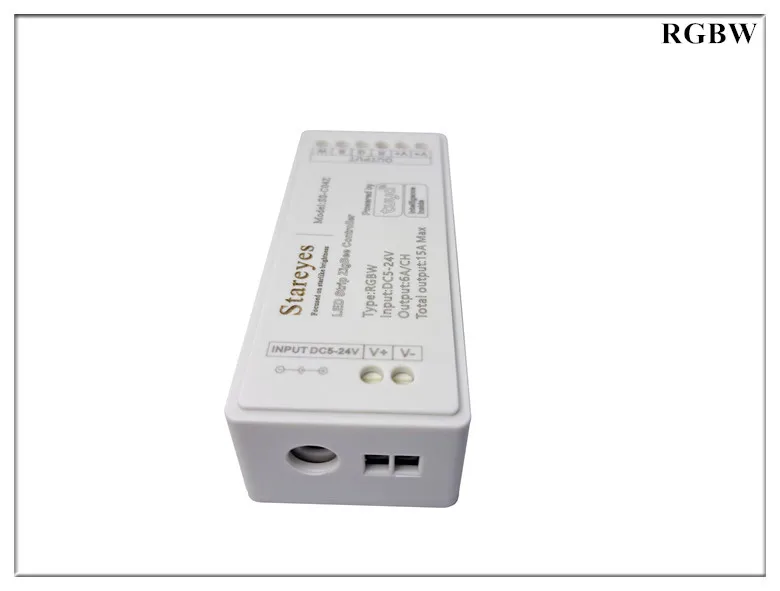

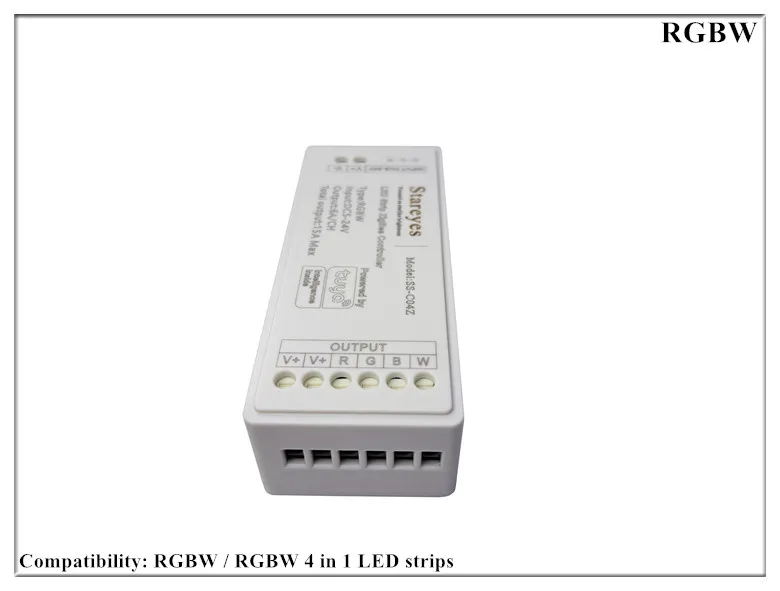

RGBW controller: Compatible with RGBW or RGBW 4 in 1 LED strips

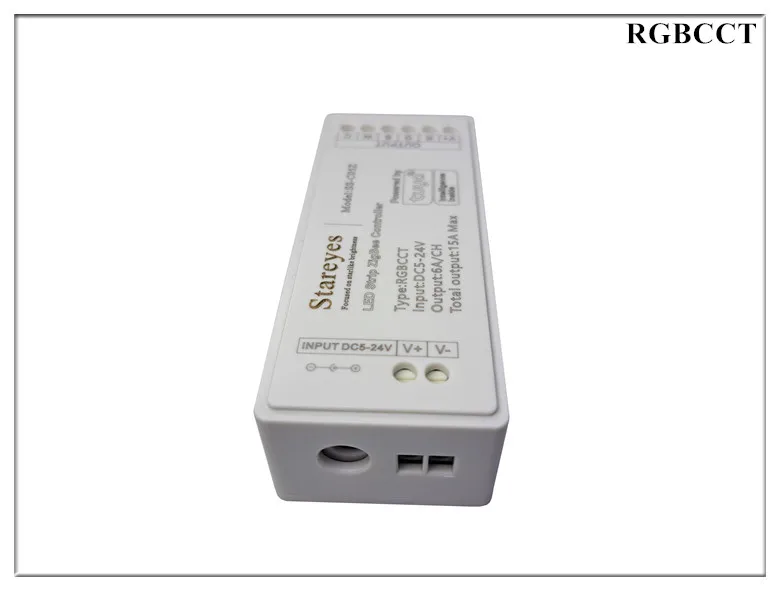

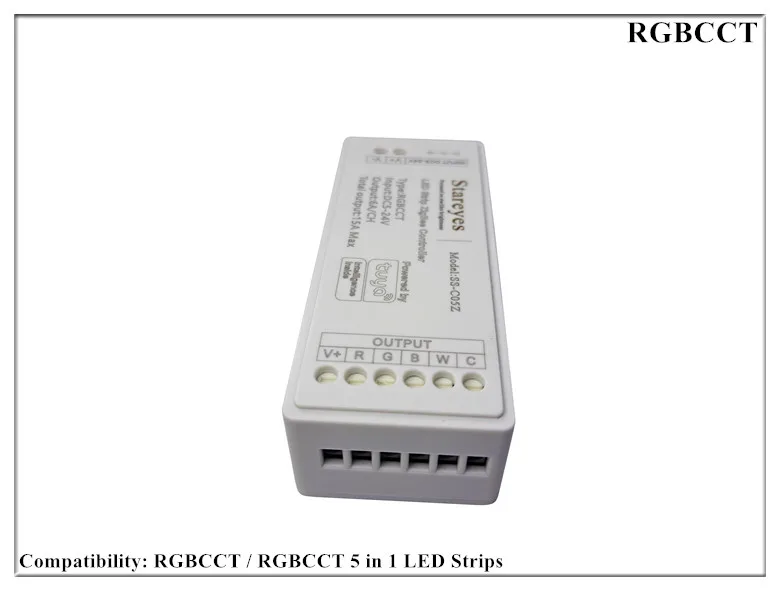

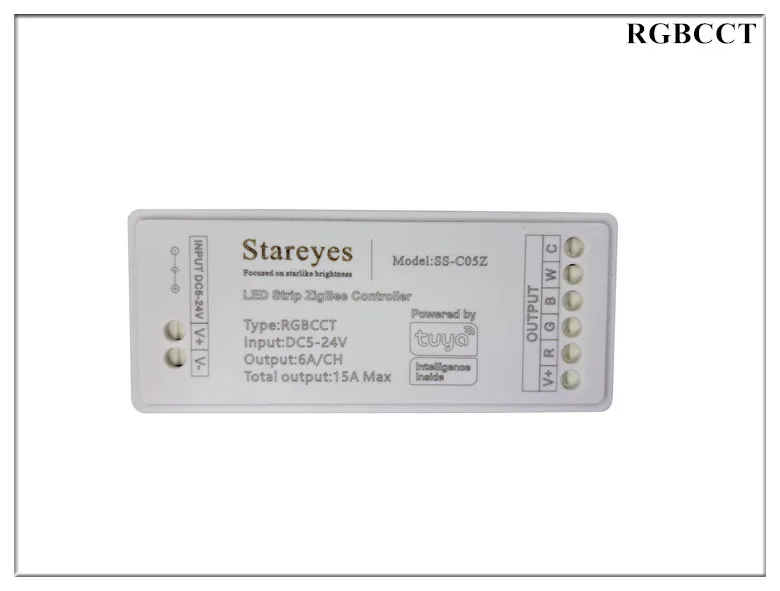

RGBCCT controller: Compatible with RGBCCT or RGBCCT 5 in 1 LED strips

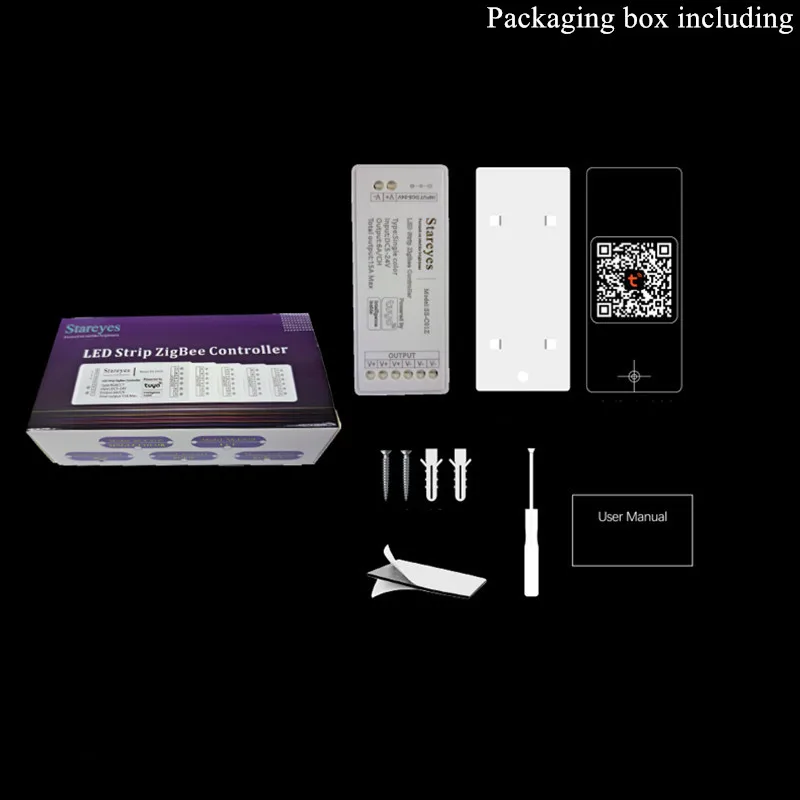

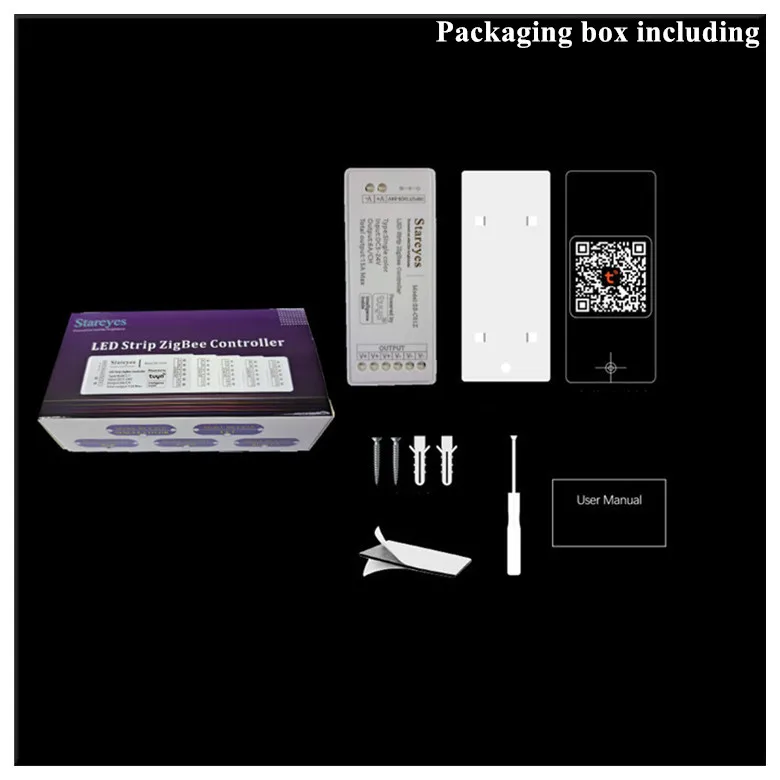

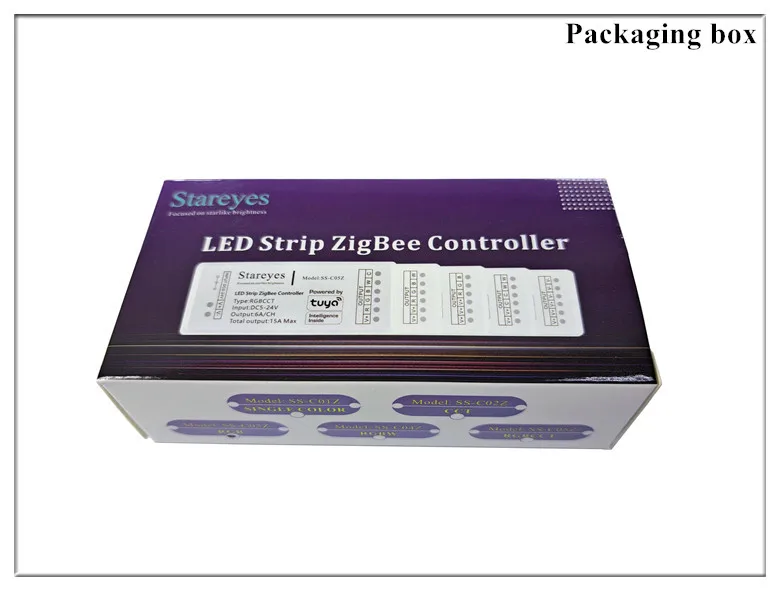

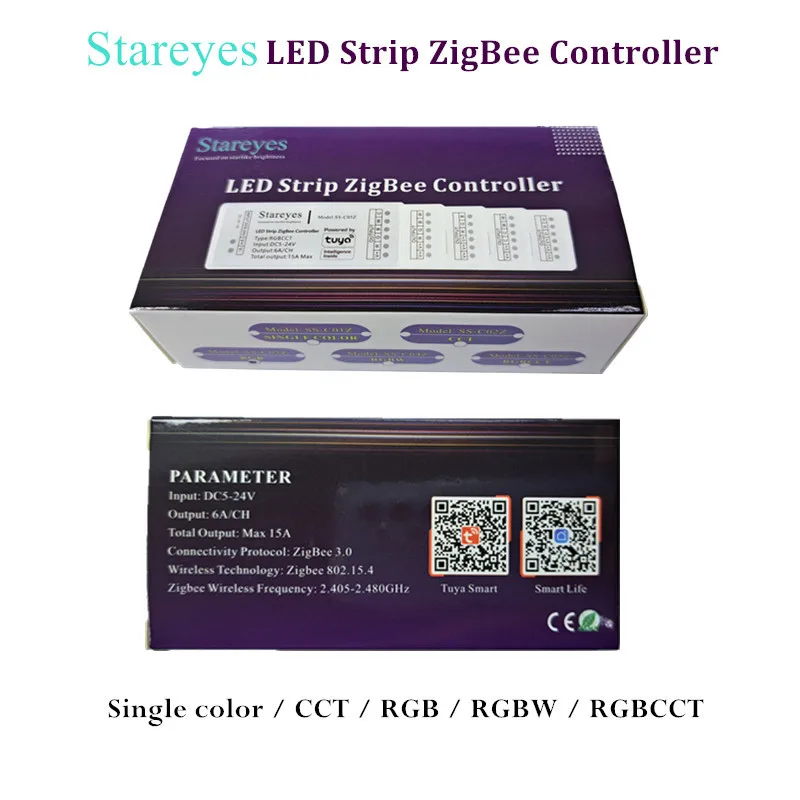

Zigbee Controller Package Including:
1* Zigbee Strip Controller
1* User Manual

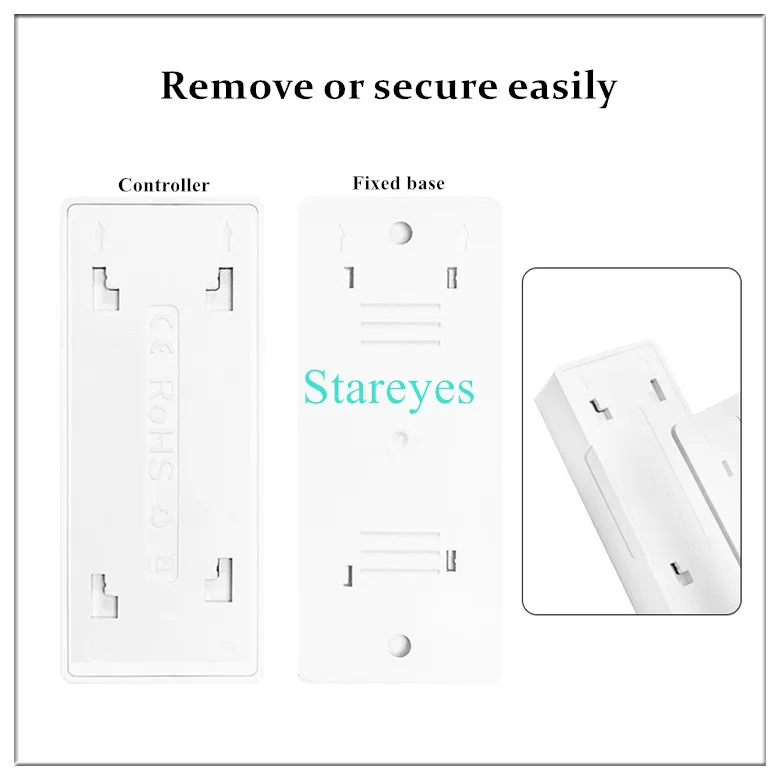

1* Fixed base
1* Accessories

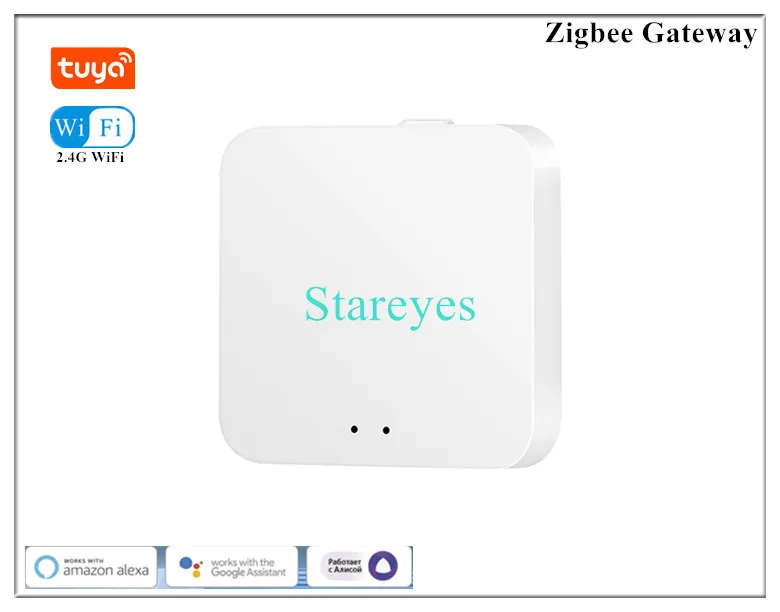

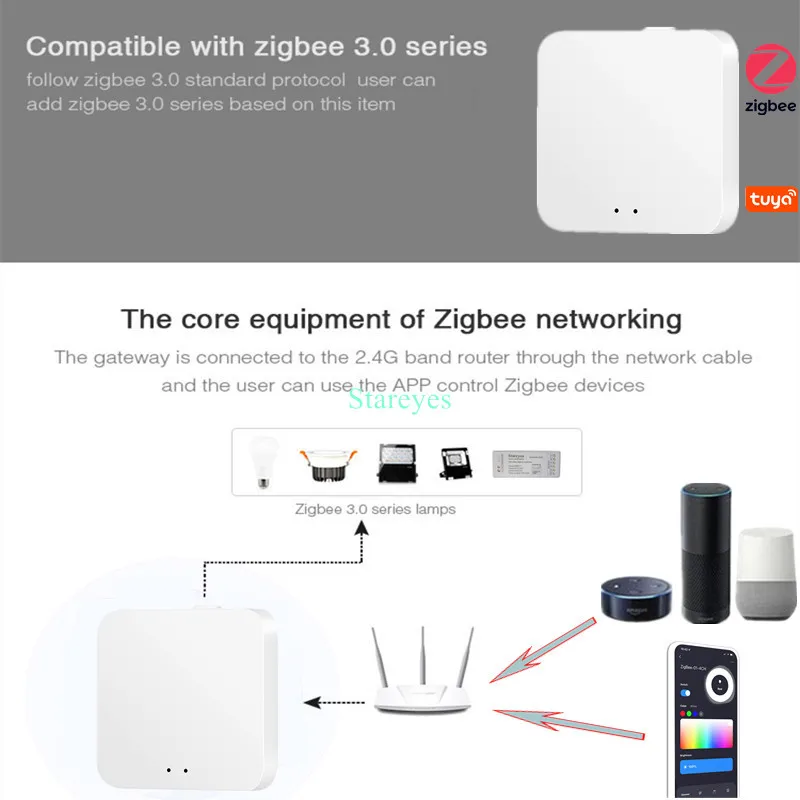

Smart Gateway Specifications:

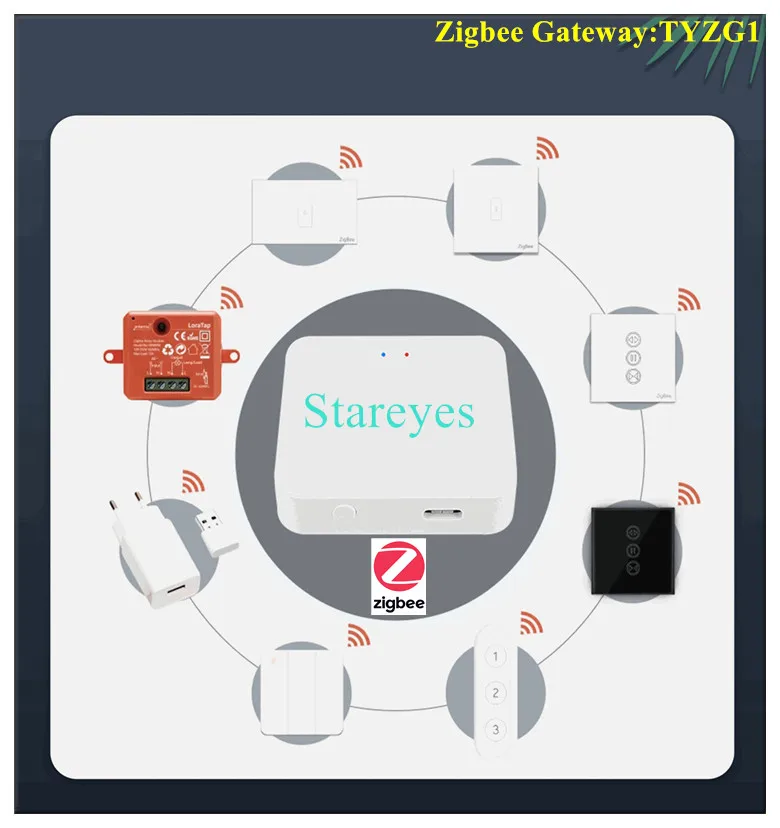

Model: TYZG1
Product name: Smart Gateway
Power input: DC 5V1A
Size: 60*60*25mm
Working temperature: -10°C ~ 55°C
Working humidify : 10% ~90% (non-condensing)
Wireless connection: WiFi 2.4G / ZigBee
Connectivity Protocol: ZigBee 3.0
Max Connected Device: 128 ZigBee Device

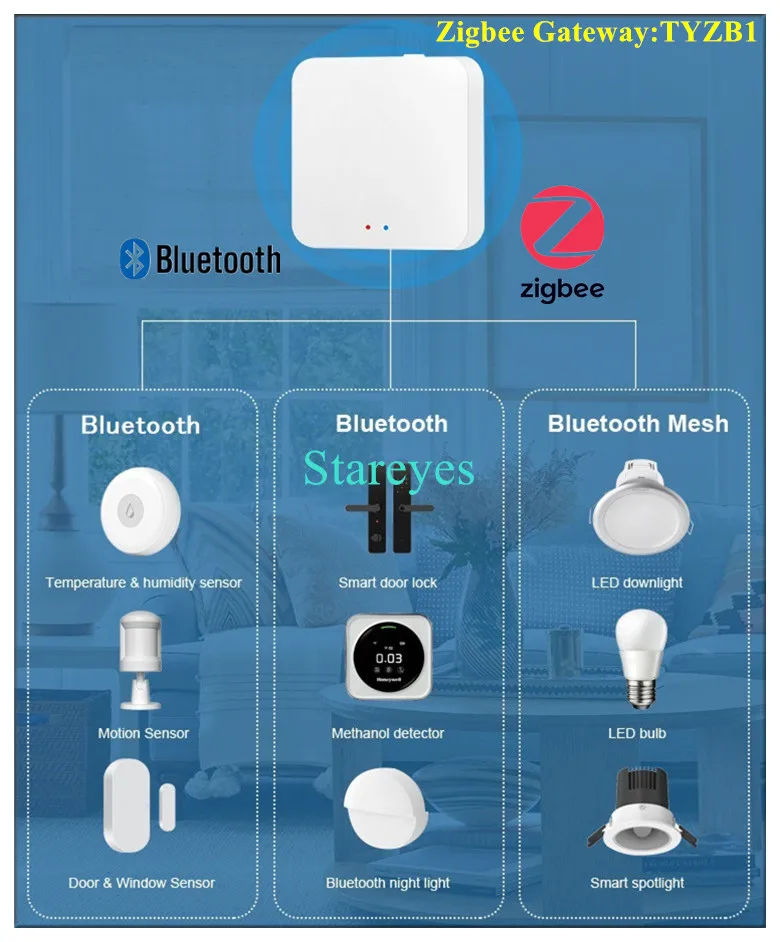

Model: TYZB1
Product name: Smart Gateway
Power input: DC 5V1A
Size: 60*60*25mm
Working temperature: -10°C ~ 55°C
Working humidify: 10% ~90% (non-condensing)
Wireless connection: WiFi 2.4G / ZigBee / Bluetooth
Connectivity Protocol: ZigBee 3.0 / Bluetooth 4.2
Max Connected Device: 128 ZigBee Device / 128 Sigmesh Device

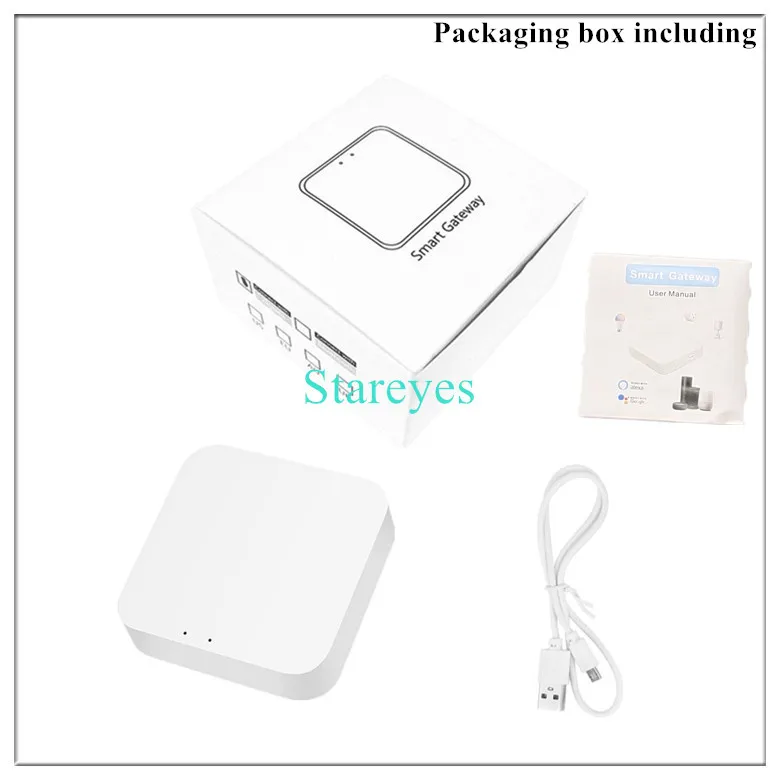

Smart Gateway Package Including:
1*Gateway
1*USB cable
1*User Manual
Zigbee Controller Specifications:
Product name: LED Strip Zigbee Controller
Working voltage: DC5~24V
Material: ABS
Working Power: 6A/channel, max 15A
Control range: 30m
Size: 90*38*25mm
Working temperature: -20~60℃
Control method: Zigbee
Connectivity Protocol: ZigBee 3.0
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.405-2.480GHz
Zigbee Hub/Gateway: Required
Controller type: Single Color, CCT, RGB, RGBW, RGBCCT
Single color controller: Compatible with single color LED strips
CCT controller: Compatible with CCT (WW&CW) LED strips
RGB controller: Compatible with RGB LED strips
RGBW controller: Compatible with RGBW or RGBW 4 in 1 LED strips
RGBCCT controller: Compatible with RGBCCT or RGBCCT 5 in 1 LED strips
Zigbee Controller Package Including:
1* Zigbee Strip Controller
1* User Manual
1* Fixed base
1* Accessories
Smart Gateway Specifications:
Model: TYZG1
Product name: Smart Gateway
Power input: DC 5V1A
Size: 60*60*25mm
Working temperature: -10°C ~ 55°C
Working humidify : 10% ~90% (non-condensing)
Wireless connection: WiFi 2.4G / ZigBee
Connectivity Protocol: ZigBee 3.0
Max Connected Device: 128 ZigBee Device
Model: TYZB1
Product name: Smart Gateway
Power input: DC 5V1A
Size: 60*60*25mm
Working temperature: -10°C ~ 55°C
Working humidify: 10% ~90% (non-condensing)
Wireless connection: WiFi 2.4G / ZigBee / Bluetooth
Connectivity Protocol: ZigBee 3.0 / Bluetooth 4.2
Max Connected Device: 128 ZigBee Device / 128 Sigmesh Device
Smart Gateway Package Including:
1*Gateway
1*USB cable
1*User Manual
Product Description
Certifications
We don't compare prices with others, we only compare the quality. For safety concerns, please don't buy cheaper controller, because they have not been certified by CE RoHS FCC. Our Zigbee controller have been certified by CE RoHS FCC, please look over pictures.
