LGL liquid paste cream automatic pouch bag given bag filling packing Machine
- Category: >>>
- Supplier: Yangzhou Nuoxin Packaging Machinery Co. Ltd.
Share on (1600527032052):
Product Overview
Description

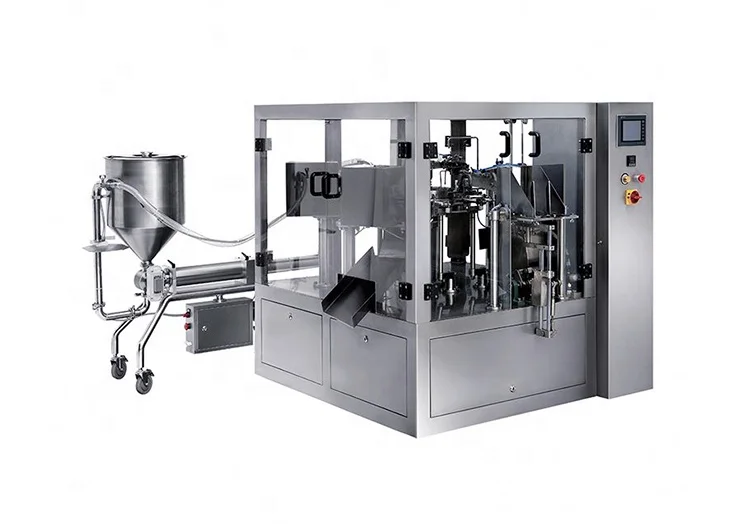

LGL liquid paste cream automatic pouch bag given bag filling packing Machine
Product Description
Application
The set consists of bag feeding machine, liquid filling machine and sauce filling machine. It is usually applied for the measurement and packing liquid and sauce such as of fruit juice, tomato sauce, flavor sauce, chili sauce, liquid soap, and detergent.
Characteristics:
1. Easy to operate, adopt advanced PLC controller, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: No pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of all clips, easily operate, and save time.
Model | LGL200 | LGL300 | |
Pouch material | Laminated film, PE, PP etc | ||
Working position | Six position | ||
Pouch pattern | zipper bag, spout bag, Stand-up pouches, Plane bag, | ||
handbags, zipper stand-up pouches bag | |||
Pouch size | W: 100-210mm L: 100-350mm | W: 200-310mm L: 100-450mm | |
Filling range | 5-1500g | 100-2000g | |
Weigher accuracy | ±1% | ||
Speed | 25-35 Bags/min (The speed depends on the product status and filling weight) | ||
Voltage | 3-Phase 380V 50HZ/60HZ | ||
power | 3.0kw | 3.2kw | |
Compress air | 0.6m3/min (compress air is supplied by user) | ||

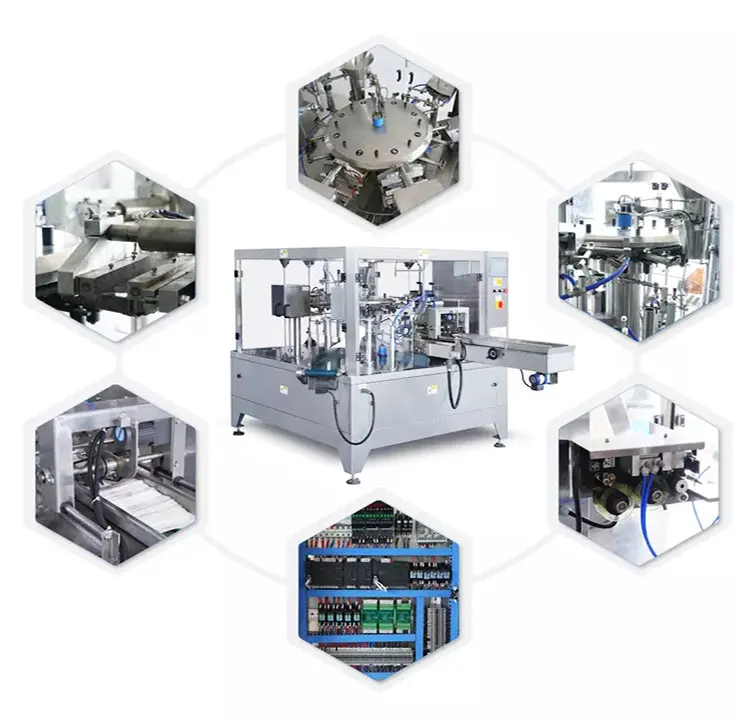

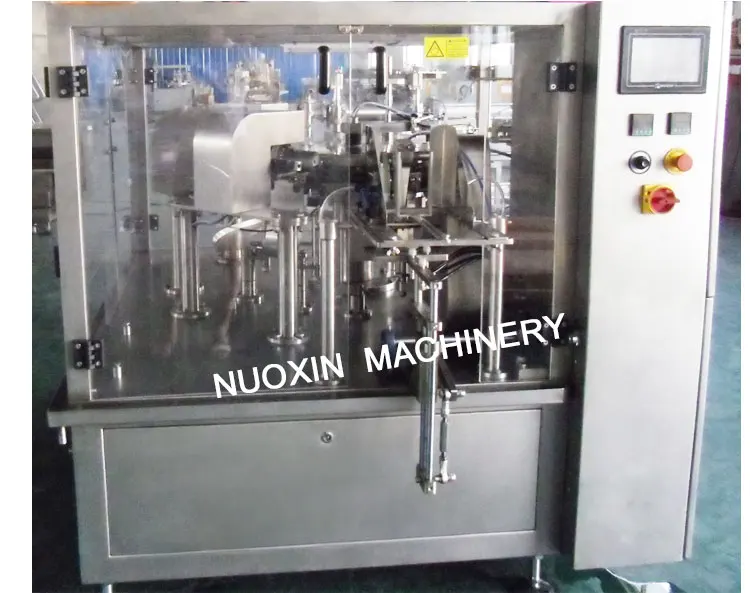

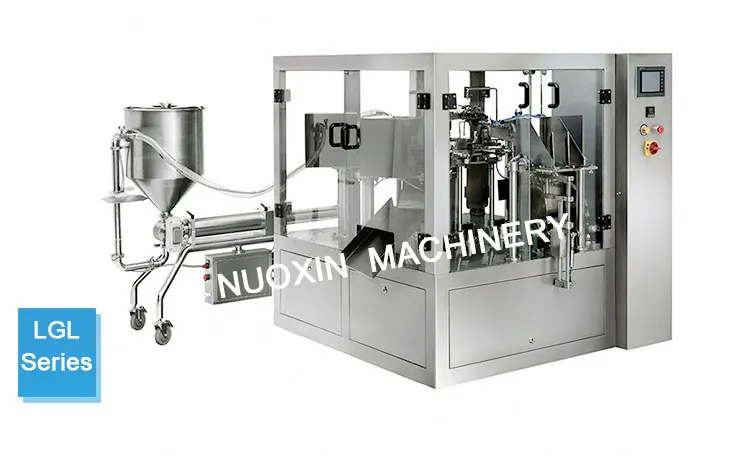

Details Images
Our Advantages
Packing & Delivery

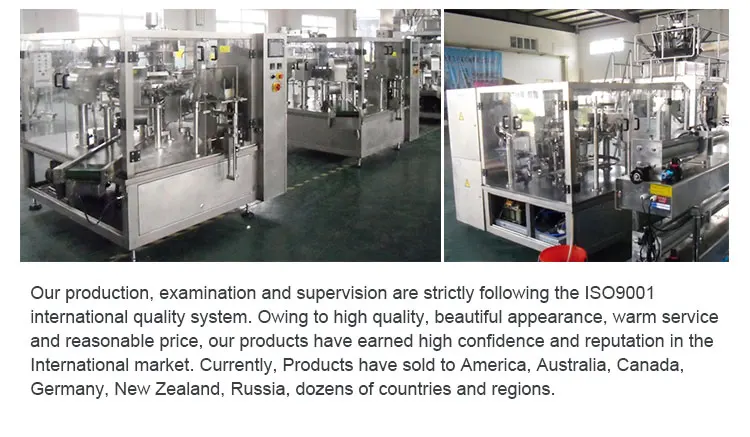

Company Profile
