Compatible ONT Huawei MA5680T GPON EPON OLT DC 48V Maximum 256 Ports
- Category: >>>
- Supplier: Hangzhou Hondao Optic Co. Ltd.
Share on (1600527036550):
Product Overview
Description
Product Description

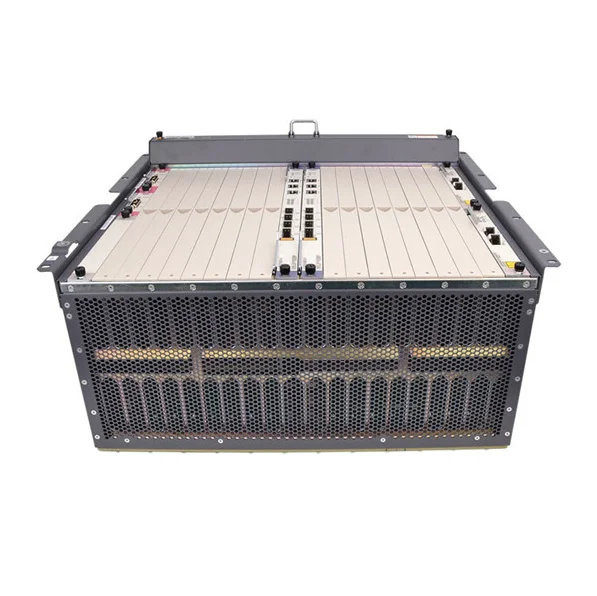

HONDAO Huawei MA5680T OLT
Huawei SmartAX MA5680T OLT is developed based on Huawei third generation unified platform, the world's first converged OLT, and is an integrated GPON/EPON optical access product. Convergence and switching functions, provide xPON high density, Ethernet P2P, GE/10GE interfaces, high precision TDM clock, Ethernet leased line services, can provide smooth Internet access, video and voice and other highly reliable service access services; improve the network At the same time, it saves network construction investment as well as operation and maintenance costs.
Specification
Product name | HONDAO Huawei MA5680T OLT | |
Model | MA5680T | |
Brand | HONDAO | |
Switching capacity | 480Gbit/s (active/stand-by mode) | |
Power supply | -48V DC | |
Dimensions | 490 mm x 275 mm x 447 mm | |
Weight | 33 KG | |
Working environment temperature | From -25°C to +65°C | |
Humidity of the working environment | 5% to 95% relative air humidity | |
Atmospheric pressure | 61 kPa to 106 kPa | |
Service board | 16 slots | |
Universal interface board | 1 slot | |
Uplink interface card | 2 slots | |
Maximum number of 10G GPON access ports supported by one frame | 128 | |
Maximum number of EPON access ports supported in one frame | 256 | |
Maximum number of 10G EPON access ports supported by one frame | 128 | |
Maximum number of P2P FE access ports supported per chassis | 768 | |
Maximum number of P2P GE access ports supported per chassis | 768 | |
Maximum number of upstream ports supported per frame (DOWN GE slot) | 4 | |
Maximum number of upstream ports supported per frame (DOWN 10GE slot) | 4 |
Feature
Integrated GPON/EPON access capability: MA5680T supports GPON/EPON access, which can effectively solve the bottleneck problem of twisted-pair access bandwidth and meet users' high bandwidth service needs.
Rich Interface Types
The MA5680T provides several types of upstream interfaces. (GE Optical/Electrical Interfaces, 10GE Optical Interfaces, E1 Interfaces, STM-1 Interfaces), Service Interfaces (GPON Optical Interfaces, EPON Optical Interfaces, P2P FE Optical Interfaces), Service Interface (Service Serial/Network Port, Monitoring Serial Port environment) adapt to different network environments.
Comprehensive Security Measures
In order to meet the security requirements of telecommunications services, in-depth research and application of security protocols have been carried out to fully guarantee the security of the system and the security of user access.
Flexible network
As a multi-service access platform, SmartAX MA5680T can provide multiple access methods and support multiple network methods to meet the networking needs of users in various environments and services.
Operating IPTV services
The MA5680T's powerful service exchange capabilities, system packet forwarding speed, and high degree of integration (data exchange and user management) allow it to have carrier-grade multicast capabilities. The user and network interfaces support the IGMP protocol. (Internet Group Control Protocol) V2/V3, which can provide flexible multicast solutions and lay the foundation for operational and manageable broadband multicast services.
Rich Interface Types
The MA5680T provides several types of upstream interfaces. (GE Optical/Electrical Interfaces, 10GE Optical Interfaces, E1 Interfaces, STM-1 Interfaces), Service Interfaces (GPON Optical Interfaces, EPON Optical Interfaces, P2P FE Optical Interfaces), Service Interface (Service Serial/Network Port, Monitoring Serial Port environment) adapt to different network environments.
Comprehensive Security Measures
In order to meet the security requirements of telecommunications services, in-depth research and application of security protocols have been carried out to fully guarantee the security of the system and the security of user access.
Flexible network
As a multi-service access platform, SmartAX MA5680T can provide multiple access methods and support multiple network methods to meet the networking needs of users in various environments and services.
Operating IPTV services
The MA5680T's powerful service exchange capabilities, system packet forwarding speed, and high degree of integration (data exchange and user management) allow it to have carrier-grade multicast capabilities. The user and network interfaces support the IGMP protocol. (Internet Group Control Protocol) V2/V3, which can provide flexible multicast solutions and lay the foundation for operational and manageable broadband multicast services.
Details Images
