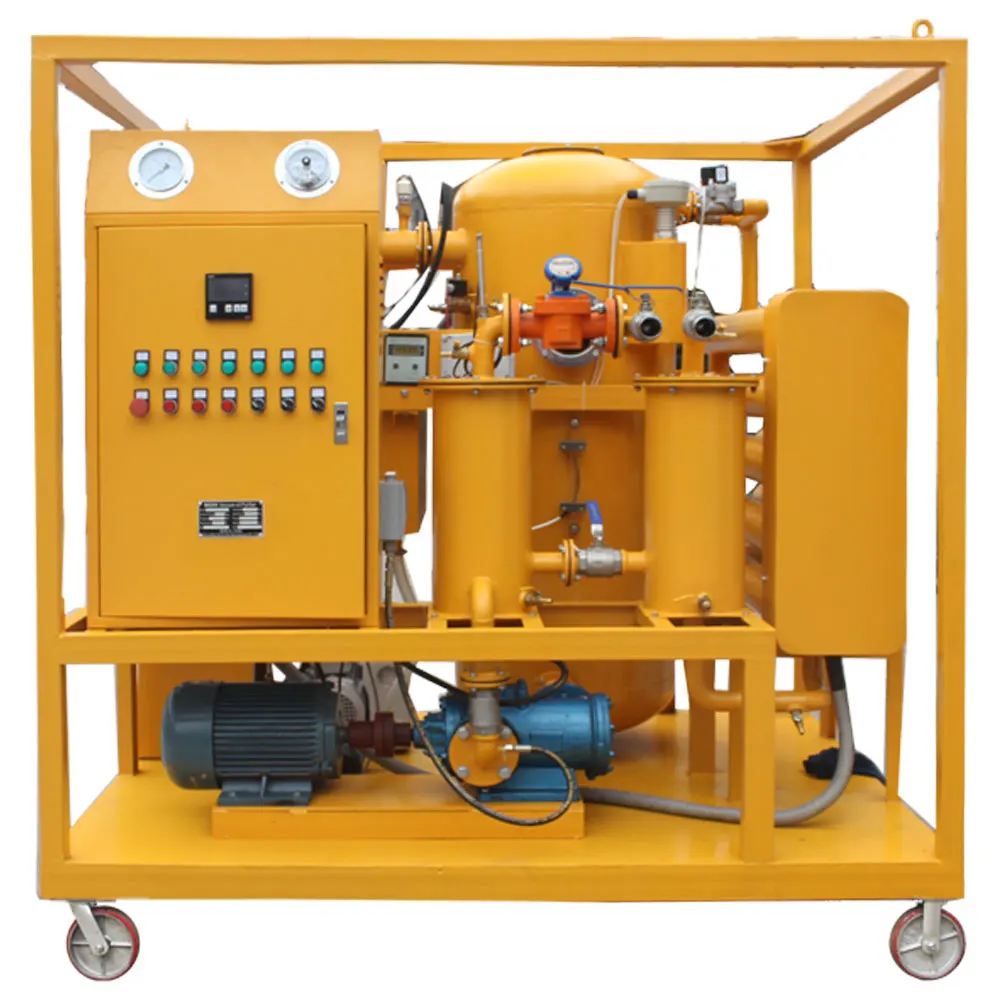

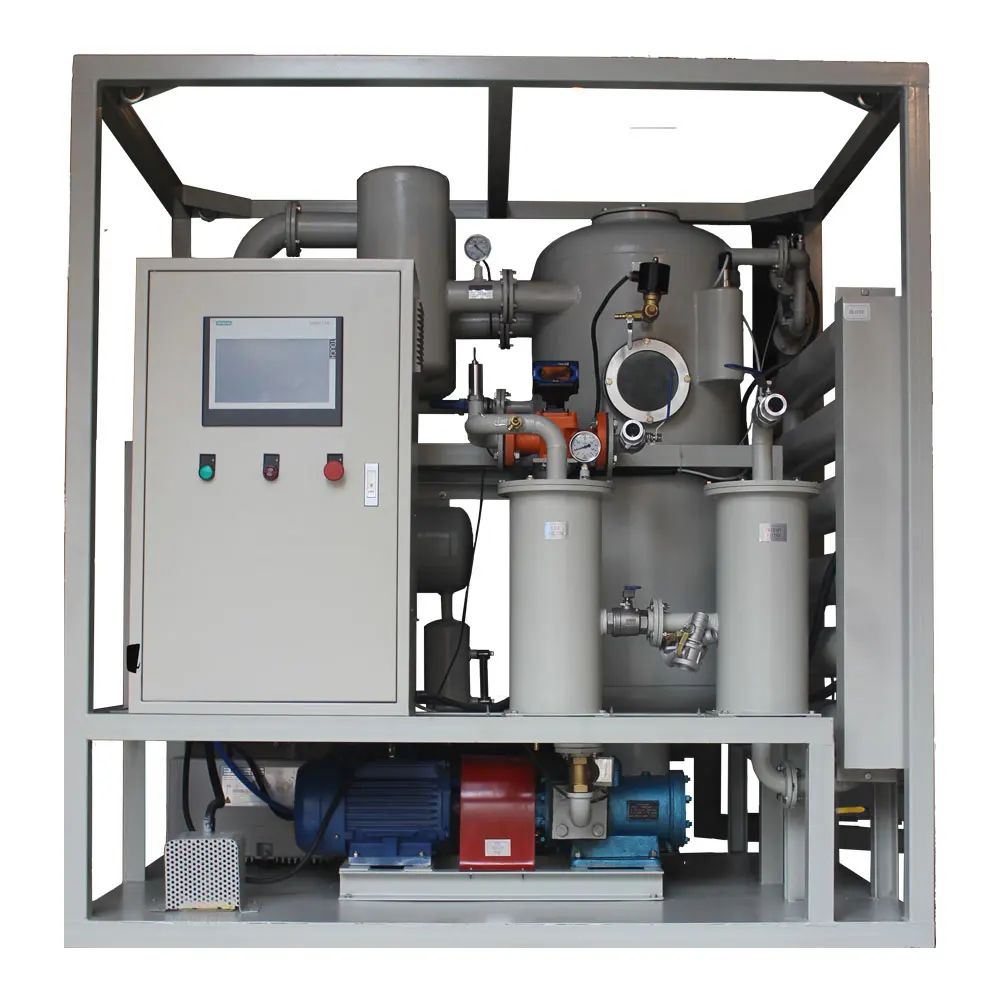

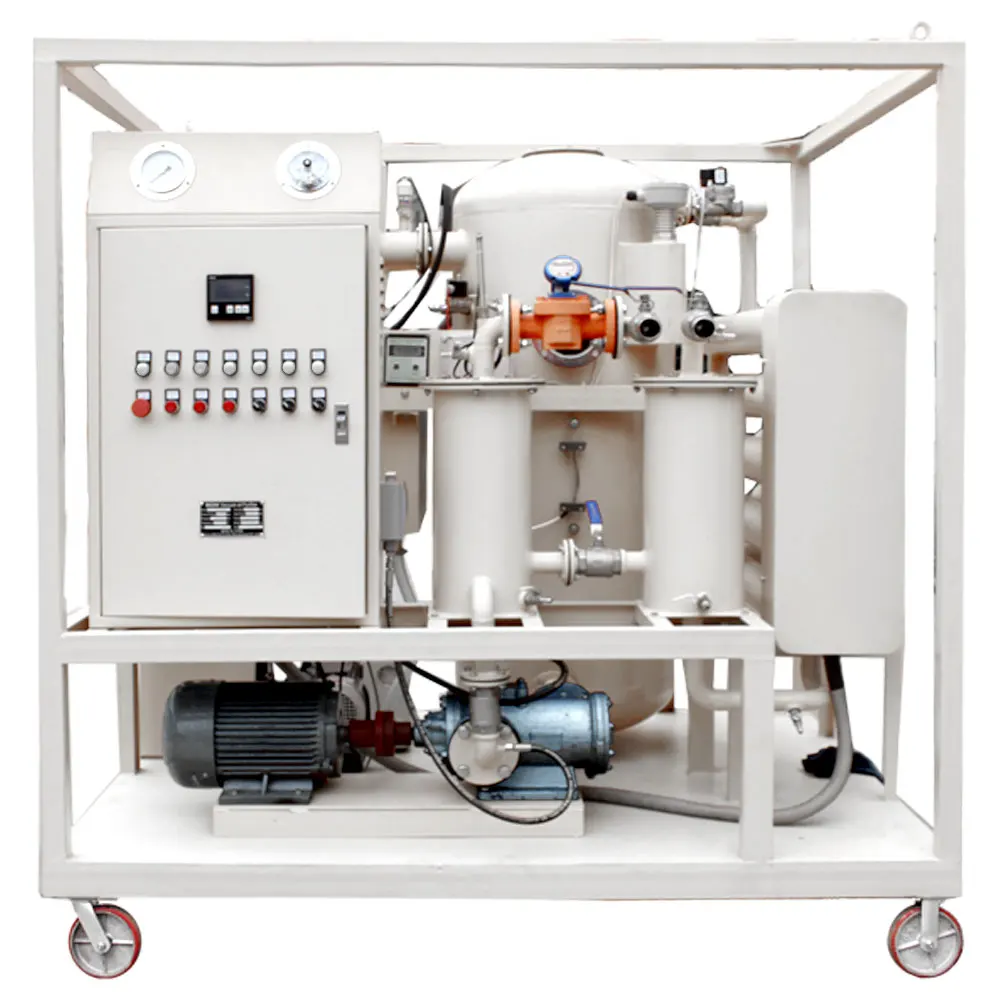

High Efficiency Two Stage Waste Engine Oil Recycling Machine Used Transformer Insulation Oil Purifier with Customization OEM
- Category: >>>
- Supplier: Weshine Electric Manufacturing Co. Ltd.
Share on (1600527054588):
Product Overview
Description
Discount Benefits
Products Description

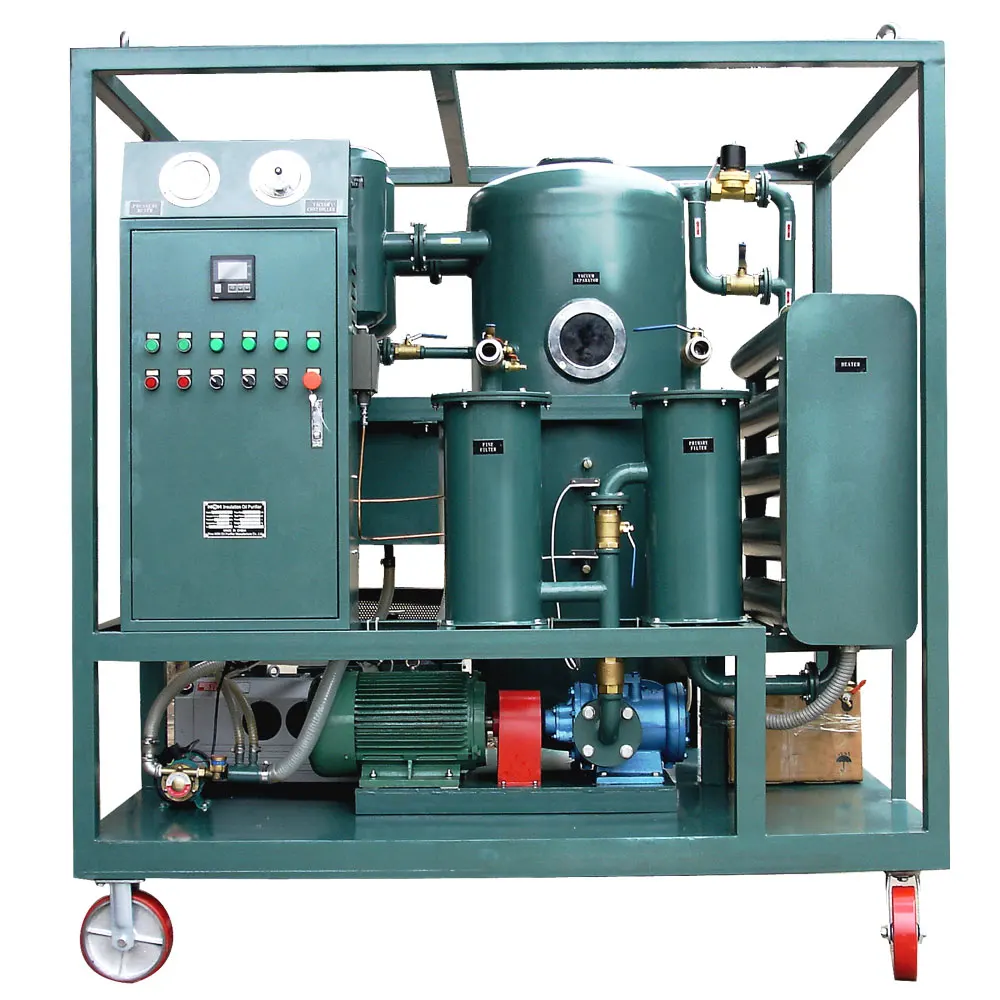

VS-LVJ series is designed to process and maximize dielectric strength in electrical insulating liquids - including mineral oil, natural esters, synthetic esters, silicone oil and LFH’s (less flammable hydrocarbons) - used in transformers, tap changers, circuit breakers, and other oil-filled electrical devices.
Weshine represent the absolute best in the field of transformer oil regeneration and corrosive sulfur removal. Several new features developed inhouse by our research and development department result in the state-of-the-art transformer oil regeneration equipment. Supplemented by our unique corrosive sulfur mitigation process integrated directly into the regeneration process.
WHY CHOOSE WESHINE？
Always focus on transformer oil
SUPPORT
Unprecedented level of support
Global connectivity, remote operation and a team of experienced Weshine engineers provide our top of the class remote, onsite and
offsite support around the world.
Global connectivity, remote operation and a team of experienced Weshine engineers provide our top of the class remote, onsite and
offsite support around the world.
DURABILITY
Best in its class durability
Weshine's rich experience engraved into each plant transformers into most reliable equipment in its class. Advanced design techniques always allow fall back to manual operation with critical components having bypass options for uninterrupted performance.
Weshine's rich experience engraved into each plant transformers into most reliable equipment in its class. Advanced design techniques always allow fall back to manual operation with critical components having bypass options for uninterrupted performance.
VACUUM
Exceptional vacuum control
Smartest decision making in its class allows for absolute vacuum control. Next-generation algorithms provide fast and reliable
decision making to optimize the treatment process by continuous vacuum adjustment.
decision making to optimize the treatment process by continuous vacuum adjustment.
EFFICIENCY
Unmatched regeneration performance
High quality Weshine sorbent is what guarantees that VS-LVJ equipment offers one of a kind and unmatched efficiency during the
transformer oil regeneration process. Delivering unique results besting parameters of new oils.
transformer oil regeneration process. Delivering unique results besting parameters of new oils.
HIGH EFFICIENCY TWO STAGE VACUUM TRANSFORMER OIL PURIFIER | ||||||||||||||
Item | Index | Unit | VS-LVJ30 | LVJ50 | LVJ100 | LVJ150 | LVJ200 | |||||||
Technical Parameter | Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | |||||||
Working Vacuum Degree | MPa | -0.08~-0.0999 | ||||||||||||
Working Pressure | MPa | ≤0.5 | ||||||||||||
Constant Temperature Control Range | ℃ | 20-80 | ||||||||||||
Power Supply | V | 380V/50Hz(Can be customized) | ||||||||||||
Working Noise | dB(A) | ≤70 | ||||||||||||
Total Power | kW | 30+5 | 40+5 | 60+6 | 90+10 | 120+10 | ||||||||
Inlet/Outlet Diameter | mm | 25 | 32 | 40 | 50 | 50 | ||||||||
Net Weight | kg | 650 | 800 | 1000 | 1300 | 1800 | ||||||||
Overall Dimension (L×W×H) | cm | 120×132×165 | 130×140×180 | 154×185×200 | 218×172×215 | 218×172×215 | ||||||||
Oil Quality After Treatment | Breakdown Voltage | KV | ≥70 (GB/T507), Sphere Gap Test | |||||||||||
Water Content | ppm | ≤3(GB/T7600) | ||||||||||||
Gas Content | % | ≤0.1(GB/T423) | ||||||||||||
Filtration Precision | μm | ≤1 | ||||||||||||
Ethyne | % | 0 | ||||||||||||
