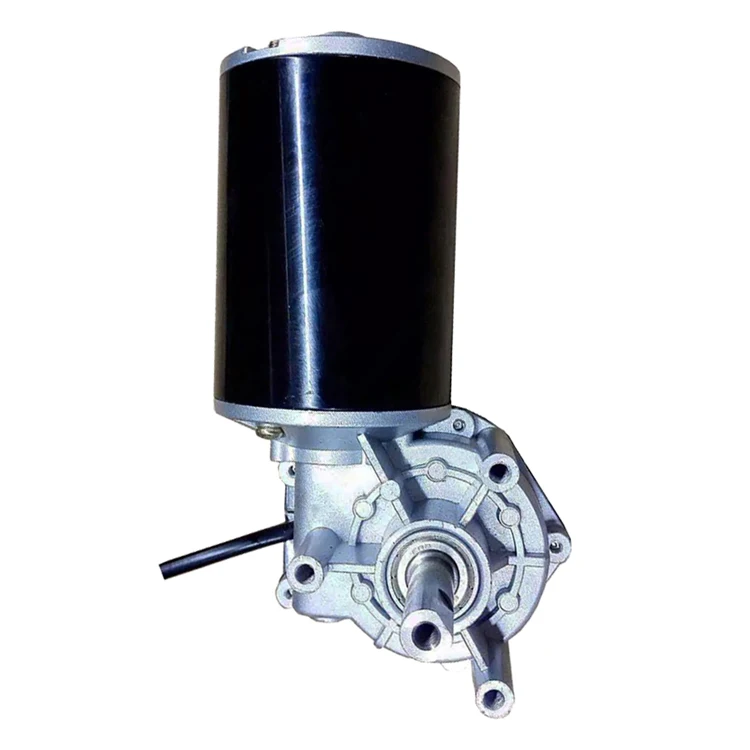

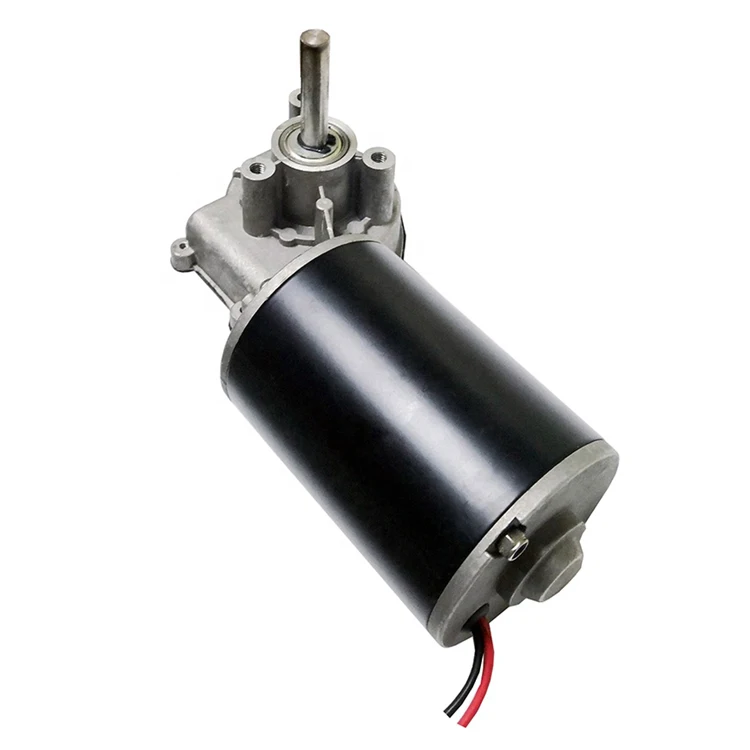

24V Worm Gear Motor 120W 20nm Reverse Gear Box Motor for Kitchen Cabinets Motorized Lift
- Category: >>>
- Supplier: Guangzhou Wewin Motor Co. Ltd.
Share on (1600527076097):
Product Overview
Description
24V Worm Gear Motor 120W 20nm Reverse Gear Box Motor for Kitchen Cabinets Motorized Lift

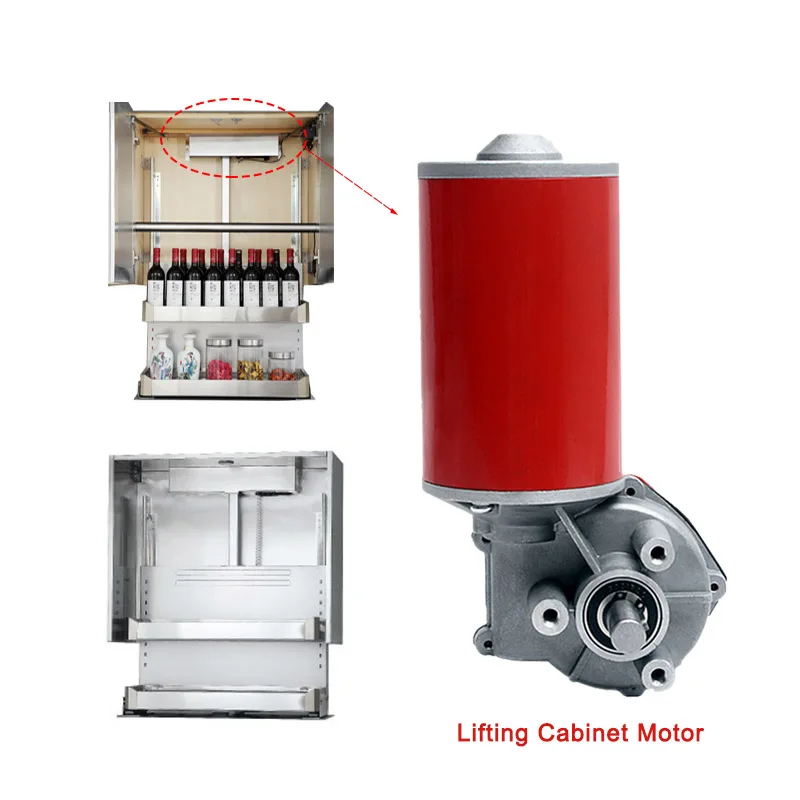

Custom Geared Motor for Kitchen Cabinets Motorized Lift
Full closure permanent magnet dc motor which is stable, long-life, low noise, energy saving, should be the best partner for lifting cabinet.
Product Overview

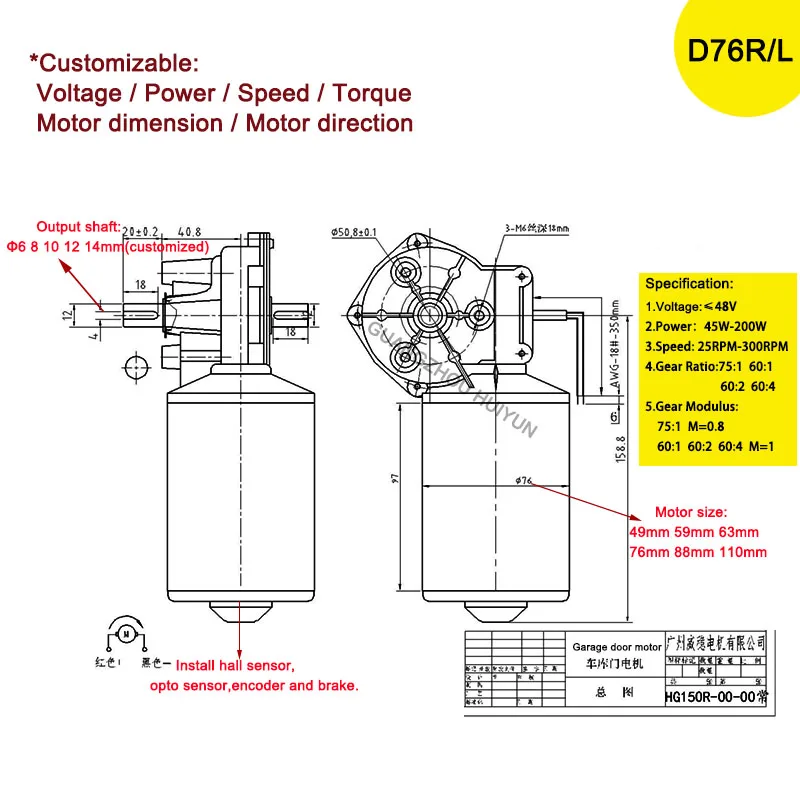

Dc gear motor specifications
Motor Dimension | 45mm 49mm 59mm 63mm 76mm 88mm 110mm |
Motor Power | DC 12V 24V 36V 48V 72V 110V |
Material of Gear | Plastic gear / copper gear |
Motor Type | reverse gear box motor |
Torque | 27n.m |
Bearing | 50kg |
Motor Gearbox | Right Angle Gearbox Motor , Left Anlge Gear boxes |
Diameter of Output Shaft | 6mm 8mm 10mm 12mm 14mm(Optional) |
Speed Sensor | Hall Sensor,Dc Motor with Encoder,Opto sensor,Brake motor |
Factory Address | Huadu,Guangzhou |
Our Dc Motors Advantage | 1.Low noise < 60db 2.Long life span > 4000hr(continuously working) 3.Self Locking Motor, Forward & Reverse 4.Competitive factory price 5.Sample order are welcome |
These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.
Products Type | Voltage (V) | Power (W) | No Load | Load | Gear Ratio | Motor Length (mm) | ||||||
Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (N.M) | ||||||||
D76R/L-2460-30 | 24 | 60 | 30±3 | ≤1.2 | 26±3 | ≤3.5 | ≥4.5 | 1:75 | 77 | |||
D76R/L-4260-30 | 42 | 60 | 30±3 | ≤1.2 | 26±3 | ≤3.5 | ≥5.0 | 1:75 | 77 | |||
D76R/L-2460-50 | 24 | 60 | 50±3 | ≤1.2 | 45±3 | ≤3.5 | ≥4.5 | 1:60 | 77 | |||
D76R/L-4260-65 | 42 | 60 | 65±3 | ≤1.2 | 60±3 | ≤3.5 | ≥5.0 | 1:60 | 77 | |||
D76R/L-4860-75 | 48 | 60 | 75±3 | ≤1.2 | 70±3 | ≤3.5 | ≥5.2 | 1:60 | 77 | |||
D76R/L-1280-50 | 12 | 80 | 50±3 | ≤1.4 | 42±3 | ≤4.5 | ≥5.0 | 1:60 | 85 | |||
D76R/L-2480-65 | 24 | 80 | 65±3 | ≤1.4 | 62±3 | ≤4.5 | ≥5.2 | 1:60 | 85 | |||
D76R/L-1245-150 | 12 | 45 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 77 | |||
D76R/L-2445-180 | 24 | 45 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 77 | |||
D76R/L-4845-220 | 48 | 45 | 220±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 77 | |||
D76R/L-2465-200 | 24 | 65 | 200±5 | ≤1.2 | 160±5 | ≤4.5 | ≥4.5 | 1:20 | 85 | |||
D76R/L-2465-220 | 24 | 65 | 220±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 85 | |||
D76R/L-2495-180 | 24 | 95 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 97 | |||
D76R/L-2495-220 | 24 | 95 | 220±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 97 | |||
Recommend Products
Motor Usage
Details Images

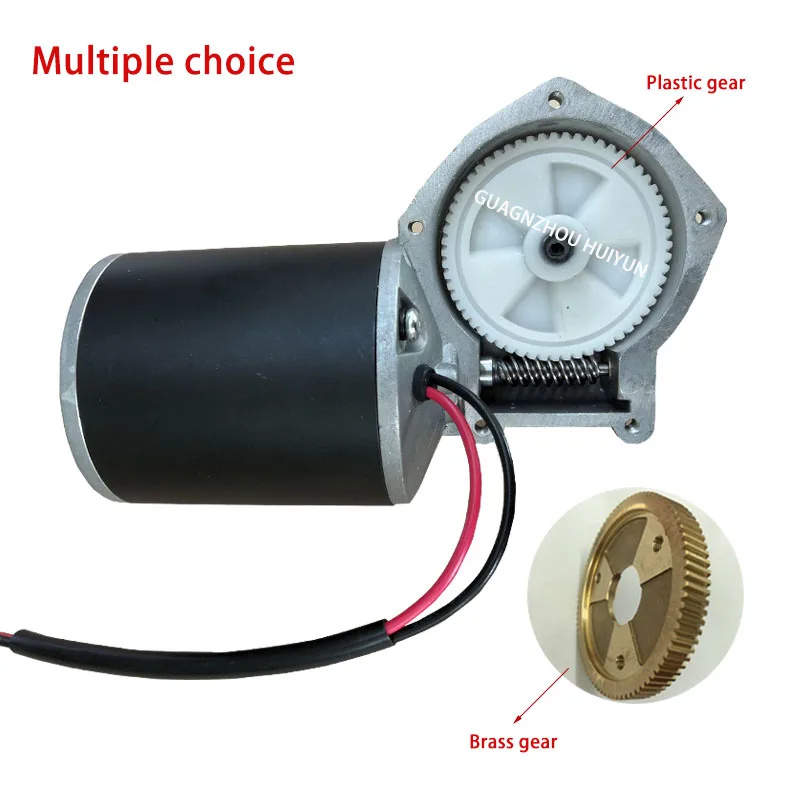

1.Motor Plastic Gear
The plastic gear with low noise,low cost,long life within the torque range.
2.Copper Gear
The copper gear with high torque and high temperature resistance,and the life can belonger if the lubrication effect can be guranteed,So the cost higher thanplastic gear .
3.Electronic Rotor
Pure copper coil configuration,reducing resistance and high conductivity to ensure motor efficienty,stable and safe operation.
4.Magnet
Thickened magnets,strengthen the magnetic filed,high torque and strong anti-interference.
5.Worm Gearbox
All made of high qualiy metal,it has good impact resistance, durablity and reducing noise.Thus prolong the life of the motor gearbox. Right angle & Left angle gearbox optional
6.High Quality Carbon Brush
The wear resistance of the carbon brush directly determines how long the motor can last.
7.Hall Sensor
The sensor could record the speed if gear motor dc has encoder.
8.Brake
If the gear dc motor has brake,it could still rotate when the brake stops.

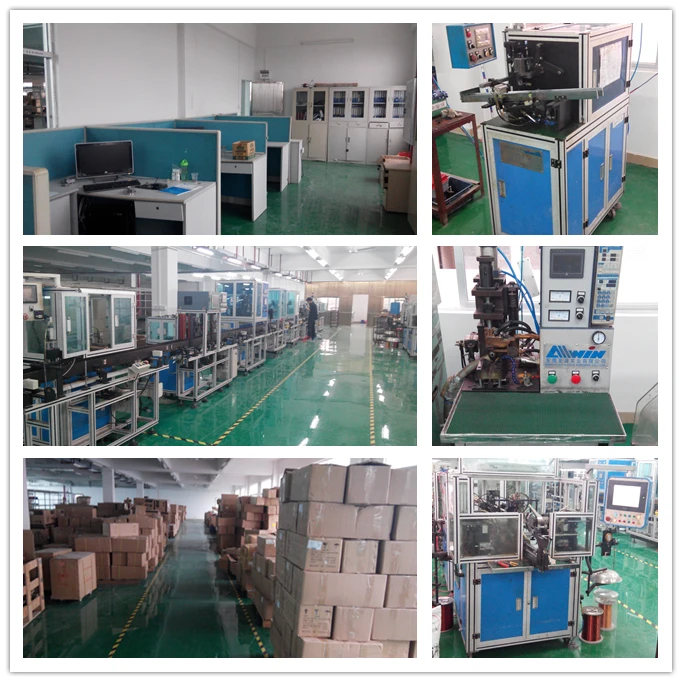

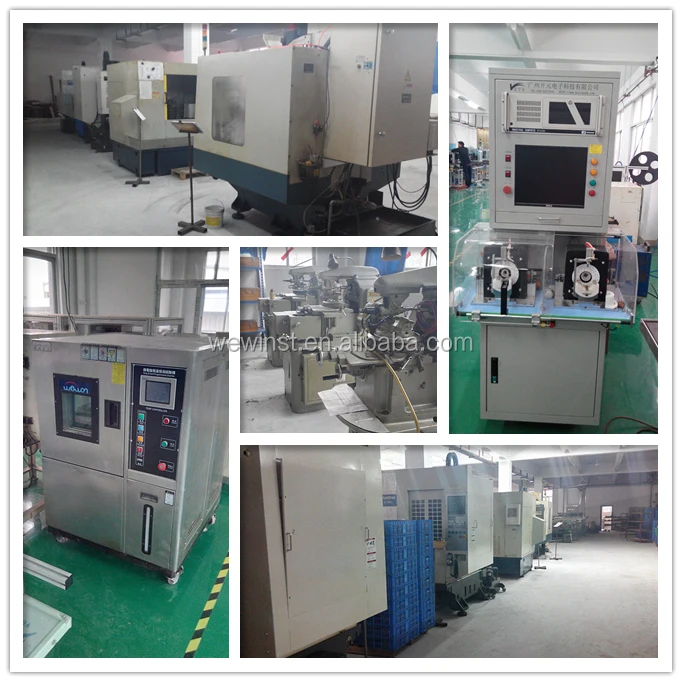

Manufacturing Technique
Material Preparation
CNC Machining
Lathe
Milling
Scan the QR code and get the factory panorama
Hobbing
Hydraulic Press
Winding
Spot Welding
Gearbox
Die Casting Manal
Assembly QC
Life Tester
Torque Tester
Temp & Humi Chamber
Company Profile
Company Advantages:
1.Professional motor OEM & ODM manufacturer
2.20 years motor design experience 3.Experienced engineering designers
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
Guangzhou Wewin Motor Co.,Ltd.the factory is located in Huadu,Guangzhou,we can design and manufacture of motors according to all our customers' demands so far,we can manufacture about 60,000 motors per month.
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Certifications
FAQ
Q1：Are you trading company or manufacturer ?
A1：We are manufacture Integration of industry and trade, with over 20 years experience in dc worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfied.
Q2：What is your main product?
A2：DC Motor: dc worm gear motor and high speed motor without gearbox
Welding equipment: Wire feeder for Mig Mag Welding Machine
Welding equipment: Wire feeder for Mig Mag Welding Machine
Q3：What if I don't know which DC motor I need?
A3：Don't worry, Send your specification,and our team will help you find the right model you are looking for.
Q4：What is your payment term?
A4：Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T deposit in advance ,balance before shipment.
Q5：How to delivery?
A5： By sea - Ship out by buyer's appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Ship out by buyer's express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
By air - Ship out by buyer's express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q6：How long is your delivery time?
A6：Usually it takes about 35 days if buyer accept our standard output shaft.If the output shaft is customized,the production time depends on what the customization shaft it is.
