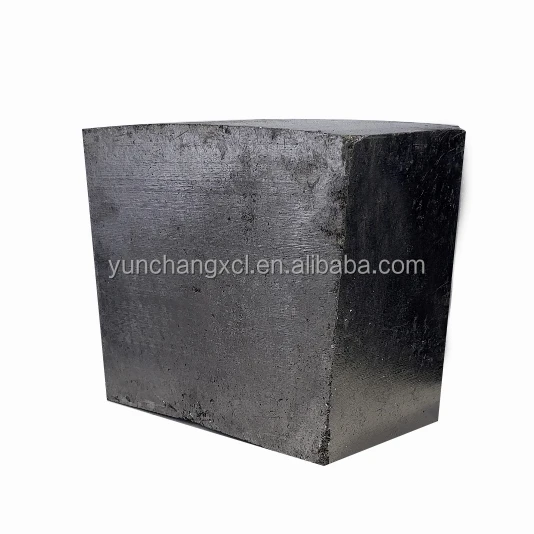

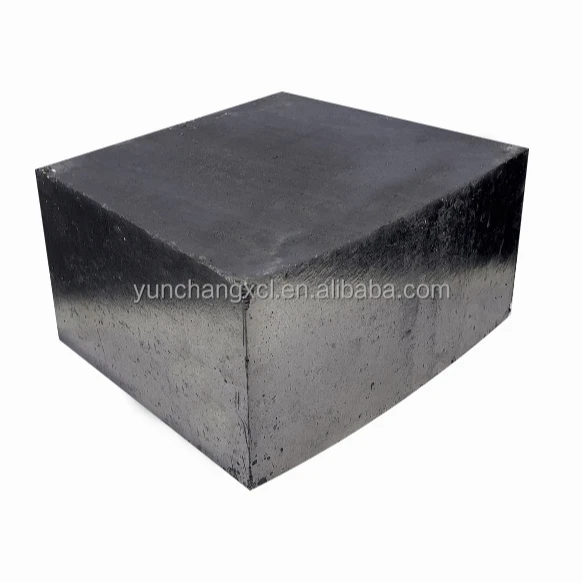

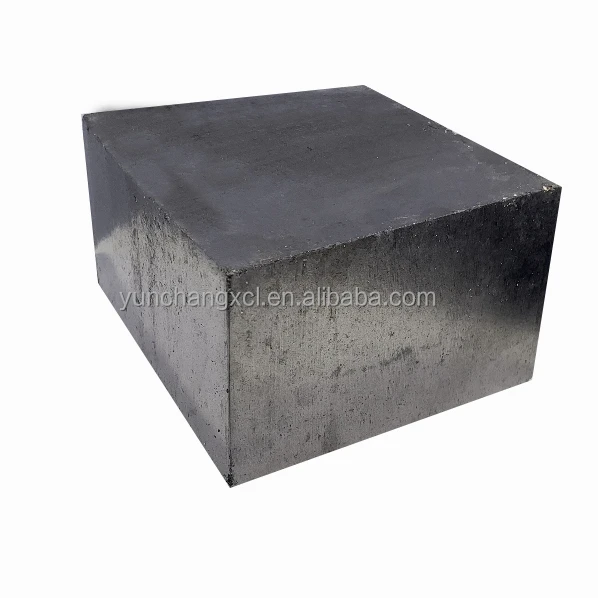

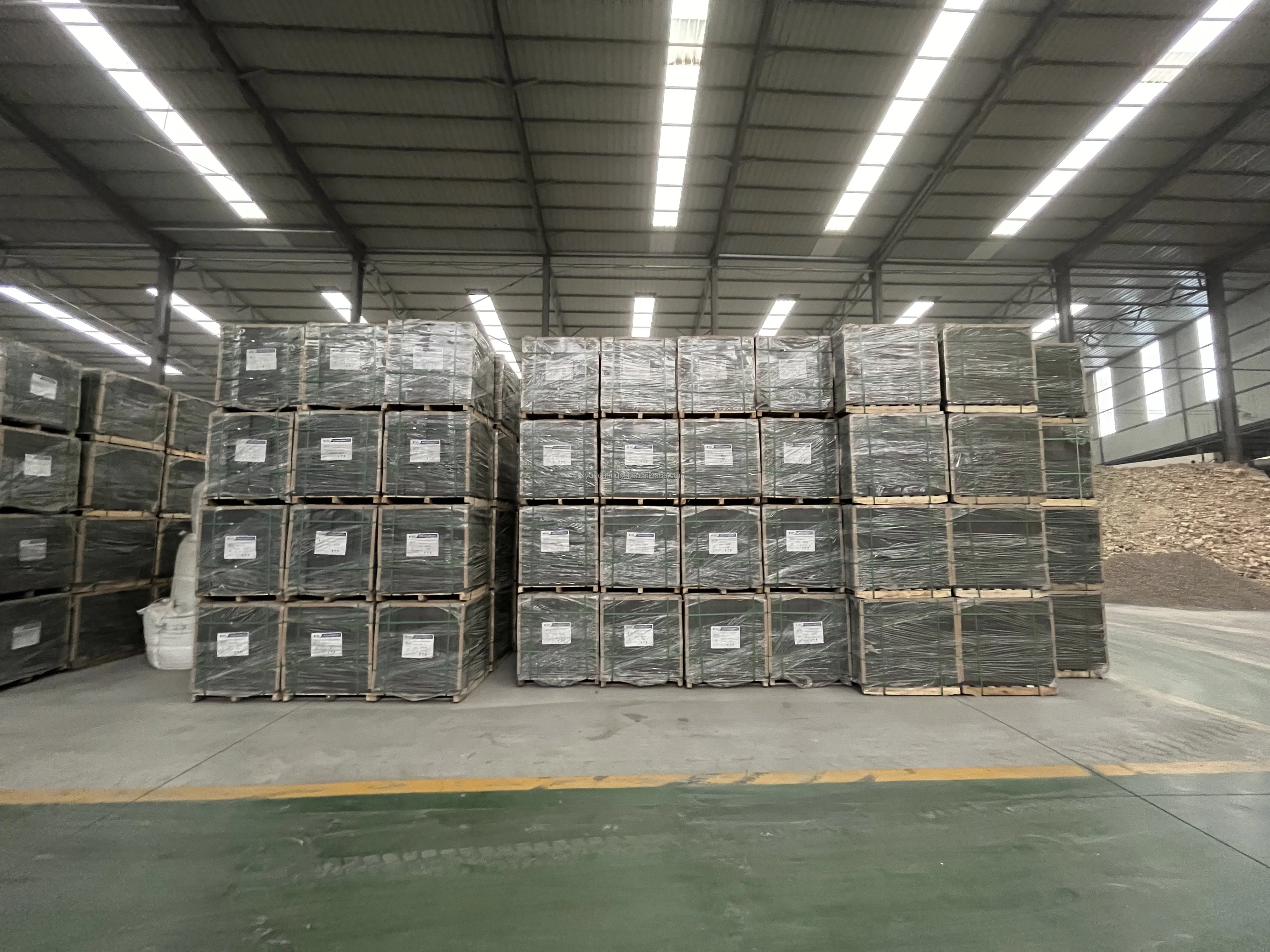

Good Slag Resistance Customized Magnesia Carbon Mgo c Refractory Brick For Eaf

Product Overview

Description

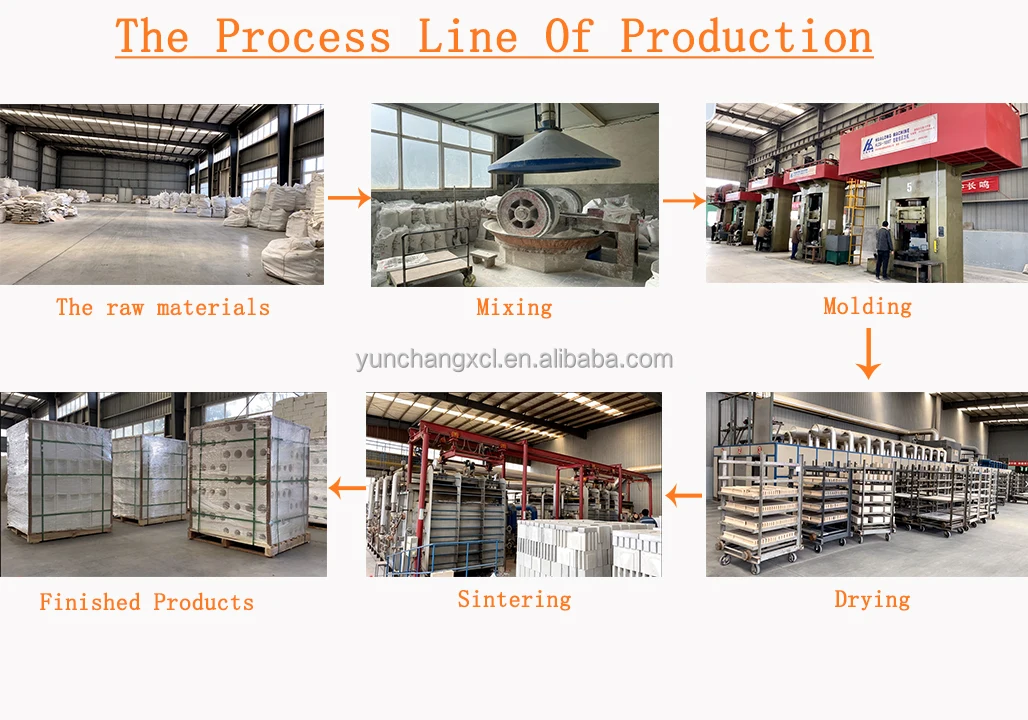

Refractory magnesia carbon brick with magnesium oxide and carbon as the main component. Magnesium oxide containing 60% ~ 90%, carbon 10% ~ 40%. With excellent corrosion resistance by slag, slag, thermal stability and thermal conductivity of penetration. The apparent porosity was 3% ~ 10%. Using high purity magnesia powder, carbon materials, including graphite) and coal tar pitch or resin as raw material, through proportioning, thermal mixing, molding, the 300 DEG C or 1000 DEG C above roasting.
Magnesia carbon brick is with high melting point alkali oxide magnesium melting point (2800 degrees Celsius) and difficult to be slag infiltration of high melting point carbon material as raw material, add a variety of non oxide additives. No charcoal composite refractories with carbon bonded together.



Item	MC-10A	MC-10B	MC-10C	MC-14A	MC-14B	MC-14C	MC-18A	MC-18B	MC-18C
MgO/% ≥	80	78	76	76	74	74	72	70	70
C/% ≥	10	10	10	14	14	14	18	18	18
Apparent porosity/% ≤	4	5	6	4	5	6	3	4	5
Bulk density/g.cm3 ≥	2.9	2.85	2.8	2.9	2.82	2.77	2.9	2.8	2.77
Cold crushing strength/ Mpa ≥	40	35	30	40	35	25	40	35	25
Modulus of rupture/Mpa ≥	6	5	4	10	8	5	9	7	4





Features:

1. Magnesia carbon brick has excellent slag resistance, slag penetration.
2. Magnesia carbon brick can effectively prevent spalling, with excellent spalling resistance.
3. Magnesia carbon brick has excellent thermal stability and thermal conductivity.
4. Magnesia carbon brick has excellent high temperature resistance.
5. Magnesia carbon brick has high strength, high temperature creep characteristics of low .

6. Magnesia carbon brick the excellent properties of MgO-C brick brick depends on the presence of carbon, with antioxidant .



Applications:

Magnesia carbon brick mainly used for steelmaking oxygen converter lining, the steel export, high power electric furnace wall hot spots, as well as the furnace refining furnace lining, Sheng steel ladle slag line position and is also used for the lining of converter, AC arc furnace, DC electric arc furnace, ladle slag line and other parts.
