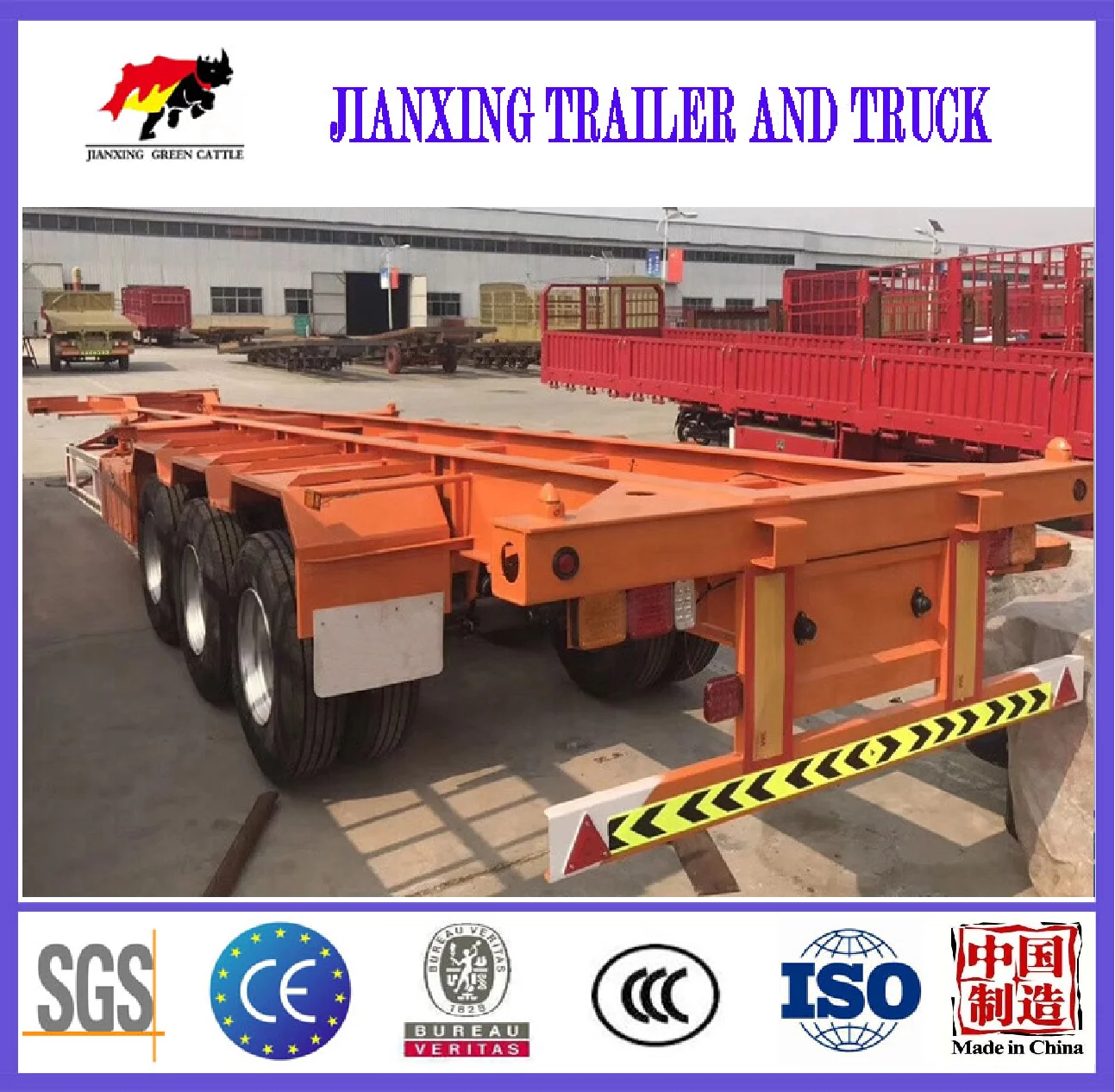

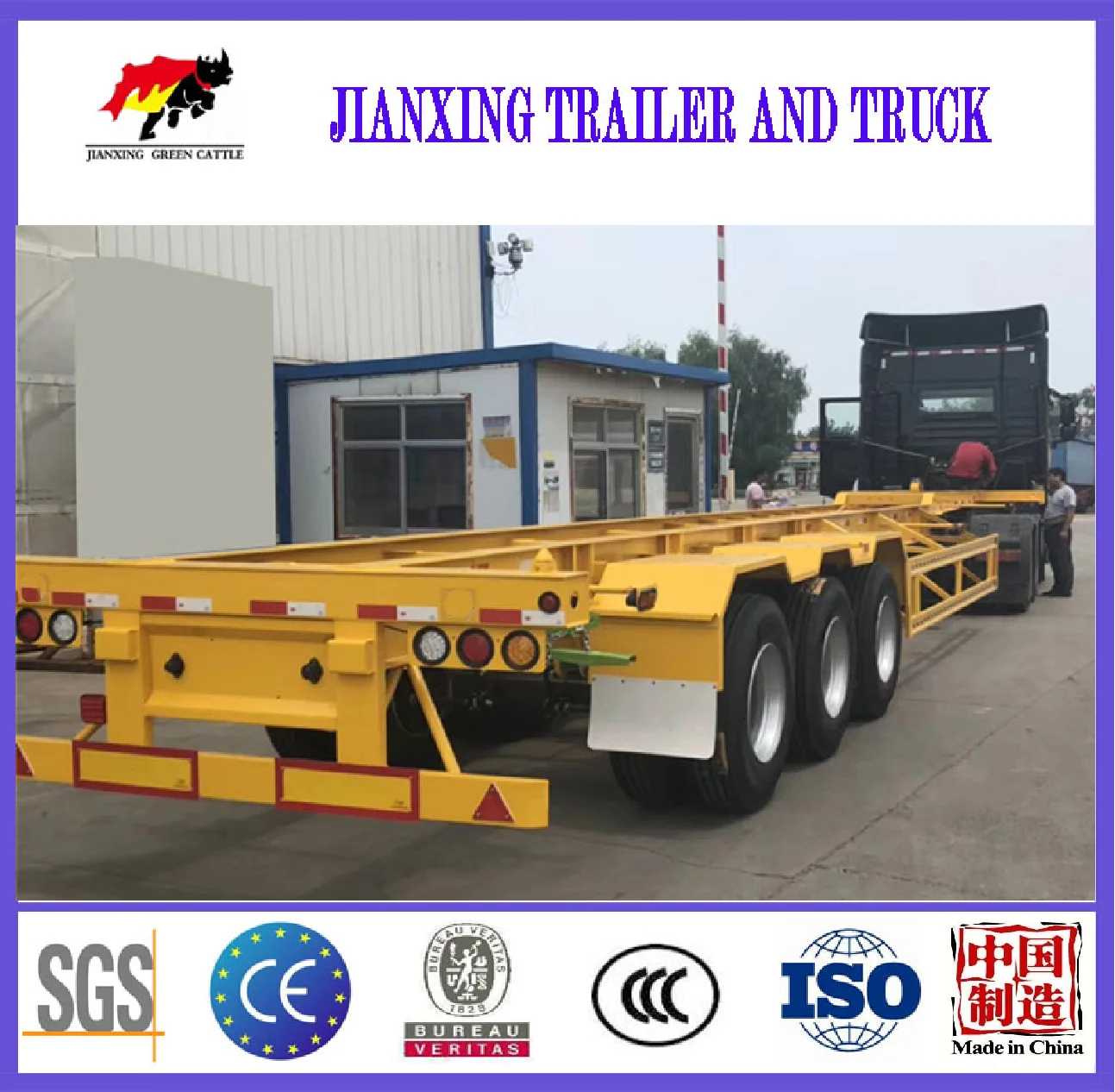

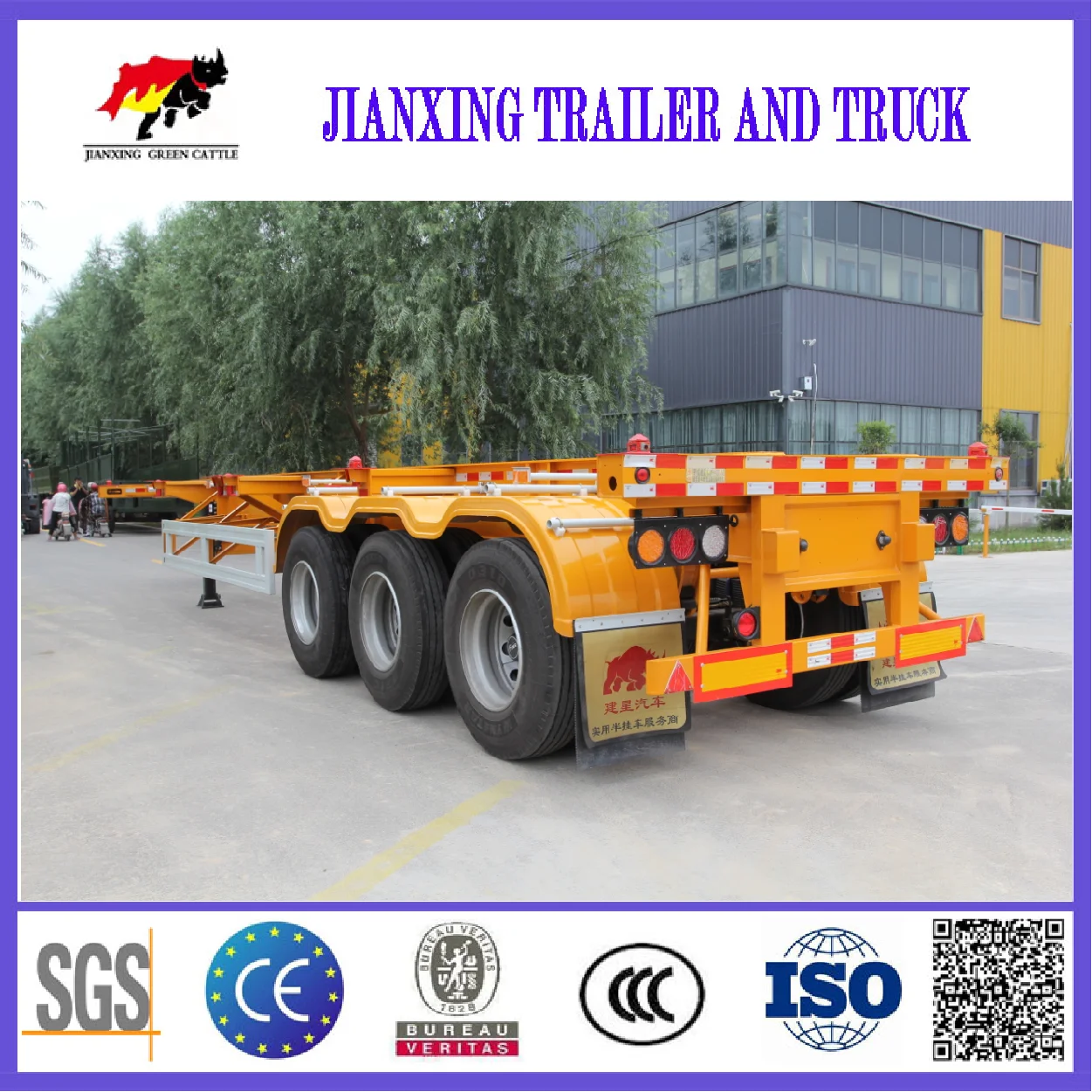

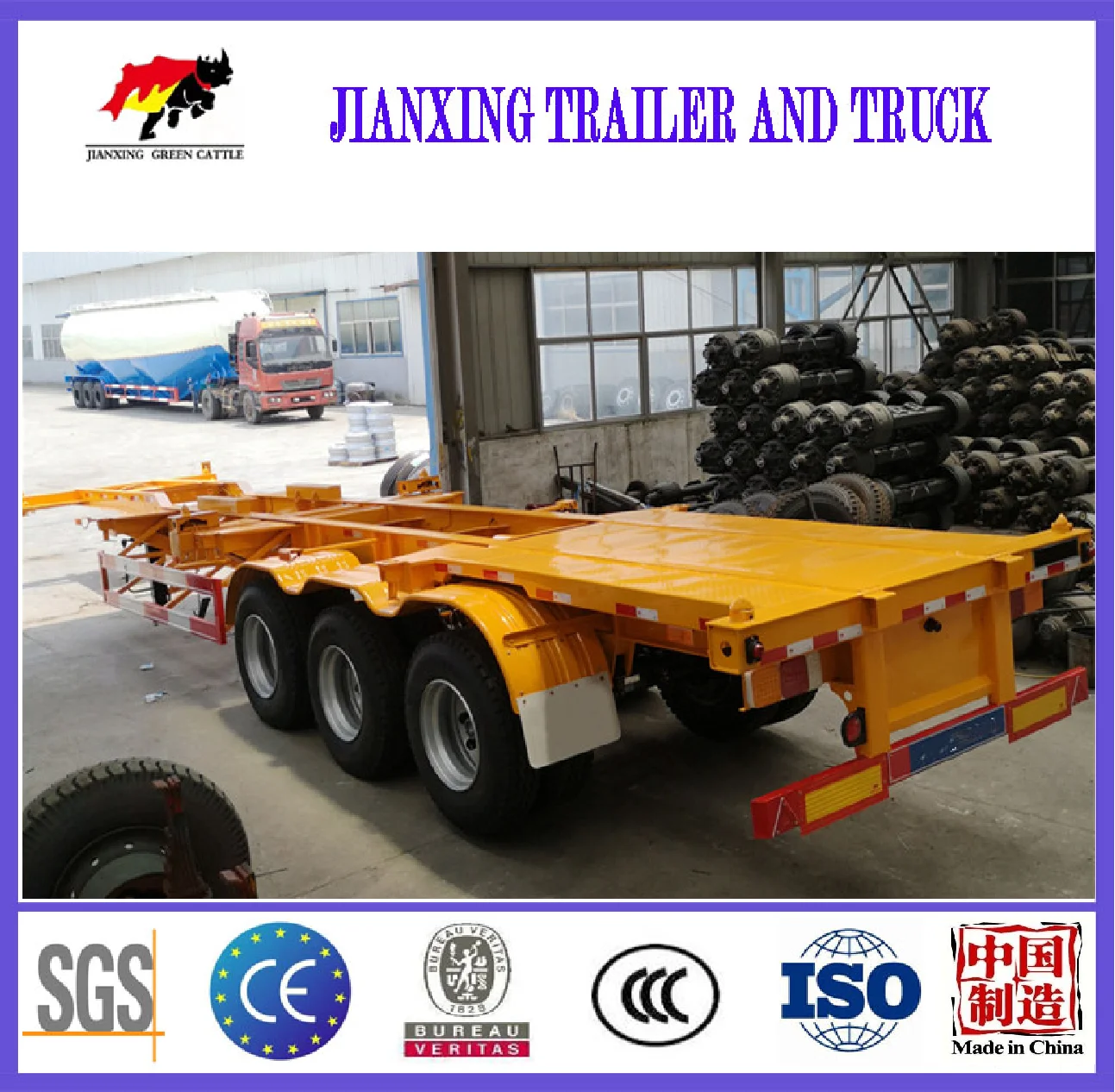

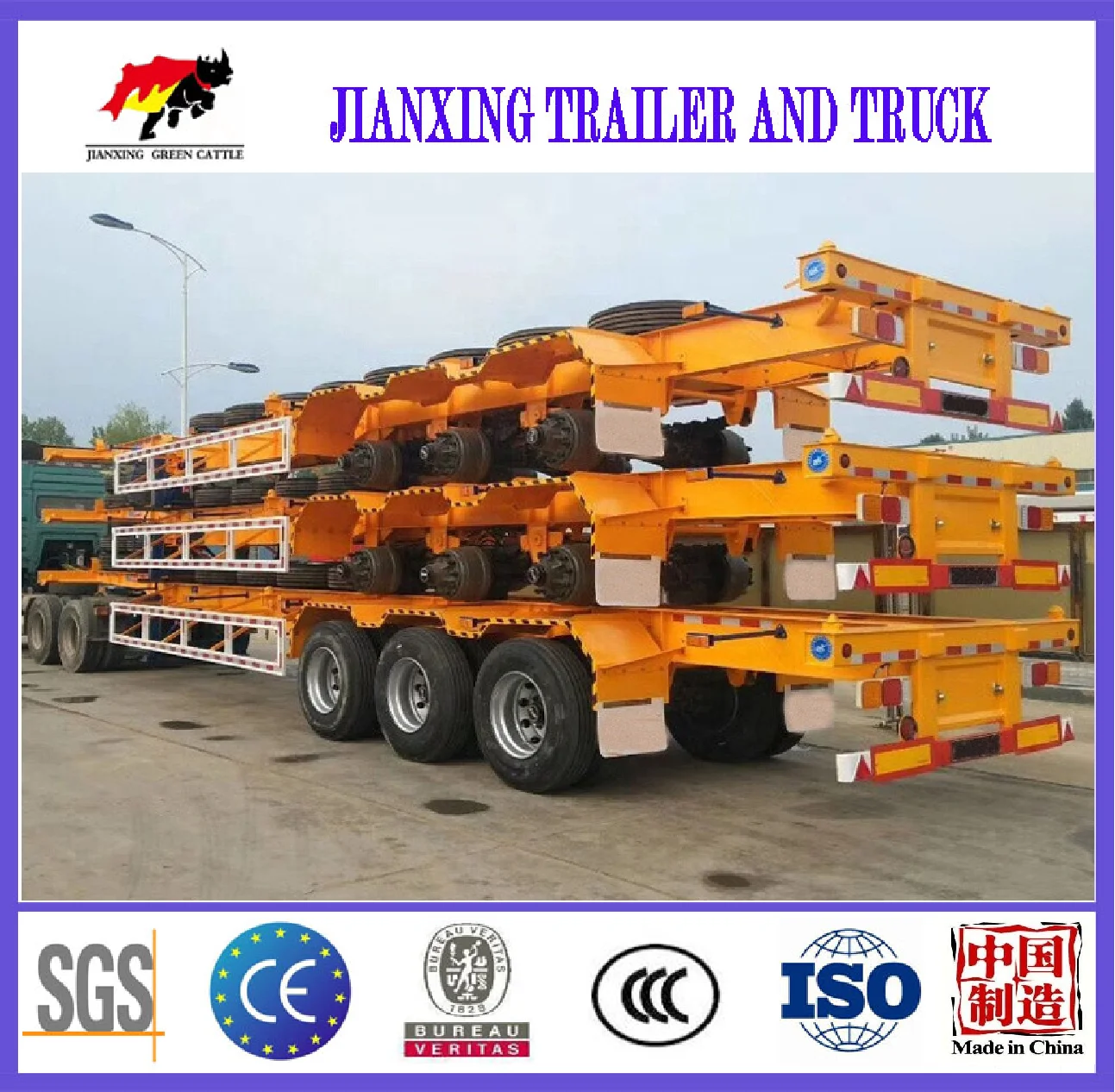

New Arrival 20 40 FT 3 Axle Container Chassis Trailers Skeleton Trailer Chassis
- Category: >>>
- Supplier: Sen Xiang International (Shandong) Co. Ltd.
Share on (1600527091938):
Product Overview
Description
General | ||||||
Overall Dimension | 11960mm*3000mm*3300mm | |||||
Flatbed Dimension | 8000mm*3000mm | |||||
Tare Weight | 9630kg | Pay Load | 40ton | |||
King Pin Setting | 450mm | Rear Overhang | 1870mm | |||
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm | |||
Track | 2160mm | |||||
Running Gear | ||||||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | |||||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | |||||
Axles | AQ，FUWA, BPW or STEYR axle, 13T capacity | |||||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |||||
Under Frame | ||||||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | |||||
Cross Beam | Mild Alloy Q235, 16# channel beam | |||||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | |||||

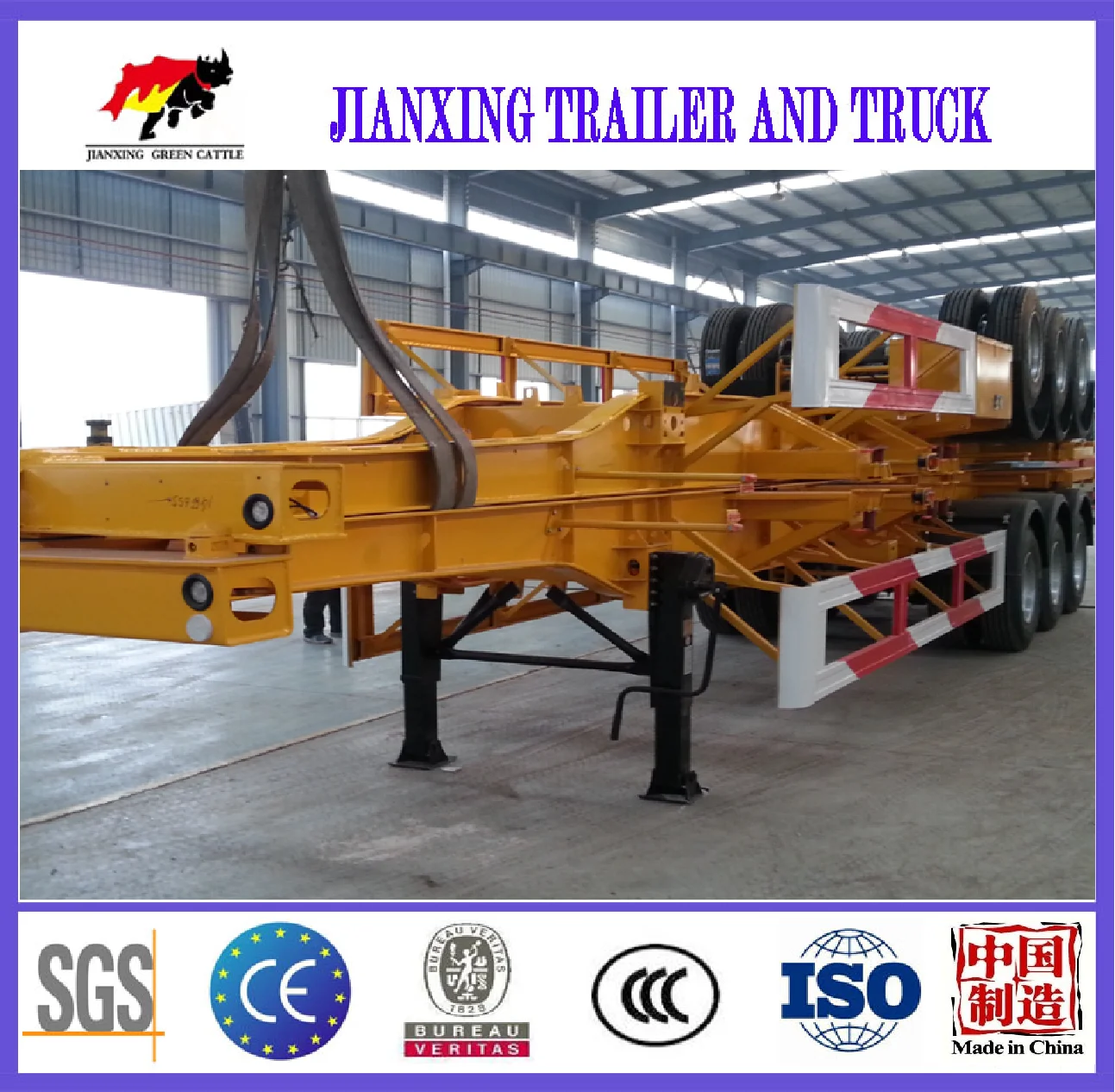

Landing Gear | Single side operation or double side operation, Static capacity 30Ton | |||||
Flatbed Floor | Checkered sheet, thickness 4mm | |||||
Rear Ladders | Spring power-assisted | |||||
Electrical & Paint | ||||||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||||
Wiring | 24V, 6 lines | |||||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |||||
Paint | Sand blasting before painting, color upon request | |||||

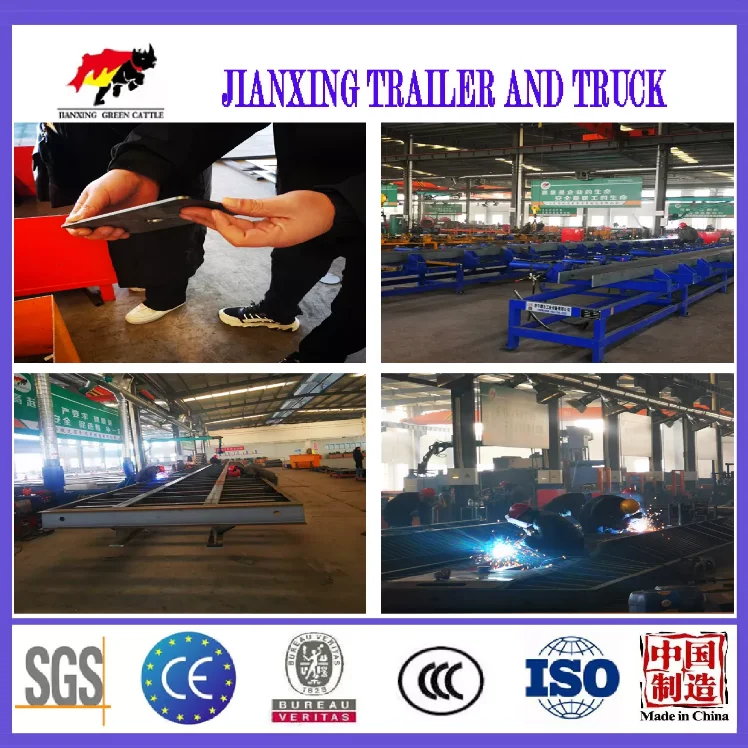

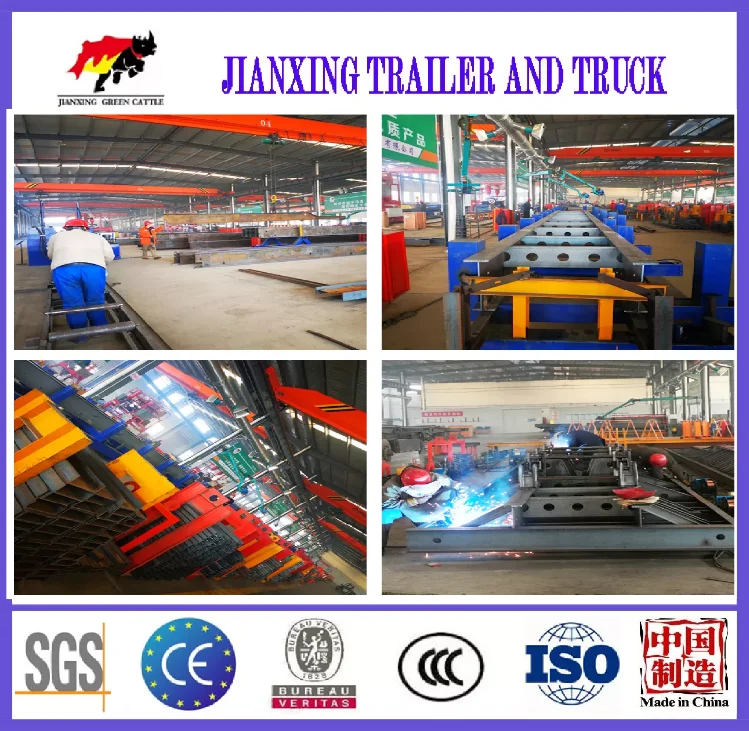

Jianxing Green Cattle International (Shandong) Co., Ltd. was established in 2021 in Jinan by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. Our company is located in Wanda Plaza in the Jingsi Road in the center of Jinan City. At present ,the company mainly sells container flat semi trailer, container transport vehicle, semi dump truck, various series semi trailer,full trailer, van, car transport vehicle manufactured by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. There are more than 40 kinds of products and the weight of vehicles from 8 to 120 tons. In addition, Jianxing Green Cattle International
(Shandong) Co., Ltd. to undertake special vehicle modification design business. The company' s products are exported to all over the world, such as southeast Asia, Central Asia, the Middle East, Africa and so on.
(Shandong) Co., Ltd. to undertake special vehicle modification design business. The company' s products are exported to all over the world, such as southeast Asia, Central Asia, the Middle East, Africa and so on.
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
