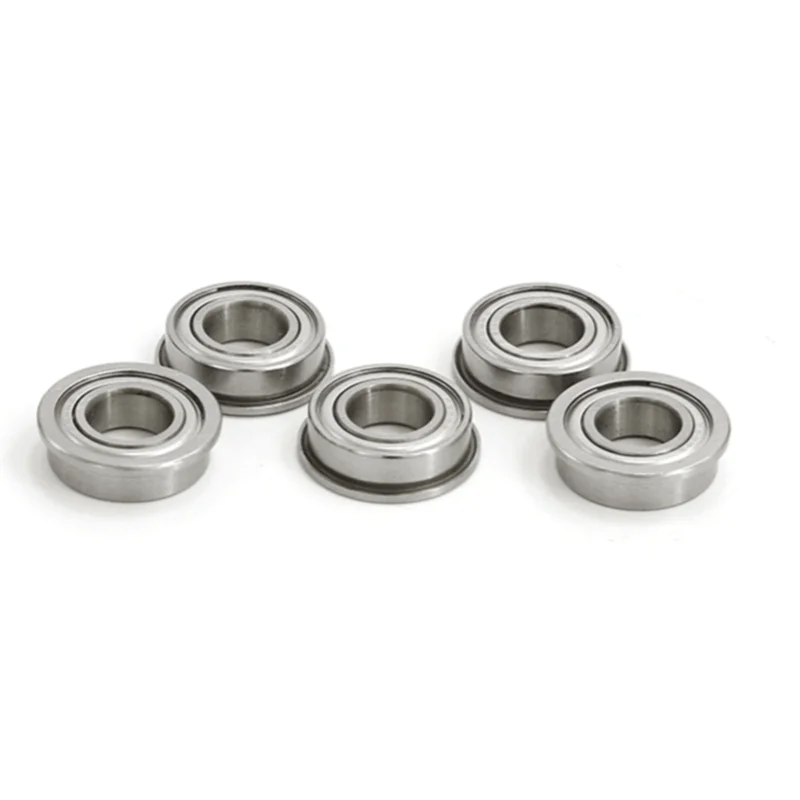

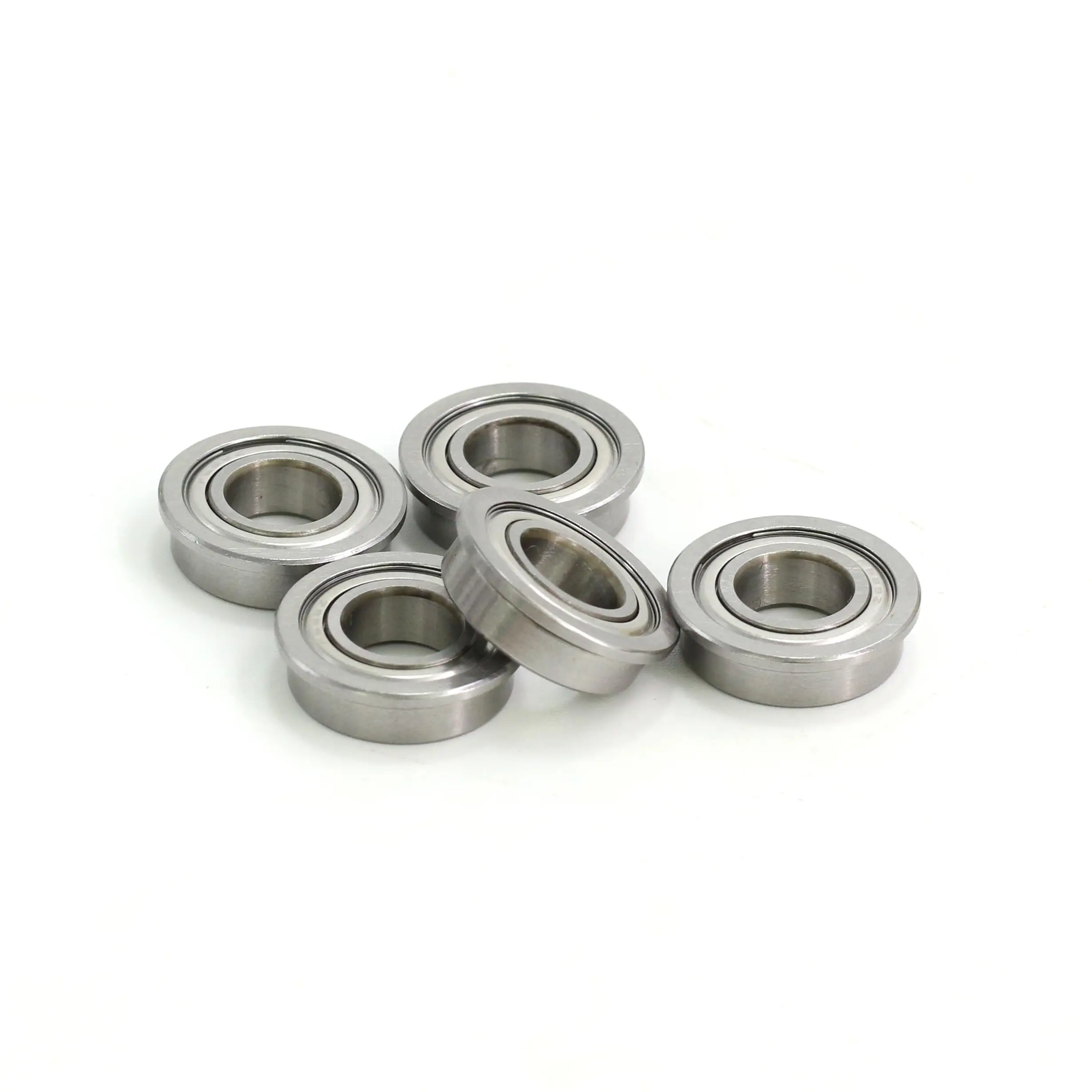

Top Quality Bearings Made in China Stainless Steel Metric Size SF6900ZZ Flanged Ball Bearings
- Category: >>>
- Supplier: Shanghai Xiayu Bearing Co. Ltd.
Share on (1600527093513):
Product Overview
Description
Product Description
Flanged bearings have a solid steel flange on the outer ring. This allows the bearing to be more easily located in a housing. The flange can also help to prevent axial movement of the bearing in the event of a thrust load on the bearing. It is easier to maintain the position of a flanged bearing in the housing where a lot of vibration is present.
Product Features:
---A series of products with flanges on the outer wheel makes axial positioning simple; no bearing housing is required, making it more economical;
---In order to obtain low friction torque, high rigidity, and good rotation accuracy of the bearing, steel balls with a small outer diameter are used;
---The use of hollow shafts ensures light weight and space for wiring.
---A series of products with flanges on the outer wheel makes axial positioning simple; no bearing housing is required, making it more economical;
---In order to obtain low friction torque, high rigidity, and good rotation accuracy of the bearing, steel balls with a small outer diameter are used;
---The use of hollow shafts ensures light weight and space for wiring.
Size Information
Name | Flanged Bearings |
Construction | Single Row |
Size | SF6900ZZ |
Material | 440C Stainless Steel |
Inner Ring | 10mm/0.394'' |
Outter Ring | 22mm/0.866'' |
Thickness | 6mm/0.236'' |
Dynamic Radial Load | 2430N |
Static Radial Load | 1143N |
Max Speed (X1000 rpm) | 27.9 |
Wright | 10.6g/0.023lbs |
Si3N4,ZrO2,Al2O3 and Steel's basical performance date comparision:
ZrO2 | Al2O3 | Si3N4 | Steel | |
Density(g/cm³) | 6.05 | 3.95 | 3.23 | 7.85 |
Coeffcient of Thermal Expansion(10-6/k) | 10.5 | 9.1 | 3.2 | 10 |
Hardness | 1200HV/70HRC | 1800HV/80HRC | 1500-1800HV/75-80HRC | 700HV/62HRC |
Max Temp.(℃） | 550 | 1850 | 800 | 300 |
Non-Lubrication Friction | Small | Small | Small | Large |
