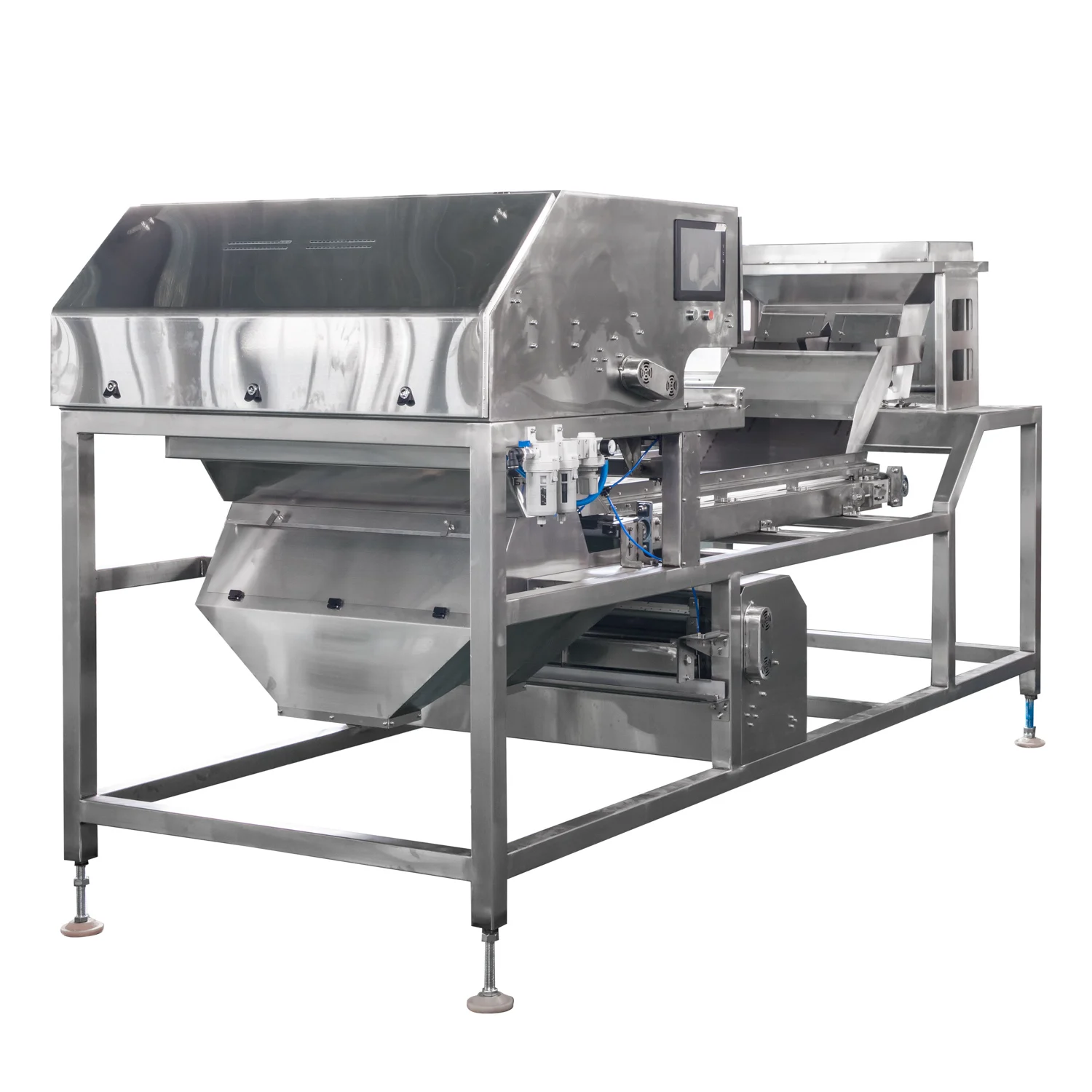

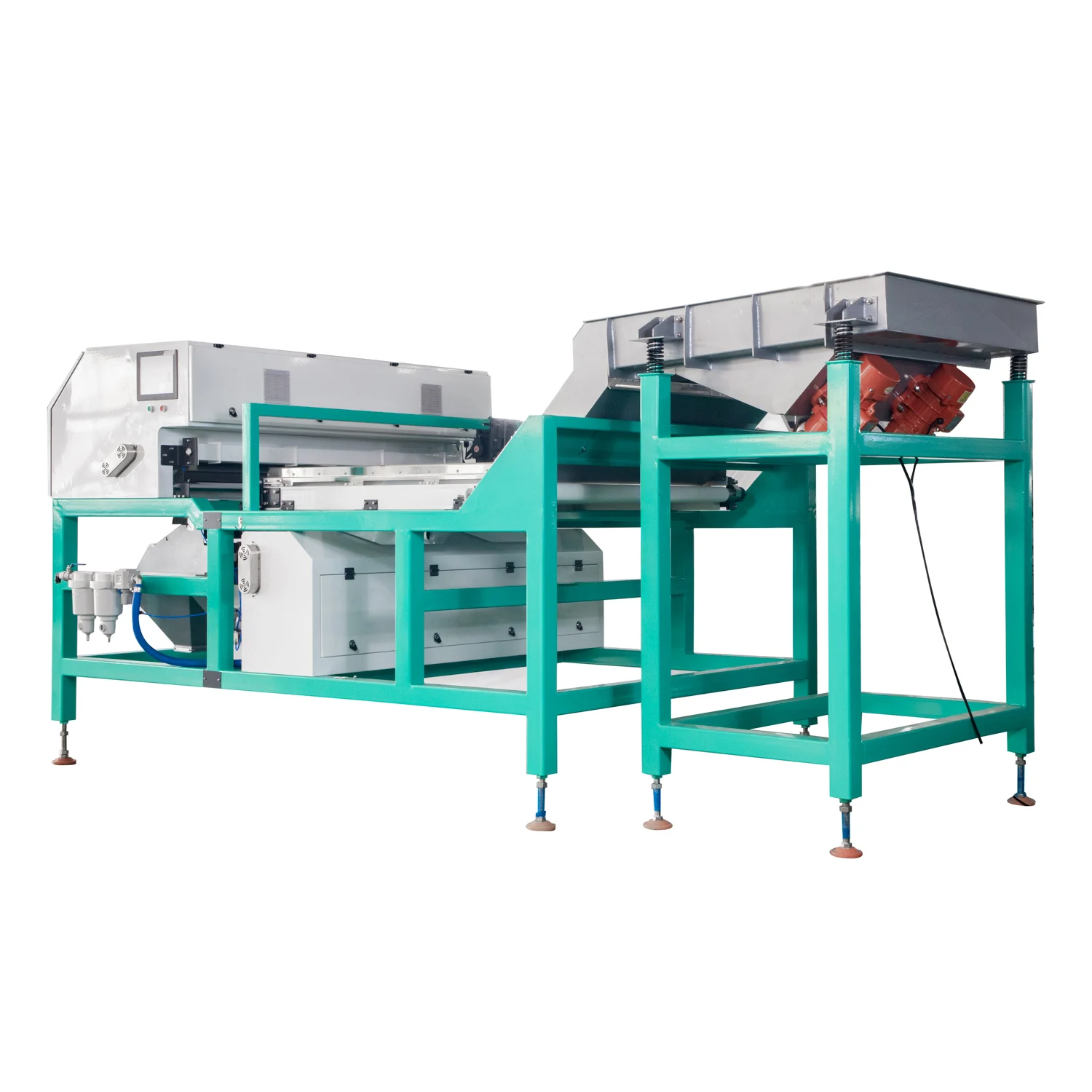

Intelligent fruit color sorter machine for berry/tomato/raisin color separate sorting
- Category: >>>
- Supplier: Hefei Branagh Photoelectric Technology Co. Ltd.
Share on (1600527097256):
Product Overview
Description
Product Description
Optical dry fruit sorting machine for fruit color sorter separator
Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
Examples of color sorter

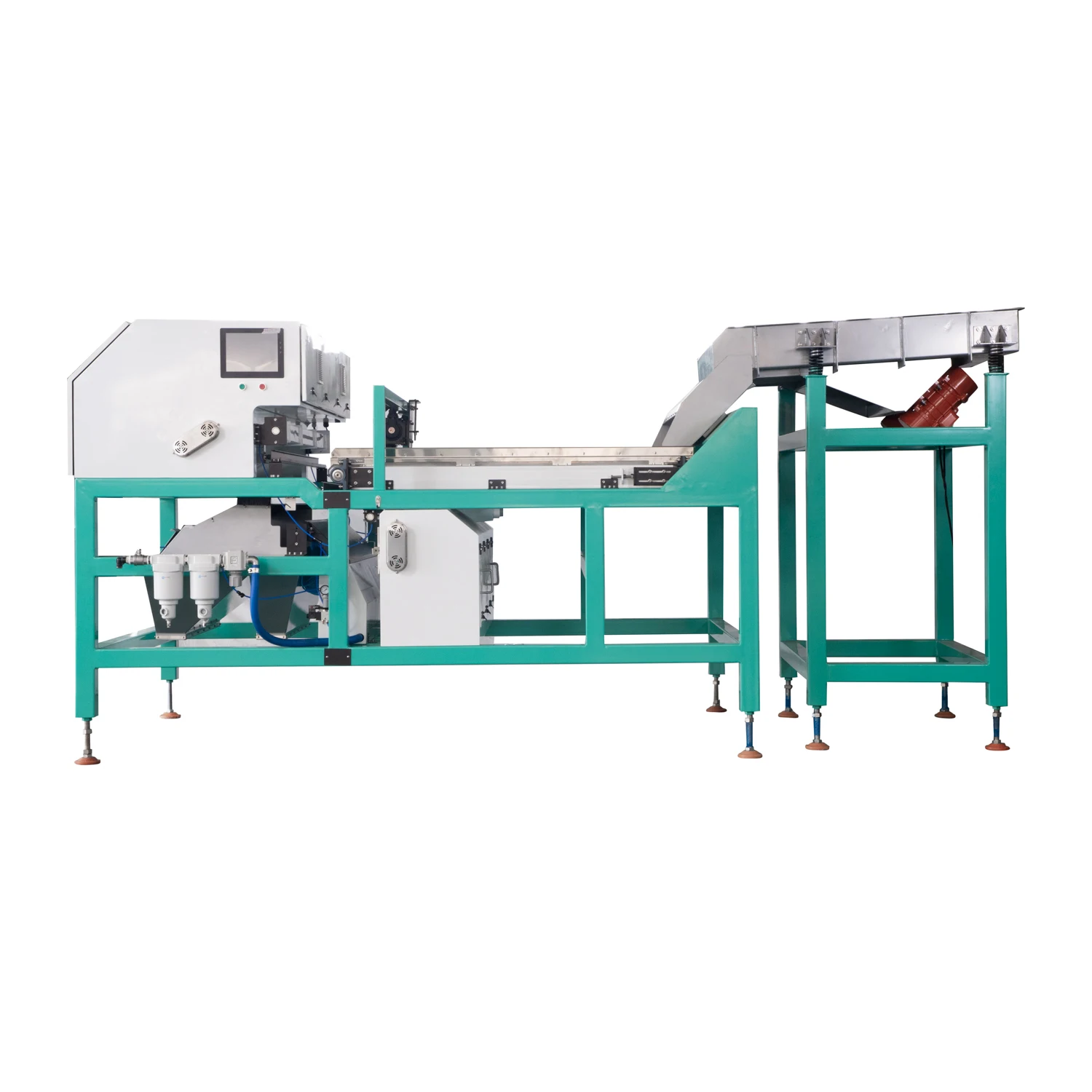

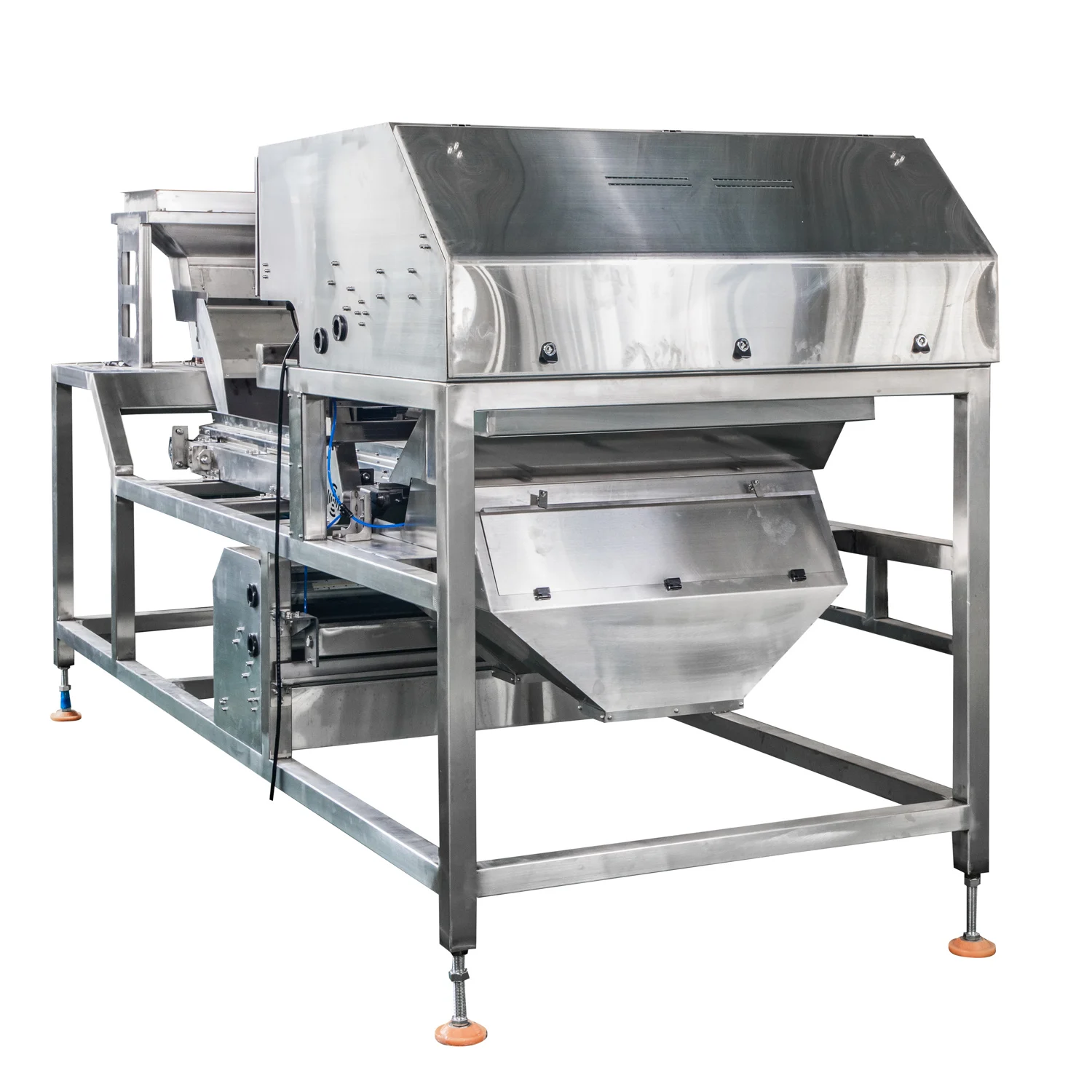

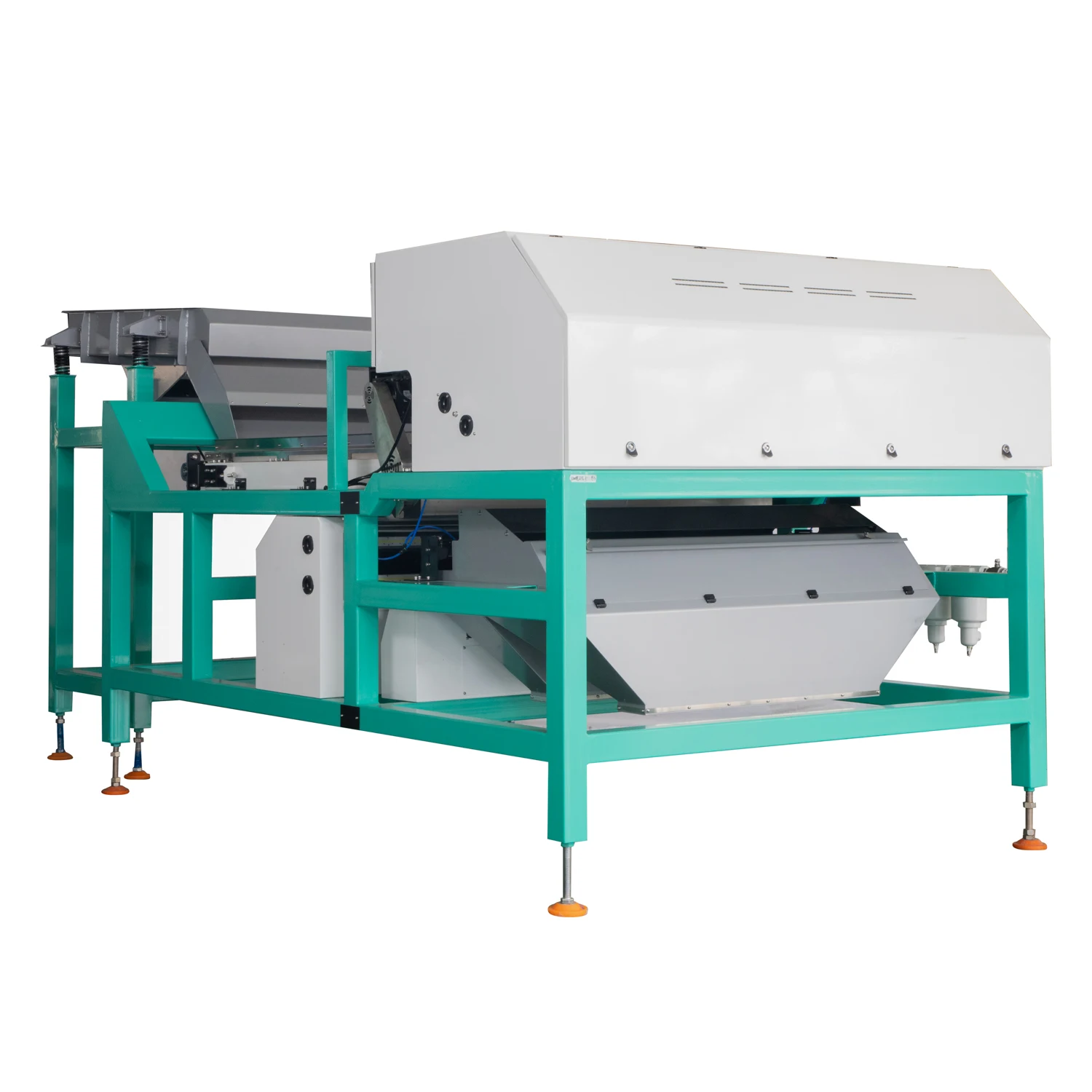

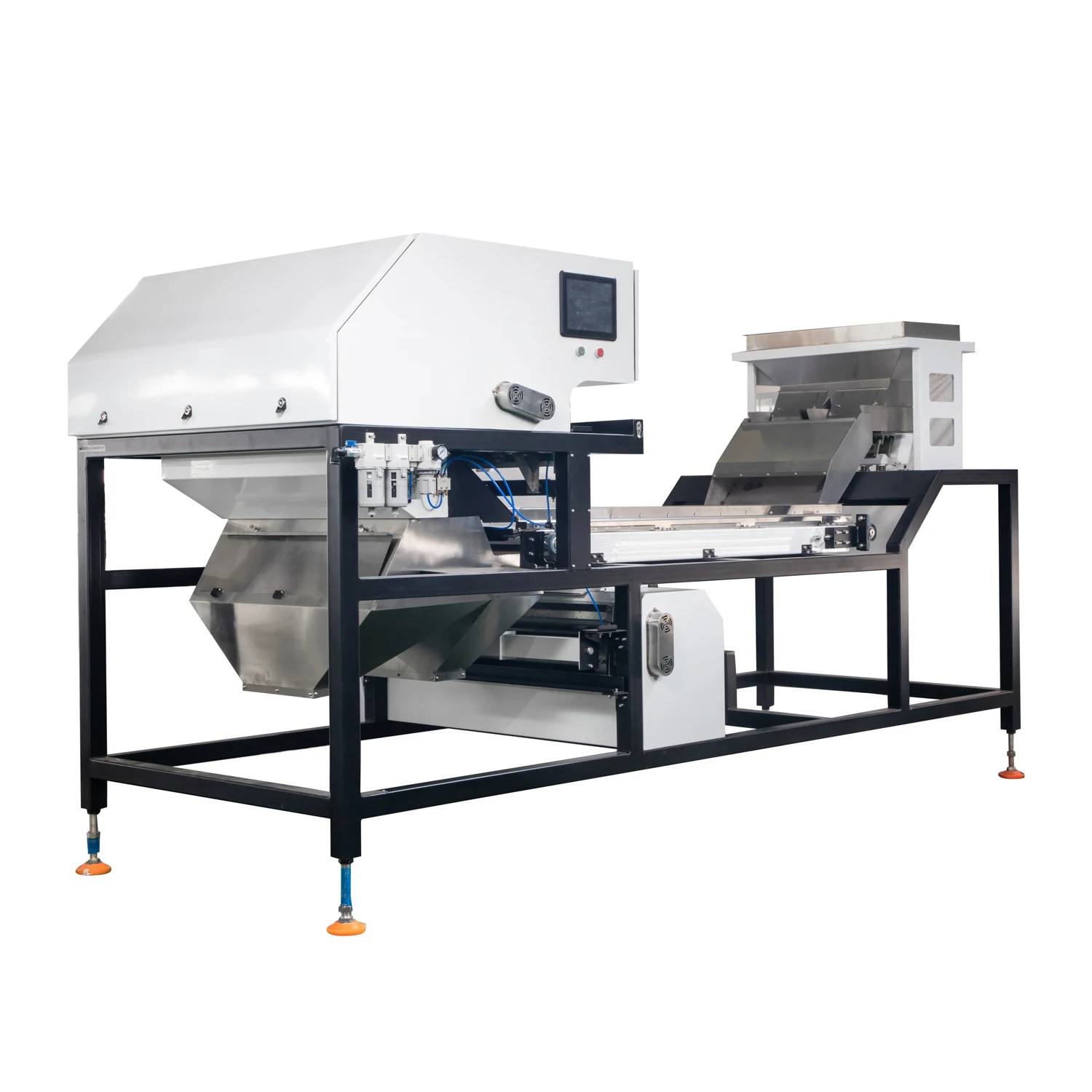

Detailed Images
Size Information
model | HLD-300 | HLD-600 | HLD-900 | HLD-1200 |
chutes, No. | 300 | 600 | 900 | 1200 |
product output | 0.2-2.0 | 0.5-3.0 | 0.8-3.8 | 1.0-4.0 |
sorting accuracy | 99.9 | 99.9 | 99.9 | 99.9 |
optimized carryover | 10:1 | 10:1 | 10:1 | 10:1 |
weight(kg) | 600 | 800 | 1000 | 1200 |
minium identification | 0.03 | 0.03 | 0.03 | 0.03 |
power (v/hz) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) |
air pressure (Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Voltage(kw) | 1.5 | 2.0 | 2.5 | 2.5 |
Air consumption(l/min) | <1500 | <2000 | <2500 | <2500 |
Dimension (l*w*h)mm | 3250*1005*1760 | 3180*1360*1760 | 3250*1660*1760 | 3250*2200*1760 |
NOTE：
1.The above data is based on 5% contamination Coarse Cereals material.The real output depends on different materials and contamination.
2.1f products update,no further notice.Please refer to the real machine.
1.The above data is based on 5% contamination Coarse Cereals material.The real output depends on different materials and contamination.
2.1f products update,no further notice.Please refer to the real machine.
Packing&Shipping
Machines will bew wrapped in professional seaworthy plywood cases
Package size will depend on each model size.
Package size will depend on each model size.
We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to
ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
Company Introduction
Hefei Branagh Photoelectric Technology Co.,Ltd. is a high-technology firm, which combined with design, manufacture and selling, Our firm is dedicated to providing high reliability, high quality, safety and easy-to-operate sorting machines for customers in the field of food and industrial.We have a team that is determined to make progress and keep innovating to form a business model that is oriented toward quality, efficiency ,and customer satisfaction。
Through countless hardwork, we serve customers from all over the world. We are well-established in both domestic and foreign markets. Our products sold well in our country and exported to Asia,Africa,Europe,America,Australia,more than 80 countries.
Now we are enjoying the high reputation in manufacturing circle.We would be pleased to enter into business relations with you!
Through countless hardwork, we serve customers from all over the world. We are well-established in both domestic and foreign markets. Our products sold well in our country and exported to Asia,Africa,Europe,America,Australia,more than 80 countries.
Now we are enjoying the high reputation in manufacturing circle.We would be pleased to enter into business relations with you!

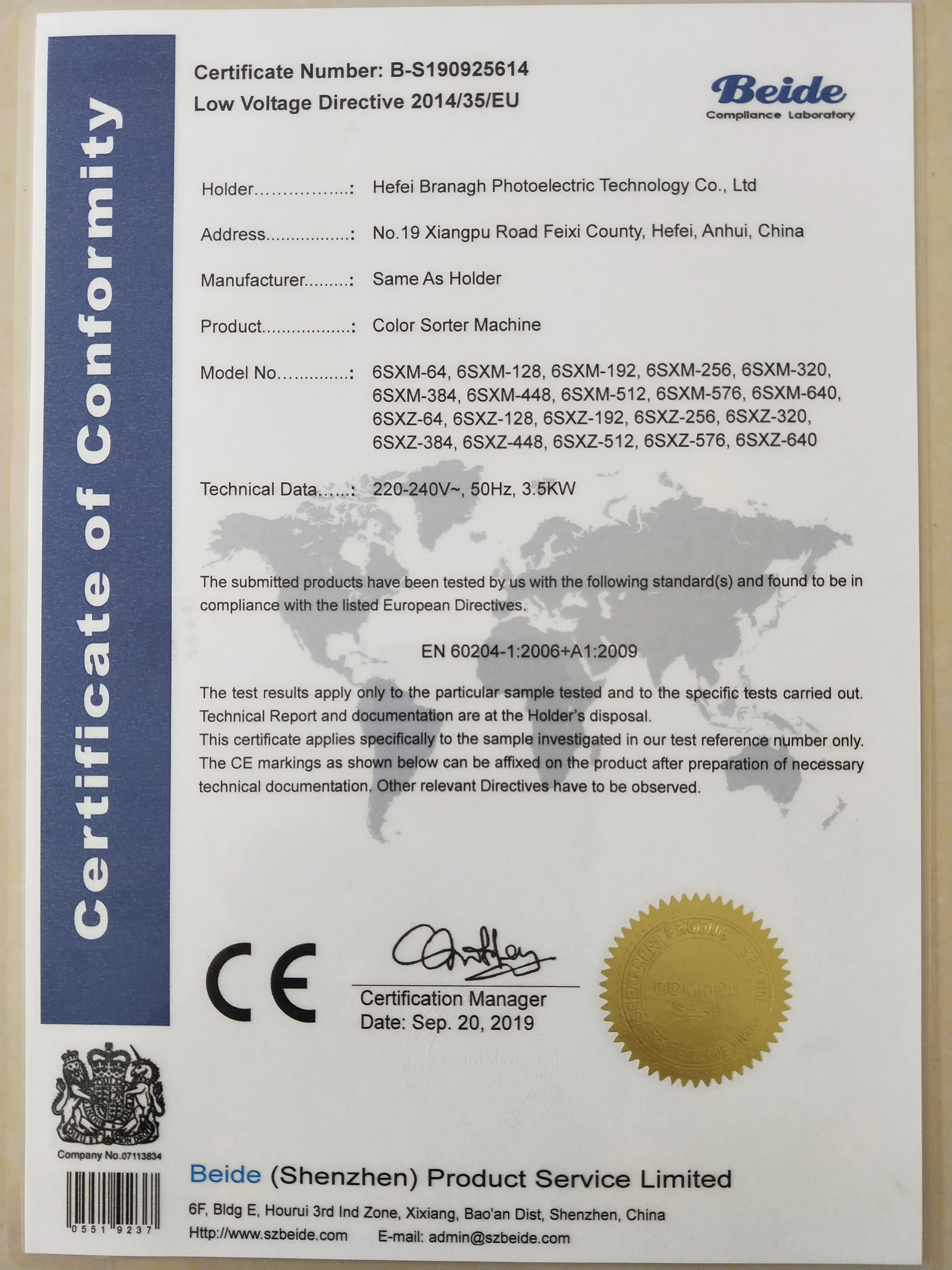

After Sales Service & Certificate
We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to
ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something
unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something
unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
7*24 online service.
FAQ
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the warranty period?
One year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the related spare parts,such as,ejectors, air compressors, CCD cameras, and solenoid valves?
Yes, we can provide above equipments for free within one year.
4. Is overseas service available?
Yes, our engineers could go abroad when required.
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the warranty period?
One year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the related spare parts,such as,ejectors, air compressors, CCD cameras, and solenoid valves?
Yes, we can provide above equipments for free within one year.
4. Is overseas service available?
Yes, our engineers could go abroad when required.
