Price:$8.39 - $10.52

Quantity:


Product Overview

Description



Product Description

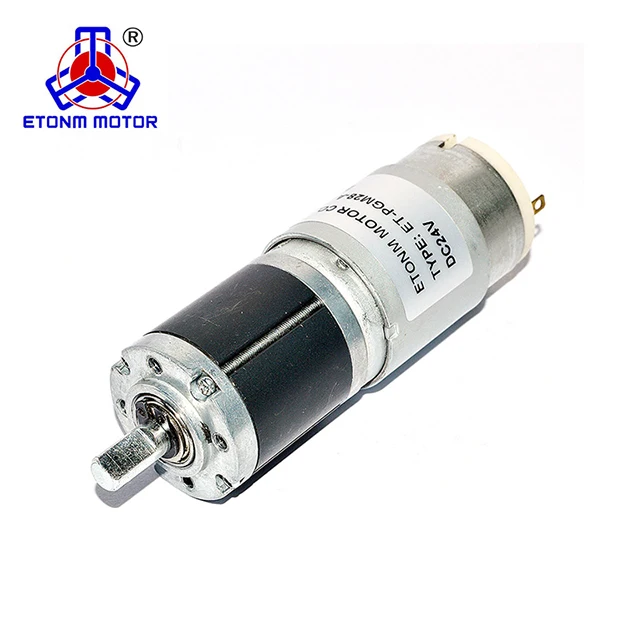

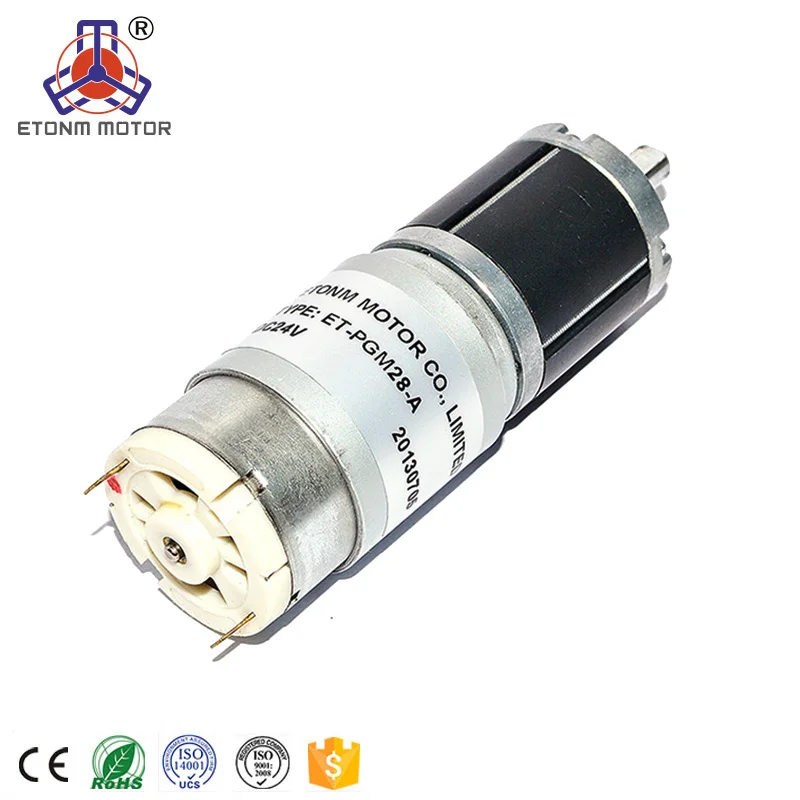

ETONM MOTOR

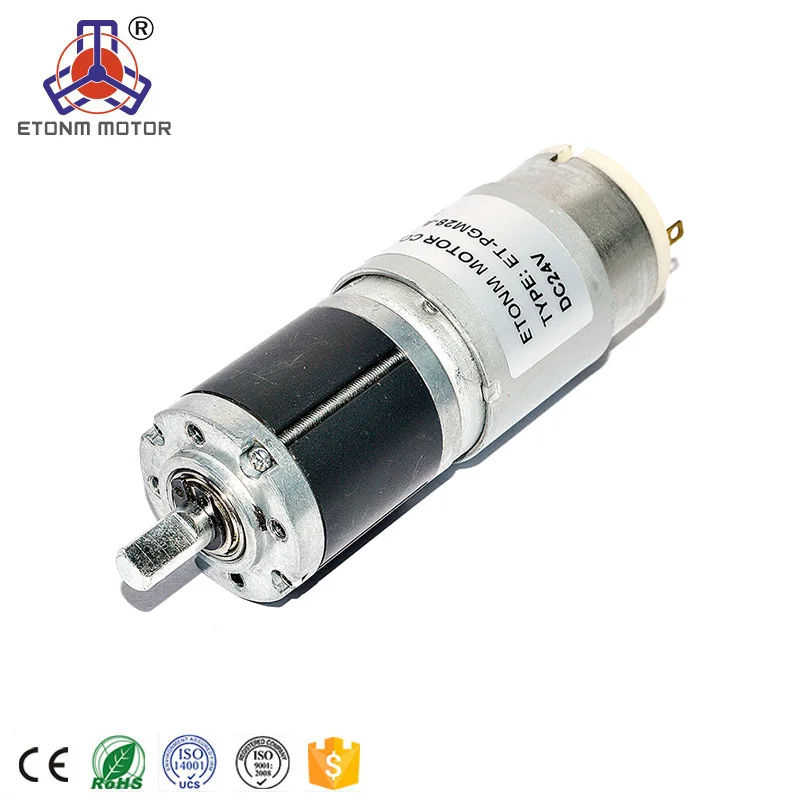

Planetary gearbox motor
performance range
Voltage: 6.0-24VDC
Speed: 1-1500rpm
Torque: 0.1-40kg.cm


Key features
high torque samll size
large speed range
CW/CCW Running
Weight: 280g (APPROX)

Typical applications
electric blind, curtain
electric valve and ACTUATOR
office&home automation


Gear ratio stage
1
2
3
4
5
gear ratio
3.4
11
38
126
585
4.7
16
51
241
810

21.5
72
334
1120


100
462
1549




2142
gearbox length(L) mm
20.5
26
32
37.5
43.3


ETONM MOTOR

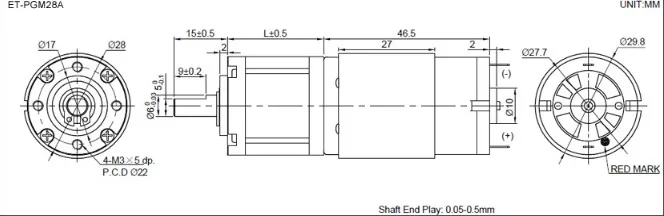

This style motor standard size drawing as below, if you have any confuse, please let us know, we can help you to make customized.




ETONM MOTOR
Below is the datasheet for your reference, below model are the hot sell products. we can make the performance according to your requirements.


Model
voltage
no load
at rated load
operation range
nominal
speed
current
speed
current
torque
r/min
A
r/min
A
kg.cm
ET-PGM28A-241276
12.0-28.0
24VDC
1276
≤100
1106
≤450
0.5
ET-PGM28A-24545
12.0-28.0
24VDC
545
≤100
473
≤450
1
ET-PGM28A-24375
12.0-28.0
24VDC
375
≤100
325
≤450
1.5
ET-PGM28A-24279
12.0-28.0
24VDC
279
≤100
241
≤450
2
ET-PGM28A-24158
12.0-28.0
24VDC
158
≤100
137
≤450
3.3
ET-PGM28A-24117
12.0-28.0
24VDC
117
≤100
100
≤450
4.4
ET-PGM28A-2484
12.0-28.0
24VDC
84
≤100
72
≤450
6
ET-PGM28A-2460
12.0-28.0
24VDC
60
≤100
51
≤450
8
ET-PGM28A-2448
12.0-28.0
24VDC
48
≤100
40
≤450
9.5
ET-PGM28A-2425
12.0-28.0
24VDC
25
≤100
21
≤450
19
ET-PGM28A-2418
12.0-28.0
24VDC
18
≤100
15
≤450
26
ET-PGM28A-2413
12.0-28.0
24VDC
13
≤100
10.5
≤450
30
ET-PGM28A-247.4
12.0-28.0
24VDC
7.4
≤100
6
≤450
40*
ET-PGM28A-243.8
12.0-28.0
24VDC
3.8
≤100
3
≤450
40*


Remarks:

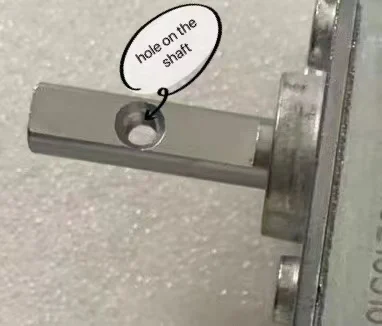

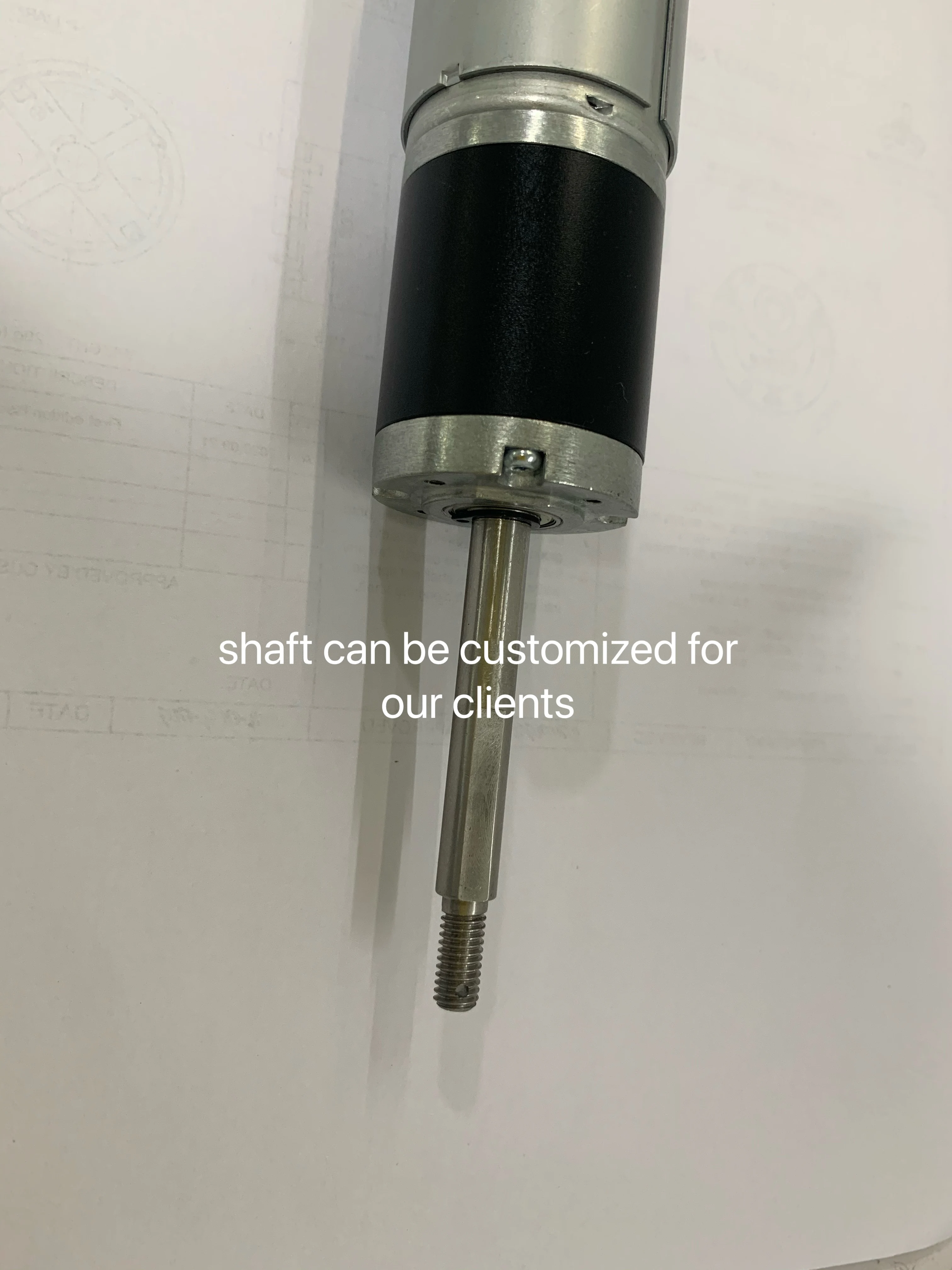

1. Shaft dimension can be customized.
2. The voltage can be 6v, 12v, 24v; The DC motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.


Product Show and Customization Service

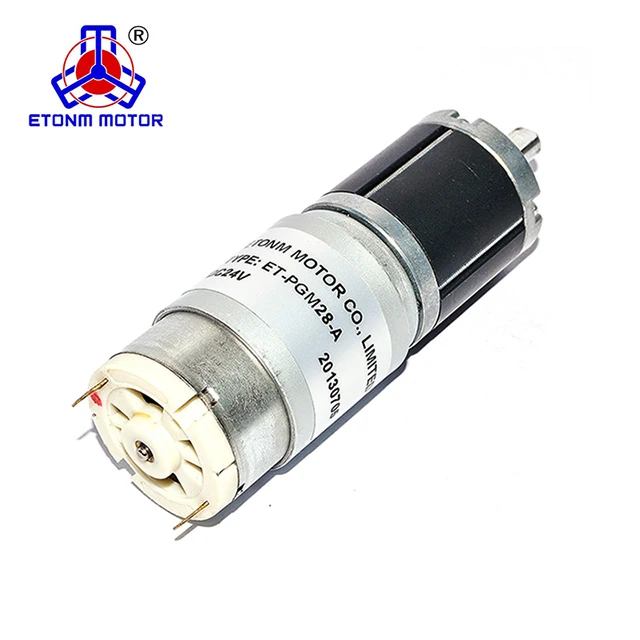

electric 12v dc motor high rpm high torque 24 volt dc motor




ETONM MOTOR

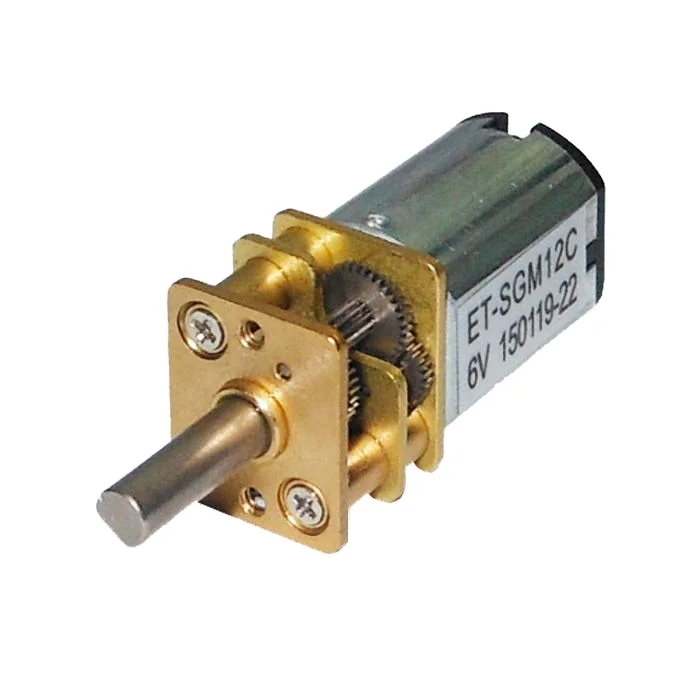

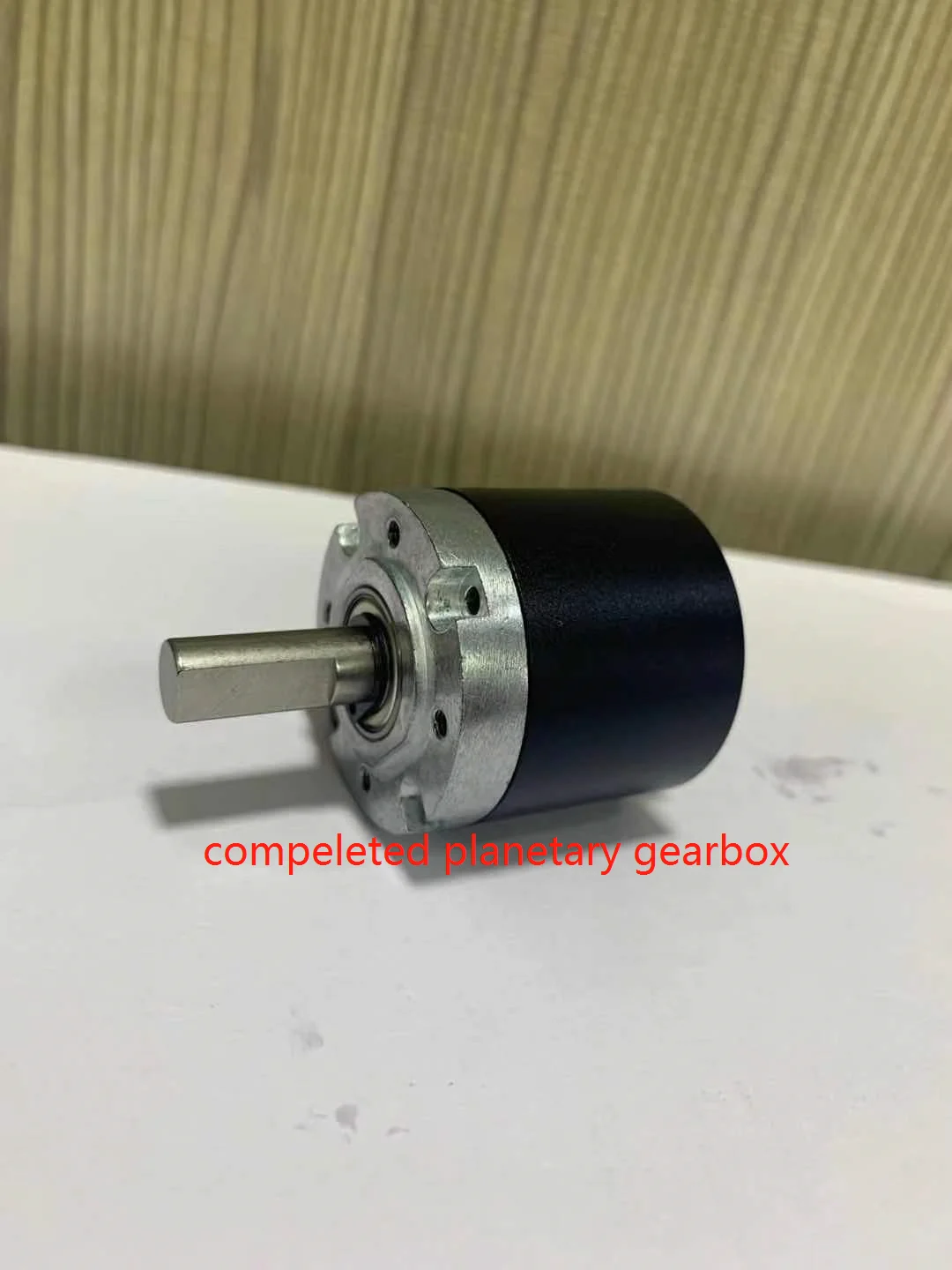

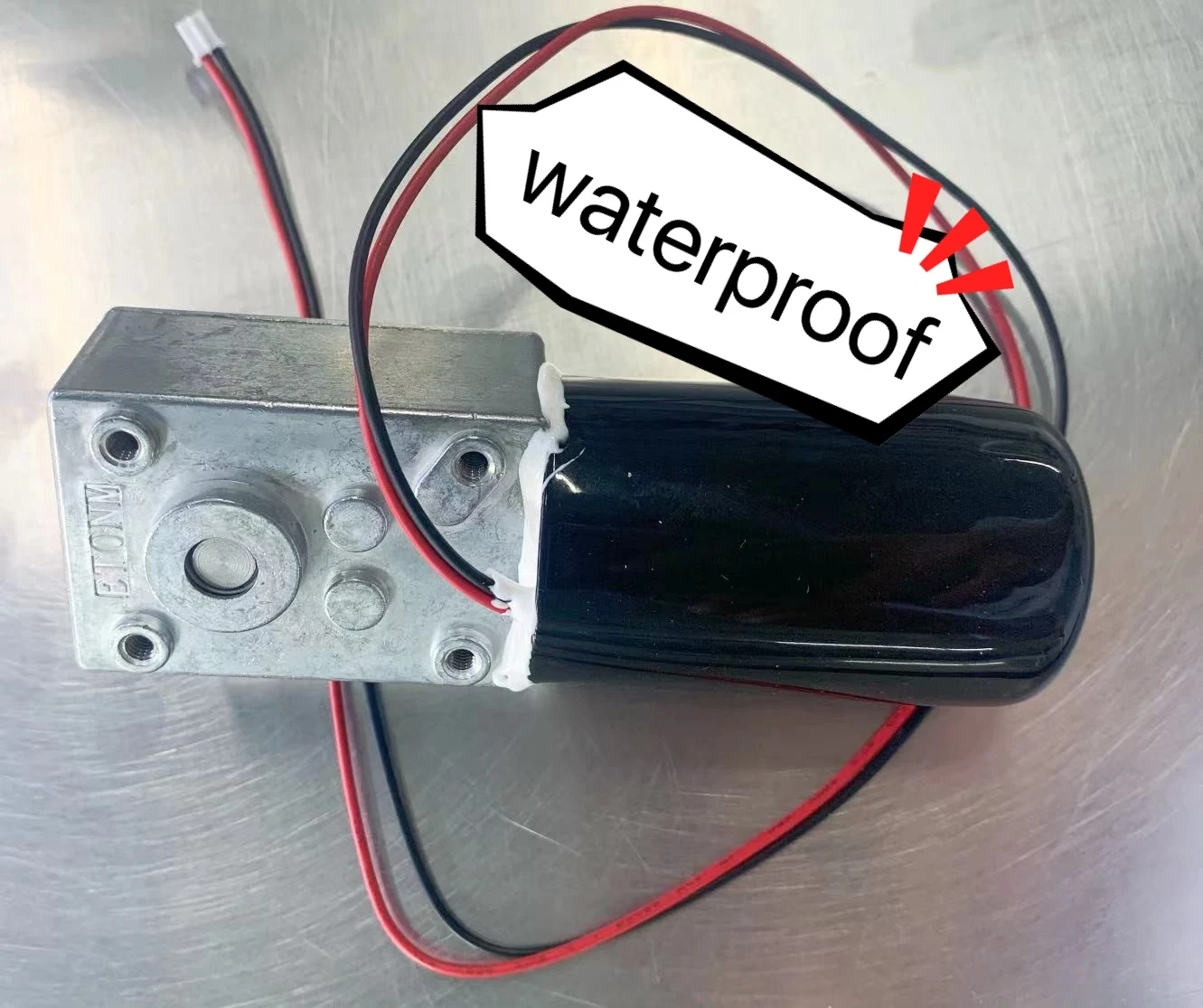

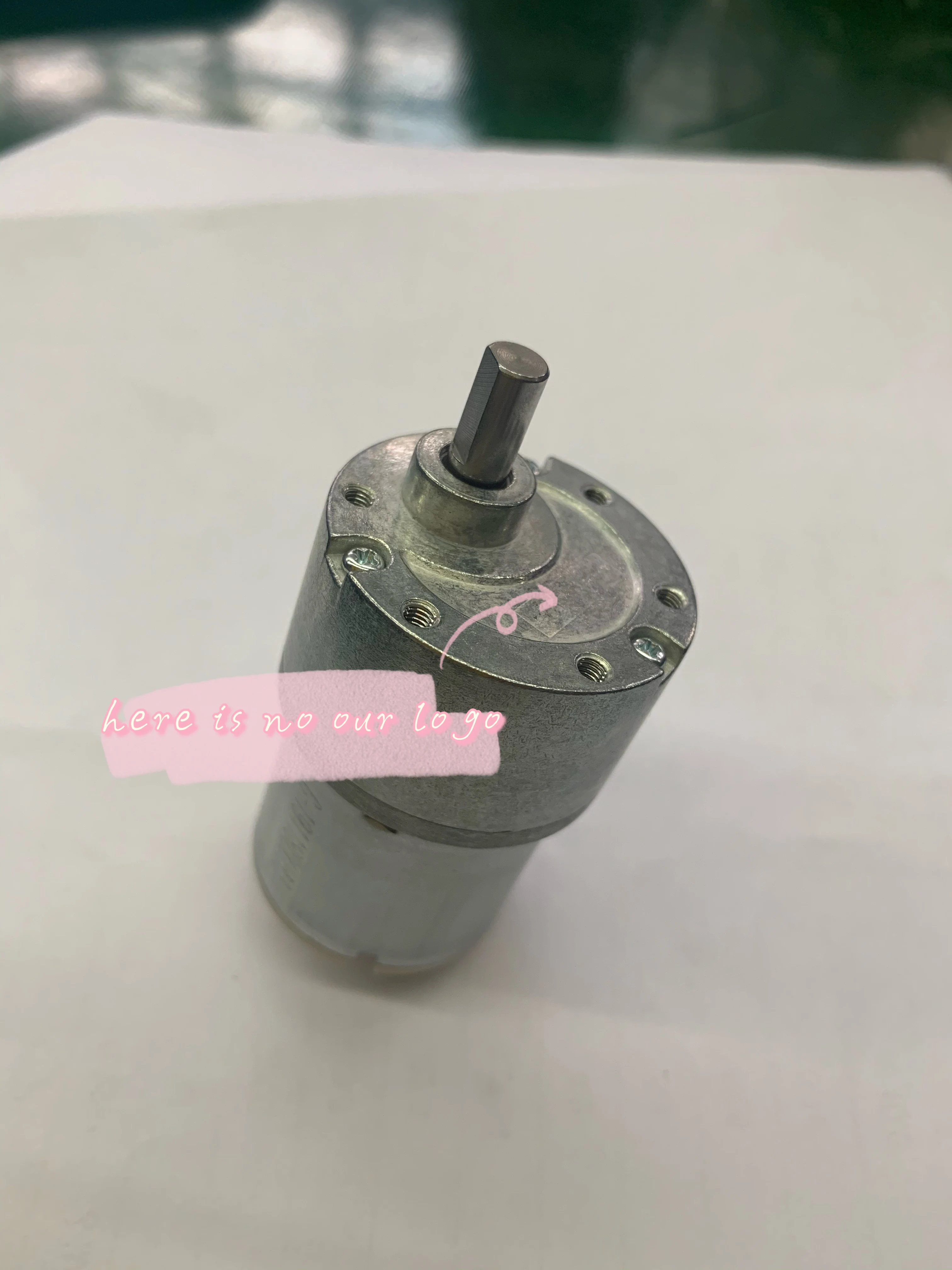

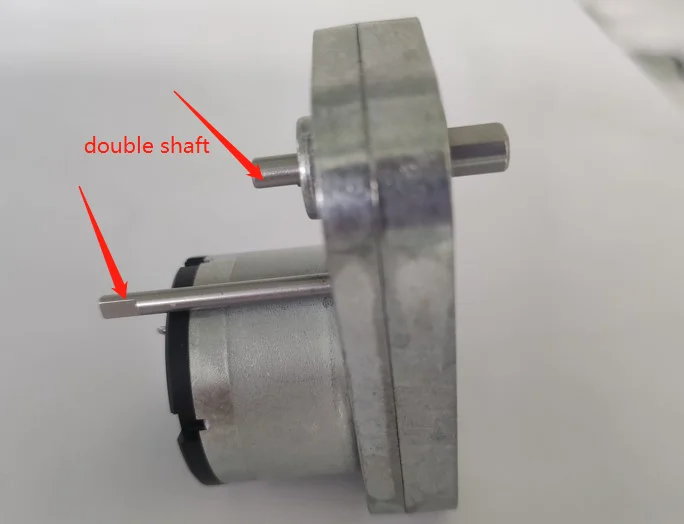

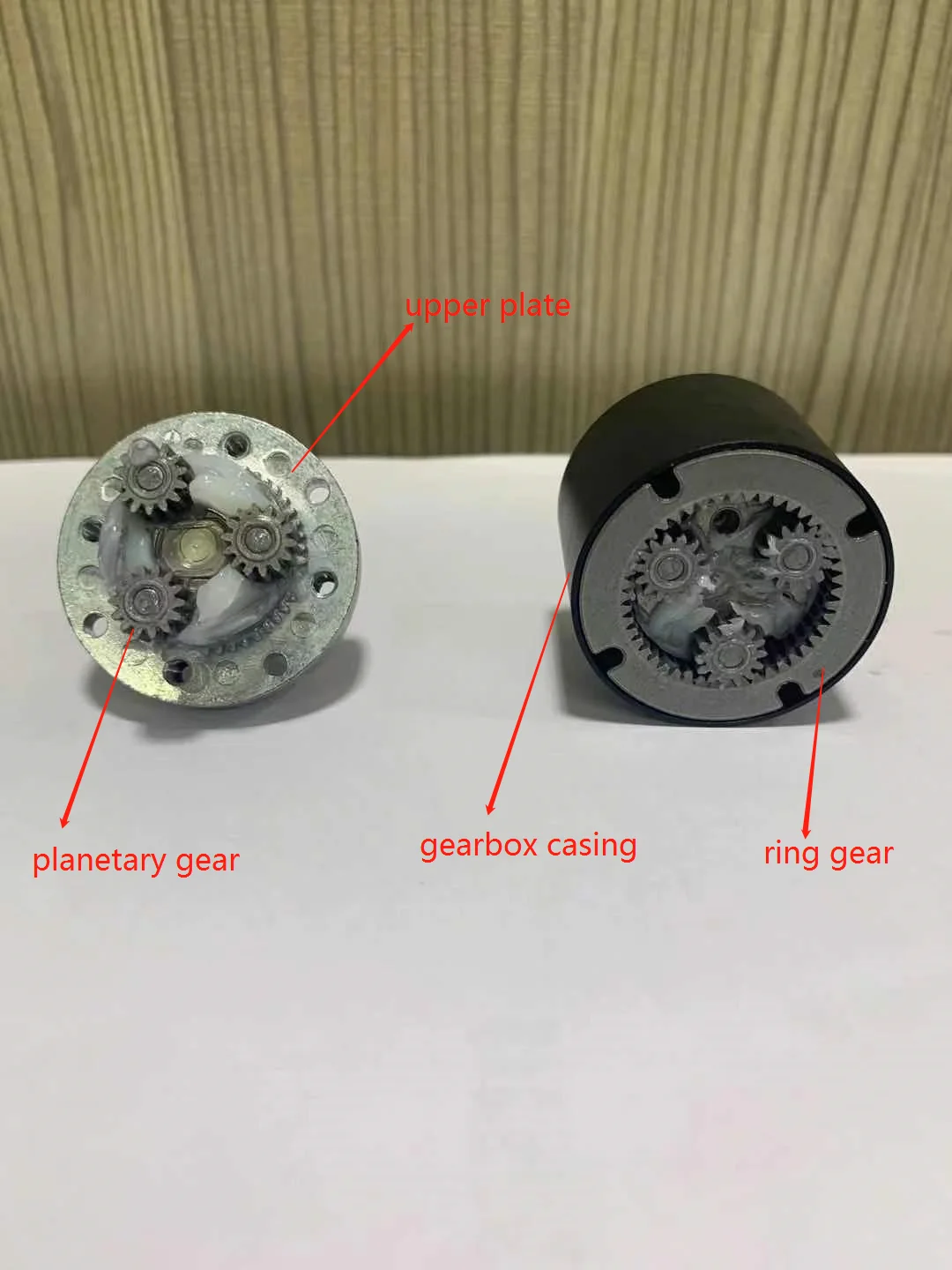

We customized different motors from different clients as below.

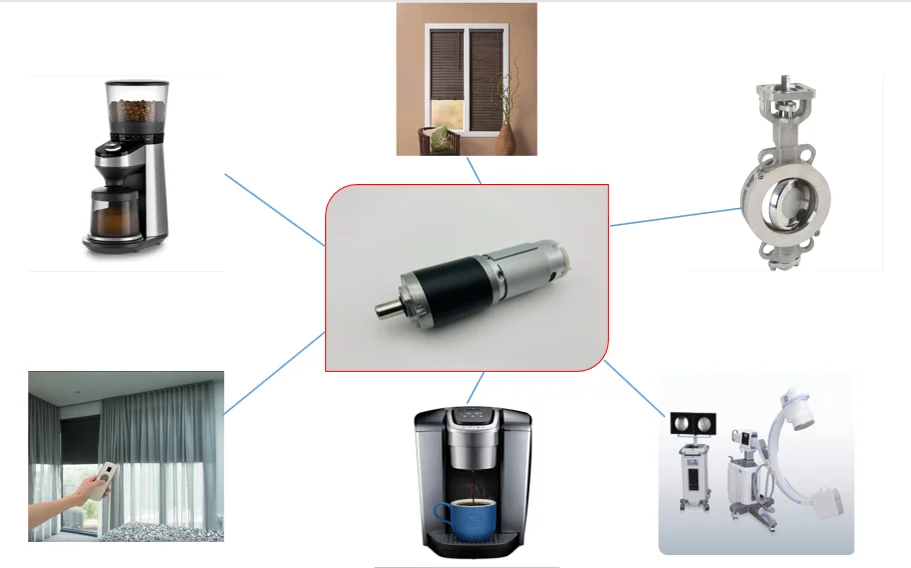

Typical Application

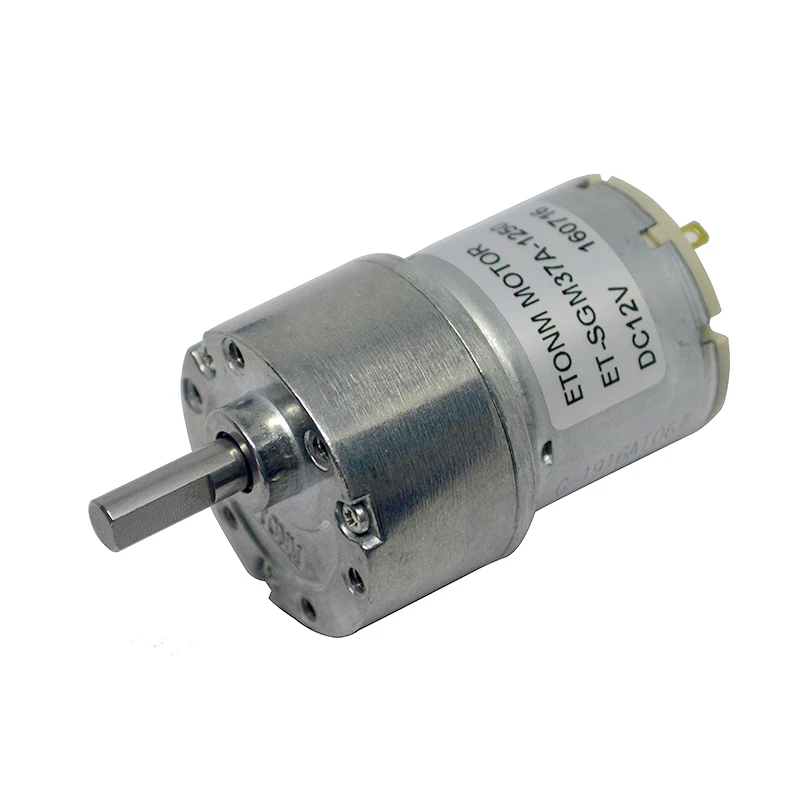

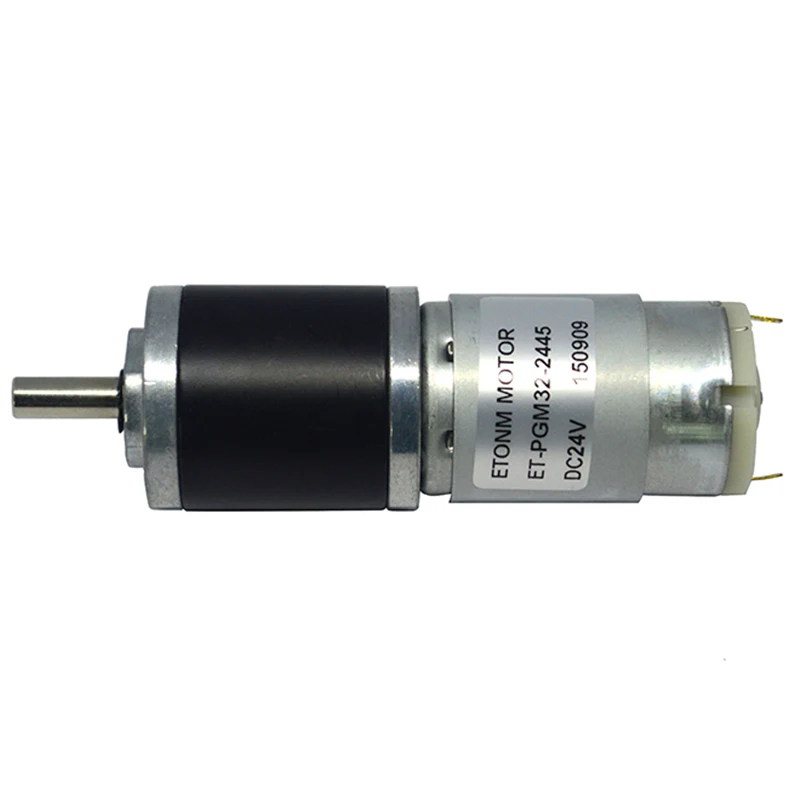

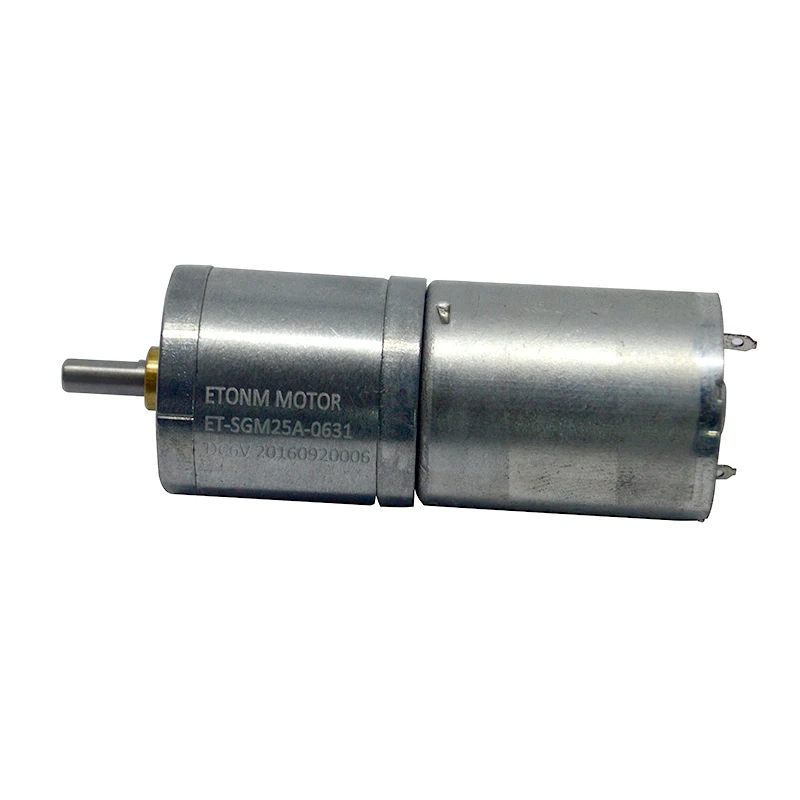

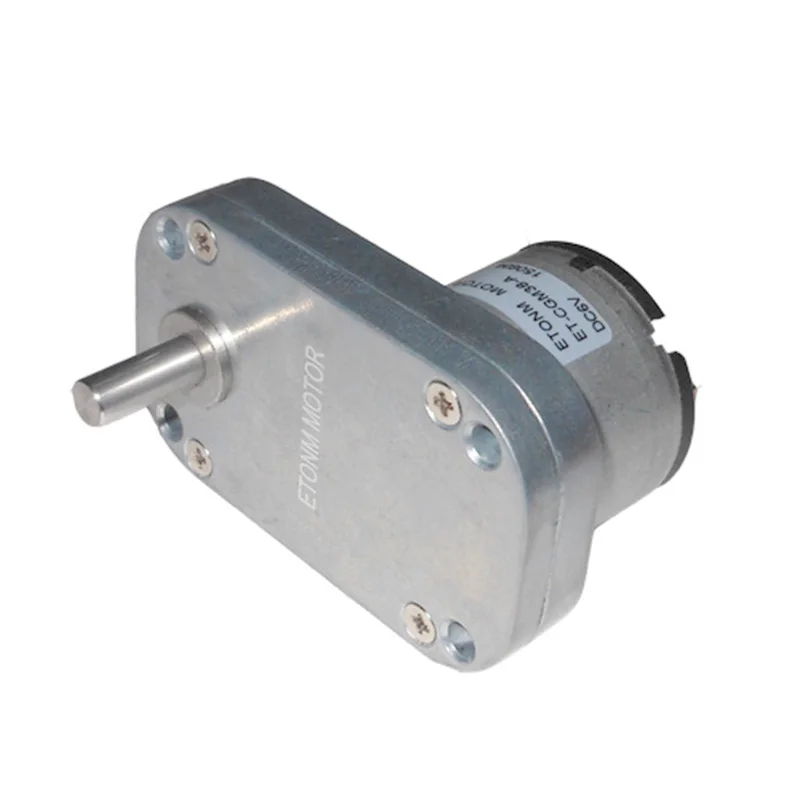

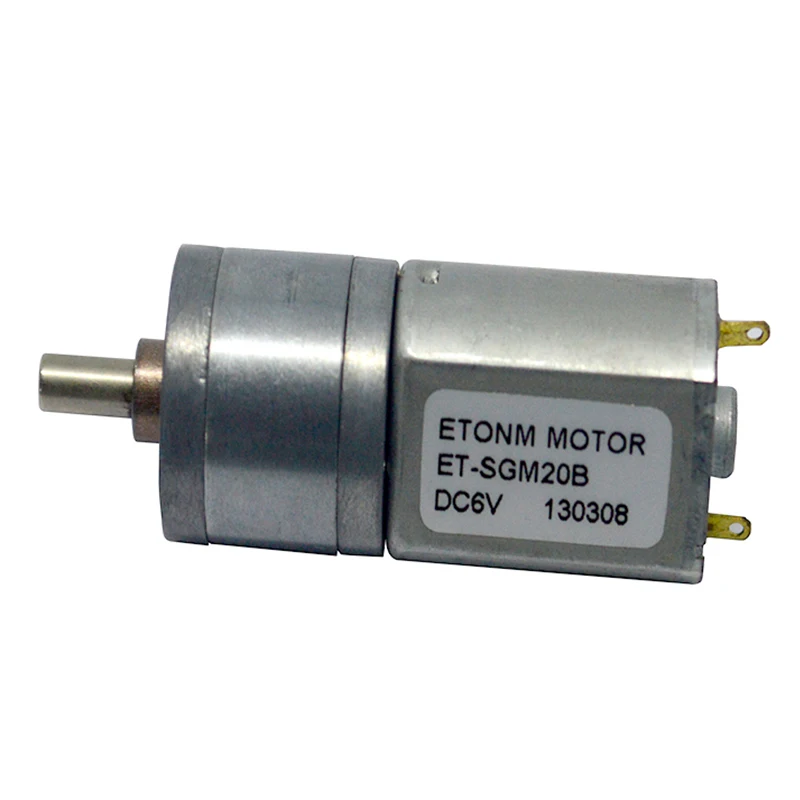

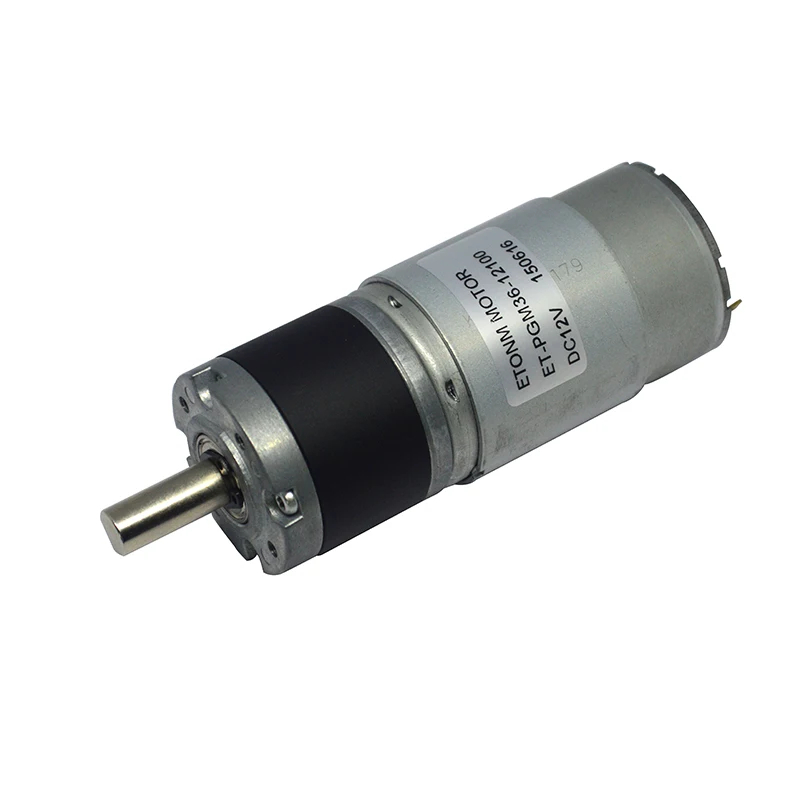

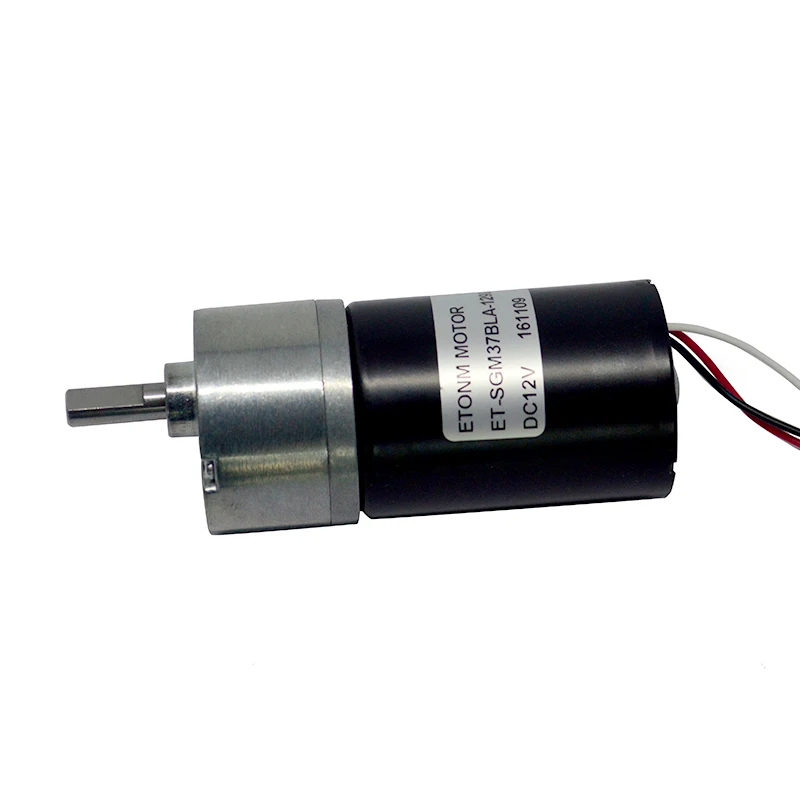

More Product






Company Profile


If you want to know more, you can visit our Alibaba Home Page.
or you also can touch our official website: www.etonm.com


our company:
our company provides the MINI DC REDUCTION GEAR MOTOR SOLUTIONS to the whole world. The export share accounts for more than 80% of the company's total business.

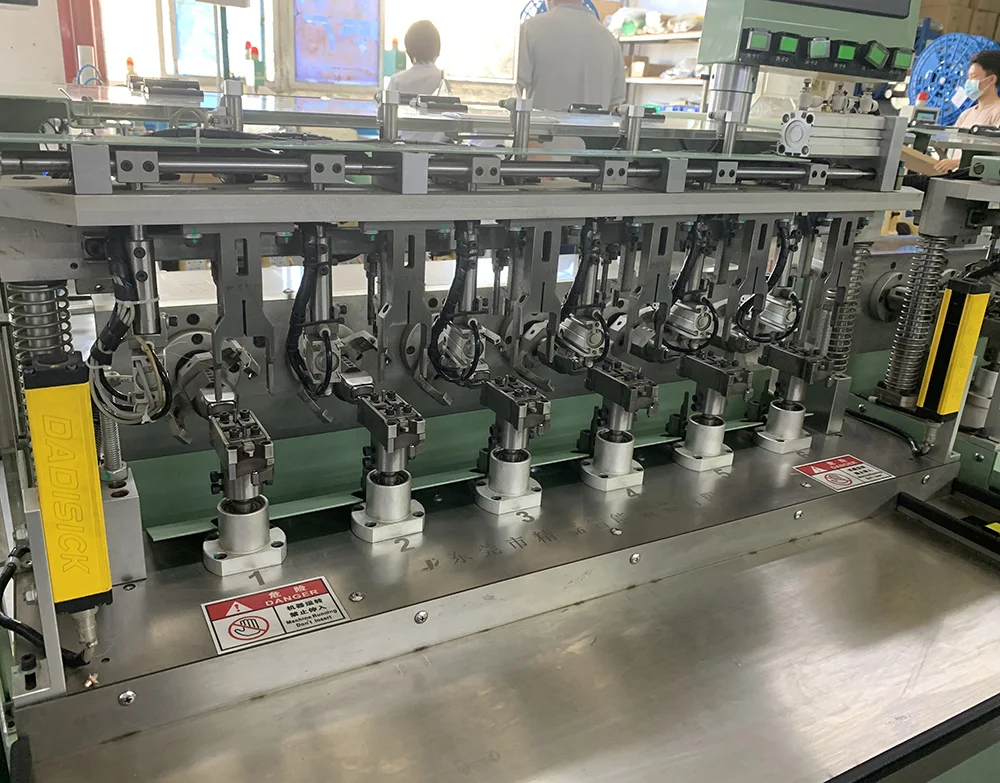

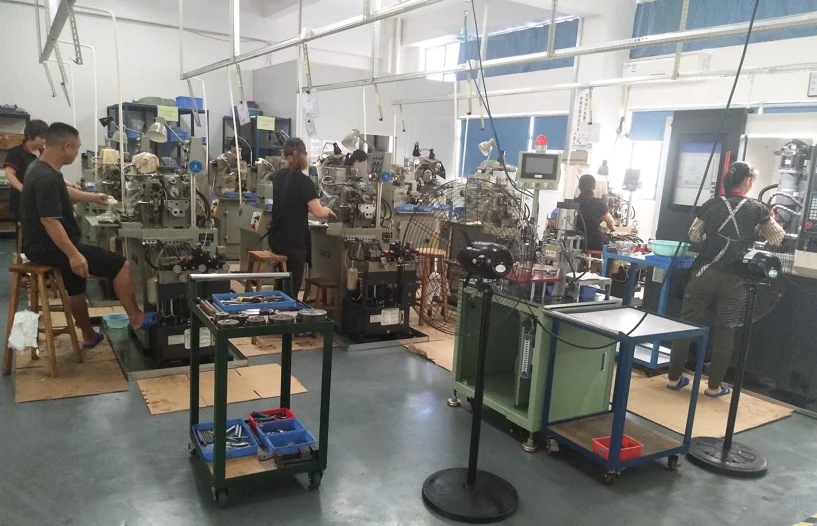

our workshop:
Our workshop is clean and tidy, the employees uniform their clothes and are producing motors in an orderly manner

win-win solutions:
We have always believed that sincerely solving problems for customers, meeting customer needs, and thinking about customer projects can bring win-win and long-term cooperation.

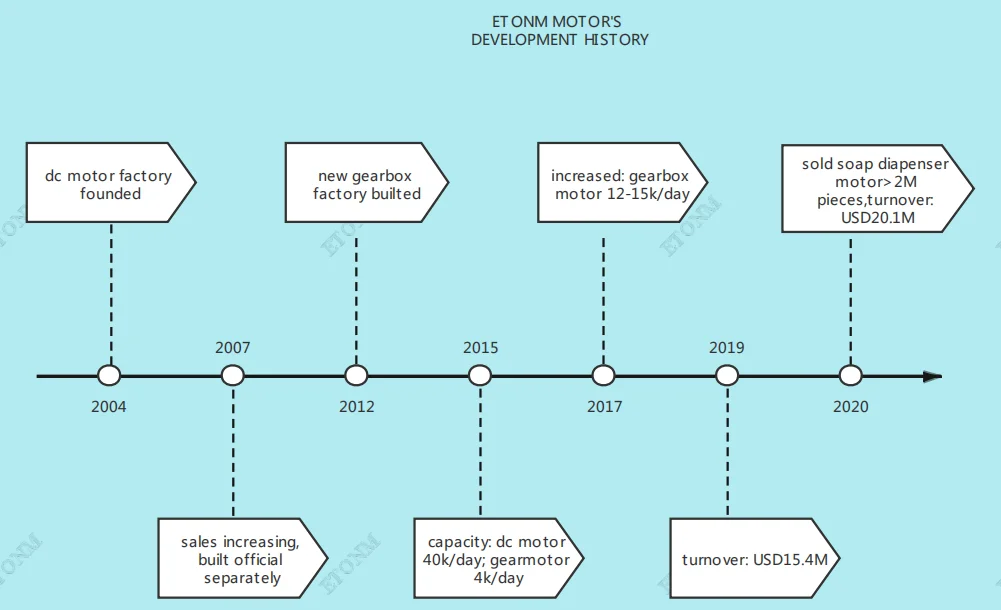

Development History:




Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. With 13 years experience, we have the perfect team, excellent engineers and modernized production line.

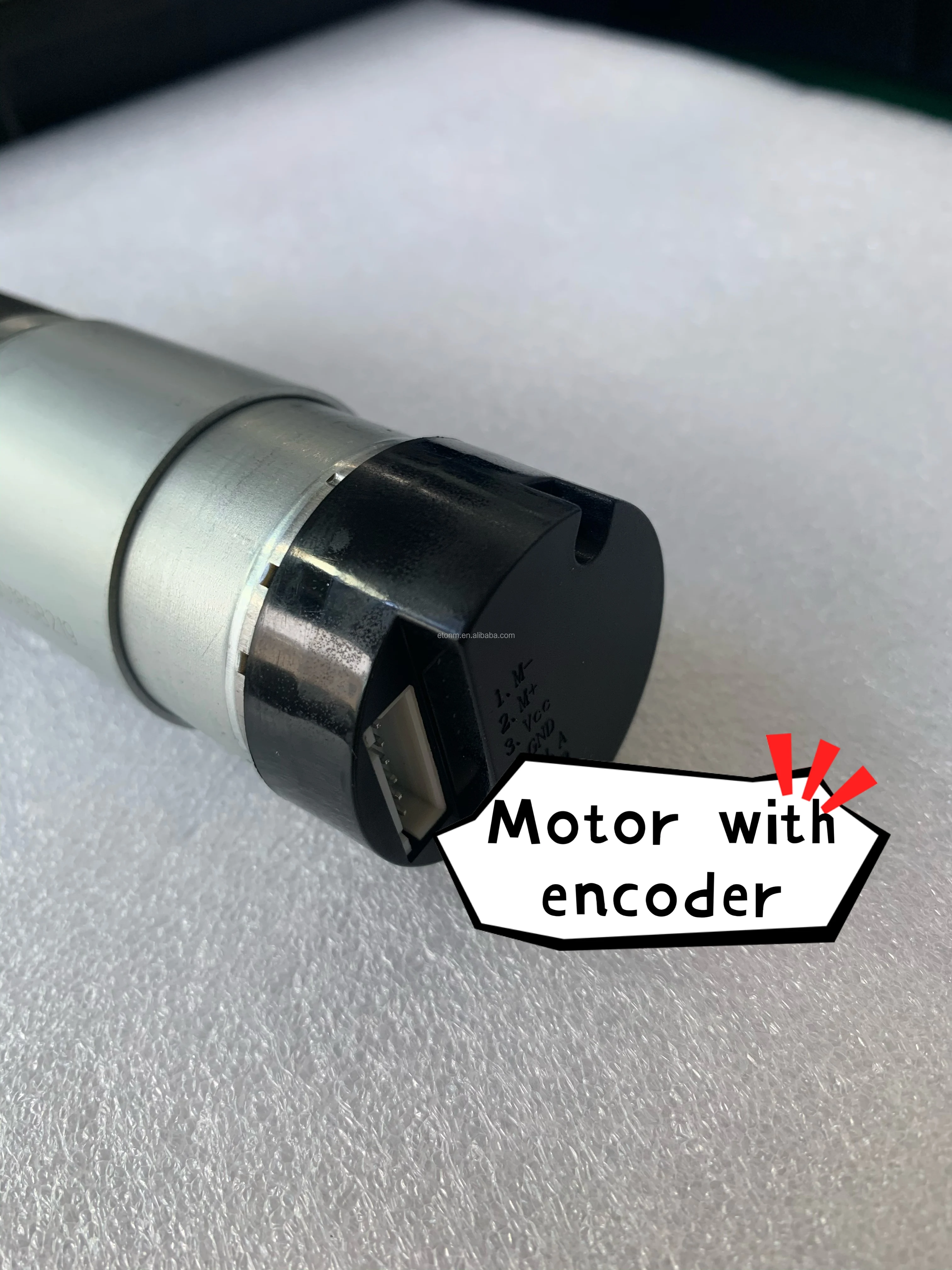

There are 5 series gear motor, over 100 types. They are Round Spur Gear Motor, Right Angle Gear Motor, Planetary Gear Motor, Flat Spur Gear Motor, Brushless DC Motor. Actually we also have Magnet Encoder. In each series motor, we all have our own strong type.

These motors are widely used in different industries. Home Appliance, Office Equipments, Vending Machine and Bank Equipment, Robotics and Electric Valve, Safe and Security, Sanitary Dispenser 80% gear motors are exported.


Our Quanlity Assurance

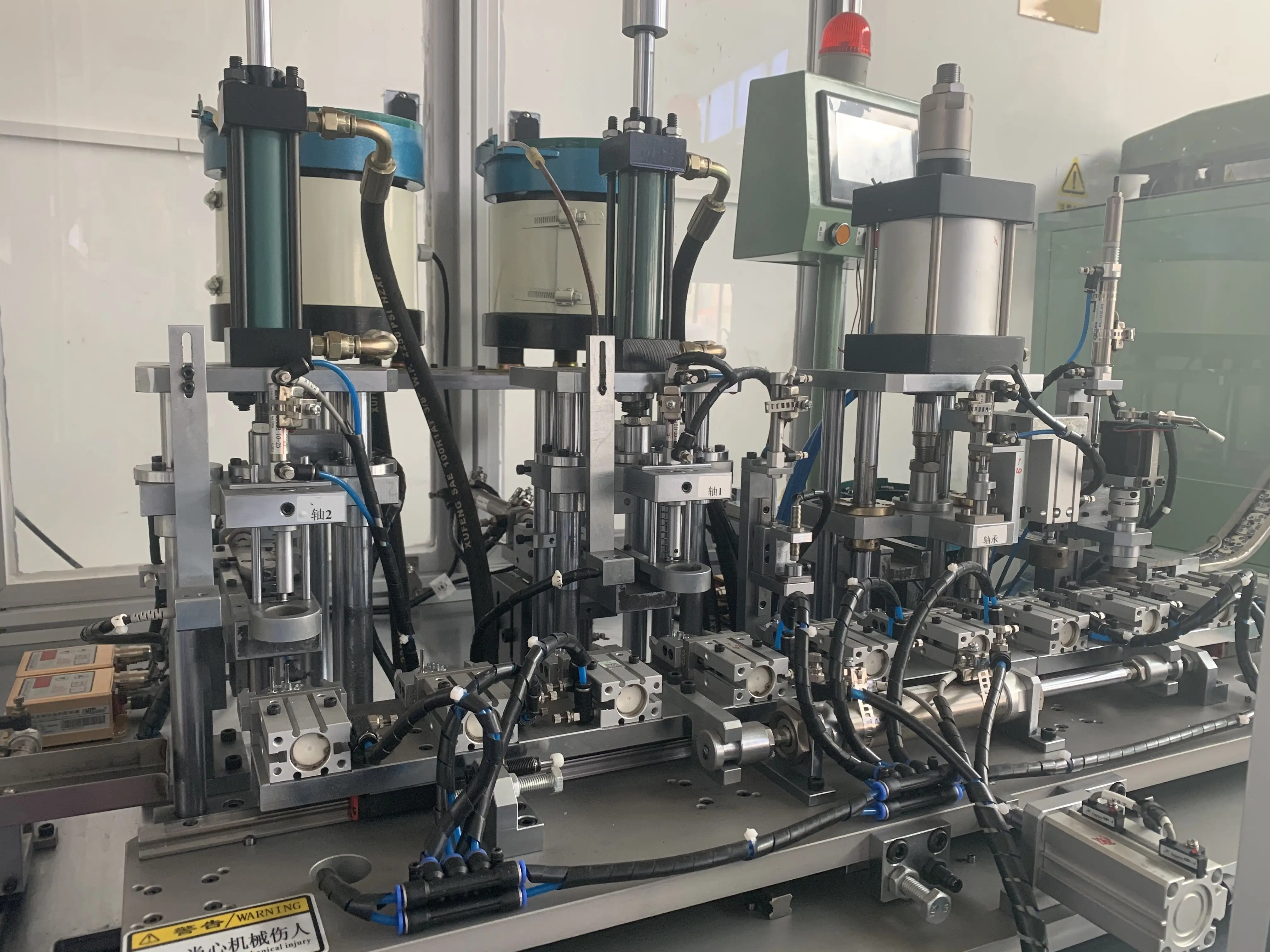

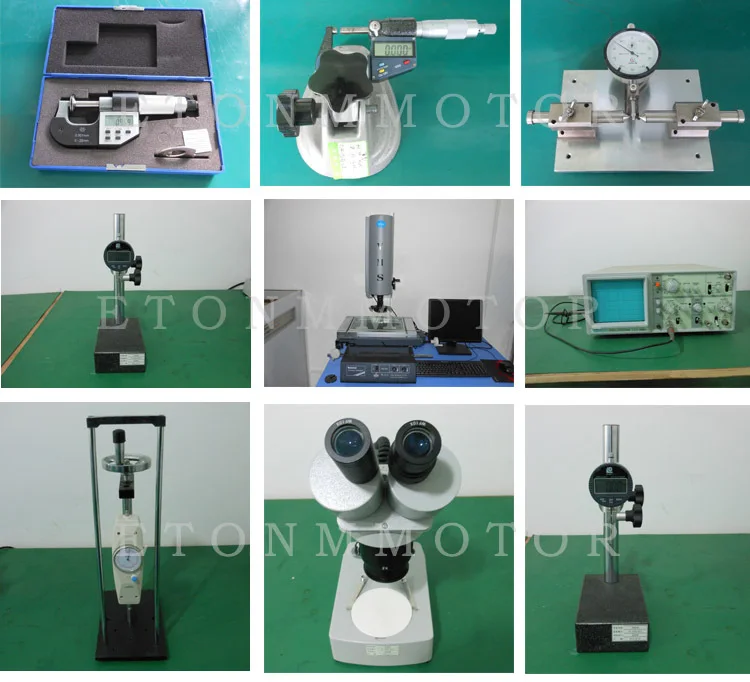

Equipment




In addition to our staff, our equipment also escorts our production

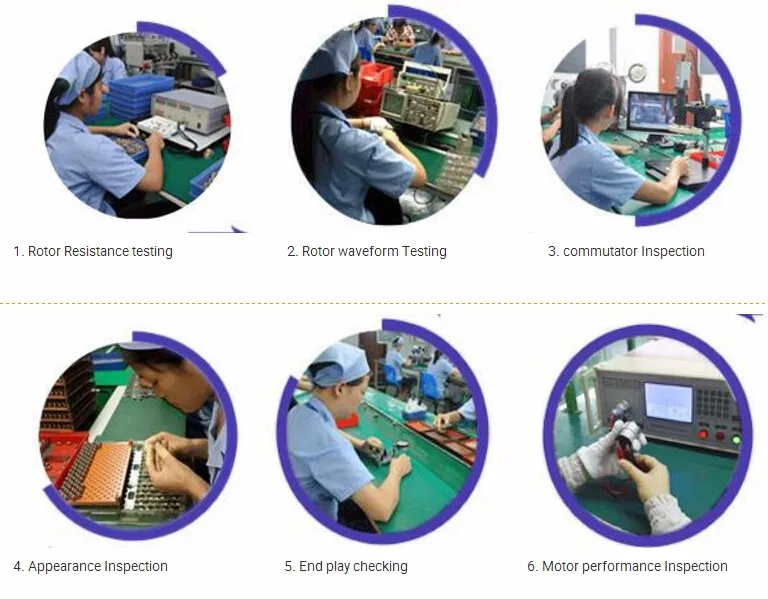

Quanlity Process

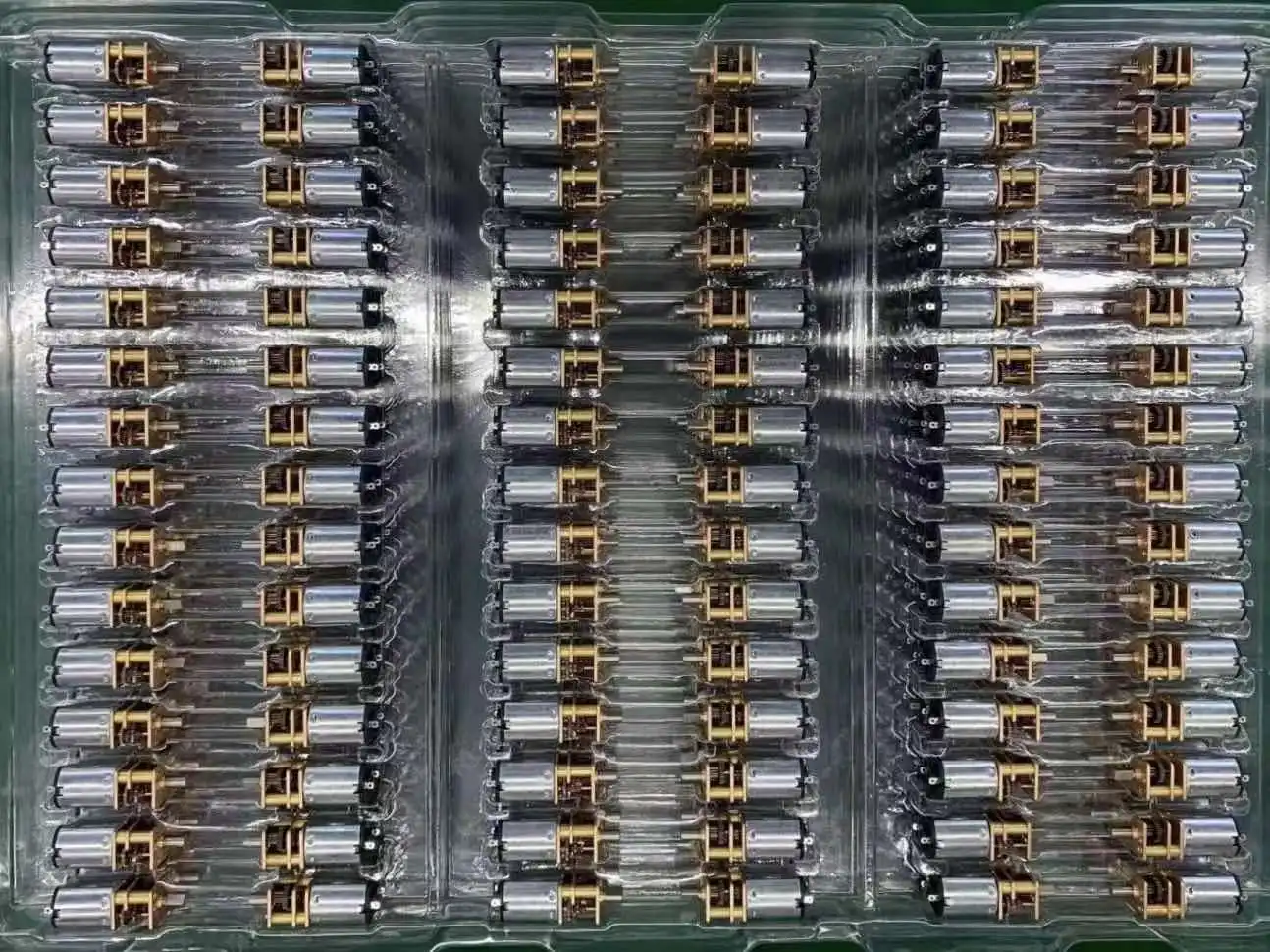

Packing and Shipping
① shipping channel: EXPRESS(UPS, DHL, FXIP, FEDEX, TNT,...) SEA, AIR, TRAIN

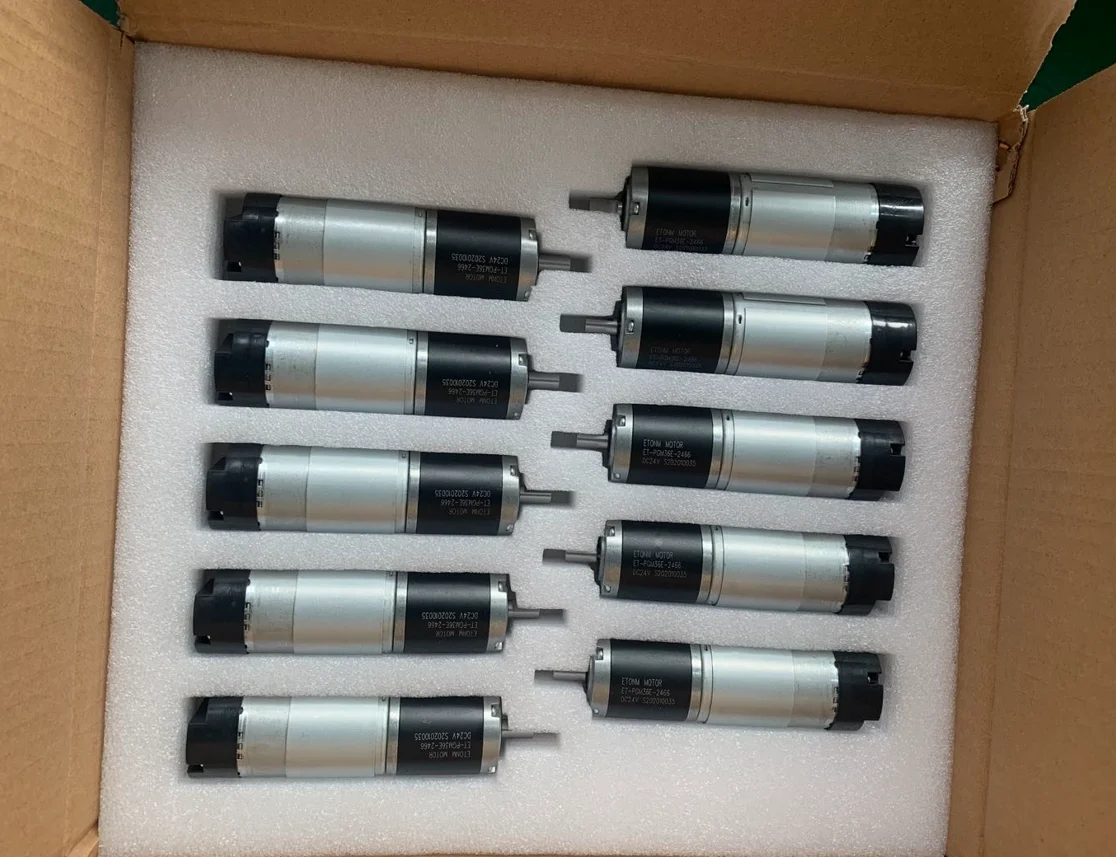

② Packing Details: plastic film bags, foam, carton packing.






Contact us









Sales: Lily Lee
skype/whatsapp/linkedint: +86 15083866482
wechat: +86 15083866482
Email ID: sale5@etonm.com


Kindly inform: we can also provide motor gear to our cilents. all motor gear are made by our company. such as: helical gear, metalgear,powder gear,plastic gear...etc.
