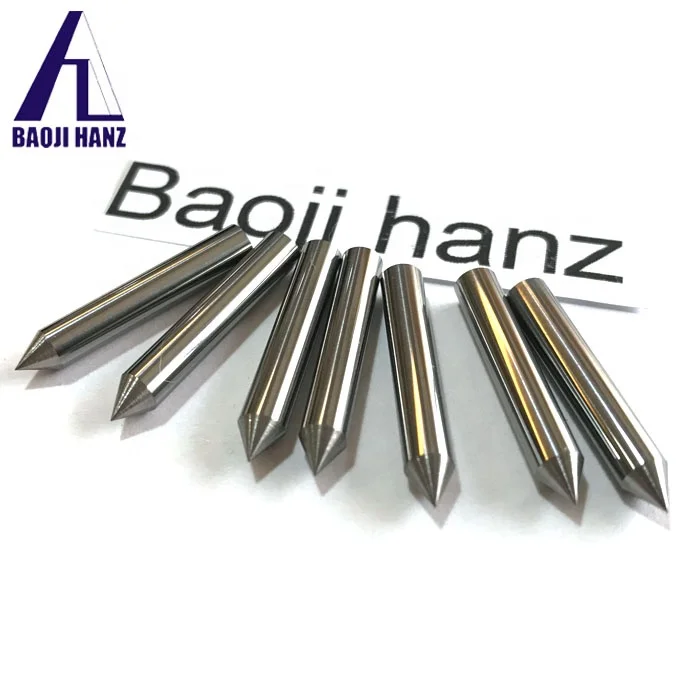

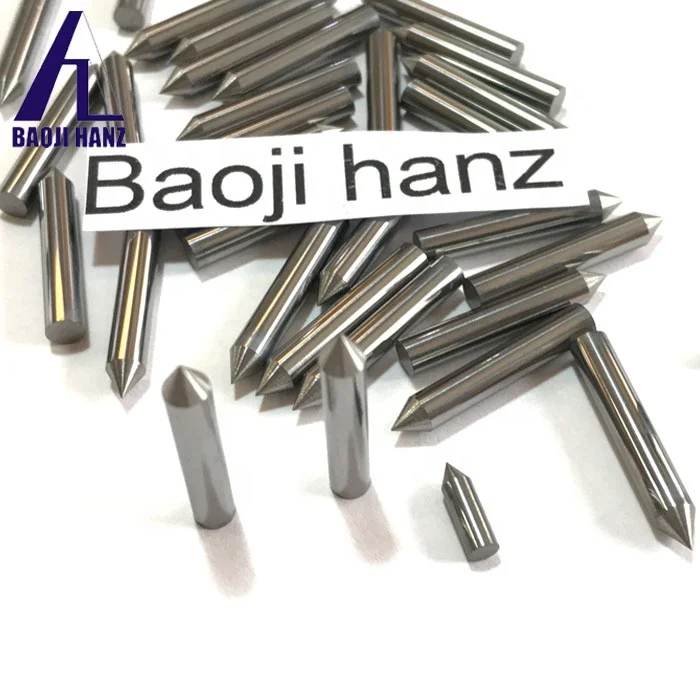

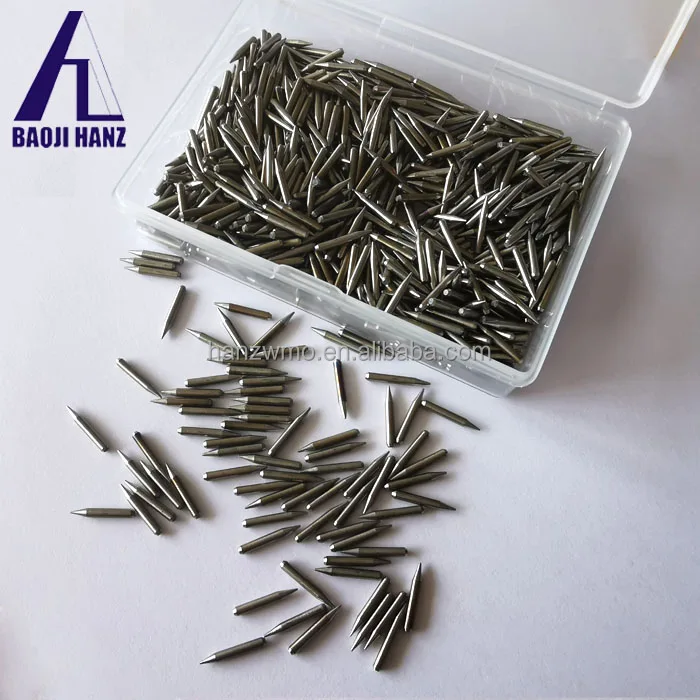

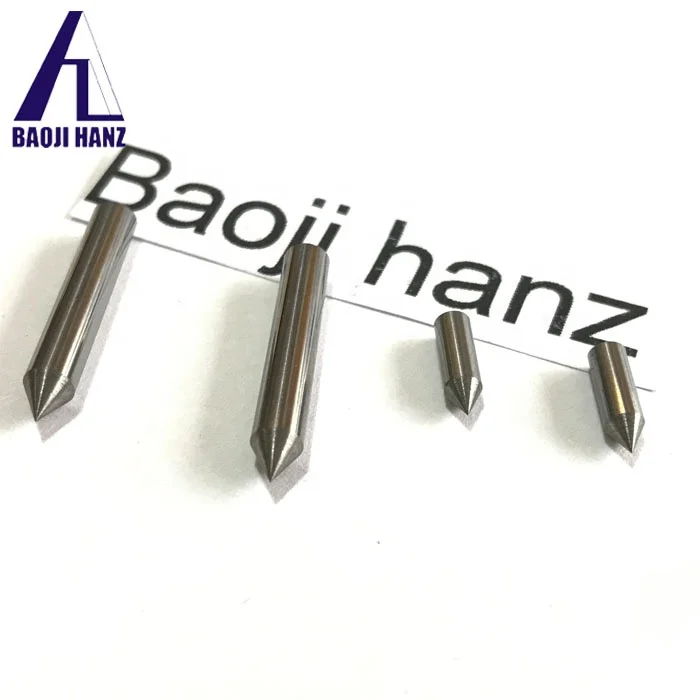

Hot Sale high hardness Polished Tungsten Carbide Pin/Needle
- Category: >>>
- Supplier: Baoji Hanz Metal Material Co. Ltd.
Share on (1600527116805):
Product Overview
Description
Product Show
Specification
Item | Hot Sale high hardness Polished Tungsten Carbide Pin/Needle |
Purity | WC≥88%, Co≤ 12 % |
Density | 14.1g/cm3~15.05g/cm3 |
Melting point | 2870℃ |
Grade | YG6, YG8, YG6X, K10, K20, K30, K40 |
Size | Dia: 3mm-100mm , Length: <300mm or customized size |
Color | Gray Metallic |
Feature | wearing-resistance, corrosion resistance, deform hardly, high hardness |
Application | Drill, end mill, reamer, Cutting, stamping and measuring tools, etc |
What is tungsten carbide needle?
>Carbide progressive stamping die blunt needle is used in batch production, one of the common blunt needle carbide namely tungsten steel blunt blunt needle, also known as the punch, blunt rods or punch, continuous is installed on the stamping die blanking punching thrust homework make processed material separation or plastic deformation to obtain the finished or semi-finished products need mould parts. >Carbide blunt needle with acid and alkali corrosion resistance to wear and not rust excellent properties, such as the pharmaceutical industry chosen its punch to make stamping tablets, stamping is installed on the pressure mold at room temperature to pressure on the material, make its produce a separation or plastic deformation, a processing method to obtain the required parts, are common in the industrial production.
?Stamping die is an indispensable process equipment for stamping production and is a technology-intensive product. The quality of stamping parts, production efficiency and production cost are directly related to mold design and precision quality of mold parts. Punching needle, as the core part of stamping die, is a replaceable die consumable product.

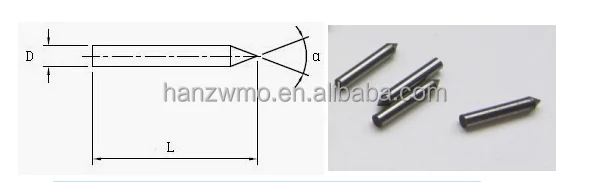

Diameter(+-0.005)mm | Length(0~+0.5) | Tip angle(°) | Tip length(mm) | Grade | HRA |
3 | 10~330 | 30,45,60,90 | 3,4,5 | YG10X/12X/15 | 88-92 |
4 | 10~330 | 30,45,60,90 | 3,4,5 | YG10X/12X/15 | 88-92 |
5 | 10~330 | 30,45,60,90 | 3,4,5 | YG10X/12X/15 | 88-92 |
6 | 10~330 | 30,45,60,90 | 3,4,5 | YG10X/12X/15 | 88-92 |
7 | 10~330 | 30,45,60,90 | 3,4,5 | YG10X/12X/15 | 88-92 |
8 | 10~330 | 30,45,60,90 | 3,4,5 | YG10X/12X/15 | 88-92 |
9 | 10~330 | 30,45,60,90 | 3,4,5 | YG10X/12X/15 | 88-92 |
10 | 10~330 | 30,45,60,90 | 3,4,5 | YG10X/12X/15 | 88-92 |
Note: Customized shape and size is acceptable.
Grade | Density (g/cm3) | Hardness (HRA) | Bending strength (MPa) | granularity (μm) | Elements （%） | ISO Grade |
YGU12 | 14.1~14.2 | ≥92.2 | ≥4000 | 0.5~0.7 | 12% CO 88% WC | K30~K40 |
YL10.2 | 14.5~14.6 | ≥91.8 | ≥3800 | 0.6~0.8 | 10% CO 90% WC | K20~K30 |
YG6X | 14.85~15.0 | ≥92.0 | ≥1860 | 0.8~1.0 | 6% CO 94% WC | K10 |
YG8 | 14.65~14.85 | ≥89.5 | ≥2320 | 1.2~2.0 | 8% CO 92% WC | K20 |
YG6 | 14.85~15.05 | ≥90.0 | ≥2150 | 1.2~2.0 | 6% CO 94% WC | K10 |
Features & Applications
1. High hardness
2. Good Wearing resistance
3. High corrosion resistance
4. Deform hardly
5. Widely used in medical, aerospace, mechanical, chemical , etc
Assembling On Tool Bit,
Engraving or Scribing On Very Hard Items,
For Example: Aluminum, Brass, Bronze, Metals, Steel, Glass, Ceramics, Hardwood, Etcs.
Hot-sale products
Packing & Delivery
1. Wrapped with water-proof paper
2. Surrounded with foam and then put into plywood box
3. Sealed and fixed
4. Pack as customer's request.
Various Mode of Transportation for You :
1. Air transportation
2. Sea transportation
3. By express mail: DHL, FedEx, EMS, UPS, SF-Express,etc.
4. Tracking number will be sent at once the goods picked up by freight, we will also keep checking the tracking information until you received it on hands
1. Air transportation
2. Sea transportation
3. By express mail: DHL, FedEx, EMS, UPS, SF-Express,etc.
4. Tracking number will be sent at once the goods picked up by freight, we will also keep checking the tracking information until you received it on hands

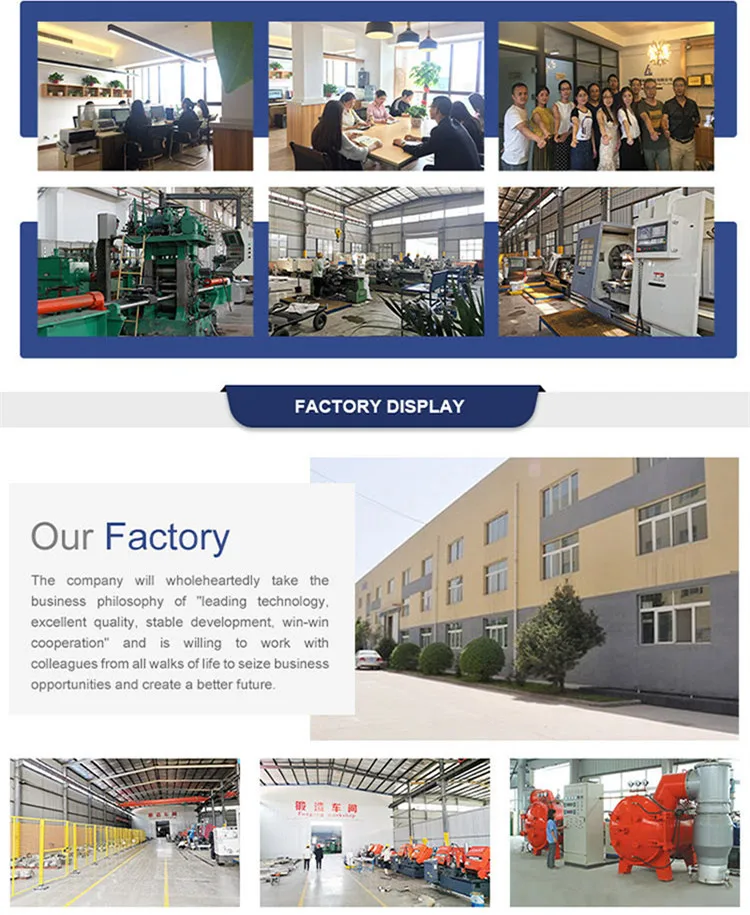

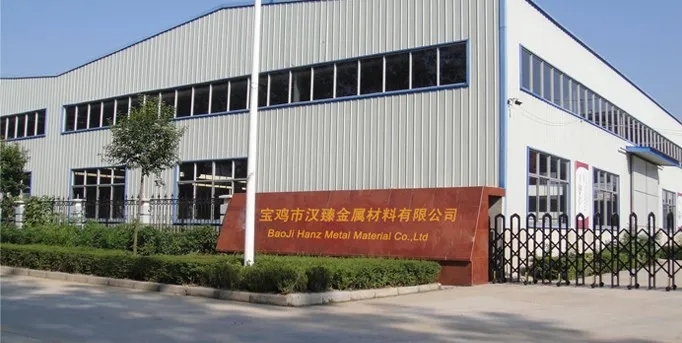

Company Profile
Baoji Hanz Metal Material Co., Ltd established in 2017. It is located in China Titanium Valley non-ferrous area of Gaoxin District in Baoji city of Shaanxi Province. It is a professional manufacture engaged in the research , development, production, sell and service of all kinds of tungsten carbide products, tungsten carbide plates, strips, tungsten fishing weights, tungsten carbide machining parts, tungsten carbide ring, tungsten carbide knife etc. We are sincere to cooperate with partners to seek for common development and realize a win-win situation with mutual benefits.
If you need to customize products according to your needs, please feel free to contact us. We will give a satisfy factory price while ensuring the quality.
FAQ
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, and also trading company.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Baoji City, Shaanxi Province, China, about 2 hours train from Xi'an. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How long is the production time ?
A: When item in stock, it will be send within 5 days after the payment received, when item is not in stock, it will take 15-35 days for production.
4.Q:How does your factory do regarding quality control?
A:Quality is priority. Hanz people always attach great importance to quality controlling from the very beginning to the very end.
5. Q: How could we trust you ?
A: We aim to build long term cooperation with each customer. Alibaba trade assurance is the first choice for the order. It can keep your payment safe until you received the products, and signed the receivement on Alibaba.
Payment terms
* 1. Sample order: west-union, Paypal, Escrow and T/T100% are accepted.
* 2. Big order: 50% prepayment and 50% payment before shipping.
Our Service
* 1. Competitive price.
* 2. Our strengths over other suppliers.
* 3. Reliable quality on the base of the same price.
* 4. 100% Timely delivery as your as your requirements.
* 5. Professional service to cut much purchasing costs down.
* 6. We offer discount for old customers
* 7. We do our best to meet the requirements of customers.
* 8. Faced with problems related with products,please feel free to contact us.
We will try our best to help you.
A: We are a factory, and also trading company.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Baoji City, Shaanxi Province, China, about 2 hours train from Xi'an. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How long is the production time ?
A: When item in stock, it will be send within 5 days after the payment received, when item is not in stock, it will take 15-35 days for production.
4.Q:How does your factory do regarding quality control?
A:Quality is priority. Hanz people always attach great importance to quality controlling from the very beginning to the very end.
5. Q: How could we trust you ?
A: We aim to build long term cooperation with each customer. Alibaba trade assurance is the first choice for the order. It can keep your payment safe until you received the products, and signed the receivement on Alibaba.
Payment terms
* 1. Sample order: west-union, Paypal, Escrow and T/T100% are accepted.
* 2. Big order: 50% prepayment and 50% payment before shipping.
Our Service
* 1. Competitive price.
* 2. Our strengths over other suppliers.
* 3. Reliable quality on the base of the same price.
* 4. 100% Timely delivery as your as your requirements.
* 5. Professional service to cut much purchasing costs down.
* 6. We offer discount for old customers
* 7. We do our best to meet the requirements of customers.
* 8. Faced with problems related with products,please feel free to contact us.
We will try our best to help you.
Contact us
Baoji Hanz Metal Material Co., Ltd
Summer Chen
Gaoxin Avenue,Baoji City,Shaanxi Province,ChinaWebsite:www.hanzwmo.com
Tel: 86-917-3258886
Fax: 86-917-3258889
Email/Skype: baojihanz-06(@)hanztech.cn
WhatsApp/Mobile/Wechat:+86-18329678518
WhatsApp/Mobile/Wechat:+86-18329678518
