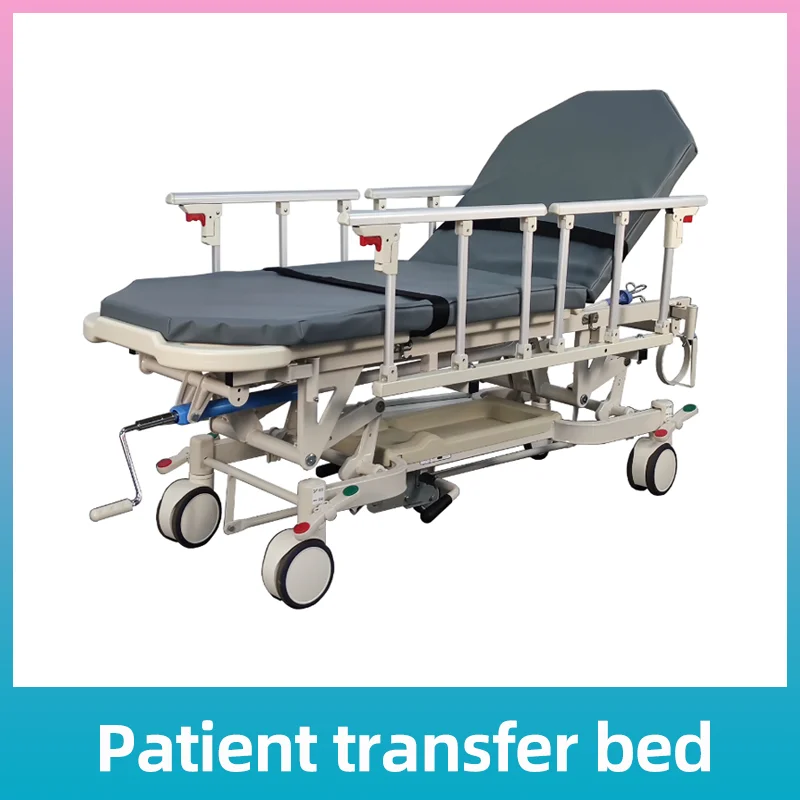

Manual Medical Hospital Transfer Bed Center Patient Transfer Bed Patient Transfer Stretcher Transport Gurney Bed
- Category: >>>
- Supplier: Youngth Medical Co. Ltd.Youngth Ltd.
Share on (1600527118413):
Product Overview
Description
Products Description
Gastroscope center patient transfer bed | ||||
Item | technical requirement | |||
Basic dimensions | Bed board length | 1930mm | ||
Bed width | 645mm | |||
Back lifting | 0~70° | |||
Action range | High and low lifting | 510~850mm | ||
Main material | Bed board and frame | Bed board: PP resin integrated molding. Frame: high quality steel | ||
mattress | Surface material: PU polyester, inner core material: polyurethane foam | |||
Castor | Central control double-sided caster | 150mm | ||
Safe working load | 170kg | |||
Guardrail | both sides can be folded | |||
Applicable departments | emergency room, gastroscope room, operating room | |||
Standard functions
List of Standard function
+Bed body (including back plate lifting and high-low lifting)
+Thickened mattress
+Guardrail
+Central control double-sided caster
+Central locking
+Center fifth round
+Tray
+Oxygen cylinder storage rack
+Adjusting handle
+Infusion rod
+Infusion rod storage rack
+Bed body (including back plate lifting and high-low lifting)
+Thickened mattress
+Guardrail
+Central control double-sided caster
+Central locking
+Center fifth round
+Tray
+Oxygen cylinder storage rack
+Adjusting handle
+Infusion rod
+Infusion rod storage rack
Detailed Photos
New safety guardrail
The new safety guardrail design is adopted. When the guardrail cannot be opened when it is stressed, it can be pressed from the outside to the inside to open the guardrail, so as to effectively prevent patients from misoperation from the inside and lead to bed falling accidents, which is safer.
The new safety guardrail design is adopted. When the guardrail cannot be opened when it is stressed, it can be pressed from the outside to the inside to open the guardrail, so as to effectively prevent patients from misoperation from the inside and lead to bed falling accidents, which is safer.

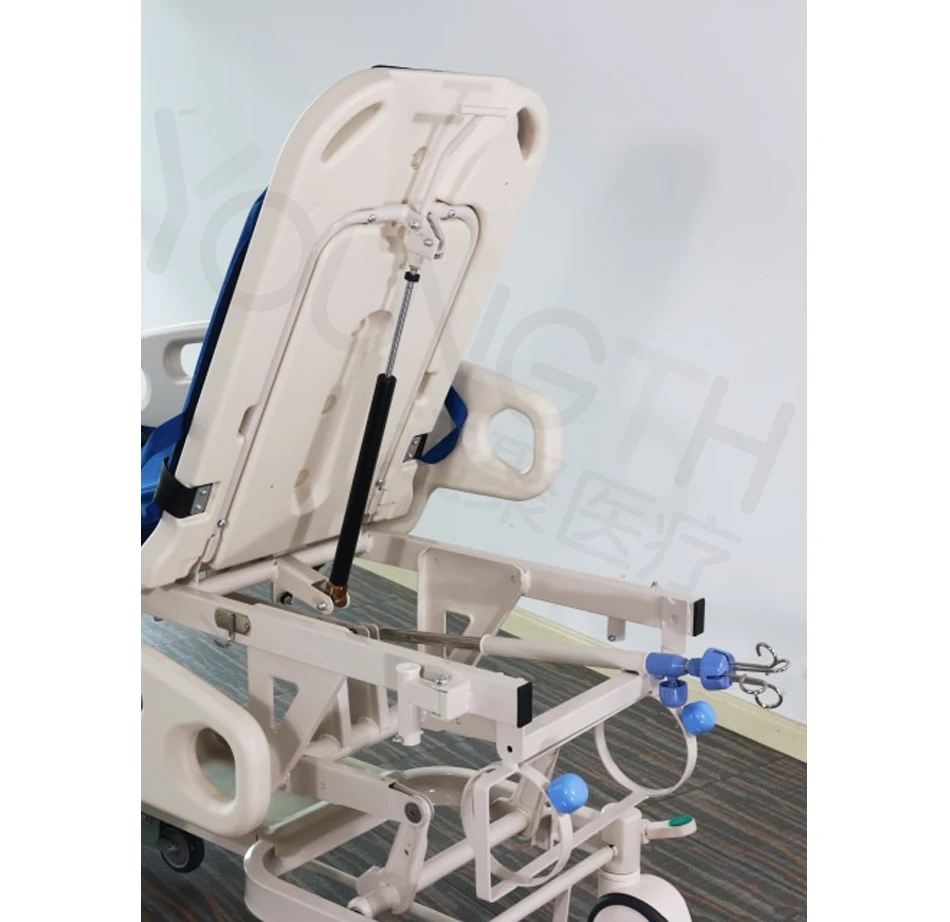

Back lifting function
Operate the control handle to control the mute gas spring to realize the lifting of the back plate, with an angle of 0-70 °
Operate the control handle to control the mute gas spring to realize the lifting of the back plate, with an angle of 0-70 °

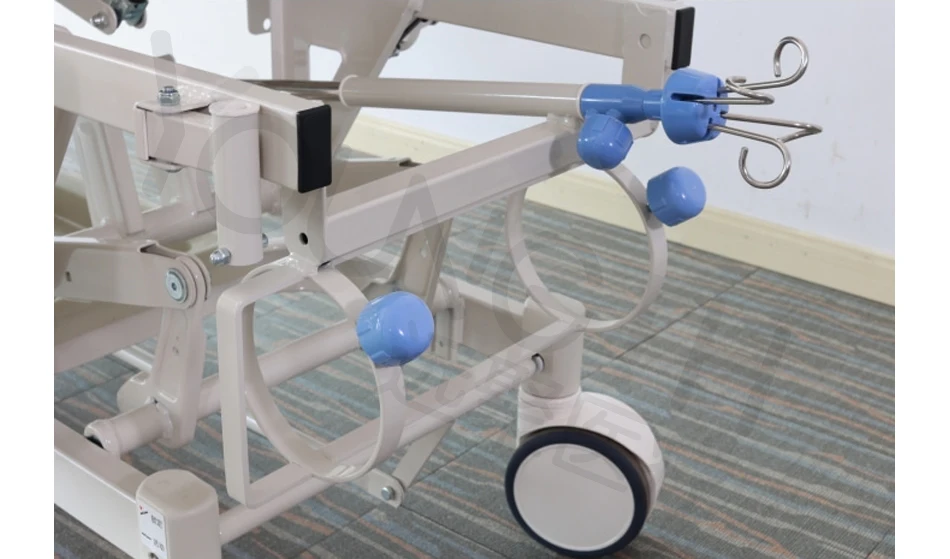

Oxygen bottle collection rack
There is a transverse oxygen bottle collection rack under the back plate, which can place up to 7L oxygen bottles.
There is a transverse oxygen bottle collection rack under the back plate, which can place up to 7L oxygen bottles.

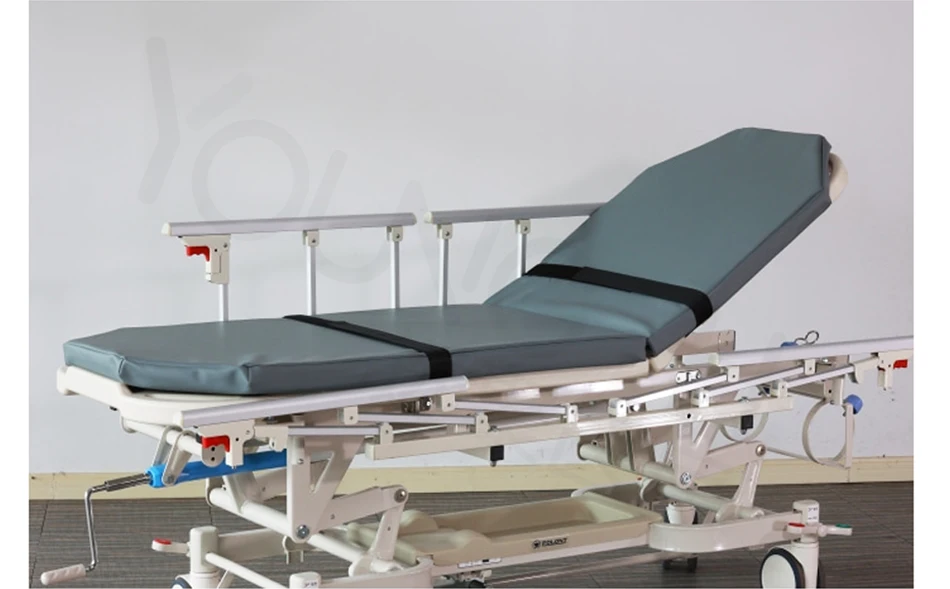

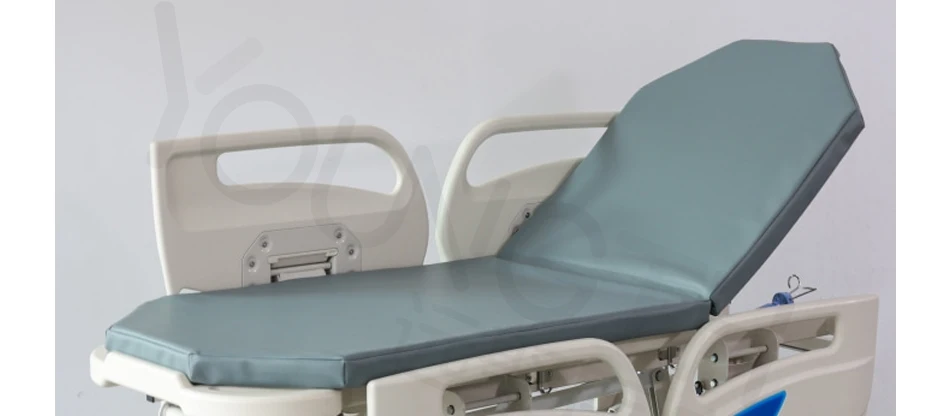

Thickened mattress
PU waterproof treatment on the surface of the fabric is easy to clean, with a thickness of 5cm. It is more comfortable for
patients to lie down in the gastroenteroscopy room.
PU waterproof treatment on the surface of the fabric is easy to clean, with a thickness of 5cm. It is more comfortable for
patients to lie down in the gastroenteroscopy room.

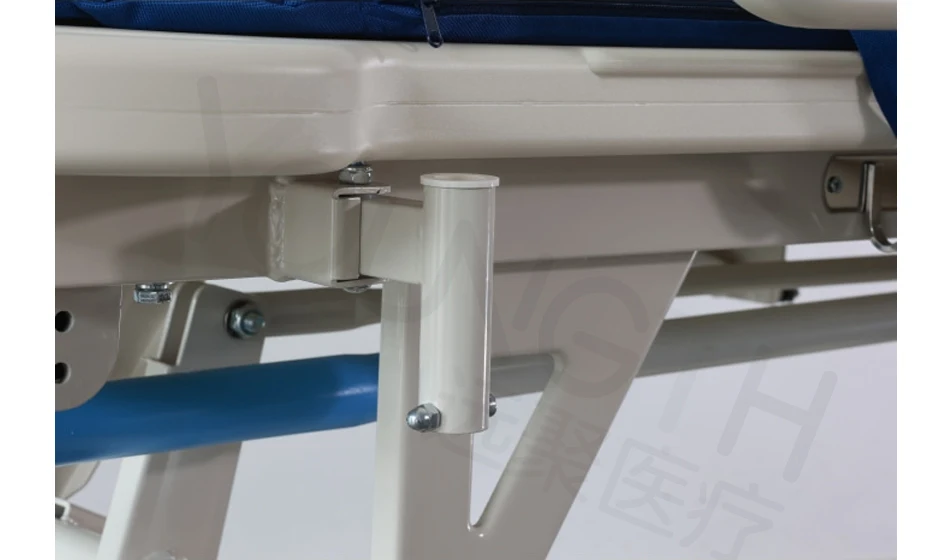

Infusion stand jack
There are rotary infusion stand jacks in the front and back of the bed body, which can be turned out when in use and can be stored when not in use, which is convenient for use.
There are rotary infusion stand jacks in the front and back of the bed body, which can be turned out when in use and can be stored when not in use, which is convenient for use.

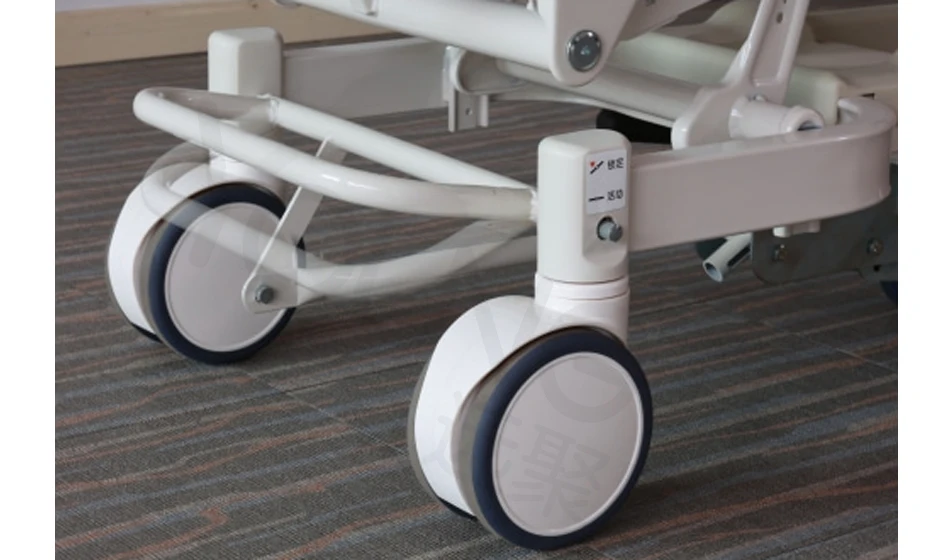

Center control silent caster
150mm in diameter, resin double-sided casters, and central locking pedals are set at the four corners of the cart.
150mm in diameter, resin double-sided casters, and central locking pedals are set at the four corners of the cart.

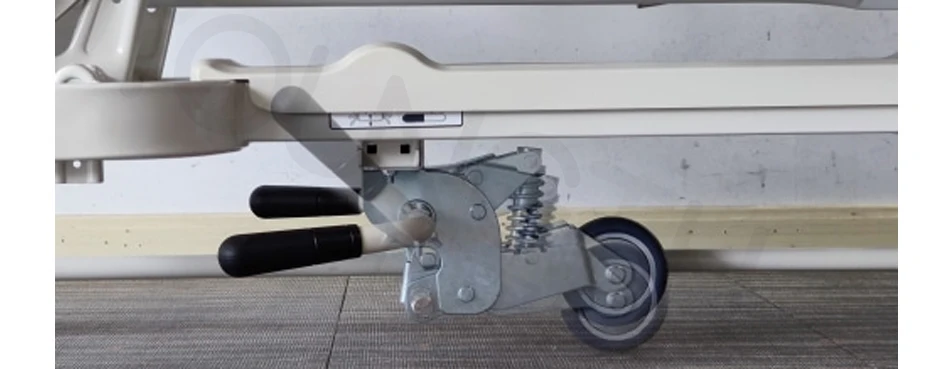

Center fifth round
Through the operating lever, the cart can be flexibly switched between "straight" and "free" states. Straight travel is easier to control the direction.
Through the operating lever, the cart can be flexibly switched between "straight" and "free" states. Straight travel is easier to control the direction.

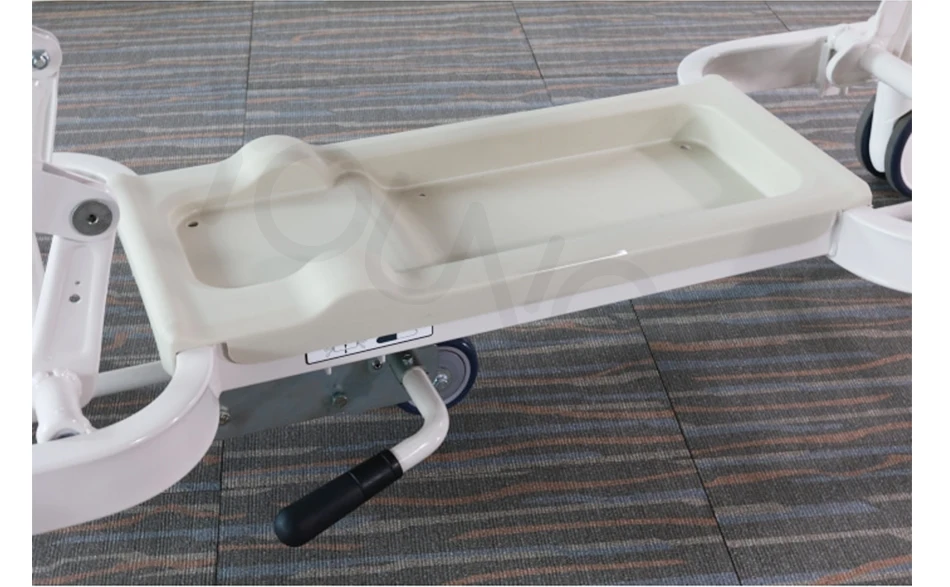

Tray
The tray has 10kg load-bearing and easy-to-use holes, which are divided into two parts: shallow and deep.
The tray has 10kg load-bearing and easy-to-use holes, which are divided into two parts: shallow and deep.

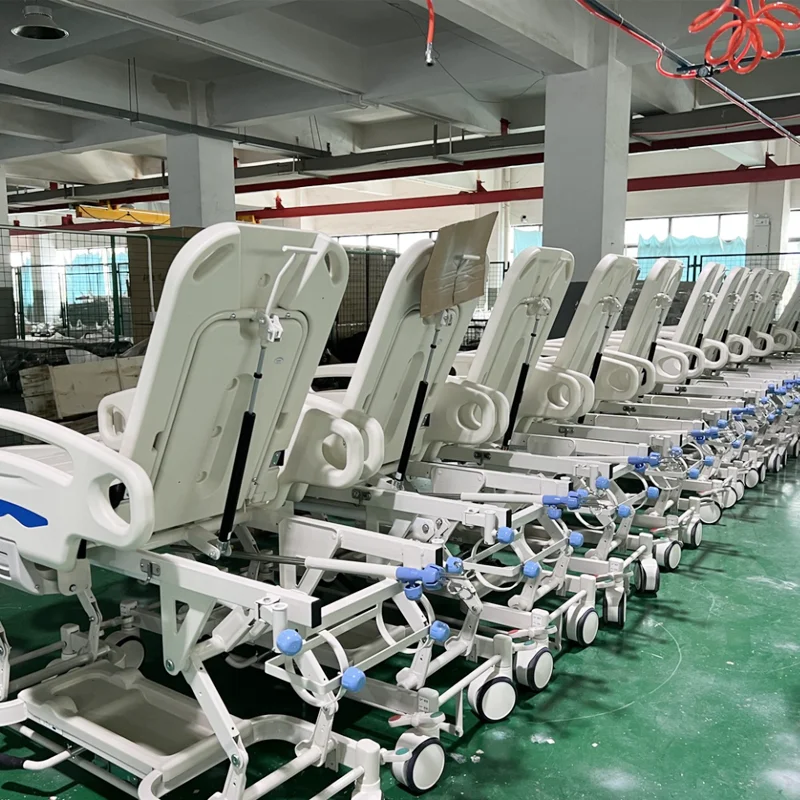

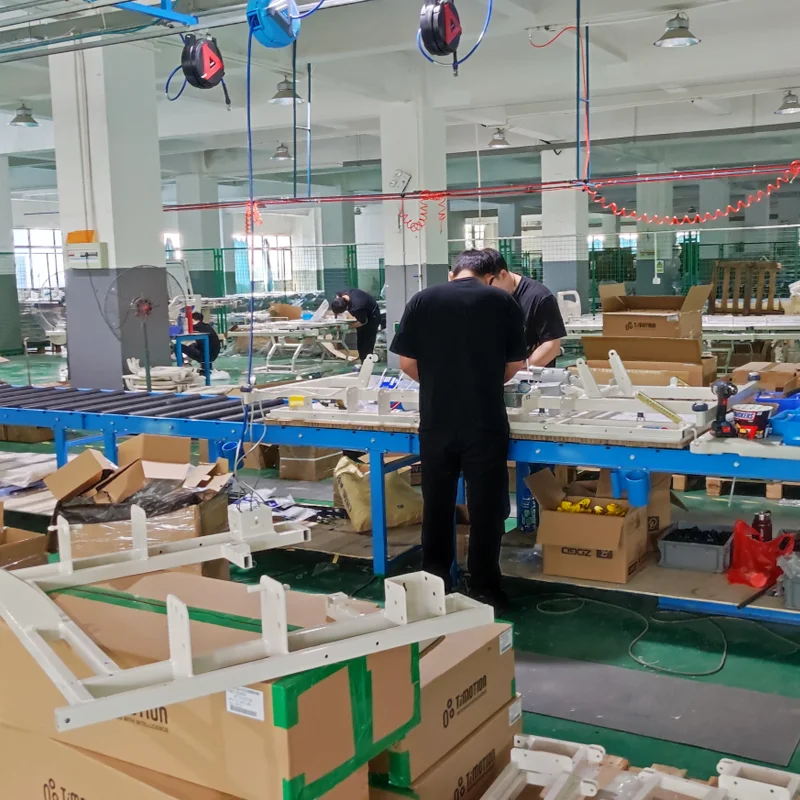

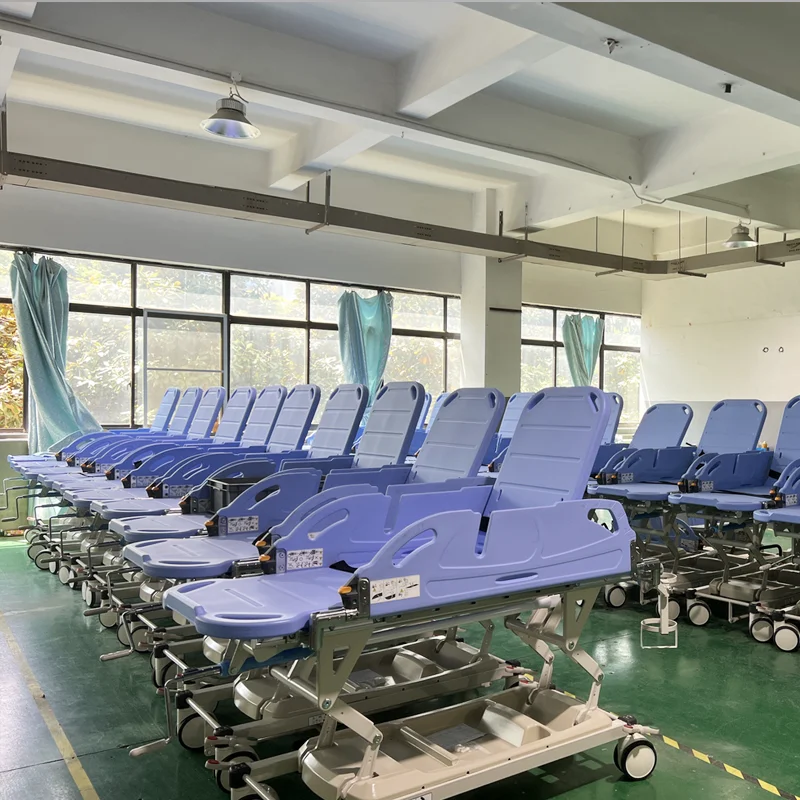

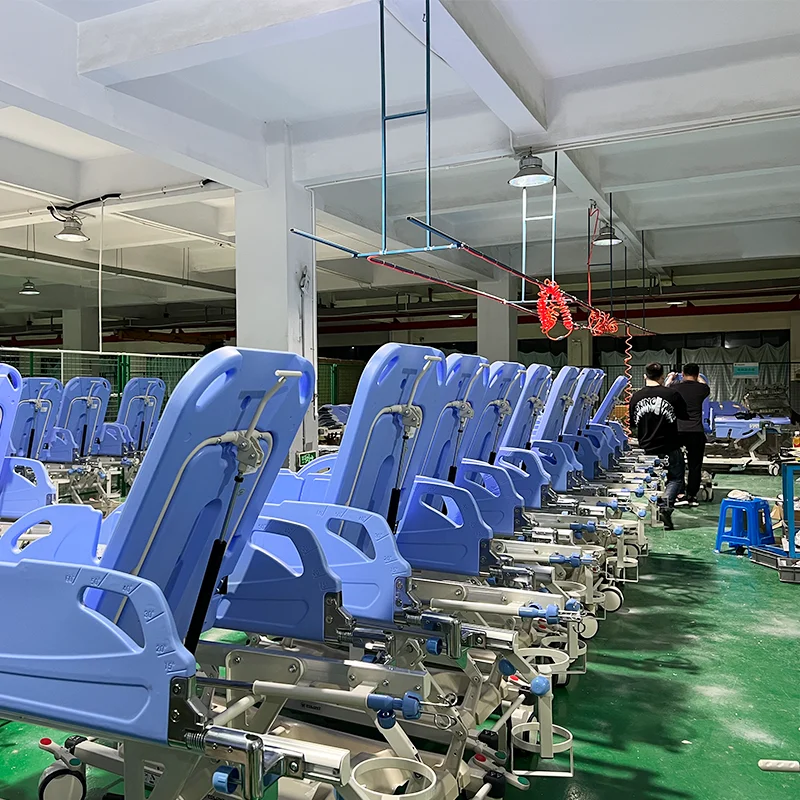

Factory display
Packaging & Shipping
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturer for hospital furniture.
Welcome to our company. seeing is believing, our company, show room and factory in same place.
Q: Where is your factory?
A: Wuxi City, Jiangsu province, China. 2.5 hours from Shanghai.
Q: What's your advantage?
A: 1. Original Manufacturer, the producing workshop more than 45000 Square Meters;
2. ISO9001,ISO13485 Quality Management System;
3.Strict Material Inspection&Quality Controlling;
4. CE, Certificate;
5. More than 15 years producing and engineering experience;
6.Exported to more than 30 countries;
A: We are a professional manufacturer for hospital furniture.
Welcome to our company. seeing is believing, our company, show room and factory in same place.
Q: Where is your factory?
A: Wuxi City, Jiangsu province, China. 2.5 hours from Shanghai.
Q: What's your advantage?
A: 1. Original Manufacturer, the producing workshop more than 45000 Square Meters;
2. ISO9001,ISO13485 Quality Management System;
3.Strict Material Inspection&Quality Controlling;
4. CE, Certificate;
5. More than 15 years producing and engineering experience;
6.Exported to more than 30 countries;
