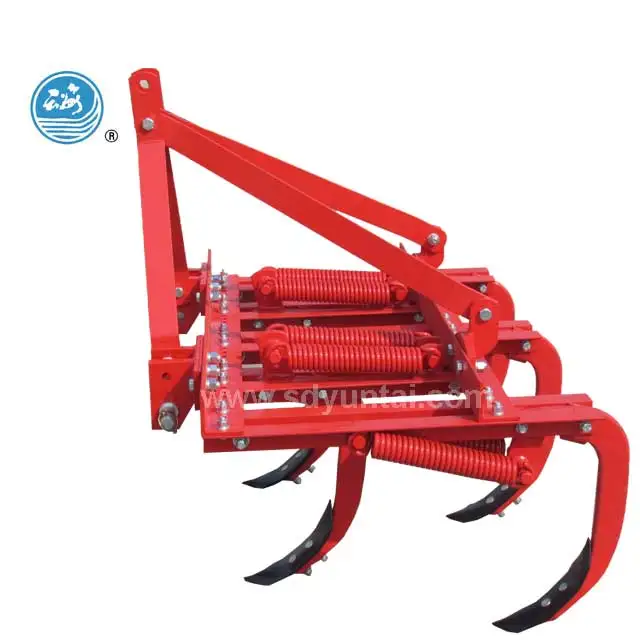

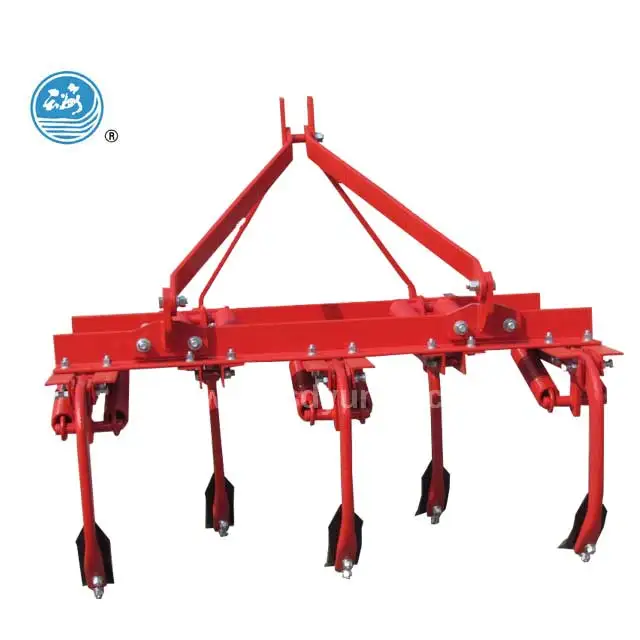

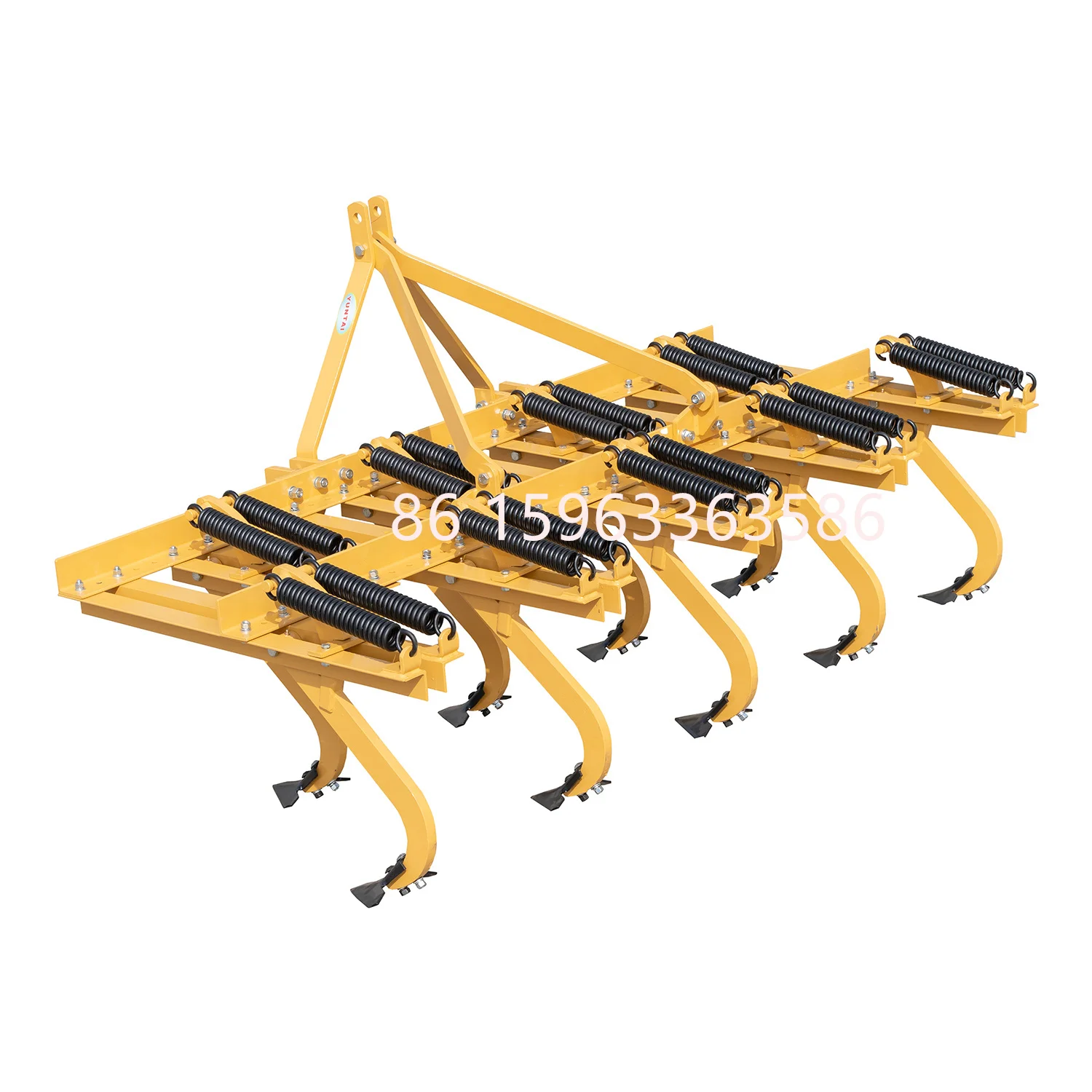

Spring Cultivator Subsoiler Tiller
- Category: >>>
- Supplier: Shandong Yuntai Machinery Co. Ltd.
Share on (1600527126607):
Product Overview
Description

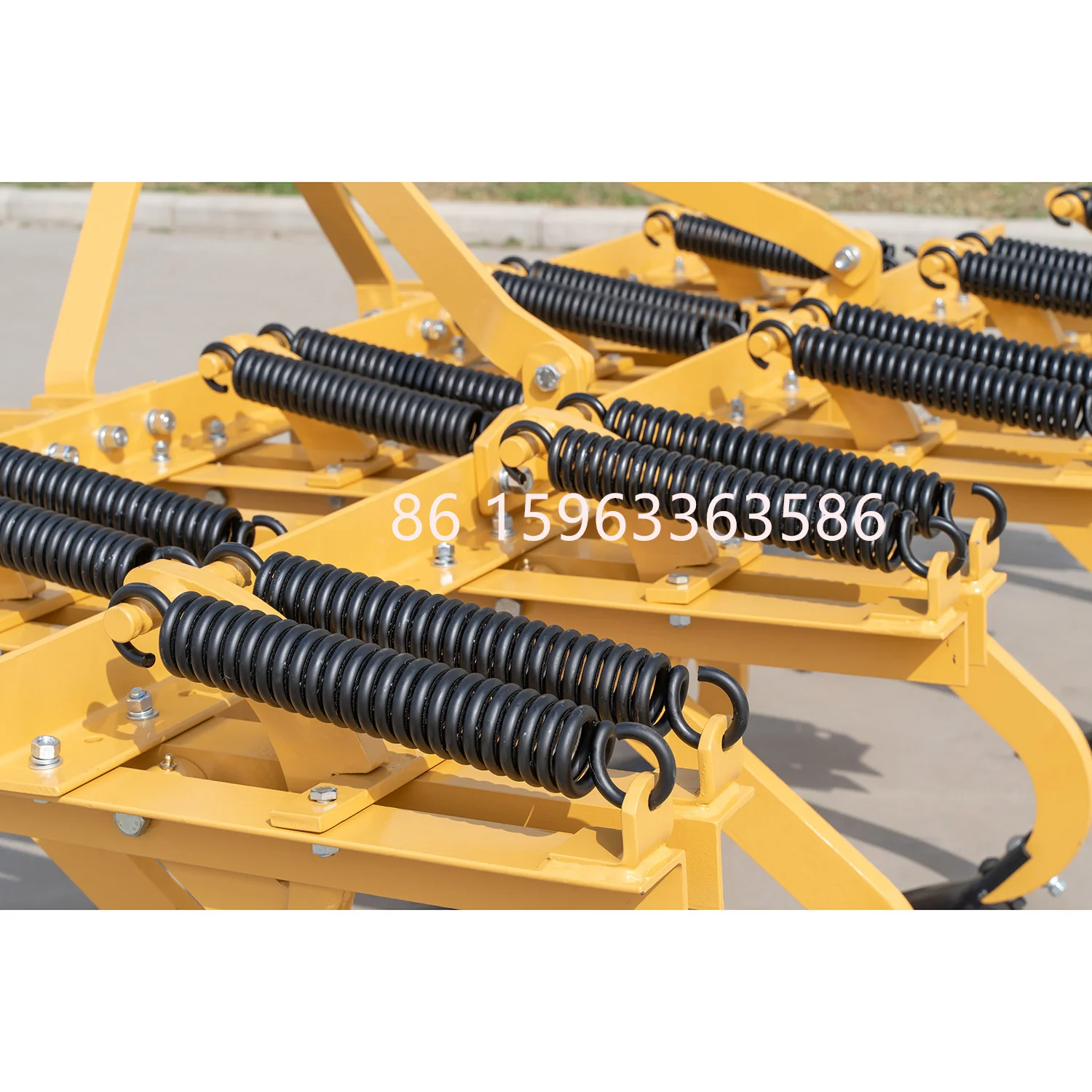

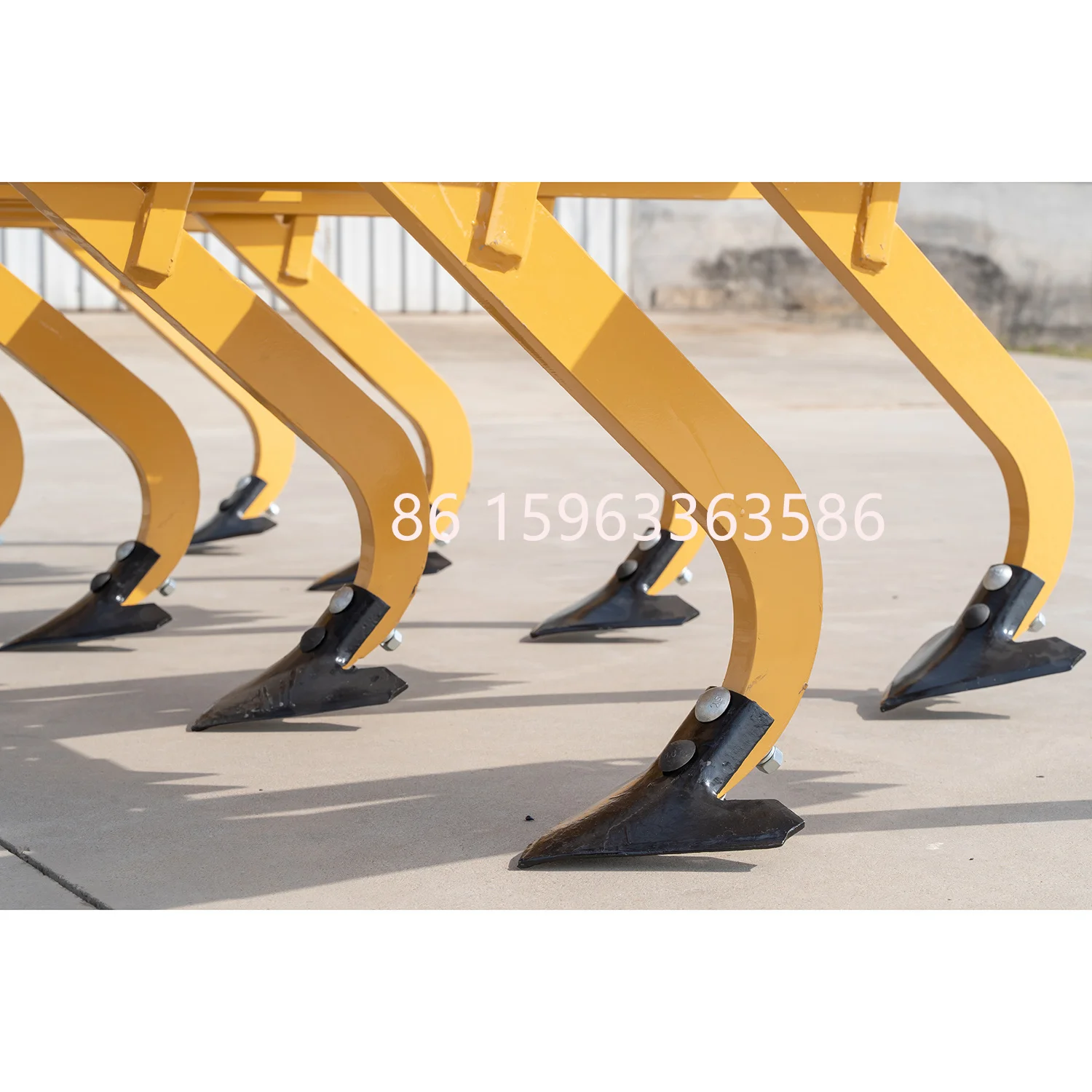

The machine adopts double spring tension device, in which the plow tip can automatically bounce up when it encounters obstacles in the working process, and quickly restore its original working state after crossing, thus playing the role of protecting the plow tip. The vibration of plough legs caused by uneven soil resistance is helpful to reduce the matching power.
Model | 3ZT-5 | 3ZT -7 | 3ZT -9 | 3ZT -11 | 3ZT -15 |
No. of tine | 5 | 7 | 9 | 11 | 15 |
Working depth(mm) | 200-250 | 200-250 | 200-250 | 200-250 | 200-250 |
Working width(mm) | 1200 | 1500 | 2100 | 2850 | 3000 |
Matched power(hp) | 30-40 | 50-65 | 60-80 | 60-80 | 80-110 |
Weight (kg) | 200 | 255 | 315 | 370 | 520 |
