Mig Welder Feeder 24 Volt 30 Watt Tig Wire Feeder for Welding Machine With Euro Plug
- Category: >>>
- Supplier: Guangzhou Wewin Motor Co. Ltd.
Share on (1600527132835):
Product Overview
Description

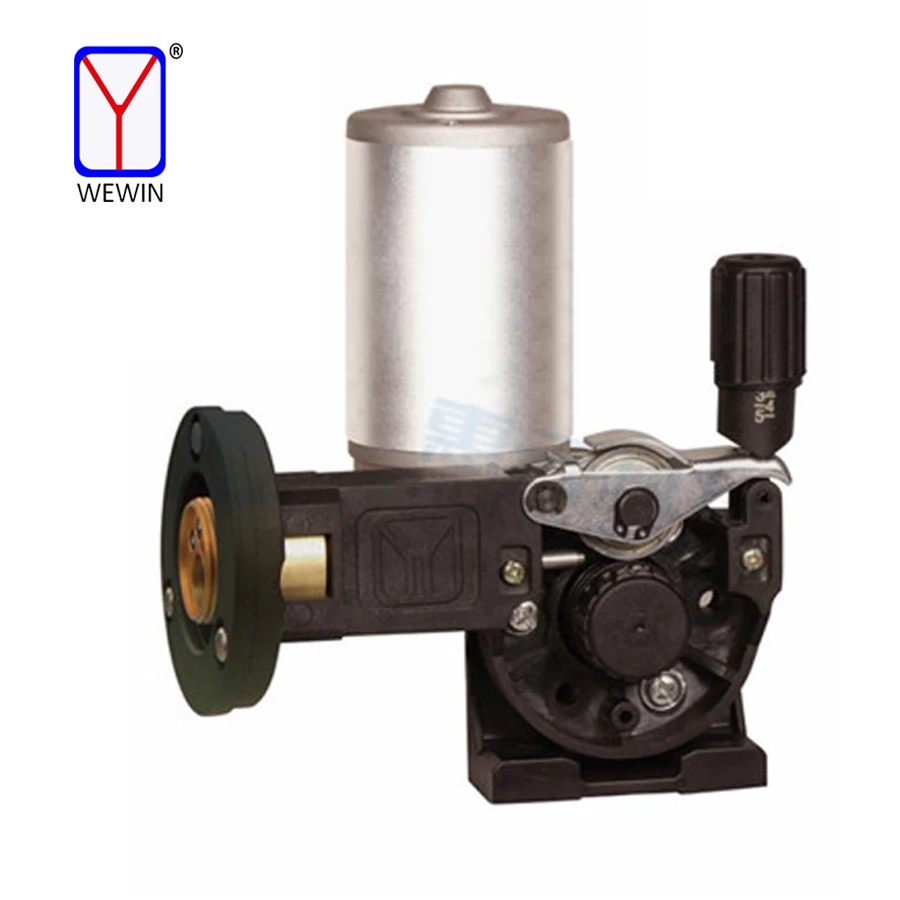

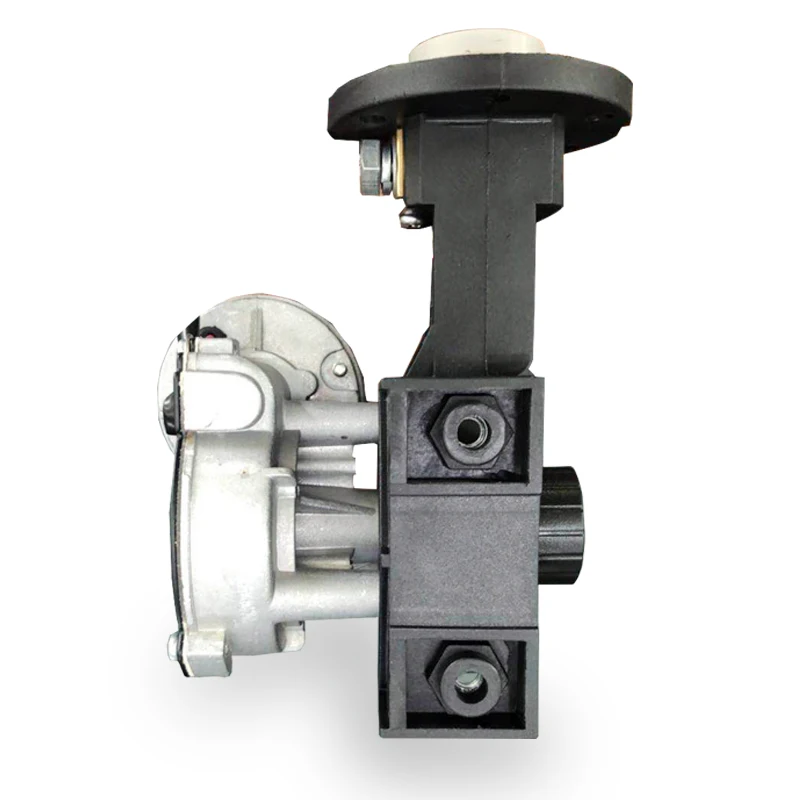

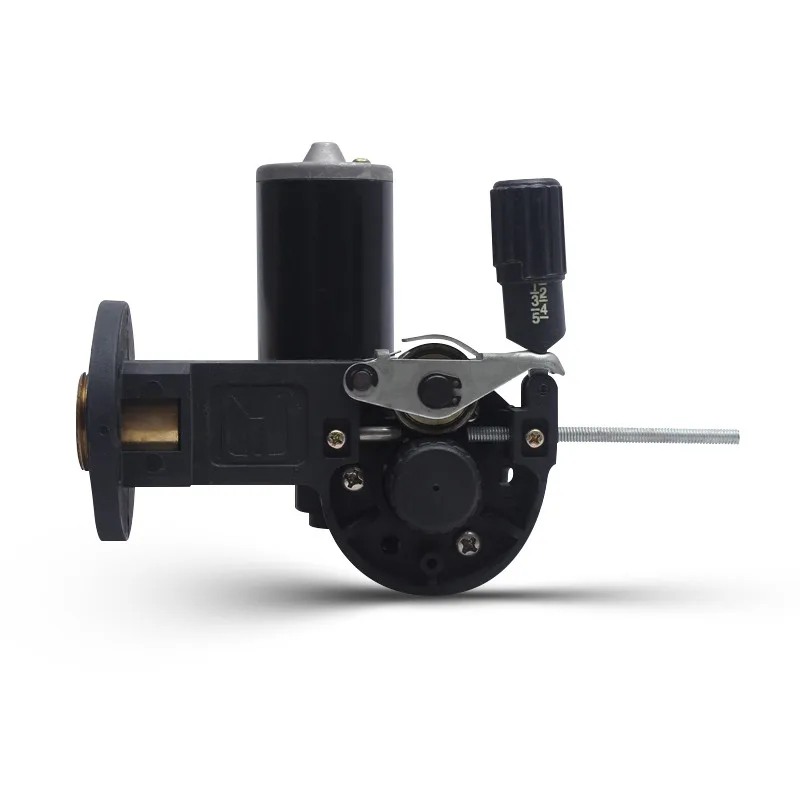

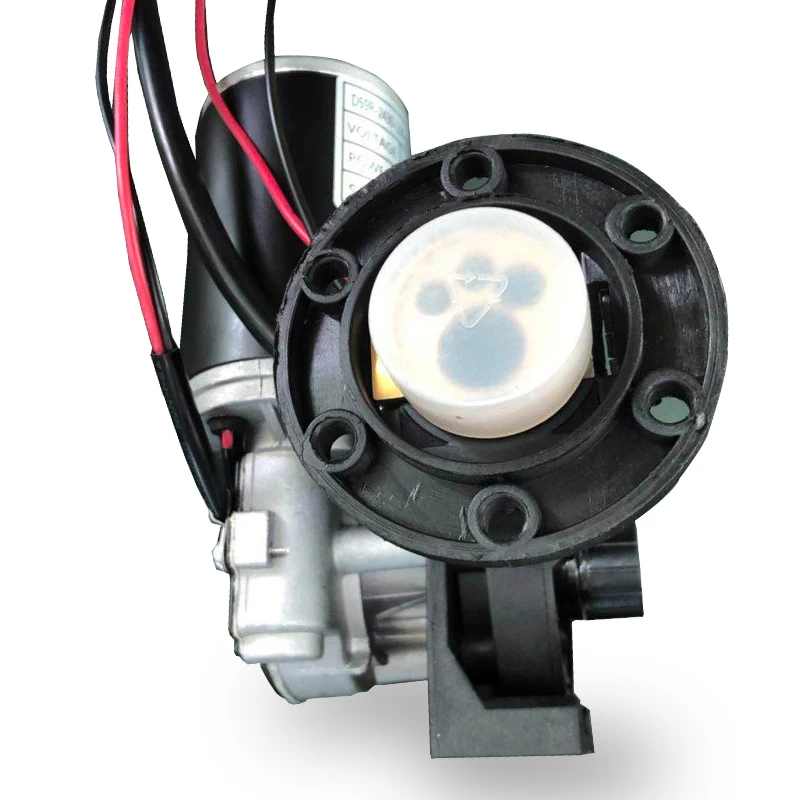

Mig Welder Feeder 24 Volt 30 Watt Tig Wire Feeder For Welding Machine With Euro Plug
Specification
Wire Feeder for mig mag welding machine

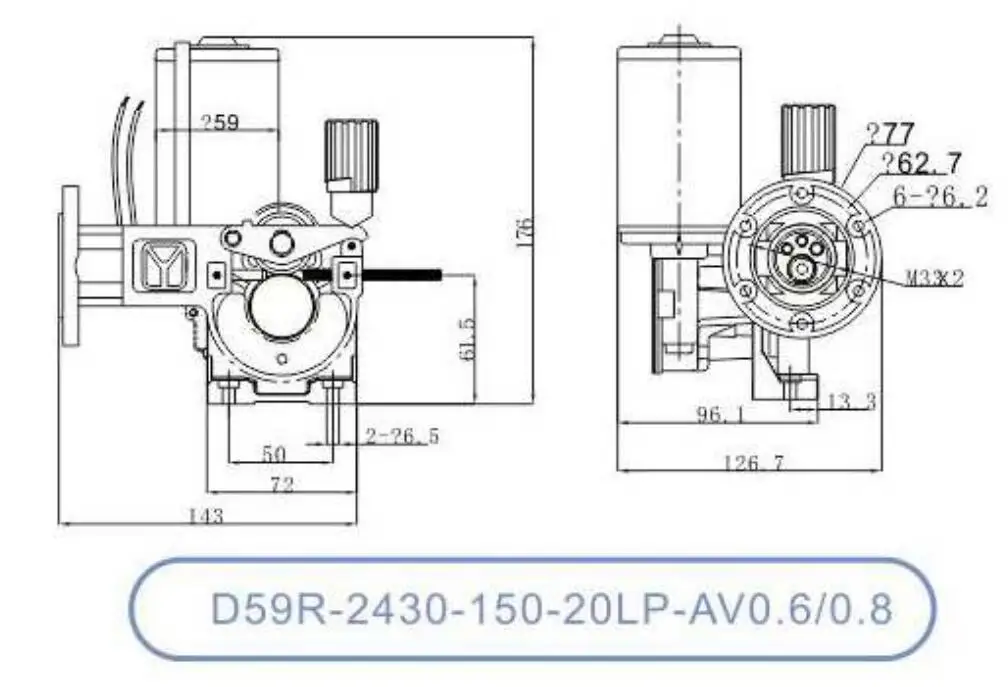

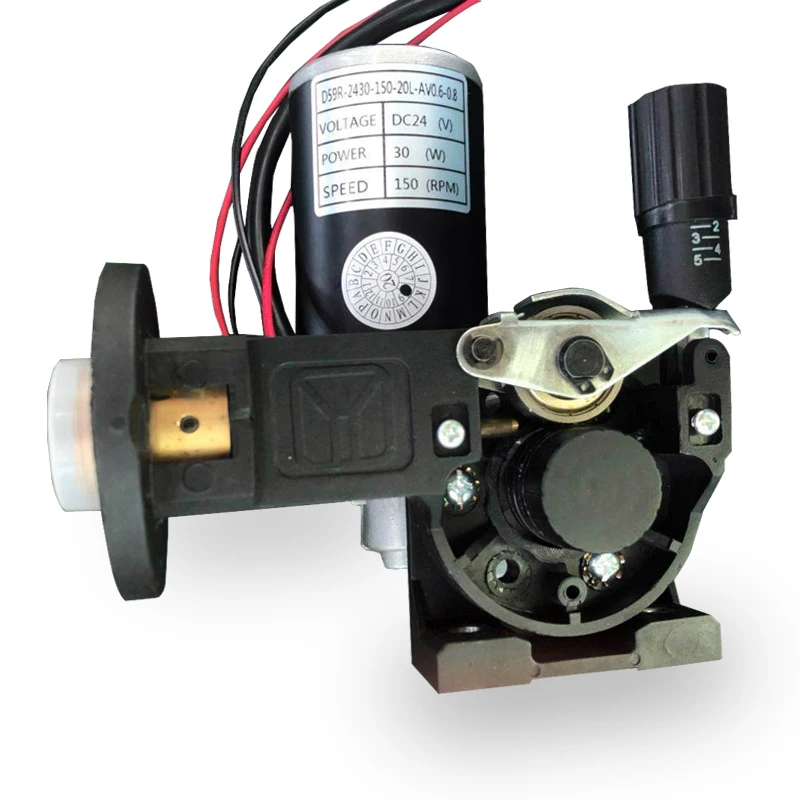

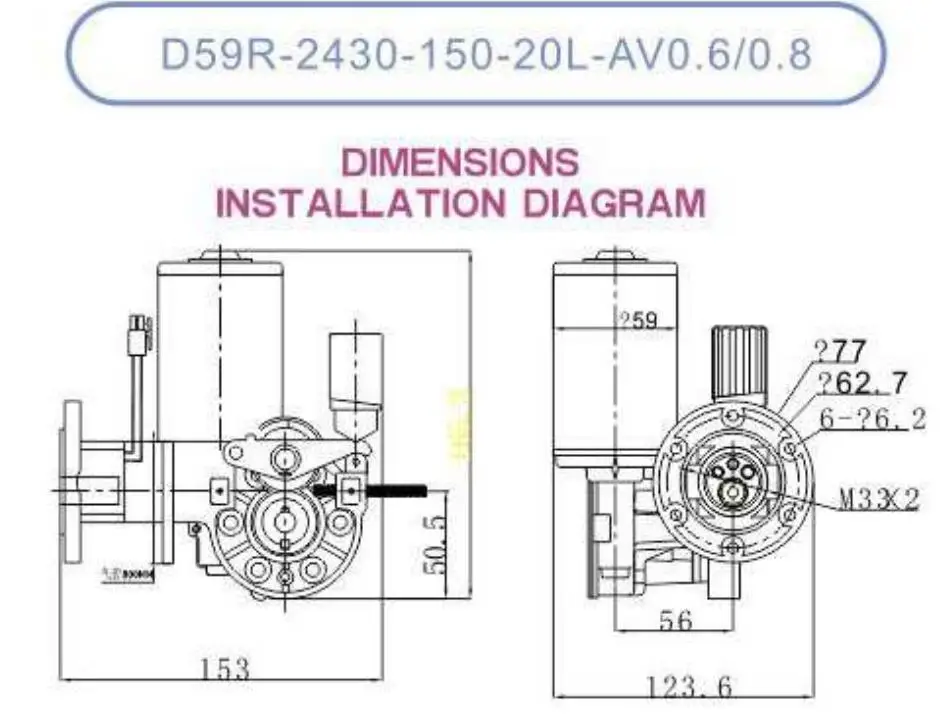

Model number: D59R-2430-150-20L-AV0.6/0.8
This wire feeder can be use for the welding machine which the welding current is less than 250A,the welding machine can work at spot weld and continue weld.
WF5R3-20L
WF5R3-20LP
Product Specialty
1.this wire feeder use our own designed motor which is special for welding machine with stable performance,long life time,high torque and low noise.
2.The wire feeder fram is designed together with the european connect.
3.Wire feeder motor can choose our another small motor D49R or D49L.
4.Feeder speed can required to 180rpm.that means the feeder speed will be at 16m/min.
5.The difference of the two feeder is WF5R3-20LP with one plastic holder.
6.Motor can be fixed encoder,hall sensor and opto-switch.
MOTOR | ||
Motor Type | D59R | |
SIZE OF MOTOR | Diameter 59mm | |
VOLTAGE | DC24V | |
OUTPUT POWER | 30W | |
NO LOAD SPEED | 150RPM | |
NO LOAD CURRENT | 1.2A | |
Stall torque | 13N.M | |
Stall current | 10A | |
FRAME | ||
TYPE | 20L/20LP | |
WIRE FEEDER ROLL SIZE | 30mm*10mm | |
Apply for wire roll weight | 15kg,5kg | |
Feed wire diameter | 0.6mm 0.8mm 0.9mm 1.0mm | |
Maximum feed speed | 13m/min | |
Minimum steady operation voltage in load | DC4.5V | |
Recommend Products
Exhibition
Our Certificates
Company Profile
Company Advantages:
1.Professional motor OEM & ODM manufacturer
2.20 years motor design experience 3.Experienced engineering designers
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Guangzhou Wewin Motor Co.,Ltd. is a professional company specialized in design and customization of small dc worm gear motor. The motor models mainly include D49 D59 D63 D76 D88 series, and all the motors can be installed with hall sensor, encoder, opto sensor and brake,so we accept OEM and ODM orders ,and manufacture the motor according to your required like voltage, power, speed,torque,dimension and motor direction.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
