Series hybrid truck drive engine kit for 25 49T trunk traction RPHD29000C Hybrid drive engine automatic clutch AMT AC motor
- Category: >>>
- Supplier: Shantou Goevnow Technology Co. Ltd.
Share on (1600527138059):
Product Overview
Description
Product Description
Series hybrid truck drive engine kit for 25-49T trunk traction RPHD29000C Hybrid drive engine automatic clutch AMT AC motor

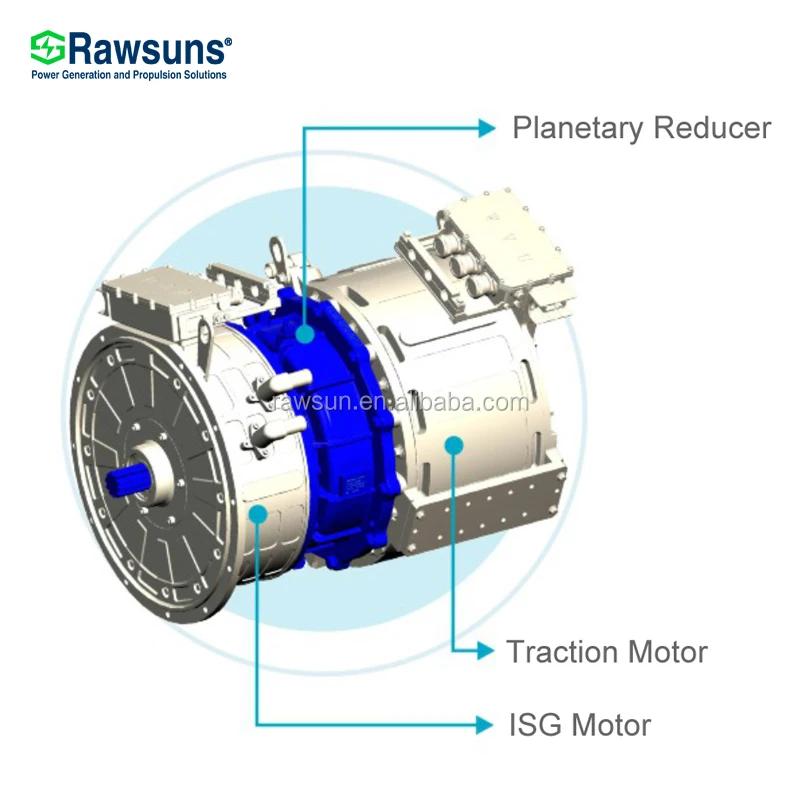

RPHD Series Motor

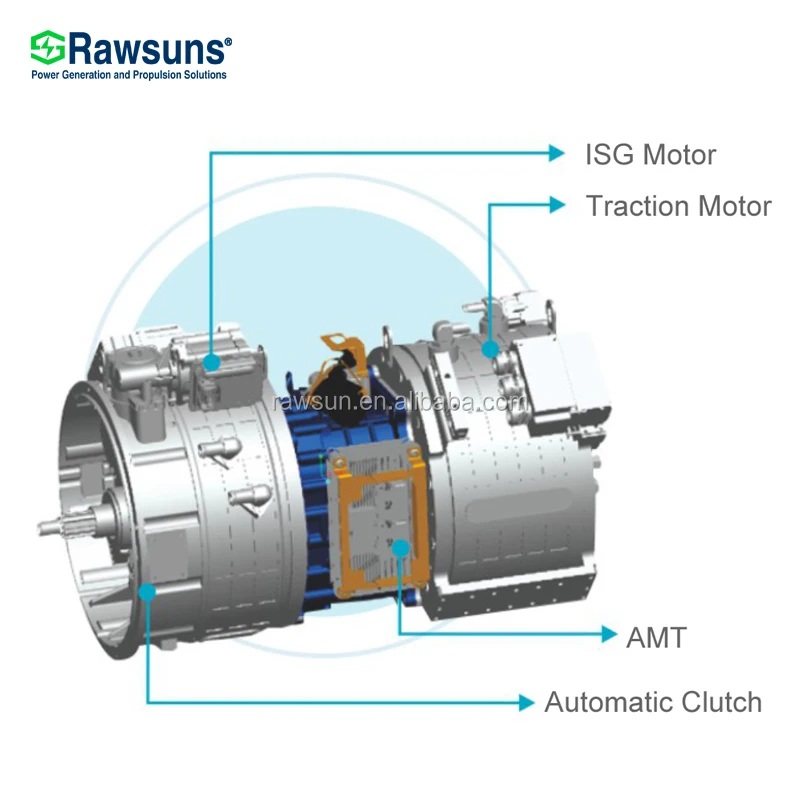

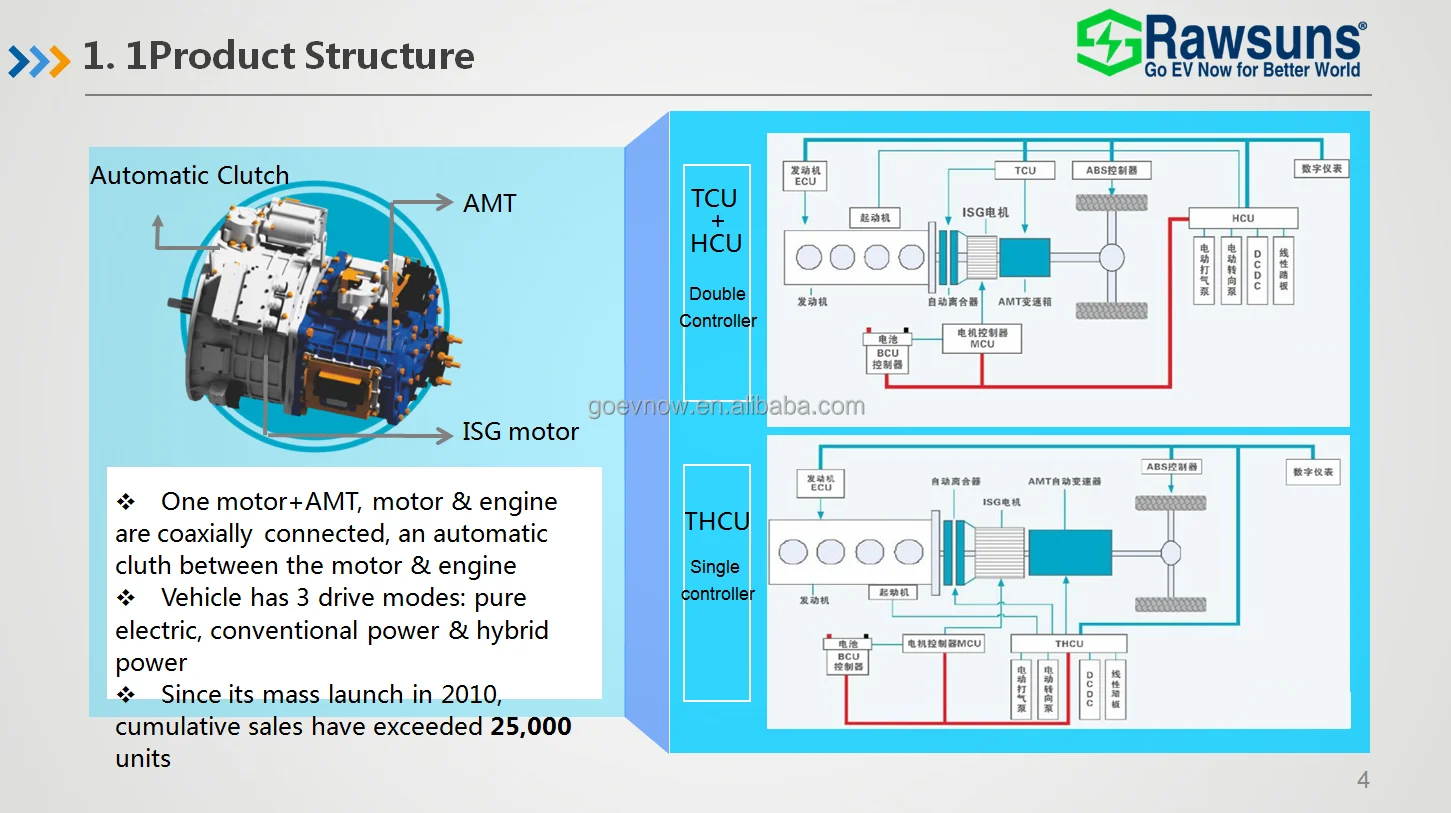

Single motor + AMT, the motor and the engine are coaxially connected, and there is an automatic clutch between the motor and the engine.
There are three drive modes: pure electric, conventional power and hybrid power.
There are three drive modes: pure electric, conventional power and hybrid power.
motor type | PMSM |
IP Grade | 67 |
battery rated voltage | 576V |
motor rated | 78Kw |
motor peak | 147Kw |
rated speed | 1201Rpm |
EV Conversion Kits Supporting Documents and Service
Drive System
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report.
9. Remote installation support.
10. Wiring diagram
11. Installation training.
12. On site installation guide service (optional)
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report.
9. Remote installation support.
10. Wiring diagram
11. Installation training.
12. On site installation guide service (optional)
Related Detail
Model | Vehicle type | Battery rated voltage | Motor rated (Kw) | Motor peak (Kw) | Rated torque(Nm) | Peak torque(Nm) | Rated speed(Rpm) |
RPHD3100 | 8-9m coach, city bus,7.5-16t special vehicle, etc | 540 | 75 | 130 | 355 | 750 | 2018 |
RPHD3300 | 8-9m coach, city bus,7.5-16t special vehicle, etc | 350 | 34 | 72 | 134 | 370 | 2423 |
RPHD6300 | 9-12m coach, city bus, 18-35t tractors, etc. | 540 | 80 | 135 | 500 | 1000 | 1528 |
RPHD6500 | 9-12m road and bus; 16 and 25 tons of car, etc | 540 | 80 | 135 | 500 | 1000 | 1528 |
RPHD8700 | 11m and above coach, assembly equipped with support for installation of retarder | 540 | 80 | 135 | 500 | 1000 | 1528 |
RPHD24200 | 25-110 ton heavy truck | 540 | 80 | 149 | 620 | 1390 | 1232 |
RPHD29000B | 60-120 tons of mine self-discharging, wide-body self-discharging | 540 | 100 | 200 | 930 | 2000 | 1027 |

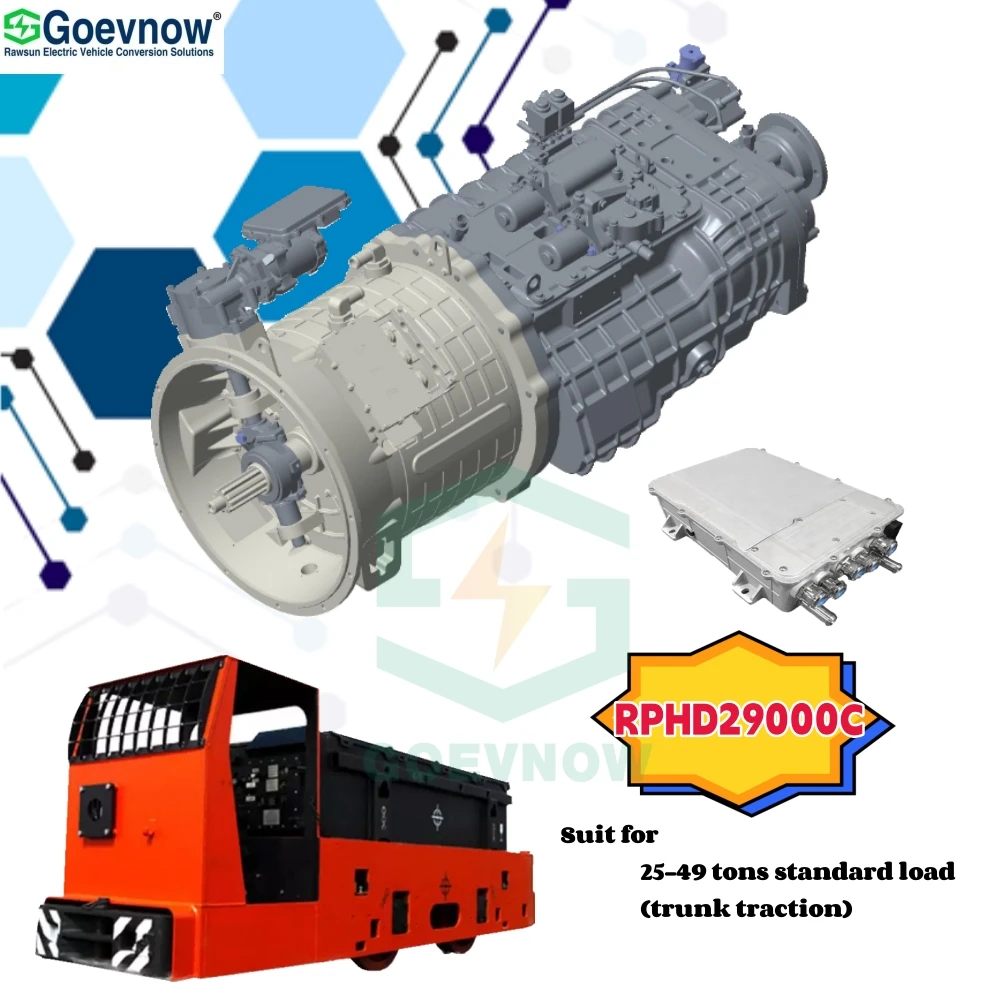

RPHD29000C | 25-49 tons standard load (main line traction) | 576 | 78 | 147 | 620 | 1390 | 1201 |
RPHD29000D | 60-120 tons mine self-unloading, wide-body self-unloading | 576 | 200 | 360 | 1250 | 2000 | 1528 |
RPHD29000E | 25-49 tons standard load (main line traction) | 576 | 80 | 154 | 650 | 1365 | 1175 |
RPHD29000F | 60-120 tons mine self-unloading, wide-body self-unloading | 576 | 130 | 225 | 1300 | 2850 | 955 |
