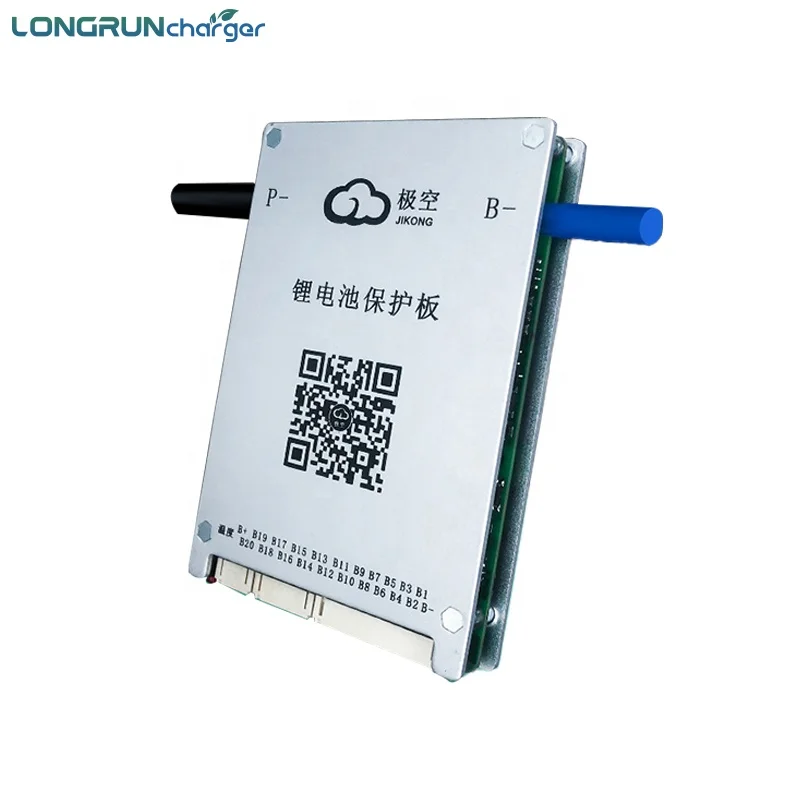

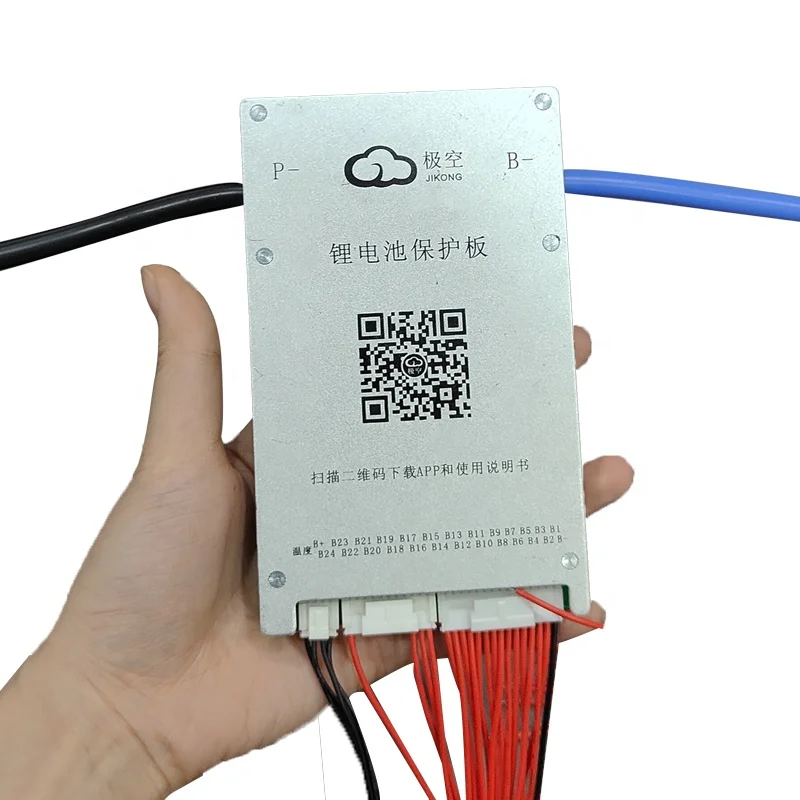

JK 8s 10s 12s 14s 15s LTO LFP Li ion 40a 60a 80a Smart Battery Protection Board URAT CAN RS485 Optional
- Category: >>>
- Supplier: Chengdu Longrun Chuangshi Technology Co. Ltd.
Share on (1600527139474):
Product Overview
Description

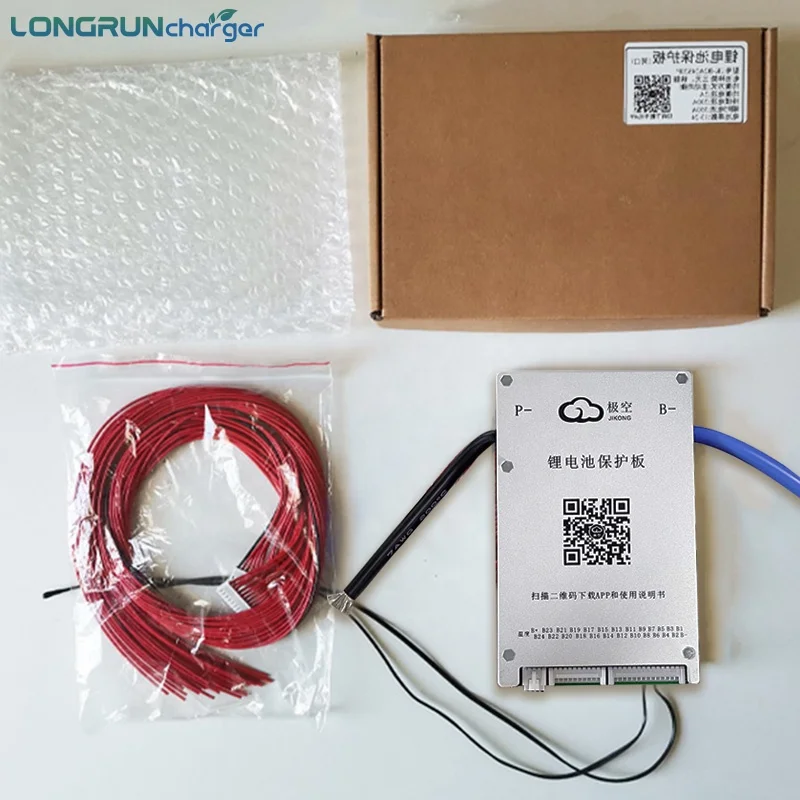

JK 8s 10s 12s 14s 15s LTO LFP Li-ion 40a 60a 80a Smart Battery Protection Board URAT CAN RS485 Optional |

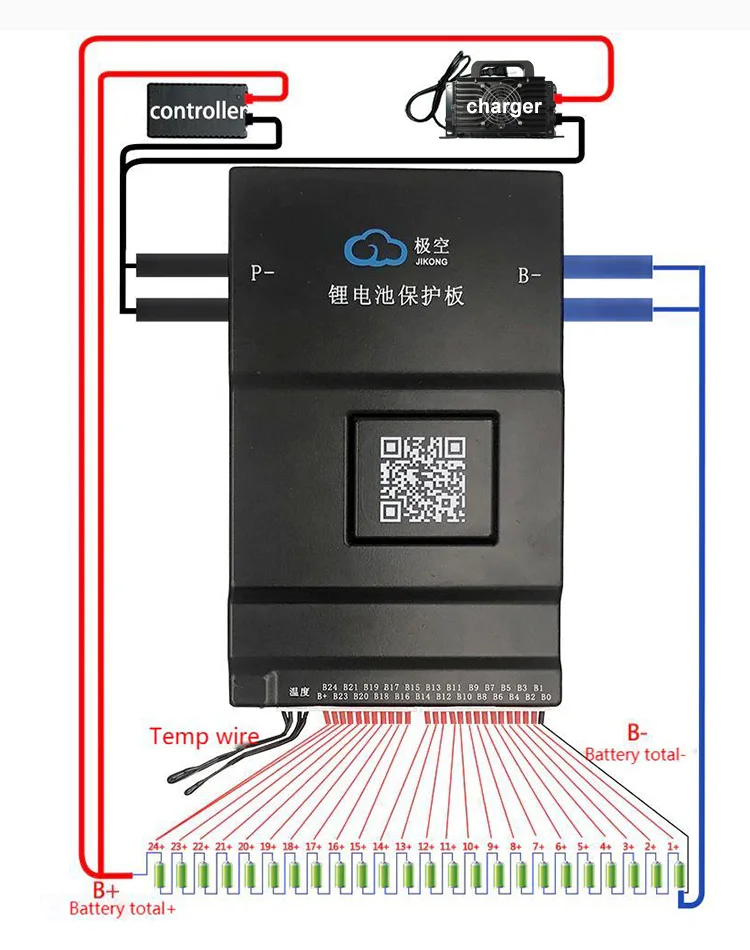

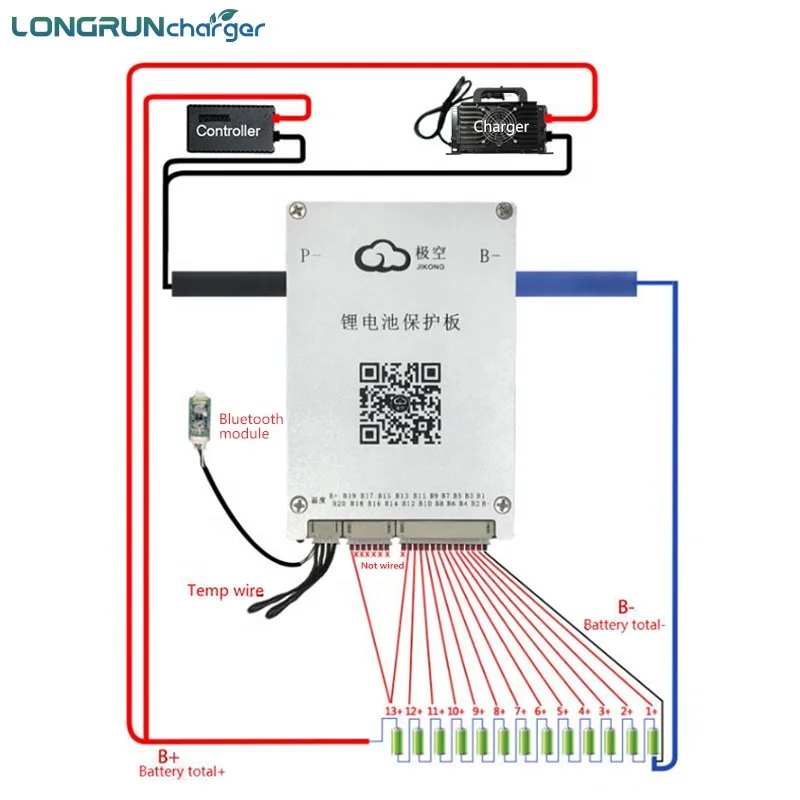

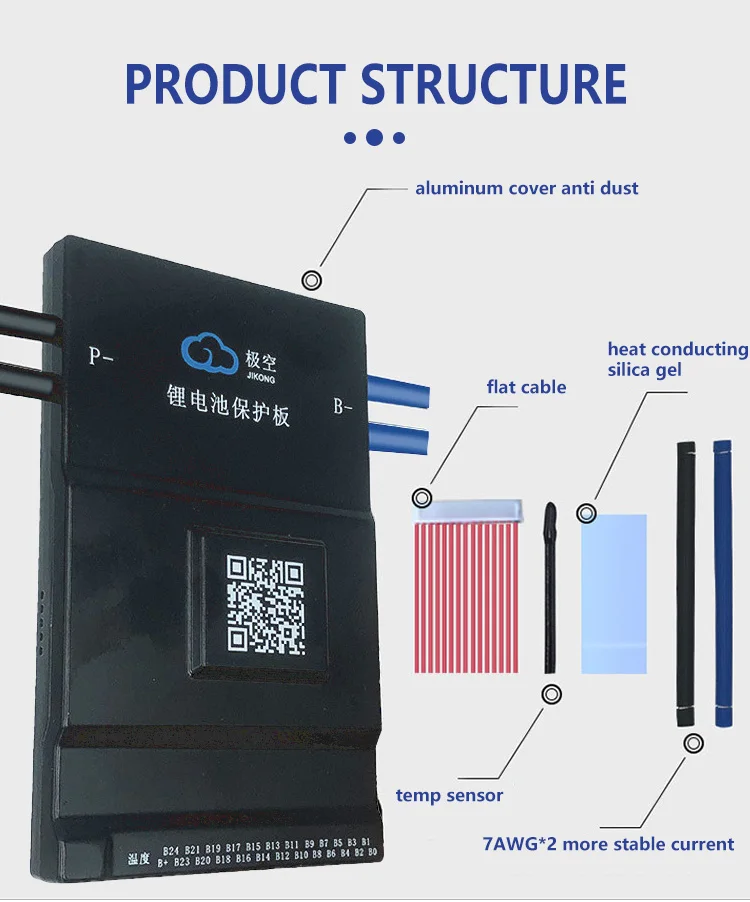

The wiring sequence of the lithium battery protection plate:
Note that the wiring of different protection plate manufacturers is not common.
Please ensure that the wiring is correct.
1, wiring front ensure that the wiring is not inserted into the protection plate.
2, the line from the black thin line connected with "B-", the second root (next to the black thin line of the red thin line) connected with the first string of battery positive B1, followed by analogy, finally connected to the total positive battery red thin line.
3, after connecting the row line, measure the voltage of the two adjacent metal terminals on the back of the row and plug the three mixture cell should be 3.0V-4.2V, lithium iron should be 2.0V-3.6V, lithium titanate should be 1.6V-2.75V.
4. Insert the protection plate socket after confirming the wiring sequence and voltage.
5, the protection plate "B-"(blue thick line) is connected to the total negative of the battery,"P-" (black thick line) is connected to the charging negative and discharge negative.
Note that the wiring of different protection plate manufacturers is not common.
Please ensure that the wiring is correct.
1, wiring front ensure that the wiring is not inserted into the protection plate.
2, the line from the black thin line connected with "B-", the second root (next to the black thin line of the red thin line) connected with the first string of battery positive B1, followed by analogy, finally connected to the total positive battery red thin line.
3, after connecting the row line, measure the voltage of the two adjacent metal terminals on the back of the row and plug the three mixture cell should be 3.0V-4.2V, lithium iron should be 2.0V-3.6V, lithium titanate should be 1.6V-2.75V.
4. Insert the protection plate socket after confirming the wiring sequence and voltage.
5, the protection plate "B-"(blue thick line) is connected to the total negative of the battery,"P-" (black thick line) is connected to the charging negative and discharge negative.

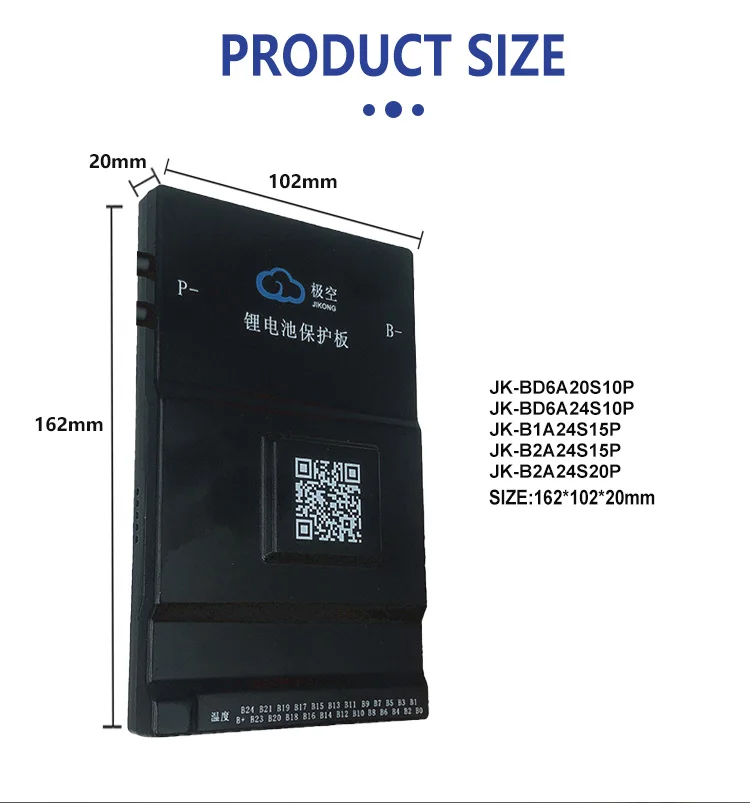

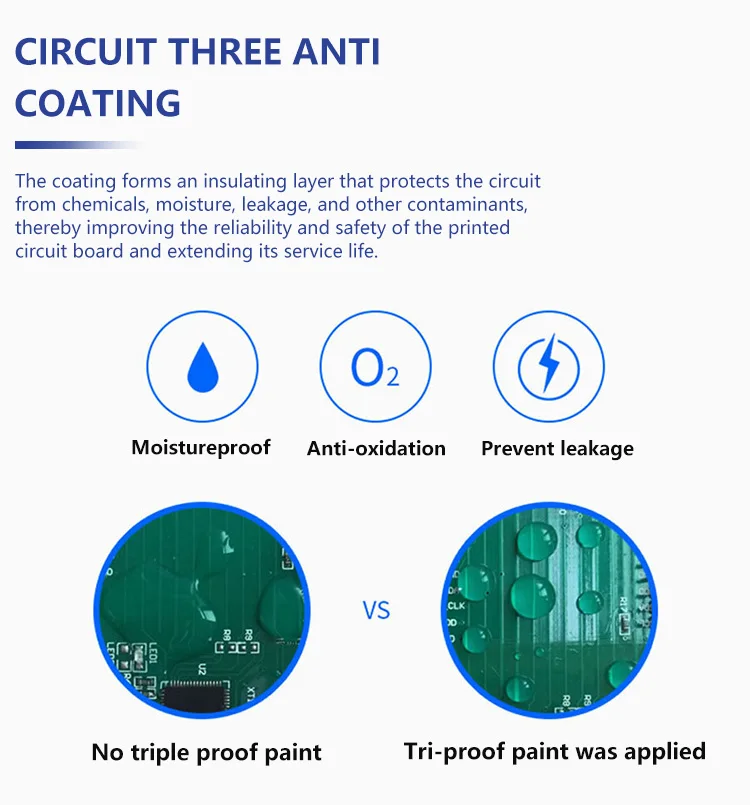

Products Description
Specifications | Models | |||||||||||
BD6A20S10P | BD6A24S10P | B1A20S15P | B1A24S15P | B2A24S20P | B2A24S20P | |||||||
Number of battery strings | 8-20 | 8-24 | 8-20 | 8-24 | 8-24 | 8-24 | ||||||
Equalization | Active equalization | |||||||||||
Balance current | 0.6A | 0.6A | 1A | 1A | 2A | 2A | ||||||
Main circuit resistance | 0.8mΩ | 0.8mΩ | 0.5mΩ | 0.5mΩ | 0.3mΩ | 0.5mΩ | ||||||
Continuous discharge current | 100A | 100A | 150A | 150A | 200A | 200A | ||||||
Maximum discharge current | 200A | 200A | 300A | 300A | 300A | 350A | ||||||
Overcurrent Protection (adjustable) | 10～100 A | 10～100 A | 10～100 A | 10～150 A | 10～150 A | 10～200 A | ||||||
Other interfaces (custom made) | RS485 | RS485 | RS485 | RS485 CAN | RS485 CAN | RS485 CAN | ||||||

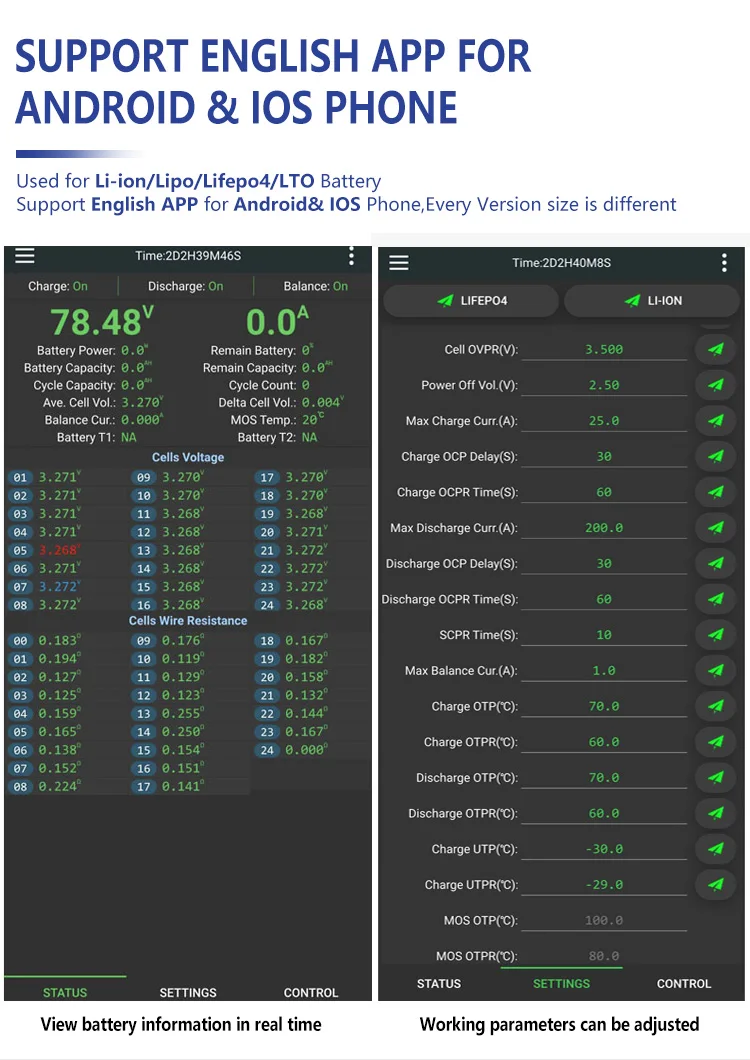

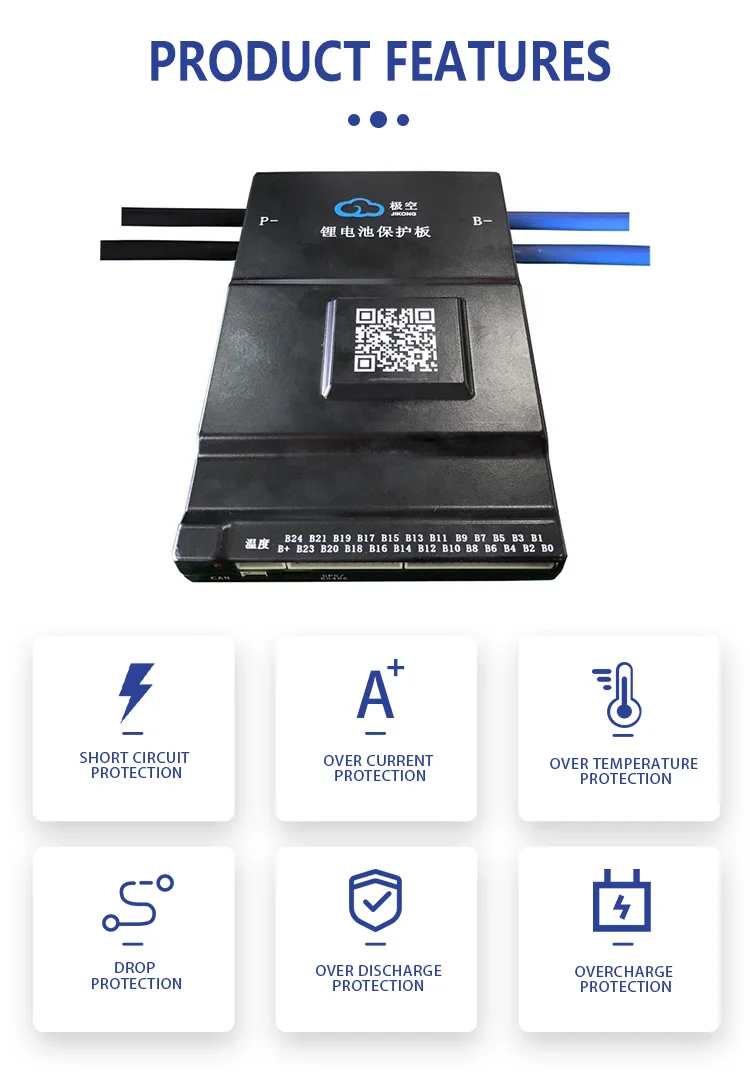

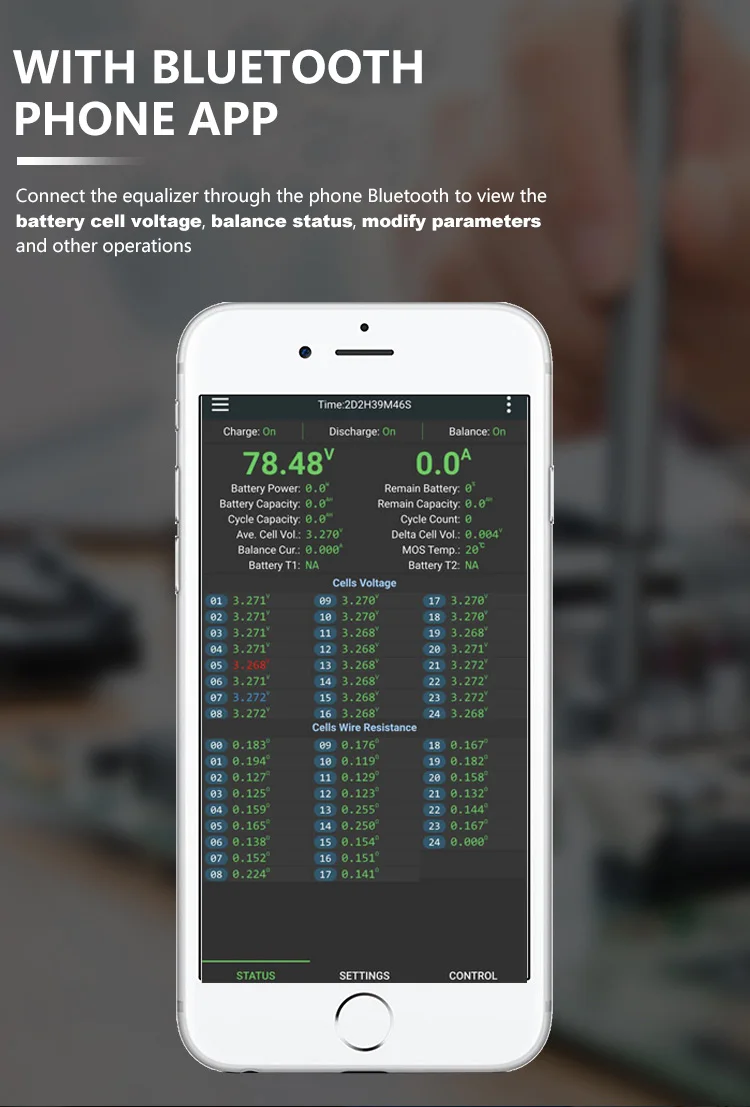

Charge and discharge interface： 1 port Cell voltage range： 1-5v Voltage acquisition accuracy： ±5 mV Overcharge protection voltage： 1.2～4.35 V adjustable Overcharge release voltage： 1.2～4.35 V adjustable Overcurrent release time： 2～120S adjustable Over discharge protection voltage：1.2～4.35 V adjustable Over discharge recovery voltage 1.2～4.35 V adjustable Number of temperature detections 3 Temperature protection： YES Short circuit protection： YES Coulomb counter: YES Bluetooth function: Support Android, IOS system GPS (optional)： Support (select one of RS485 and GPS) | ||||||||||||

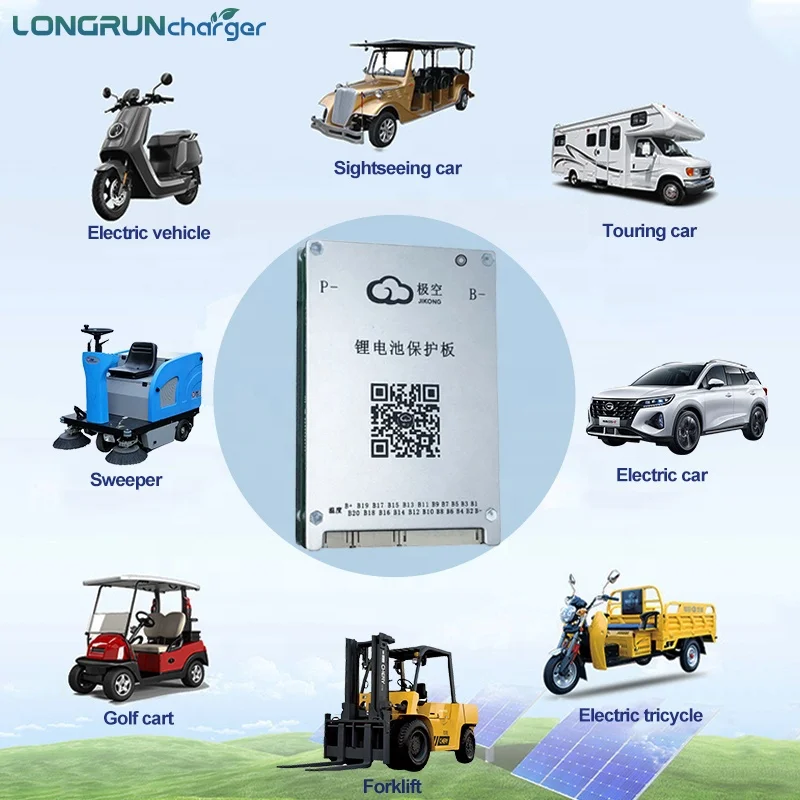

Application
Package &Shipping
FAQ
1. Who are we? Chengdu Longrun Chuangshi Technology Co., LTD.Located in Chengdu, China, Engaged in Electric Vehicle Charging System, AC Servo Control System,as well as electronic information and the battery internalizes system. 2. How can we guarantee quality? Always a pre-production sample before mass production.Always final Inspection before shipment. 3.What can you buy from us? On board charger,ev charger,car charger,Lifepo4,Lithium ion etc.We offer OEM and ODM. 4. Why choose us?*More competitive price! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive. |
