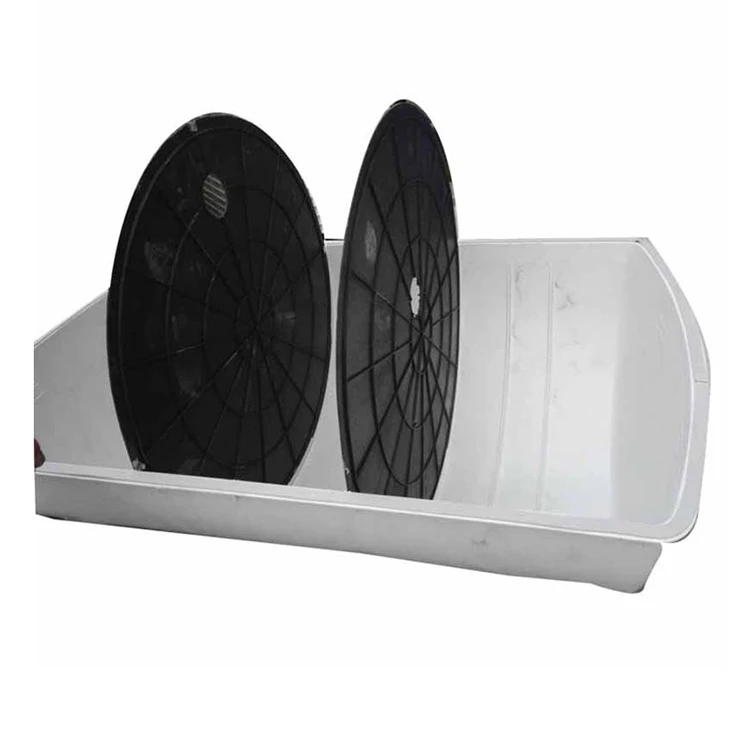

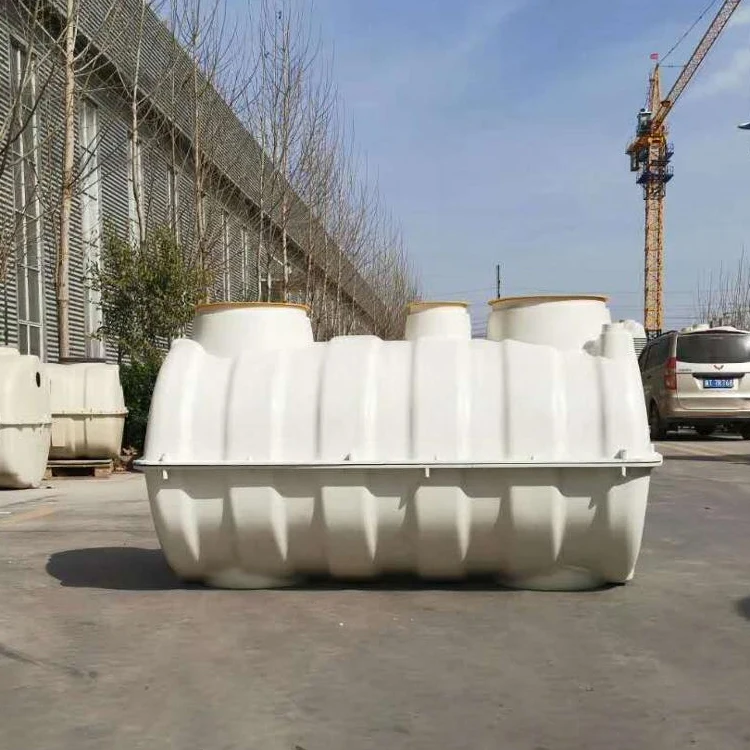

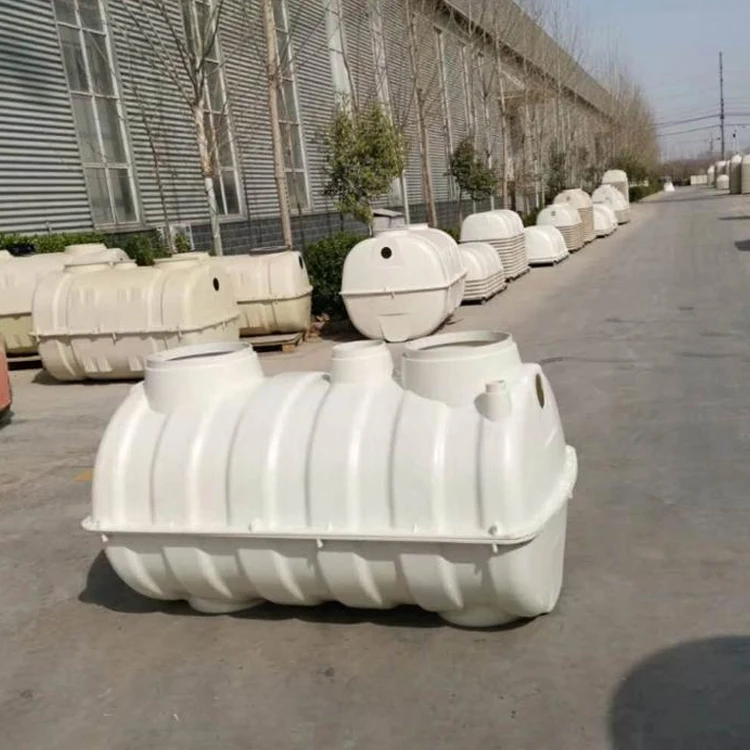

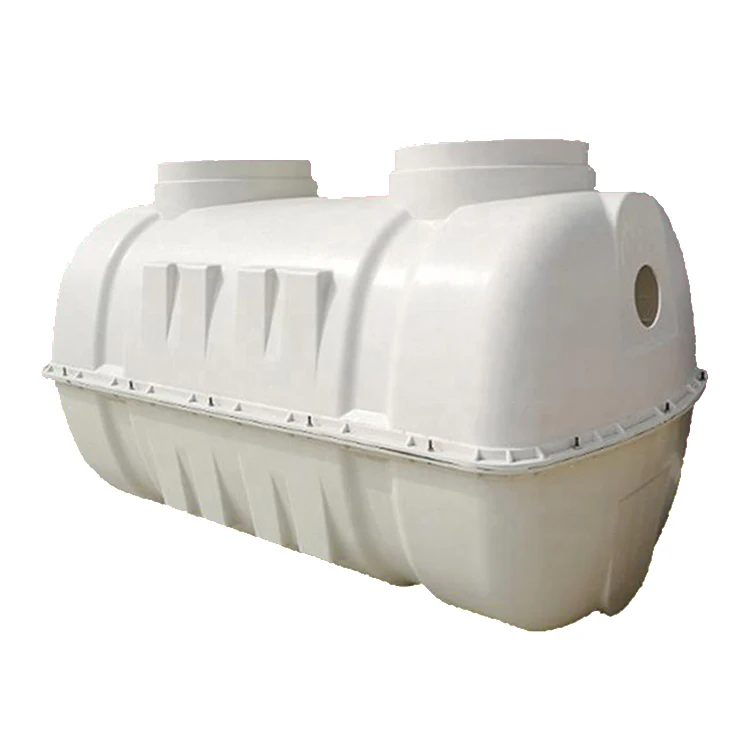

Household Sewage Water Treatment Plant Prefabricated Three compartment Frp Septic Tank
- Category: >>>
- Supplier: Hangzhou Yangmuchen Imp. & Exp. Co. Ltd.
Share on (1600527156542):
Product Overview
Description
Products Description
Septic Tank Application
1. Industrial Water Treatment with multi-layer media
2. Water Softening
3. Centralized Filtration System for high rise residential and commercial buildings such as residence, high rise office building, hotels and resorts.
4. Aquaculture, fish farming filtration system
5. Many other water filtration and treatment applications.
6.Grease Trap or Interceptor
2. Water Softening
3. Centralized Filtration System for high rise residential and commercial buildings such as residence, high rise office building, hotels and resorts.
4. Aquaculture, fish farming filtration system
5. Many other water filtration and treatment applications.
6.Grease Trap or Interceptor
Model | Septic Tank Dimension(mm) | Weight (kg) | Manhole Size(mm) | Septic Tank Capacity | Wall Thickness | User Quantity | Material | Loading Quantity of 40HQ (sets) | ||||||||
YMC-0.6 | 1572*832*785 | 29 | 315-315 | 0.6m3 | 3mm | 1-3 | PP/PE | 440 | ||||||||
YMC-0.8 | 1540*980*920 | 33 | 200-200-315 | 0.8m3 | 3mm | 2-4 | PP/PE | 324 | ||||||||
YMC-1.0 | 1720*960*621 | 34 | 200-200-315 | 1.0m3 | 3mm | 3-4 | PP/PE | 330 | ||||||||
YMC-1.0 | 1740*940*975 | 44 | 315-315-400 | 1.0m3 | 4mm | 3-4 | PP/PE | 330 | ||||||||
YMC-1.0 | 1720*960*921 | 47 | 200-200-315 | 1.0m3 | 5mm | 3-4 | PP/PE | 300 | ||||||||
YMC-1.0 | 1796*974*929 | 58 | 400-200-400 | 1.0m3 | 7mm | 3-4 | PP/PE | 260 | ||||||||
YMC-1.2 | 1919*1021*1065 | 45 | 200-200-315 | 1.2m3 | 3mm | 5-7 | PP/PE | 220 | ||||||||
YMC-1.5 | 2001*1082*1037 | 47 | 315-315-400 | 1.5m3 | 3mm | 8-10 | PP/PE | 240 | ||||||||
YMC-1.5 | 2009*1082*1037 | 53 | 200-200-315 | 1.5m3 | 4mm | 8-10 | PP/PE | 220 | ||||||||
YMC-1.5 | 2009*1082*1037 | 53 | 315-200-315 | 1.5m3 | 4mm | 8-10 | PP/PE | 220 | ||||||||
YMC-1.5 | 2009*1082*1037 | 53 | 400-315-315 | 1.5m3 | 4mm | 8-10 | PP/PE | 220 | ||||||||
YMC-1.5 | 2009*1082*1037 | 56 | 315-315-400 | 1.5m3 | 5mm | 8-10 | PP/PE | 220 | ||||||||
YMC-1.5 | 2009*1082*1037 | 69.7 | 315-315-400 | 1.5m3 | 7mm | 8-10 | PP/PE | 200 | ||||||||
YMC-2.0 | 2355*1210*1165 | 83 | 315-200-315 | 2.0m3 | 5mm | 10-13 | PP/PE | 160 | ||||||||
YMC-2.0 | 2355*1210*1165 | 100 | 315-200-315 | 2.0m3 | 7mm | 10-13 | PP/PE | 160 | ||||||||
YMC-2.5 | 2755*1210*1180 | 117 | 315-315-315 | 2.5m3 | 7mm | 13-15 | PP/PE | 92 | ||||||||

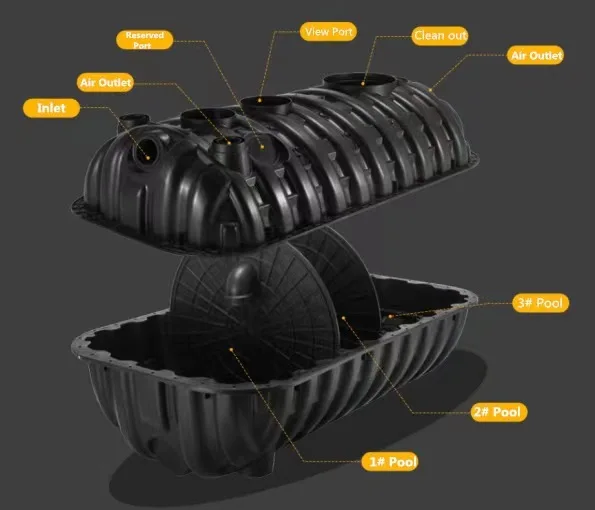

One Complete set septic tank includes: The upper & bottom shell + Partition board+Elbow pipe+Covers+screws&nuts + Foam Sealant + Sealing Ring | ||||||||||||||||
Septic Tank Advantages
1. Installation conditions: No affected by weather or climate
2. Material properties: high quality pp/PE composite material; anti-acid,alkali-resistant ,pull-resistant
3. Small liquid resistance: smooth inner wall and low friction result
4. Long life-spans : over the 50 years in normal pressure working
5. Excellent impact resistance in low temperature
6. Good tightness ,no leakage, preventing the pollution of traditional the septic tank ground water leakage
7. Large mechanical strength:,high ring stiffness to up to the SN20,no easier to be cracked
8. Smooth inner wall;long clearing period;convenient clearing;saving maintenance costs
9. Working temperature: -100 degree to 200 degree
10. Installation freely and eliminates need for gravel and heavy machinery
11. Eco-friendly,recycle material and reducing carbon footprint
2. Material properties: high quality pp/PE composite material; anti-acid,alkali-resistant ,pull-resistant
3. Small liquid resistance: smooth inner wall and low friction result
4. Long life-spans : over the 50 years in normal pressure working
5. Excellent impact resistance in low temperature
6. Good tightness ,no leakage, preventing the pollution of traditional the septic tank ground water leakage
7. Large mechanical strength:,high ring stiffness to up to the SN20,no easier to be cracked
8. Smooth inner wall;long clearing period;convenient clearing;saving maintenance costs
9. Working temperature: -100 degree to 200 degree
10. Installation freely and eliminates need for gravel and heavy machinery
11. Eco-friendly,recycle material and reducing carbon footprint

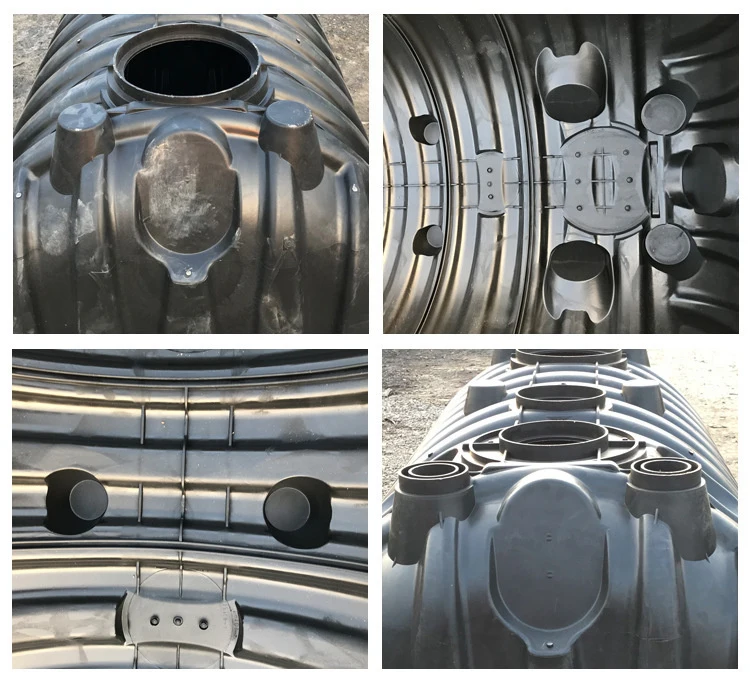

Details Images

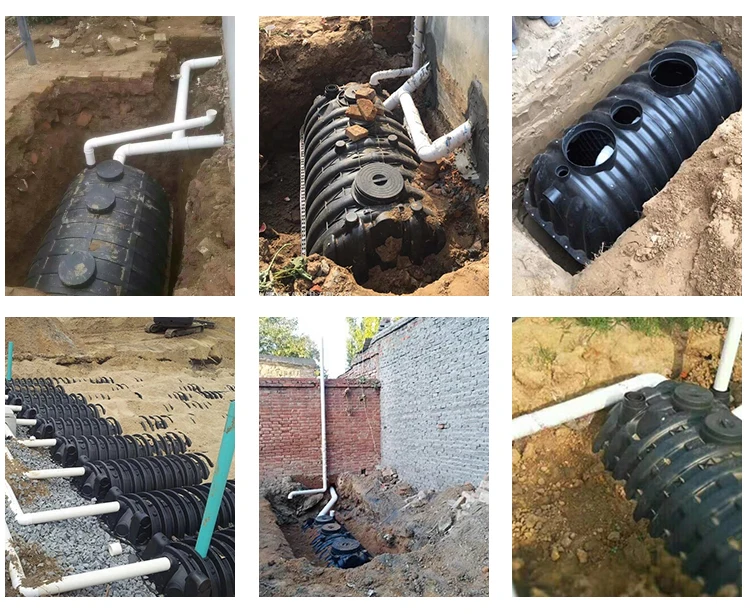

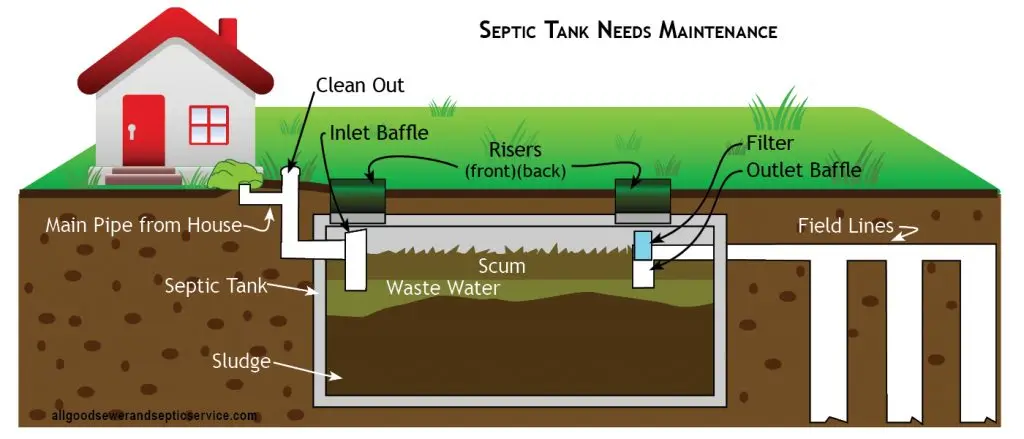

Application
Company Profile
Our Services
Pre-sales Service
* Inquiry and consulting support within 24 hours.
* Sample testing support.
* View our Factory
* The tracking number informed
* Sample testing support.
* View our Factory
* The tracking number informed
After-sales Service

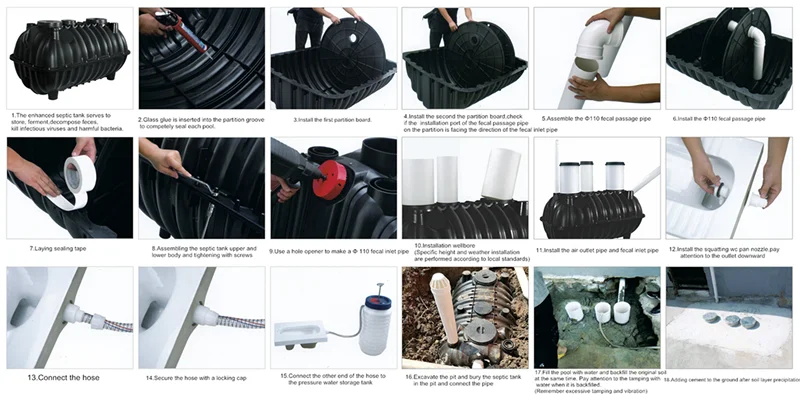

*Training how to instal the septic tank, training how to use it
* Engineers available to service overseas.
* Engineers available to service overseas.
Product packaging
FAQ
1. Q: Do you have stock for sample ?
A: Yes, you can get available samples in our stock. with little or the reasonable charge.
2. Q: What is your MOQ ?
A: if stock goods,there is no MOQ, if need custom.plese contact our sales.
3. Q: What's your delivery time?
A: 3 - 7 days after received the advance payment
4. Q: Are you manufacturer or trader?
A: The company is an integrated set of design, development, production, sale and service of industry and trade-oriented enterprises.
5. Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
6. Q:.When can I get the price?
A: Usually we quote within 3 hours after we get your clear inquiry.
