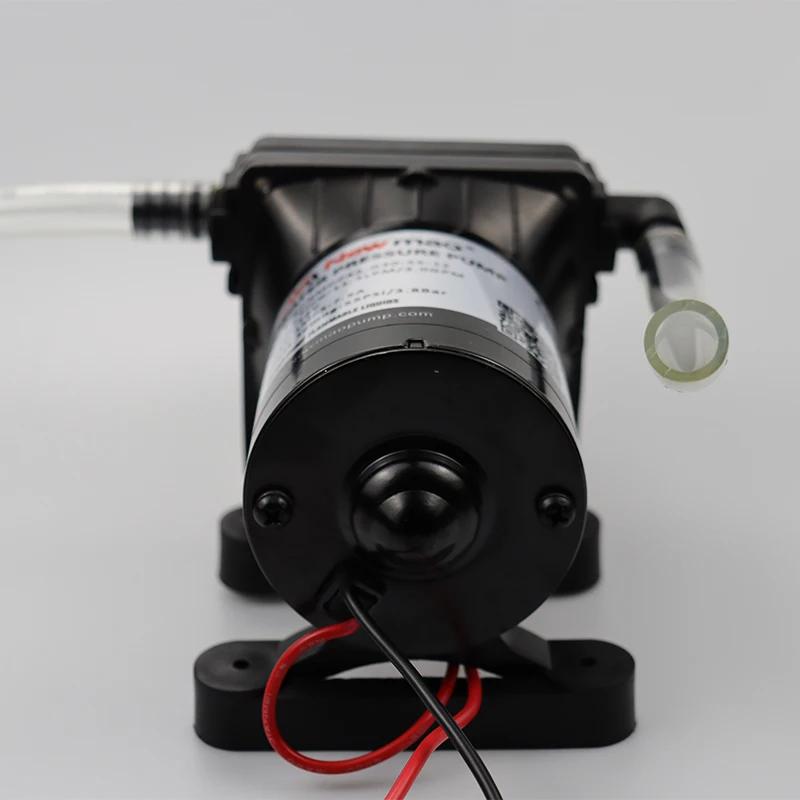

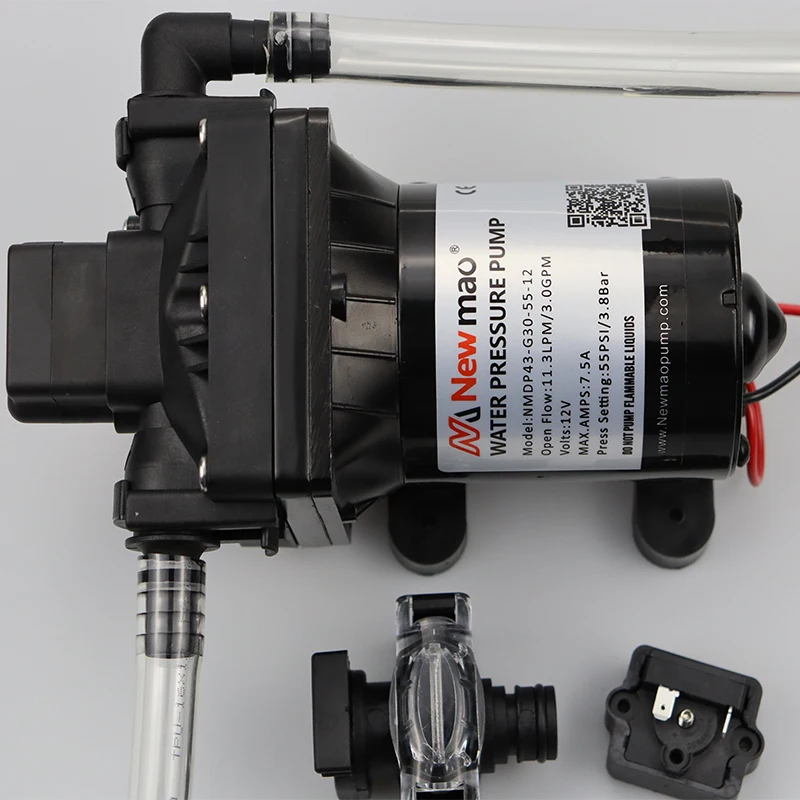

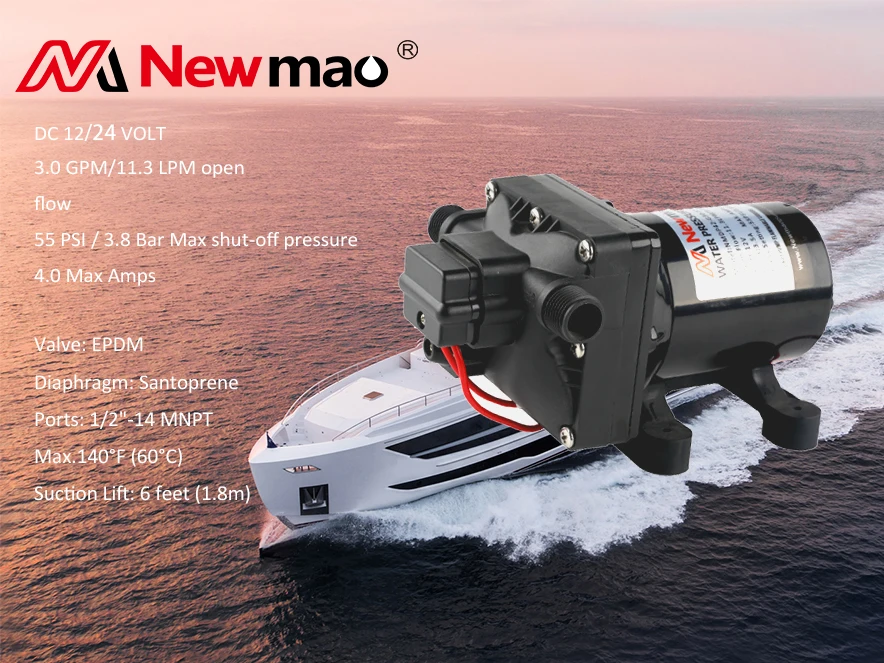

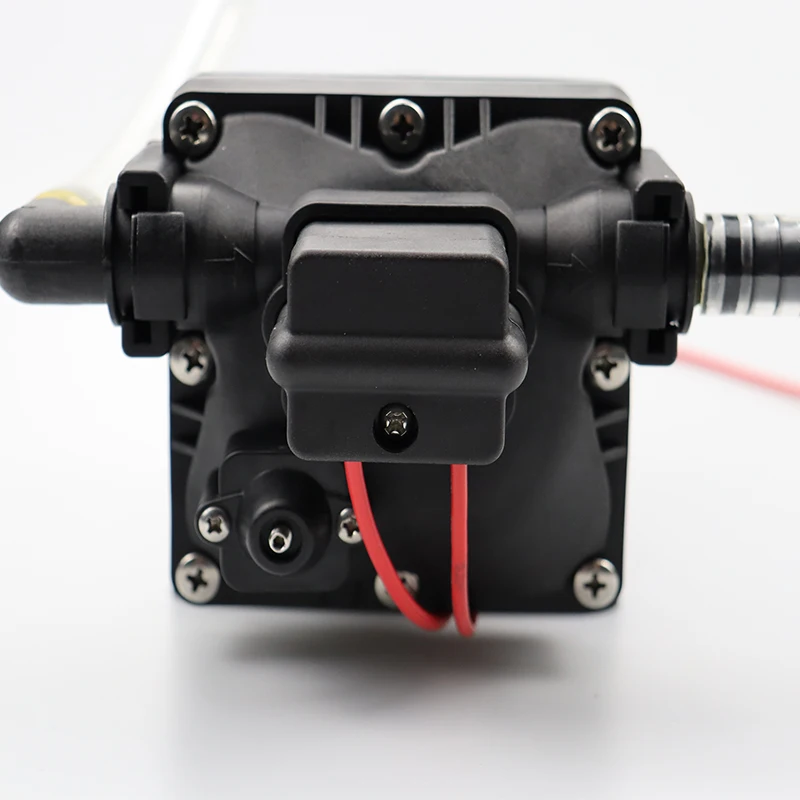

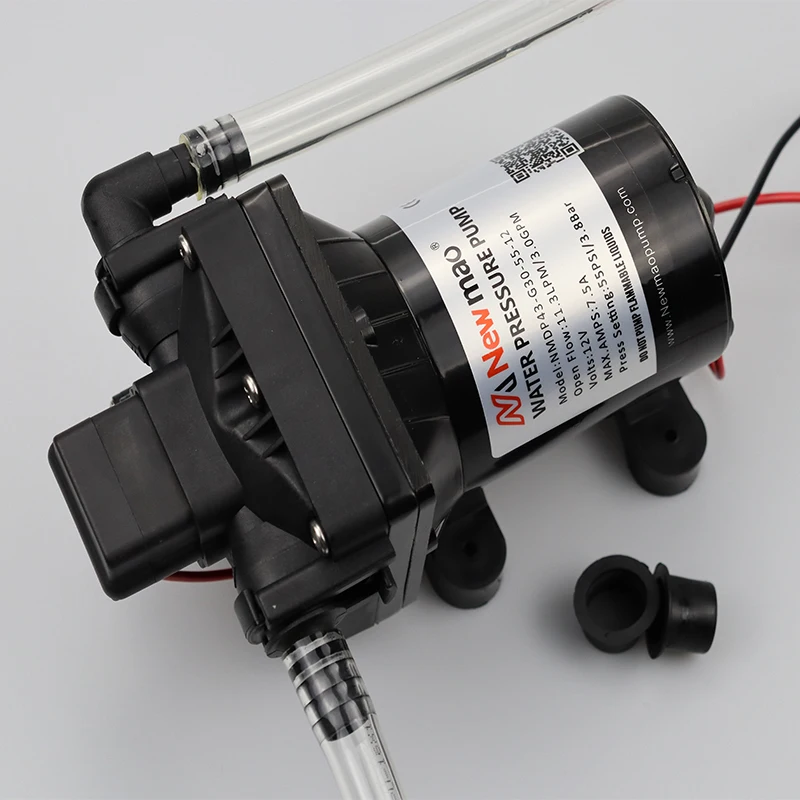

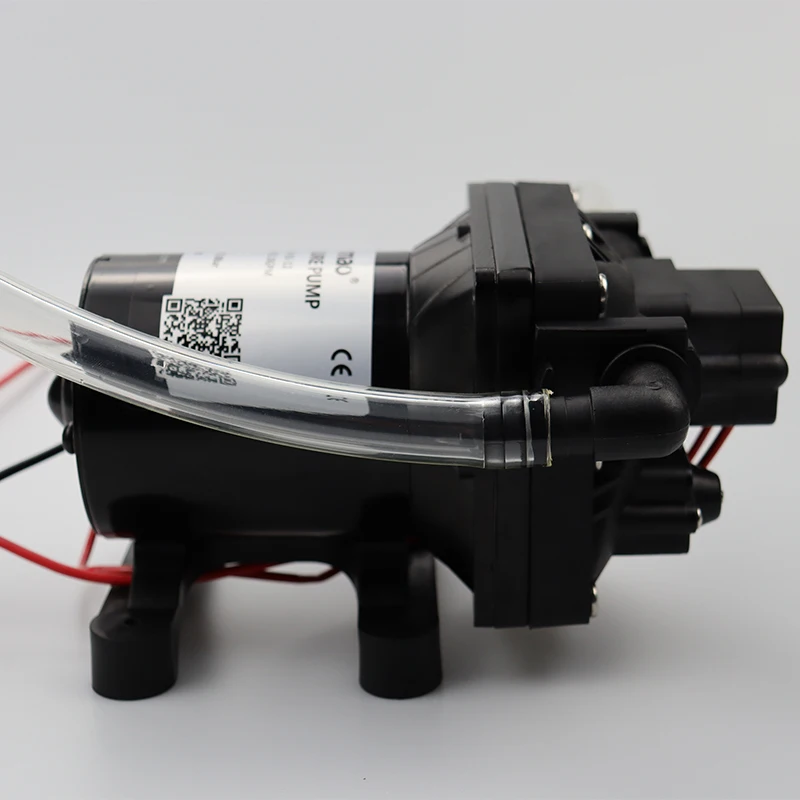

Newmao 12v camping marine fresh water pump with 3.0gpm 55psi
- Category: >>>
- Supplier: Xiamen Newmao Pump Industry Co. Ltd.
Share on (1600527163716):
Product Overview
Description
RV water treatment
Yacht and boat water treatment
Agriculture irrigation
Housing water supply boost
High level building water boost
Liquid transfer

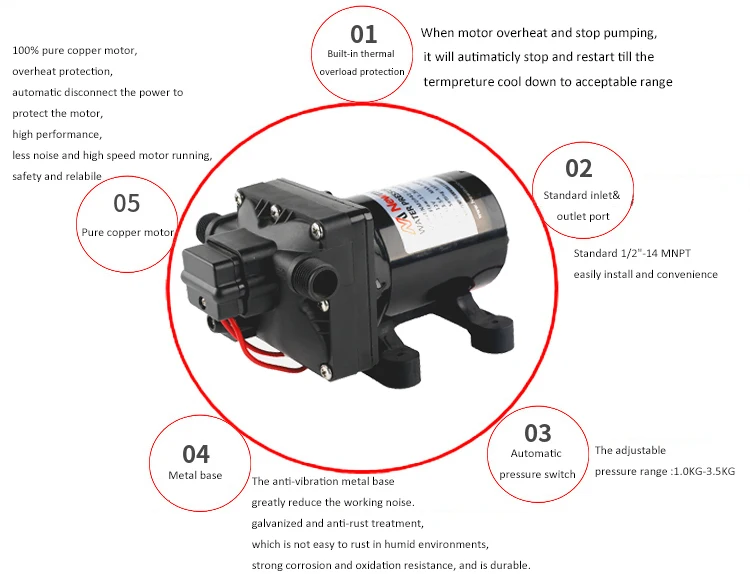

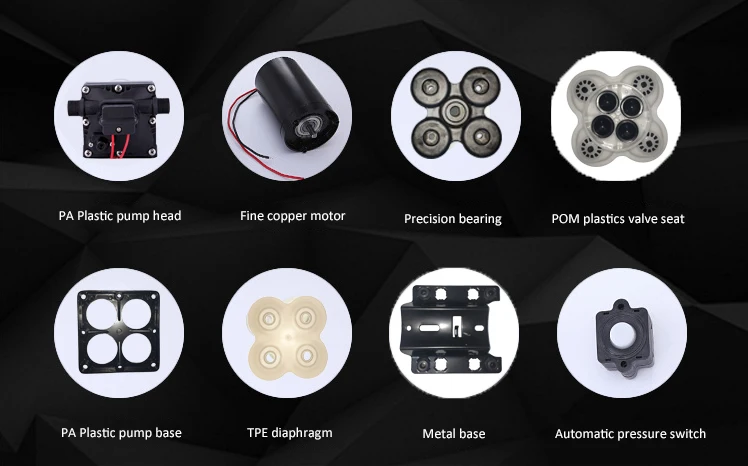

Products features
For better user experiences
Features & Benefits
1.Flow rate up to 5.0 GPM [18.9 LPM]
3.Automatically turn on and off
5.Quiet operation
7.On-demand use
3.Automatically turn on and off
5.Quiet operation
7.On-demand use
2.Can run dry without damage
4.Self priming & built-in check valve
6.Chemically resistant materials
8.Designed for spraying and fluid transfer
4.Self priming & built-in check valve
6.Chemically resistant materials
8.Designed for spraying and fluid transfer
Product Name | Newmao 43 series water pump DC 12V/24V |
Pump Type | 4 Chambers Positive Displacement Diaphragm Pump |
Max Flow Rate | 5.0 GPM [18.9 LPM] |
Max Pressure | 55 PSI / 3.8 Bar Max shut-off pressure |
Voltage | DC 12V / 24V |
Max Amp | 4.0 A |
Fuse | 8.0 A |
Switch Type | Built-in bypass and on-demand pressure switch |
Diaphragm Material | Santoprene |
Valve Material | Viton, and EPDM is available |
Duty Cycle | Continuous |
Self Priming | 6' [1.8 m] suction |
Max Fluid Temp | 140 °F [60 °C] |
Inlet & Outlet Port | 3/4" QUICK ATTACH |
The 43 Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. This 4 chamber diaphragm pump provides up to 5.0 gallons per minute and is capable of self-priming, up to 6 vertical feet, and can run dry without damage. Serves 3 or more 3/4" QUICK ATTACH. This automatic demand water system. pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize..
The 43 series
Model | Voltage | Open flow (GPM/LPM) | Max draw | Shut-off pressure (PSI / BAR) | Ports | Wire connections |
NMDP43-G30-55-12 | 12V | 3.0 / 11.3 | 8.0A | 55 / 3.8 | 3/4" QUICK ATTACH | 2-pin / Lead |
NMDP43-G30-55-24 | 24V | 3.0 / 11.3 | 4.0A | 55 / 3.8 | 3/4" QUICK ATTACH | 2-pin / Lead |
NMDP43-G40-55-12 | 12V | 4.0 / 15 | 10.0A | 55 / 3.8 | 3/4" QUICK ATTACH | 2-pin / Lead |
NMDP43-G40-55-24 | 24V | 4.0 / 15 | 6.0A | 55 / 3.8 | 3/4" QUICK ATTACH | 2-pin / Lead |
NMDP43-G50-55-12 | 12V | 5.0 / 18.9 | 15.0A | 55 / 3.8 | 3/4" QUICK ATTACH | 2-pin / Lead |
NMDP43-G50-55-24 | 24V | 5.0 / 18.9 | 7.0A | 55 / 3.8 | 3/4" QUICK ATTACH | 2-pin / Lead |

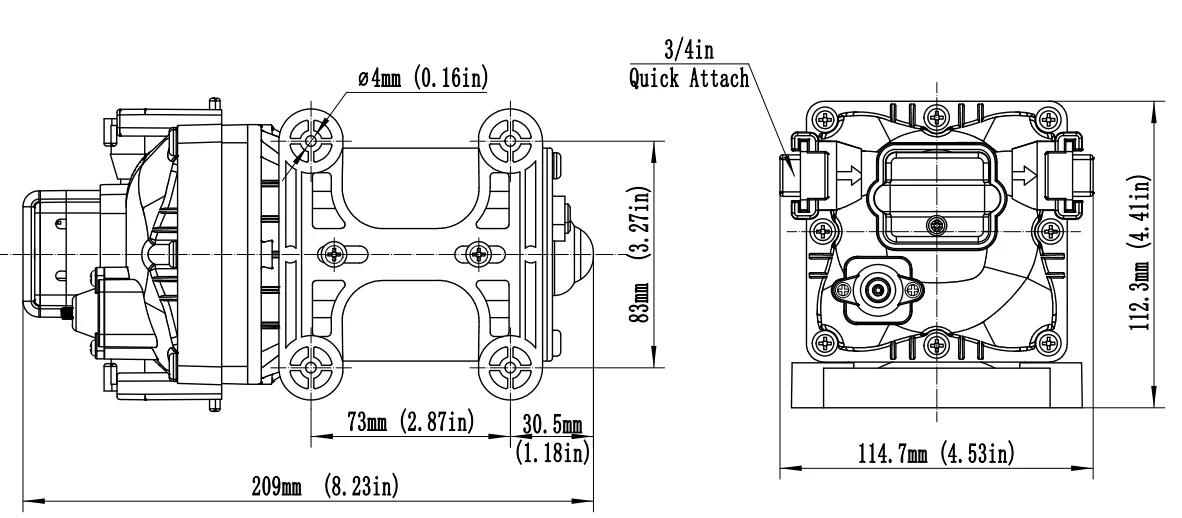

Dimensions

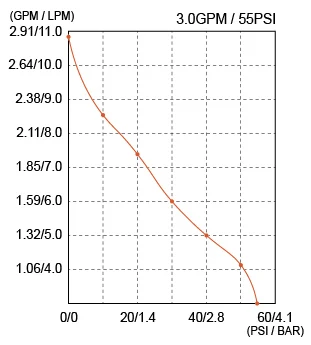

Performance
Unit N.W | 3.0KG |
Unit Size (L x W x H) | 26cm x 15 cm x 13 cm |
Unit G.W | 3.3 KG |
Master Carton Qty | 8 pcs / carton |
Master Carton Size (L x W x H) | 53.5cm *31.5 cm *28.5 cm |
Master Carton Weight | 27 KG |
