Tig Welders 24V Mig Welding Wire Feeder Motor for Portable Spot Welding Machine
Tig Welders 24V Mig Welding Wire Feeder Motor for Portable Spot Welding Machine
Tig Welders 24V Mig Welding Wire Feeder Motor for Portable Spot Welding Machine
Tig Welders 24V Mig Welding Wire Feeder Motor for Portable Spot Welding Machine
Tig Welders 24V Mig Welding Wire Feeder Motor for Portable Spot Welding Machine
Tig Welders 24V Mig Welding Wire Feeder Motor for Portable Spot Welding Machine
Tig Welders 24V Mig Welding Wire Feeder Motor for Portable Spot Welding Machine

Tig Welders 24V Mig Welding Wire Feeder Motor for Portable Spot Welding Machine

Share on (1600527171145):


Price:$22.00 - $30.00

Quantity:


Product Overview

Description

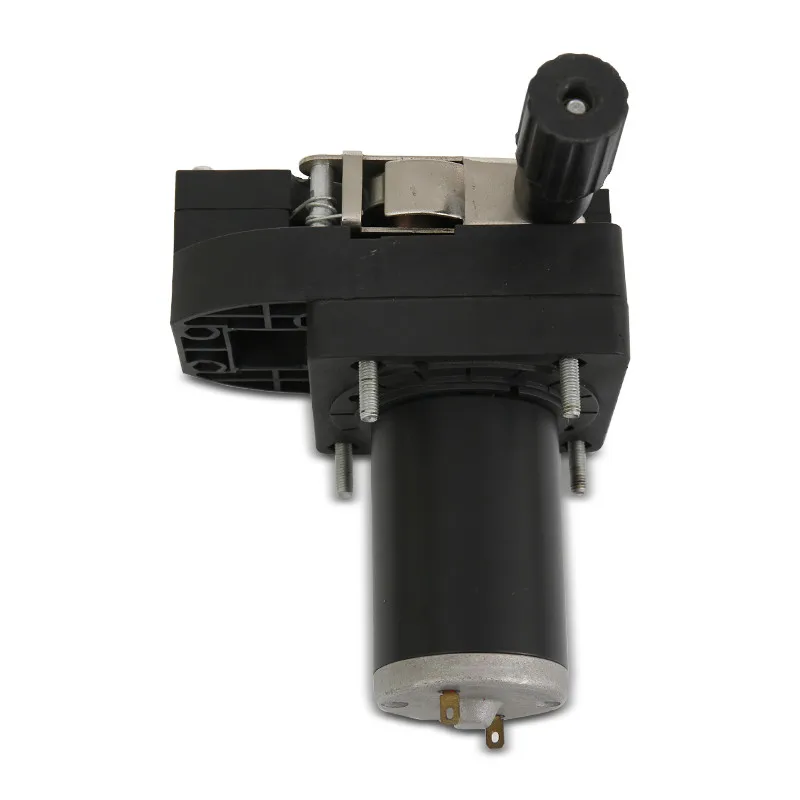

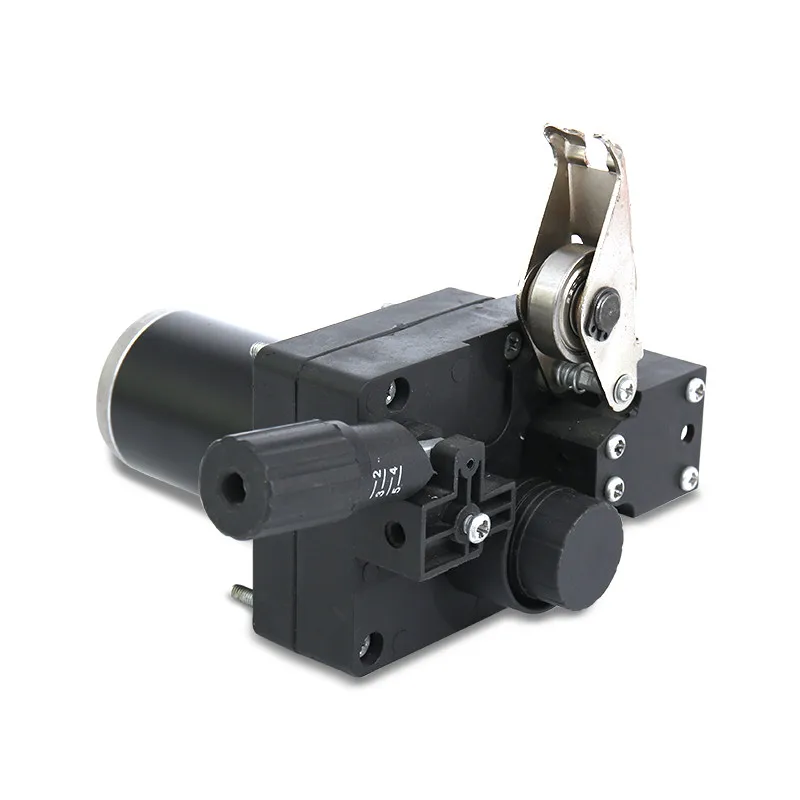

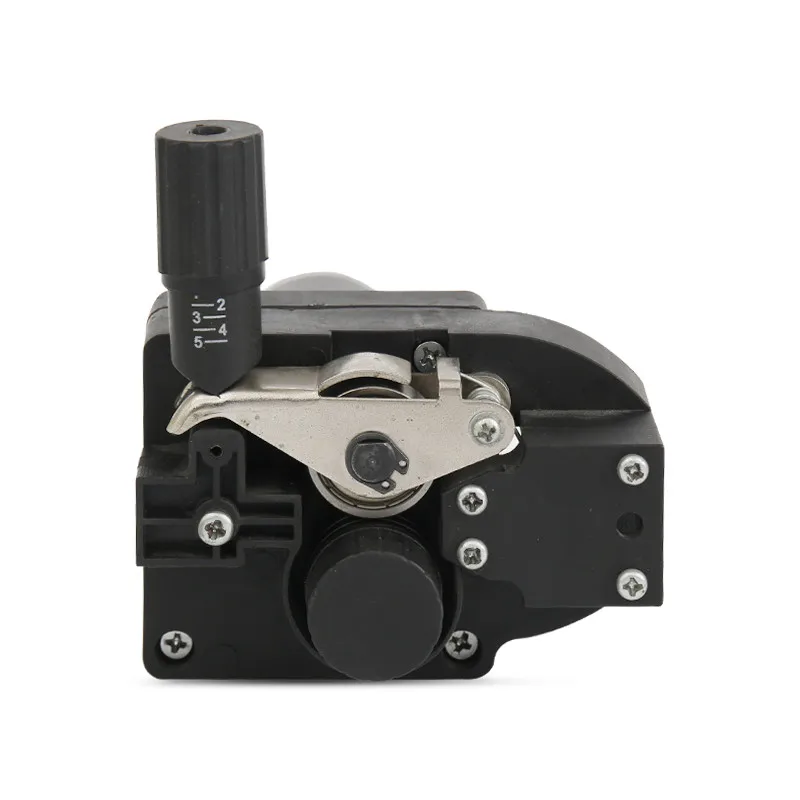

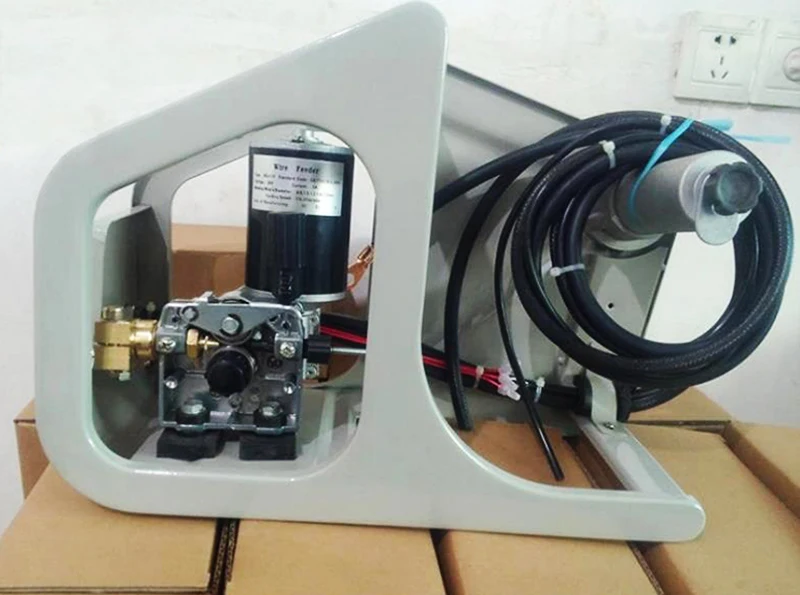

12v 24v Welding Wire Feeder for Mig Welding Machine D49S-2420-180-10LMAV0.6/0.8




Specification


Wire Feeder for mig mag welding machine

Model number: D49S-2420-180-10L-AV0.6/0.8






This wire feeder can be use for the welding machine which the welding current is less than 160A,the welding machine can work at spot weld and continue weld.


Motor
Motor Type
D49S
SIZE OF MOTOR
Diameter 49mm
VOLTAGE
DC24V
OUTPUT POWER
20W
NO LOAD SPEED
150RPM
NO LOAD CURRENT
0.6A
Stall torque
7.5N.M
Stall current
8A
Gear ratio
1:28
Material of worm gear box
plastic
FRAME
TYPE
10L
WIRE FEEDER ROLL SIZE
30mm*10mm
Apply for wire roll weight
15kg,5kg
Feed wire diameter
0.6mm 0.8mm 0.9mm 1.0mm
Maximum feed speed
13m/min
Minimum steady operation voltage in load
DC4.5V


Products Description


Product Specialty
1.this wire feeder use our own designed motor which is special for welding machine with stable performance,long life time,high torque and low noise.It makes the small welding machine can be used for industry.


2.the welding torch is use the sample torch,if fix our plastic europe connector,this wire feeder can use the normal europe connector.
