Customized 4Lan Olt Fiber Oem Ont Sfp 4 Port Bridge Pon Router Modem Gpon Onu Bt Pon
- Category: >>>
- Supplier: Shenzhen Baitong Putian Technology Co. Ltd.
Share on (1600527174105):
Product Overview
Description
Products Description
Our company offer OEM OR ODM service, any details please kindly send us inquiries,thanks.

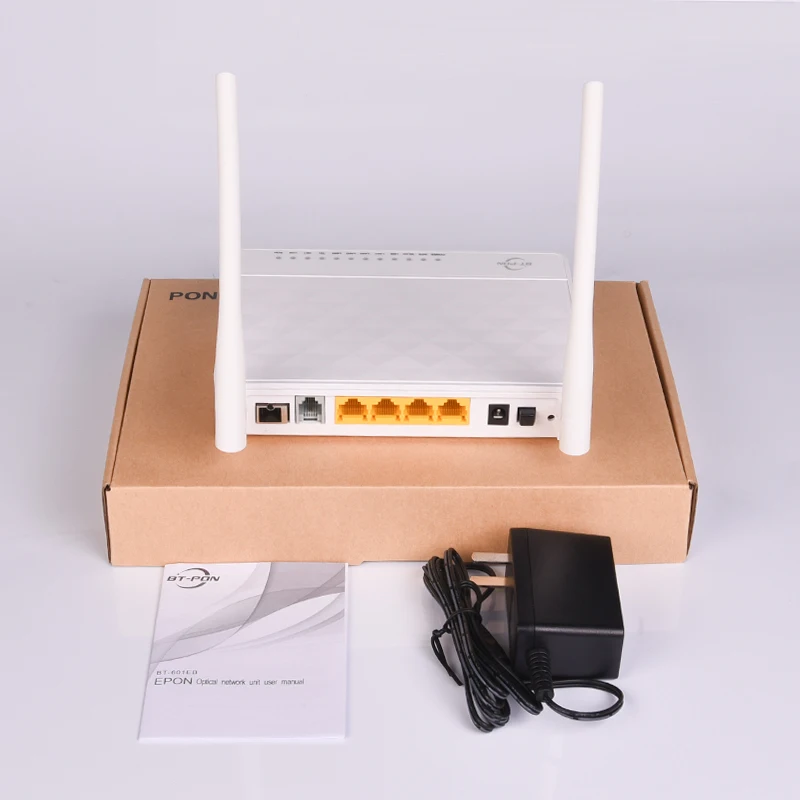

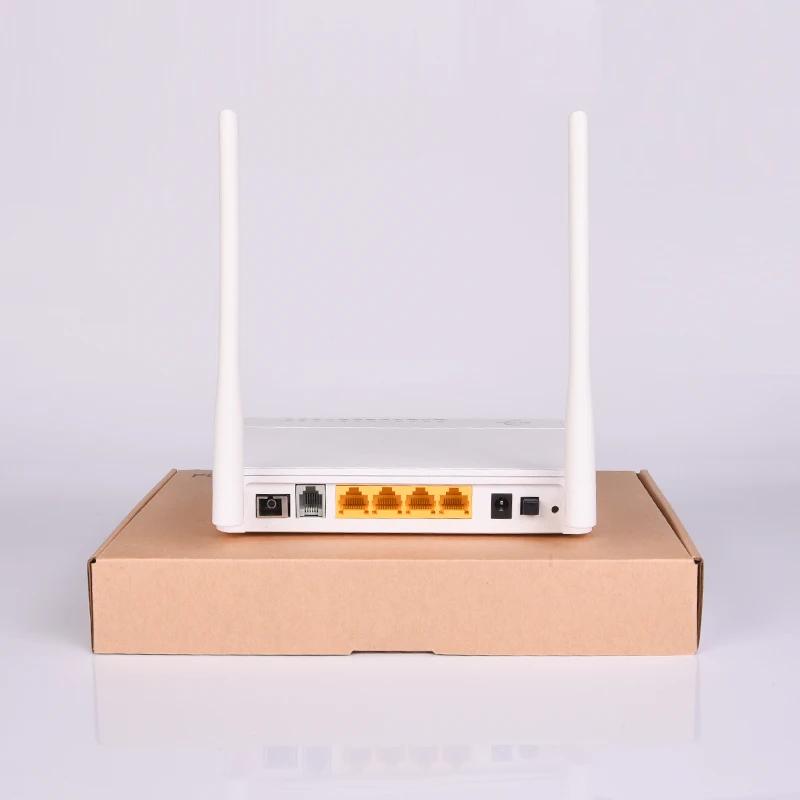

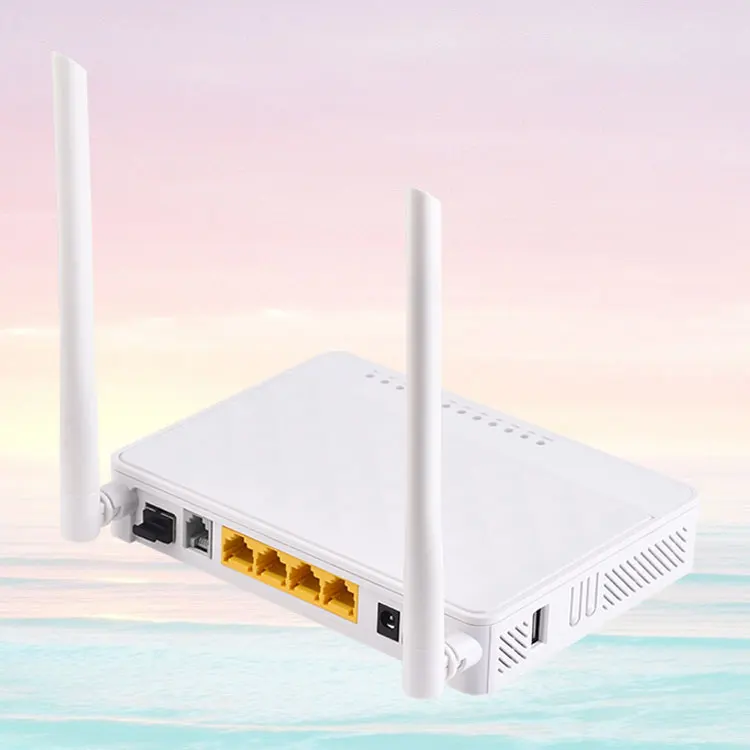

Customized 4Lan Olt Fiber Oem Ont Sfp 4 Port Bridge Pon Router Modem Gpon Onu Bt-Pon
BT-601GB model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH GPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.

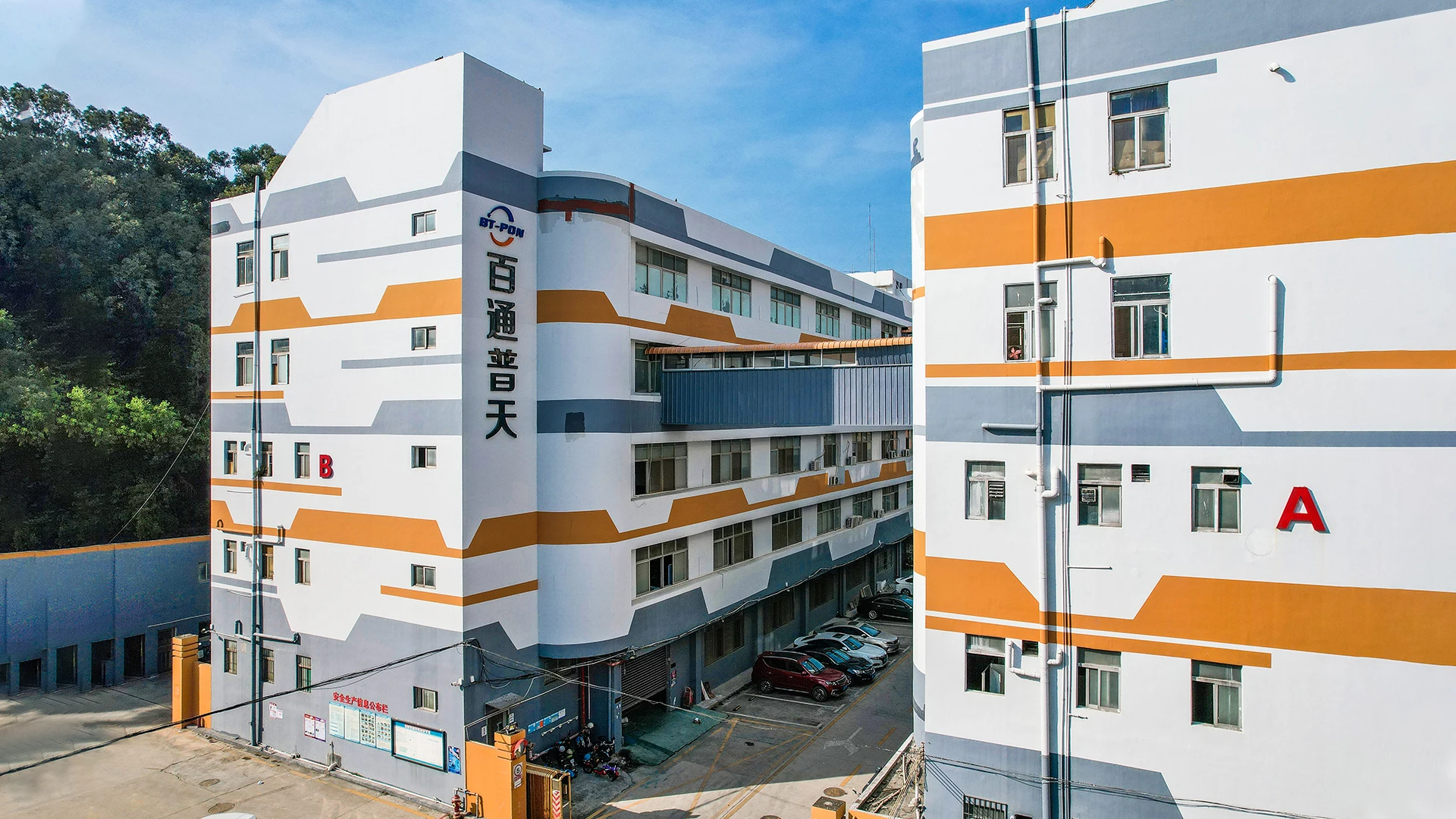

Company Introduction
BT-PON has more than 10 years experience in fiber optical equipment industry since 2008. We're specializing in research and development of FTTX solution, especially in ONU and OLT technology. OEM & ODM are available.Our products cover G/EPON ONU/OLT,EOC, POE switch and other FTTX project equipment so on. Products have exported to more than 20 countries and regions around the world.
Specification

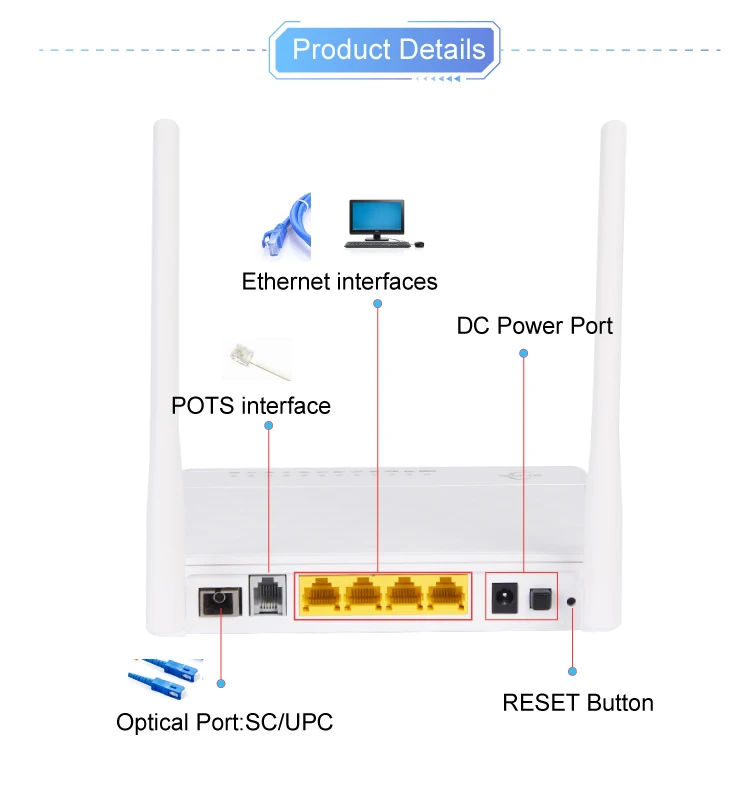

Hardware Specifications | ||

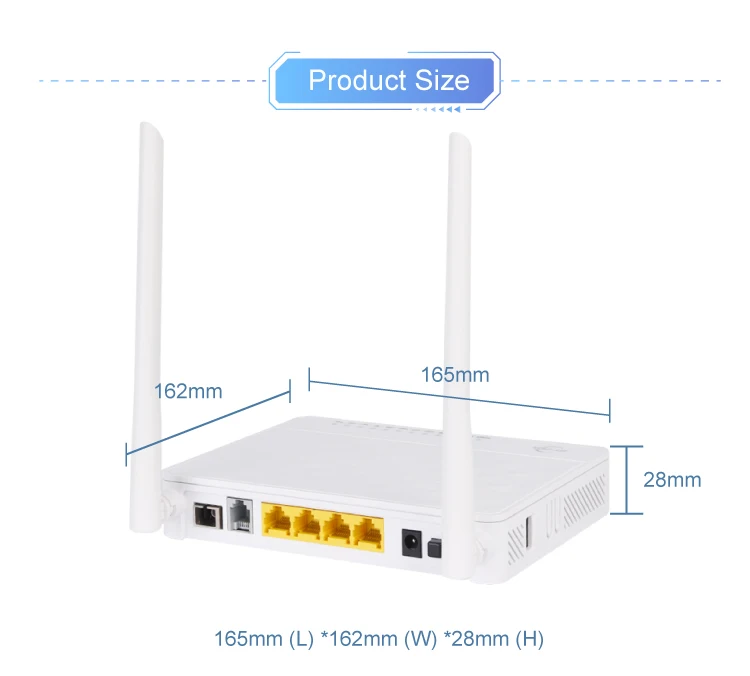

Size（L*W*H） | 165mm (L) *162mm (W) *28mm (H) | |
Optical signal access | 1*GPON | |
User interface | 4GE+VOIP+2.4G WLAN+1USB | |
Indicator light | POWER/WPS/WLAN/USB/LAN1/LAN2/LAN3/LAN4/TEL/INTERNET/LOS/PON | |
Button | Power switch Button, Reset Button, WLAN Button, WPS Button | |
300gWeight | 230g | |
Power adapter input | 100V～240V AC，50Hz～60Hz | |
PowerSupply requirement | 12V DC，1.5A | |
Power consumption | <10w | |
Working temperature | -10°C ~ +45°C | |
Environment humidity | 5% ~ 95% (Non-condensing) | |
PON Interface | ||
Module type | Class B+ SC/PC | |
Working wavelength | up 1310nm，down 1490nm | |
TX Optical power value | 0.5～4dbm | |
RX Optical power sensitivity | Receiver sensitivity：-27dBm Overload optical power：-8dBm | |
Transmission distance | 0～20km | |
Transmission rate | Uplink 1.244Gbps；downlink 2.488Gbps | |
Ethernet interface | ||
Interface type | RJ45 | |
Interface parameters | 1*10/100/1000Mbps and 3*10/100Mbps | |
Wireless | ||
Working mode | IEEE 802.11 b/g/n | |
Antenna pattern | External 2T2R External antenna | |
Antenna gain | 5dBi | |
Wireless bandwidth | Support 20MHz/40MHz | |
Interface rate | Maximum rate 300Mbps | |
SSID | Up to 4 SSID broadcasts are supported | |
POTS Interface | ||
Interface type | 1* RJ11 | |
Voice agreement | SIP | |
Codecs | G.711/G.723/G.726/G.729 | |
Integrated circuit protocol | Gr-909 protocol is applicable | |
Features：
* Compliance with IEEE 802.3ah & itu-t g.984.x standard
* GPON:8 T-CONTs,32 GEM Ports * Integrate OMCI and TR-069 remote configuration and maintenance
* Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
* Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
* Support PPPoE/ Static IP/ DHCP * Bi-directional FEC
* Support IPv4, IPv6 and IPv4/IPv6
* Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
* Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
* Qos supports PQ, WRR, and CAR queue scheduling

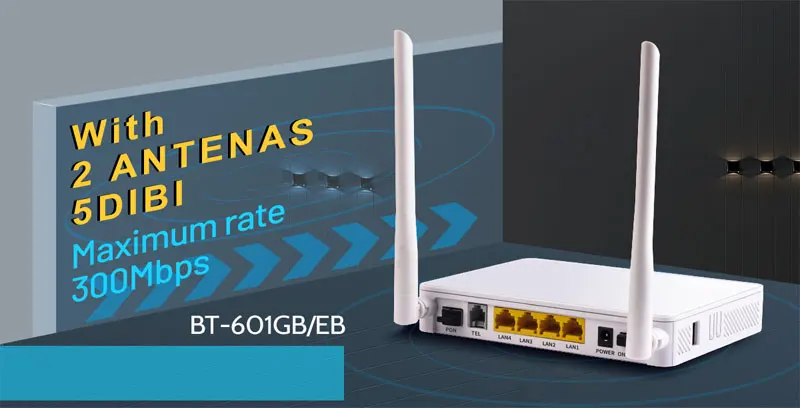

* Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
* Support DDSN, ALG, DMZ and UPNP
* Provide POTS interface, support SIP protocol，POTS integrated circuit test complies GR-909
Contact Us
Packing&Delivery

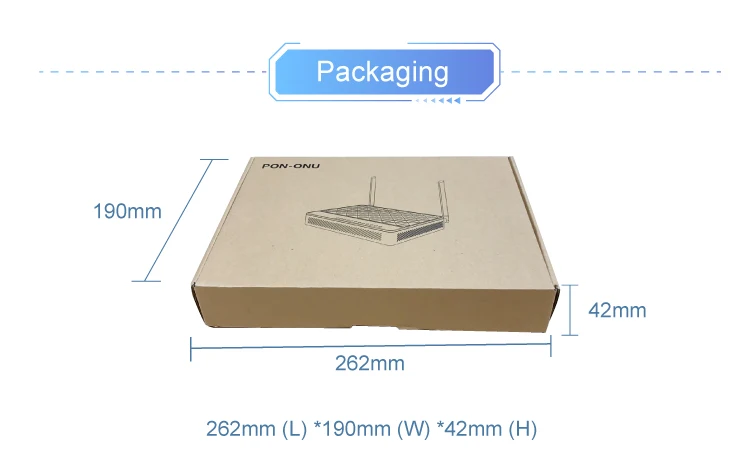

PACKING:
