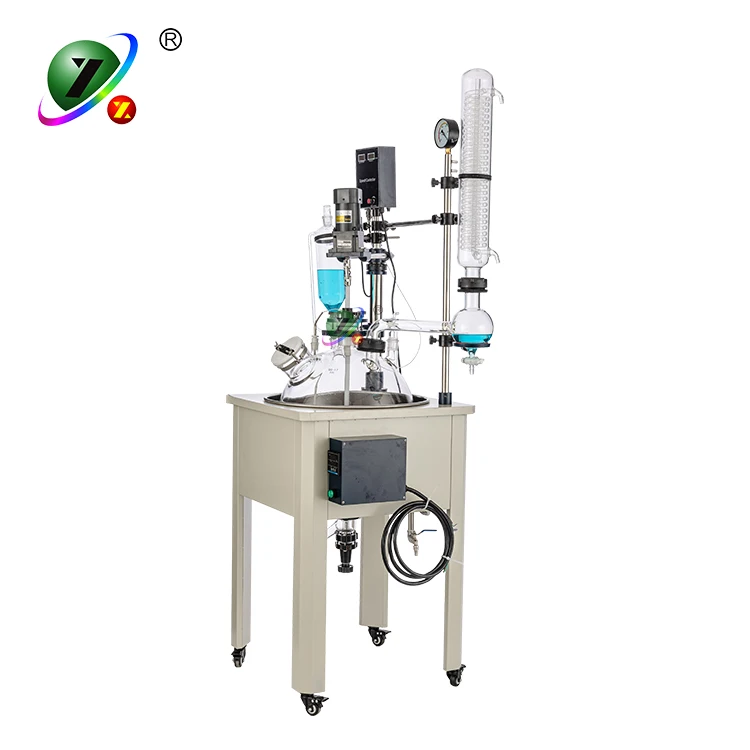

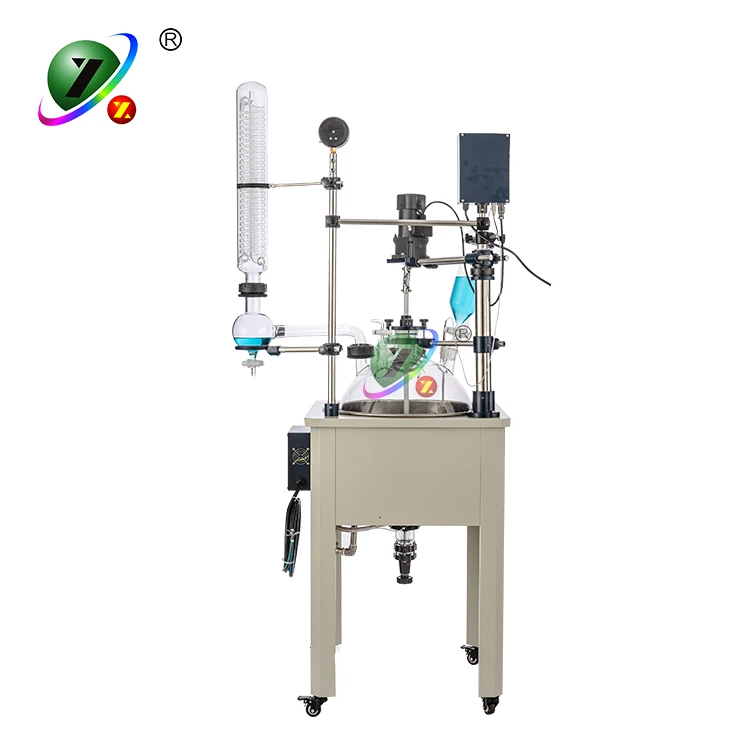

100L multi function reactor single layer glass reactor

 Working principle:

   This equipment is composed of electric constant speed stirring system, condensation, dropping system and heating bath. While stirring the materials, the bath heats the materials in the kettle. The evaporation efficiency can be increased under vacuum conditions ( a vacuum device need to be connected). The solvent vapor is cooled into liquid when passing through the glass condensing coil (a cooling device need to be connected), which can be refluxed into the kettle. It can also be recycled through the lower valve of the dean-stark. When the reaction is completed, the material can be discharged from the side outlet at the bottom of the kettle.

   This series of products need to be equipped with a vacuum device, a cooling circulating device, etc. to form a system devices.

Features:

• The parts in contact with the material are all made of high borosilicate glass (expansion coefficient 3.3) and PTFE materials, which have stable performance and are not easy to react with the materials.

• The main stent is made of cold plate anti-corrosive spray + aluminum alloy. And the bath is made of stainless steel.
• Glass + PTFE material discharging valve, side material discharge without effusion.
• Low-speed power-increasing motor, frequency control, fine adjustment through knobs, speed adjustment box with dual display function digitally displaying speed and material temperature in the kettle.

• Thermostatic bath with temperature digital display, switch controlling by knob with lock, K-type sensor at bottom of bath + stainless steel probe.

• The stirring system uses ceramic bearings and mechanical seal to prevent the stirring rod from wearing out.

• Using PT100 temperature sensor, 304 stainless steel material, wrapped in transparent PTFE tube , double anti-corrosion.

• Vacuum pressure gauge shows real-time vacuum indicated by pointer.

• Crescent+three-impeller type stirring paddle, 304 stainless steel + PTFE stirring blade. The material of the stirring rod is 304 stainless steel, and it is wrapped in PTFE tube outside.

• There is a water discharging valve at the bottom of the bath to facilitate liquid discharge.

• There is a universal wheel with brake at the bottom of the equipment, which can be moved as a whole and be operated easily.

• Stirring, heating two fuses safety protection.

Technical parameters:

Warranty Service

From the date of acceptance, we can provide 12 months quality guarantee, all the maintenance costs and accessories parts costs are free within the date of quality guarantee (spare and accessories parts costs from instrument faults by human factors will be charged proper costs).

After the date of quality guarantee, we will in charge of maintain instrument, and charge proper costs according to actual maintenance costs.

Our motto: First-Rate Service, First-Rate Quality.

Welcome new and old customers to our factory, and we guarantee that our products have high-quality and more favorable price.

We wants to joint hands with you to create more precise experimental instruments.

1. Are you the factory?

Yes, we’re.

Established in 2002, we manufacture rotary evaporator, cylindrical jacketed reactor, cryostat etc.

In 2006 year, we associated with our soul partner QiXin instrument, developed commonly new production line, now, we manufacture CO2 Incubator, Cooling Incubator, Shaker Incubator, Blast Oven, Vacuum Oven, Climatic chamber and those products. Etc.

2. What is the delivery time?

Normally, we have stocks for our hot sale products, the delivery time is about 5-10 days. For the customized instrument, it’s about 10~20 days.

3. What’s the warranty period? How do you provide this?

One year (12 months).

We have very strict inspection, the instruments which you received is high-quality and reliable.

If there’s any error, we’ll provide you the on line solution with in 12 hours. We’ll provide you the spare parts and the shipping cost totally free.

If the problem was caused by the instrument quality, and cannot be repaired, we’ll ship you the new one.
