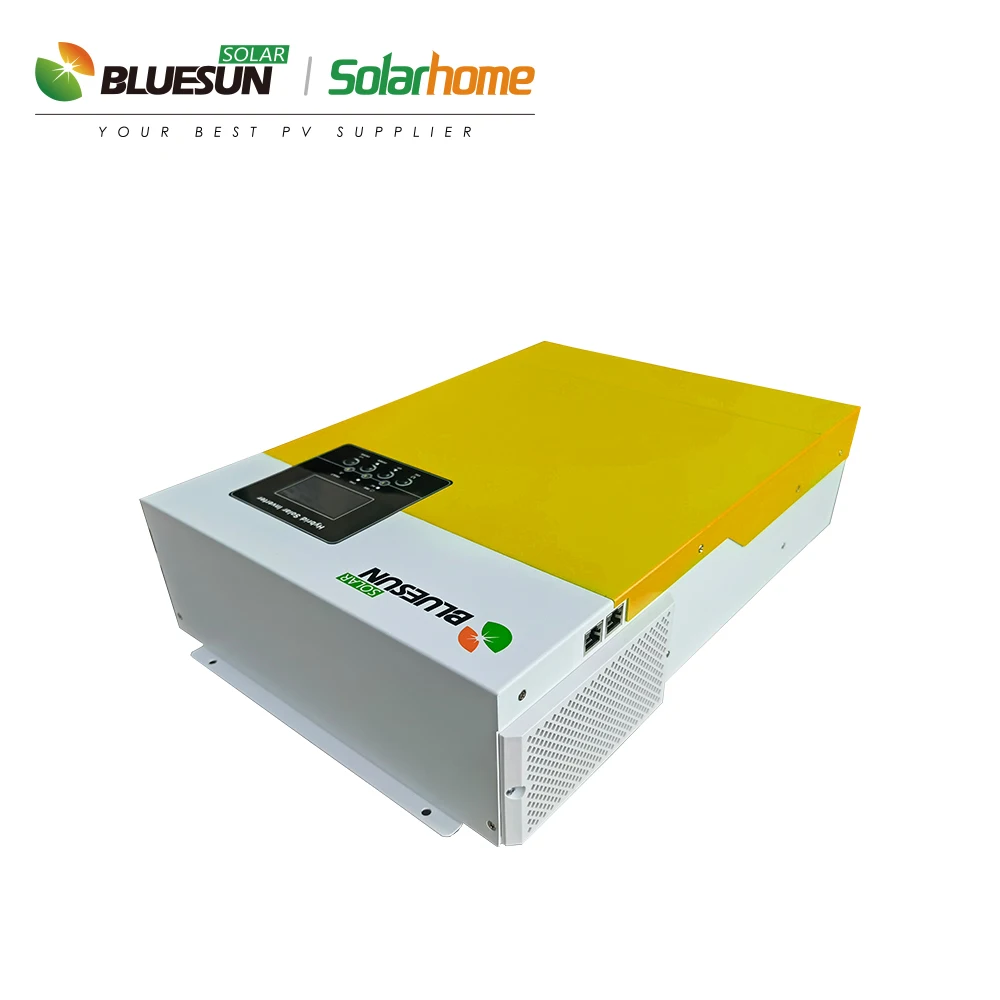

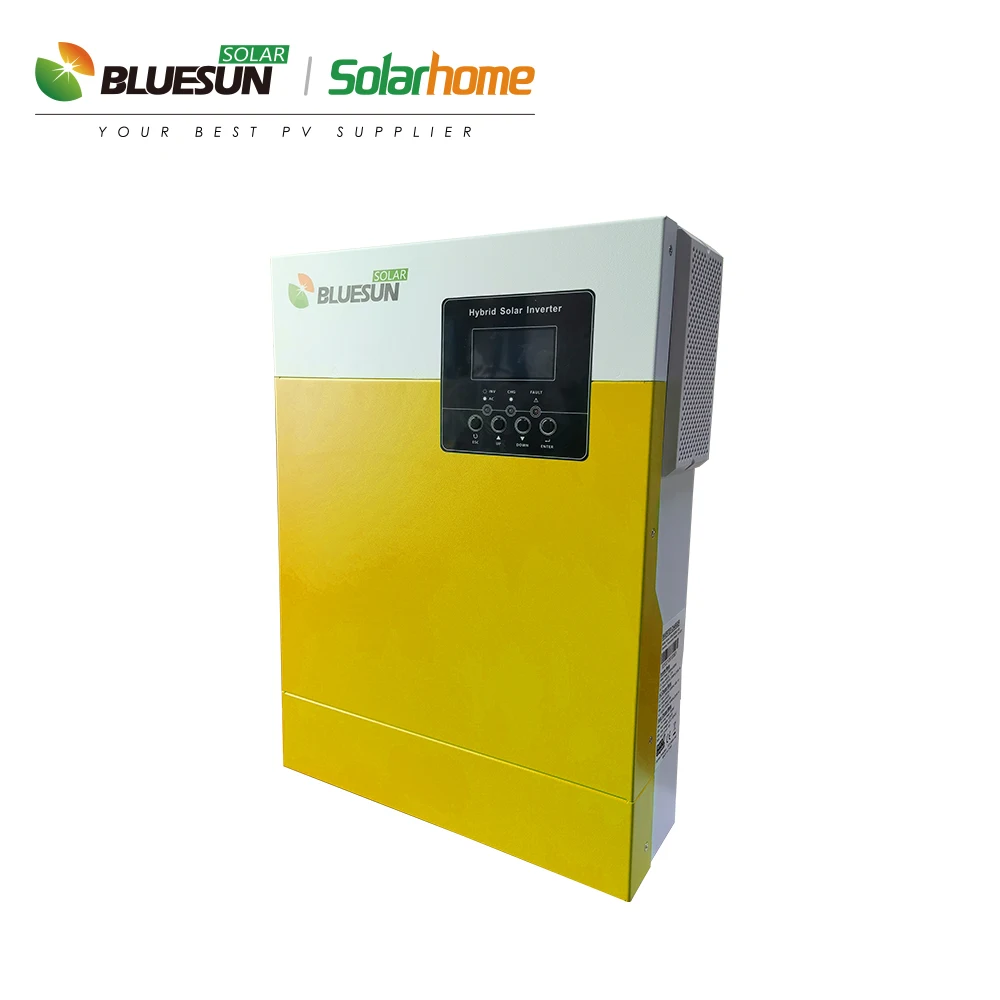

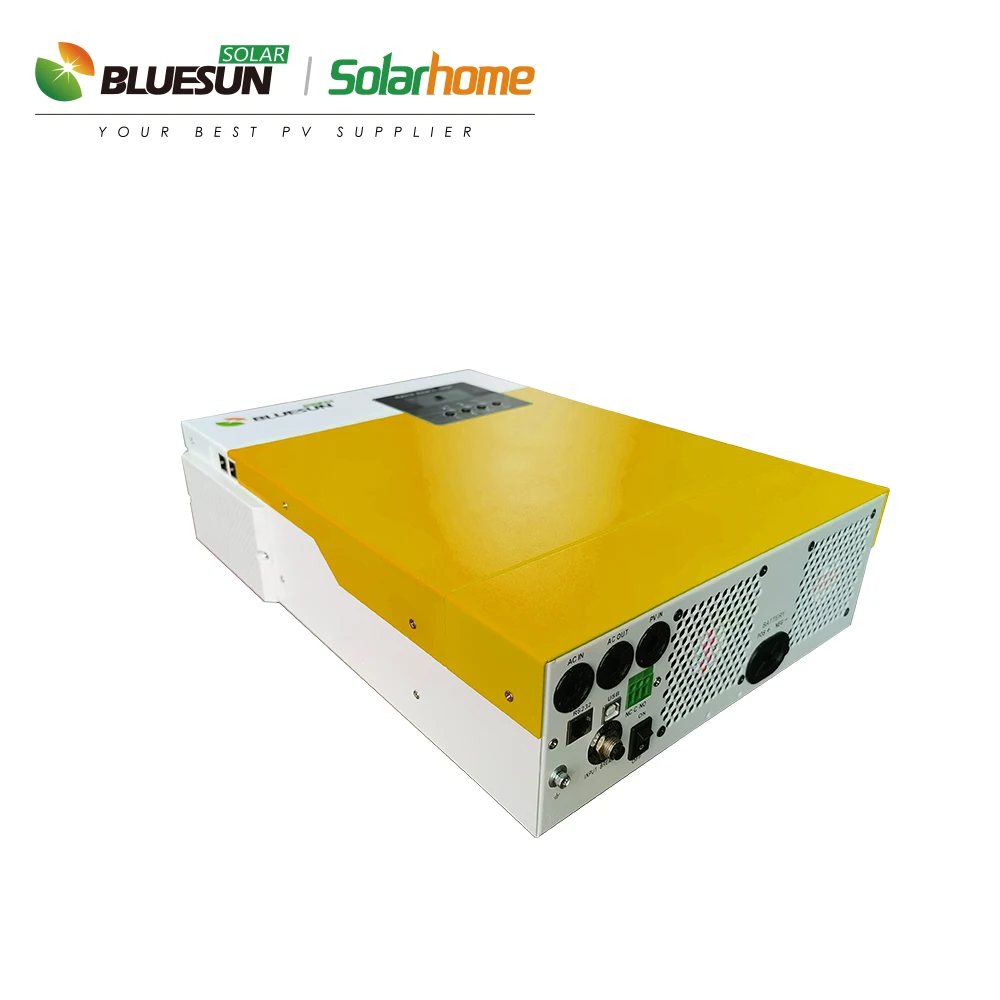

Blusun 3000w 3kw hybrid off grid solar inverter Reverse control all in one machine parallel units
- Category: >>>
- Supplier: Bluesun Ess Co. Ltd.Bluesun Ltd.
Share on (1600527191769):
Product Overview
Description
Advantages of Bluesun
Product Description
Technical Data | ||
MODEL | BSM-3000USLV-48 | |
CAPACITY | 3KVA/3KW | |

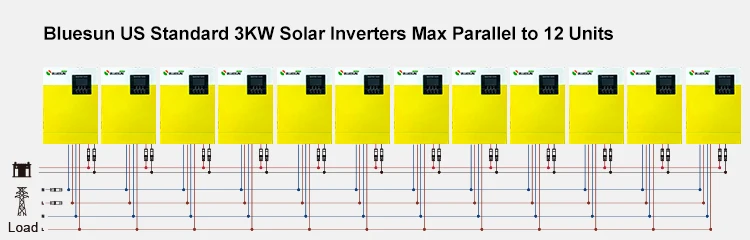

Parallel Capability | YES, 12 units | |
Split phase operation | YES,need at least 2 units parallel | |
INPUT | ||
Nominal Voltage | 110/120VAC | |
Acceptable Voltage Range | 95-140VAC(For personal Computer);65-140VAC(For Home Appliances) | |
Frequency | 50/60 Hz (Auto sensing) | |
OUTPUT | ||
Nominal Voltage | 110/120VAC±5% | |
Surge Power | 6000VA | |
Frequency | 50/60HZ | |
Waveform | Pure Sine wave | |
Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) | |
Peak Efficiency (PV to lNV) | 97% | |
Peak Efficiency (Battery to INV) | 93% | |
Overload Protection | 5s@>=150% load; 10s@110%-150% load | |
Crest Factor | 3:1 | |
Admissible Power Factor | 0.6*1 (inductive or capacitive) | |
BATTERY | ||
Battery Voltage | 48VDC | |
Floating Charge Voltage | 54VDC | |
OverCharge Protection | 63VDC | |
Charging Method | CC/CV | |
Solar Charger& AC Charger | ||
Solar Charger TYPE | MPPT | |
Max.PV Array Power | 5000W | |
Max. PV Array Open Circuit Voltage | 500VDC | |
PV Array MPPT Voltage Range | 120VDC-450VDC | |
Max. Solar Input Current | 18A | |
Max. Solar Charge Current | 80A | |
Max. AC Charge Current | 60A | |
Max. Charge Current | 80A | |
PHYSICAL | ||
Dimensions D x W x H(mm) | 435x295x105 | |
Package Dimensions D x W x H(mm) | 560x380x190 | |
Net Weight (Kg) | 10 | |
Communication Interface | Rs485/RS232/Dry-contact | |
ENVIRONMENT | ||
Operating Temperature Range | -10°C to 50°C | |
Storage temperature | -15°C~60°C | |
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |

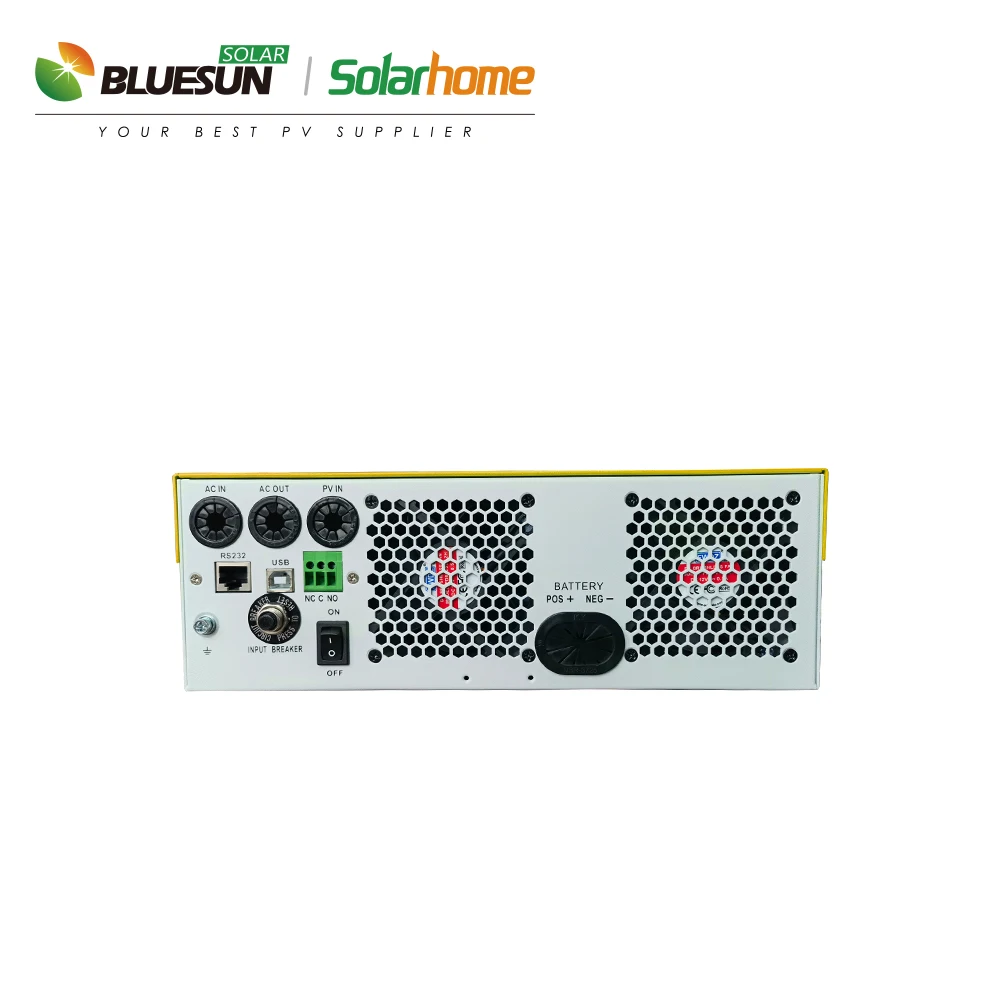

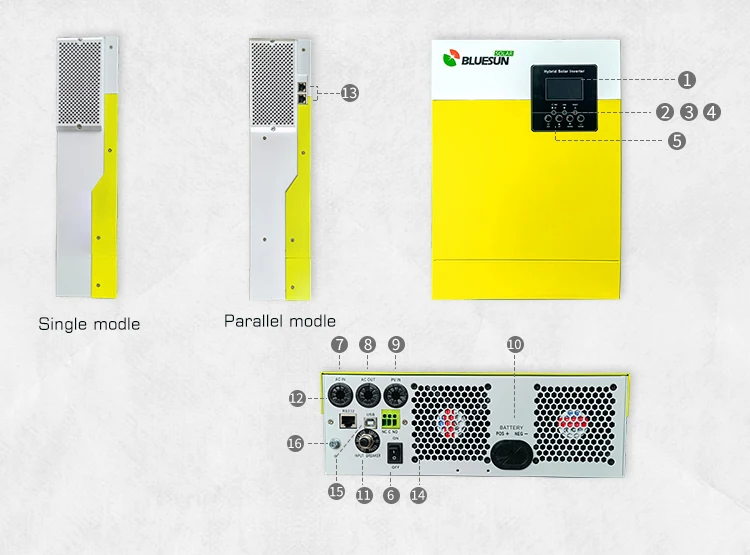

Product overview
1 | LCD display | 9 | PV input |
2 | Status indicator | 10 | Battery input |
3 | Charging indicator | 11 | Circuit breaker |
4 | Fault indicator | 12 | RS232 communication port |
5 | Function buttons | 13 | Parallel communication port (only for parallel model) |
6 | Power on/off switch | 14 | Dry contact (Optional) |
7 | AC input | 15 | USB communication port (Optional) |
8 | AC output | 16 | Grounding |
Note: For parallel model installation and operation, please check the parallel installation guide for the details.

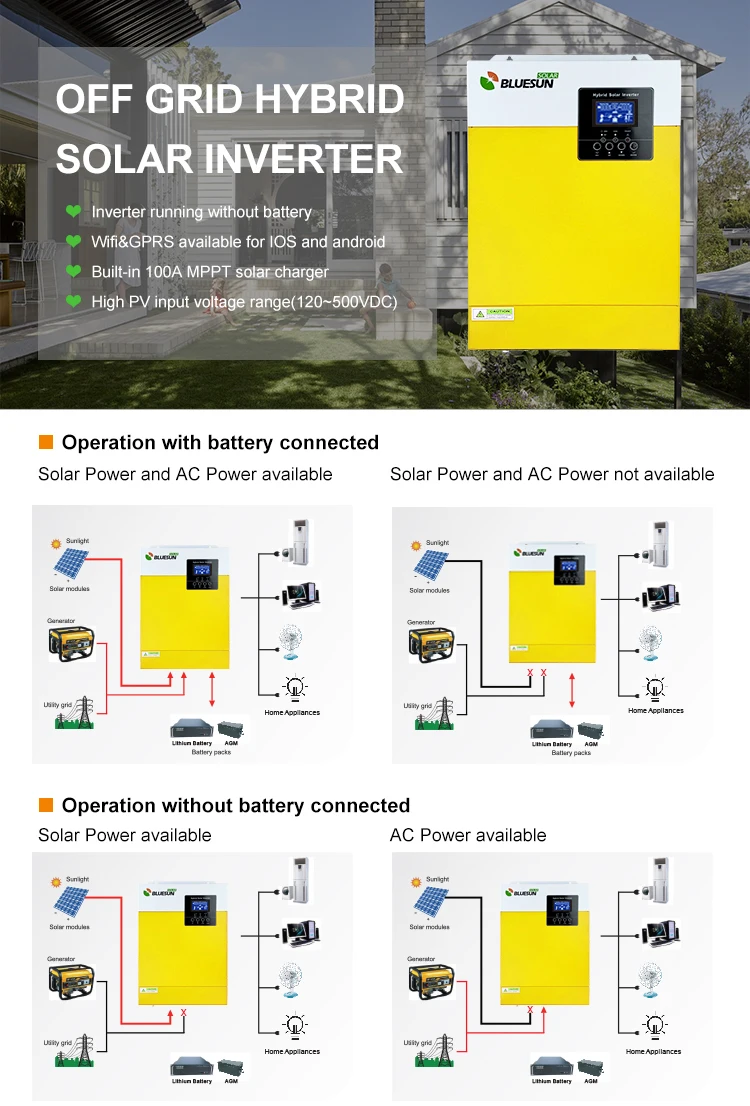

Key Features

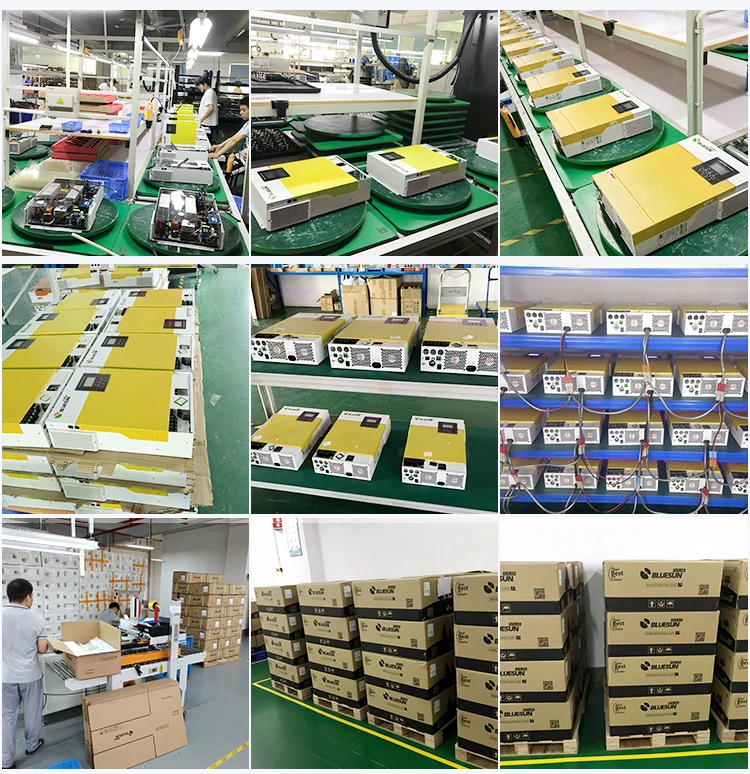

Packing & Delivery
Note:
BSM-3000USLV-48：40pcs/pallet,BSM-3500LV-24 : 40pcs/pallet,
BSM-5500LV-48： 40pcs/pallet.
BSM-5500LV-48： 40pcs/pallet.

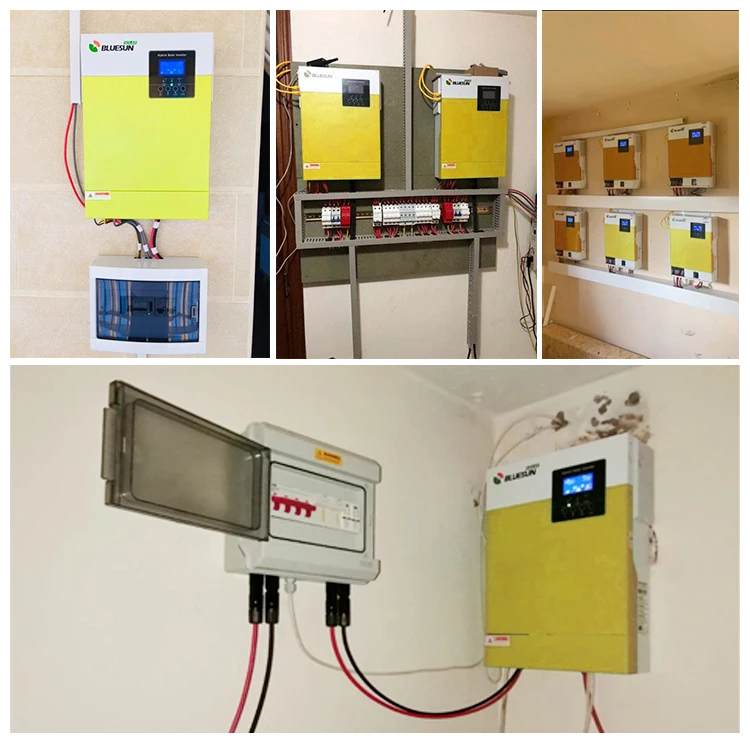

Project
