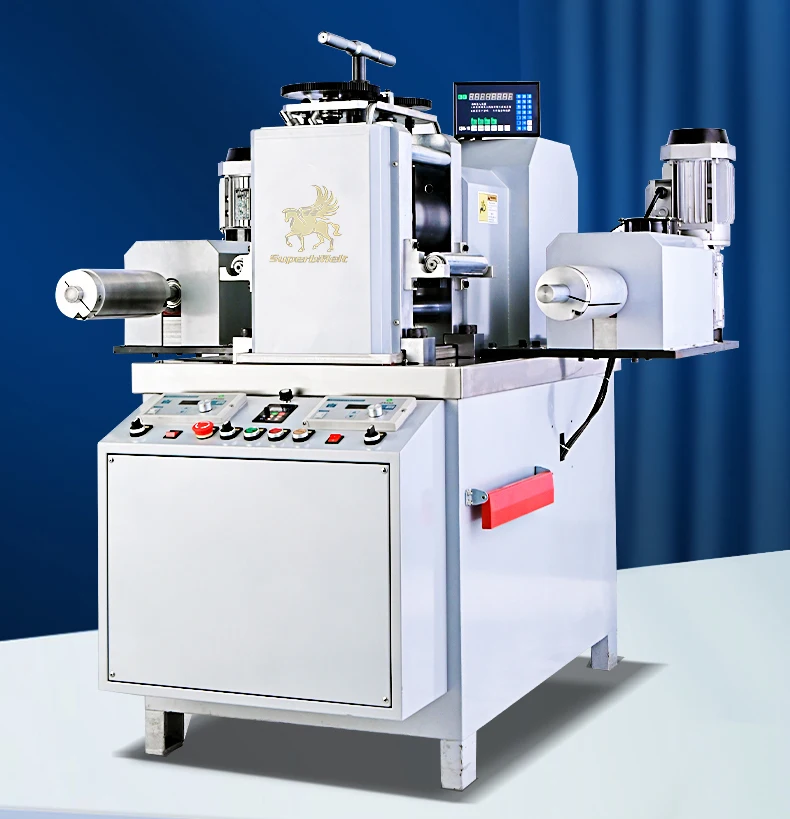

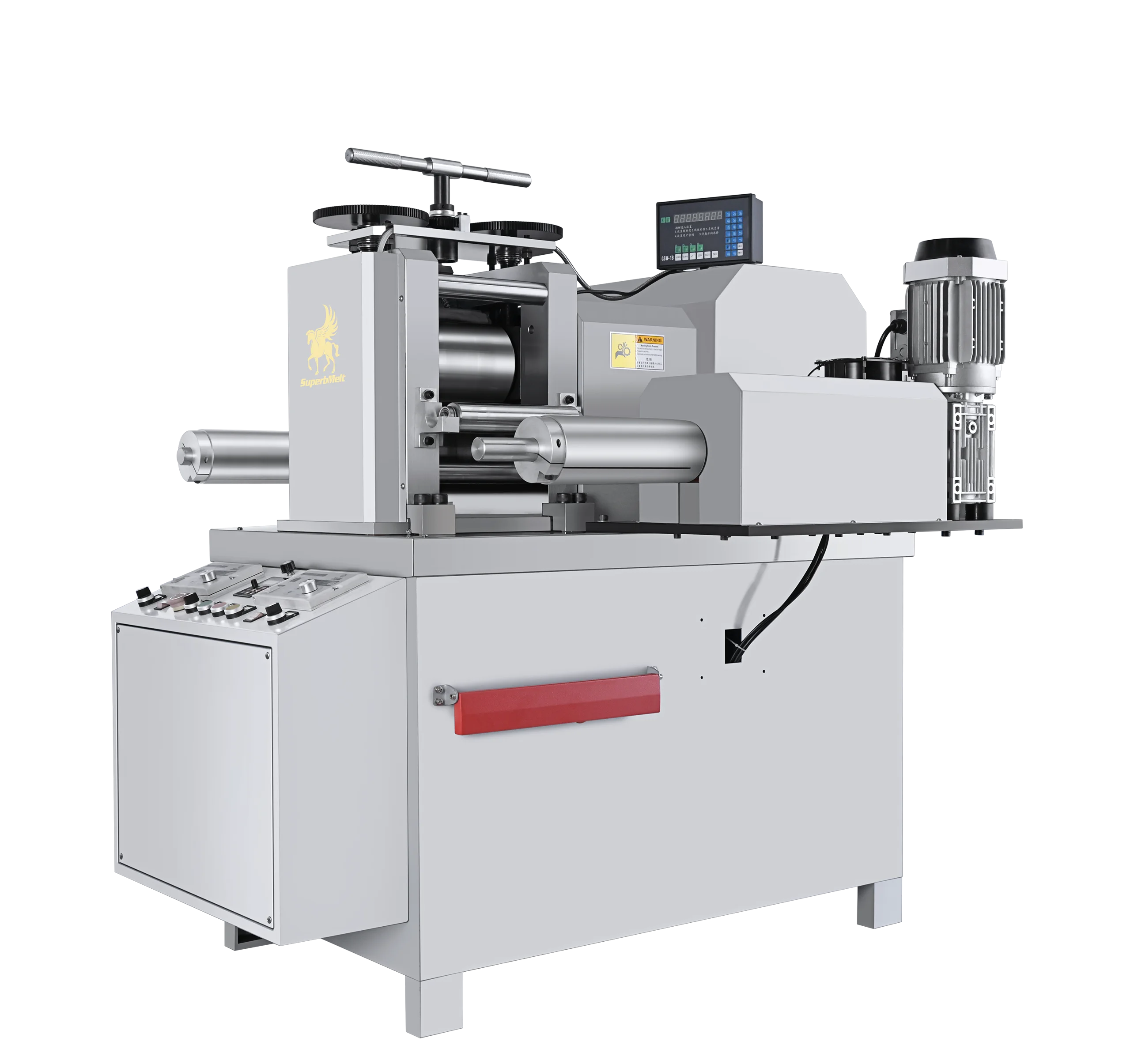

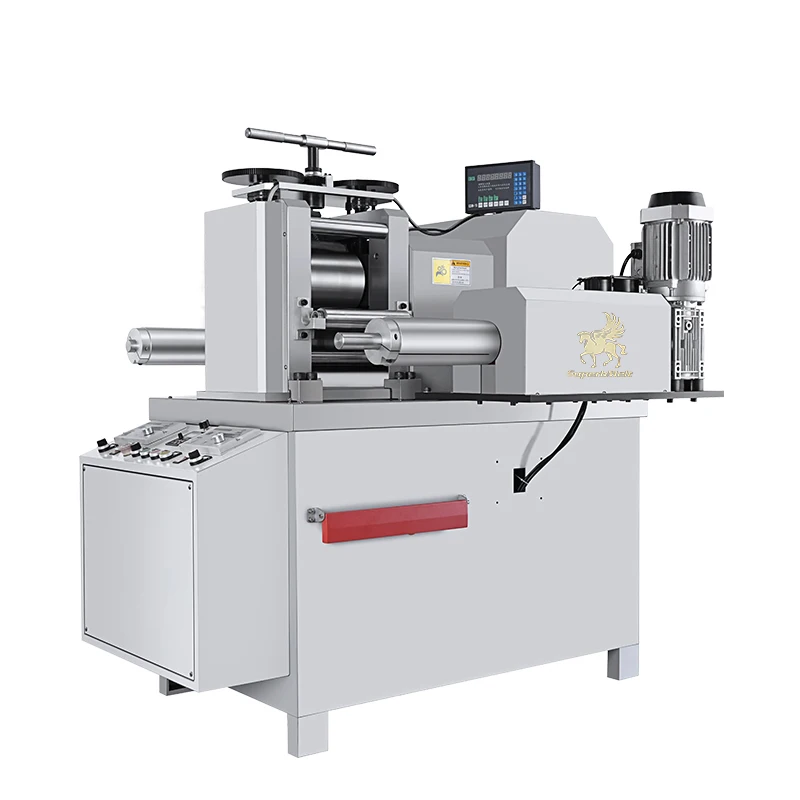

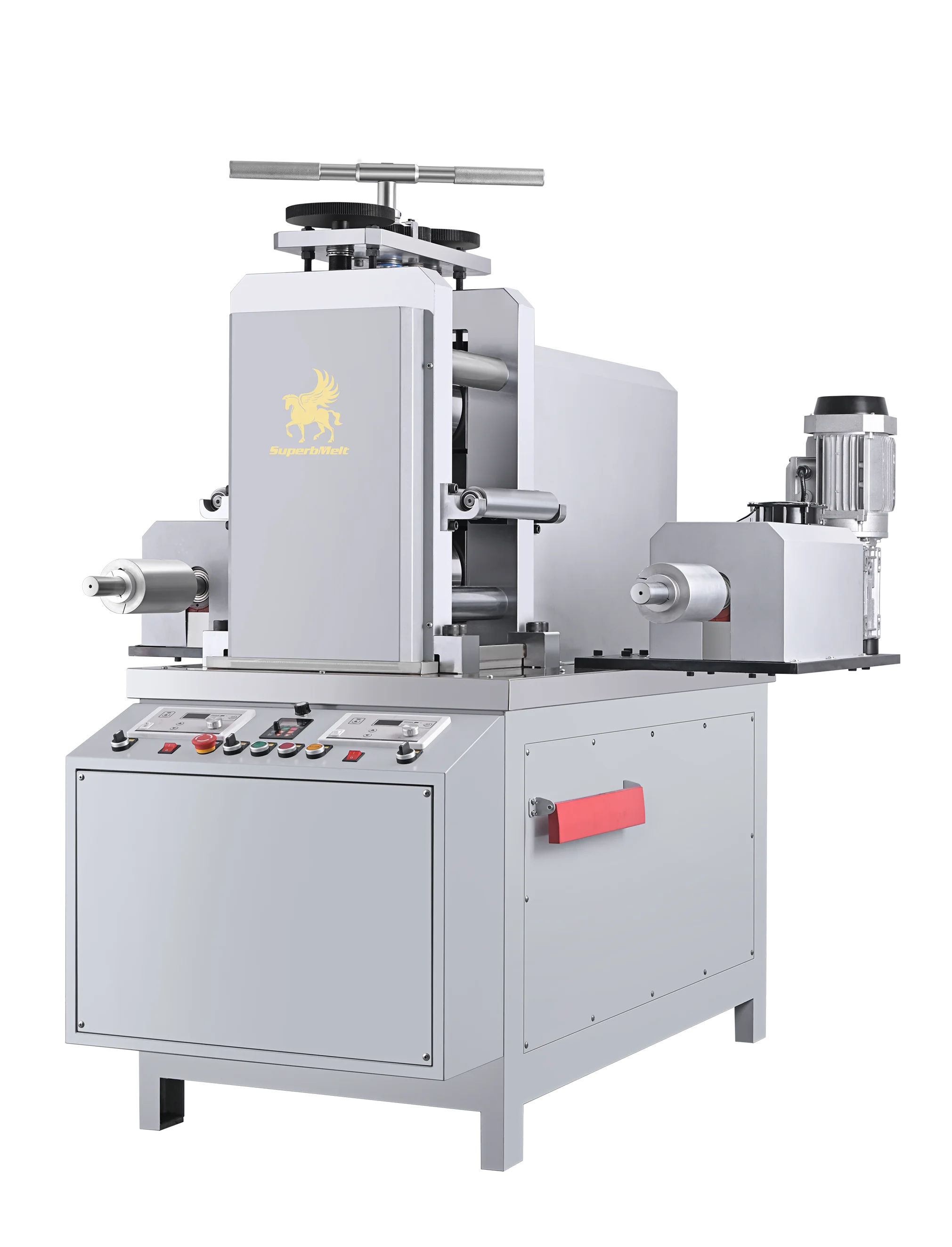

SuperbMelt Automatic Winding Gold Silver Brass Jewelry Plate Sheet Metal Rolling Machine
- Category: >>>
- Supplier: Longgang Superb Electromachinery Co. Ltd.
Share on (1600527195615):
Product Overview
Description
Products Description
Model number | SPB-YP-15-B |
Type | 12P integrated sheet rolling machine(with winding) |
Power source (V) | 380 |
Power (kw) | 9 |
Roller size (D * L mm) | 150*210mm |
Max. thickness (mm) | 25mm |
Min. thickness(mm) | 0.01mm |
Optimum tablet width | Within 80mm |
Revolving speed (rpm) | 24/min |
lubricating system | Automatic lubricating oil supply |
Max. width | 200 |
Dimensions (mm) | 1320*1200*1400 |
Weight (kg) | 1100kg |
Lubrication system | Automatic oil supply |
High hardness finale
Both shafts are driven by precision cross couplings,the hardness is as high as HRA60-62 degrees, the efficiency is guaranteed, and the selected materials make the life longer
Germany INA roller bearings
Roller pressing is realized by gear rotation, use imported bearings, high precision, more durable
High precision
The finished product is neat and straight, the thickness is uniform, the tolerance is within 0.005, and the error is low

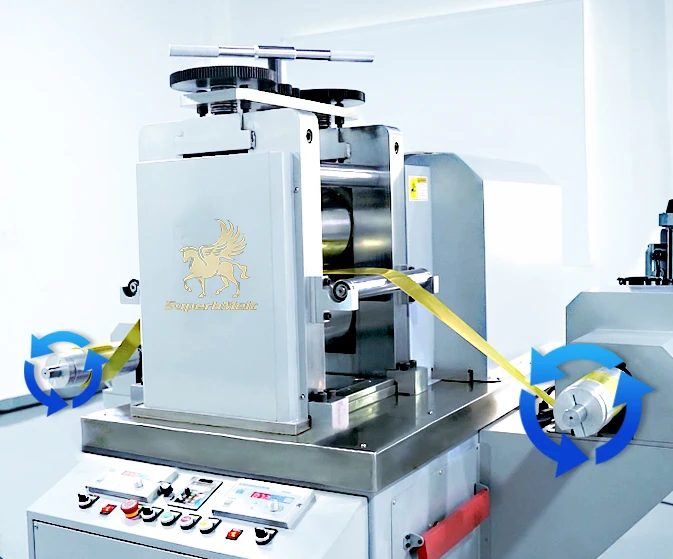

With winding
Double-sided tape rewinding and unwinding greatly improves production efficiency and finished product qualification rate
Screen display
Real-time display of tablet thickness, no need for manual repeated measurement
Adjustable retractable tension
Use the highly sensitive adjustable magnetic powder device is used to avoid fragmentation due to excessive tension.
Performance Features
1. The reel roll of the equipment is made of super-hard alloy steel, which is the current high-hardness reel roll material.
2. The movable roller adopts a linkage mechanism, the same as above and below, to ensure the uniform thickness of the processed metal, and is equipped with a thickness adjustment scale, which can ensure the thickness accuracy of the finished product
3. It adopts multi-stage transmission, combined with various transmission structures, and the speed is adjustable.
4. The fuselage is thick and the equipment works smoothly and without noise
5. The manufacturing process strictly controls the machining accuracy of the parts and improves the mechanical service life.
Applications

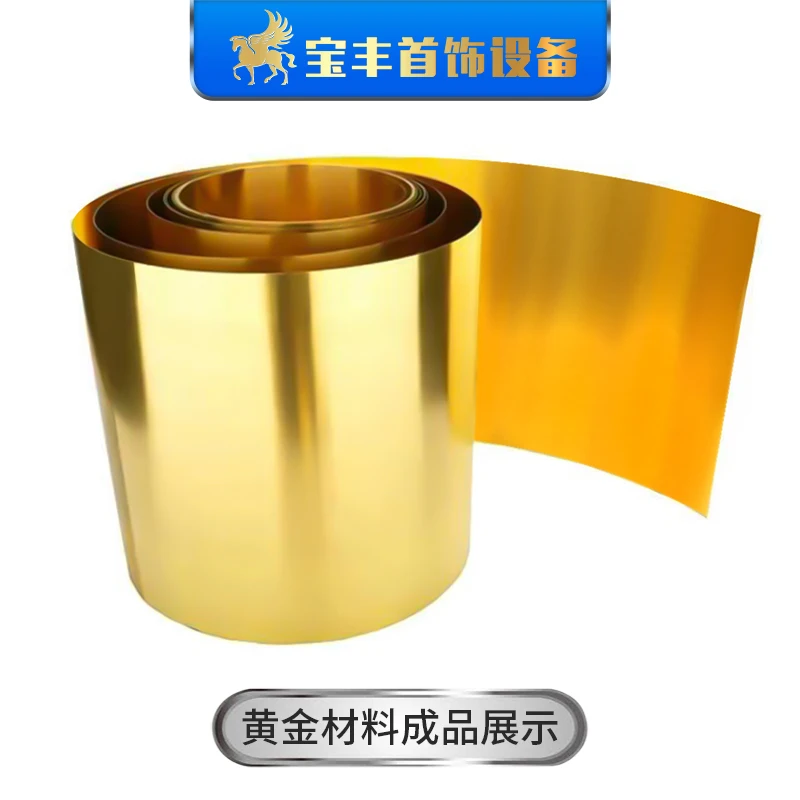

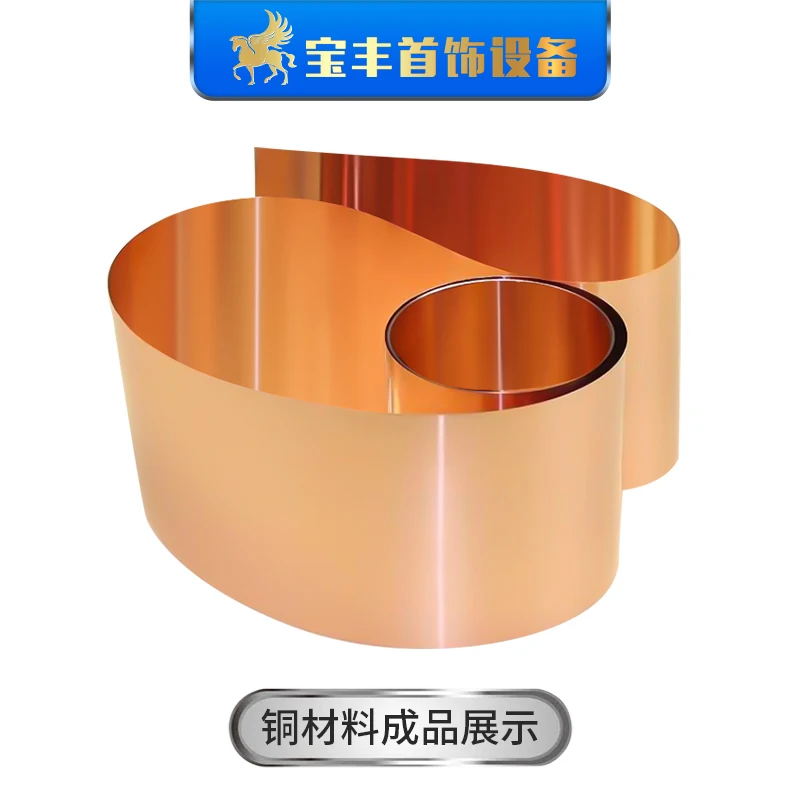

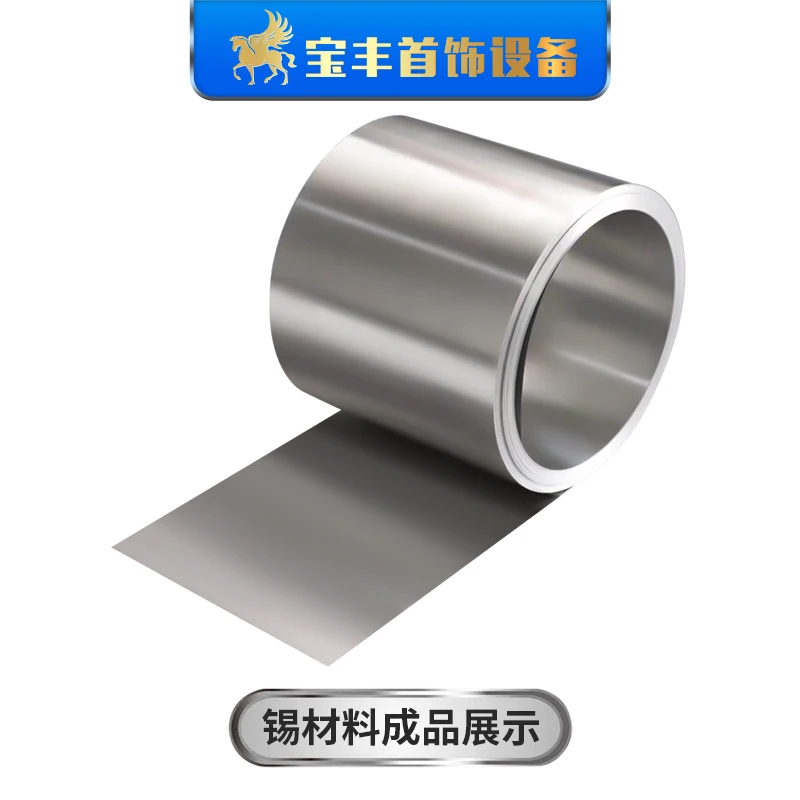

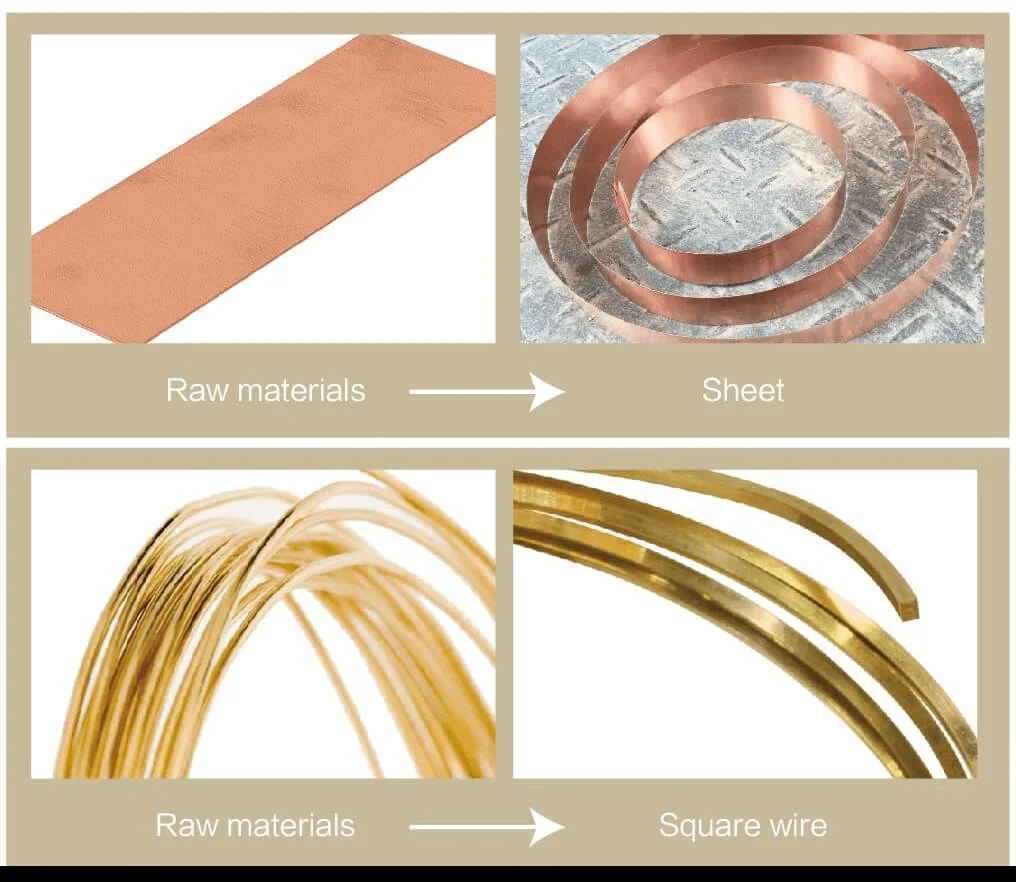

1.Metal motors with good ductility such as K gold, sterling silver, gold, pressed 925 silver, copper, and aluminum can be forward and reversed.It is easy to return materials if problems are found during operation.
2.SuperbMelt provides mostly various types of rolling machines to meet different width and thickness rolling requirements. They are widely used in semi-finished products of jewelry and gold artworks.
