High Quality 7 Inch Touch Screen 800x480 Mini HDMI Monitor TFT LCD Display Compatible with Raspberry Pi 400 4 3B 3B Windows PC
- Category: >>>
- Supplier: Bofeng intelligent (Shenzhen) Co. Ltd
Share on (1600527199457):
Product Overview
Description
About this item
* 7 inch LCD display USB capacitive touch control, no driver needed, plug and play. The resolution up to 800*480.
* Supports backlight control, the back light can be turned off to save power.
* Compatible with the latest Raspberry Pi 4B, BB Black, Banana Pi and other mainstream mini PC.Compatible with the latest Raspberry Pi 4B, BB Black, Banana Pi and other mainstream mini PC.
* Can be used as a general-purpose HDMI display, device output just need to adjust to 800*480.
* Works perfectly for Raspberry Pi 3 2 Model B B+ win 7/8/10 systems.
BeFunS |
Product Description

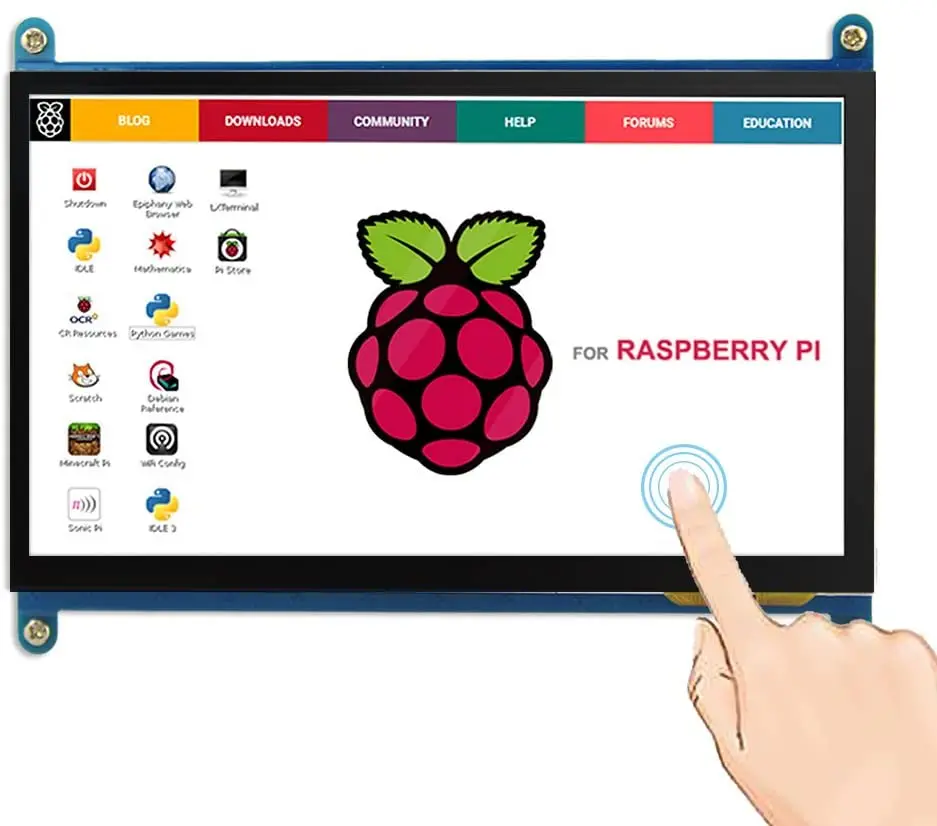

BeFunS 7 Inch Touchscreen Display
This 7 inch small HDMI LCD supports high resolution of 800*480 and capacitive touch screen.
Besides it upgrades to IPS screen with larger visible angle and more clear display effect.
It supports manual backlight control, backlight switch can be turn off to lower power consumption.
With capacitive touch control, plug and play, no driver needed.
Broadly you can apply it to mini PCs (Raspberry Pi/BB Black/Banana Pi), desktop PC and game consoles.

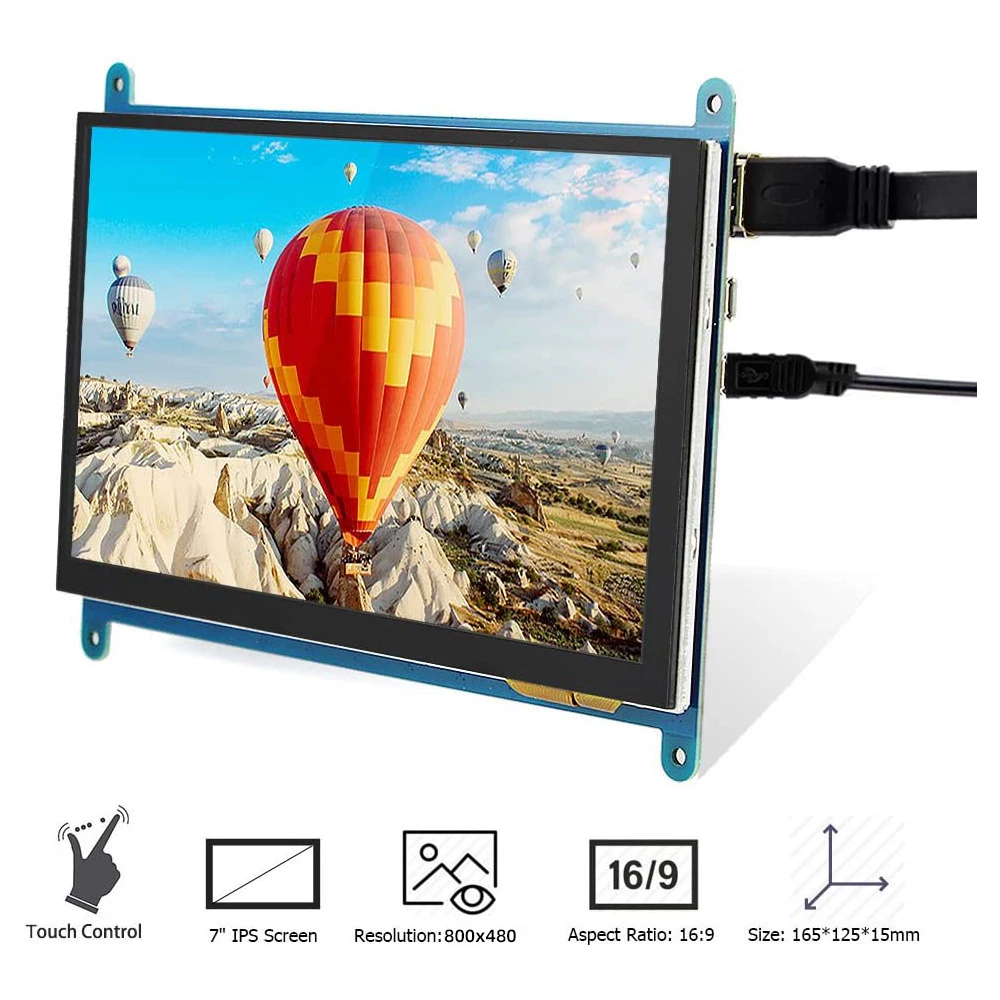

Specifications
Size: 7.0 (inch)
Resolution: 800*480 (dots)
Screen Panel: IPS
Touch: maximun support 5 point capacitive touch

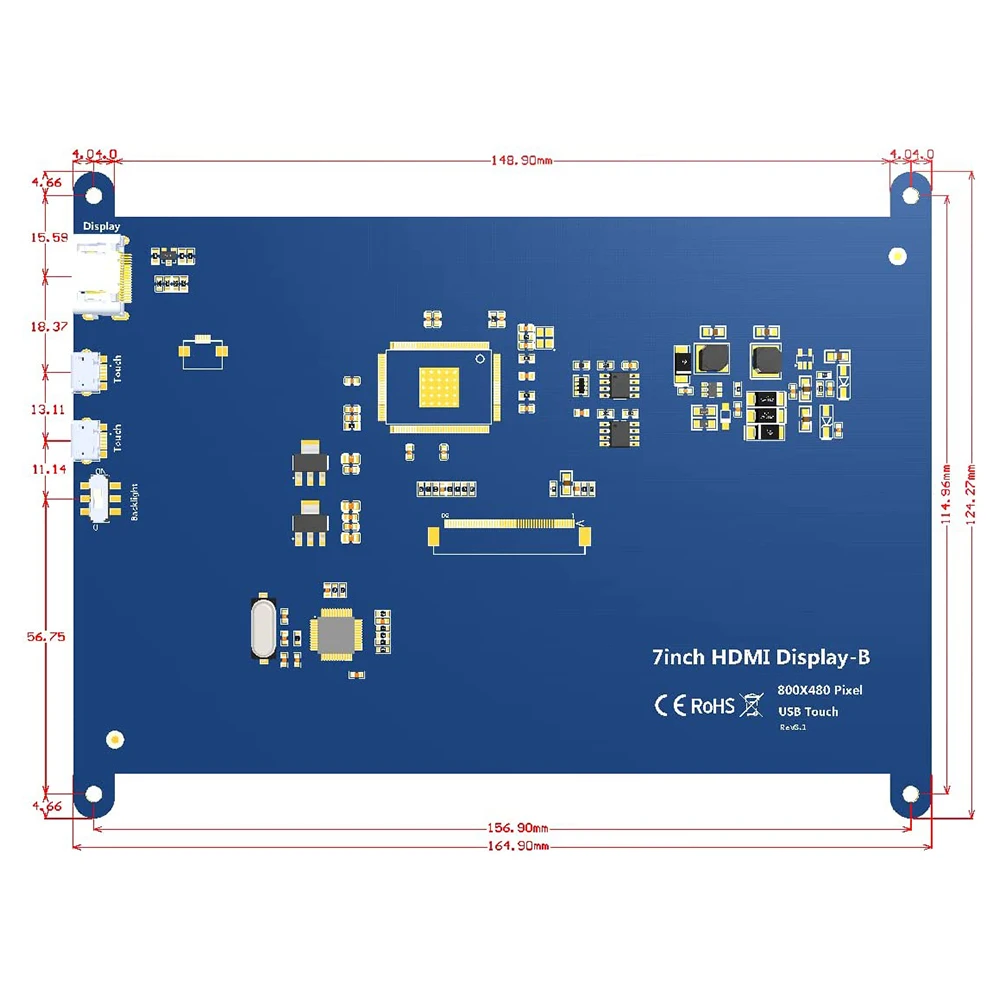

Dimensions: 164.9 * 124.27 (mm)
Weight: 380 (g)
Power Dissipation: 0.62A*5V @1024*600
Note: it's recommended to use 5V3A or above power supply to ensure enough power.
*When working with Raspberry Pi 4, please comment out by adding # in the front of "dtoverlay = vc4-fkms-V3D" or delete this line directly in the config.txt file.
Compatible Devices & OS

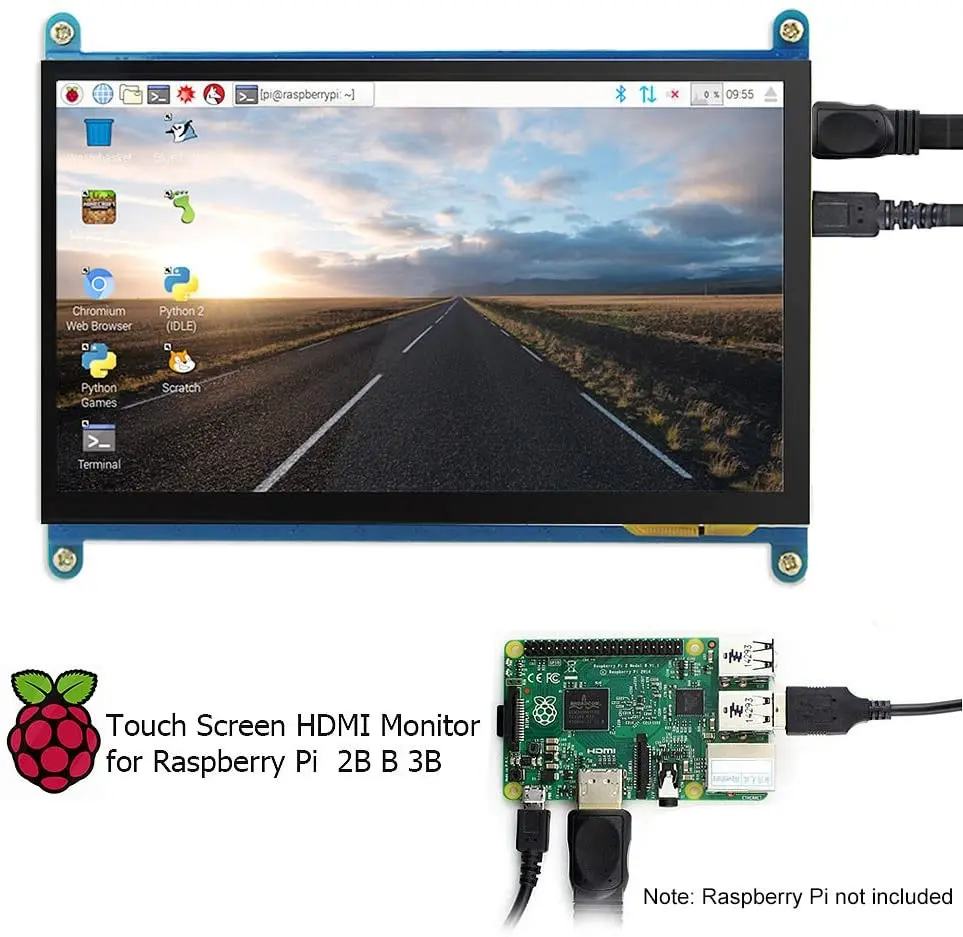

When worked with Raspberry Pi
* Supports Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC.
* Used as a Raspberry Pi display that supports Raspbian,
Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive.
When worked with PC
* Supports PC with HDMI port.
* Used as a small second monitor for laptop which has Win7,
Win8, Win10 system, 5 point touch (XP and older version system: single-point touch), free drive.
When worked with other devices
* Used as general-purpose mini HDMI monitor, touch function NOT available.

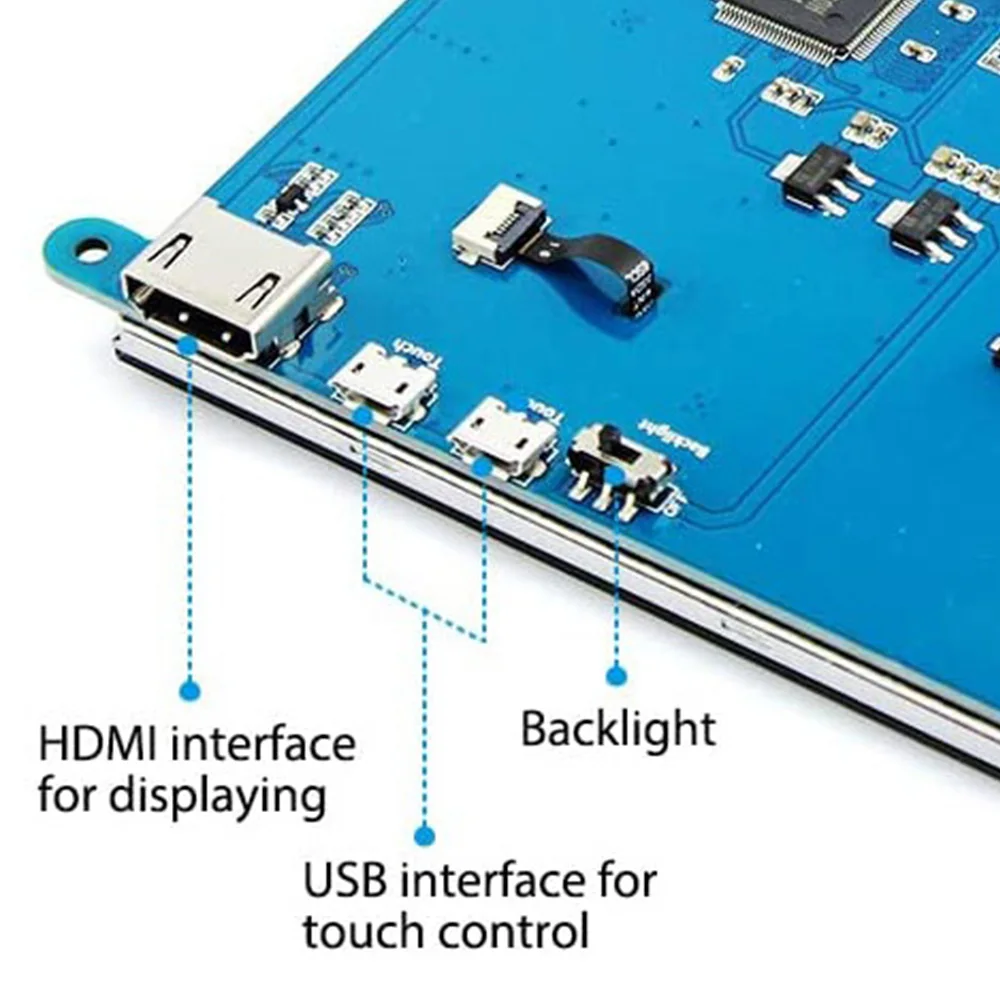

Hareware Description
HDMI interface: For connecting motherboard and LCD monitor to HDMI transmission.
Touch interface: For power supply and touch output, 2 same ports designed to prevent insufficient power supply when needs extra power.
Backlight switch: Controls the backlight turned on and off to save power.
Connected to RPI 4
Please connect to HDMI 0 port when worked with Raspberry Pi 4.
* If no signal detected, please add external power supply to the screen when turn it on. Then unplug the external power supply and just power the screen by the usb port of the pi if you want to get the touch function available

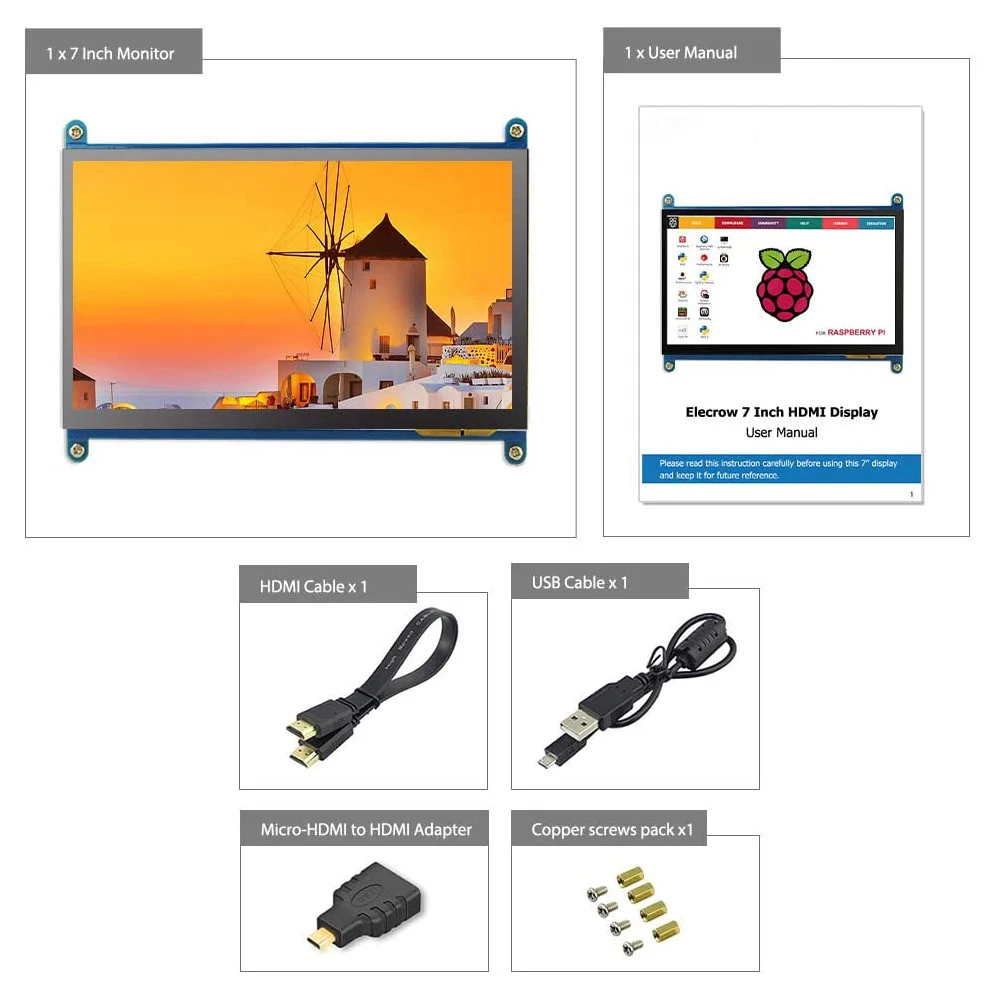

Package List
7 Inch capacitive HDMI display x1
HDMI cable x1
USB cable x1
Micro HDMI to HDMI adapter x1
Copper screws pack (4pcs) x1
HDMI cable x1
USB cable x1
Micro HDMI to HDMI adapter x1
Copper screws pack (4pcs) x1
