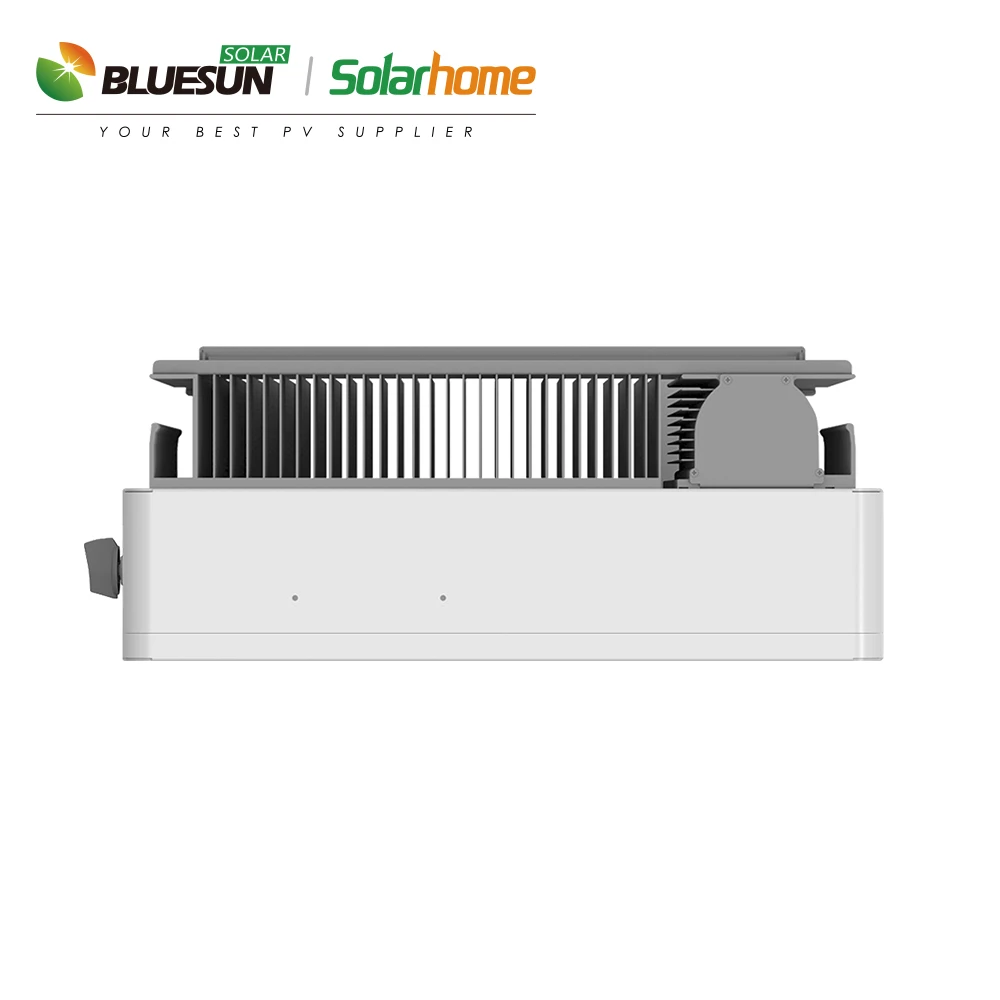

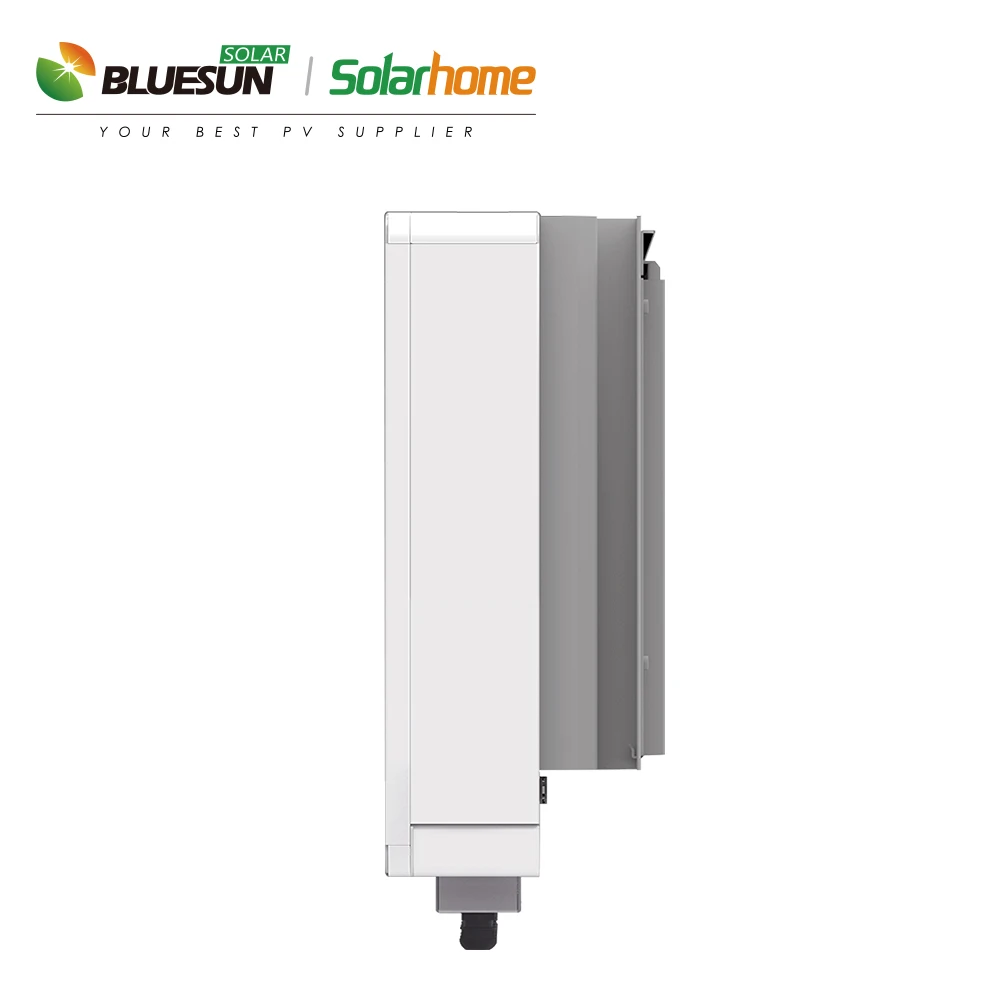

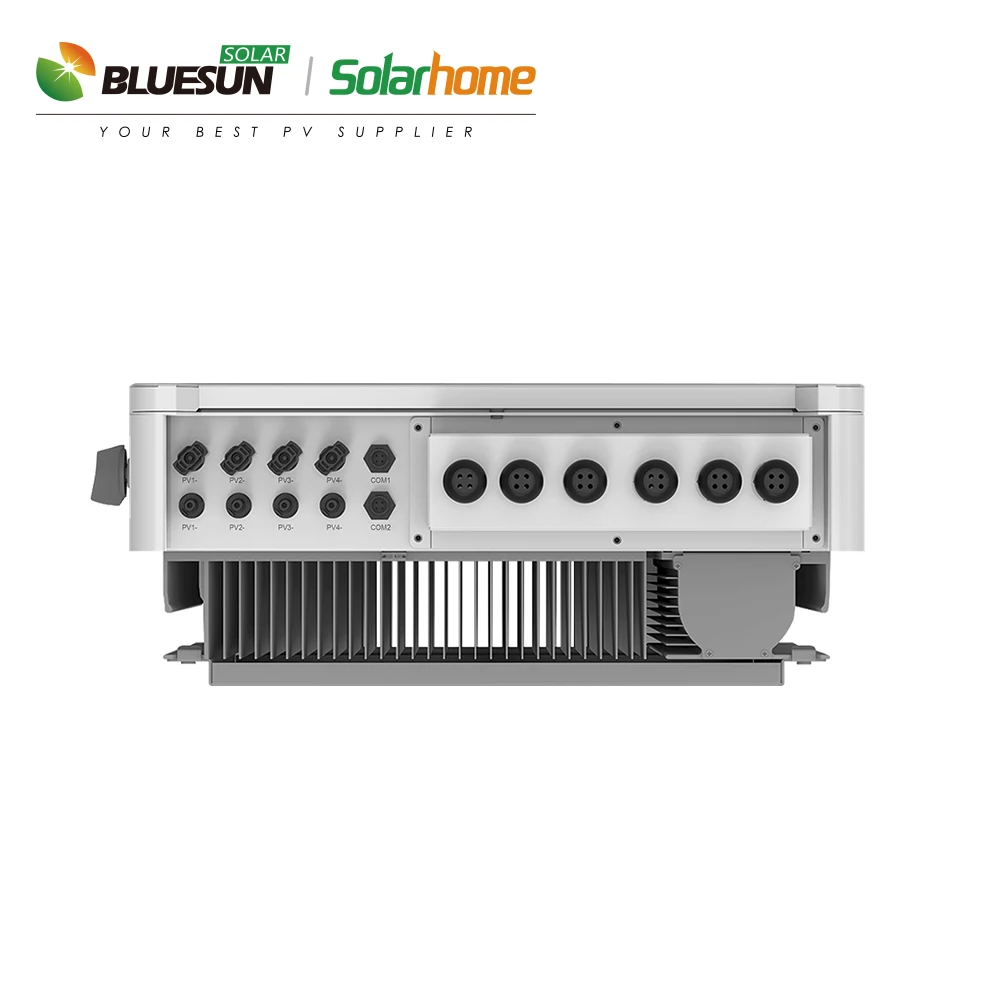

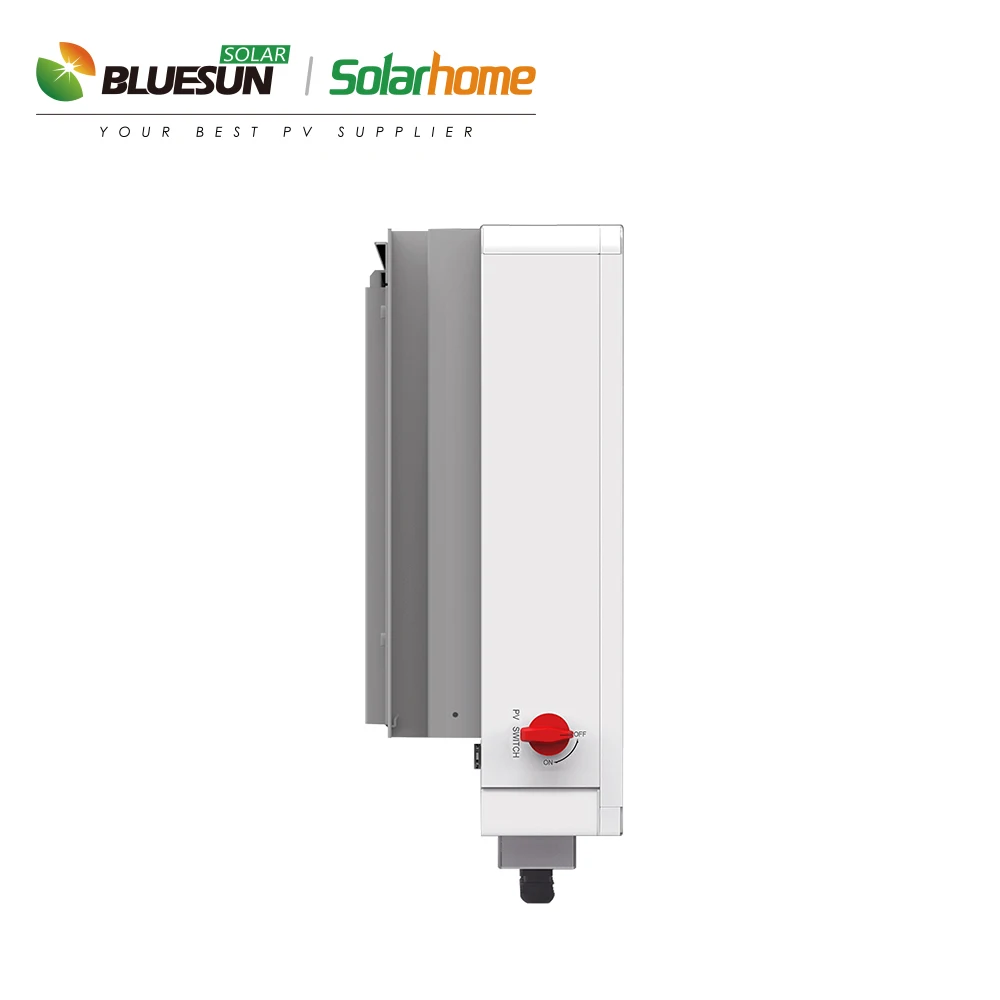

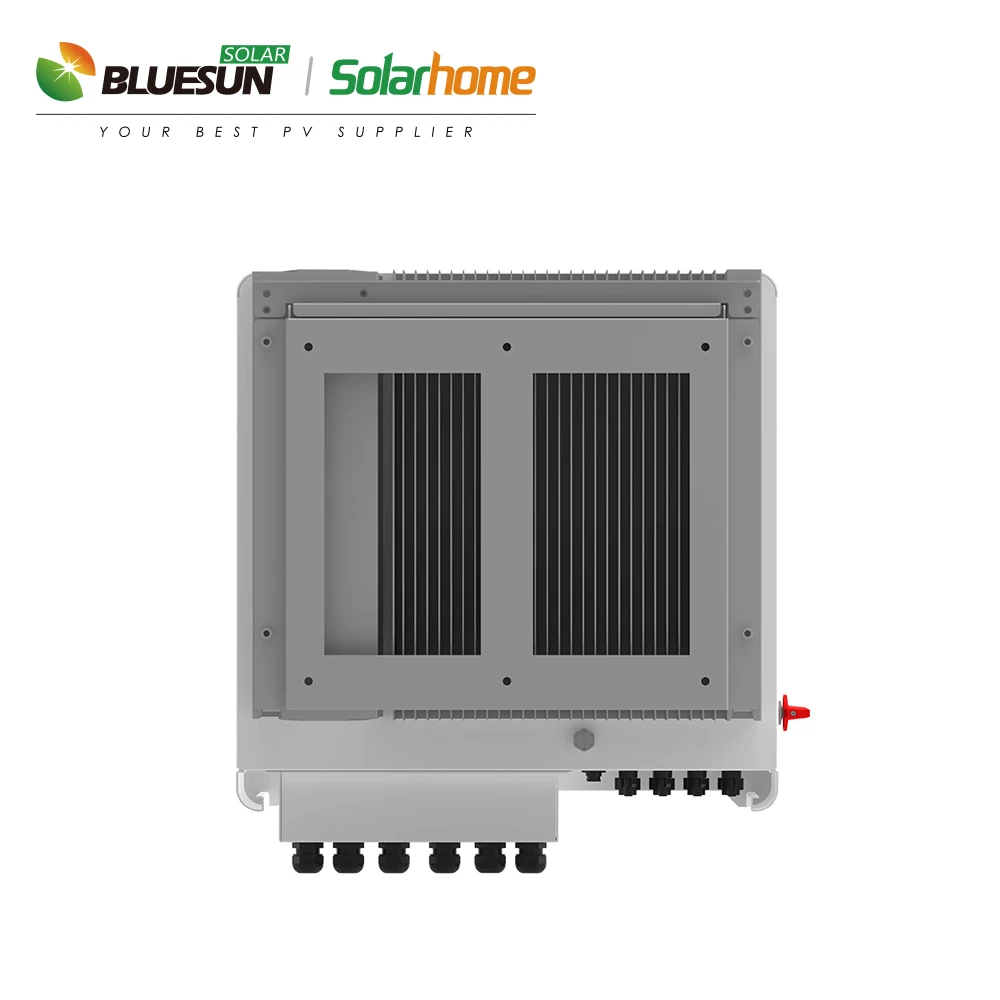

Bluesun solar inverter hybrid part nomadic area field power supply inverter solar power station
- Category: >>>
- Supplier: Bluesun Solar Parts Co. Ltd.
Share on (1600527204615):
Product Overview
Description
Product Description
Product Parameters
Model | BSE-8KH3 | BSE-10KH3 | BSE-12KH3 | |||
DC input | ||||||
Max. input power | 10.4KW | 13KW | 15.6KW | |||
Max. PV voltage | 1000V | |||||
MPPT range | 125V-850V | |||||
Max. input current | 12.5A*2 | |||||
MPPT tracker/strings | 2/1 | 2/1 | 2/1 | |||
AC output | ||||||
Max. output power | 8.8KVA | 11KVA | 13.2KVA | |||
Max. output current | 13.3A | 16.7A | 20A | |||
Max. input power | 17.6KVA | 22KVA | 26.4KVA | |||
Max.input current | 25.4A | 31.8A | 38.1A | |||
Nominal voltage/range | 400VAC /360Vac~440Vac | |||||
Frequency | 50 /60Hz | |||||
PF | 1(0.8lagging-0.8leading) | |||||
THDI | <3% | |||||
AC output topology | 3W+N+PE | |||||
Battery | ||||||
Battery voltage range | 125V~600V | |||||
Charge/discharge current | 50A | 50A | 50A | |||
Max. Charge/discharge power | 8.8KW | 11KW | 13.2KW | |||
Battery type | Lithium-ion /Lead-acid | |||||
Communication interface | CAN/RS485 | |||||
Eps output | ||||||
Max. output power | 8.8KVA | 11KVA | 13.2KVA | |||
Rated voltage | 400Vac | |||||
Rated current | 12.7A | 15.9A | 19.1A | |||
Rated frequency | 50 /60Hz | |||||
Automatic switchover time | <20ms | |||||
THDU | <2% | |||||
General data | ||||||
Battery chage/dischage | 97.50% | 97.50% | 97.60% | |||
DC max. efficiency | 97.90% | 98.20% | 98.20% | |||
Euro efficiency | 97.20% | 97.50% | 97.50% | |||
MPPT efficiency | 99.50% | 99.50% | 99.50% | |||
Protection class | IP65 | |||||
Noise emission (typical) | <35dB | |||||
Operation temperature | -25ºC~+60ºC | |||||
Cooling | Natural | |||||
Relative humidity | 0 ~95% （non-condensing） | |||||
Altitude | 2000m | |||||
Dimensions (WXDXH) | 550X180X520mm | |||||
Weight | 36kg | |||||
Inverter topology | Without transformer | |||||
Self-consumption | <3W | |||||
Features | ||||||
Display | LCD | |||||
Interface:rs485/wifi/lan | yes /opt/opt/yes/yes | |||||
/can/drm | ||||||
Certificates | CE、TUV | |||||

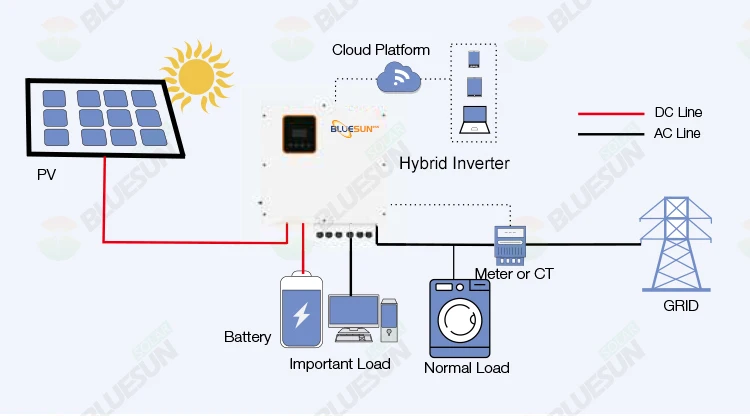

Applications
Packing & Delivery

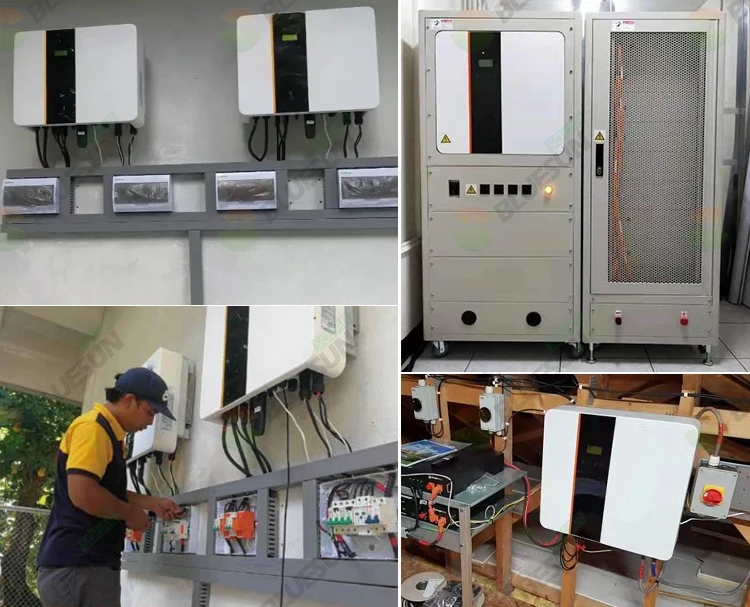

Global Projects
Our Company
Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
