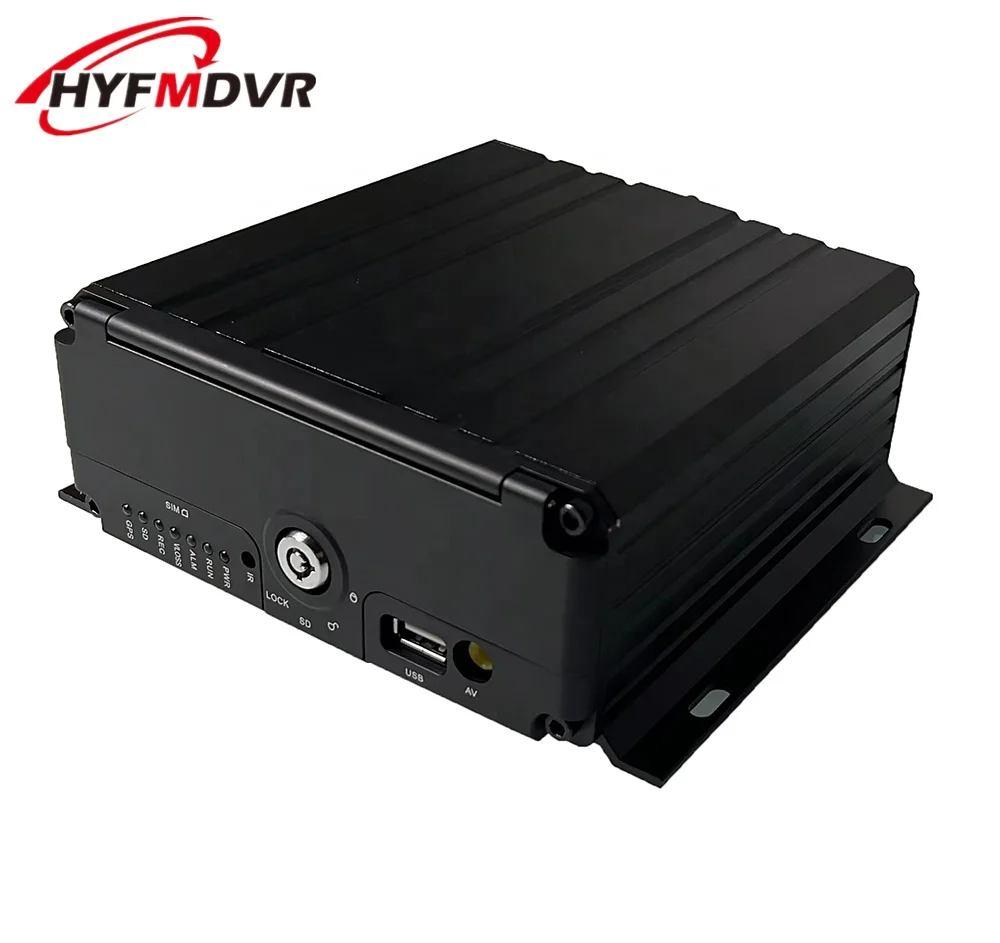

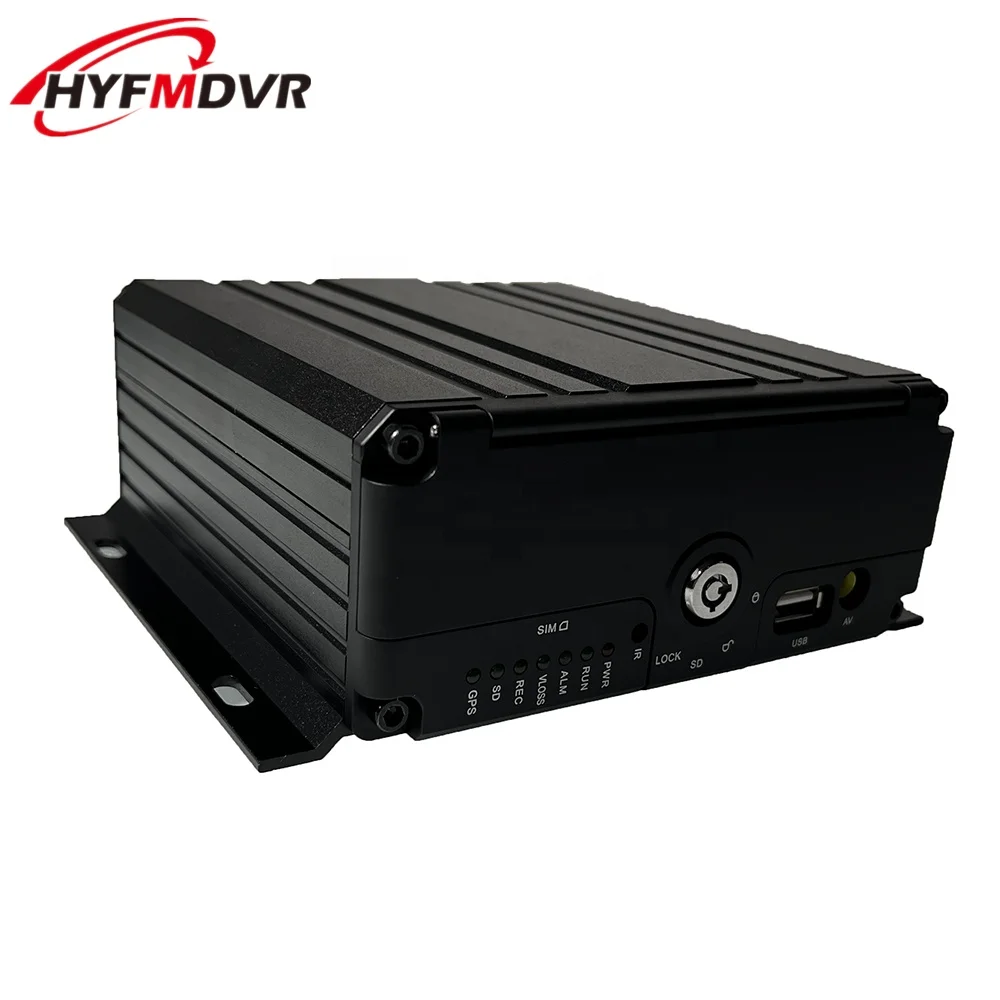

HYFMNVR AHD 4 Channels HDD Car Video Recorder GPS Beidou 3G High definition Vehicle Monitoring Host Mobile NVR Manufacturers
- Category: >>>
- Supplier: Shenzhen HYF Industrial Co. Ltd.
Share on (1600527248130):
Product Overview
Description
Product Description
Features:
1. Built-in HiSilicon high-performance image processing chip, H.265/H.264 encoding, high compression ratio, clear image
2. Support 4 channels of digital million high-definition input, 1 channel of video and audio synchronization output, 1 channel of VGA output,
3. Support 4ch 1080P HD real-time local video recording
Power supply:
1. Professional vehicle power supply 8-36V DC wide voltage input design
2. Various protection circuits such as undervoltage, short circuit, reverse connection, etc., suitable for various models
3. Support intelligent power management identification, automatic shutdown when low power, low power consumption after flameout
Data storage:
1. Using a special file management mechanism to encrypt data to effectively protect data security
2. Proprietary disk bad sector detection technology, which not only ensures the continuity of video recording, but also prolongs the life of the disk
3. Built-in super capacitor to avoid abnormal power failure data loss and disk damage
4. Support 2.5-inch hard disk, up to 2TB
5. Support SD storage, up to one 512G
6. Support hard disk automatic heating (customization)
1. Built-in HiSilicon high-performance image processing chip, H.265/H.264 encoding, high compression ratio, clear image
2. Support 4 channels of digital million high-definition input, 1 channel of video and audio synchronization output, 1 channel of VGA output,
3. Support 4ch 1080P HD real-time local video recording
Power supply:
1. Professional vehicle power supply 8-36V DC wide voltage input design
2. Various protection circuits such as undervoltage, short circuit, reverse connection, etc., suitable for various models
3. Support intelligent power management identification, automatic shutdown when low power, low power consumption after flameout
Data storage:
1. Using a special file management mechanism to encrypt data to effectively protect data security
2. Proprietary disk bad sector detection technology, which not only ensures the continuity of video recording, but also prolongs the life of the disk
3. Built-in super capacitor to avoid abnormal power failure data loss and disk damage
4. Support 2.5-inch hard disk, up to 2TB
5. Support SD storage, up to one 512G
6. Support hard disk automatic heating (customization)
Specification
Item | Device parameter | Performance |
System | Main processor | Hi3520DV400 |
Operating system | Embedded Linux operating system | |
Operating language | Chinese/English/Russian | |
Operating interface | Graphical menu operation interface, support mouse operation | |
Password security | two-level management of user password and administrator password | |
Audio & Video | Video standard | PAL/NTSC |
Video compression | H.264/H.265 | |
Image resolution | 1080P/720P | |
Playback quality | 1080P/720P | |
Combination | various ways | |
Decoding capability | 4ch 1080P real time | |
Video quality | 1 to 4 levels can be configured | |
Screen display | support 1, 2, 3, 4 screen display | |
Audio Compression | Not Supported | |
Recording method | video recording | |
Recording & Playback | Recording mode | manual, alarm |
Video bit rate | 4-level picture quality optional | |
Audio bit rate | 8KB/s | |
Storage media | Hard Disk+SD card | |
Video query | Search by channel and video type | |
Local playback | one-way, by time | |
Firmware upgrading | Upgrading mode | manual upgrade, remote upgrade |
Upgrading method | USB interface, network | |

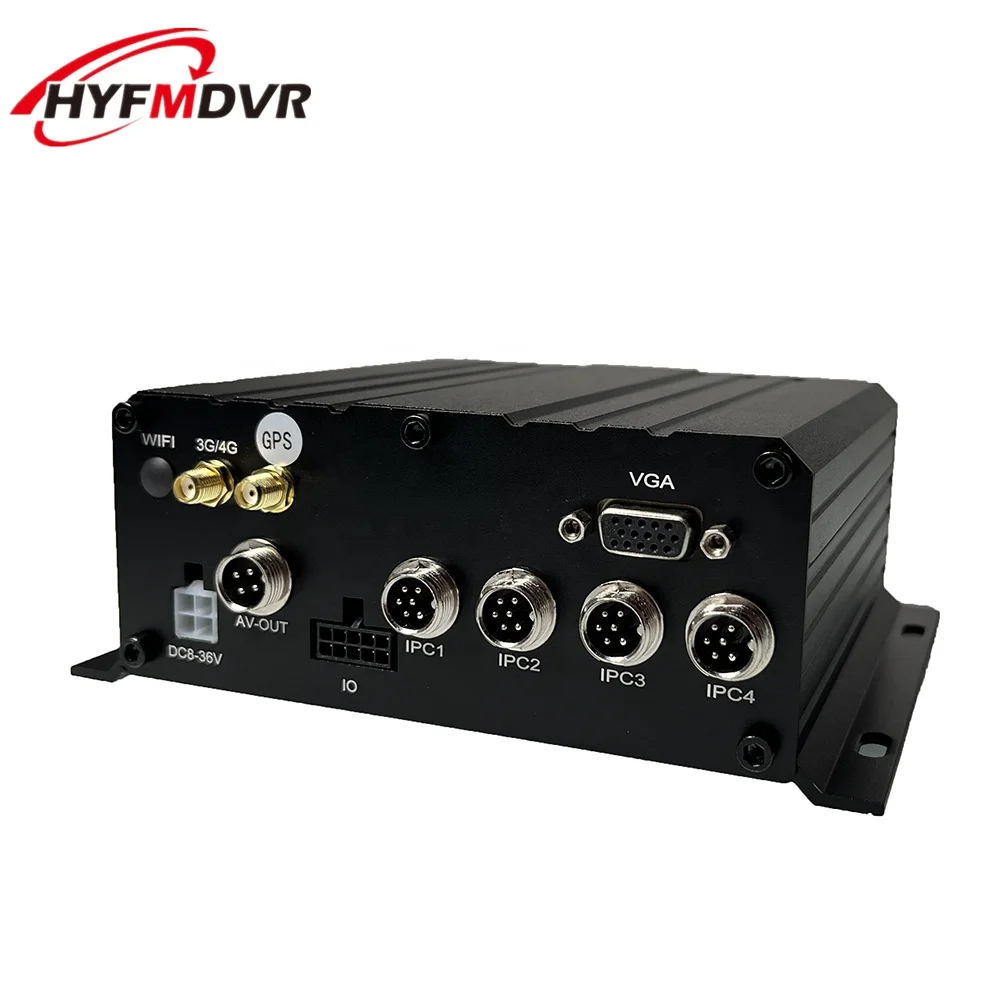

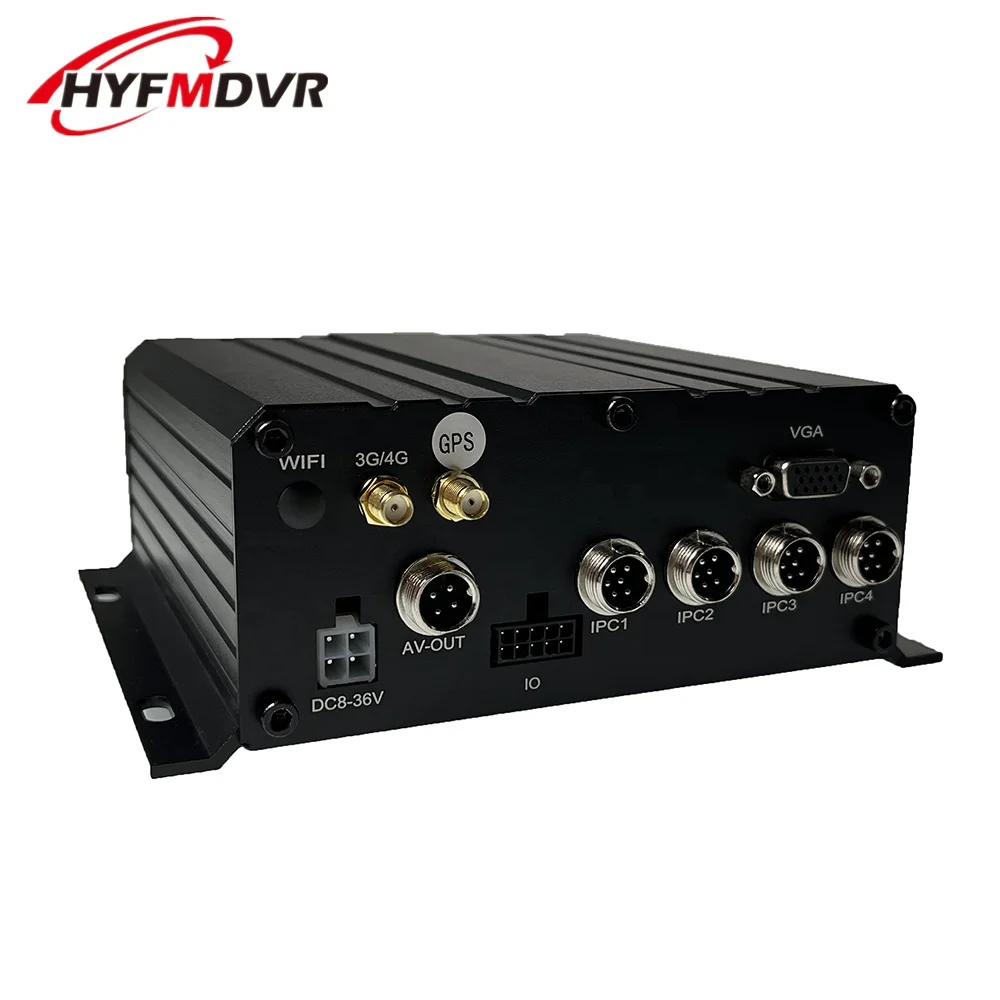

Interface | Video input | 4-way 6-pin aviation header interface |
Video output | 1 channel VGA video output, 1 channel aviation head video output | |
Alarm input | 4 trigger alarm inputs (four configurable positive/negative triggers) | |
Disk interface | 2.5-inch hard drive, up to 2TB | |
SD card | 1 SDXC high-speed card (maximum support 512G | |
USB interface | 1 USB 2.0 (support full mouse operation, USB delay self-test) | |
Ignition input | 1 ACC signal | |
Serial port | 1 channel 232 | |

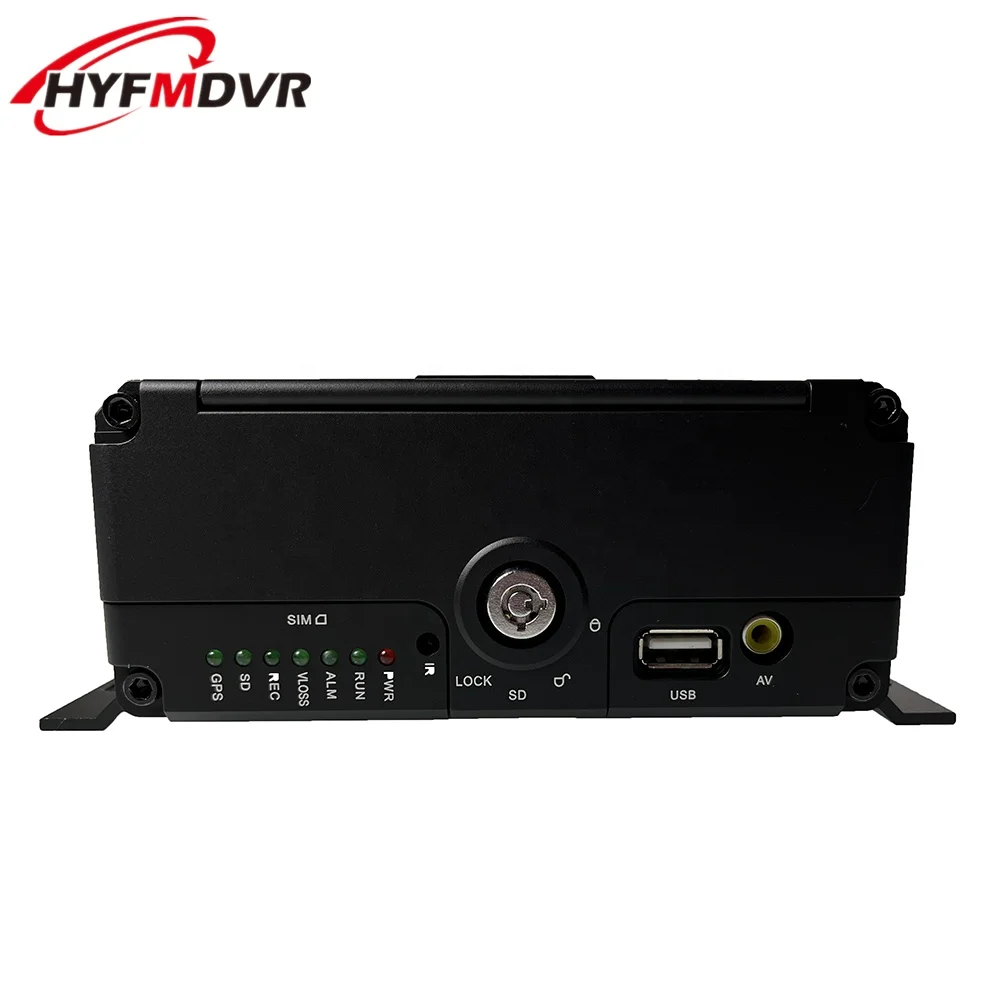

LED Indication | PWR/REC/SD/GPS/VLSS/ALM | |
Disk lock | 1 | |
Others | Power input | 8~36V DC |
Power output | 12V 2A | |
Power consumption | Standby 3mA Maximum consumption 30W @12V 2.5A @24V 1.25A | |
Working temperature | -20 - 70℃ | |
Storage | 1080P 1.9G/hour/channel 720P 0.8G/hour/channel | |
Dimension | 166mm*155mm*137mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Company Profile
Shenzhen Tianyou Security Technology Co. Ltd. is a professional manufacturer specializes in R&D, producing and marketing various kinds of Vehicle Mobile DVR and MDVR cameras. Our main products include Mobile DVR (with 3G, 4G, Wifi, GPS, etc), NVR, MDVR Camera, IP Camera and MDVR accessories, etc. We also supply OEM services based on your requirements.
FAQ
FAQ
Q1.could you provide OEM&ODM service?
Yes,We are focusing on improving video processing technology and video analyze technology ,provide the advanced monitor products,technical solution and professional premium service world-wide,offer OEM&ODM service.Also our R&D team have rich experience in ODM&OEM.
Q2.Are you manufacturer or treading company?
We are a manufacturer located in Shenzhen,China,you are welcomed to visit our factory.
Q3.How does you ensure the quality of products
All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, functional test, burn-in test, appearance inspection.
Q4.Do you offer free sample?
Yes, we offer free samples. But you would pay sample fee firstly and sample fee will be returned when massive order is placed.
Q5.How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
Q6.MOQ for products
1. For the first order, we have no limit for the quantity.
2. From the second order, the MOQ is 100pcs.But small order is also welcomed;
Q7.Payment Terms
T/T, Western Union, PayPal
1. Under T/T, there will be USD35.00 bank charge for each individual remittance.
2. Under PayPal, there will be 4% PayPal fee for each individual remittance.
3. We can put customers' orders down to production once we get the bank slip copy.
4. If order value less than 2000USD, we should get 100% payment before production;
If order value more than 2000USD, we accept 30% deposit before production and the balance should be paid off before delivery.
Q8.Lead Time
1. Sample order can be delivered from our factory in 3 working days.
2. General order can be delivered from our factory in 3-5 working days.
3. Big order can be delivered from our factory in 15-35 working days at most.
Q9.Technical Support
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email to us, reply will be sent to you immediately;
Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Any questions,you could send me email to have a talk,thank you!
