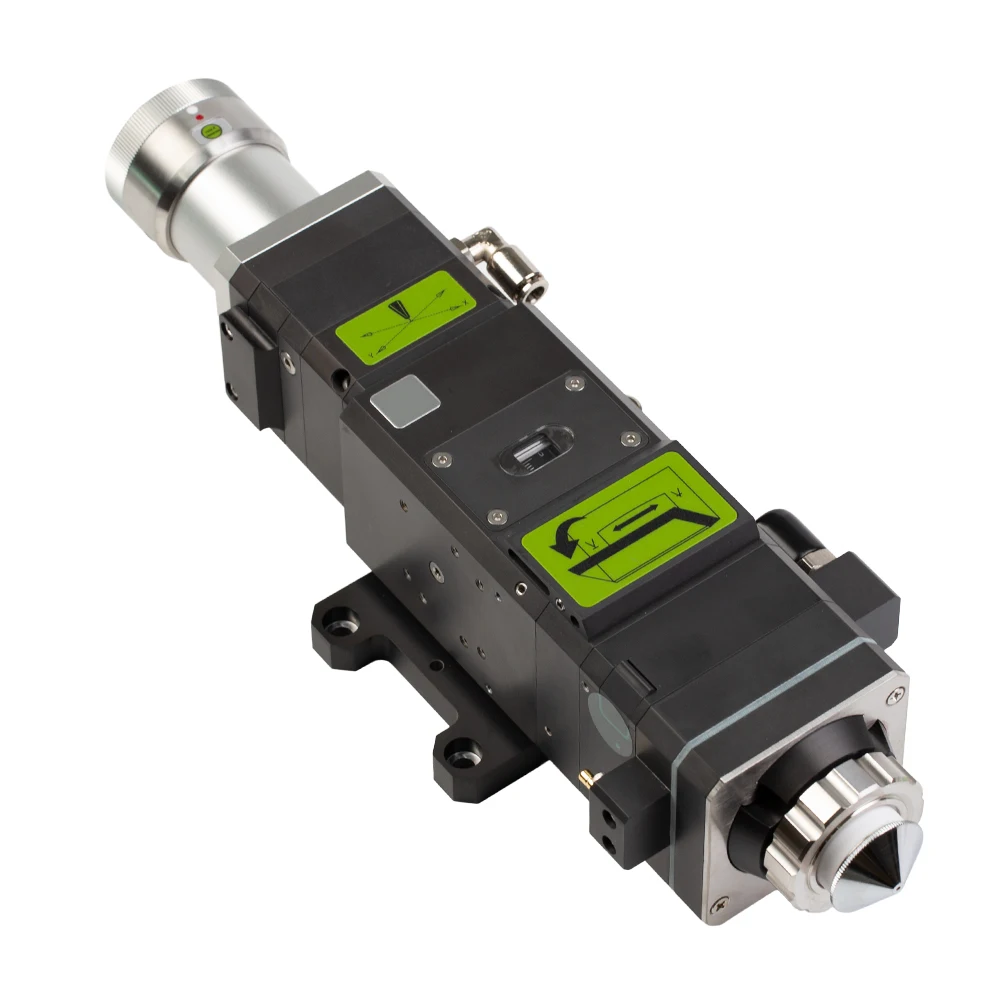

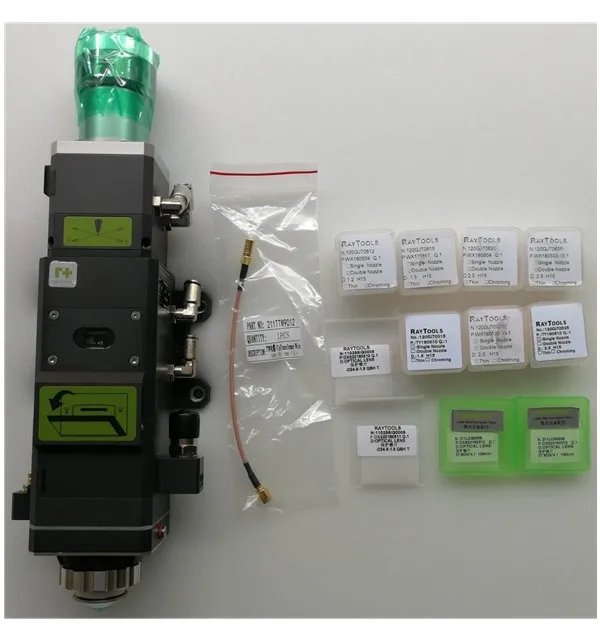

Raytool Fiber Laser Cutting Head Kit With Manual Focus laser cutting machine head
Raytool Fiber Laser Cutting Head Kit With Manual Focus laser cutting machine head
Raytool Fiber Laser Cutting Head Kit With Manual Focus laser cutting machine head
Raytool Fiber Laser Cutting Head Kit With Manual Focus laser cutting machine head
Raytool Fiber Laser Cutting Head Kit With Manual Focus laser cutting machine head
Raytool Fiber Laser Cutting Head Kit With Manual Focus laser cutting machine head
Raytool Fiber Laser Cutting Head Kit With Manual Focus laser cutting machine head

Raytool Fiber Laser Cutting Head Kit With Manual Focus laser cutting machine head

Share on (1600527260425):


Price:$780.00-1,257.00

Quantity:


Product Overview

Description



Product Description


1. Optimized optical configuration, smooth and efficient airflow design.
2. Comprehensive upgrade of the dust-proof design, double protection, the risk of contamination of the lens is almost zero.
3. The laser head body increases anti-collision function.
4. Turntable focus adjustment and can be manually corrected, find and flexible adjustment, adjustable range is 20mm, accuracy is 0.05mm.
5. With a variety of optical interfaces, can be adapted with a variety of fiber laser sources
6. Collimation lens, focusing lens and nozzle are all with cooling structures.

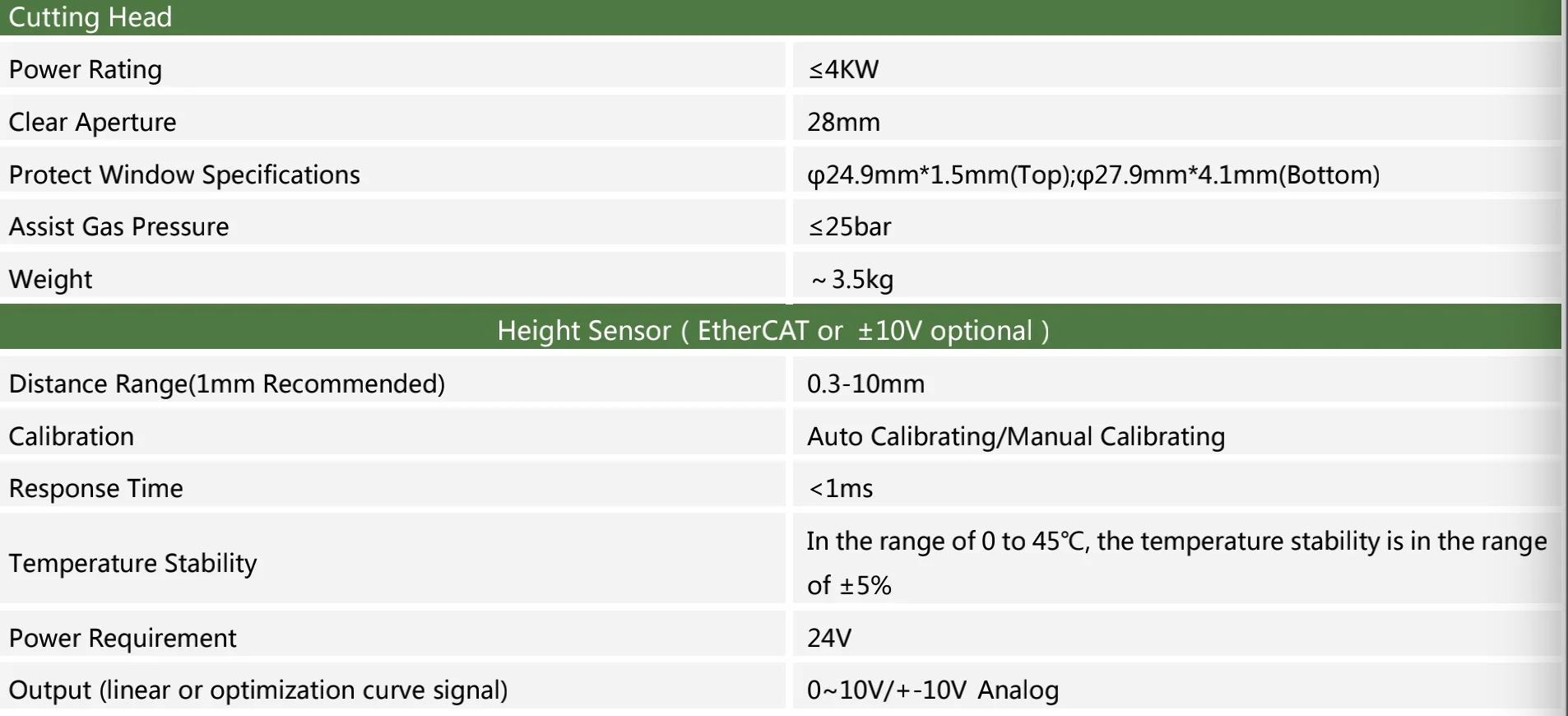

Specification


Cutting Head
Power Rating
≤4KW
Clear Aperture
28mm
Protect Window Specifications
φ24.9mm*1.5mm(Top);φ27.9mm4.1mm(Bottom)
Assist Gas Pressure
≤25bar
Weight
~3.5kg
Height Sensor ( EtherCAT or ±10V optional )
Distance Range(1mm Recommended)
0.3-10mm
Calibration
Auto Calibrating/Manual Calibrating
Response Time
<1 ms
Temperature Stability
In the range of 0 to 45°C, the temperature stability is in the range of ±5%
Power Requirement
24V
Output (linear or optimization curve signal)
0~10V/+-10V Analog
