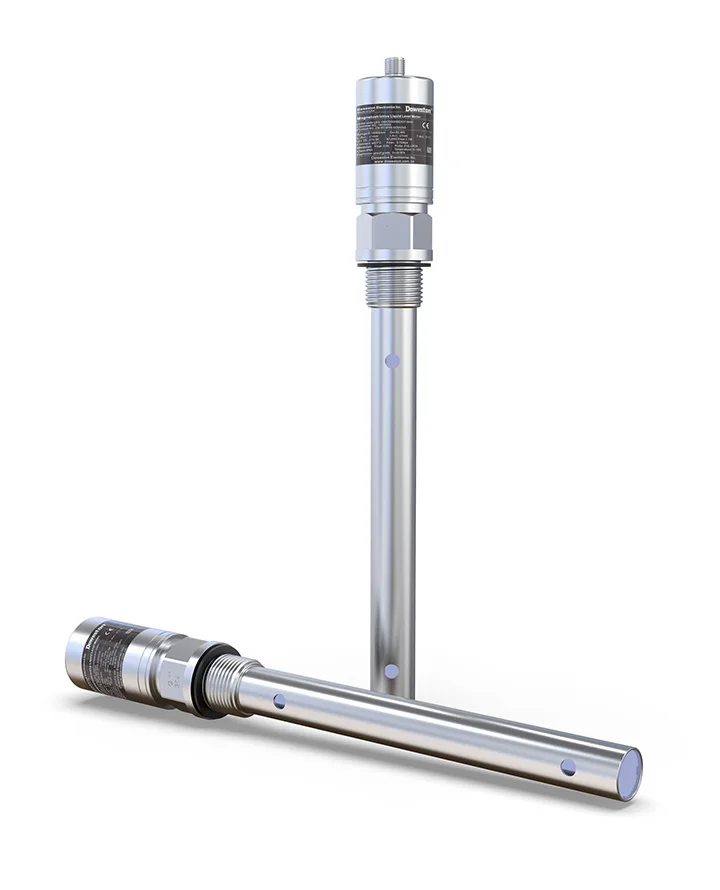

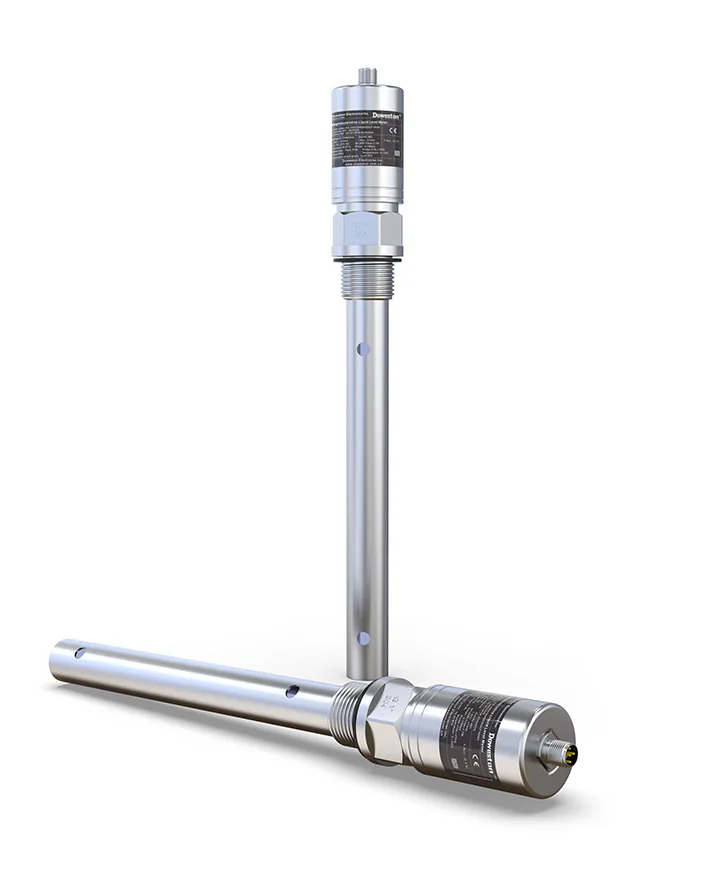

LEB 16 series small range special temperature and pressure occasions special small range special capacitive liquid level gauge
- Category: >>>
- Supplier: Doweston (china) Co. Ltd.
Share on (1600527320059):
Product Overview
Description
Recommend Products
Products Description
Product Description
Most small range, special liquid level measurement in special temperature and pressure occasions.

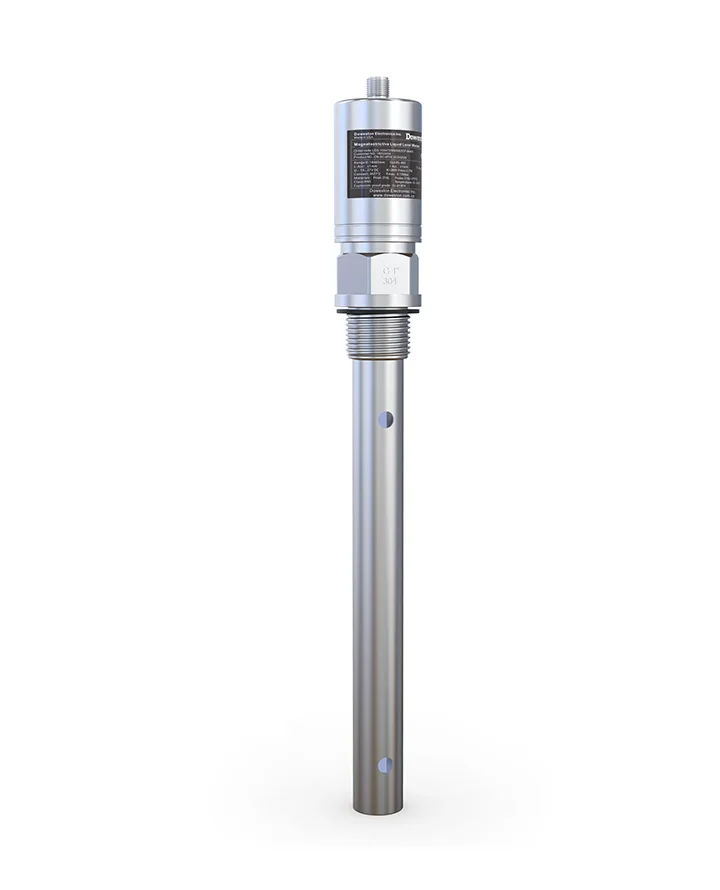

LEB-16 small range special capacitive liquid level gauge uses a metal probe as one electrode of the capacitor and the wall of the container as the other electrode of the capacitor. When the solution changes, the dielectric constant of the capacitor shears opens, thereby changing the capacitance. Circuit processing, output liquid level. It can be used for high temperature and high pressure strong corrosion, easy crystallization and anti-clogging, anti-freezing and solid powder and granular materials, which can meet most measurement needs. Suitable for all kinds of tanks, tank liquid level measurement, optional on-site display, LEB-16 uses Newpeace control technology, has matured for refrigerant measurement and other industries.
Performance characteristics
LEB-16 small range special capacitive liquid level gauge is a device that converts the change of the position of the measured object into capacitance. The capacitive liquid level gauge has simple structure, high resolution, reliable operation, fast dynamic response, and non-contact The advantages of measuring, and being able to work under harsh conditions such as high temperature, radiation and strong vibration have been used in various fields of industrial and agricultural production.
LEB-16 capacitive liquid level gauge using Newpeace control technology is widely used in refrigerant measurement.
■ Applicable medium: Freon, copper liquid, chlorine-containing solution, etc.
■ Measuring range: 0-1000mm
■ Overall accuracy: ±0.2%
■ Corresponding time: <5ms
■ Working temperature: -50-200℃
■ Probe material: metal, plastic
■ Output: 4-20mA+RS485+Hart communication
■ Process connection: flange connection, threaded connection
■ Protection class: electrical part IP65
■ Seal: Fluorine rubber
■ Applicable medium: Freon, copper liquid, chlorine-containing solution, etc.
■ Measuring range: 0-1000mm
■ Overall accuracy: ±0.2%
■ Corresponding time: <5ms
■ Working temperature: -50-200℃
■ Probe material: metal, plastic
■ Output: 4-20mA+RS485+Hart communication
■ Process connection: flange connection, threaded connection
■ Protection class: electrical part IP65
■ Seal: Fluorine rubber
Why Choose Us

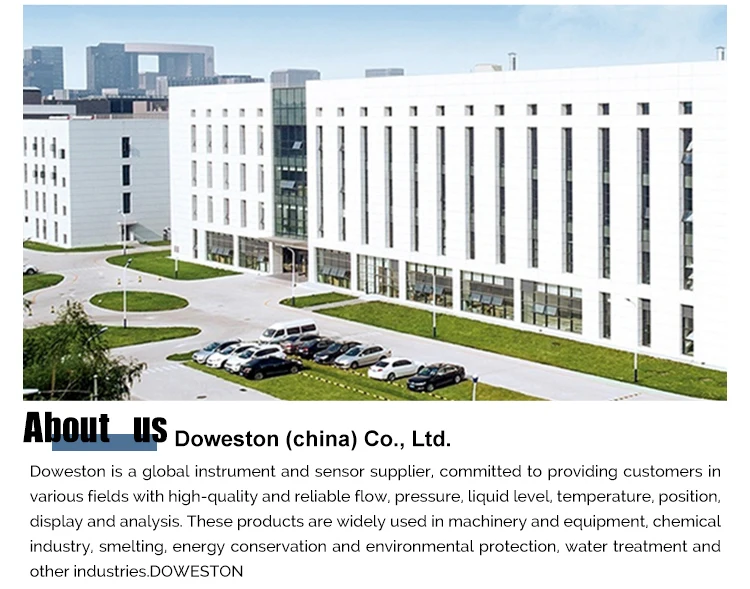

Company Profile
