5/8 24 Four Core Cable Output Mode PZT 5 Piezoelectric Materials Integrated Speed and Temperature Sensor
- Category: >>>
- Supplier: Yangzhou Xiyuan Electronic Technology Co. Ltd.
Share on (1600527418636):
Product Overview
Description
Product Description
Characteristic:
1. Either outputs a speed (4-20mA) and a temperature signal (4-20mA) simultaneously.
2. Bragg isolation output, industrial site monitoring, strong anti-interference performance.
3. Bragg is mainly used to measure the absolute vibration velocity of equipment fault.
2. Bragg isolation output, industrial site monitoring, strong anti-interference performance.
3. Bragg is mainly used to measure the absolute vibration velocity of equipment fault.
Specification:
Speed Parts | ||
Range(RMS) | 0～20mm/sec | |
Current Output | 4～20mA(RMS) | |
Amplitude Non-linearity | ＜2% | |
Measuring Error | ≤5% | |
Frequency Response | 10～1,000Hz（±1dB) | |
Transverse Sensitivity Ratio | ≤5% | |
Supply Voltage | 15VDC～30VDC | |
Install Ground Insulation | ≥10^8Ω | |
Operation Temp | -40℃～+85℃ | |
Shock Resistance(peak) | 2000 g | |
Temperature Response | Attached Temperature Curve | |
Structural Style | Cutting | |
Piezoelectric Materials | PZT-5 | |
Current Output | 4-20 mA | |
Temperature Parts | ||
Current Output | 4-20mA | |
Range of Temp | －20－＋80℃ | |
Measuring Error | ≤5% | |
Common Parts | ||
Shell Material | 304 Stainless Steel | |
Output Mode | 5/8-24 Four core cable | |
Installation | 1/4-28 | |
Protection Class | IP65 | |
Weight | ～100g | |
Accessory | ||
Connecting Cable | MIL Four core connection cable x 3m | |
Installation Instructions | Wiring Instructions |
The mounting base is connected with the casing of the measured point by M6(optional M8, M10) bolts. Open an M6(M8, M10) mounting hole about 6mm deep at the measured point, and tighten the sensor and the mounting hole with M6(M8, M10) bolts. | 1 (white) : +24V power supply (speed) 2 (red) : 4 ~ 20mA (speed) 3 (yellow) : +24V power supply (temperature) 4 (blue) : 4 ~ 20mA (temperature)） |

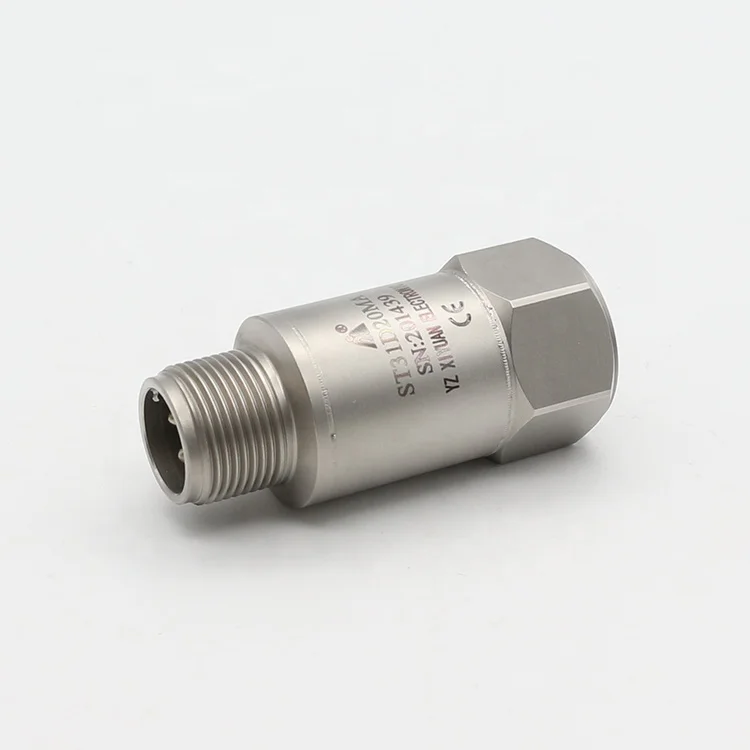

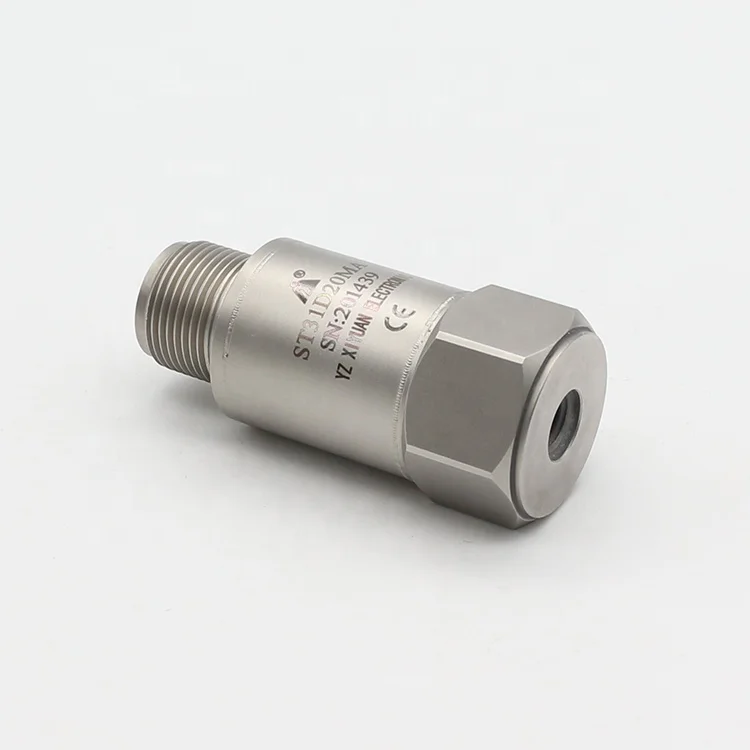

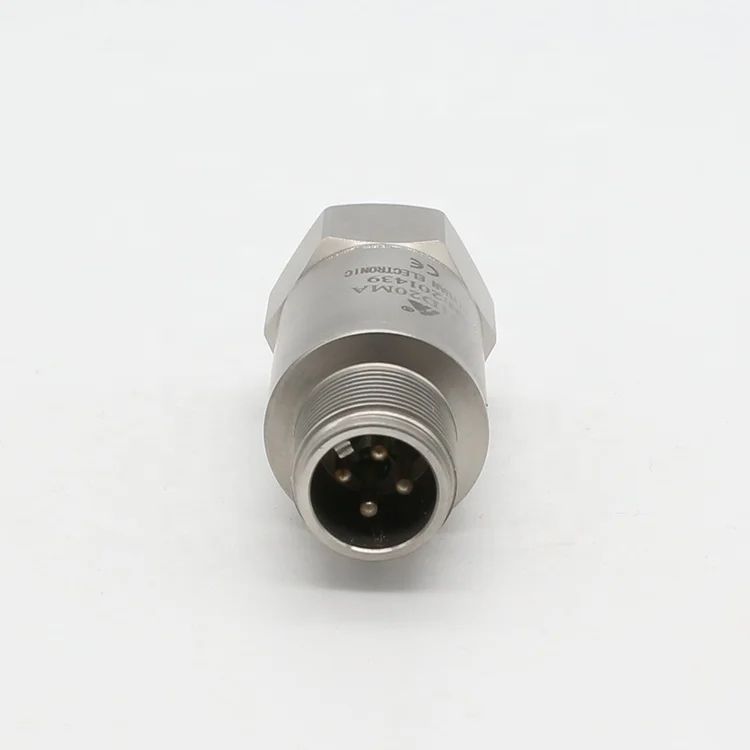

Product Display

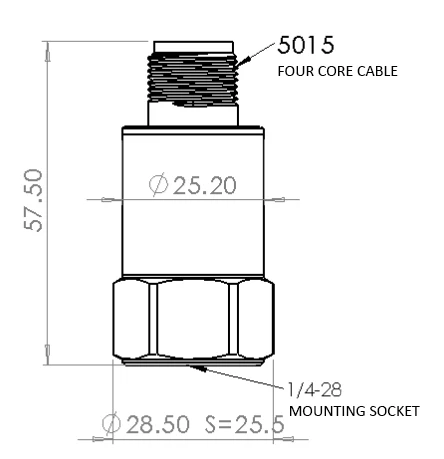

Size

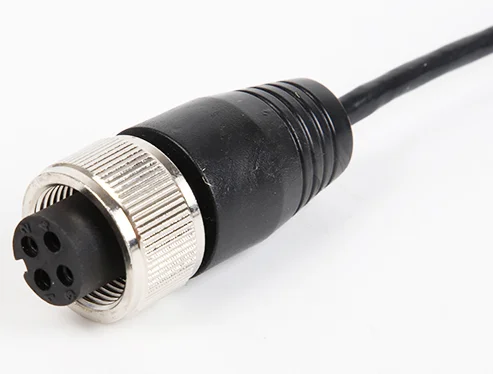

Connecting Cable
Temperature Curve
