1L Pet minaral water bottle plastic blowing mould making manufacturing machine 4 cavity for small
- Category: >>>
- Supplier: Shanghai Jinben Industrial Co. Ltd.
Share on (1600527447739):
Product Overview
Description
Fully Automatic Small Plastic Blow Molding Water PET Bottle Blowing Machine Manufacturers
Product Description
# Main Technical Parameter #
Type | HQ- 2L - 2000 | ||||
Container | Number Of Cavity | Cavities | 2 | ||
Output | Pcs/Hr | 1600-2000 | |||
Max Container Volume | L | 2 | |||
Max Neck Diameter | mm | 38 | |||
Max Container Diameter | mm | 120 | |||
Mac Container Height | mm | 300-330 | |||
Electrical | Number Of Lamp | pcs | 32 | ||
Max Heating Power | kw | 48 | |||
Actual Power Consumption | kw | 24 | |||
Machine | Machine Dimension | m | 2400*1600*1800 | ||
Machine Weight | T | 2500 | |||
# Application #
Suitable for 50ml-1l bottles
– Hot- filling bottles
– Mineral Water Bottles
– Carbonated Drinking Bottles
– Energy Drink Bottles
– Wine Bottles
– Milk Bottles
– Juice Bottles
– Oil Bottles ( with handle )
– Medical Bottles
– Cosmetic Bottles
– Jar ( Wide Mouth ) Bottles

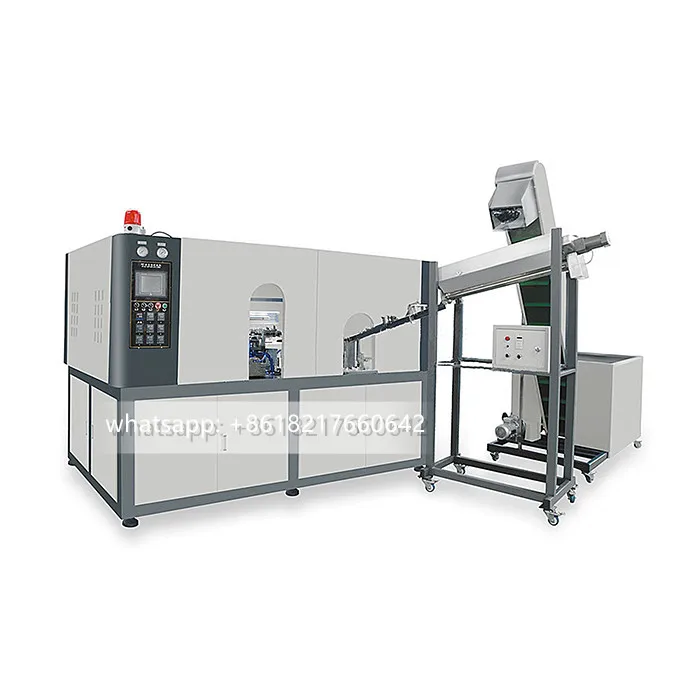

# Fully Automatic PET Bottle Blowing Machine #
HQ-L Fully automatic PET bottle blowing machine is the most stable two step blow down equipment of our factory, from one cavity to six cavity and can blow bottles of different capacity, from 0.1 L to 1 L, used for the production of PET/PP bottles of various shapes
# Advantages #
1. Stable performance with advanced PLC.
2. No contamination and low noise with the air cylinder to drive the action instead of the oil
3. Strong clamping force with high pressure and double crank links to lock the mold.
4. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
# Servo Automatic Bottle Blowing Machine #
1. The automatic PET bottle blowing machine with safety ratio, no harm to the human, avoid the danger of taking out bottles by hand, reduce the loss of accident, improve the efficiency.
2. High speed high efficiency: the new model machine equals to 6 semi automatic.
3. Saving labor: The machine operate by one person or one person can operate two sets, saving 3~4 labors.

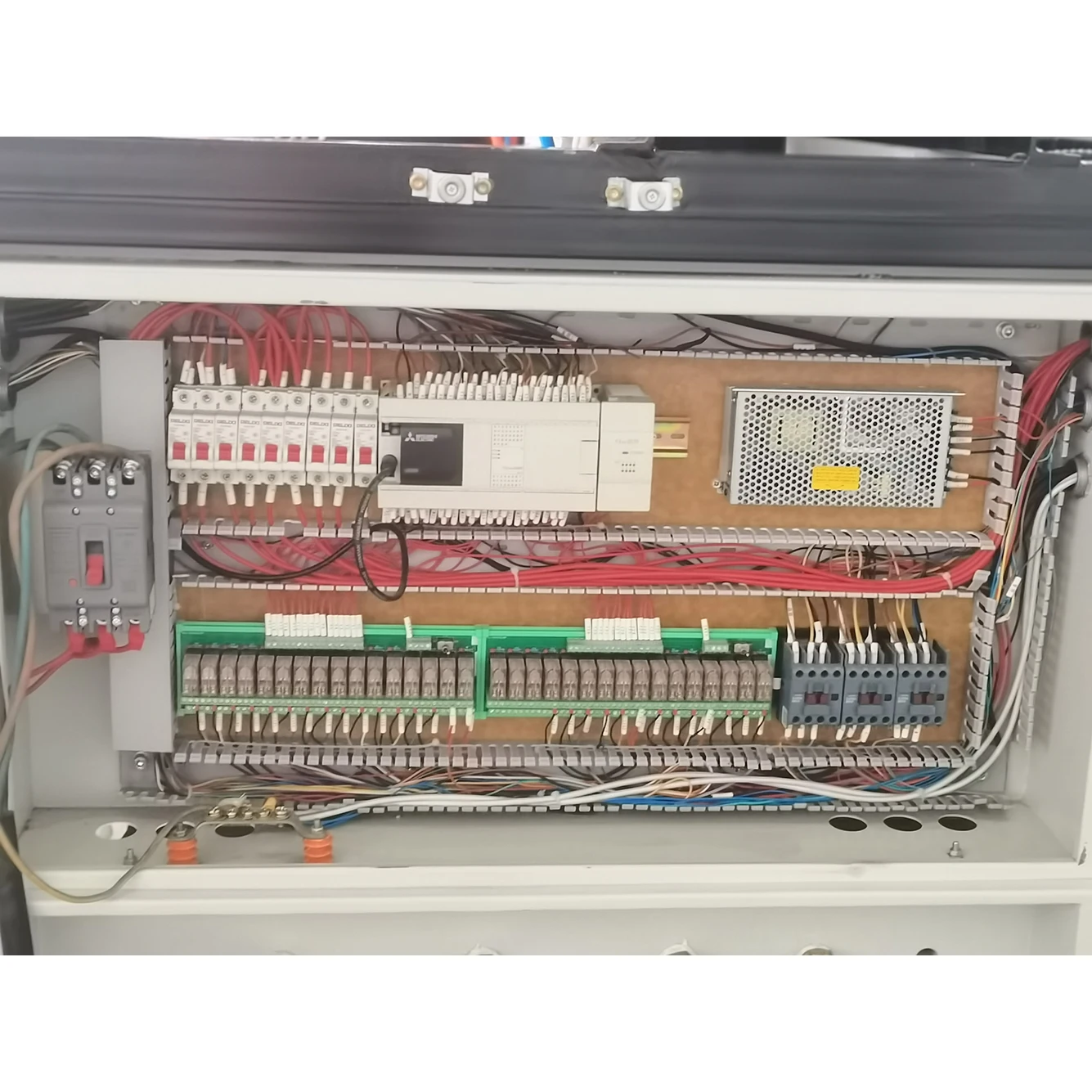

4. Stable performance: Adopts world famous brand PLC touch screen Human~Computer Interface, have the characteristics of accuracy, high speed, stable performance. The structure is simple, heater and main machine adopts slipway, convenient for maintenance.
5.The automatic blowing machine adopts double crank shaft, main connecting rod linkage with strong clamping force, have the function of mould close boost pressure when high pressure blowing bottles, the action stable and reliable.
# Semi Automatic PET Bottle Blowing Machine #

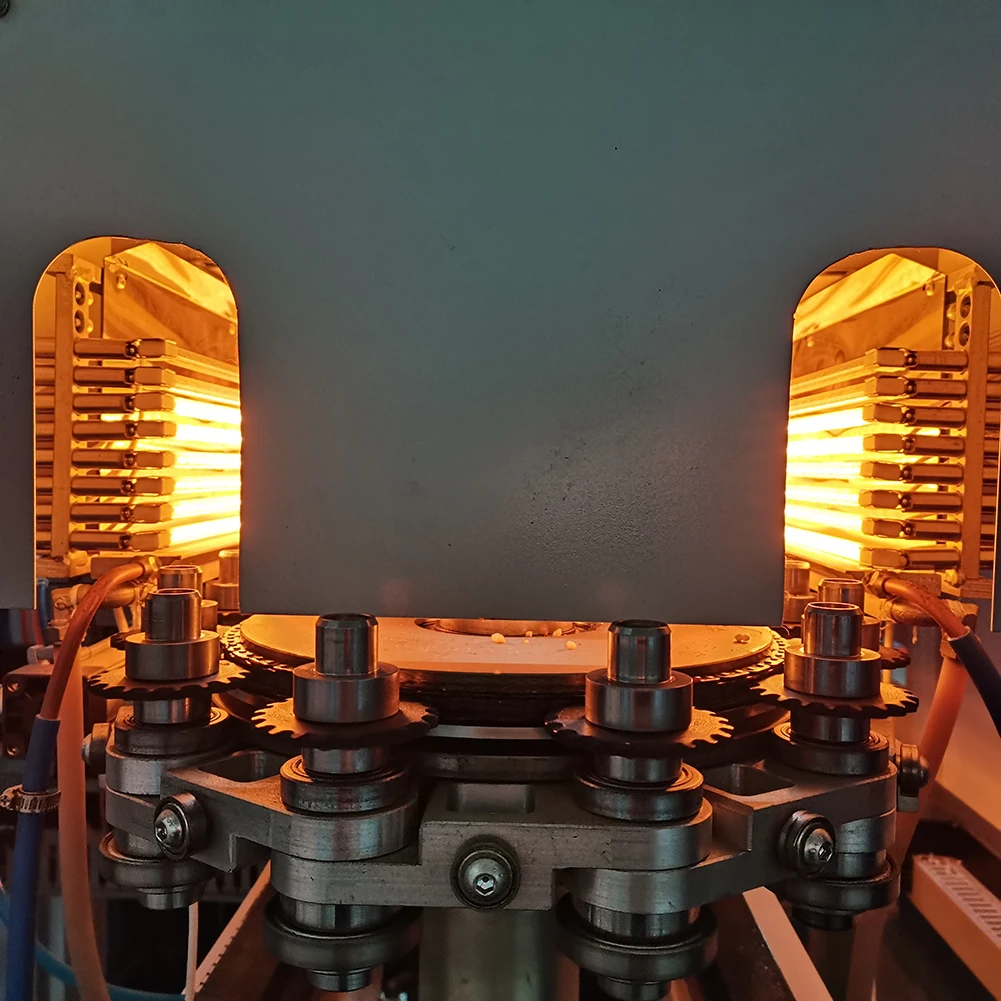

HONGQI semi-automatic blowing machine is an advanced 2-step PET blowing equipment. It is widey used for different shaped water bottles, CSD bottles and other beverage containers with PET, PP material. Infred self-rotary heater adopted. Mould closing is with double crank, to avoid mould expension (ensure half line very thin) under high pressure. Machine is compatible, with approprite design, easy and safe to operate.
Auxiliary Machine
To operate the PET bottle blowing machine, you may also need some auxiliary machine. such as air compressor, air filter, air dryer, air tank and so on. this machine is needed to protect the machine from running smoothly and safe.
Sample And Mold
Our Molds adopt stainless steel materials and according to your demand to customized. if you do not have plan about bottle, we can also help you to design the bottle.
# We also provide the cap and preforms #
Related Machine
Company Profile
Our Service
Product packaging
>>> PACKING: Normally the inner package ,we will packed by the stretch film ,outpackage we will use the export woodencas if you have special requirment of the package pls let us know in advance.
>>> SHIPPING: Mostly we send the goods to you by sea,as in this way the freight is most reasonable ,if you need the goods urgently ,We can also send by air.
>>> SHIPPING: Mostly we send the goods to you by sea,as in this way the freight is most reasonable ,if you need the goods urgently ,We can also send by air.
FAQ
/ ABOUT MACHINE /
Q: How To Ensure Your Machine Quality ?
A: > First we have CE and ISO9001 certification;
> Then we will test when the machine is completed, and if you are willling, you can come to our factory to check the machine and our engineer also can tech you how to operate and maintain machine or we will send the Inspection video and machine instruction manual to you.
> Second our machine adopt Imported electrical components to ensure the machine quality.
> Third we will provide free wearing parts and free spart part for you.
> Fourth our Engineers is always accompany with you. if you have any question welcome to contact us.
/ OUR SERVICES /
Q: Do You Have Any Training For Customers?
A: Yes. We have on field training, live broadcast training and recorded video training. We will provide the best aftersales for each customer.
Q: Do You Provide Overseas Services?
A: Yes. we have professional installation team
Q: When My Machine Have Problems,
How To Solve ?
A: First, contact us and tell us what happen
Then we will tell engineer to give you solution.
Second if you cannot solve we will arrangge engineer
to have the video talking with you.
Third if you still cannot solve, we will arrange engineers to your factory to help you.
So don't worry. our we will always accompany with you.
/ OTHER QUESTION /
Q: Why You Must To Choose Us ?
A: 10 years experience . We are not only sell single machine but also can provide the whole line for you. form bottle design to filling and packing.
Q: Where Is Your Factory ?
A: Shanghai and Zhejiang also have factory
Q: What Is The Payment Term ?
A: T/T usually , L/C also can do
Q: What Does your Factory Produce ?
A: Our factory is main provide water production line , juice production line, milk production line carbonated production line and some machine, such as water treatment system. bottle blowing machine, water filling machine and sterilizer and tanks. welcome to contact us and we will give you the best price and perfect services.
