Ruida Manual Carousel 10 Color 10 Stations T shirt Screen Printing Machine Offset Press Machine
- Category: >>>
- Supplier: Dongguan Ruida Machinery And Equipment Co. Ltd.
Share on (1600527649965):
Product Overview
Description
Product Description
This is a rotary clothes 10-color manual screen printing machine, suitable for printing 400mm * 400mm about the format of the fabric, paper, clothes, T-shirts and other products. Running smoothly, cost-effective. Widely used in multicolor printed clothing and textile sectors.
Printing is recommended workbench coating solvent Taiwan version of the plastic would be more accurate print positioning;
Have take place since the lock mechanism, accurate positioning, set-bit precision can reach 0.025mm;

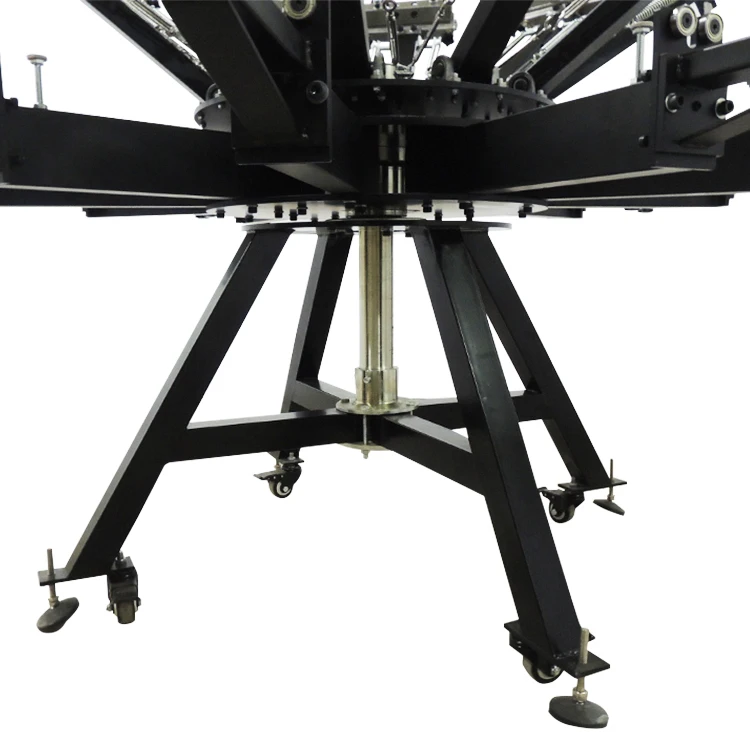

Center vertical shaft structure design, smooth rotation, lightweight and comfortable, greatly reduce the labor intensity of the operator;
More suitable for heatset printing ink, printing ink thickness, ink, bright;
Configuration of infrared drying device, which will help the plastisol ink is fast drying; Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency.
Technical parameters:
1.Max printing thickness:0-20 MM;
2.Max printing area:450X450mm
3.Size of working table: 500×500mm;
4.Max printing speed:1000Pcs/H.
5.Printing number: 10;
6.Drying mode: IR;
7.Max height of screen frame: 40mm;
8. Max size of screen frame: 550*680mm;
9. Wattage of heater: 3.6KW.
Works supply: 110V-220V Power supply
Package parameters:
single packaging size: 168*168*113cm
single gross weight: 420kg
CBM: 3.19CBM
Advantages:
1.Operated by hand, controllable is well;
2.Total-steel rotating-axis system ensure whirling free and Adaptability.
3.High-strength support pole make the machine structure rigidity.
4.Six-color screen printing one time, overprint is precision .
5.Screen frame can be rise up after printing so that printing quality.
6.High-stabilization working table ensure non-shaking when printing IR Dryer with machine make the clothes drying fast.
Configuration of infrared drying device, which will help the plastisol ink is fast drying; Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency.
Technical parameters:
1.Max printing thickness:0-20 MM;
2.Max printing area:450X450mm
3.Size of working table: 500×500mm;
4.Max printing speed:1000Pcs/H.
5.Printing number: 10;
6.Drying mode: IR;
7.Max height of screen frame: 40mm;
8. Max size of screen frame: 550*680mm;
9. Wattage of heater: 3.6KW.
Works supply: 110V-220V Power supply
Package parameters:
single packaging size: 168*168*113cm
single gross weight: 420kg
CBM: 3.19CBM
Advantages:
1.Operated by hand, controllable is well;
2.Total-steel rotating-axis system ensure whirling free and Adaptability.
3.High-strength support pole make the machine structure rigidity.
4.Six-color screen printing one time, overprint is precision .
5.Screen frame can be rise up after printing so that printing quality.
6.High-stabilization working table ensure non-shaking when printing IR Dryer with machine make the clothes drying fast.
