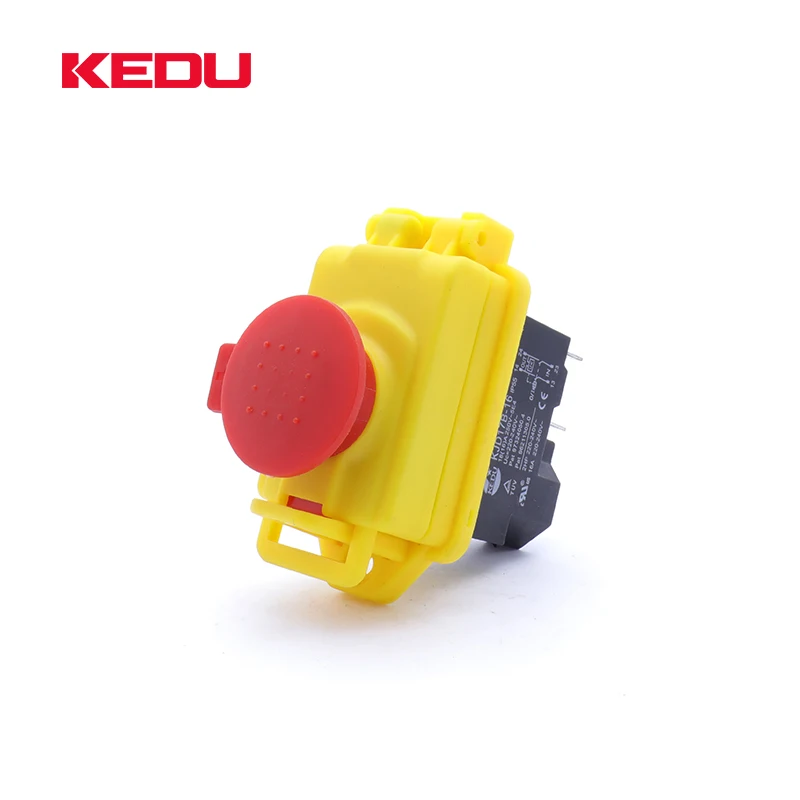

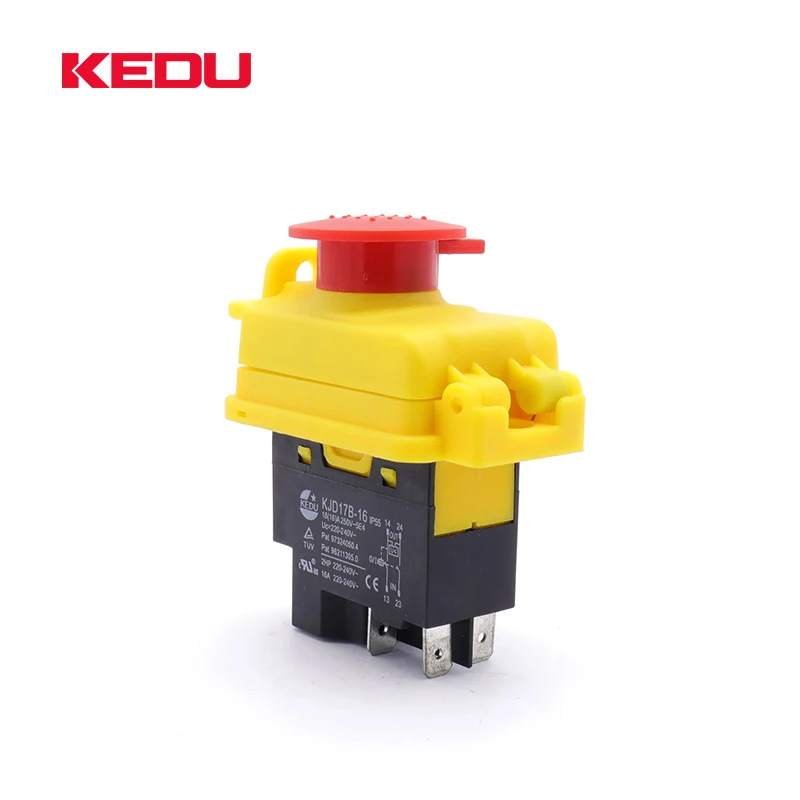

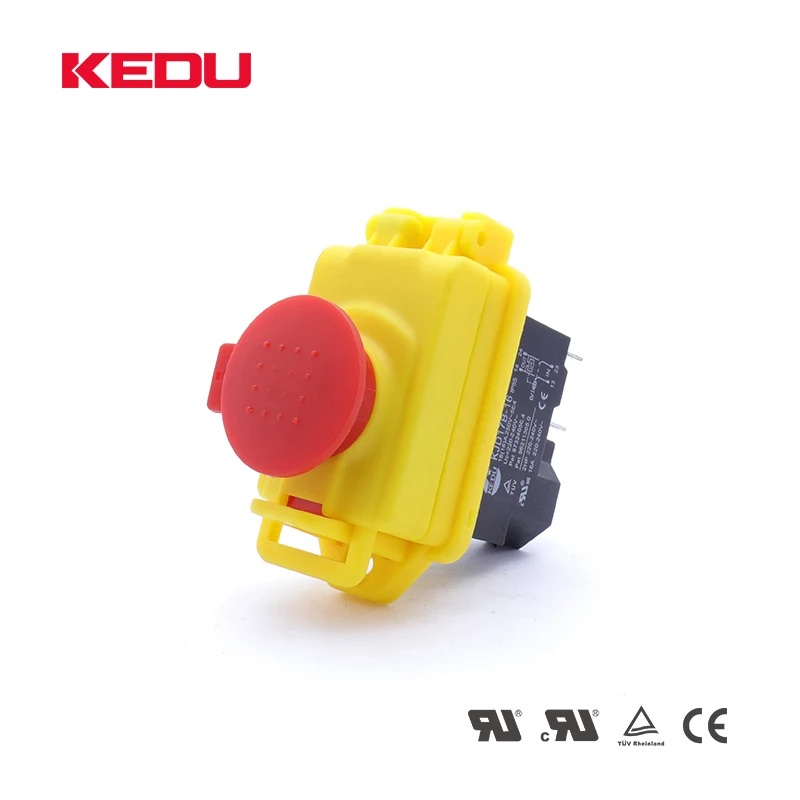

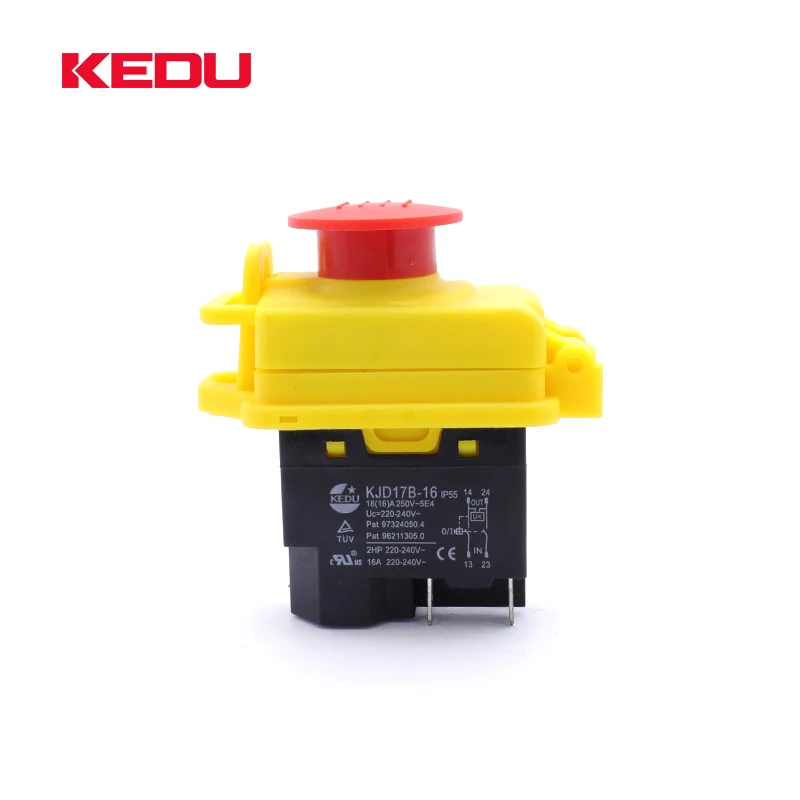

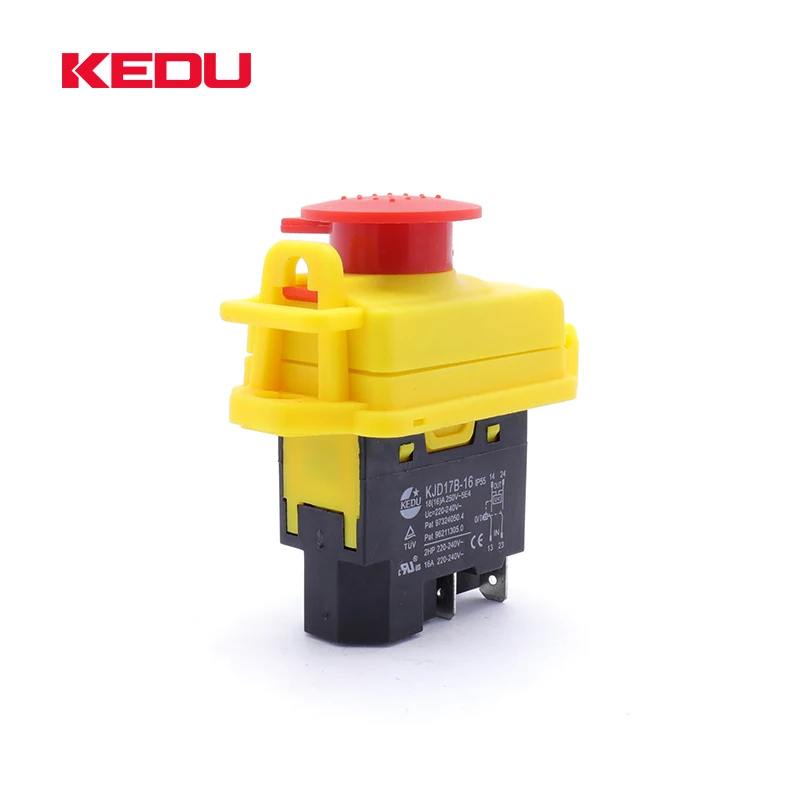

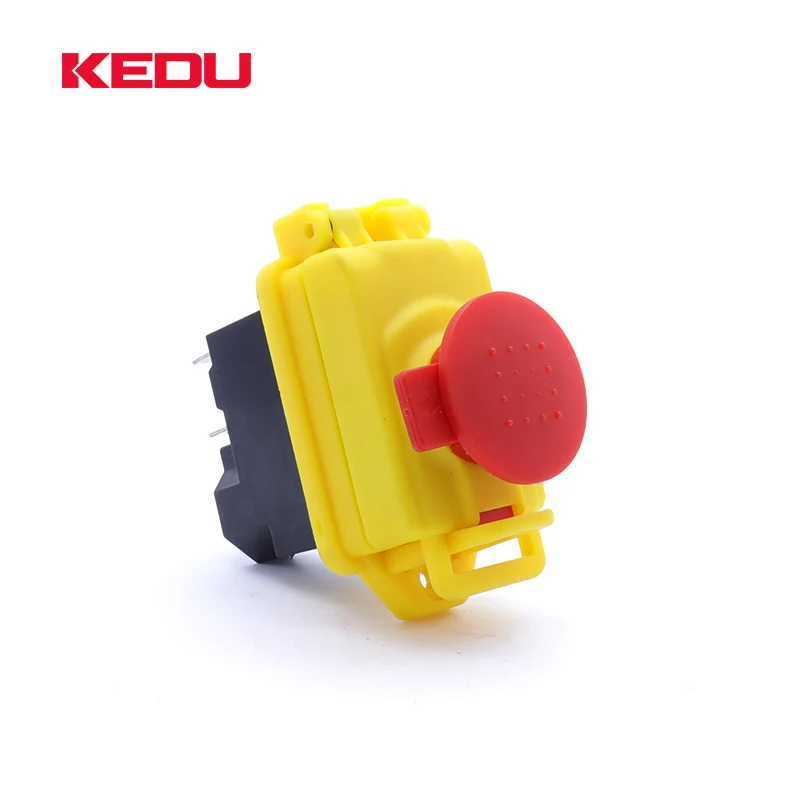

KEDU KJD17B 16 250VAC 18A 4 Pin Emergency Stop Push Button Switch ON Off Pushbutton Switches

Share on (1600527652974):


Price:$6.80 - $8.00

Quantity:


Product Overview

Description



Our Advantage


Product Description


KEDU KJD17B-16 250VAC 18A 4 Pin Emergency Stop Push Button Switch ON Off Pushbutton Switches








These switches have the following functions that derived from power-oand under voltage protection:

l.Double pole cut 0FF
2.Brake function with one pole cut off
3.These two versions can be combined with overload protection switch to achieve under voltage and overload protection.The advantage of our patented technology is high current with small size.



Stabdard
TUV(EN60947)

TUV(EN61058)

UL,CUL(UL508,E195428)
VDE,CE(DIN1058,VDE0630)
Type
KJD17B

KJD17B

KJD17B-16
KJDB
KJD17B-16
KJD17B
Rated Voltage
250V~
120V~
250V~
120V~
250V~
120V~
220-240V~
250V~
Rated Current
AC-1:18A AC-3:15A
10(8)A  18(16)A
10(8)A  16(12)A
16(16)A
18(16)A
16A  1/2HP
16A 2HP
10(8)A
Coil Voltage

220-240~  or  100-120V~

Rated Frequency

50/60Hz

Degree of Protection

IP54(EN60947)  IP55(EN61058)

Number of operating Cycles

5E4

Ambient Temperature

T85/55
