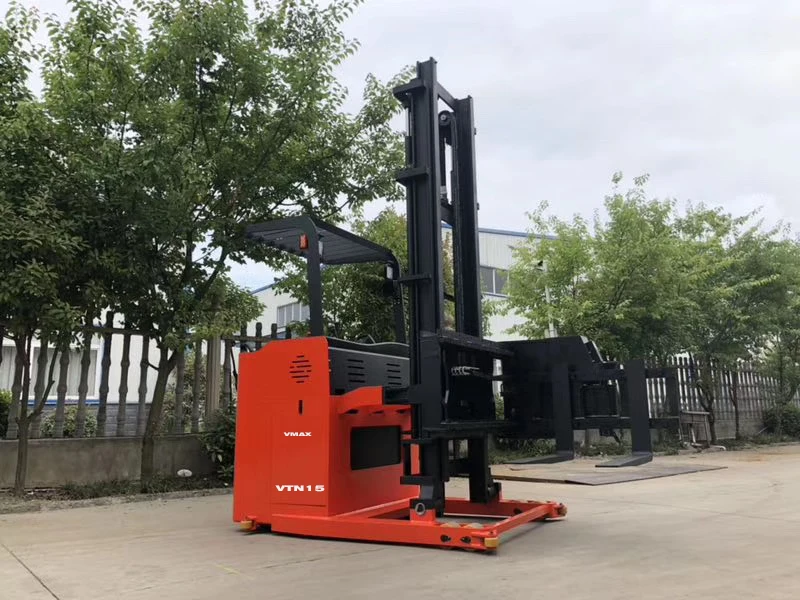

Super Narrow Asile Work 1.5 Ton Three Way Forklift Reach Truck 1500kg With 6m 7m 8 M Lifter
- Category: >>>
- Supplier: Vmax International Group(shanghai)co. Ltd.
Share on (1600527671701):
Product Overview
Description
Product Description
| Distinguish mark | Description | VMAX 3-way electric forklift ( narrow aisle forklift) | ||||
| Model | Unit | VTN10-60 | VTN15-45 | VTN15-75 | VTN15-80 | |
| Power | full electric | full electric | ||||
| operation type | standing type | standing type | ||||
| Load capacity | kg | 1000 | 1500 | |||
| load center | c(mm) | 500 | 500 | |||
| weight | servce weight (Incl.battery) | kg | 4980 | 5000 | 5200 | 5240 |
| Battery weight | kg | 510 | 548 | |||
| size of battery | mm | 905*432*560 | 1055*452*574 | |||
| Tires | Material | Pu solid tyres | Pu solid tyres | |||
| Tyre size,balance wheel | φ(mm) | φ180*76 | φ180*76 | |||
| Tyre size,front wheel | φ(mm) | φ145*100 | φ145*100 | |||
| Tyre size,drive wheel | φ(mm) | φ382*142 | φ382*142 | |||
| Dimension | Lowered mast height | H1(mm) | 3180 | 2625 | 3690 | 3858 |
| Free lift height | mm | 1725 | 1540 | 2500 | 2660 | |
| Lift height | H(mm) | 6000 | 4500 | 7500 | 8ooo | |
| Extended mast height with load backrest) | H2(mm) | 6700 | 5700 | 8600 | 9100 | |
| Height of overhead guard | H3(mm) | 2280 | 2280 | |||
| overall length Incl.fork | L(mm) | 3780/2850 | 3980/3100 | |||
| Overall width | s(mm) | 1445 | 1550 | |||
| Fork dimension | mm | 1070*122*40 | 1070*125*45 | |||
| Removable width of forks | mm | 260-600 | 244-650 | |||
| Ground clearance | mm | 35 | 35 | |||
| Aisle width for pallet 1000*1000mm/1200*1200mm | mm | 1600 | 1760 | |||
| steerable wheel Outer Width | mm | 1445 | 1550 | |||
| Aisle Guide Height | H4(mm) | 120 | 120 | |||
| Aisle Guide Width | mm | 1500 | 1600 | |||
| Main Aisle Width | mm | 3600(min) | 3600(min.) | |||
| rurning radius | Wa(mm) | 2017 | 2017 | |||
| Performance | Travel speed | km/h | 7.0/8.0 | 7.0/8.0 | ||
| Lifting speed | mm/s | 215/275 | 215/275 | |||
| servce brake | electromagnetic | |||||
| Walking adjustable type | Holzer type accelerator | |||||
| steering type | EPS (electronic steering system) | |||||
| Electric motor | Drive motor | Kw | 6.5AC | 6.5 AC | ||
| Lift motor | Kw | 7.5DC | 7.5 DC | |||
| Battery voltagelcapacity | VAh | 48/400 | 48/440 | |||
| Charger feature | Input:110/220V single phase 50/60 HZ //380V 3 phase | |||||
| continous working hours | h | ≤7 Hours by full load | ||||
| charging time | h | ≥8 hours to full charged | ||||
Company Information
Our Services
FAQ:
Any questions, welcome to contact us, we ill be always help you and support you.
1.May I know how soon I can get the machine after I transfer the deposit?
Usually, if the quantity is less than 20 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
2.How long the product warranty period?
The product warranty period is 18 months or 2000 hours.
3.How long have you engaged in this industry?
We have been engaged in this industry for more than 20years, Our hot products sold at home and abroad by our own foreign trade department and some trading company.
