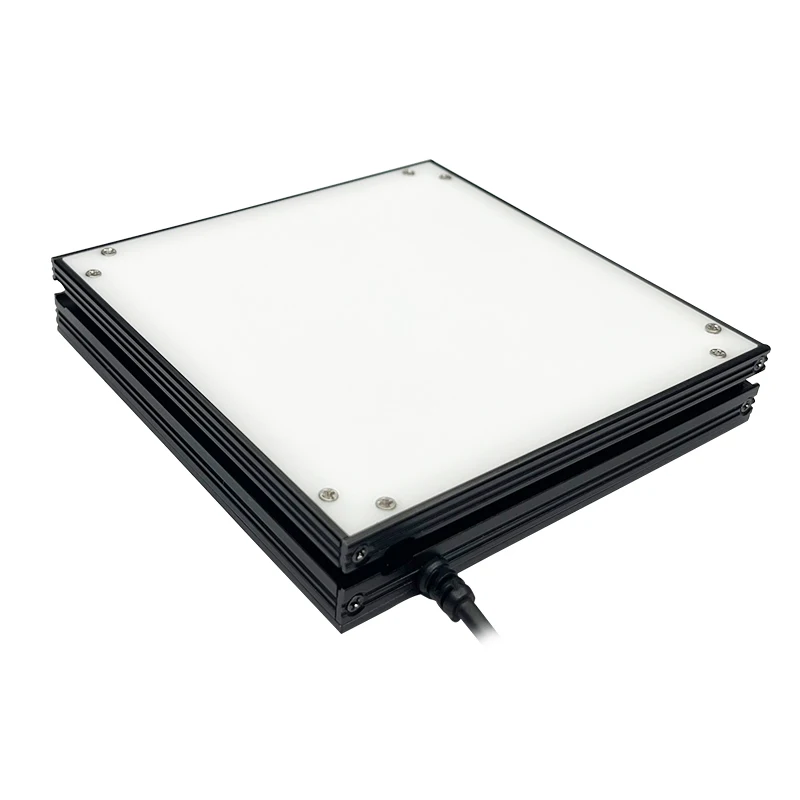

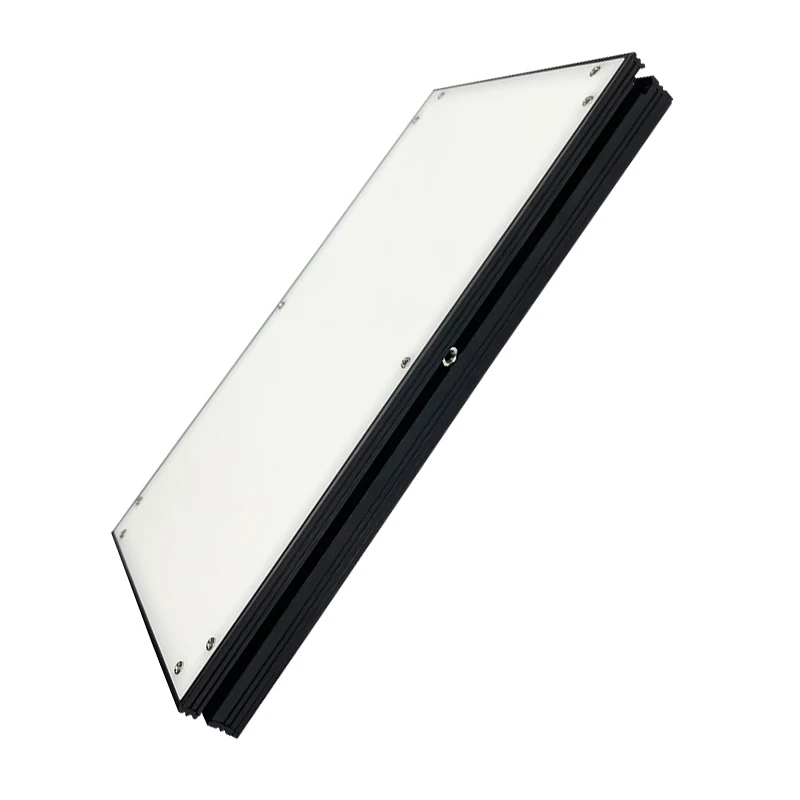

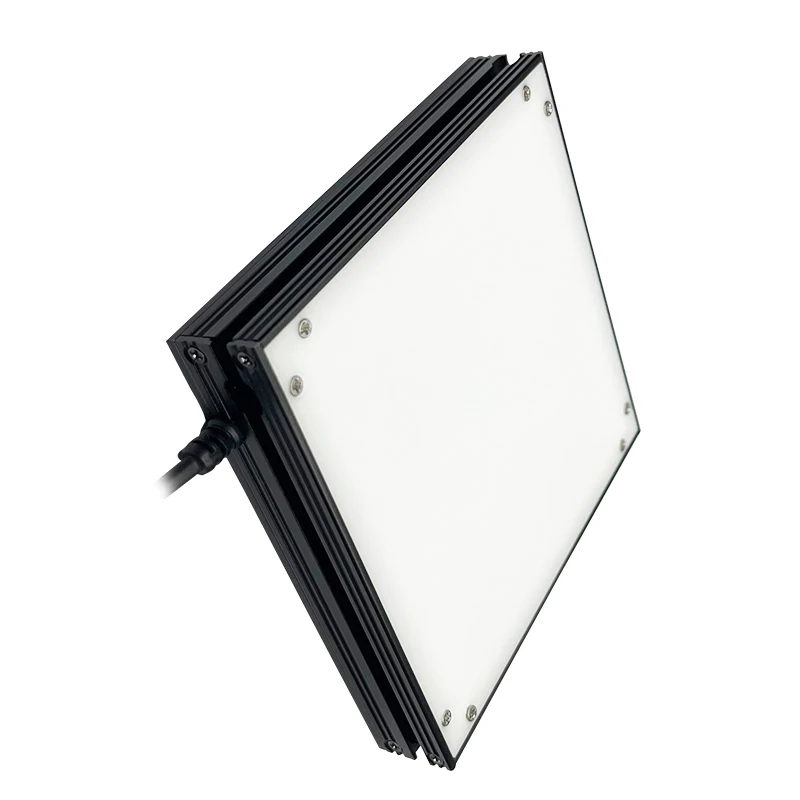

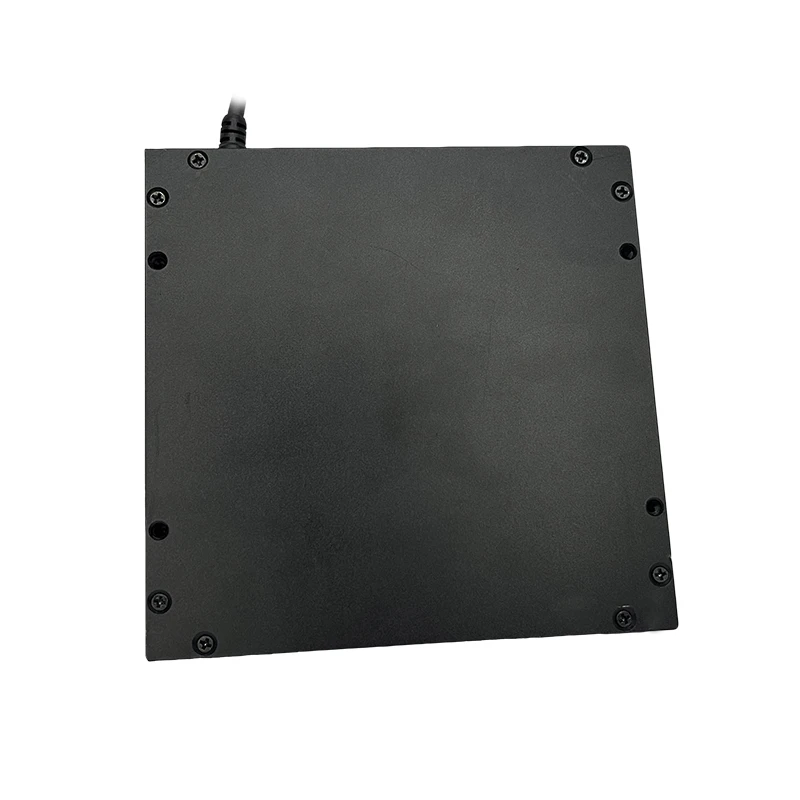

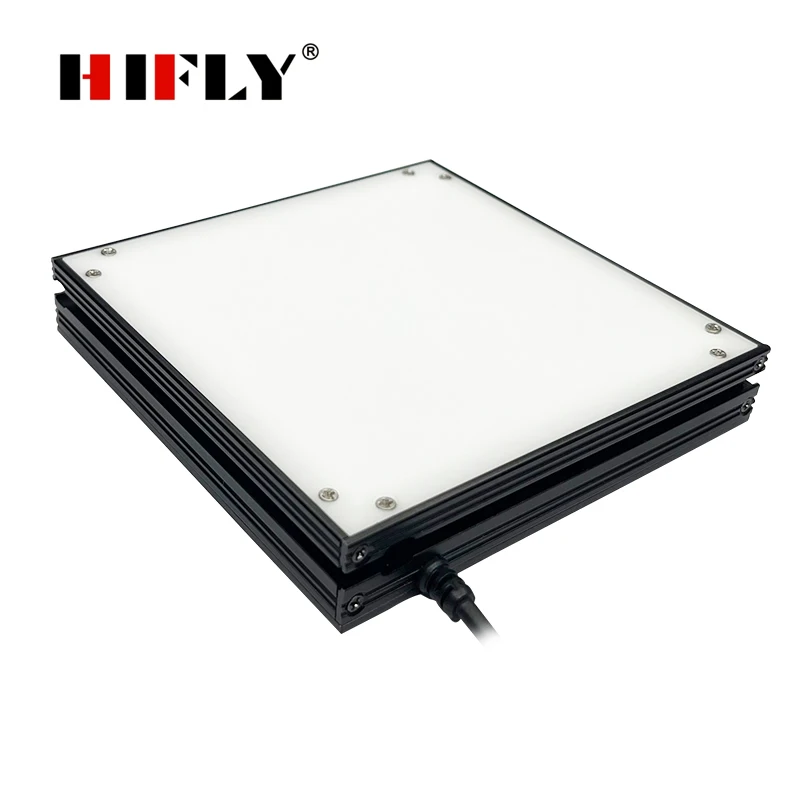

2nd Generation Collimated Film Parallel LED Working Back Light 200*200mm
- Category: >>>
- Supplier: Shenzhen Hifly Technology Co. Limited
Share on (1600527677942):
Product Overview
Description
Product Description
About this item
2nd Generation. Collimated Film Coated and More Compact Design!
High quality material--Aluminum alloy and PMMA: This assures a long lifespan, good performance and duration.
KOMA Backlight sources are all low power consuming, energy-saving with high brightness that can be excellent light source for cameras to detect defects / impurities, capture material outlines, etc. In addition, the Collimated Film makes the emitting light uniform and parallel.
It is well designed and applied for professional use, and an excellent aid for various laboratory and industrial cameras.

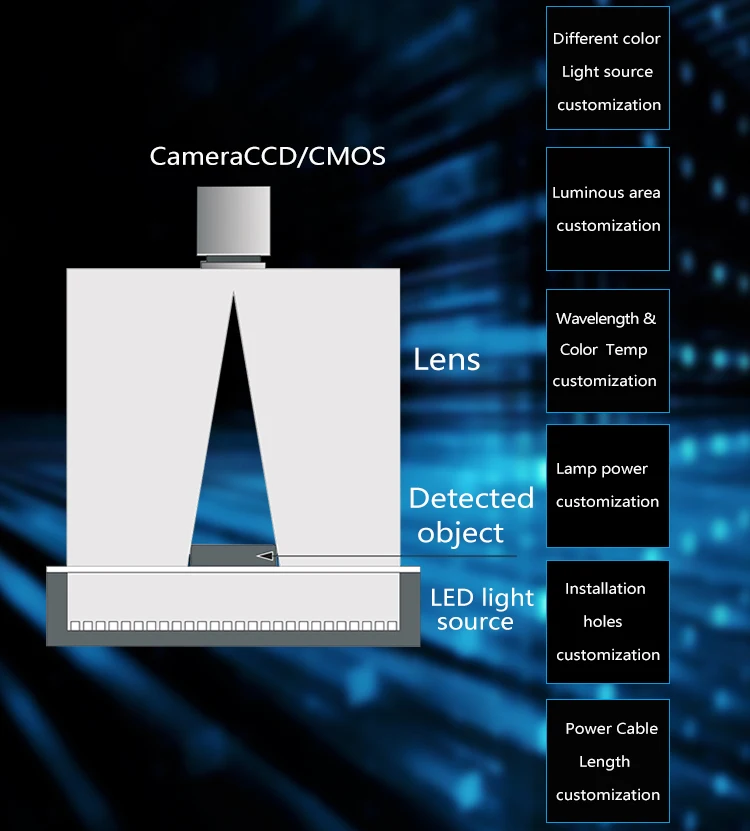

The highly uniform bright back light is composed of evenly distributed LED luminescence units, light emits from the bottom and is perfectly concentrated, it can effectively avoid the reflection of the LED light on the reflective surfaces. Custom design of power and luminous area etc. is available. The light intensity of this removable KOMA LED back light can be controlled by extra connected light brightness controller/dimmer.
● This intensity-adjustable Back Light provides strong and highly uniform light, which is ideal for laboratory and industrial applications.
● Power supply: Input DC 24V, power 14~23W. CustomizeDd Power is also supported.
● Effective illumination area: 200*200 mm. An assortment of sizes are available with white, red, blue, IR, or UV LEDs.
● Energy-saving, Super Low Power Consuming, Highly Bright. it can be used as a perfect light source for defect detection, outline capture, impurities, liquid level, etc.
● With extra connected light brightness controller/dimmer, it's easy to adjust the intensity of KOMA LED back light source and provides a clear-and-crisp, cool-to-touch light that lasts greatly longer than traditional tungsten bulbs.
Light source color (wavelength) | White (color temperature): 6000-7500K | Red: 620nm-630nm | |
Green: 520nm-530nm | Blue:460nm-470nm | ||
Use environment(indoor) | temperature: 0℃-40℃ | Humidity: 20%-85%RH (non-condensing) | |
Lifespan | 30,000 hours for white and 30,000 hours for red (theoretical reference) | ||
After-sales service | One-year warranty and Lifetime technical support | ||
Optional items or accessories (Charged) | Offering custom design and development services if needed | ||

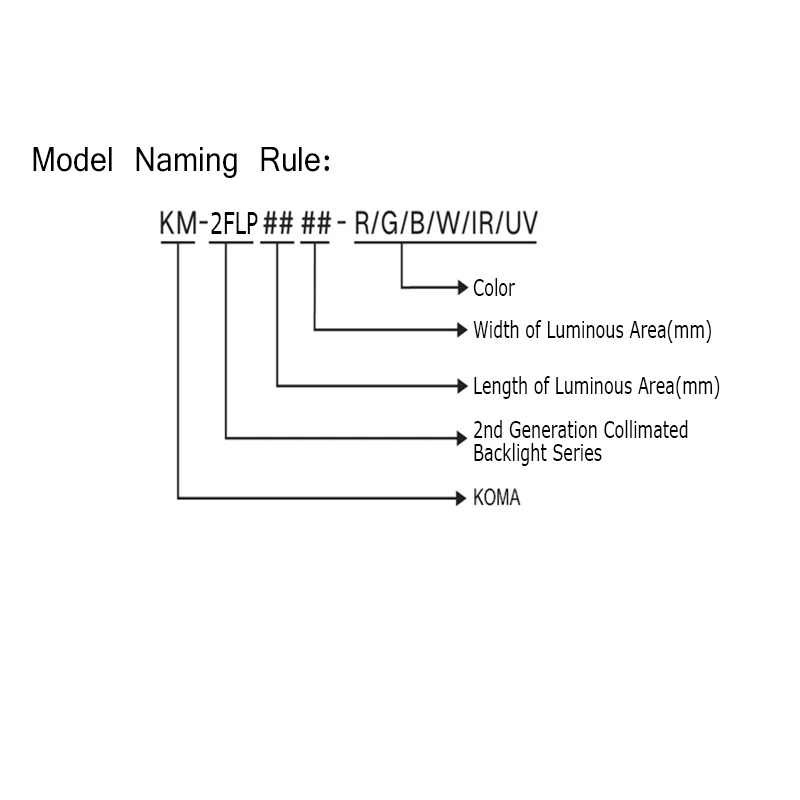

2FLP Series
Model | Luminous Area (mm) | Voltage | Power | Color |
2FLP5050 | 50*50 | 12v/24v | 2~3.6W | White,Red,Green,Blue,IR,UV |
2FLP6060 | 60*60 | 12v/24v | 2.9~4.4W | White,Red,Green,Blue,IR,UV |
2FLP7070 | 70*70 | 12v/24v | 3.4~6.3W | White,Red,Green,Blue,IR,UV |
2FLP8080 | 80*80 | 12v/24v | 4.4~6.8W | White,Red,Green,Blue,IR,UV |
2FLP9090 | 90*90 | 12v/24v | 5.8~9.6W | White,Red,Green,Blue,IR,UV |
2FLP100100 | 100*100 | 12v/24v | 6.5~10.8W | White,Red,Green,Blue,IR,UV |
2FLP120120 | 120*120 | 12v/24v | 8~14.4W | White,Red,Green,Blue,IR,UV |
2FLP150150 | 150*150 | 24v | 11.6~24W | White,Red,Green,Blue,IR,UV |
2FLP180180 | 180*180 | 24v | 16.8~26W | White,Red,Green,Blue,IR,UV |
2FLP200200 | 200*200 | 24v | 14~23W | White,Red,Green,Blue,IR,UV |
2FLP250125 | 250*125 | 24v | 16~16W | White,Red,Green,Blue,IR,UV |
2FLP250250 | 250*250 | 24v | 31~31W | White,Red,Green,Blue,IR,UV |
2FLP300150 | 300*150 | 24v | 27~41W | White,Red,Green,Blue,IR,UV |
2FLP300300 | 300*300 | 24v | 37~56W | White,Red,Green,Blue,IR,UV |
2FLP400200 | 400*200 | 24v | 28~46W | White,Red,Green,Blue,IR,UV |
2FLP400400 | 400*400 | 24v | 56~93W | White,Red,Green,Blue,IR,UV |
2FLP500125 | 500*125 | 24v | 31~31W | White,Red,Green,Blue,IR,UV |
2FLP500250 | 500*250 | 24v | 62~62W | White,Red,Green,Blue,IR,UV |

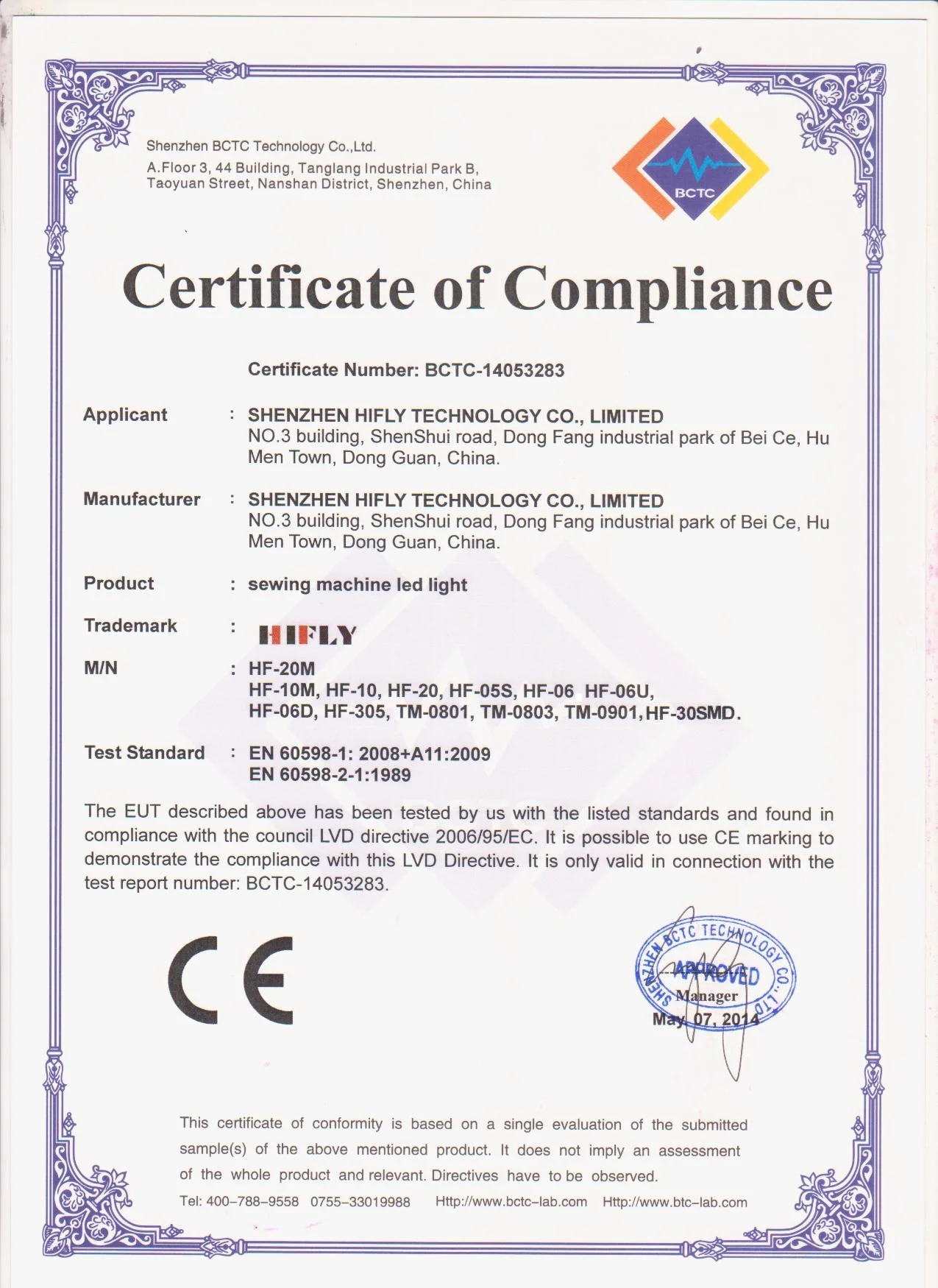

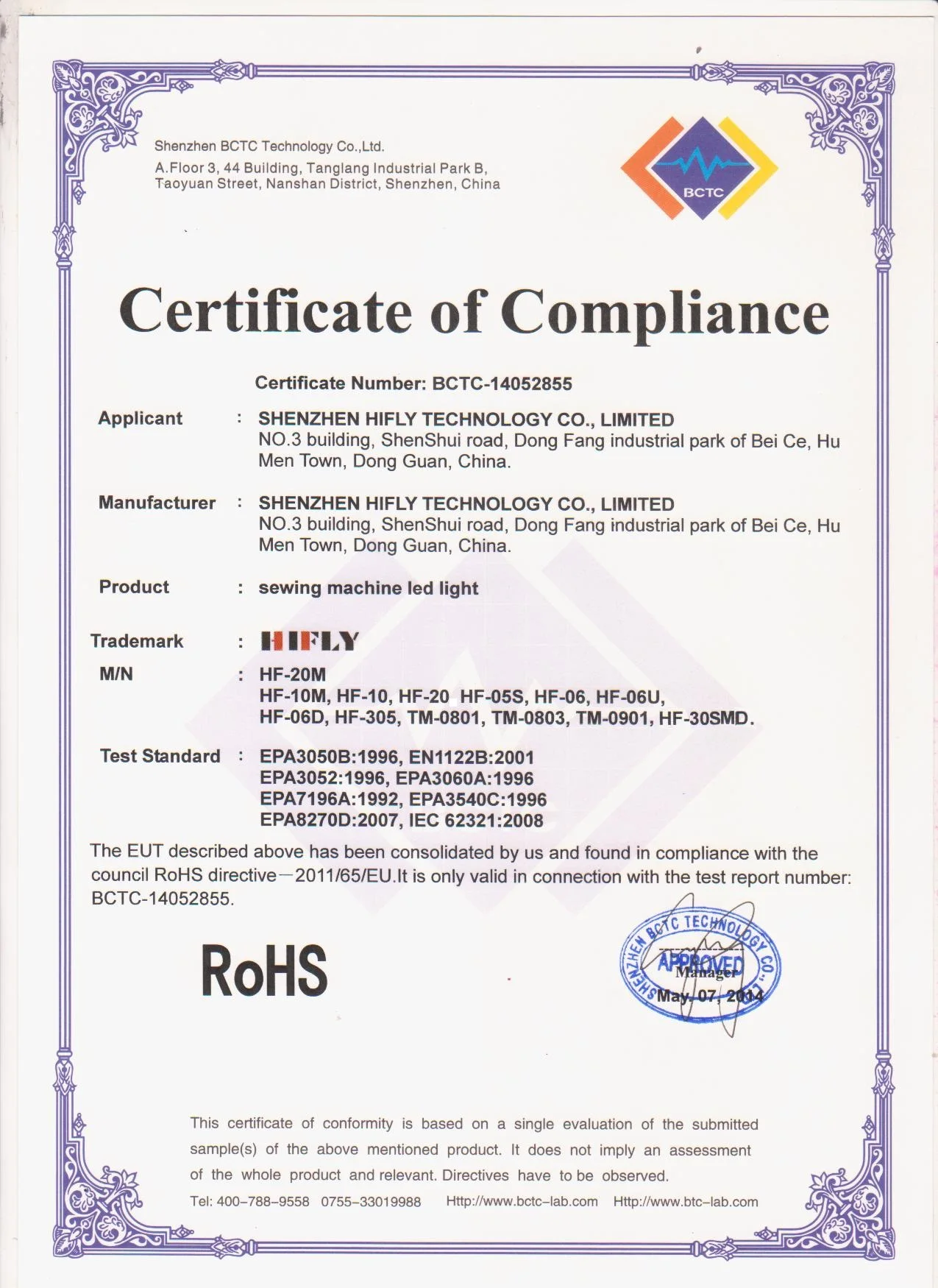

Certifications
Our Company
Shenzhen Haitianxiang Technology Co., Ltd. (HIFLY for short) is a high-tech enterprise specializing in machine vision light sources, industrial cameras, industrial lenses and vision system solutions.
Our Team
As the world's leading machine vision service provider and manufacturer, we have a group of professional remarkable management personnel, R&D personnel, software application engineers, imaging engineers, sales engineers and a complete after-sales service system. 80% of employees have bachelor degrees or above, including postgraduate and doctoral degrees. So far, we have established long-term scientific research cooperation relationships with major universities.

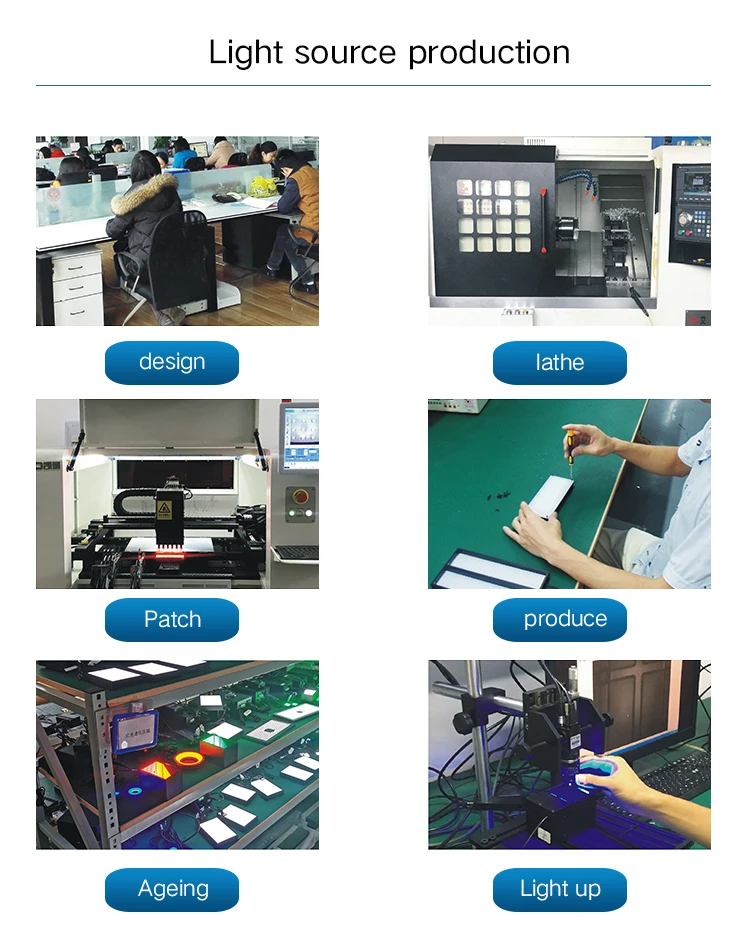

Light source production process
The entire production process is in strict accordance with regulations and licensure to guarantee good quality and efficiency.

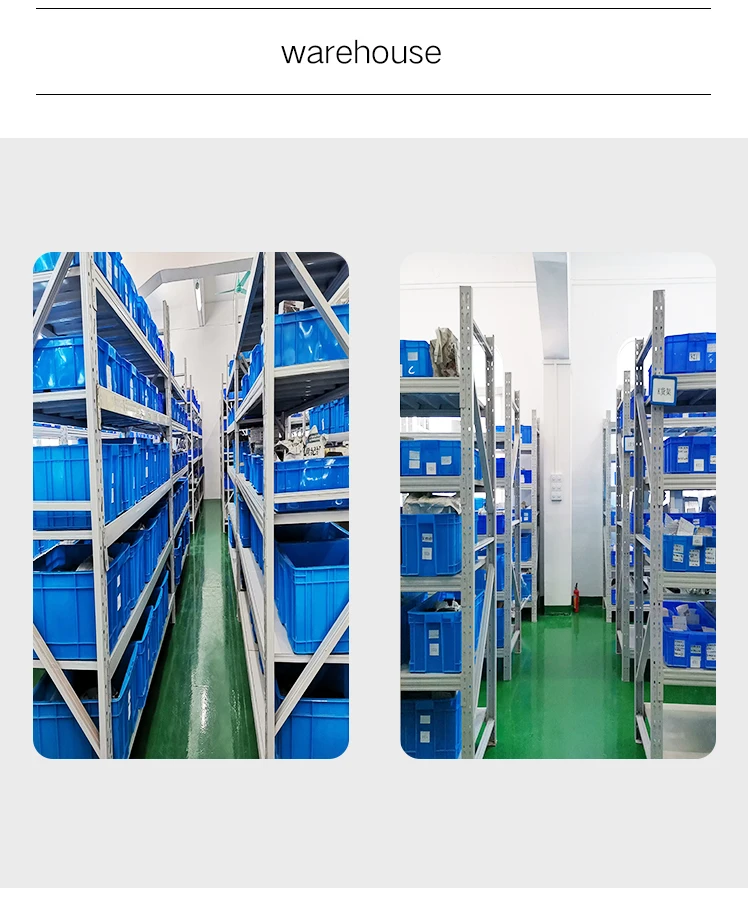

Warehouse
The warehouse runs with strict surveillance and maintenance, a excellent storage condition is needed to keeping the goods in a nice state before shipment.
FAQ
Q1. Can I have a sample order?
A: Yes, any sample orders are welcome. Mixed model samples are also acceptable.
Q2. What about the lead time?
A: 3-5 weekdays for sample orders, 1-2 weeks or longer for bulk buying.
Q3. What's your MOQ?
A: Basically, our product MOQ is 1pc.
Q4. How do you ship the goods and how long will it take to arrive?
A: Basically, the goods are shipped out by DHL, UPS, FedEx, TNT, SF Express etc. It usually takes 5-10 days to arrive. You can also pick air / sea shipping or other ways.
Q5. How should I place an order for led light?
A: 1, let us know your requirements or applications.
2, We figure out the best solution and quote.
3, We draft an order once you confirm it.
4, Basically, we'll ship it out in 7 weekdays as you check again and pay it off.
Q6. Is it OK to have my logo / own packaging?
A: Yes, and you might need to offer more details and follow some other requirements.
Q7: What's the product warranty ?
A: It varies from 1-3 years because of different types of products.
Q8: How do you deal with the faulty items?
A: 1, Our entire production is operated under strict quality control system with very low defective rate.
2, In the warranty period, online technical support and repairs are offered, we will exchange or refund it if that doesn't work according to the situations. We don't take responsibility for Any damages / misuse.
3, We appreciate any of your advice or suggestions about the imperfections or flaws of our products.
