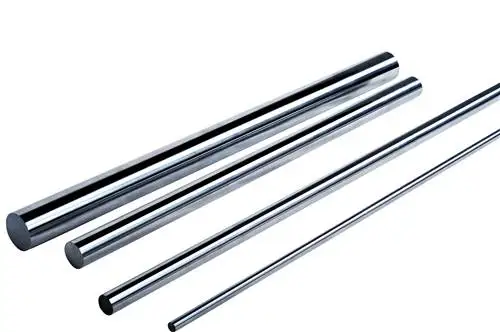

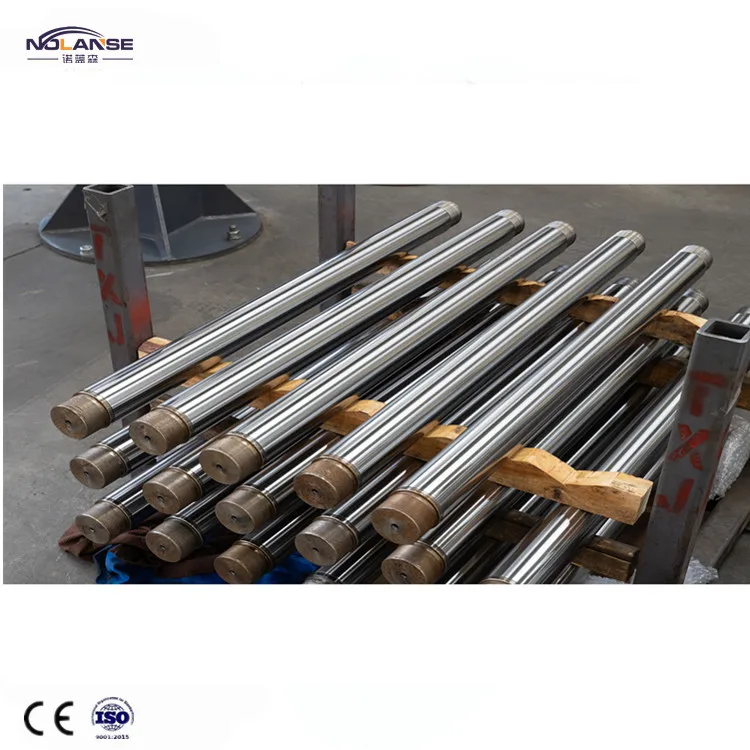

Bulk Wholesale Hydraulic Cylinder Parts 4140 CK45 Chrome Plated Rod Bar Position
- Category: >>>
- Supplier: Shandong Tongyong Hydraulic Machinery Co. Ltd.
Share on (1600527704728):
Product Overview
Description
Custom Hydraulic Cylinders
TYHC manufacturing capabilities are a vital component of our business and at the heart of what we do. Our in-house engineering team, manufacturing and quality systems were designed to ensure that we build only the best for our customers; guaranteeing the most appropriate design features and quality product materials for your application. TYHC can also incorporate load holding valves, linear position transducers and a wide range of mounting options. Custom paint and packaging options are also available. 3D CAD models are available upon request.
Wide variety of custom cylinders are manufactured, including single stage cylinders (both single and double acting), single and double acting telescopic (small and large bore), double end cylinders, piggyback design, mill type cylinders, tie rod cylinders, accumulators, marine grade steering cylinders, and standard dimension welded product lines.
Factory direct sale hydraulic telescopic hydraulic cylinder double acting
We can make according to the customer's drawings and requirements. Please send us your drawings or sample sizes, or tell us your requirements. Our r&d department will design for you. We can design according to user requirements, manufacturing Double Acting Hydraulic Cylinder.
Product Description

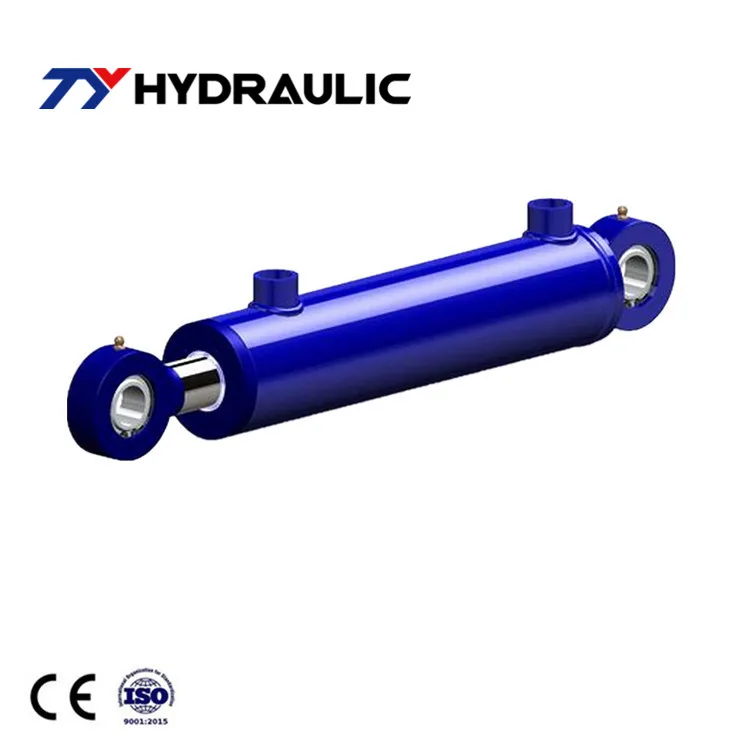

Double acting hydraulic cylinder refers to a hydraulic cylinder that can input pressure oil from both sides of the piston. It is often used as the driving component of the jack. Double-acting hydraulic cylinder actuators is the main output device, hydraulic motor system while in size, type and design structure in different ways, this part is usually the most part can be observed. These actuators convert the liquid pressure into a fast, controllable linear motion or force that drives the load.
A double acting cylinder alternates cycles of pressurized fluid to both sides of the piston and creates extend and retract forces to move the piston rod, permitting more control over the movement. Using a control system made up of a 2-, 3-, 4- way position valve would be required to achieve the desired movement for your application.
Technical parameters:
scope | bore diameter | ≤1800mm | ||
stroke | ≤15000mm | |||
pressure | ≤750bar | |||
capacity | Customized cylinder production: 100,000/Year | |||
surface technology | coating | NSS(h) | application | |
2HCr | 48~72 | mild corrosive | ||
2Ni+HCr | 200~500 | moderate~strong:construction drilling mining | ||
APS | ≥8000 | extreme:marine atmosphere sheltered zone | ||
HVOF | ≥10000 | extreme:Sea water submarged; marine splash zone | ||
Features and Functions:
1. Double acting. Hydraulic return
2. Baked enamel finish for increased corrosion resistance.
3. Built-in safety valve prevents accidental over-pressurixation.
4. Be equipped with double-loop pump to run.
5. RR cylinder is the best solution to premise controlled heavy loads.
6. Replacing adjustment rolls under a fly-over with RR cylinders, for controlled lifting an lowering operation.
Technical parameters:
Model | Strock (mm) | Bore Diameter (mm) | Rod Diamter (mm) | Push(KN) | Pull(KN) |
TYHC-160/90E | 715 | 160 | 90 | 321.7 | 219.9 |
TYHC-100/60E | 1200 | 100 | 60 | 125.66 | 87.65 |
TYHC-80/50E | 700 | 80 | 50 | 101.79 | 70.37 |
TYHC-80/50E | 640 | 80 | 50 | 101.79 | 70.37 |
TYHC-80/50/E | 550 | 80 | 50 | 101.79 | 70.73 |
TYHC-80/50 | 500 | 80 | 50 | 80.43 | 54.98 |
TYHC-80/50E | 440 | 80 | 50 | 80.43 | 43.41 |
TYHC-63/35E | 200 | 63 | 35 | 50 | 34.5 |
TYHC-63/35E | 300 | 63 | 35 | 50 | 34.5 |
TYHC-50/28E | 140 | 50 | 28 | 31.42 | 21.56 |
Why choose us?
Meeting your hydraulic needs from design to delivery
Rigorous Standards and Testing
Prototype and Design Capabilities
The team at Tongyong Hydraulics will work alongside you as an extension of “your” Design and Engineering team to create a solution which is robust, high quality, and fine-tuned for optimal performance. We want to understand your application as well as you do!
As a full-service supplier, our team will be there for support from start to finish and will ensure a smooth launch into production, with dedicated ongoing support into the future.
Engineering Philosophy
Our sales and engineering staff will work with you to become an extension of your team. We will be there for support from start to finish for new or ongoing projects. We will work with you from the early design phase and application engineering and approvals through production and field support for the life of the product.
Through more than 35 years development, now we have 6 workshops,1 research center and 1 sales center. During the past years, we have accumulated rich experience and advanced technic, which make us can provide more better production and service.Our workshop occupy more than 36,800 square meters with 200 employees. There are 100 more sets of various high precision machines at our factory. Our production ability can reach max. 100,000 set each year. Delivery time can fully meet customer's requirement.Products are certificated by international ISO9001:2000.Third Party Inspection Institute SGS test orders for customers regularly and give high praise of our production. Now 60% of our production are exported. Our products are widely exported to the north and south America, Europe,Middle east,AfricaSoutheast Asia,etc.
