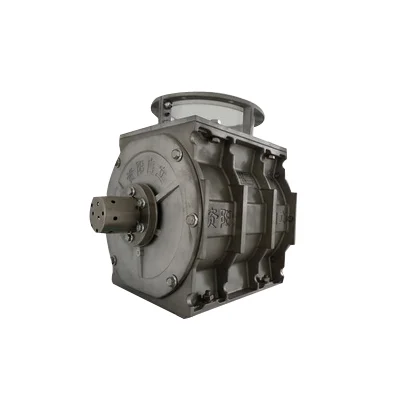

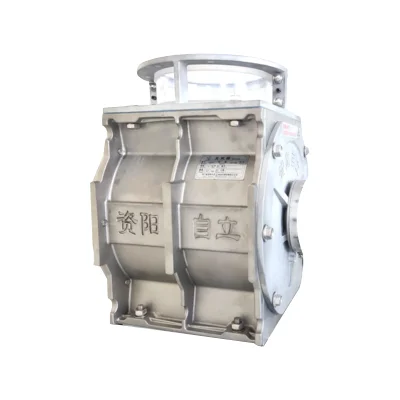

ISO9001 good quality stainless steel delivery rotary airlock valve for pneumatic conveying bulk material handing
- Category: >>>
- Supplier: Sichuan Zili Machinery Co. Ltd.
Share on (1600527709890):
Product Overview
Description
ROTARY AIRLOCK VALVE FOR FLOUR MILLING FACTORY

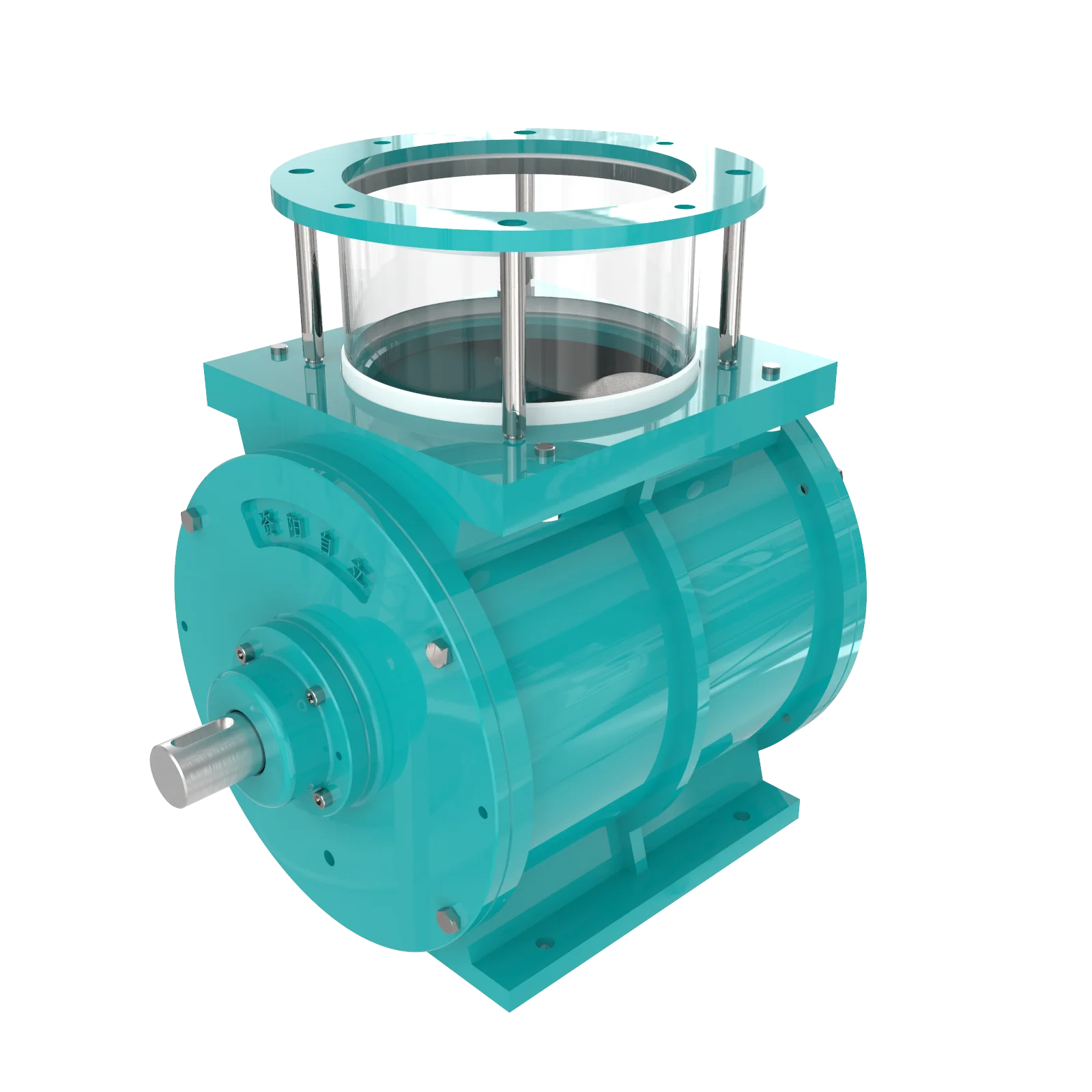

Product details
Output G Calculation Formula
G = 0.06 VnKρ (t/h)
In the formula: V---- volume of rotary valve (L) n---- speed (r/min) ρ---- bulk density of material (t/m³)K---The filling factor is 0.6~0.8 for particles and 0.4~0.6 for powder
For example：a 9L flour pneumatic conveying rotary valve output：
G=0.06*9*53*0.5*0.5=7.155（t/h）

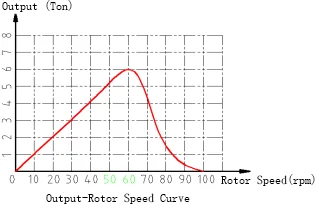

The displacement (production capacity) is proportional to the rotational speed within a certain range, but it will be greatly reduced after a certain range

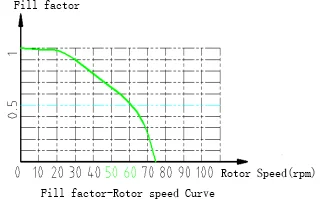

The fill factor is inversely proportional to the rotational speed within a certain range, but after a certain critical point, the filling factor will decrease rapidly

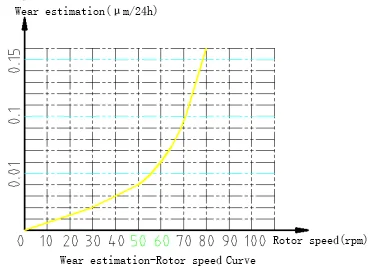

Within a certain range, the wear amount of the equipment is proportional to the rotational speed. Once the critical point is exceeded, the wear amount will increase exponentially.
Product Paramenters
Product Application

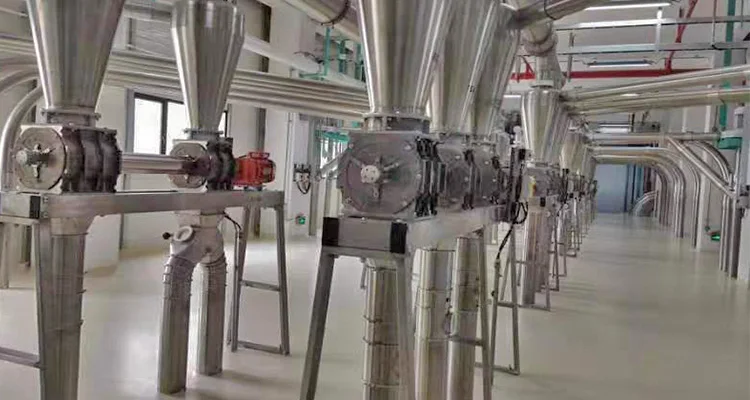

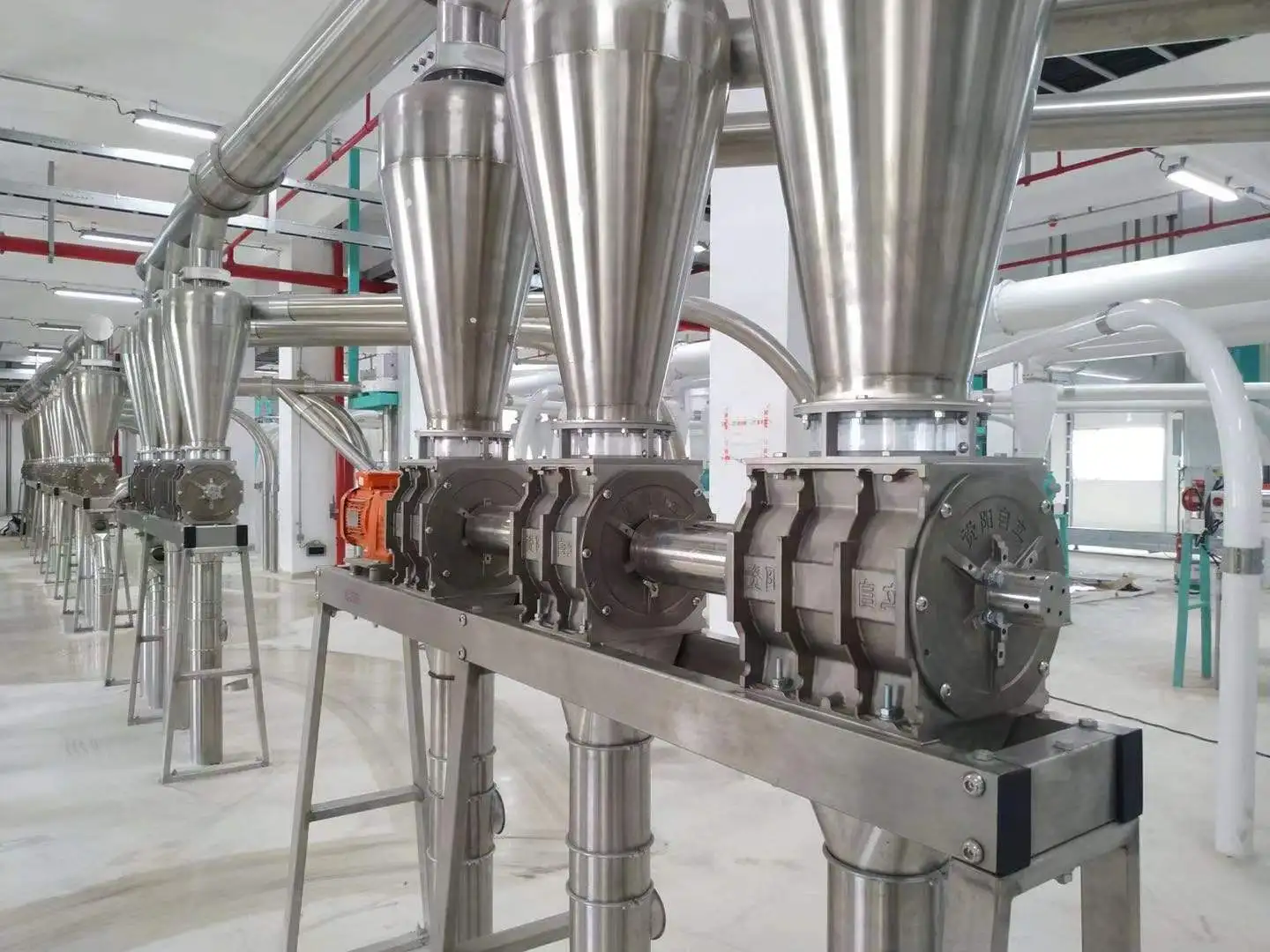

This type of rotary airlock valves are widely used in food, animal feed, pharmaceutical and chemical industries pneumatic conveying systems.
Related Products:

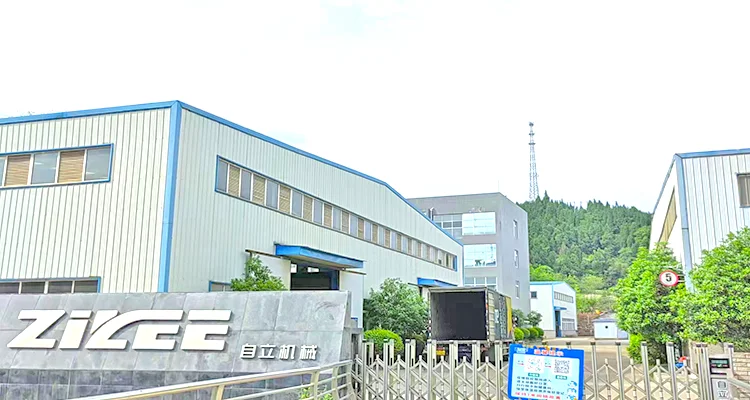

Company Profile
About Us.
Sichuan Zili Machinery Co., Ltd, located in Sichuan Province, was founded in 2002. It is a professional manufacturer that specializes in designing, producing and distributing high-quality TGF series rotary airlock valves and TXF 2-way diverter valves used in powder and granules pneumatic conveying systems.
We have our own R & D team. For years, based on our own research and development, we absorbed good technologies in this area both domestically and abroad. Now our products quality has improved a lot. Especially the external bearing rotary airlock valve, and the 3rd generation diverter valves We completely ended the phenomenon of channeling powder, blocking, and stuck. And product quality has reached a new height.
As the company cooperates with more and more customers, it has higher and higher requirements for factory performance. At present, the factory has purchased several CNC machine tools, automated welding equipment and automatic painting systems, which not only increases production capacity but also guarantees product quality.
A View Of Our Factory Prodcution Line
Certificates & Patent
Packaging & Shipping
FAQ
Q1. What are your advantages ?
A1.Our Airlocks can operate smoothly for 6-8 years with SKF Bearings, ISO 600-3 nodular cast iron material, and professional design with our own patents. Since we are manufacturer, we have our own supply chain and quality control system. So we can provide competitive price as well as good quality.
Q2. What kind of payment terms and transportation do you accept ?
A2. We accept payment through Alibaba, TT, LC, air transportation and sea transportation are available.
Q3.Can you do the supporting installation and design according to our needs or do you only sell rotary valves ?
A3.Yes, that is available for use to do the installation and design according to you demands.
A1.Our Airlocks can operate smoothly for 6-8 years with SKF Bearings, ISO 600-3 nodular cast iron material, and professional design with our own patents. Since we are manufacturer, we have our own supply chain and quality control system. So we can provide competitive price as well as good quality.
Q2. What kind of payment terms and transportation do you accept ?
A2. We accept payment through Alibaba, TT, LC, air transportation and sea transportation are available.
Q3.Can you do the supporting installation and design according to our needs or do you only sell rotary valves ?
A3.Yes, that is available for use to do the installation and design according to you demands.
