Product Overview
Description

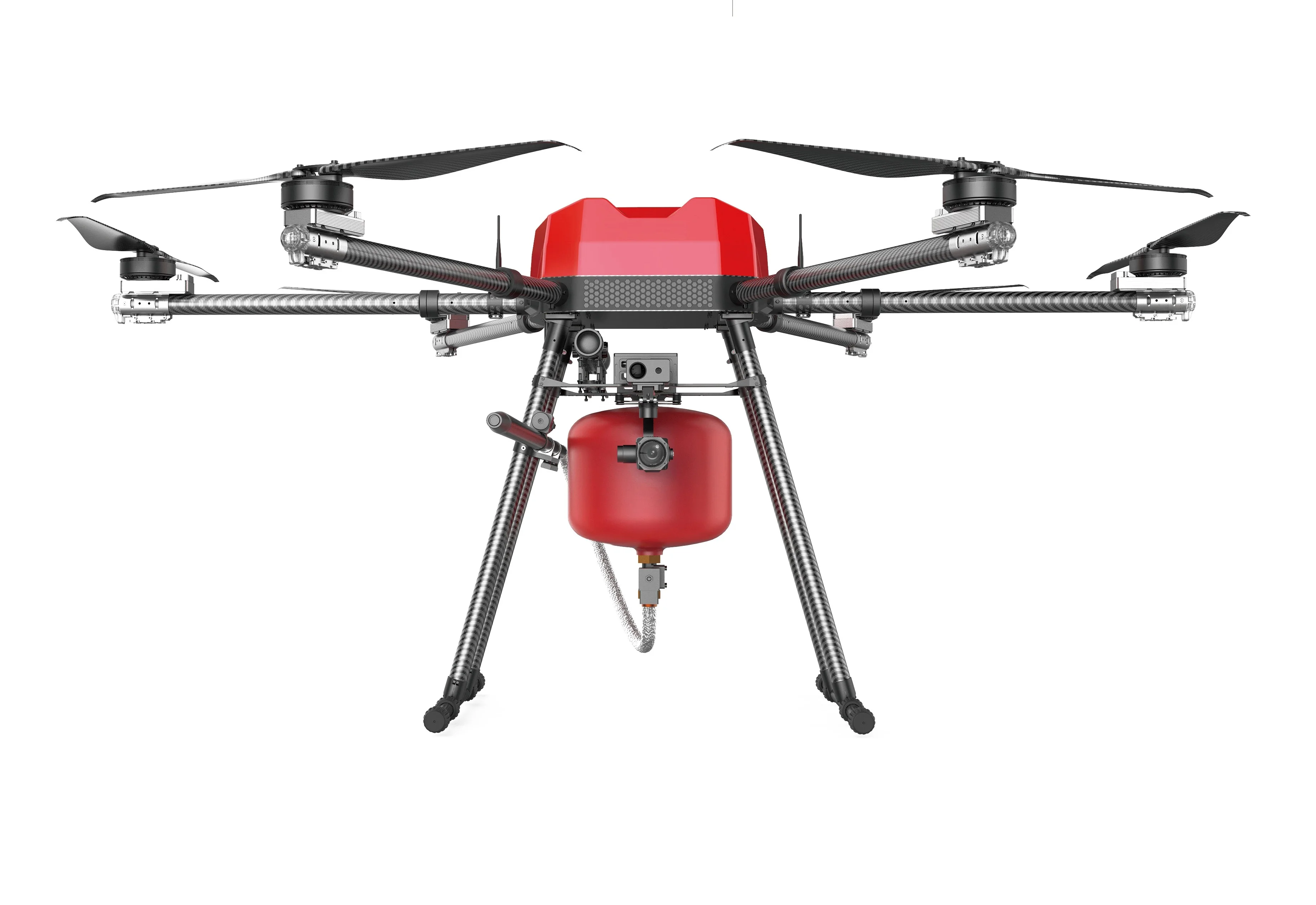

Electric firefighting drone
High building firefighting
Firefighters can implement functions such as controlling the drone, real-time monitoring of the situation on the scene, and monitoring the drone's flight status. They can directly connect the real time fire scene video to the fire command center platform; Saving time a lot, improving rescue efficiency and escort fire protection tasks.
Firefighters can implement functions such as controlling the drone, real-time monitoring of the situation on the scene, and monitoring the drone's flight status. They can directly connect the real time fire scene video to the fire command center platform; Saving time a lot, improving rescue efficiency and escort fire protection tasks.

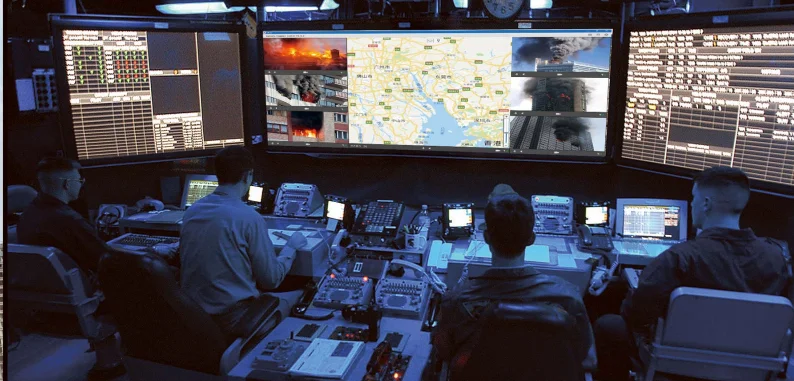

Cluster work
The command center controls the live fire site; the drone team implements autonomous navigation formation fire fighting operations, and cooperates with a 30x optical zoom camera.Multiple corners of the high-rise fire scene were monitored. Through the UAV Command Center software, you can watch multiple UAV surveillance images on a large screen at the same time.And displays the location of each fire team to help commanders make accurate decisions
The command center controls the live fire site; the drone team implements autonomous navigation formation fire fighting operations, and cooperates with a 30x optical zoom camera.Multiple corners of the high-rise fire scene were monitored. Through the UAV Command Center software, you can watch multiple UAV surveillance images on a large screen at the same time.And displays the location of each fire team to help commanders make accurate decisions
Function

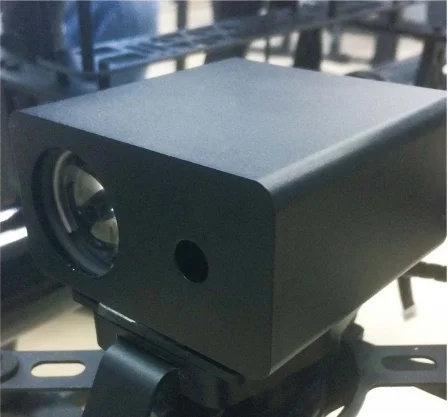

Lidar
Intelligent obstacle avoidance system made by high-precision sensors, the laser ranging can reach up to l00 meters, the obstacle can be identified from 3 to 15meters (adjustable)in the front direction and the brake is decelerated to prevent risks caused by wrong operation and guarantee your flight safety. Both obstacle avoidance and ranging protection make your flight safer and increase the probability of rescue.
Lidar
Intelligent obstacle avoidance system made by high-precision sensors, the laser ranging can reach up to l00 meters, the obstacle can be identified from 3 to 15meters (adjustable)in the front direction and the brake is decelerated to prevent risks caused by wrong operation and guarantee your flight safety. Both obstacle avoidance and ranging protection make your flight safer and increase the probability of rescue.

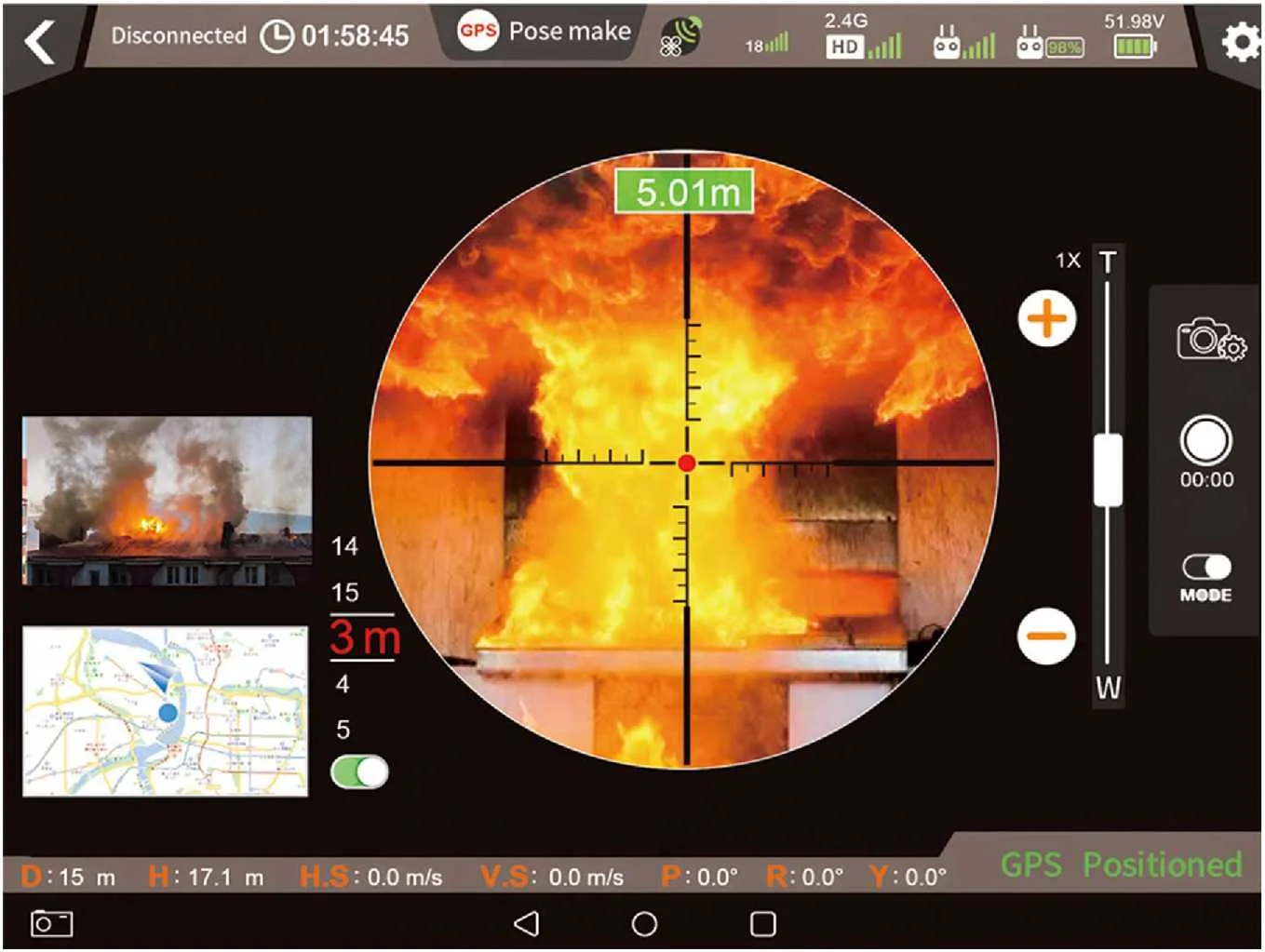

With night vision targeting system
It is equipped with a high-power load and anti-tremor design, a high-power aiming mirror and a high-frame camera with night vision function. With high transmission accuracy, it is able to fire extinguishing projectiles remotely and accurately in a complex fire weather environment. The target point is displayed on the ground control end in real time through the graph transmission, and the cross target star is available on the APP client, which greatly improves the accuracy of shooting and improves the rescue efficiency.
It is equipped with a high-power load and anti-tremor design, a high-power aiming mirror and a high-frame camera with night vision function. With high transmission accuracy, it is able to fire extinguishing projectiles remotely and accurately in a complex fire weather environment. The target point is displayed on the ground control end in real time through the graph transmission, and the cross target star is available on the APP client, which greatly improves the accuracy of shooting and improves the rescue efficiency.

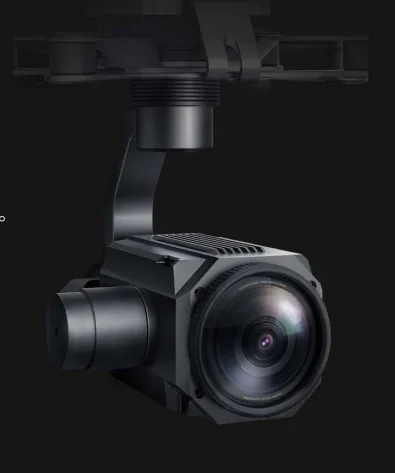

30 X optical zoom
Equipped with 30 X optical zoom camera, it can monitor the situation from a distance, observe all details of fire and disaster, and effectively help to make rescue plan. It can also be used for many purposes. Different equipment can be mounted according to different demands of customers, such as infrared thermal imaging camera, low light night vision camera and other equipment.
Equipped with 30 X optical zoom camera, it can monitor the situation from a distance, observe all details of fire and disaster, and effectively help to make rescue plan. It can also be used for many purposes. Different equipment can be mounted according to different demands of customers, such as infrared thermal imaging camera, low light night vision camera and other equipment.
Intelligent security protection system
In the flight, for example, the power imbalance is caused by occasional special circumstances and arbitrary motor failure. In the GPS mode, the aircraft can be automatically corrected and maintain the flight attitude. By controlling the throttle ofthe remote control, the safe landing can be achieved.
In the flight, for example, the power imbalance is caused by occasional special circumstances and arbitrary motor failure. In the GPS mode, the aircraft can be automatically corrected and maintain the flight attitude. By controlling the throttle ofthe remote control, the safe landing can be achieved.

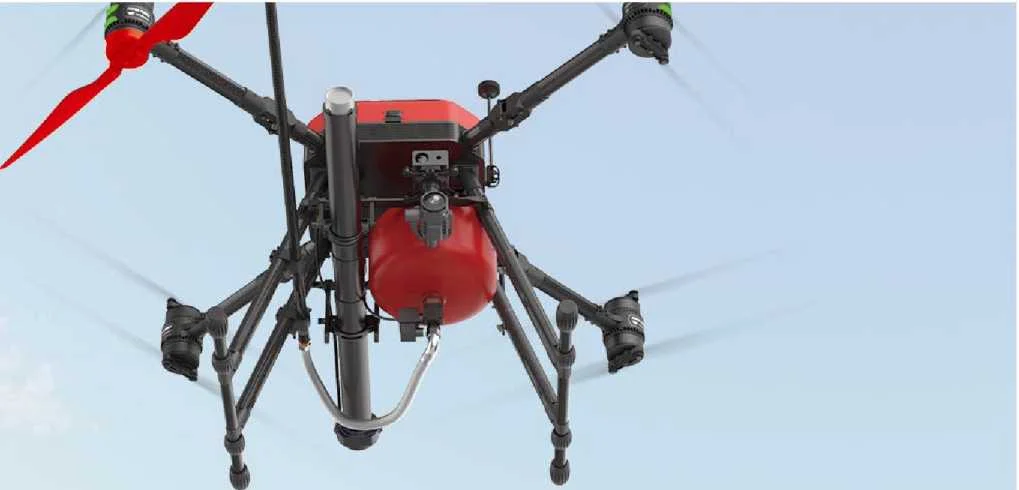

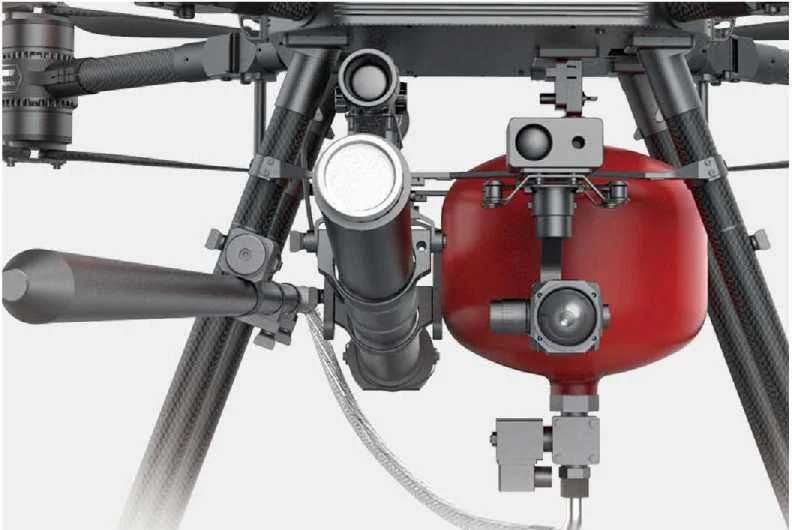

Airborne rocket fire extinguishing bombs and fire suppression bottle
Under the fuselage of the dual fire-fighting drone it is equipped with a rocket launcher and fire extinguisher. The fire extinguisher is powered by the rocket launcher, The effective firing distance is 40 meters, and the expansion length of powder spraying pipe of extinguish tank is 4.33 meters (the minimum can be reduced to 1.5 meters); Fire extinguishers and extinguishers are loaded with special extinguishing agent, which can effectively strike the fire source in the scene of high floors, providing high-altitude fire suppression for fire rescue.
Under the fuselage of the dual fire-fighting drone it is equipped with a rocket launcher and fire extinguisher. The fire extinguisher is powered by the rocket launcher, The effective firing distance is 40 meters, and the expansion length of powder spraying pipe of extinguish tank is 4.33 meters (the minimum can be reduced to 1.5 meters); Fire extinguishers and extinguishers are loaded with special extinguishing agent, which can effectively strike the fire source in the scene of high floors, providing high-altitude fire suppression for fire rescue.

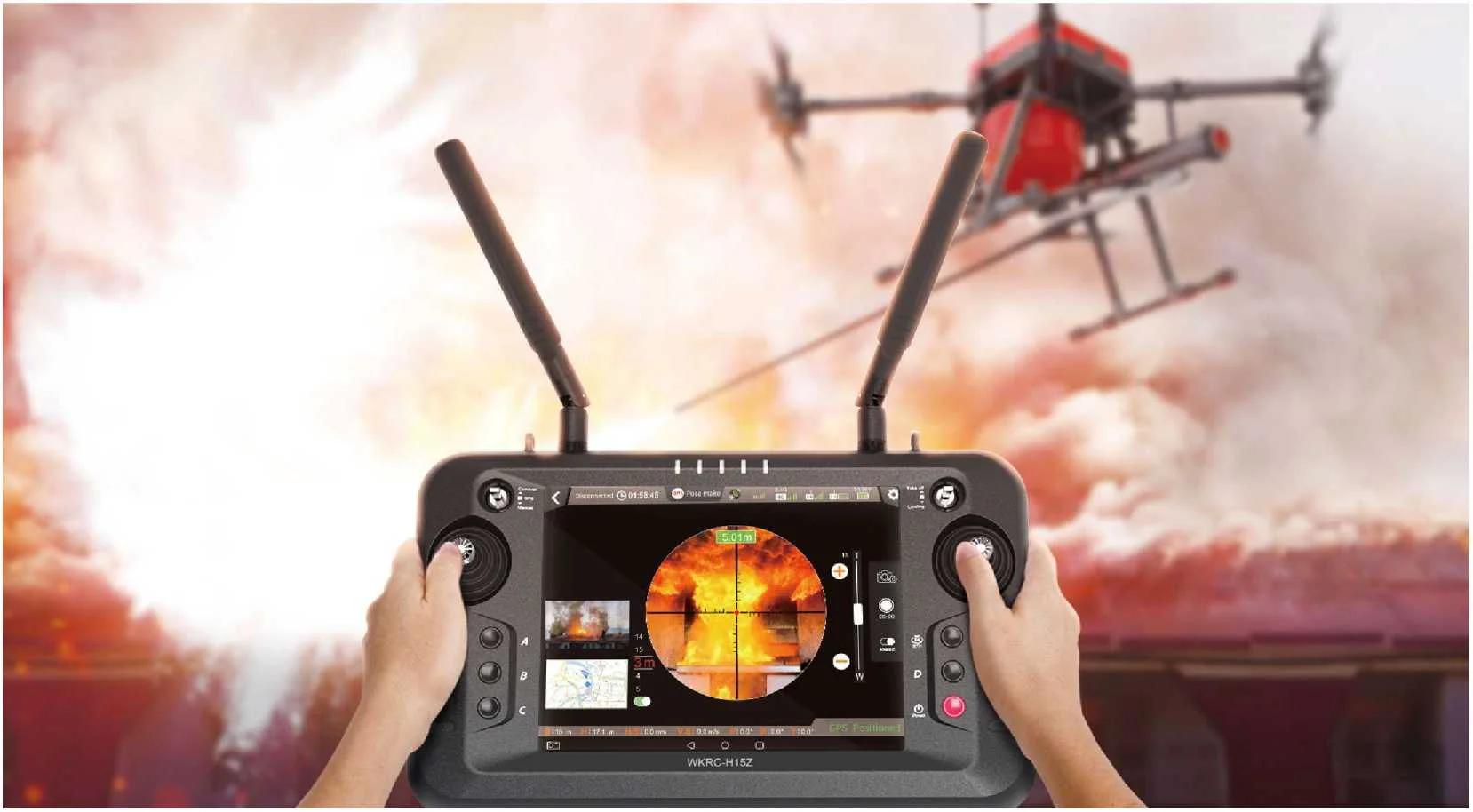

Firefighting drone special remote controller with screen
Aiming at the special needs of Firefighting application, we designed a remote controller with screen for Firefighting Drone, The remote controller with screen is portable and highlighted. It can also display clear images in direct sunlight, with built-in APP, you can get rid of the interference of complicated information when using ordinary mobile devices, and work more easily and efficiently.
Aiming at the special needs of Firefighting application, we designed a remote controller with screen for Firefighting Drone, The remote controller with screen is portable and highlighted. It can also display clear images in direct sunlight, with built-in APP, you can get rid of the interference of complicated information when using ordinary mobile devices, and work more easily and efficiently.
Mounted materials

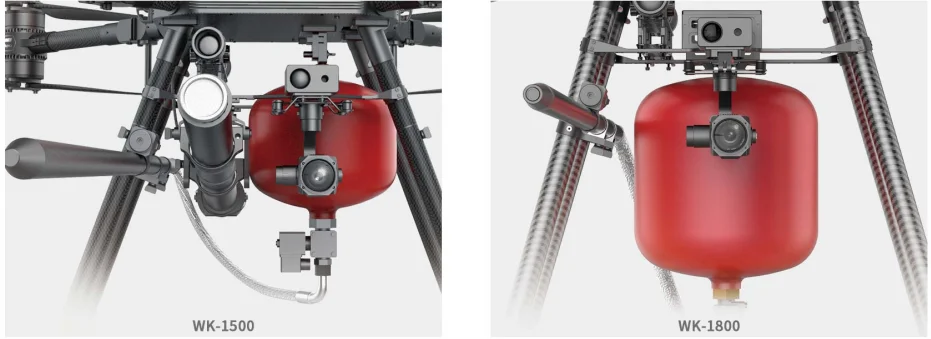

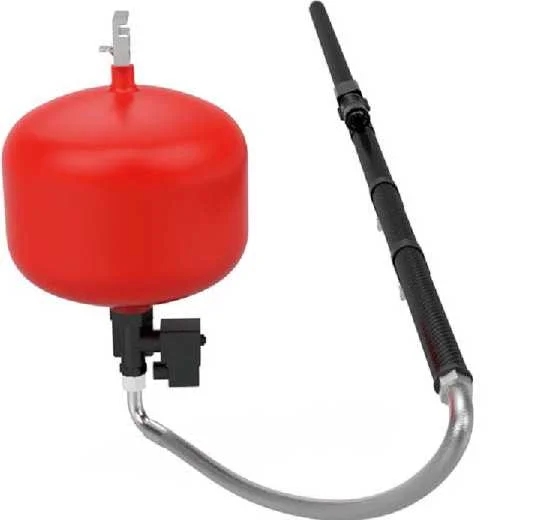

3KG fire extinguishing tank module(WK-1500)
The n.w.: 3kg\\5kg
Total w.: 6.2 kg, 9.5kg of dry powder
respectively. Filling pressure 1.2 MPa
Electronically controlled fast opening mode,
powder spray pipe: carbon fiber material;
Length: Expansion 4.33M
(Minimum can be reduced to 1.5m)
12 KG fire extinguishing tank module(WK-1800)
The n.w.: 12kg
Total w.:19 kg of dry powder
respectively. Filling pressure 1.2 MPa
Electronically controlled fast opening mode,
powder spray pipe: carbon fiber material;
Length: Expansion 4.33M
(Minimum can be reduced to 1.5m)
The n.w.: 3kg\\5kg
Total w.: 6.2 kg, 9.5kg of dry powder
respectively. Filling pressure 1.2 MPa
Electronically controlled fast opening mode,
powder spray pipe: carbon fiber material;
Length: Expansion 4.33M
(Minimum can be reduced to 1.5m)
12 KG fire extinguishing tank module(WK-1800)
The n.w.: 12kg
Total w.:19 kg of dry powder
respectively. Filling pressure 1.2 MPa
Electronically controlled fast opening mode,
powder spray pipe: carbon fiber material;
Length: Expansion 4.33M
(Minimum can be reduced to 1.5m)
Direct throwing dry powder fire extinguishing bomb module\t
\t
ABC Ultrafine Powder; 4 pcs Dry Powder Bombs which can be thrown in turn, each pc Fire extinguishing area up to 6m2, built-in 1080P high-definition throwing and aiming lens Suitable for fire extinguishing in large places, factories, forests and traffic.\t
\t
ABC Ultrafine Powder; 4 pcs Dry Powder Bombs which can be thrown in turn, each pc Fire extinguishing area up to 6m2, built-in 1080P high-definition throwing and aiming lens Suitable for fire extinguishing in large places, factories, forests and traffic.\t
High altitude launcher fire extinguishing module
CM60 Airborne Launcher
Outer tube caliber: 67mm
Single fire extinguishing capability of fire extinguisher: 9.2 m3 (full submergence)
Maximum Range: W50m Type: ABC
Ultrafine Dry Powder
CM60 Airborne Launcher
Outer tube caliber: 67mm
Single fire extinguishing capability of fire extinguisher: 9.2 m3 (full submergence)
Maximum Range: W50m Type: ABC
Ultrafine Dry Powder
High pressure pump voltage: 48V
Water tank module
High pressure pump voltage: 48V
Weight of high pressure water pump: 2.5kg
water pump pressure: on :0.25MPa off:1.5MPa
Water tank: 10L(WK-1500)/16L(WK-1800)
Material: carbon fiber
Expansion length: expansion length 3m (minimum up to 1.5m)
Water tank module
High pressure pump voltage: 48V
Weight of high pressure water pump: 2.5kg
water pump pressure: on :0.25MPa off:1.5MPa
Water tank: 10L(WK-1500)/16L(WK-1800)
Material: carbon fiber
Expansion length: expansion length 3m (minimum up to 1.5m)

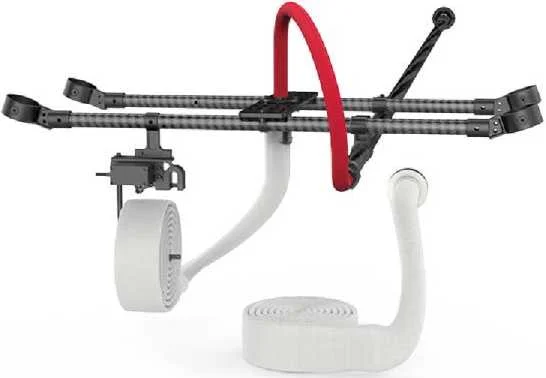

Fire horse module
It can work with fire hydrant and firefighting truck
Material: carbon fiber
Expansion length: expansion length 3m (minimum upto 1.5m)
It can work with fire hydrant and firefighting truck
Material: carbon fiber
Expansion length: expansion length 3m (minimum upto 1.5m)
Thermal imaging camera module
Recording resolution: 640x480
Zoom magnification: 8 times electron zoom
Suitable for Fire scene reconnaissance
Recording resolution: 640x480
Zoom magnification: 8 times electron zoom
Suitable for Fire scene reconnaissance
Low Light Level Night Vision Camera Module
SONY: 1/2.7 inch CMOS;
2 million effective pixels
Lens: FOV 85 degrees; 4.4mm;
F1.2 aperture
Suitable to: night surveillance and reconnaissance, security patrol
SONY: 1/2.7 inch CMOS;
2 million effective pixels
Lens: FOV 85 degrees; 4.4mm;
F1.2 aperture
Suitable to: night surveillance and reconnaissance, security patrol

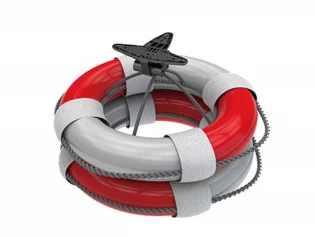

Lifebuoy Throwing Module
Built-in 1080P High Definition throwing aiming lens assisted search precision throwing
Suitable to: marine emergency rescue throwing
Built-in 1080P High Definition throwing aiming lens assisted search precision throwing
Suitable to: marine emergency rescue throwing

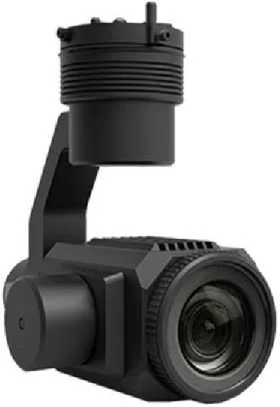

4K 30 times optical zoom module
12 million HD 4K image quality,
30 times zoom
Focal length: 6.7-134.5mm
Suitable to: long-range tracking, surveillance and reconnaissance, security patrol
12 million HD 4K image quality,
30 times zoom
Focal length: 6.7-134.5mm
Suitable to: long-range tracking, surveillance and reconnaissance, security patrol
Air Caller Module
The volume is 125 decibels and the invoice transmission distance is 1.2 kilometers.100W power, one-key recording
Suitable to: on-site command, crowd evacuation, law enforcement shouting
The volume is 125 decibels and the invoice transmission distance is 1.2 kilometers.100W power, one-key recording
Suitable to: on-site command, crowd evacuation, law enforcement shouting
