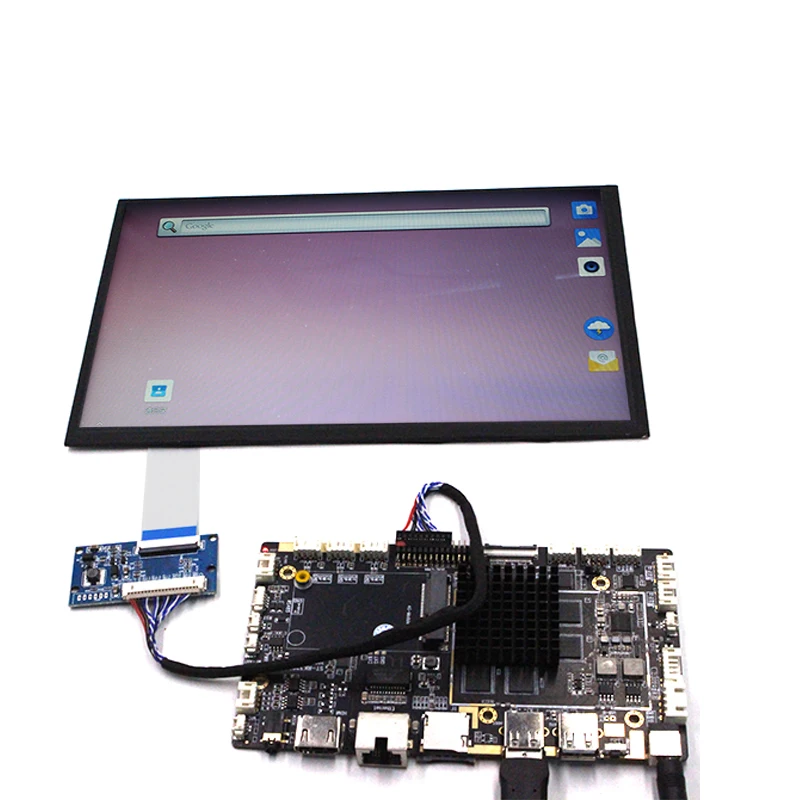

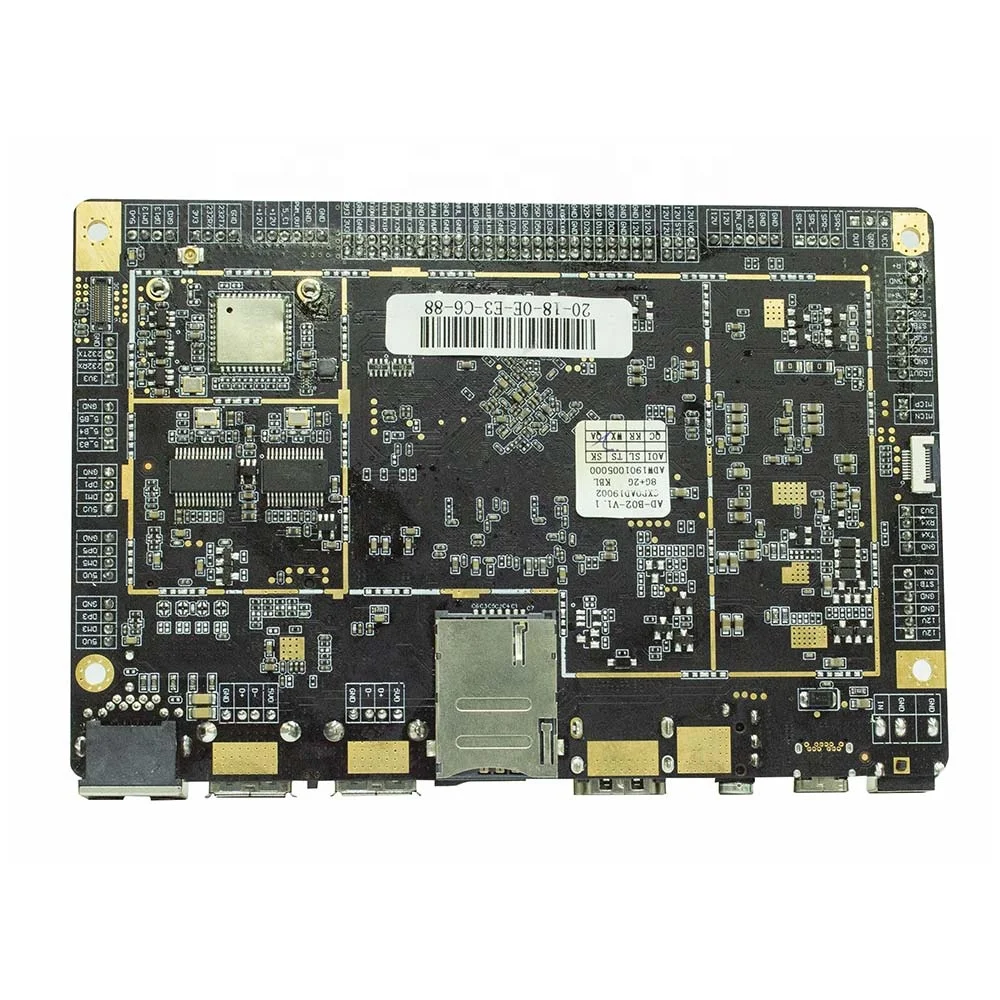

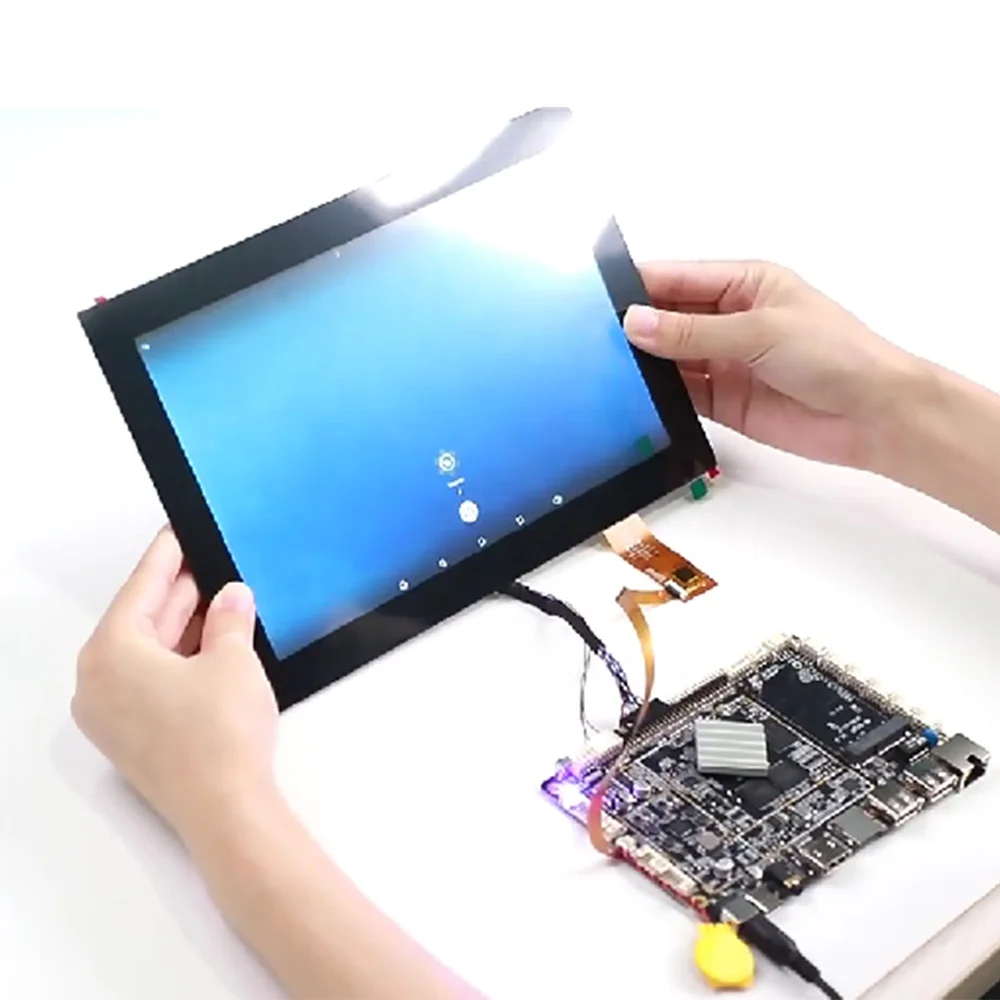

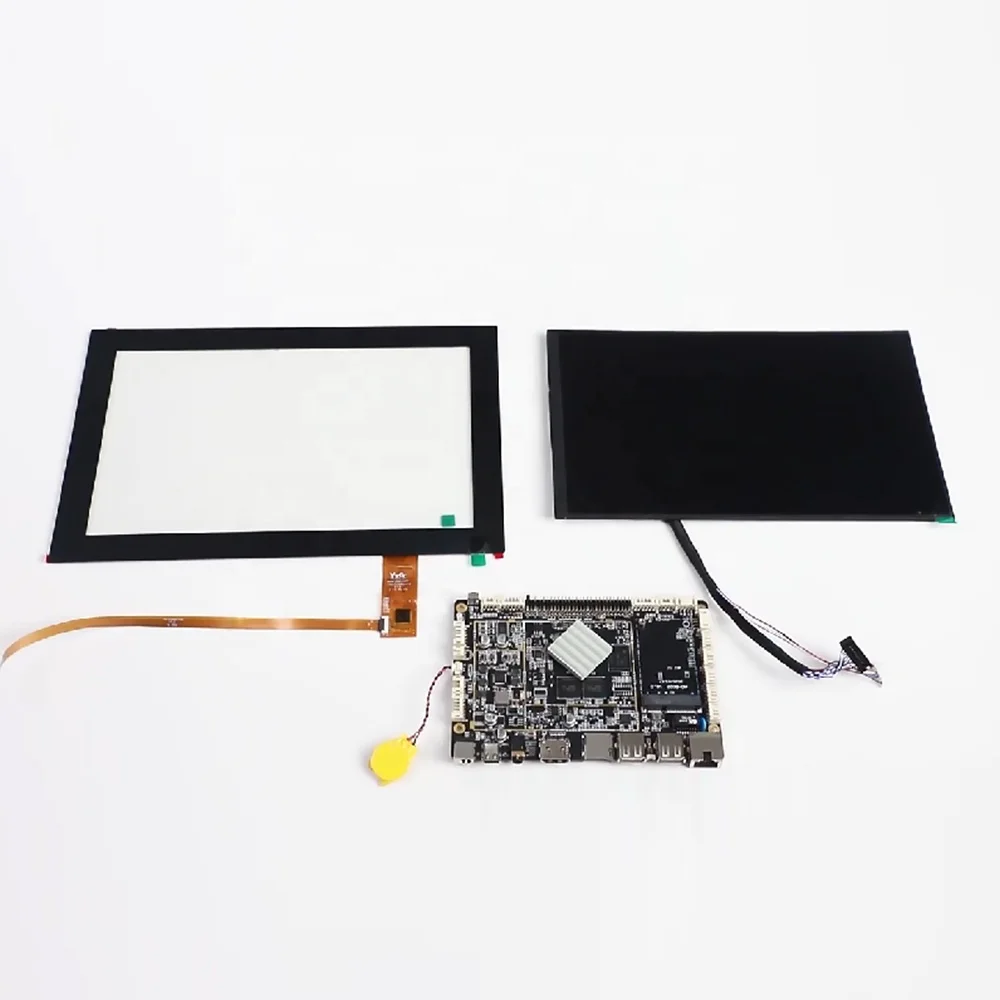

Android rk3288 kit android box board USB/LVDS/ETHERNET/MIPI/WIFI/BT4.1/eDP controller board

Share on (1600527732142):


Price:

Quantity:


Product Overview

Description





Specification


CPU
Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency
1.8 GHz
Deposit
LPDDR3 2G/4G Optional
Built-in storage capacity
EMMC 8GB/16G/32G/64G etc. optional
Display interface
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82"
display
EDP interface Maximum resolution 4K
Screen voltage
Support 3.3V/5V/12V optional
Touch screen
Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen.
The internet
With RJ45 interface, support 10/100M Ethernet.
Equipped with wifi &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
With 4G module, support 4G network
Image rotation
Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional)
Real Time Clock
External real-time clock power supply battery


Interface device
Support MIPI camera
Support HDMI output
5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC
module, printer, card reader, etc.)
3 IO detection ports
TF card
D class large built-in speaker, 5W*2 8R
Support microphone
Audio
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video
Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5
video playback, Flash 10.1 playback
Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter
Input:AC100-240V.50-60HZ, Output: DC12V 3A
