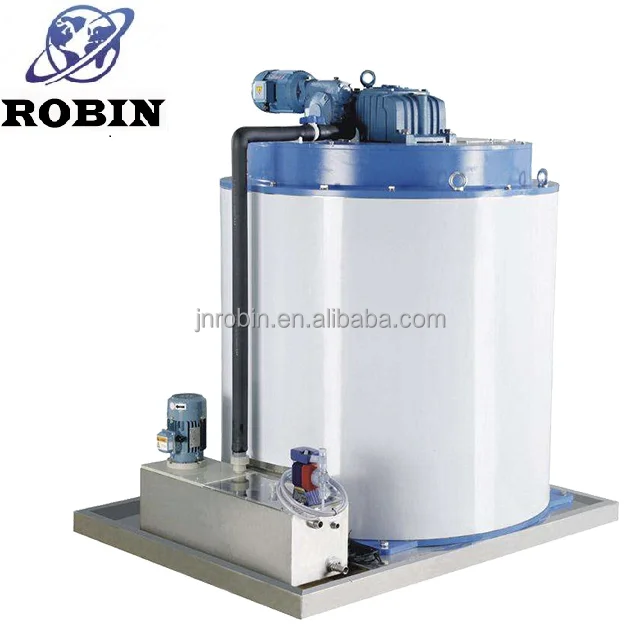

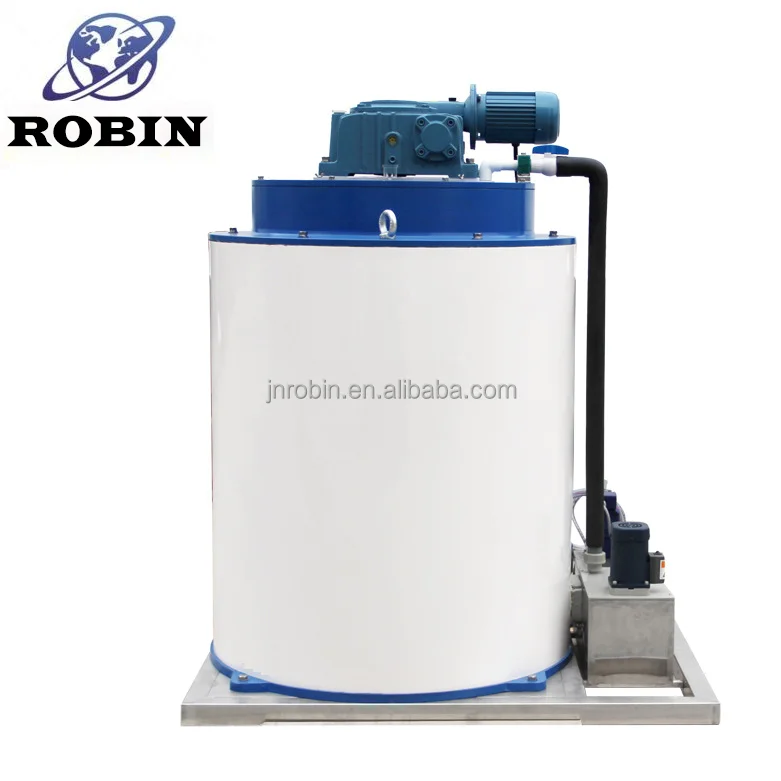

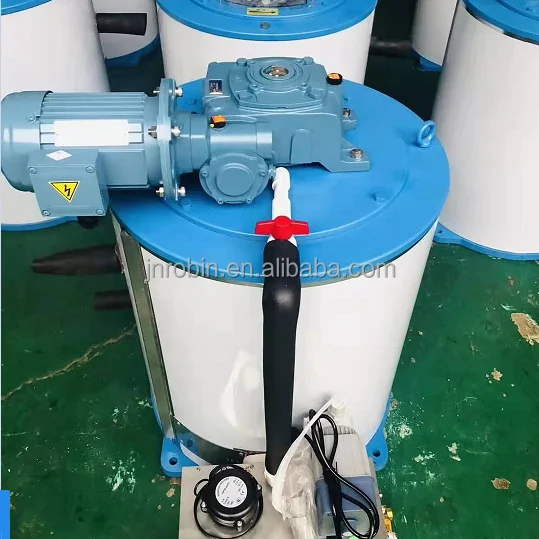

China factory price 5 ton industrial flake ice drum With Ammonia and Freon Refrigeration System for sale

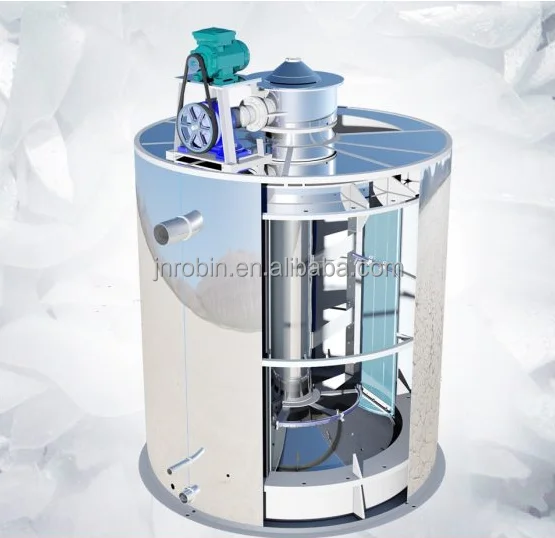

5 ton flake ice machine evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated. And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and better performance.

Flake ice machine evaporator are widely applied into flake ice making plant and ammonia system ice machine, etc. To realize the continuous ice making, users only need to connect the evaporator tube to the refrigeration source, convenient installation, lower cost.

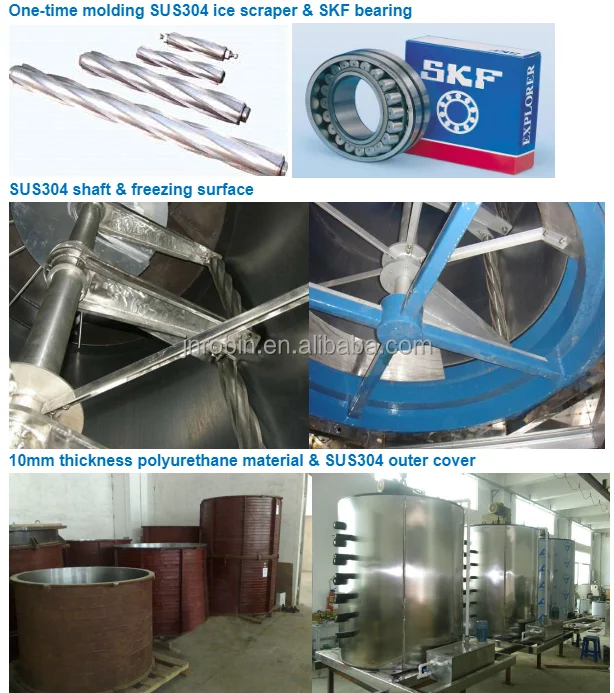

Flake Ice Evaporator Drum Main Accesories:

(1) Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It is durable;

(2) Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standard;

(3) Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.

(4) Evaporator size and installation direction can be customized acoording to customers requirements;

(5) The material of evaporator wall, up and down pedestal is availabe ( SS 304 & 316).

Specifications:

Model	RBFE-1T	RBFE-1.5T	RBFE-2T	RBFE-3T	RBFE-5T	RBFE-10T
Daily output(Ton/24h)	1	1.5	2	3	5	10
Necessary refriger(kw)	6	9.8	12	18	30	60
Voltage			380V/50HZ/3P
Reductor power(kw)	0.18	0.18	0.37	0.37	0.37	0.55
Water inlet /Drain pipe	1/2"	1/2"	1/2"	1/2"	1/2"	3/4" / 1/2"
Deminsion(mm)	790*580*900	790*580*1000	950*680*1050	950*680*1200	1180*1050*1420	1580*1500*1670
Weight(kg)	160			280	370	1100

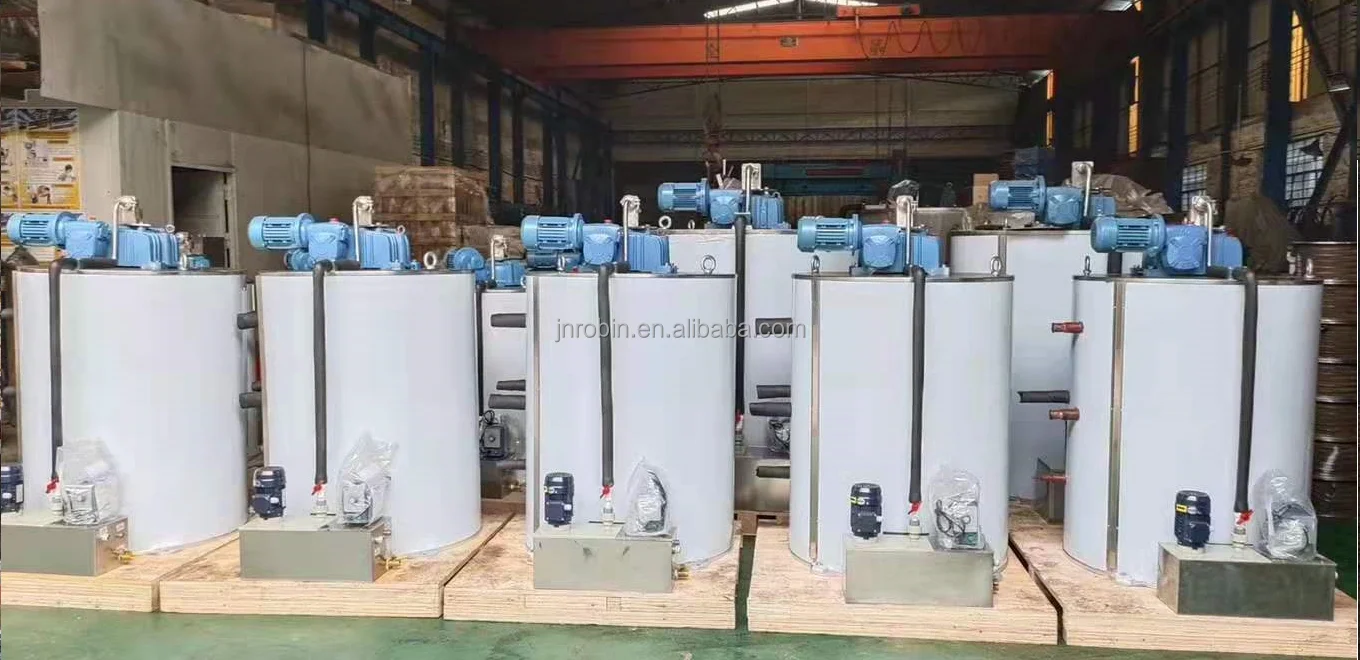

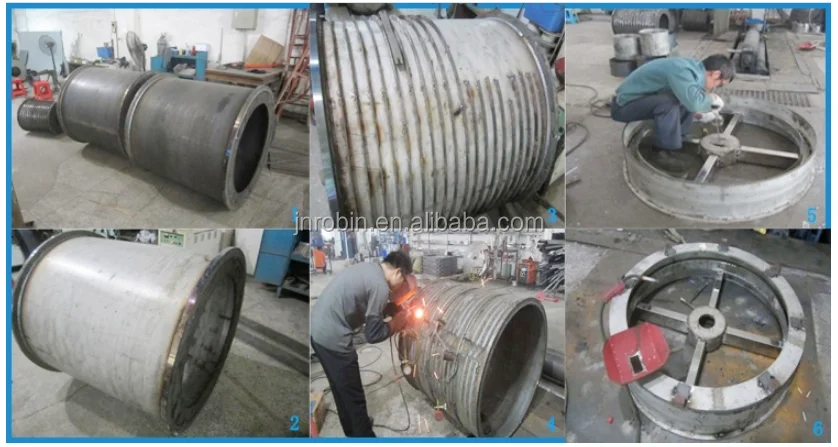

Prduction Porcess:

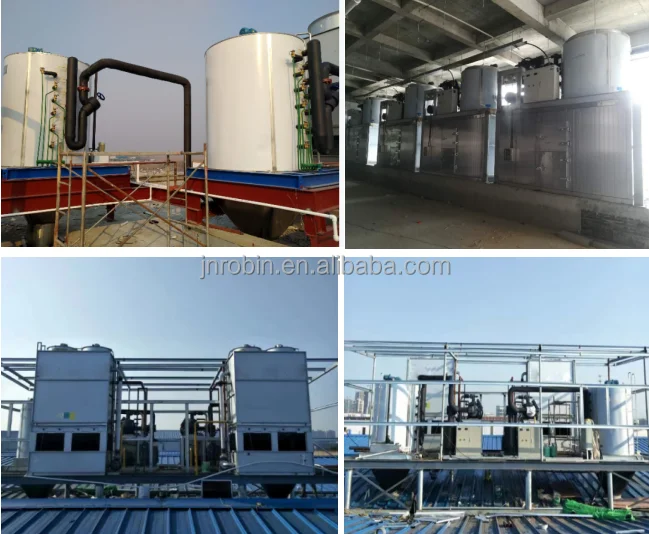

Successful Project:



♦ Installation & Training

All the working units of the machine are installed and fixed in a SUS304 frame, easy for on-site installation, customers just need to connect the power and water supply.

ROBIN company can provide on-site or online training on installation and daily maintenance according to customers’ requirements.



♦ Warranty & Service

All the ROBIN ice machines will be tested for 72 hours before shipment.

All the ROBIN ice machines enjoy 12 months warranty in free of charge ever since B/L date.

All the ROBIN ice machines enjoy lifelong free technical support.



♦ 24*7 hours phone service

♦ On-site & online training service

♦ Engineers available service machinery overseas

♦ ROBIN service centre working time: 8:30-18:00, from Monday to Sunday.

Certificate



Exhibition Shows



Q:Can we get some samples?
A:Of course, we can supply samples,but the sample cost and postage charge is on buyer's   account.

Q:when we received the goods, if there have defecitve ice machines ice makers, how would you solve this problem?
A:If there has any defective ice machines,just take pictures, we will replace good machines to you one to one.

Q:Can you print my logo on the ice machines?OEM? and produce ice maker as our design?
A:Yes, we can supply label printing service, we alsp can do silk-screen printing and hot stamping.We also can do customized packing for customers.If you need we can produce ice machines as your design.

 Q:What' s your normal lead time?
A:We will send out goods in 20-35 days after received your payment.

Q:How to install the ice machine?
A:when we ship the machine to you ,instructions booklets along with the machine,you can read it ,any problem our technicians team will solve at first time.
large ice block machine,tube ice machine ,flake ice machine , we will let our engineers help you install and debug in your country,pls rest about that.

Q:How about after-sales?
A:We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
Whole machine 12 months warranty, the compressor 5 years. Maintenance for life!
